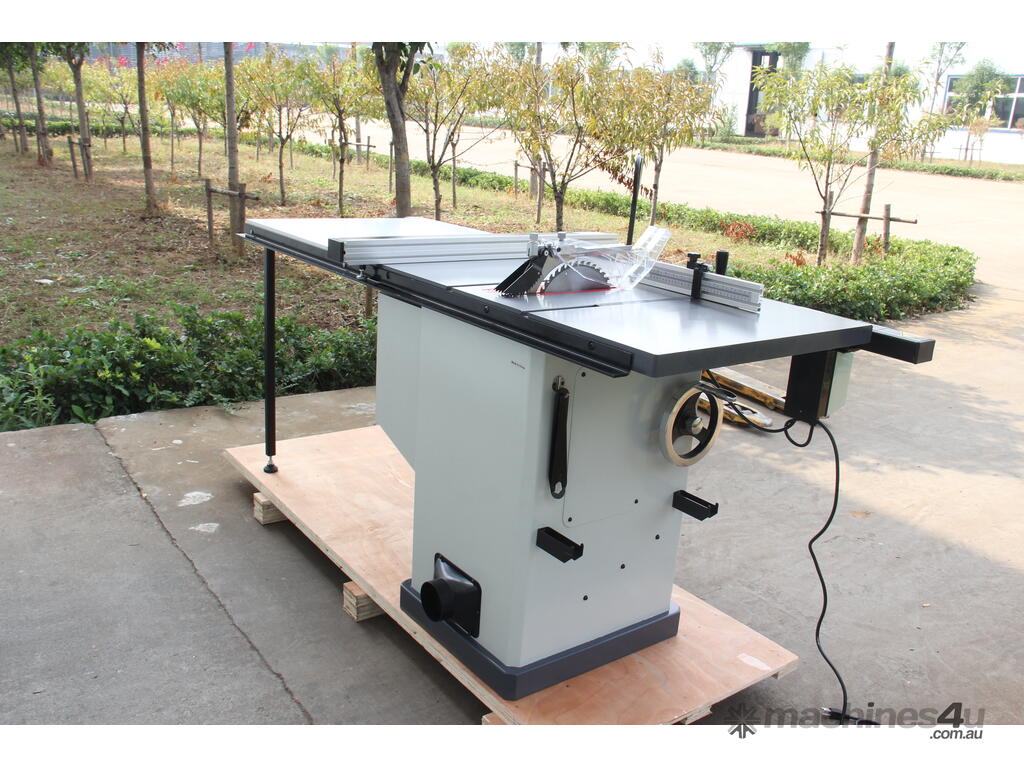

Table Saw WTS10-50 C/W 2100mm Rail

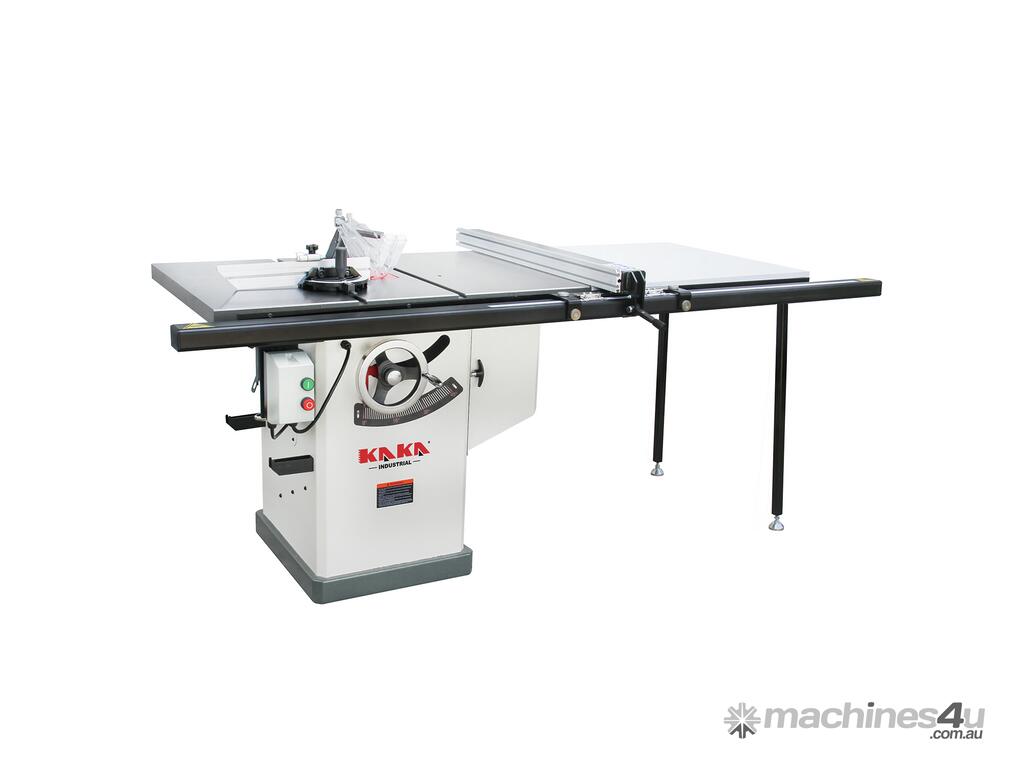

KANG Industrial Table Saw WTS10-50, 240V-1PH

This WTS10-50 heavy-duty left-tilting table saw is built for woodworkers, cabinet makers, and furniture builders who demand precision, power, and value. The WTS10-50 combines a powerful 3 HP motor, enormous 1320mm right rip capacity, and superior dust collection in one complete package.


Huge Rip Capacity Cabinet Saw. 1320mm right rip + massive extension table handles standard 2400 x 1200 mm (or larger) plywood and MDF sheets with ease

Pro-Level Build & Quiet Operation. One-piece steel cabinet + poly-V belt drive = rock-solid stability and much quieter running than V-belt models. Ideal for home garages or small workshops where noise matters.

Best-in-Class Dust Collection. Fully encapsulated blade + 4" port keeps your workspace clean and healthier

Features

3HP powerful motor runs on 240V/1PH power

ø254mm saw blade, max. tilt 45° (left side)

Saw blade speed up to 3550 RPM

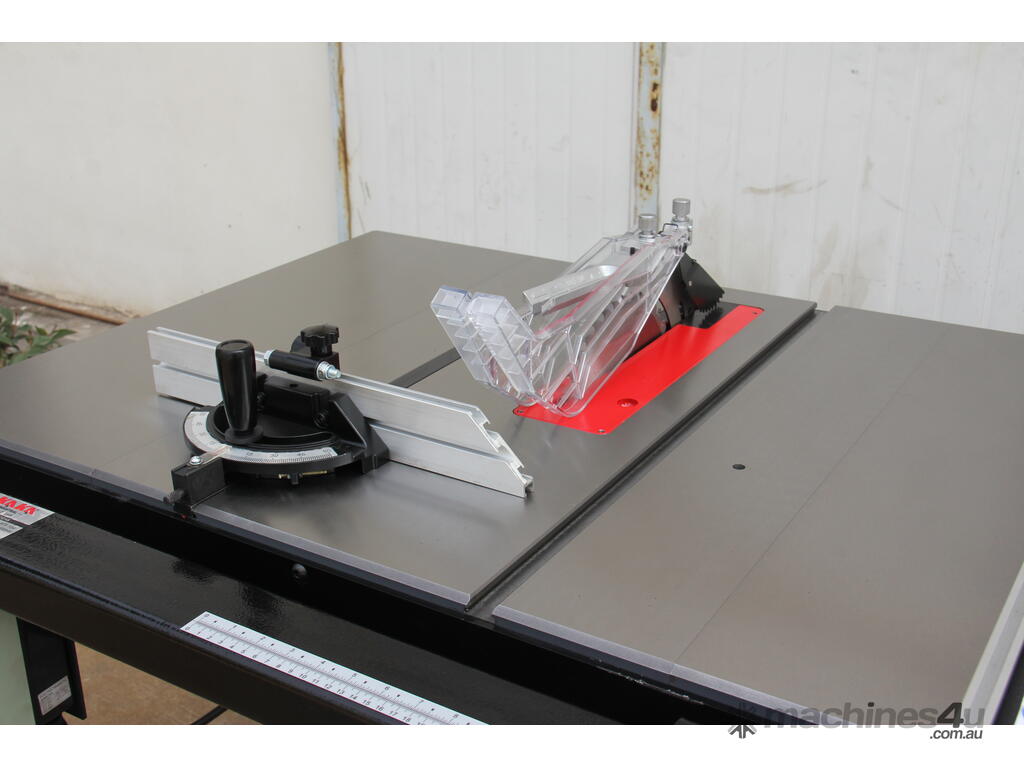

Precision ground cast iron table 813x686mm with extension 1120x686mm

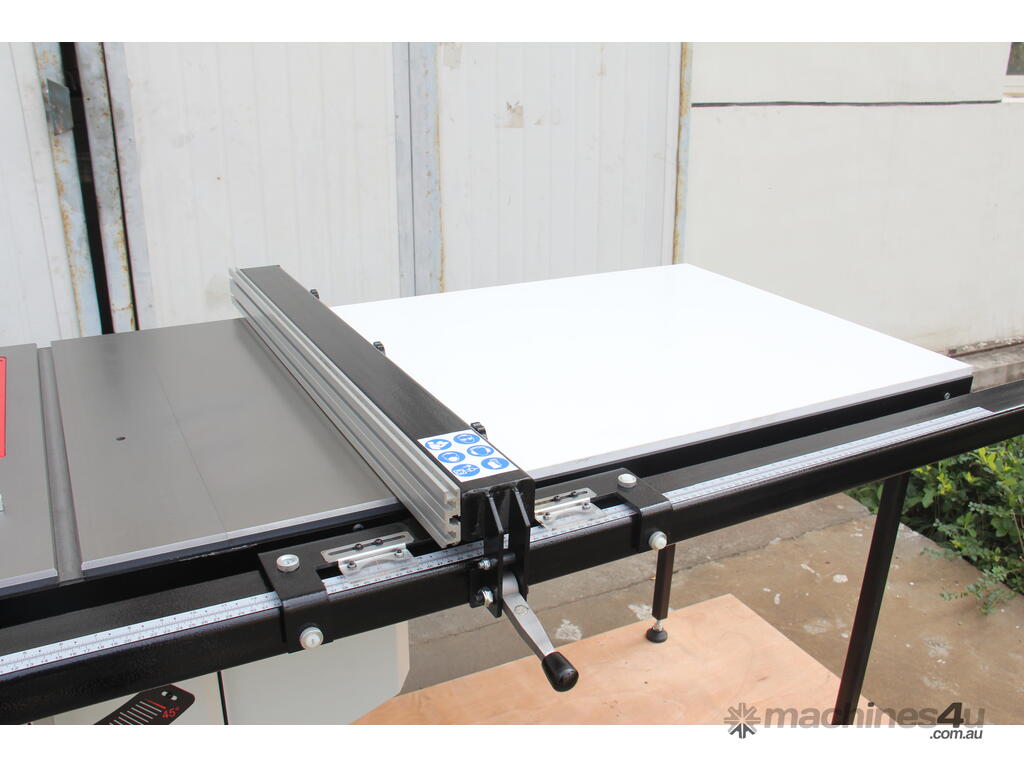

The extension table permits convenient cutting for large panels

Cabinet stand with ø100 mm dust port

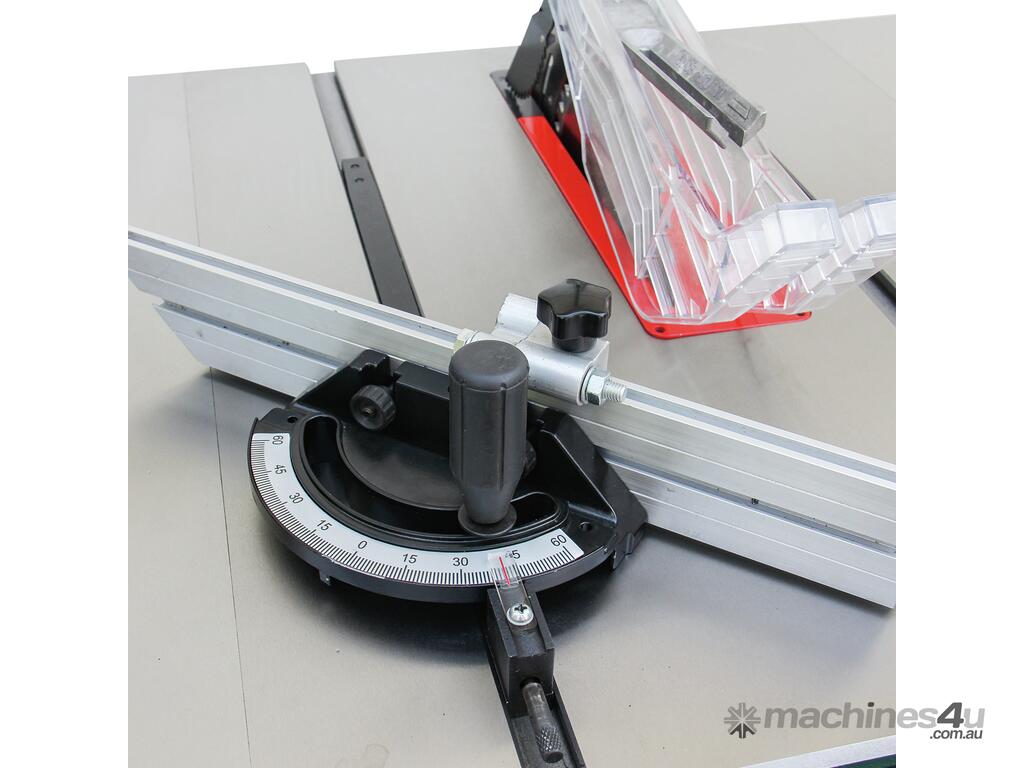

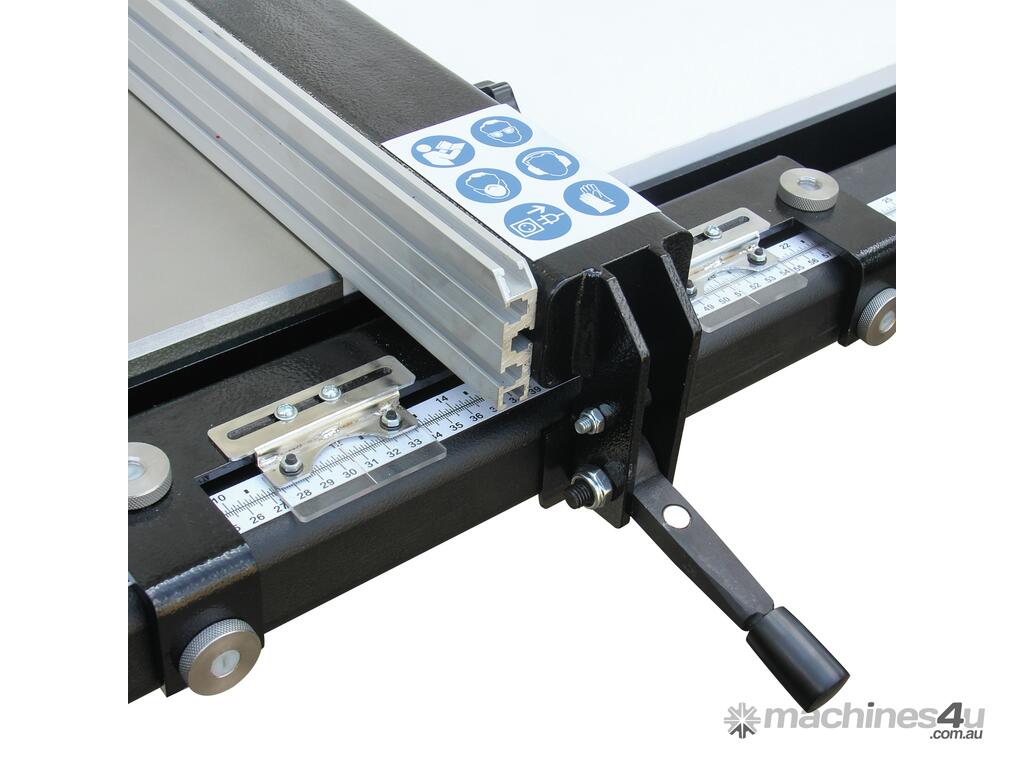

Standard with miter gauge, push stick, and blade guard, 2100mm rails

Specifications
SKU 471103
Model WTS10-50
Motor 2.2 kW/3HP
Assembled table size 1120x686 mm
Balde 254 mm
DADO blade size 203 mm
Max. width of DADO 20 mm
Blade speed 3550 rpm

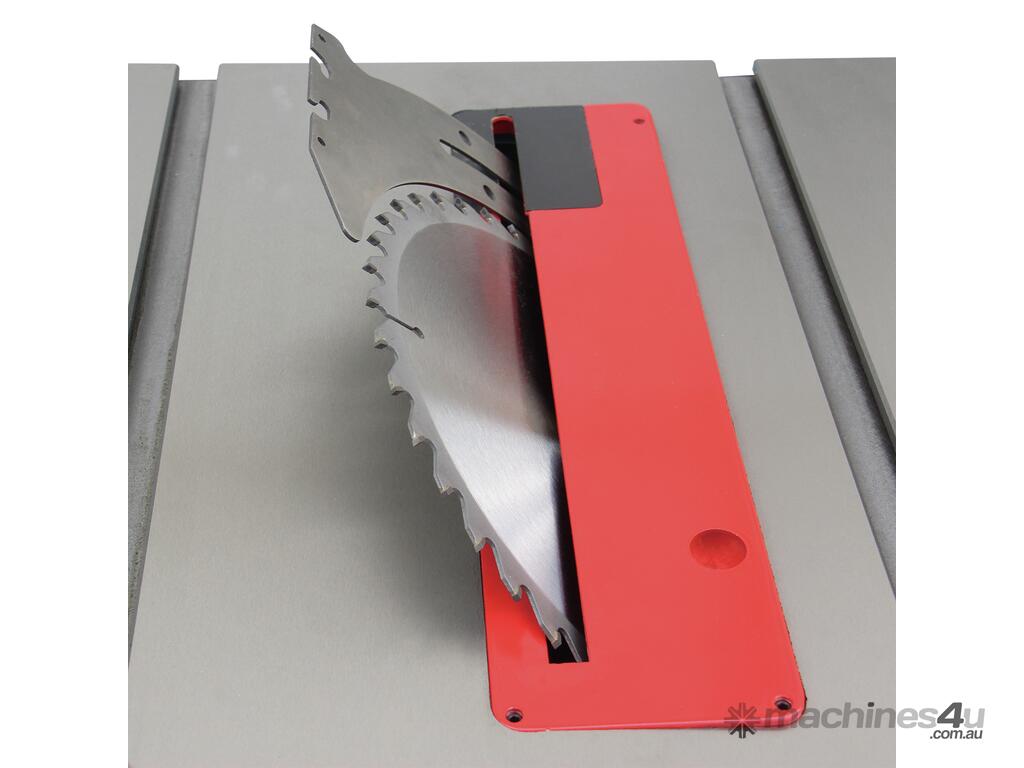

Blade tilt 45°
Max. depth of cut 90° 80 mm
Max. depth of cut 45° 55 mm
Max. rip right of the blade 1320 mm
Max. rip left of the blade 520 mm
Lifting Dovetail
Dust port  100 mm
Overall dimension 2138x1060x1040 mm

Packing size Machine: 93x86x110 cm; Rail: 226x14x15 cm

N.W./G.W. Machine: 118/230 kg; Rail: 25/33 kg
