Taiwanese Mega Swing Centre Lathes , Ø 1800/2000/2250/2500mm Turning Capacity

Everturn Taiwan offer one of the most comprehensive range of Heavy Duty Turning Machines for virtually any and all applications, from Oil Field, to Heavy Industry, Energy, Steel Mills, and Jobbing Shops. With a range of spindle bores from 4" through to an increadible 21" and swing over the bed up to 2500mm. Now with a large number of reference sites here in Australia Whitelaw Engineering Machinery can arrange a demonstration at your conveinience. Call Dimitri for more details.

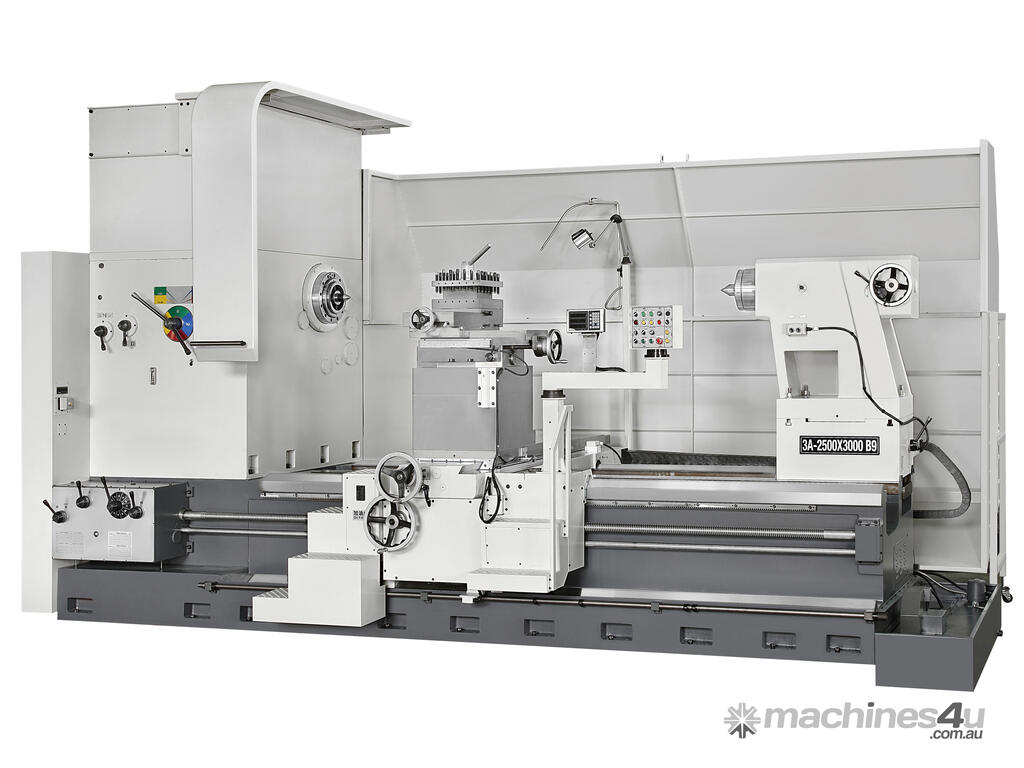

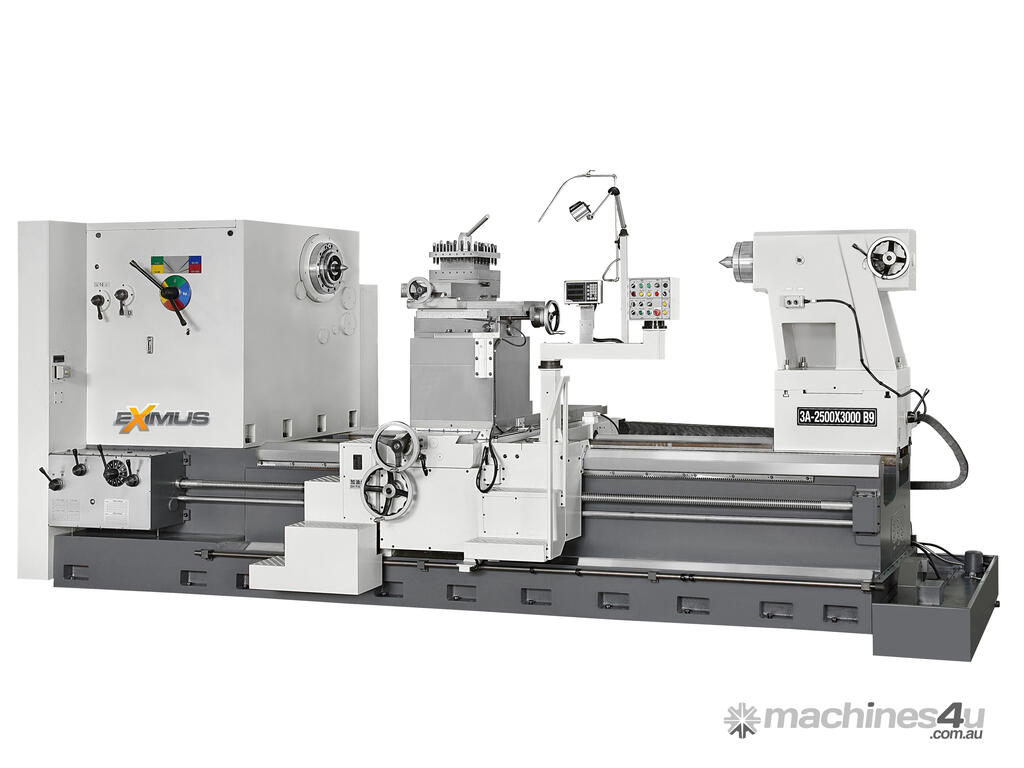

MODEL EV-80 SERIES BIG BORE CENTRE LATHE

KEY FEATURES:

Swing over bed: …1800/2000/2250/2500mm
Swing over cross slide: (Full length Std)…1350/1550/1800/2050mm
Width of bed: …1345mm
Distance between centres: …3000-15000mm (4 guide way)
Spindle bore: …Ø 210 A2-15/ Ø 260mm A2-20
Spindle speeds (Range): …4 steps (6-400rpm)
Spindle taper: …MT#7
Main spindle motor: …75HP (optional 100HP)
Approx machine weight: ..up to 30 tonnes

STANDARD EQUIPMENT:

Hydraulic spindle brake
Star delta soft start
Auto lubrication system
6 way rapid traverse
Coolant System
Tailstock rotary quill 290mm
Motorized tailstock
Work light

OPTIONAL EQUIPMENT:

100HP motor
3 & 4 Jaw Chuck (Cast Iron)
3 & 4 Jaw Chuck (Steel Body)
4 Jaw face plate
Full length rear splash guard
Moving splash guard
Boring attachment
2 Axis digital readout
Heavy duty steady rests
OH & S Guarding

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice.
