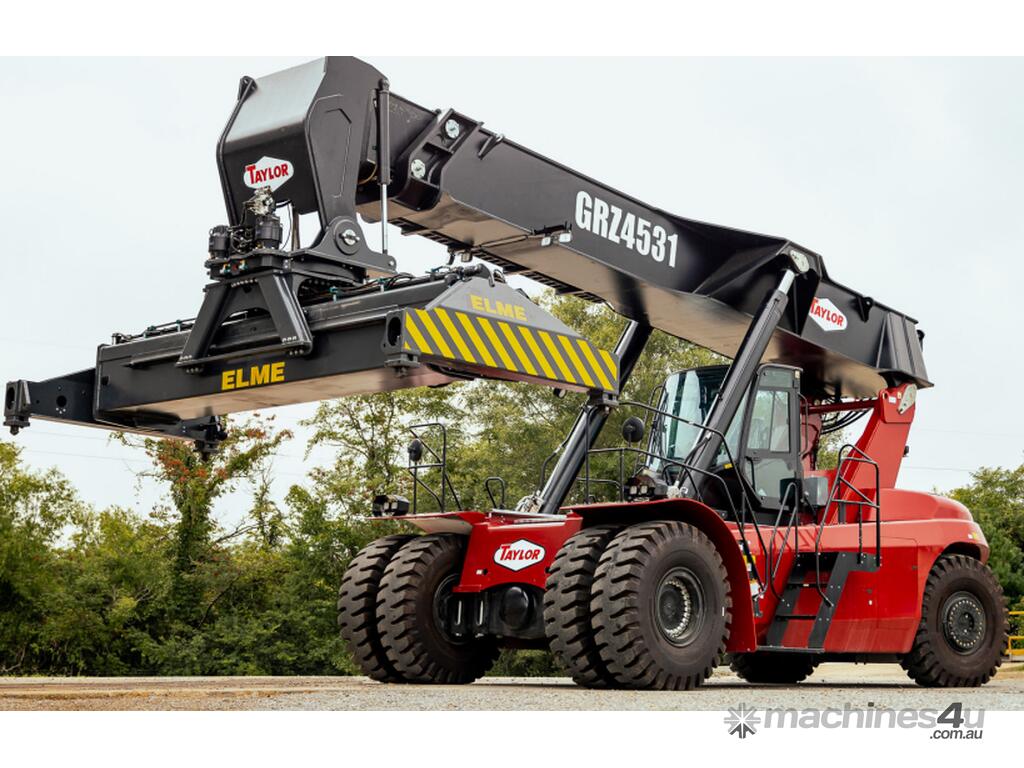

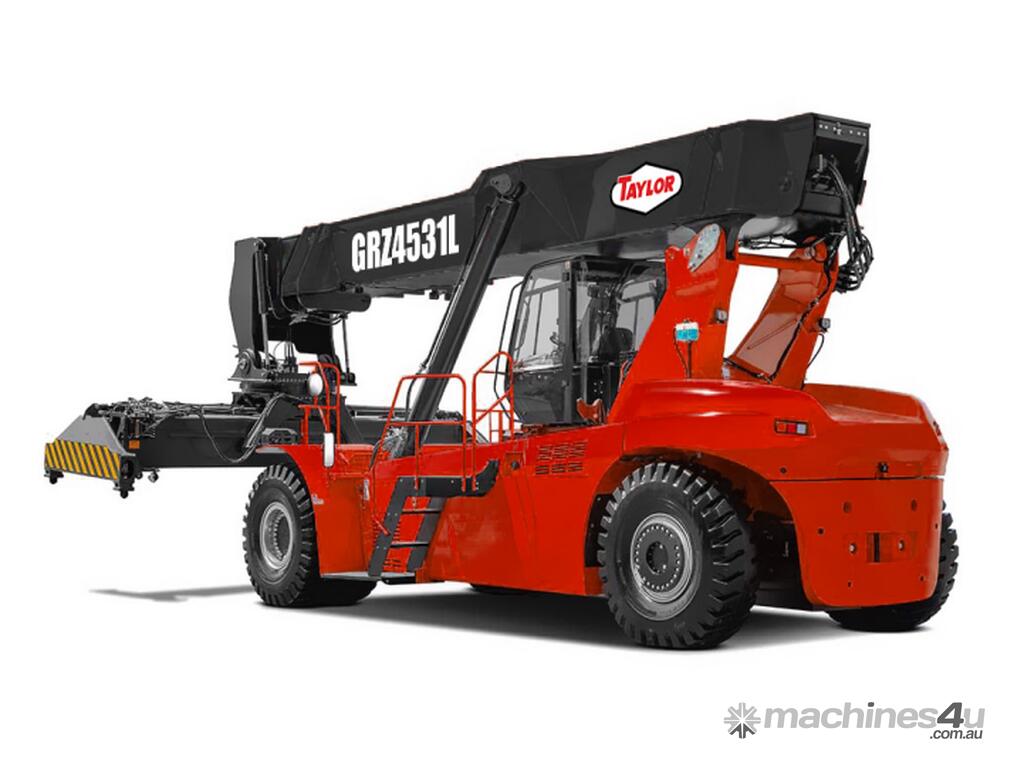

Taylor GRZ-4531 Electric Reach Stacker - Container Handler

• Standard large-capacity lithium battery
• Both the drive and operating systems are efficient permanent magnet synchronization systems with low energy consumption.
• 618V platform enables lower current and minimal system heat loss
• Braking and load lowering energy are recovered to prolong operating time.
• Double-gun CCS2.0 fast-charge port offers a full charge in no more than 2 hours.
• KESSLER’s heavy-duty reinforced drive axle, with multi-disc wet brakes, and planetary gear reduction.
• All motors, electronic controls, and high-voltage components are IP67 rated to withstand harsh operating environments and ensure safety and reliability.
• Both the battery and vehicle are equipped with dedicated automatic fire suppression systems standard.
• Powered moving cab
• Sunshade
• Reading light
• Speed-adjustable wiper
• Heat and air conditioning
• Radio
• Adjustable Steering wheel
• Multi-directional armrest adjustment
• Operator presence (OPS)
• Pneumatic tires
• Traction control
• Vehicle toolkit
• Fully hydraulic power steering
• Load-sensing hydraulic system
• Independent brake oil circuit
• Independent brake oil cooling
• Independent hydraulic oil cooling
• Twist-lock counter
• Vehicle LED lights
• Main power disconnect switch
• 6-sensor reverse radar (3m)
• Color LCD
• Reverse alarm
• Air horn
• 24V CAN bus communication
• Spreader twist-lock interlock
• Proportional spreader control
• Dynamic anti-tipping protection (LMI)
• Vertical lift control
• Spreader sway prevention
• Light load high-speed lifting
• Lighting control system
• Electrical safety protection
• Maintenance Indicator
• Fault diagnosis system
• 24V electrical system, main power disconnect switch, and
emergency shutdown switch.
• Advanced CAN bus communication is used to monitor the
status of the spreader, and vehicle, with fault protection. The
data is displayed on a high-definition color screen, easily
viewed by the operator.
• The fully-suspended cab can be repaired and maintained easily, override switch
allows manual movement of the cabin with power loss.
• Sound and heat insulation shield vibration and noise.
• Large curved front and rear windows, all-glass left and right doors, and a large
glass skylight enhance visibility.
• Tilt and telescopic steering column, fully-suspended adjustable seat with high[1]back and safety belt, and OPS Operator Presence System.
• Heat, defrost, and air-conditioning with dual ventilation modes, sun shades, and
adjustable wipers enhance operator comfort
• Dynamic anti-tipping protection (LMI)
• Load indicator:
• green (indicating normal operation)
• orange (indicating warning)
• red (indicating action required)
• Display: twist lock status, boom length, actual load,
maximum load, boom height, boom angle, extension, load
percentage bar, alarm code, etc.
• Centrally controlled lighting system, integrated switch
panel, and ergonomic layout enable comfortable and easy
operation.
• The CAN bus controls allow short-circuit and open-circuit
diagnosis of LED lighting
