Techni Waterjet - 2 Dimensional Abrasive Waterjet Profile Cutting Machine

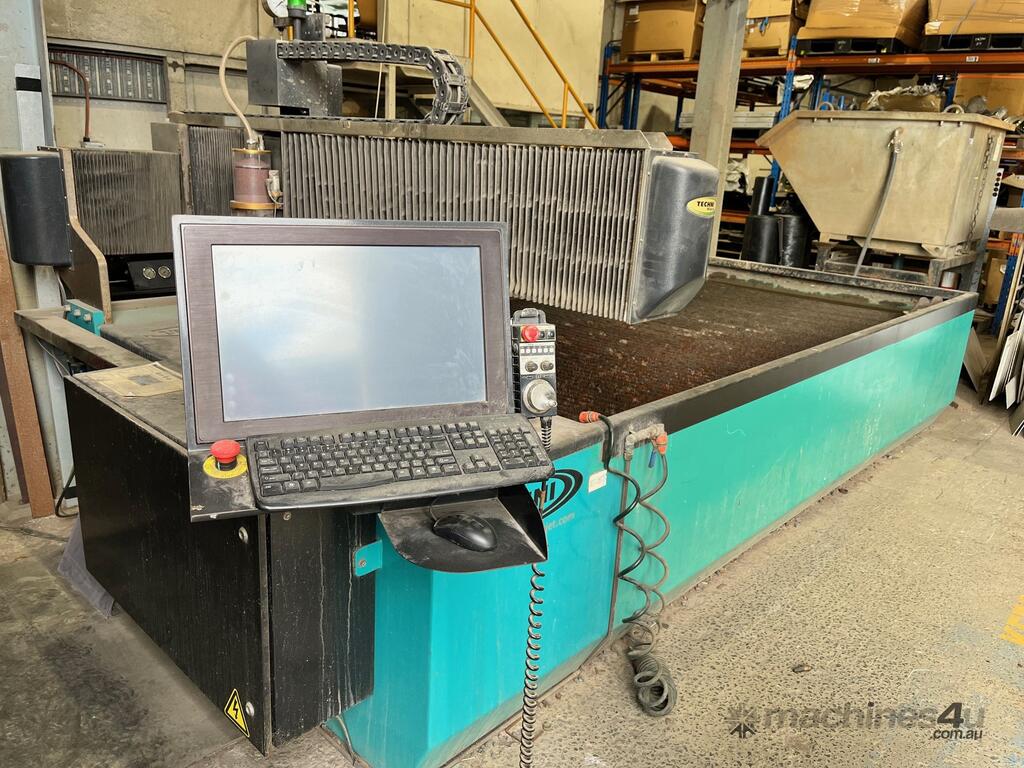

TECHNI Waterjet INTEC 612-G2, 2 Dimensional Abrasive Waterjet Cutting Machine

Machine specification:-

- Cutting Table 1880mm x 3750mm
- Max. Part Size 1800mm x 3600mm
- Accuracy of Motion +/- 0.1 mm/metre
- Max. Air Speed 300mm/sec.
- Max. Cutting Speed 300mm/sec.
- Intensifier Quantum ESP 66 SAP

Machine features:-
- Moving head connected to the cutting table ensuring accuracy
- High precision stainless steel belt drive, giving smooth movement at rapid speeds with extreme accuracy
- Servo drive motors with Diagnostic Feedback
- Quick change replaceable slat grid table
- Abrasive Cutting Head with Diamond Orifice
- Power "Z" Axis
- Air tight bellows protecting linear bearing rail assembly

SOFTEC - Waterjet Software
- ANCA Servo Control – Australian Made – .anca
- 19” Mounted Monitor
- On-line C.A.D. with standard shapes and components
- DXF Translation
- On screen running, in real time
- Auto-tool offset for focusing tube wear compensation
- Auto-nesting and array nesting functions
- 5 different cut qualities from coarse to extra fine, selectable for each line
- Dynamic piercing option
- Hi or low pressure cutting and piercing for glass and stone
- Automatic functions for; Kerf compensation, lead ins, lead outs and tabbing


INCLUDED OPTIONS
- 500kg Bulk Abrasive Transfer
- Break away Head - Crash Sensor
- Tech Sense Abrasive Monitoring System
- Automatic Water Raise/Lower Tank
- Remote Pendant Control
- Servo Drive Z Axis with Laser Mapping
- Water Chiller - saves upto 65% of water consumption
- Advance Nesting Software – Softec Nest©
- Waste Removal System – to remove waste garnet

Well maintained; pump rebuilt 2021; cutting head repaired/refurbished 2024.
