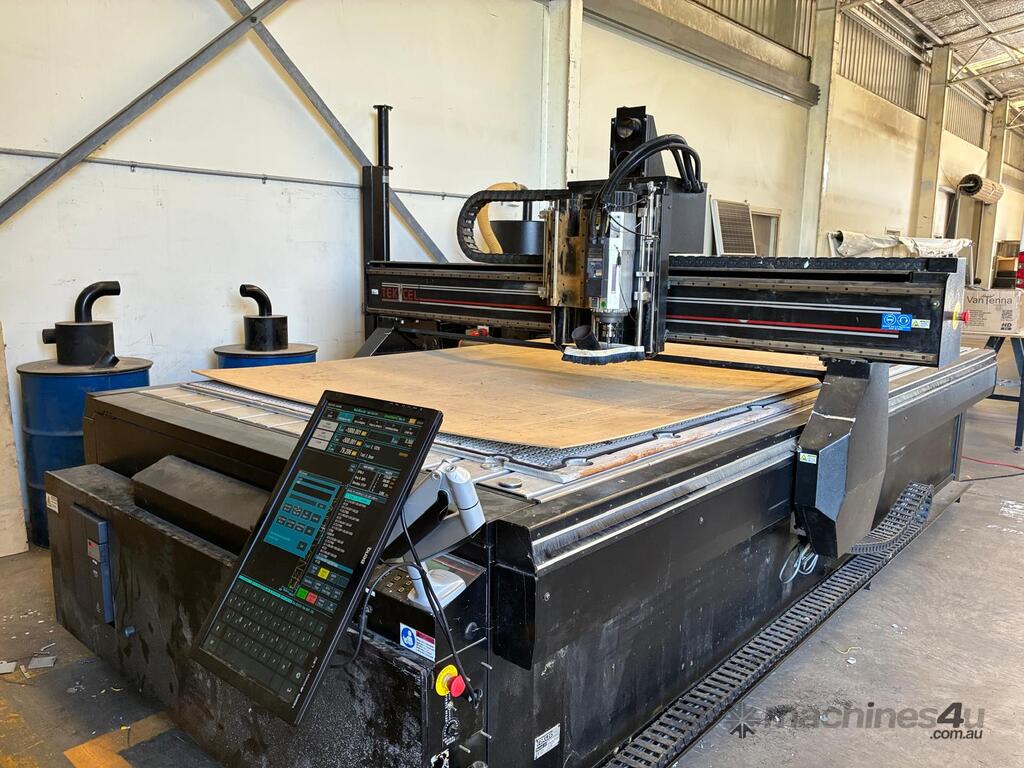

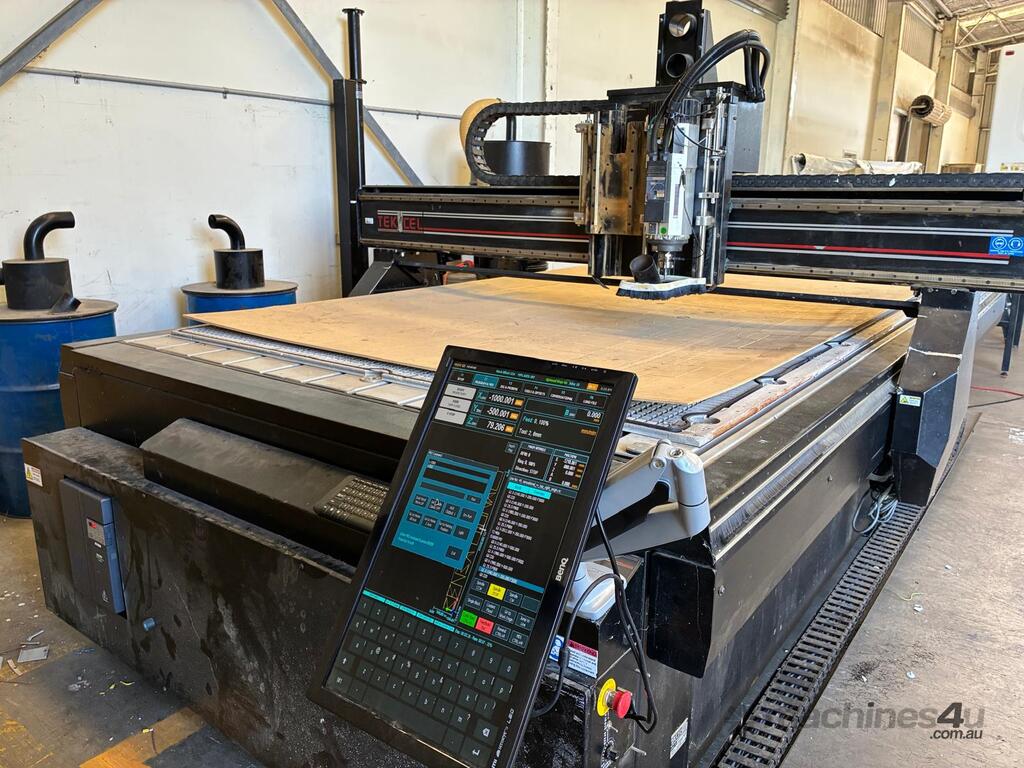

Tekcel CNC Router 3600×1800 ATC – HSD Spindle – MASSO G3 – Vacuum Table

Tekcel CNC Router 3600 × 1800 – ATC – HSD Spindle – MASSO G3 – Vacuum Table

Industrial Tekcel CNC Router for sale. Large format machine suitable for cabinet making, joinery, sign making, plastics, aluminium machining, and sheet processing.

This machine has been converted to a modern MASSO G3 control system, making it significantly easier to operate and maintain.

Upgraded to MASSO G3 controller – no Tekcel proprietary software required.

This is a major advantage compared with standard Tekcel machines that rely on the original Tekcel control system.

Machine Specifications

Bed Size: 3600mm × 1800mm
Extended Travel: approx. +200mm (X) and +100mm (Y) after Masso upgrade

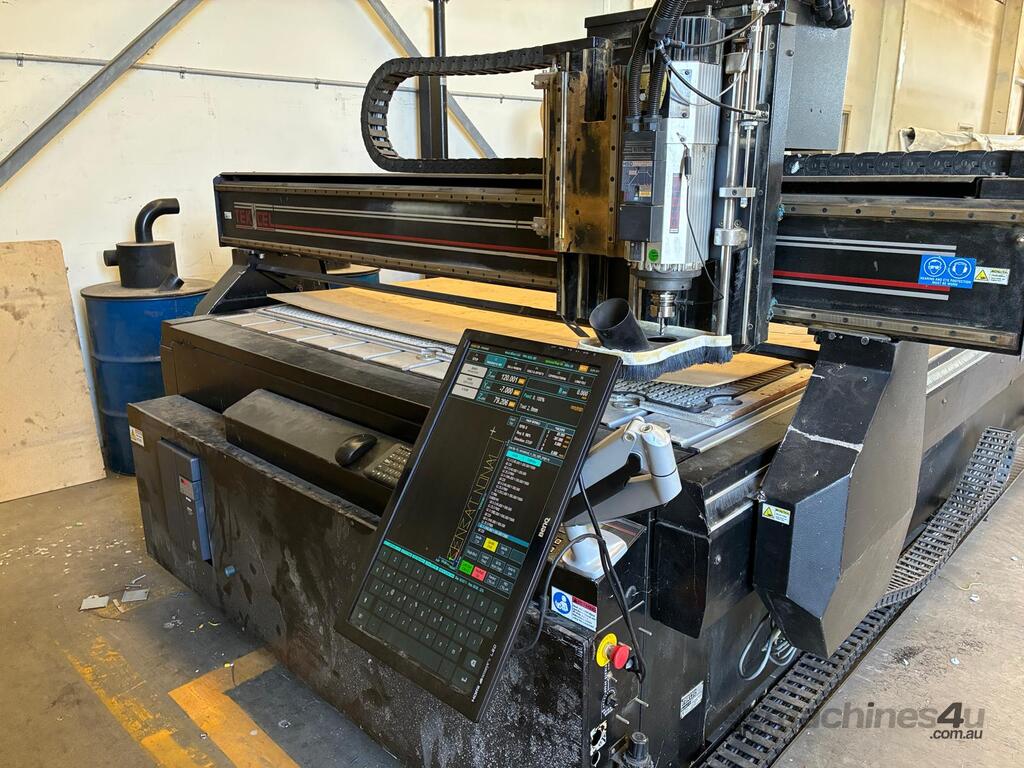

Spindle: HSD ES919 ISO30
Tool Changer: 8 Position Automatic Tool Changer (ATC)

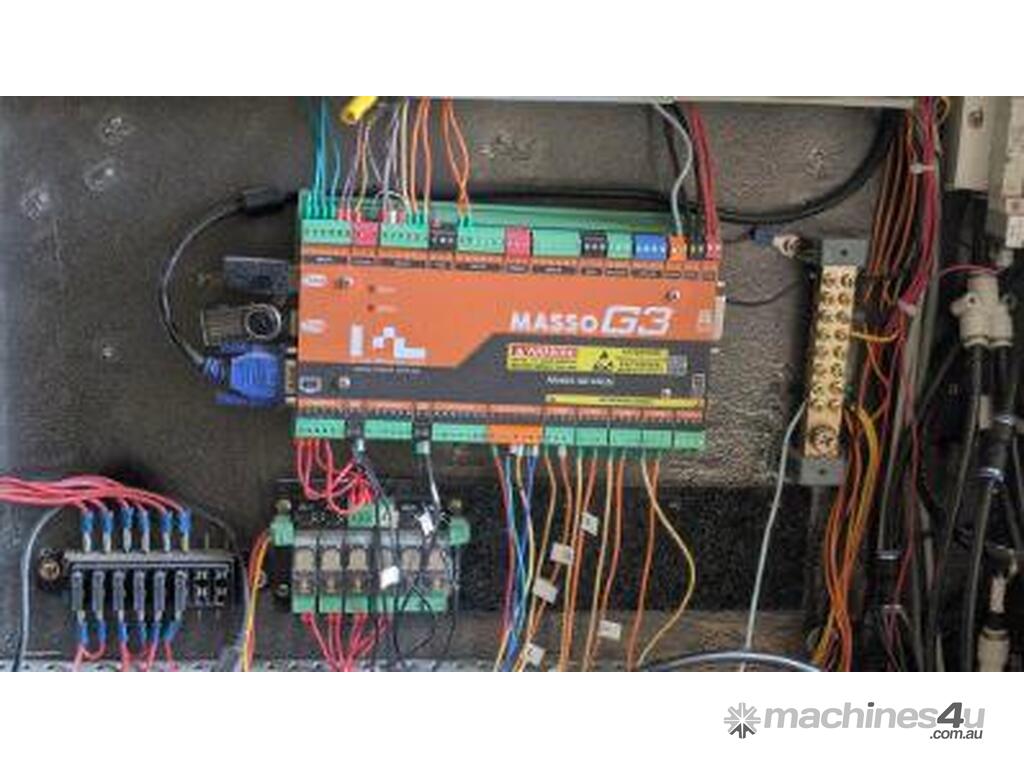

Controller: MASSO G3

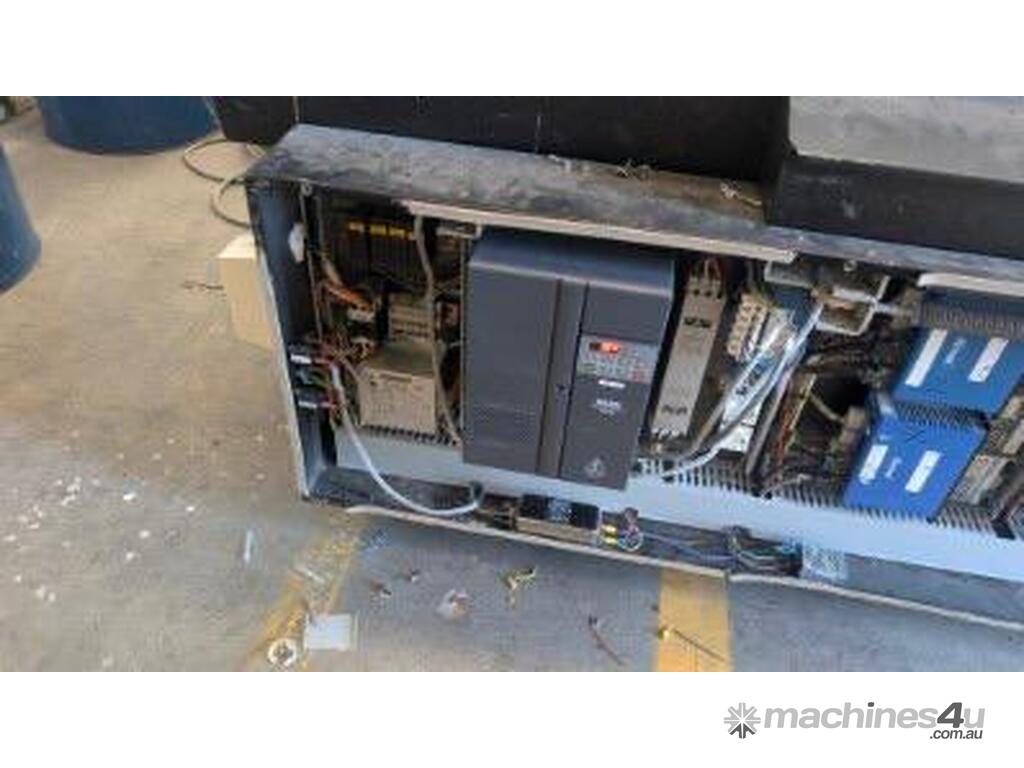

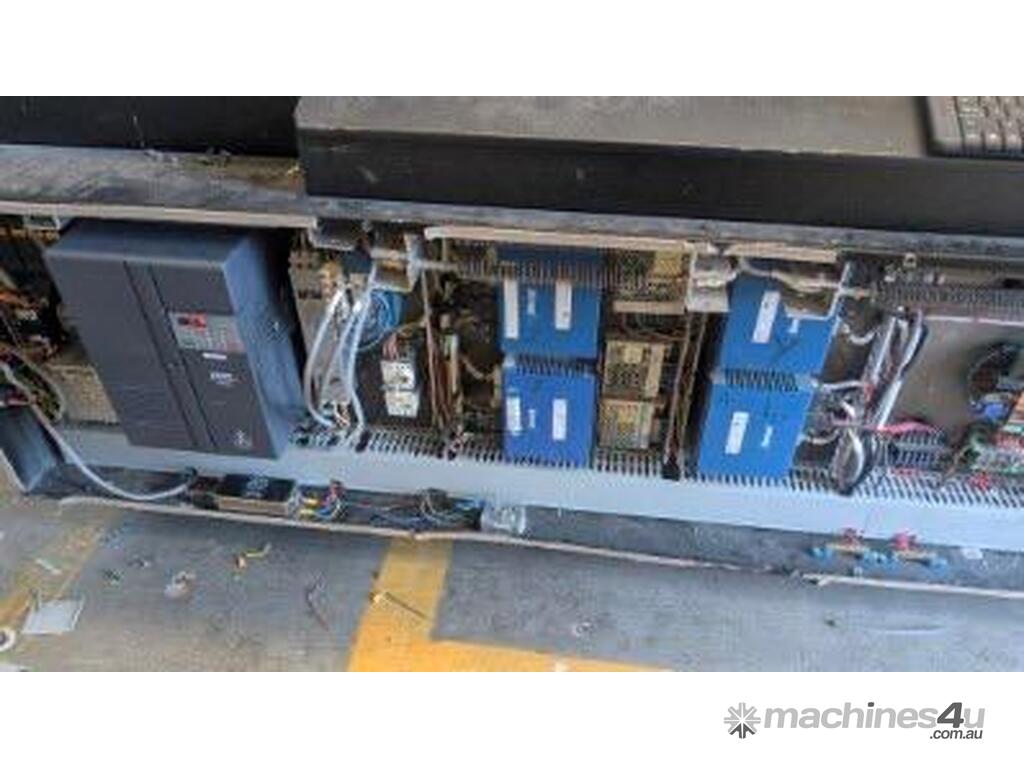

VFD: New 11–15kW inverter installed

Vacuum System

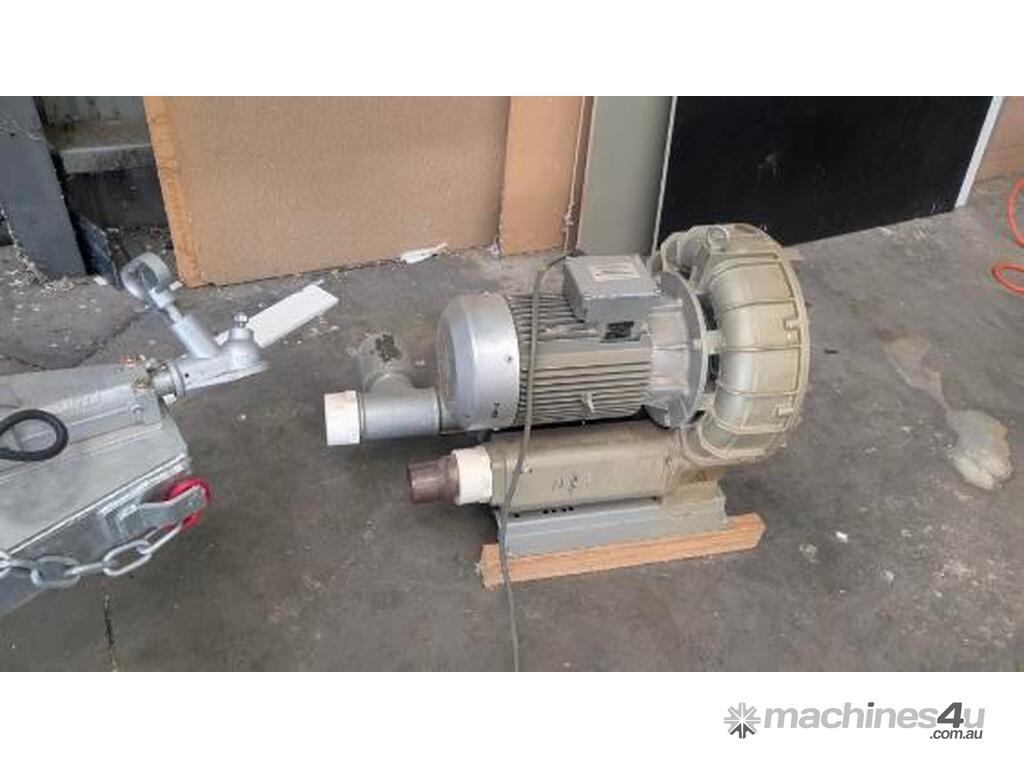

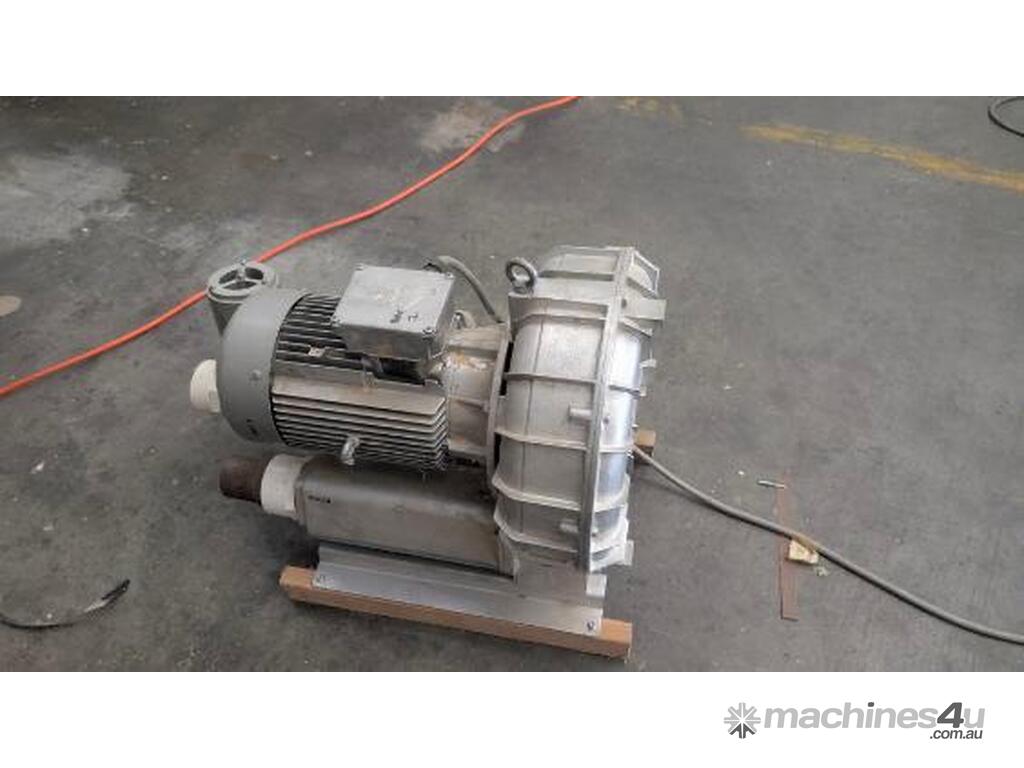

Dual vacuum pumps

2 independent vacuum zones

Vacuum pumps are controlled automatiy through MASSO

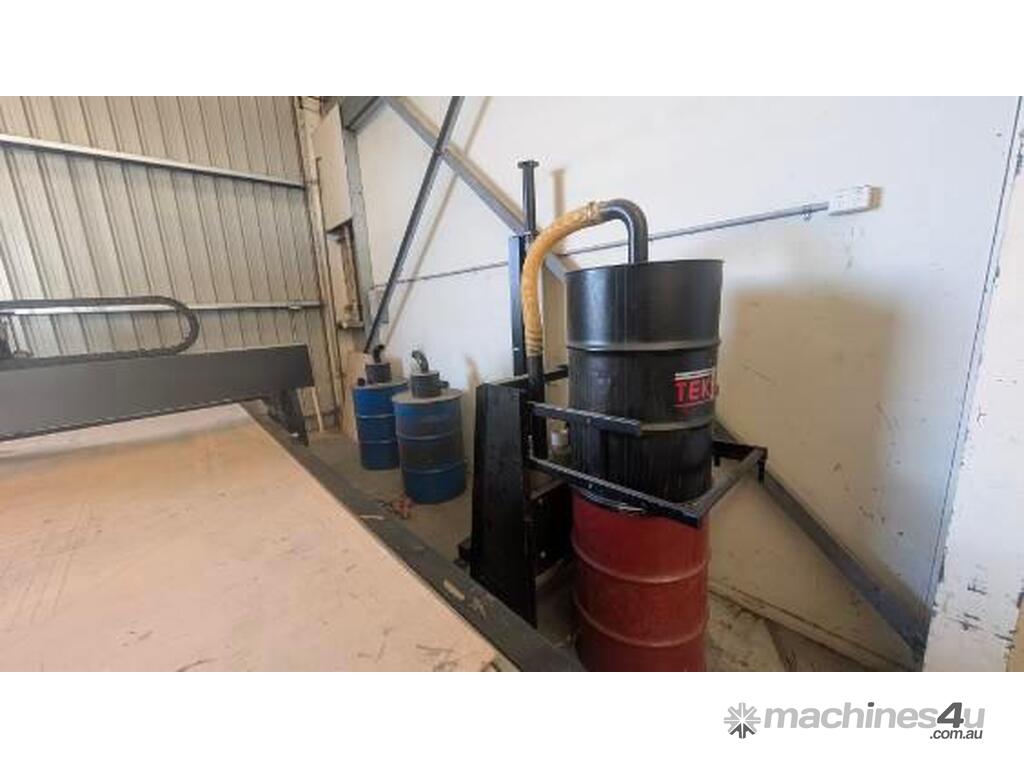

Dust Extraction

Automatic dust extractor output control through MASSO

Tool Setting

Automatic tool setter

Unload System

Unload table fitted

Automatic push-unload bar

Drill Head
The machine was originally fitted with a 9-bit drill head, which was removed during the MASSO conversion.

Condition

The machine was previously used in production but is currently not in active use due to relocation.

All systems are operational, and the machine can be powered up for inspection and testing.
