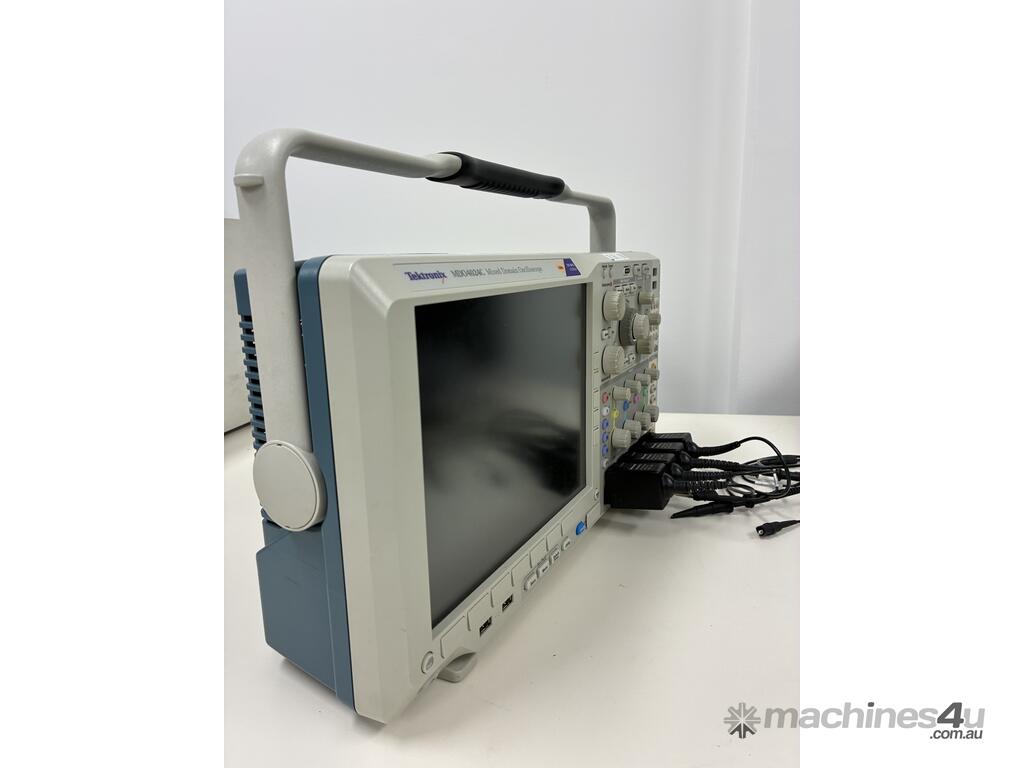

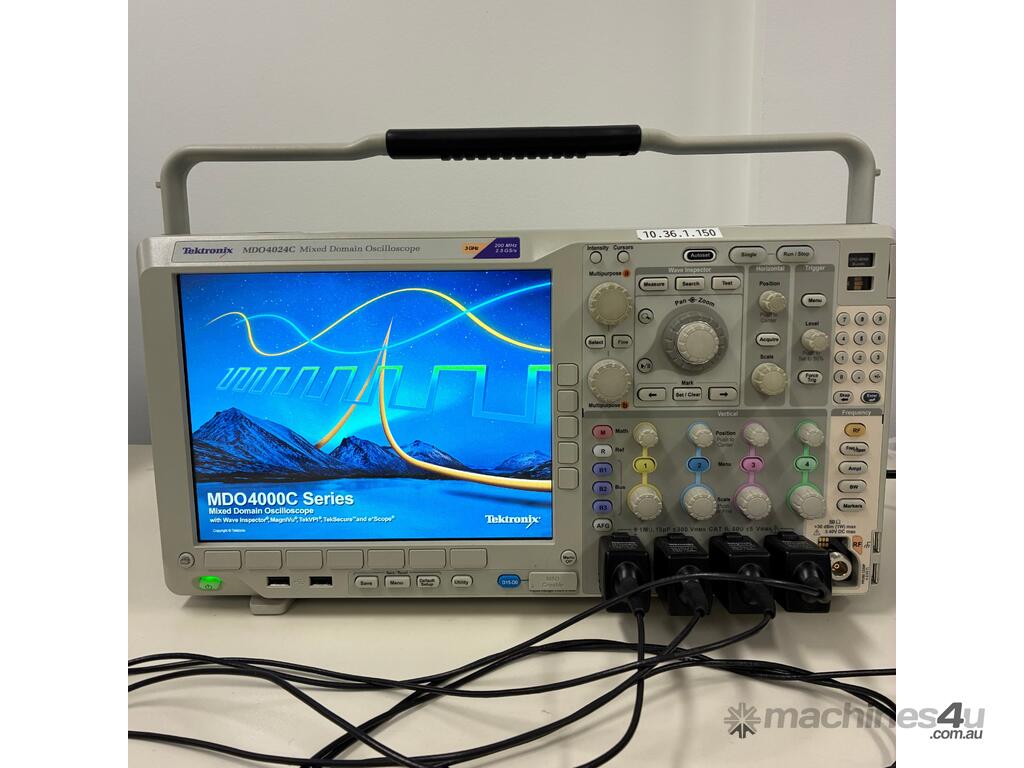

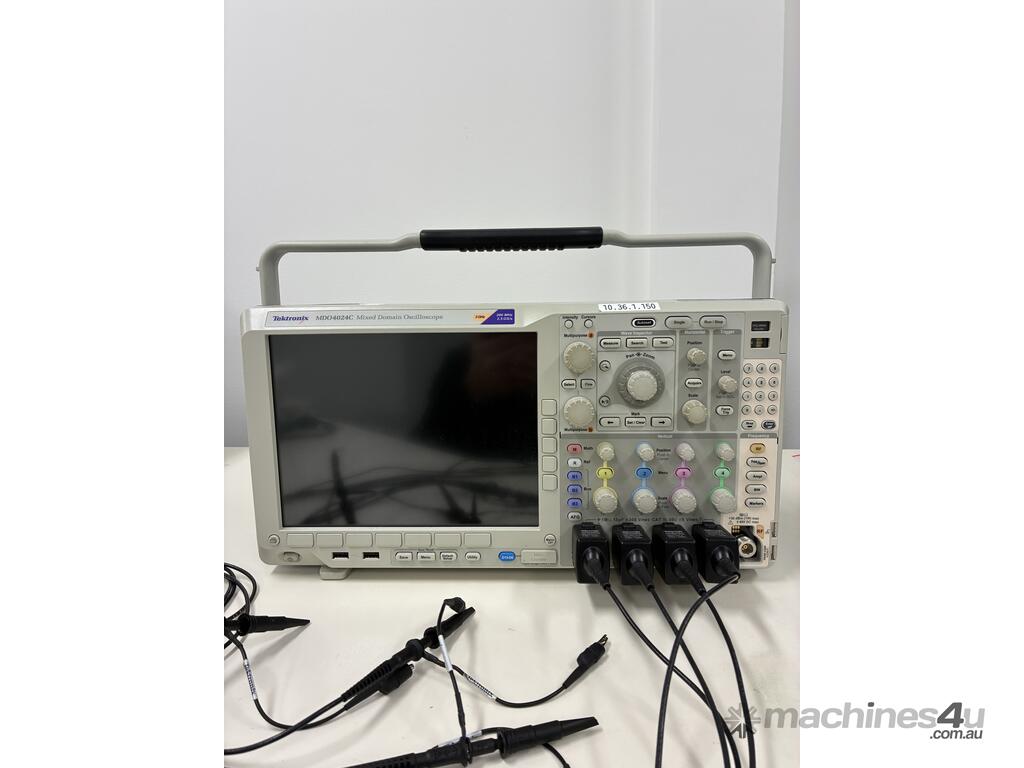

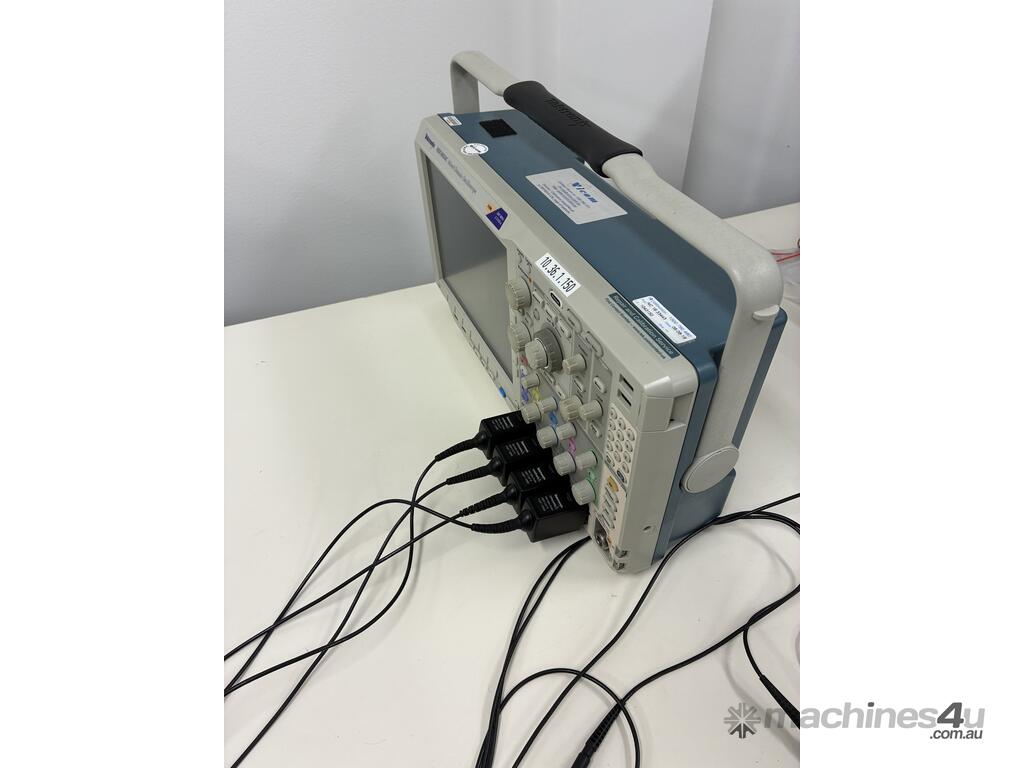

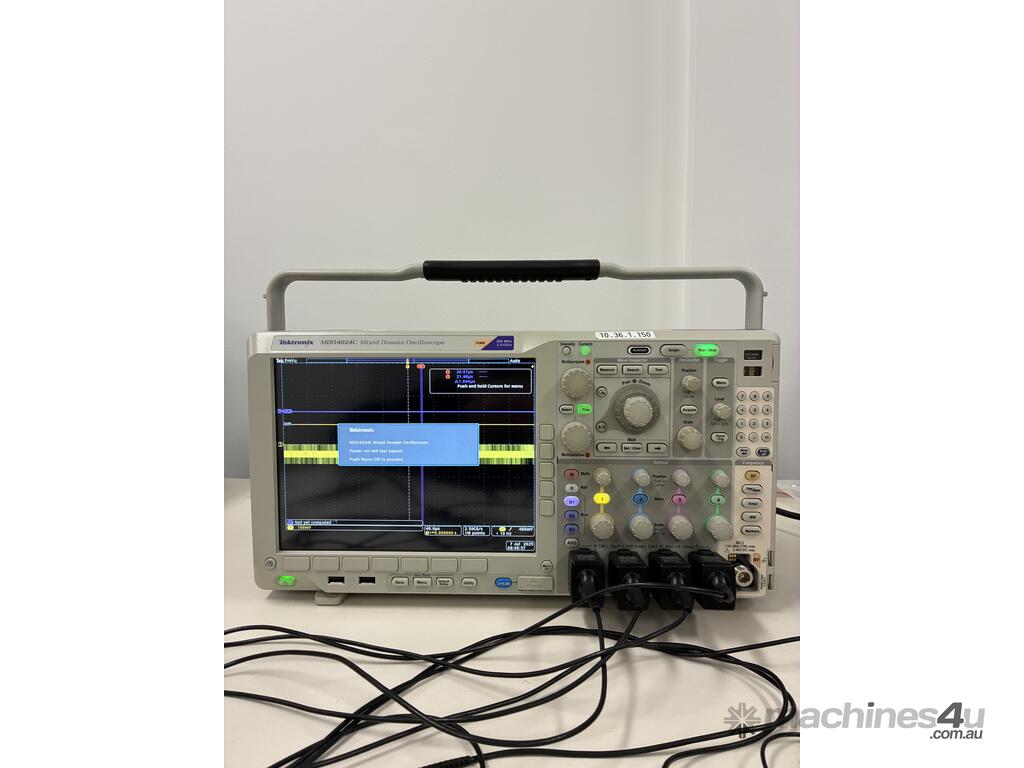

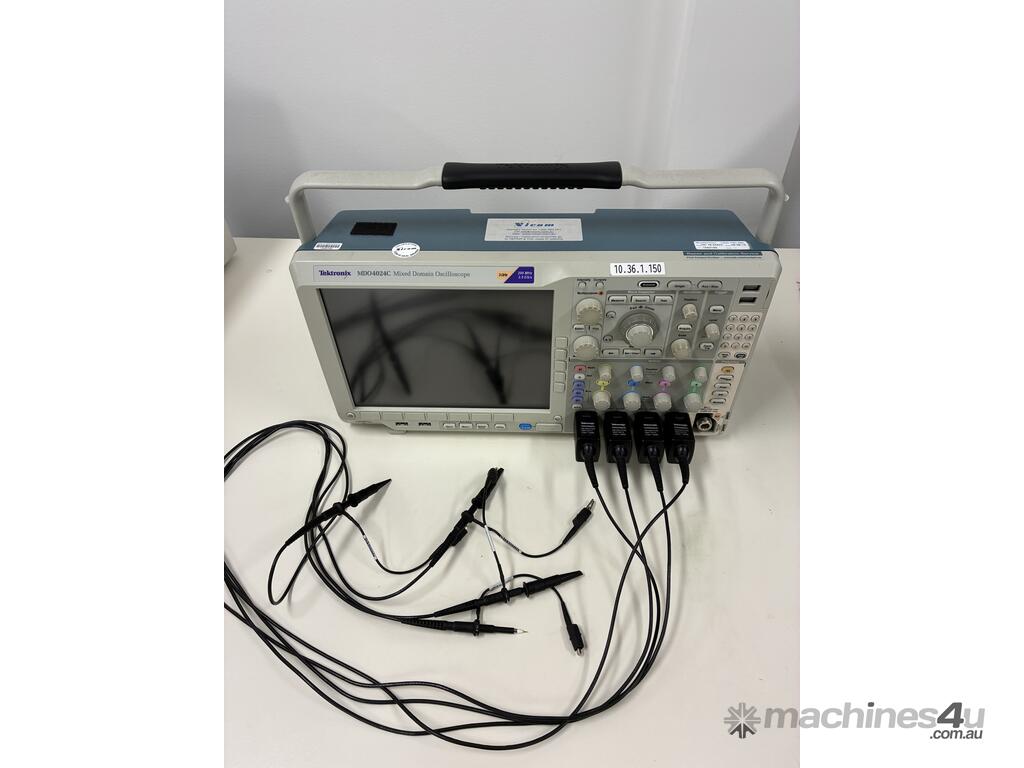

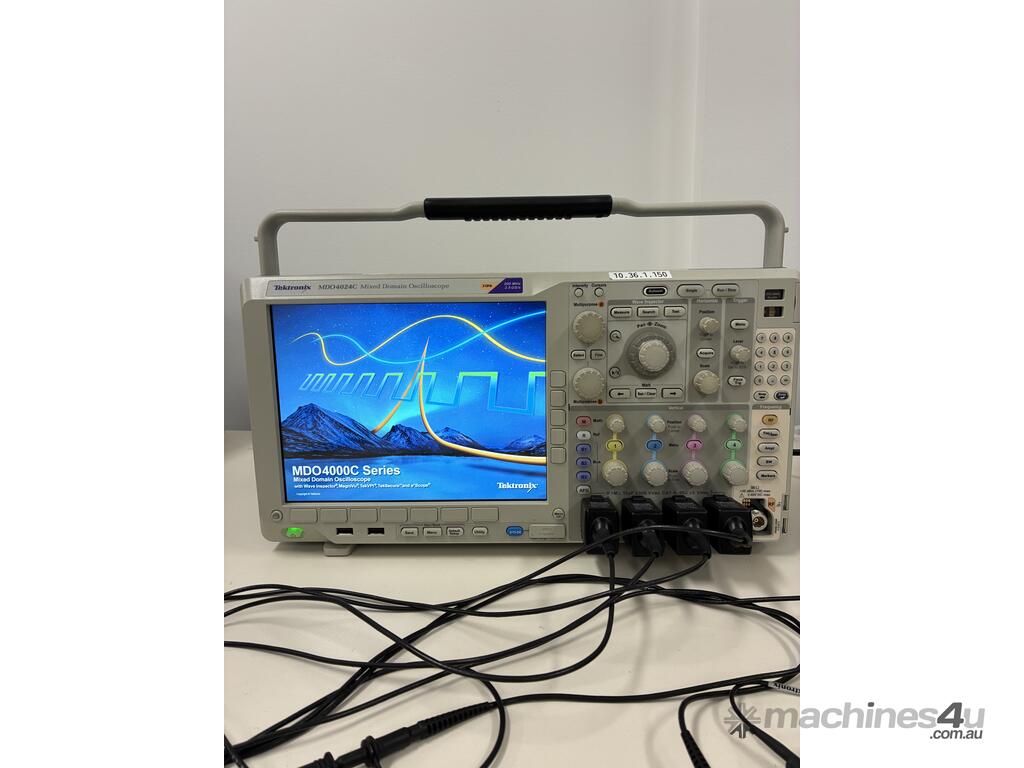

The Tektronix MDO4024C SA3 Mixed Domain Oscilloscope is a premium 4-channel instrument featuring the optional built-in spectrum analyzer (SA3), extending frequency analysis capability up to 3 GHz. This option transforms the oscilloscope into a dual-function test system, ideal for advanced R&D, diagnostics, and mixed-signal troubleshooting where both time and frequency domain measurements are required.
This unit was used in a professional automotive research environment and remains in very good condition. The combination of high bandwidth, deep memory, and integrated RF analysis makes it a versatile tool for electronics engineers, embedded system developers, and RF specialists seeking precision and efficiency.
Technical Description:
- Model: Tektronix MDO4024C SA3
- Bandwidth: 200 MHz
- Channels: 4 Analog
- Sample Rate: Up to 2.5 GS/s
- Record Length: 20 Mpoints per channel
- Spectrum Analyzer: Integrated SA3 option (up to 3 GHz)

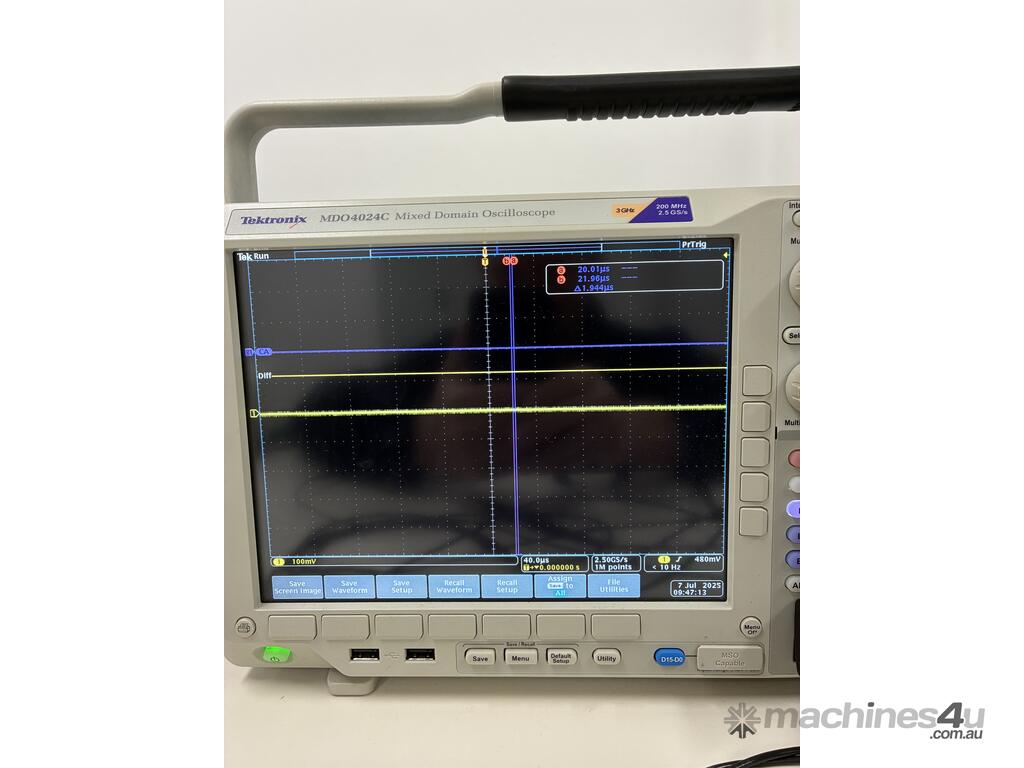

- Display: 9-inch color screen
- Connectivity: USB host/device, LAN, video output
- Trigger Modes: Edge, pulse width, logic, serial bus
- Math and Analysis: FFT, waveform math, reference comparison
- Software Compatibility: TekSmartLab and SignalVu-PC
- Dimensions: 180 mm H x 426 mm W x 152 mm D
- Weight: Approx. 5.5 kg
The SA3 option significantly enhances the MDO4024C by adding full RF spectrum analysis to the standard oscilloscope features, providing simultaneous time and frequency domain correlation without needing separate equipment. This capability makes it particularly valuable for mixed-signal and RF system development.

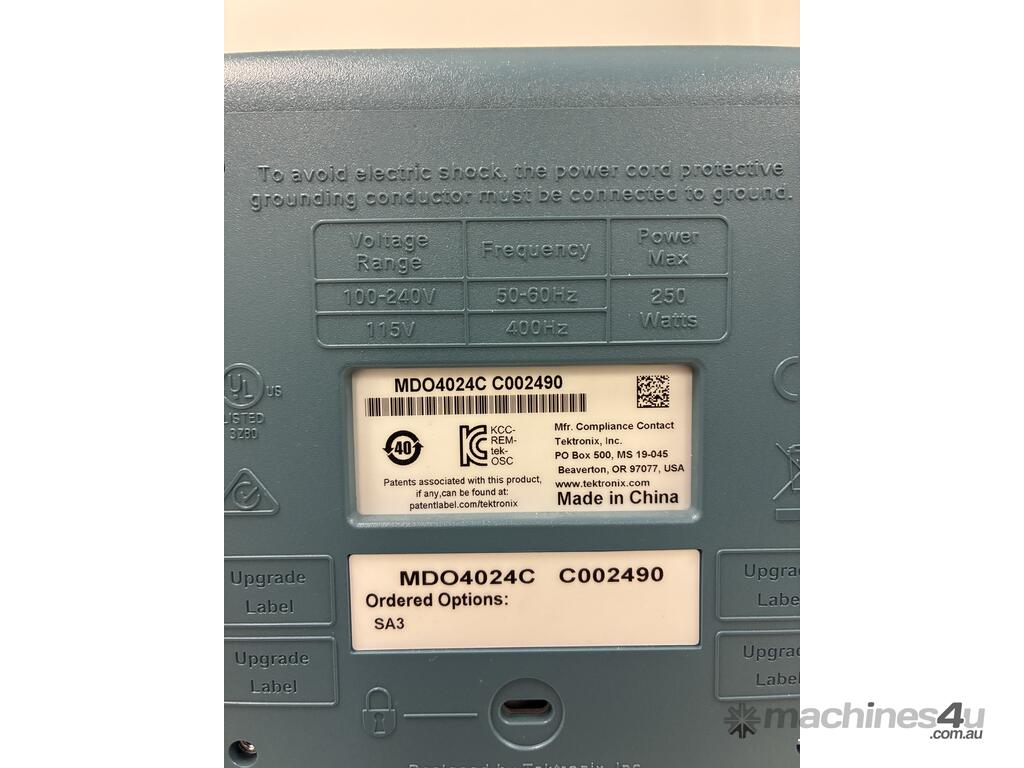

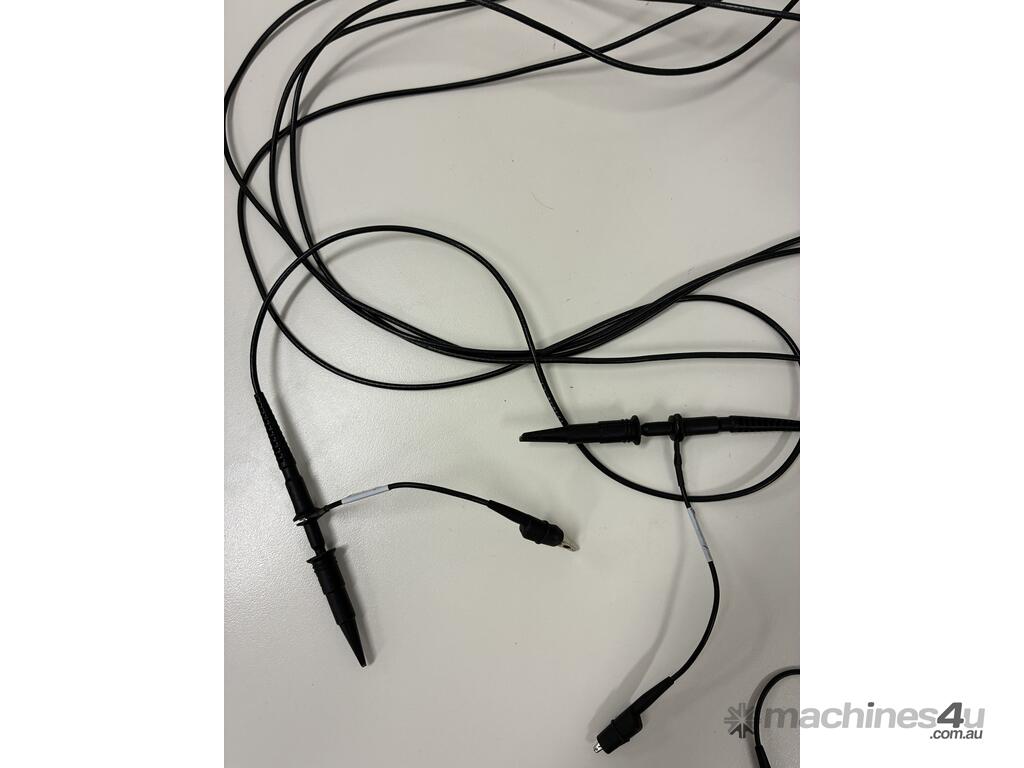

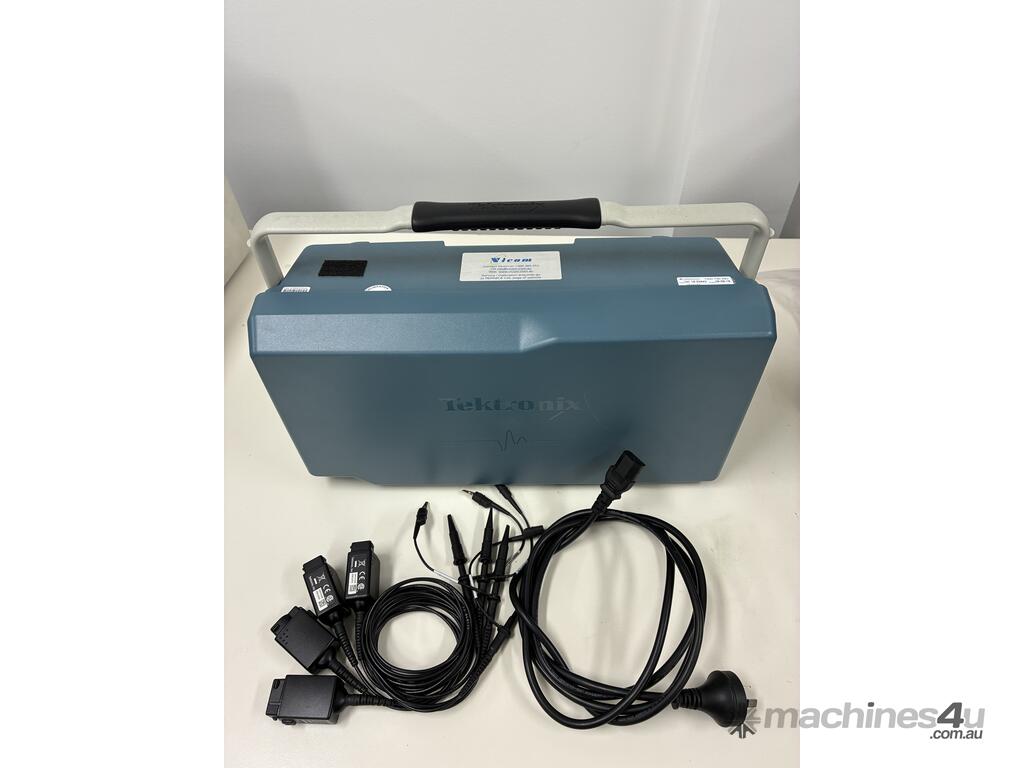

Item is in used condition, sold on an as is, where is basis. Photos form part of the description.
Pickup only however in special circumstances, freight may be organised at the buyer’s cost.
Inspection available upon request prior to purchase.
