New merlo Telehandler for sale - Telehandler 4t 13m

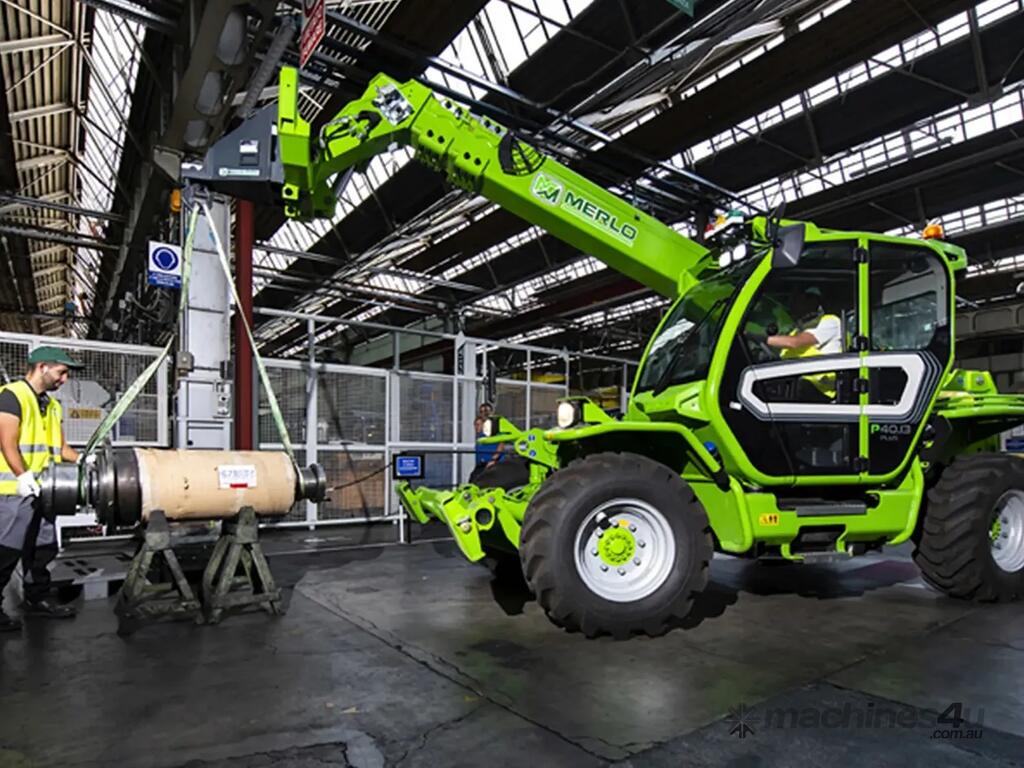

New Merlo Telehandler

Specifications
Maximum Lift Capacity: 4,000 kg
Maximum Lift Height: 12,500 m
Maximum Reach: 8,470 m
Overall Length to Carriage: 5,410 mm
Overall Width: 2,380 mm
Overall, Height: 2,425 mm
Machine Weight with Forks: 9,150 kg
Diesel Engine: 4-cylinder Perkins TIER 3, water cooled, power 85.9 kW (116.8Hp)
Hydrostatic Transmission: Electronically controlled with variable delivery pump and variable
displacement motor. Standard with speed control
Gear Box: Two (2) speed mechanical gearbox with inching pedal (max speed 40
km/h)

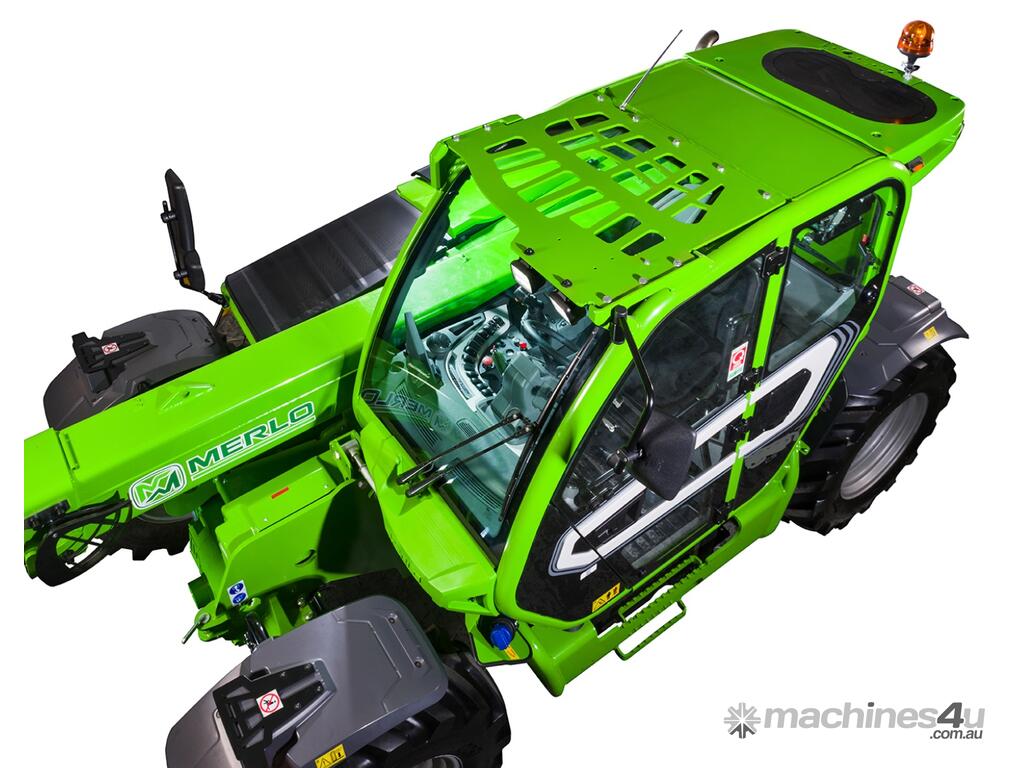

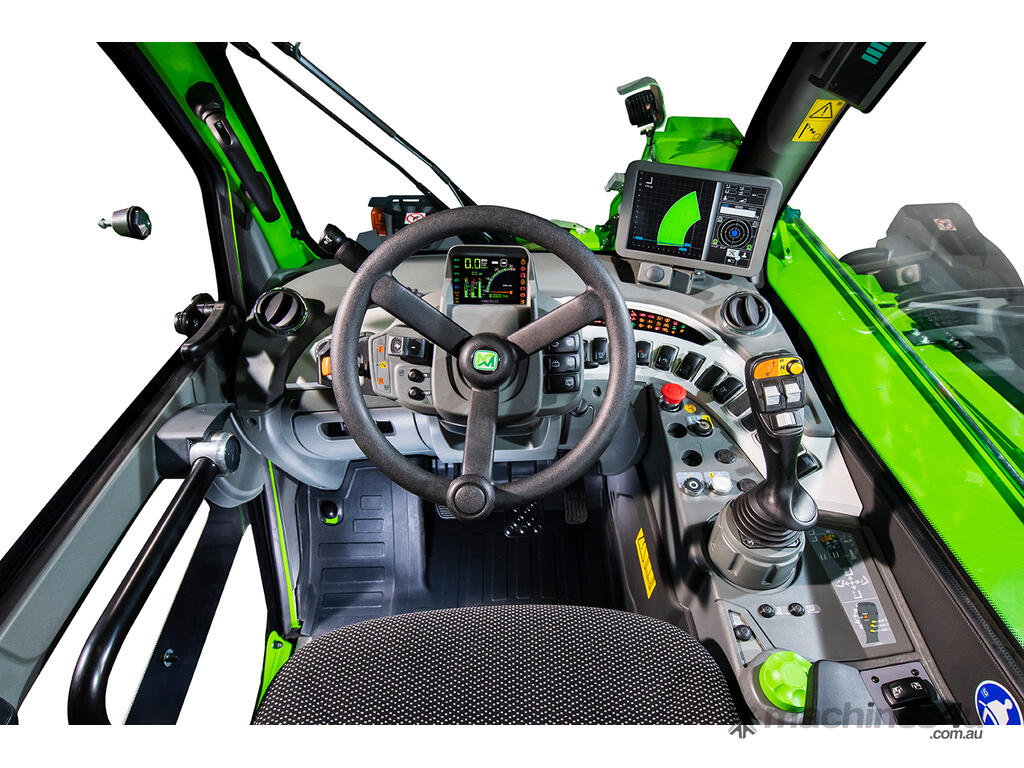

Operator’s Cab: Enclosed, air-conditioned pressurized cabin with split door, 360o
visibility, ROPS and FOPS compliance, air suspension seat, safety

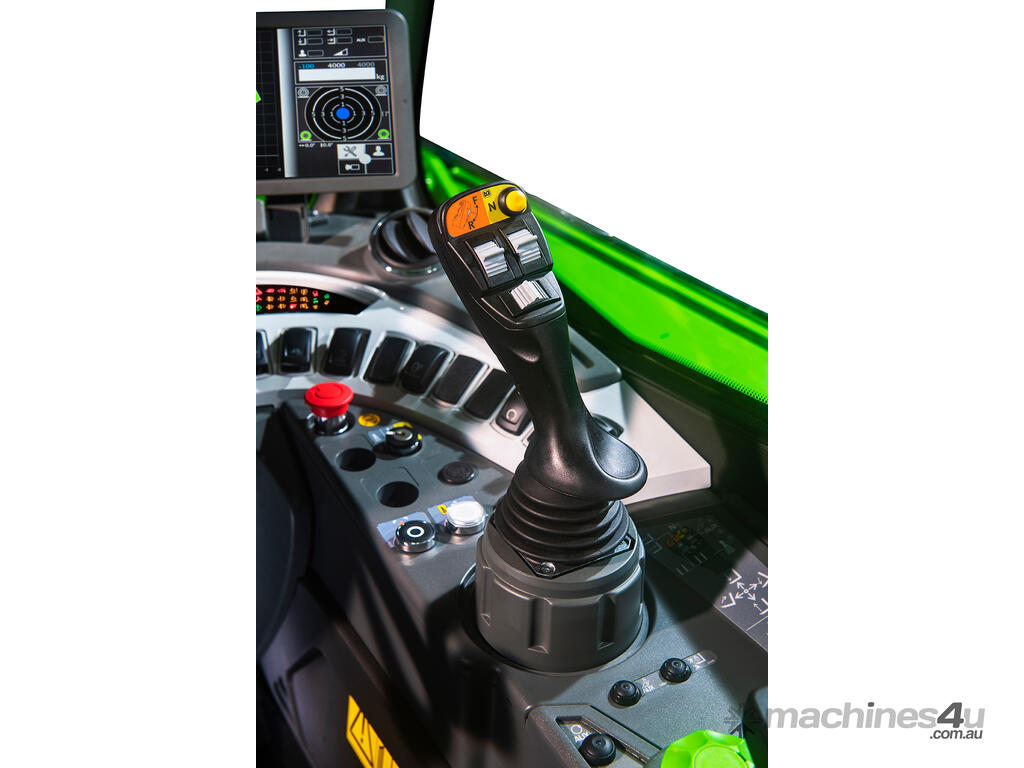

belt, heating system, front and rear wipers, electronic joystick
Boom Side-shift: +/- 340mm
Telescopic Boom: 3 sections type
Carriage: “TAC-LOCK” – ZM2 – with hydraulic locking of attachments from inside
the cab
Frame Levelling: +/- 8%
Steering: Hydraulically operated all-wheel steer. Three steering modes (frontwheel,
4-wheel, crab)
Drive: Permanent all-wheel drive

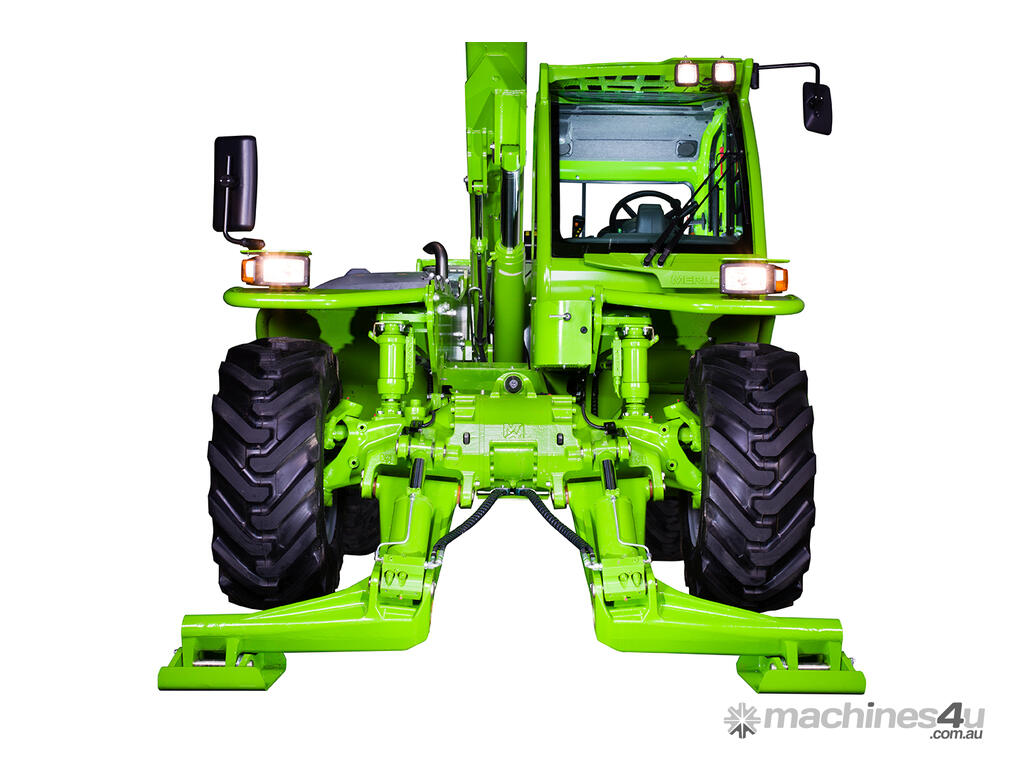

Axles: Cast structure, drop portal mounted, rigid front axle
Braking: Dry disk brakes two per axle. Fail-safe parking brake on main propshaft
Chassis: Individual modules to maximize versatility and customization
Hydraulic System: Variable displacement pump, LOAD SENSING control, max flow 108 -
250 l/min
Fan Drive: Cooling proportional to radiator temperature, including top mount
reversible
Electrics: 12 V system with 100 Ah battery

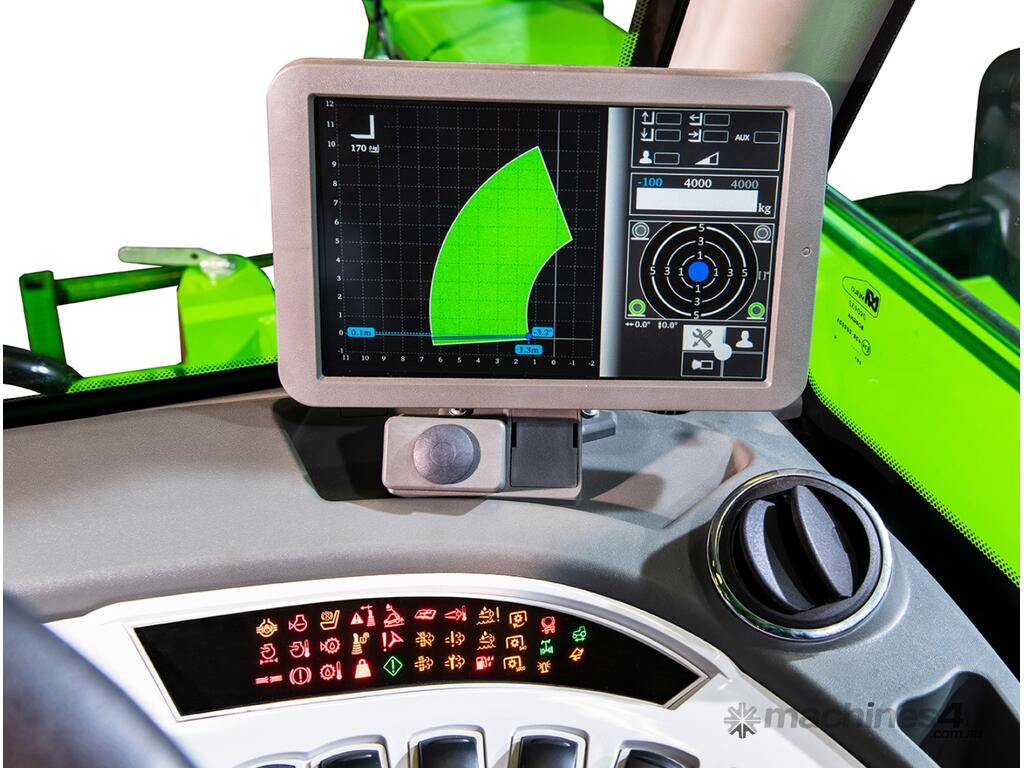

Stability Control System: ASCS-Adaptive stability control system,
Telematics: Merlo Mobility**
Tyres: 400/70 – 20”
Warranty: 24 Months / 2400 Hours full machine warranty


Basic Equipment: 2 x floating forks (length 1,200 mm), 2 hydraulic service lines to boom
end, load back rest, road lighting and beacon, manual battery cut-off
switch, manual control of the “inching” function, work lights on cab (2
front + 2 rear), removable “easy-clean” protection grill for radiator,
reversing squawker,
