Terex 66kV Insulated Spider Lift

Terex TL45 Insulated Spider Lift – Expressions of Interest Now Open

As the authorised Australian and New Zealand distributor for Terex Utilities, Lift Industries is now taking expressions of interest for the all-new Terex TL45 insulated spider lift, arriving early next year.

Engineered for utility, vegetation management, council and contractor applications, the Terex® TL45 Hi-Ranger Aerial Device mounted on a rubber-tracked crawler delivers true Terex insulation performance with exceptional off-road access. The compact tracked carrier allows operators to reach uneven terrain, tight residential spaces, and restricted job sites where truck-mounted EWPs cannot go.

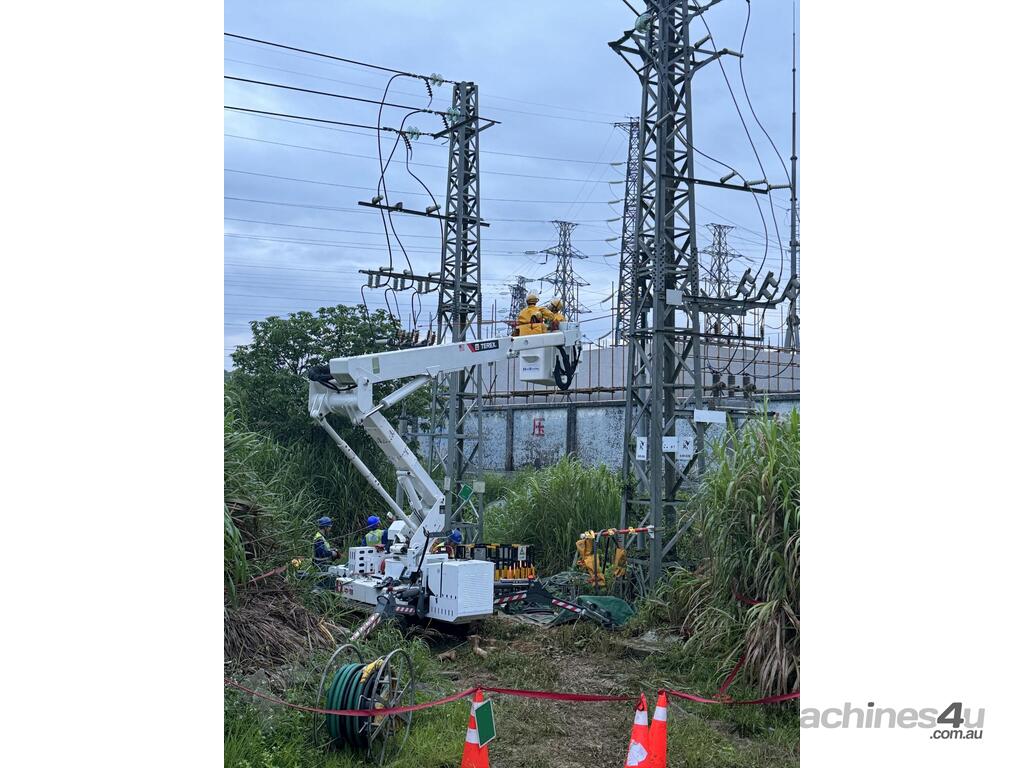

Designed for safe work on or near high-voltage powerlines, the TL45 features:

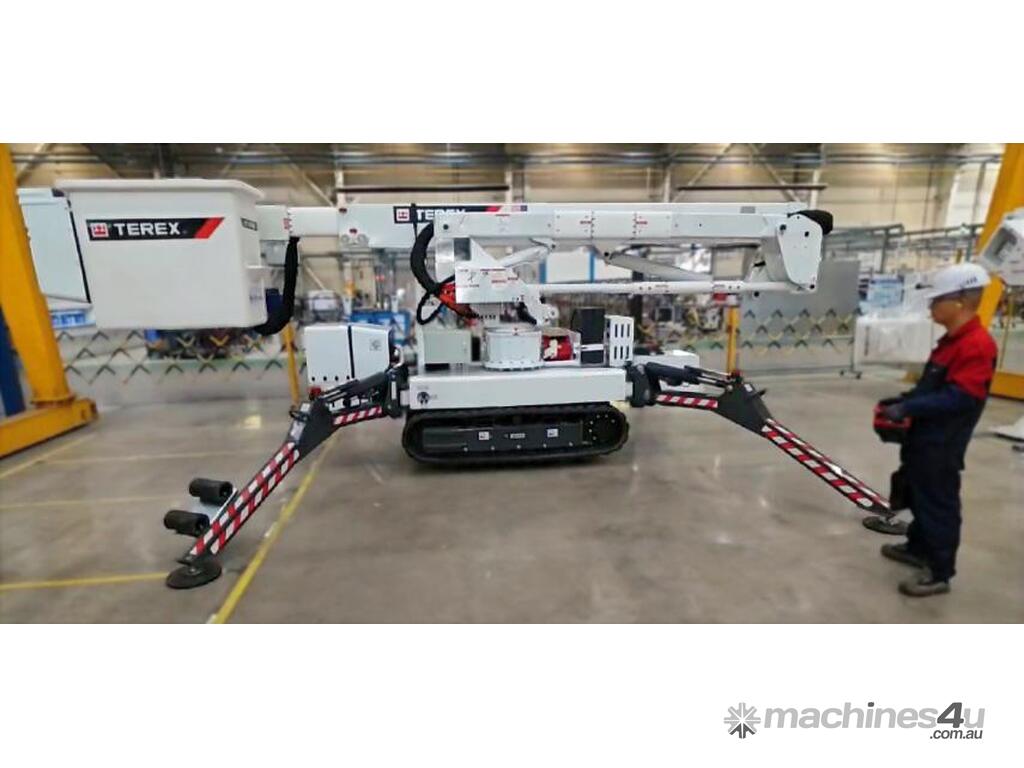

- Automatic self-levelling outriggers for fast, stable setup on challenging ground
- Proven Terex insulation system for live-line proximity work
- Smooth, precise boom control for elevated tasks in confined areas
- Low-impact rubber tracks ideal for soft ground, backyards, easements and sensitive surfaces

This new model brings the reliability of the Terex Hi-Ranger range into a compact, highly manoeuvrable platform—perfect for utilities, arborists, contractors and rental fleets seeking insulated access without the footprint of a truck.

Terex TL45 Specs:

* Working height of 14.6m
* Up to 9.3m of side reach
* 66kV insulation rating
* 227kh platform capacity
* 90° + 90° platform rotation
* 360° continuous turret rotation

Crawler Specs:

* Yanmar diesel engine
* Narrow 1.22m width with tracks retracted
* One button automatic self-levelling outriggers
* Outrigger footprint 4.12m x 4.12m
* 45 lt diesel tank
* 72 lt hydraulic tank
* 230V secondary power system
(Note: All specs subject to change)

Register your interest today and secure early access to Australia's first TL45 tracked insulated units.
