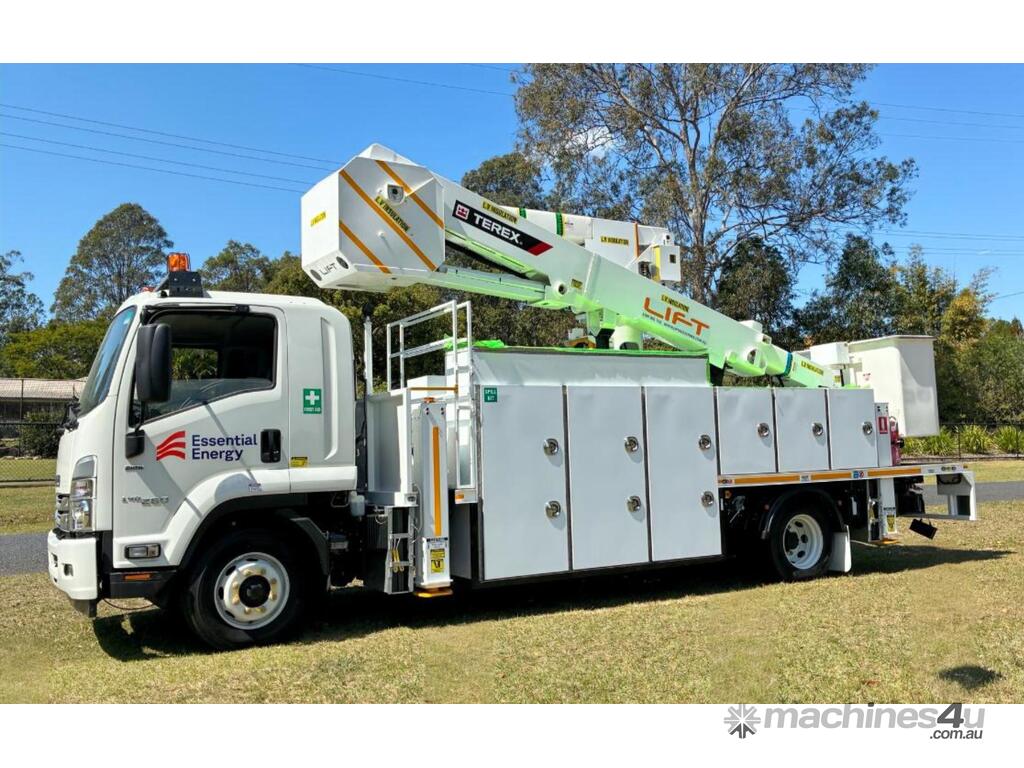

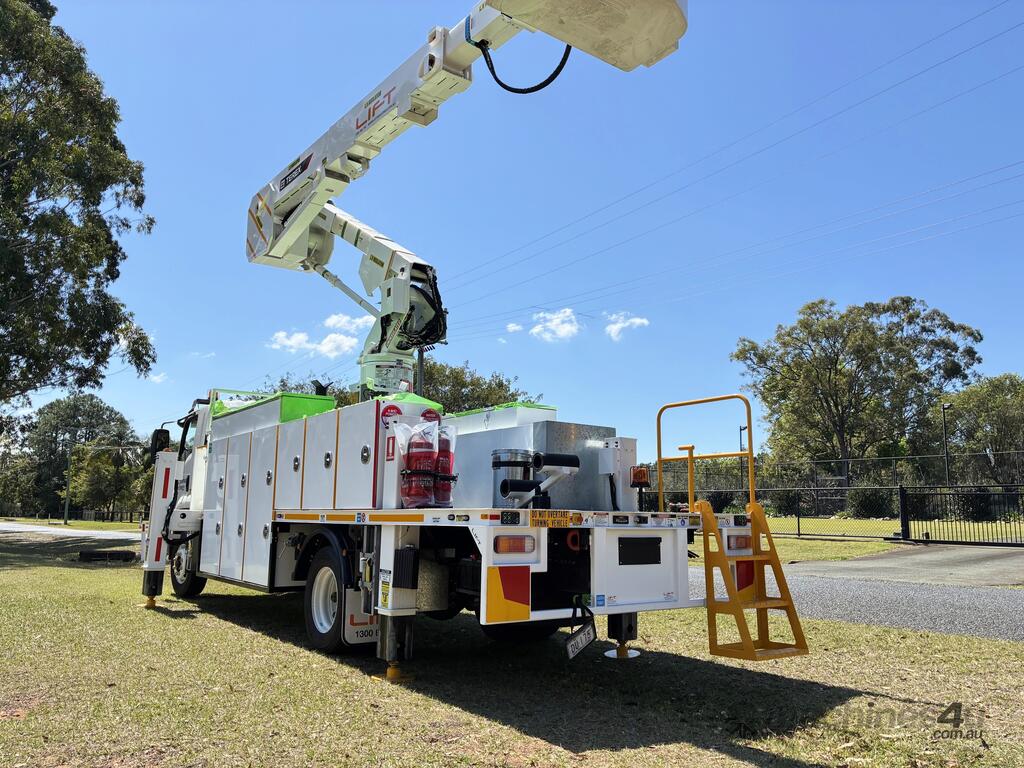

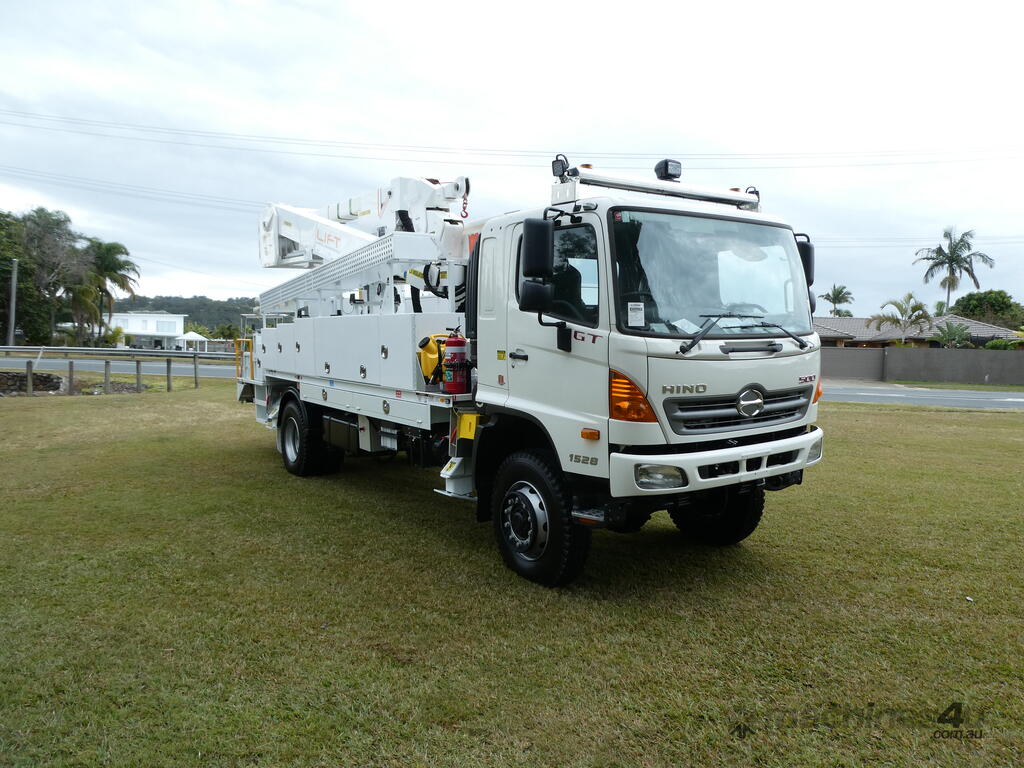

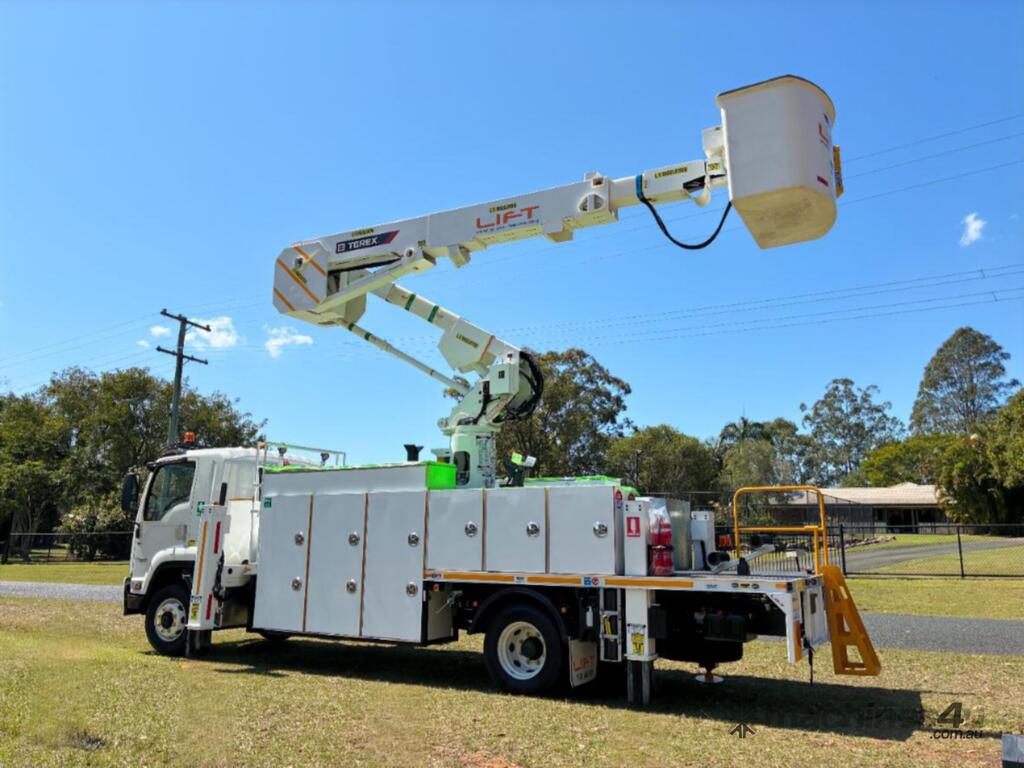

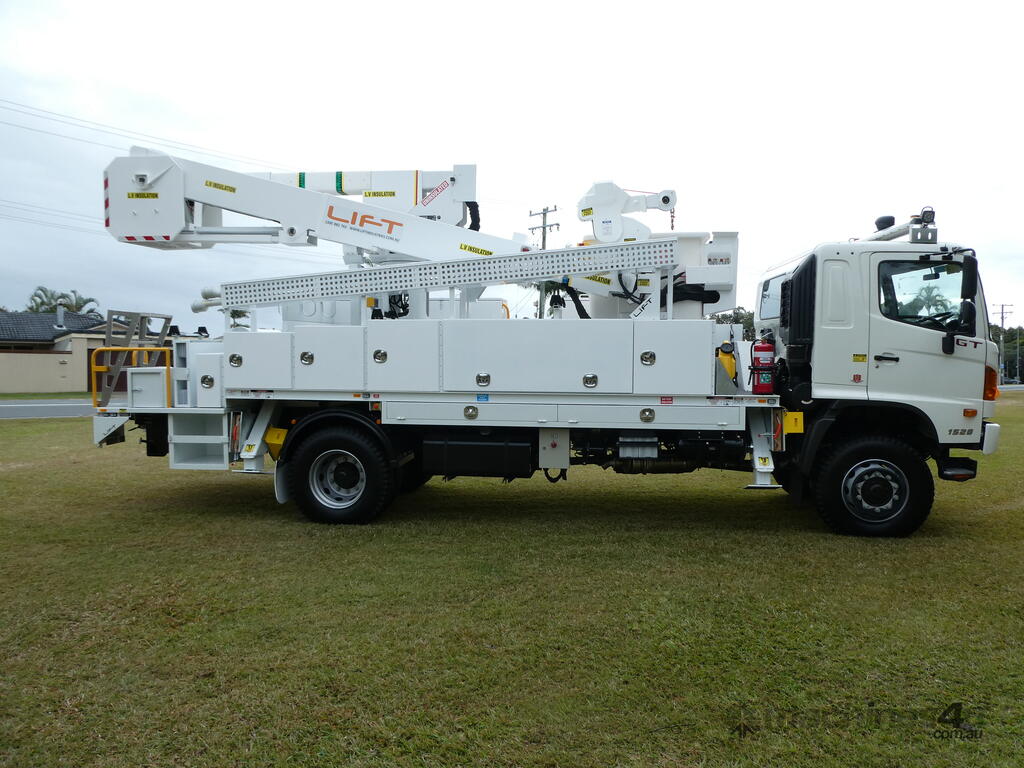

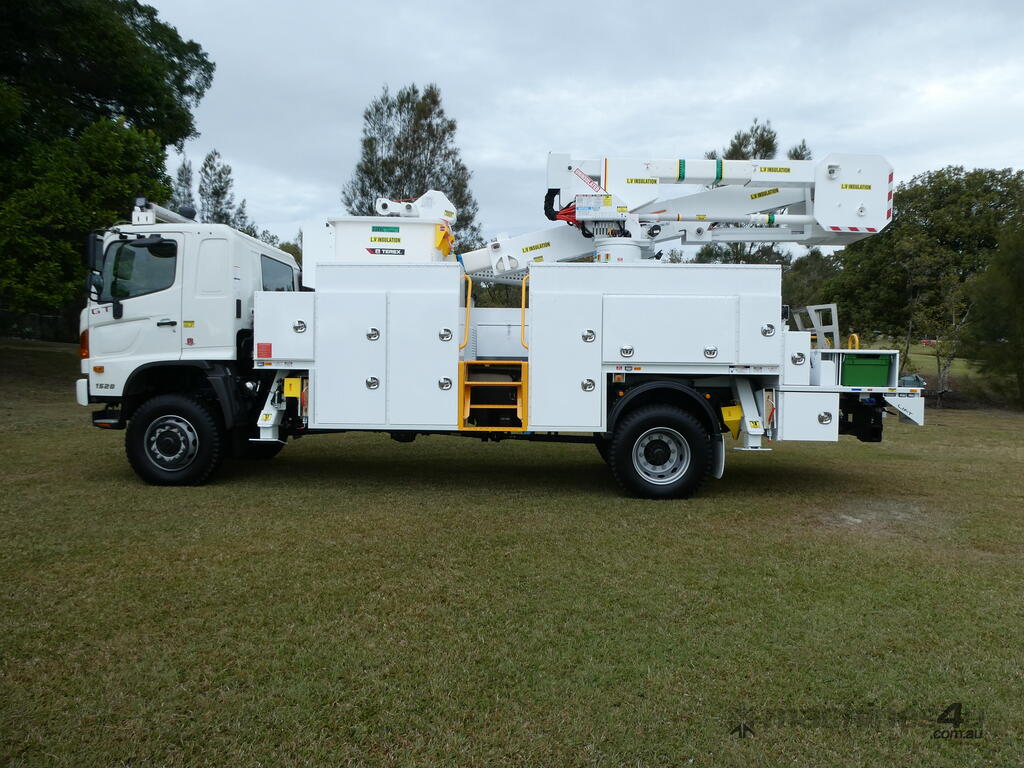

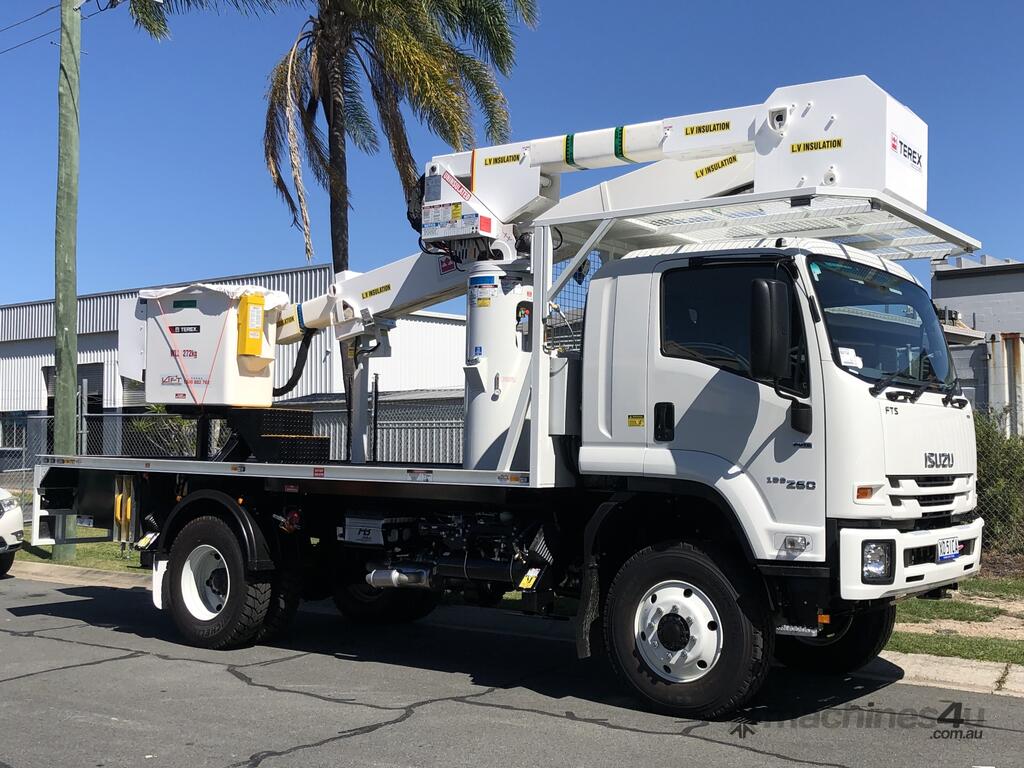

Terex TL45 Insulated Truck Mounted EWP 15.6m

Terex TL45 Built for Power, Precision, and Performance.

When reliability, safety, and reach matter most, the Terex TL45 delivers. Purpose-built for electrical utilities, councils, and contractors working on live lines and elevated infrastructure, the TL45 combines robust engineering with operator-first design to meet the demands of modern field operations.

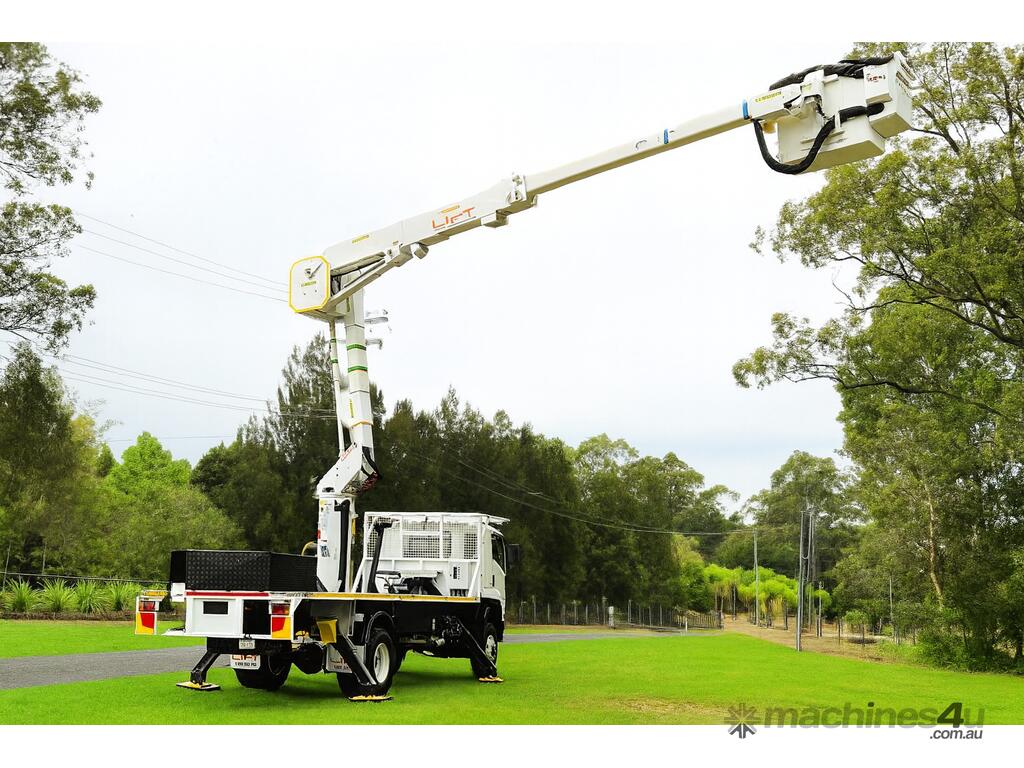

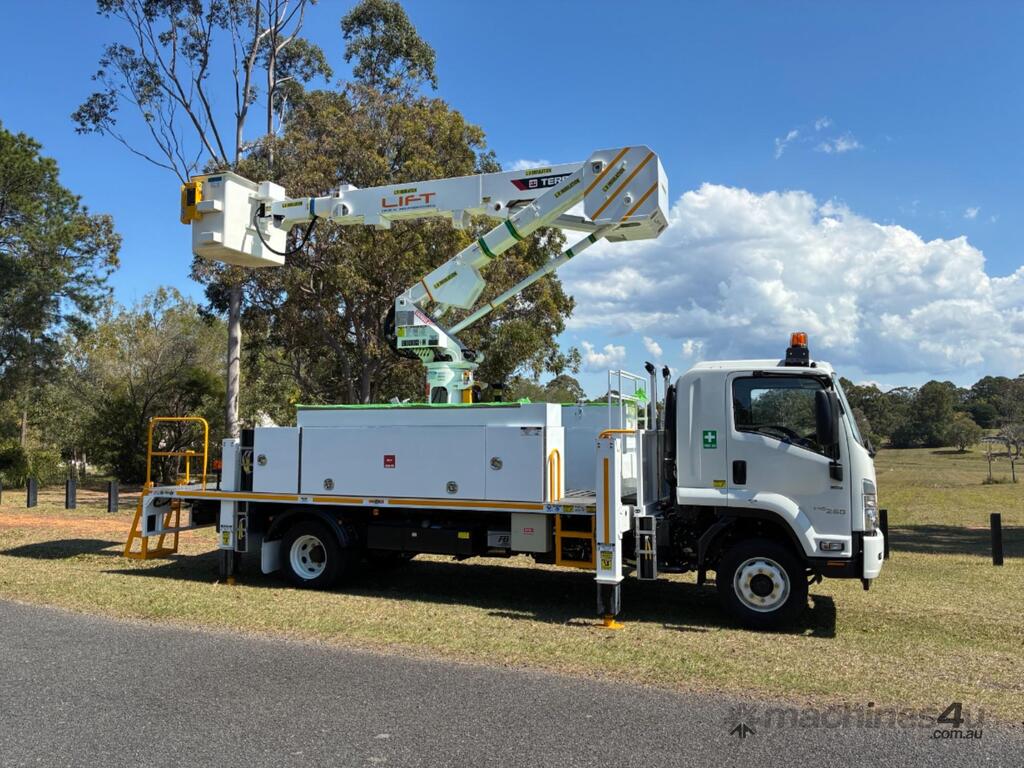

With a working height up to 15.6 meters, the TL45 provides safe access to overhead assets with the protection of 66kV insulation, ensuring compliance to AS2550.10 and protecting crews in high-voltage environments. The telescopic boom offers smooth, proportional control for precise positioning, whether you're servicing streetlights, conducting pole-top maintenance, or performing network upgrades.

Standard Inclusions
• Working Height 15.6 meters
• Outreach 9.5 meters
• Platform capacity of up to 272kg, (Optional 350kg with Radio Remote)
• End Mount 610mm x 1220mm x 1070mm, Two-Person Platform (larger Platform available)
• Insulation rating 66 kV
• Control-Plus 4-Function Single Stick Control at Platform

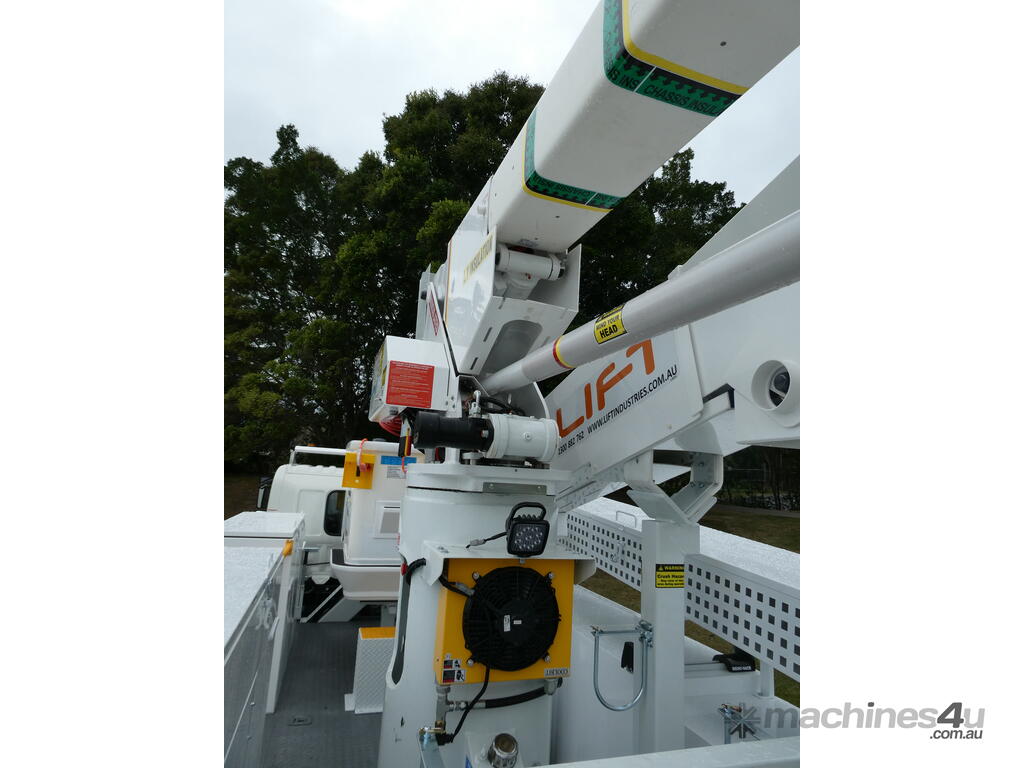

• Continuous unrestricted worm gear rotation
• Insulation rating 66 kV
• Rectangular, Bi-Axial epoxy resin, filament wound fiberglass booms

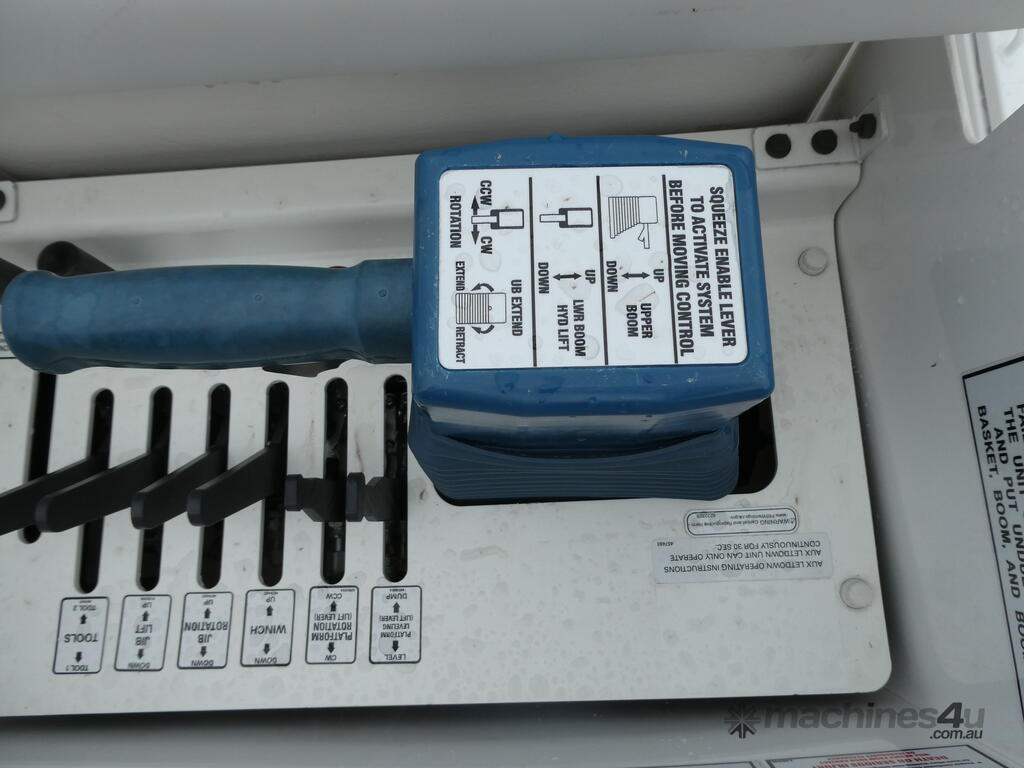

• Individual lever lower Controls
• Hydraulic platform levelling system
• 180° hydraulic platform rotator
• Hydraulic tool outlets at platform and chassis
• Auxiliary power let down system
• Hydraulic boom stow latch
• Fiberglass telescopic section boom
• Fiberglass boom insert
• Padded lower boom rest

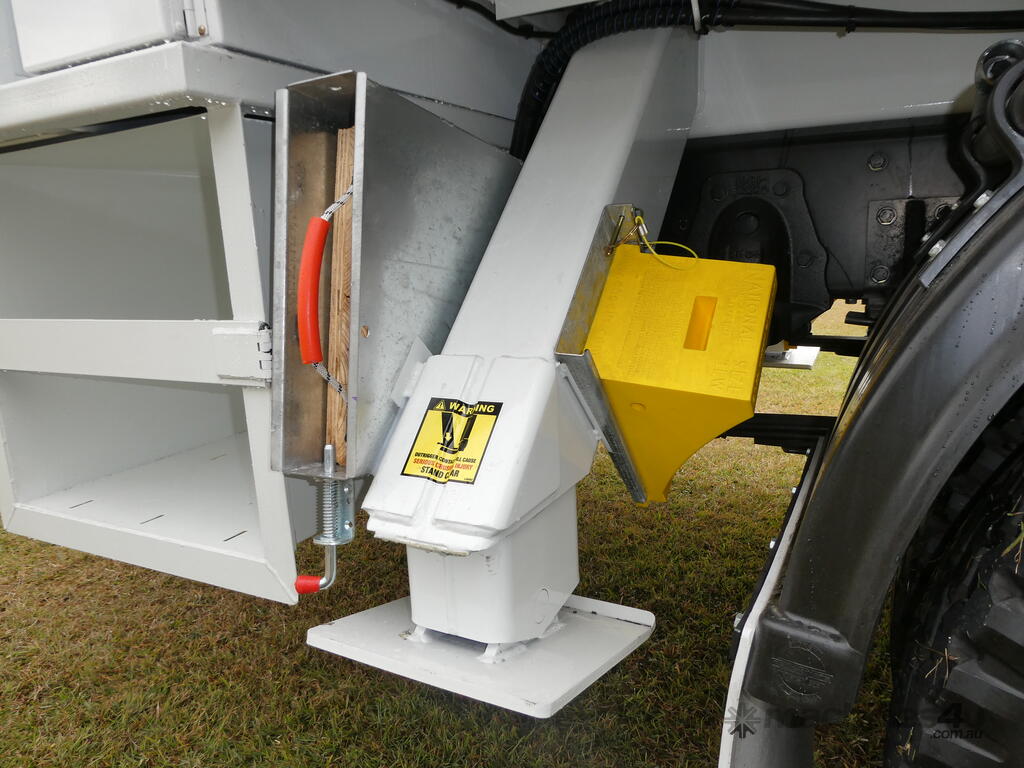

• Boom Stabiliser / interlock
• Engine Start/Stop
• Platform cover

Optional Features

- Hybrid Operation: Available with Smart PTO technology, enabling battery-powered hybrid functionality for reduced emissions and quieter operation—ideal for urban or environmentally sensitive sites.

- Custom Configurations: A range of tailored options and setups can be specified to meet unique operational, fleet, or compliance requirements.

** Contact Lift today.
With over 20 years of industry expertise, we deliver trusted solutions backed by technical know-how and customer-first service.
Lift are proud National Distributors of all Terex Insulated EWP and Crane Borers with a network of service partners across Australia.
