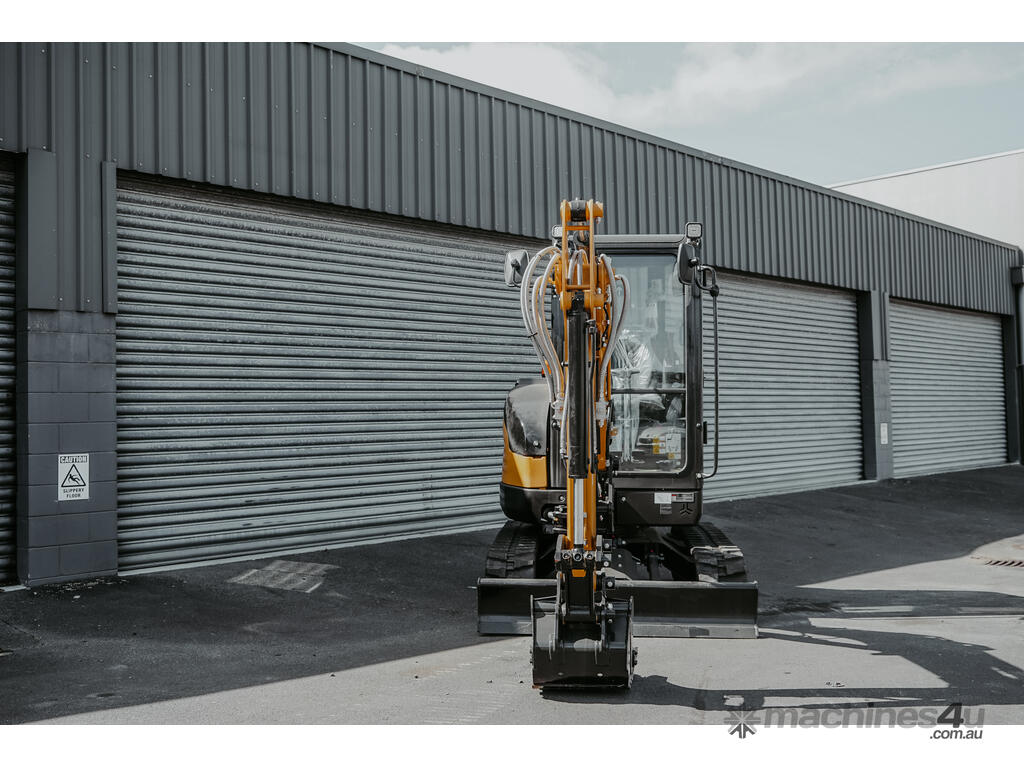

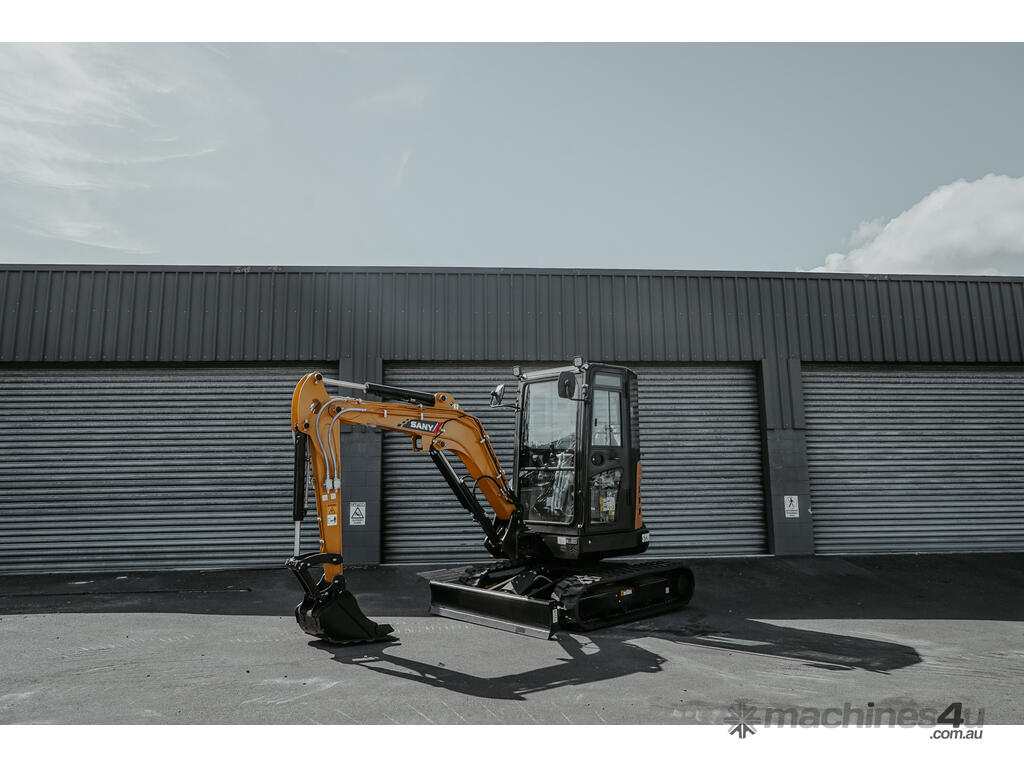

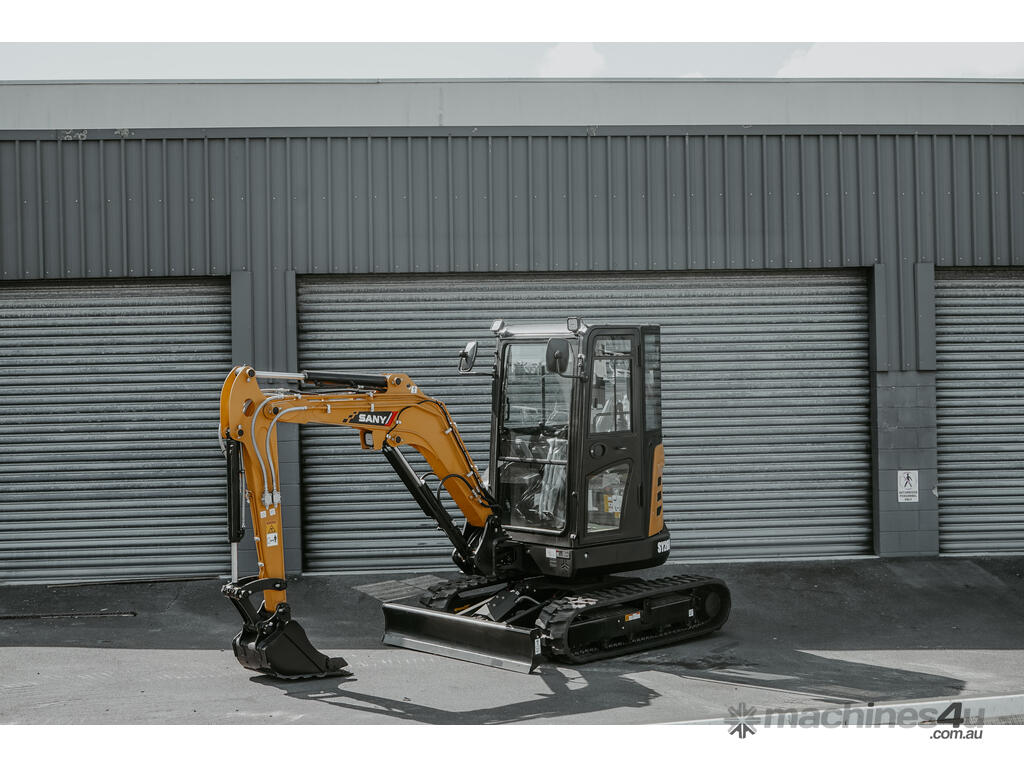

2.8T Mini Excavator Package
Buying has never been easier with all your essential requirements in one convenient package, offered at a single, affordable price. All units in stock and ready to work!
Package Includes:

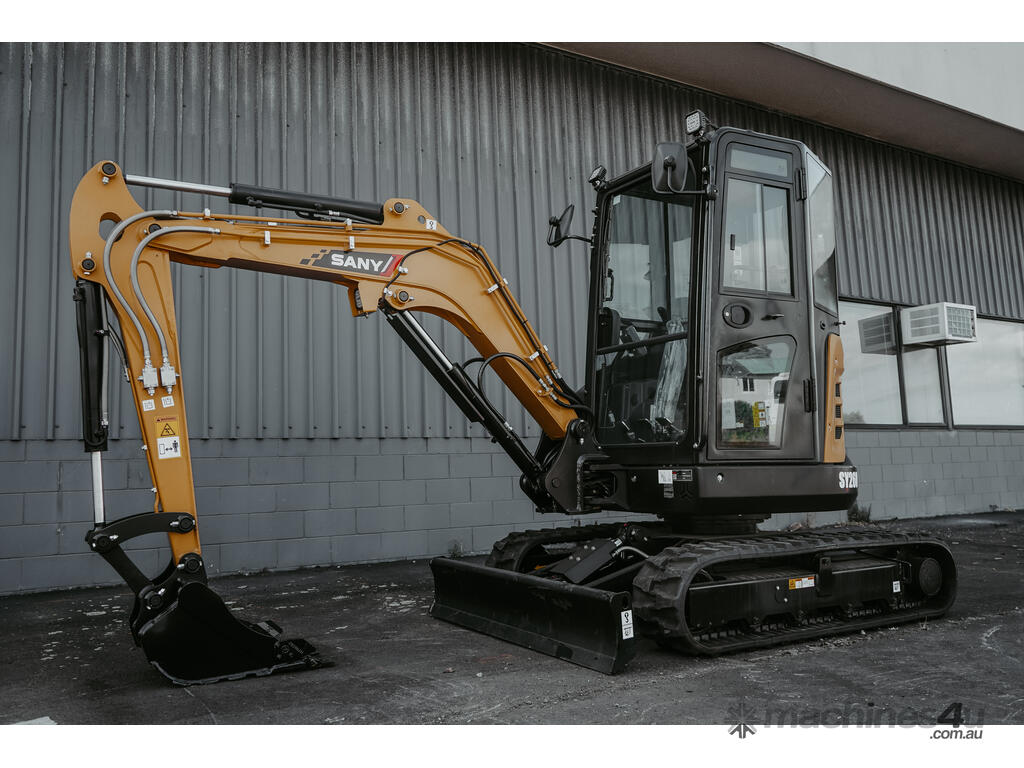

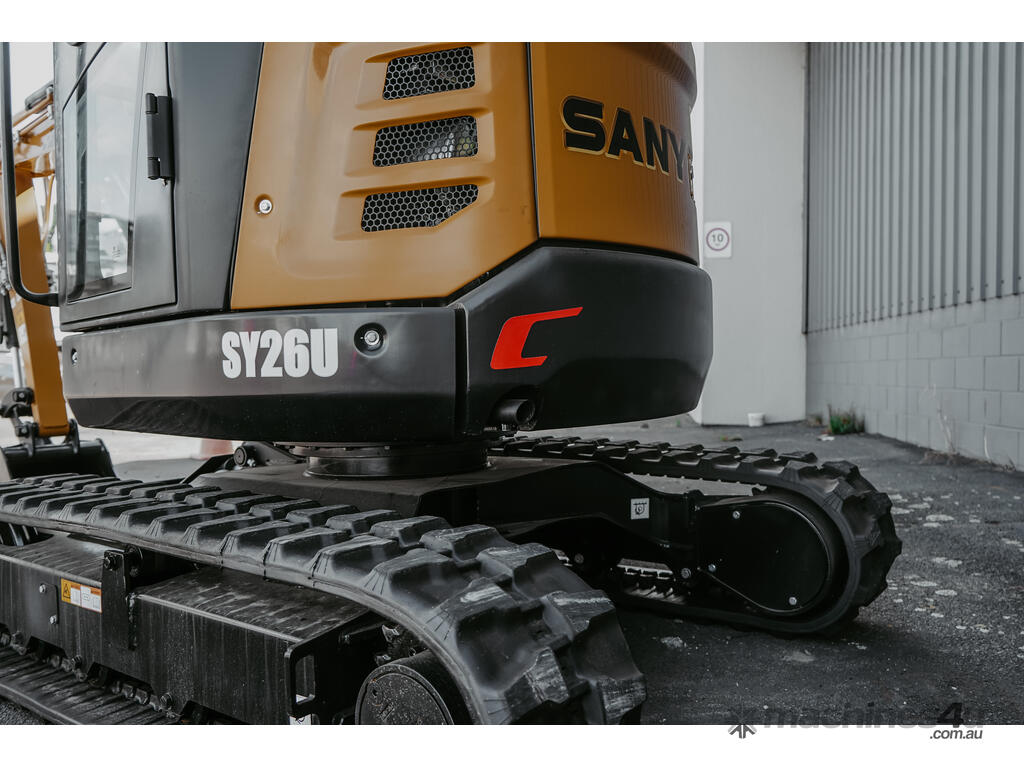

+ SY26U Cabin/Canopy Excavator
+ Hydraulic Hitch
+ 300mm GP Bucket
+ 450mm GP Bucket
+ 1.2m Mud Bucket
Canopy Package: $46,990+GST
Cabin Package: $47,990+GST

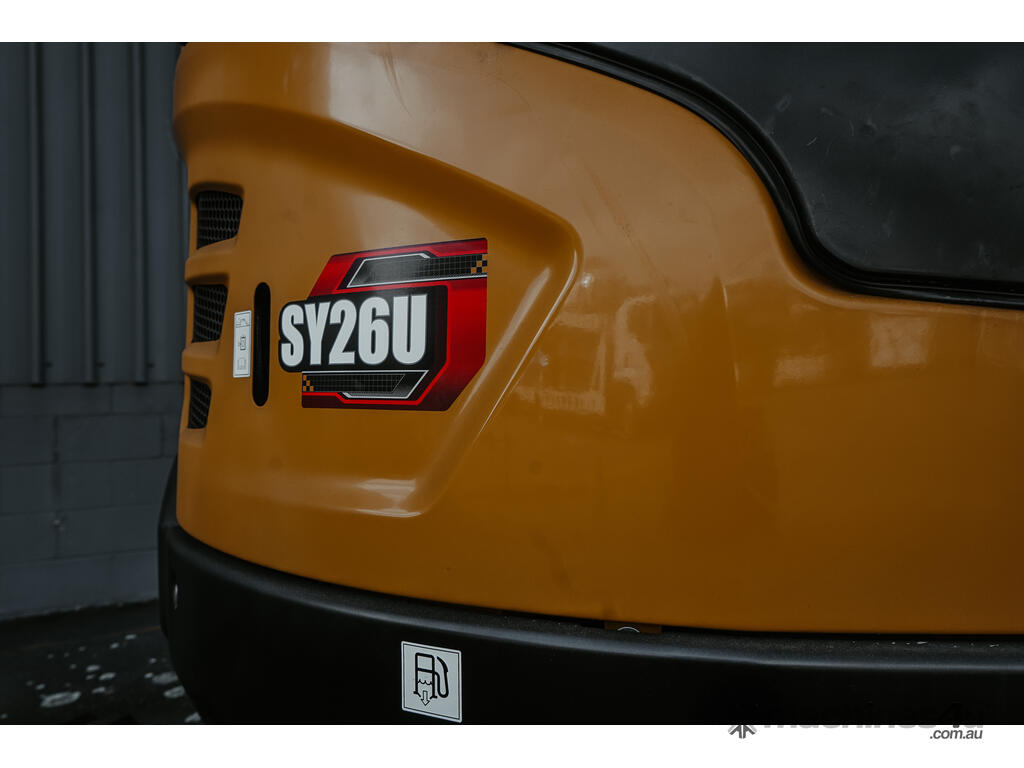

The SY26U has everything it needs to become an indispensable aid. Its impressive properties include not only its power and endurance, but also the precise response characteristics of all the components thanks to the sophisticated hydraulic system. Outstanding performance for a fair price: That‘s what we call cost-effective!
Intricate tasks on construction sites in towns and cities or in horticulture and landscaping depend on manoeuvrability and precise control. This, combined with a great deal of power, makes the SY26U a high-quality powerhouse, and therefore a reliable partner for you.

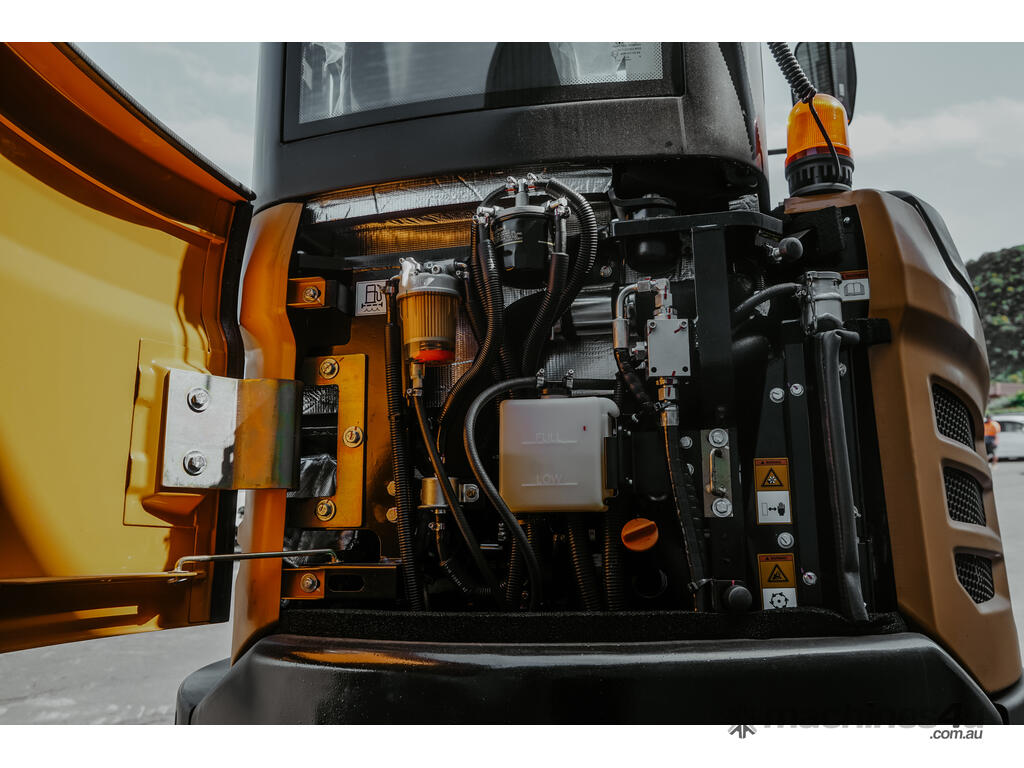

ENGINE
Displacement 1.267L
Engine model Yanmar Tier 5
Rated power 15.2kW/2500rpm
OPERATION RANGE
Height at min. swing radius 3200mm
Max. depth of blade down 330mm
Max. digging depth 2820mm
Max. digging height 4410mm
Max. digging reach 4850mm
Max. dumping height 3100mm
Max. excavating distance 4850mm
Max. ground clearance of blade up 360mm
Max. vertical digging depth 2585mm
Min. swing radius 2110mm
Operating weight 2780kg
DIMENSIONS

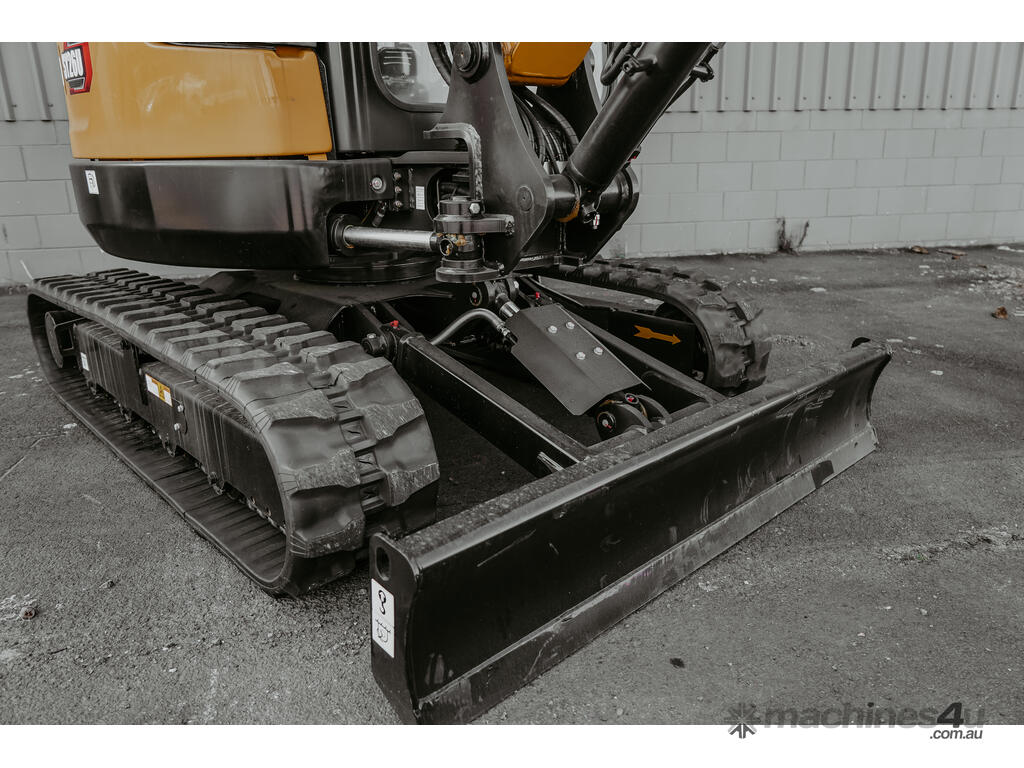

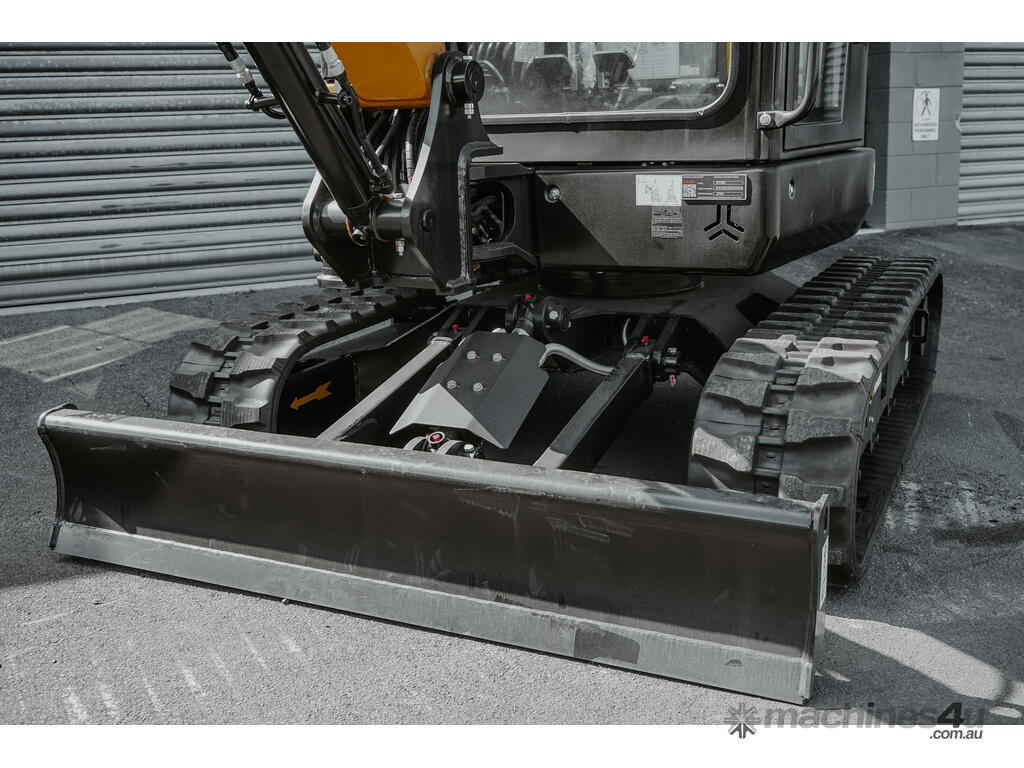

Blade height 300mm
Cab height
Min. ground clearance 290mm
Tail swing radius 775mm
Track length 1960mm
Transport height 1620mm
Transport length 4285mm
Transport width 1550mm
Upper width 1375mm

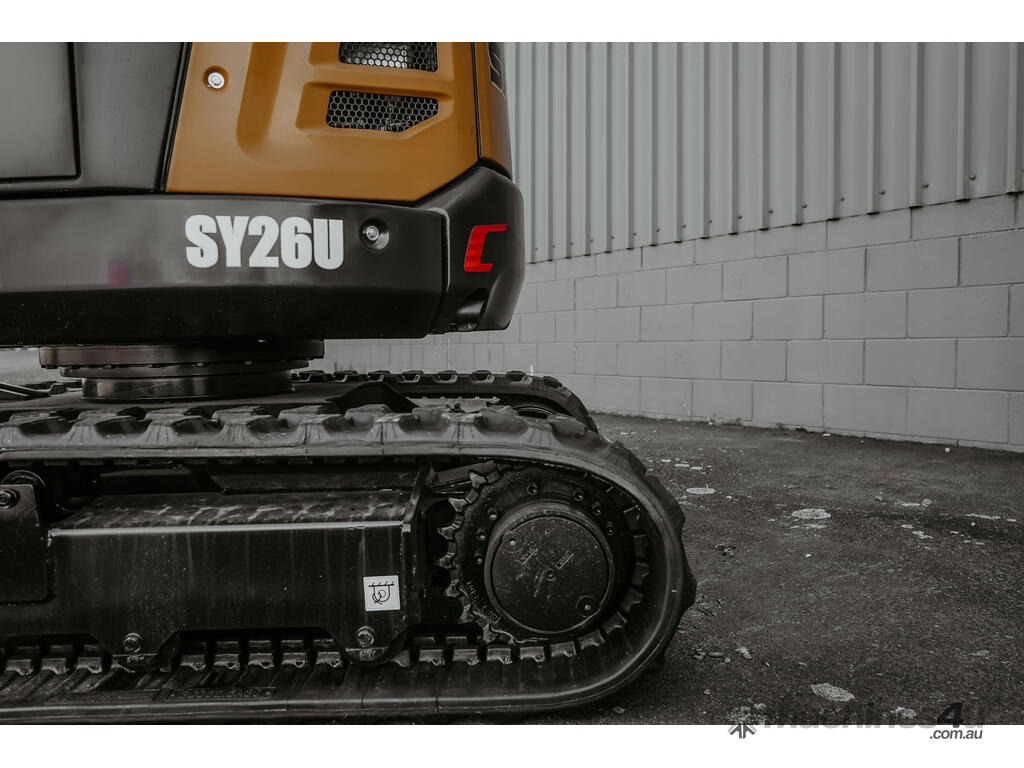

UNDERCARRIAGE/WORKING DEVICE
Arm length 1300mm
Boom length 2100mm
Bucket capacity
Roller gauge
Track gauge 1250mm
Track width 300mm
PERFORMANCE
Arm digging force 14.2kN
Bucket digging force 24.3kN
Cooling system 4.1 L
Engine oil 3.4L
Fuel tank capacity 34.0L
Gradeability 35 degrees
Ground pressure 25.5kPa
Hydraulic tank capacity 30
Swing speed 10RPM
Travel speed 2.4/4.5 KM/H
HYDRAULIC SYSTEM
Hydraulic motors - swing 10RPM
Hydraulic motors - travel 2.4/4.5km/hr
Main pump - maximum flow 72 L/min
Vertu Equipment is a 100% locally owned dealer for SANY Excavators and construction equipment across Victoria, Australia, NZ, and the Pacific. We offer industry-leading value, superior support, and a commitment to quality and service. Contact us today.
