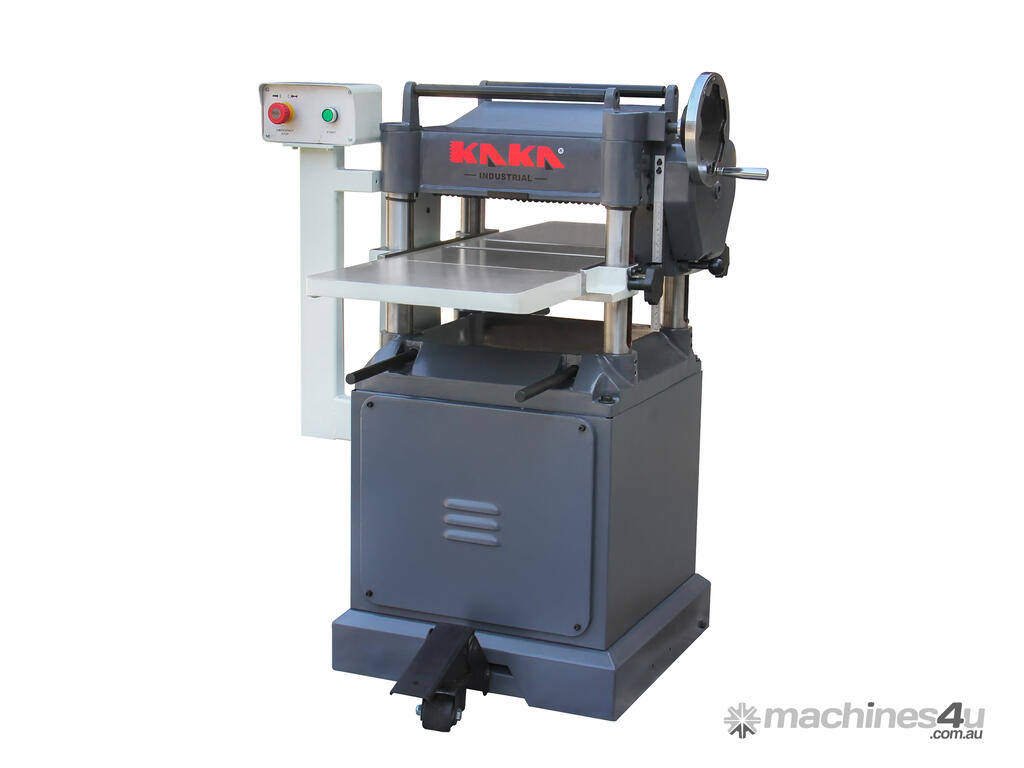

Thicknesser/Planer WDP-4215, 380mm Thicknesser with Helical Spiral Cutterhead, 240V Motor

Kang Industrial WDP-4215 Spiral Cutterhead Thicknesser

The KANG WDP-4215 is a heavy-duty 380 mm floor-standing thicknesser/planer built for serious woodworkers who demand flawless results with minimal effort. Powered by a 2.2 kW, 240 V single-phase motor, it slices through hardwoods and softwoods with ease — up to 380 mm wide × 210mm thick and 3 mm depth of cut per pass. C/W the 4-row spiral cutterhead fitted with 74 pieces of indexable carbide inserts

Outstanding Finish on Hardwood Surface Planer. The spiral/helical cutterhead produces a shear cut that virtually eliminates tear-out on interlocked or figured grain (blackwood, Tasmanian oak, jarrah, curly myrtle, etc.).

Much Quieter Than Straight-Knife Planers. Ideal for home workshops, garages, or shared spaces where noise is an issue.

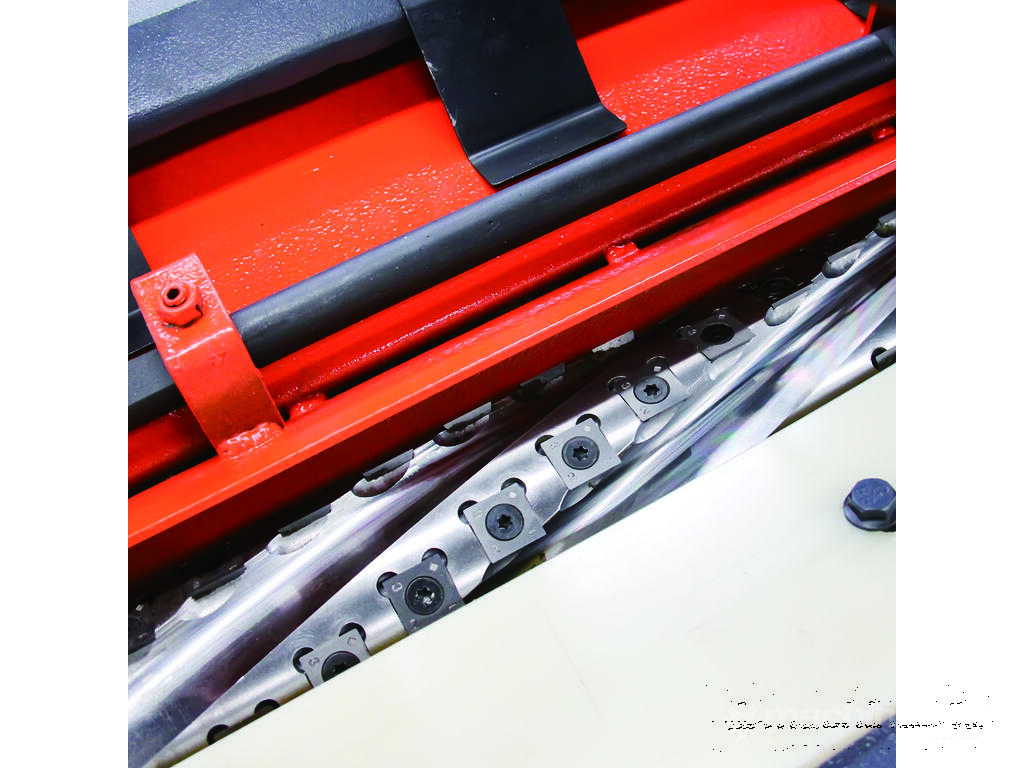

Low-Maintenance Carbide Inserts. 74 indexable carbide inserts can be rotated up to 3 times each for a fresh edge. No more sending full knives away for sharpening, just flip or replace individual inserts in minutes.

Two Feed Speeds. Switch between fast roughing and slow fine finishing without changing belts.

Built-in Mobility. The integrated mobile base makes moving this 300+ kg machine around your workshop effortless.

Minimal Snipe & Vibration. Four-column table support, table locks, and heavy cast-iron build keep the board flat and stable.

Excellent Dust Collection. Smaller chips from the spiral head are easier to extract; pairs perfectly with 100mm dust-extraction systems. (KANG DC-900)

Feature

3 HP Powerful motor runs on 240V Power

Max. cut 380x200 mm timber

Max. cutting depth up to 3 mm

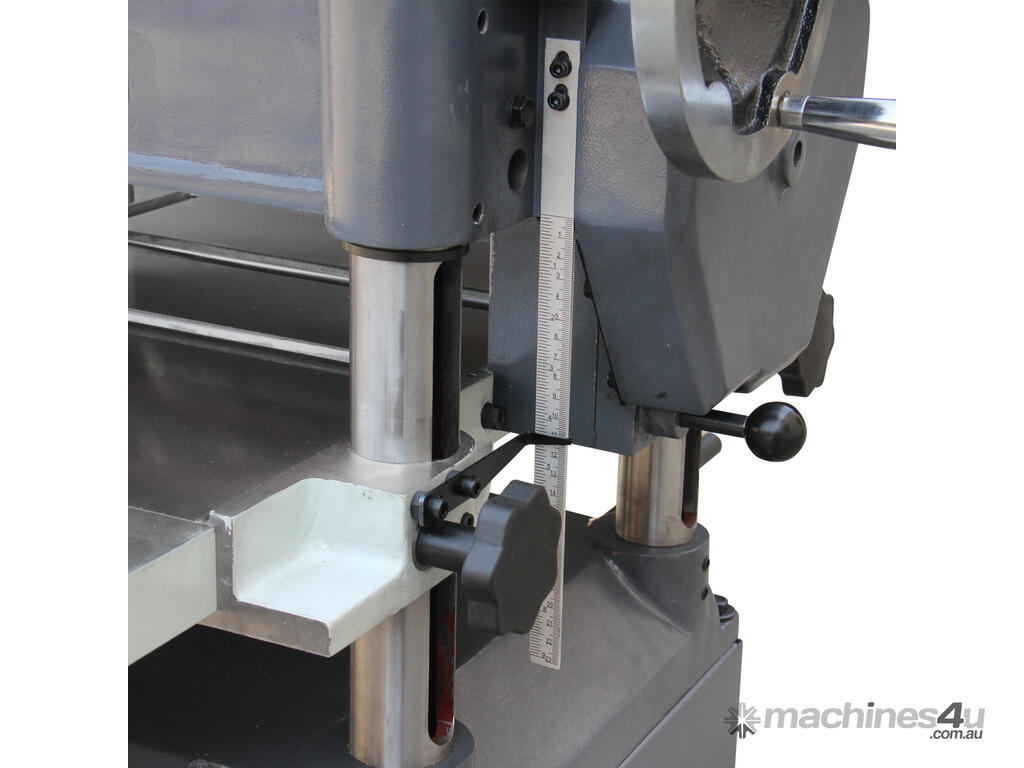

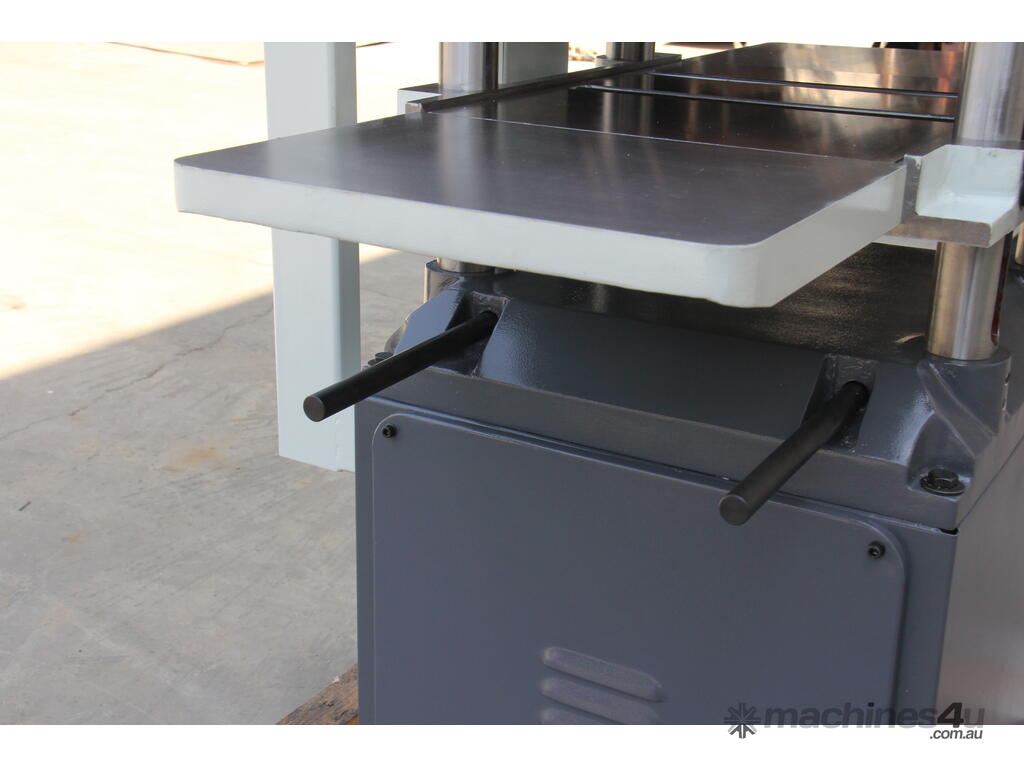

Heavy cast iron table raises and lowers on four precision-ground columns

Two feeding speed 31rpm, 54 rpm

Cutterhead speed up to 4750 rpm

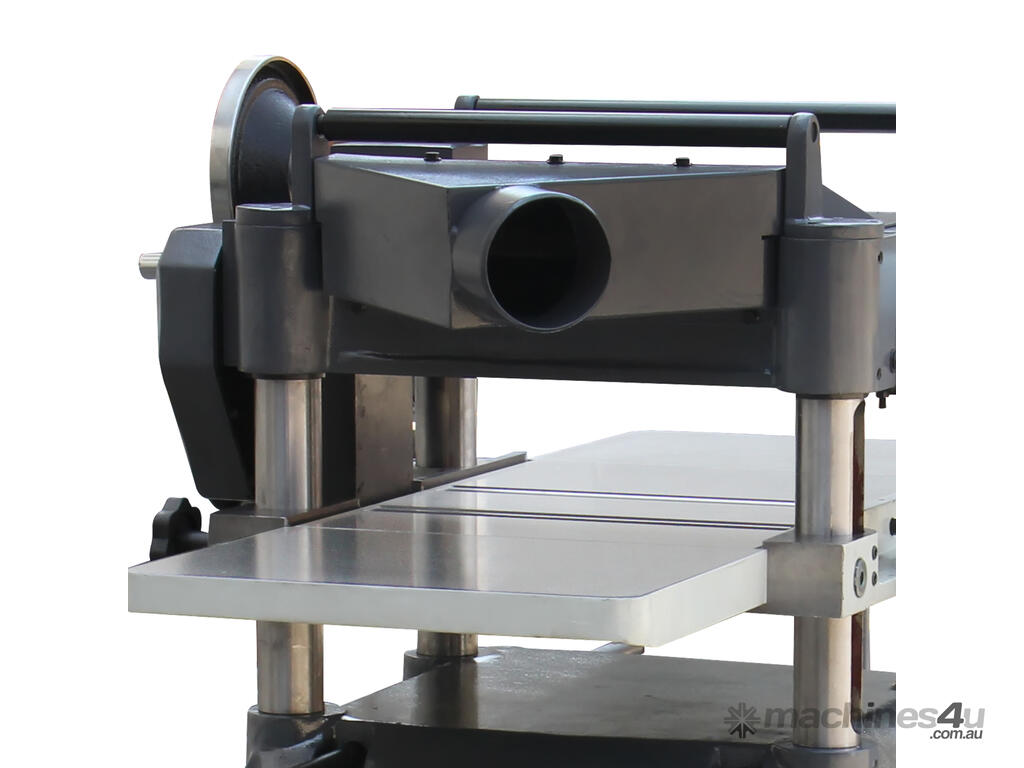

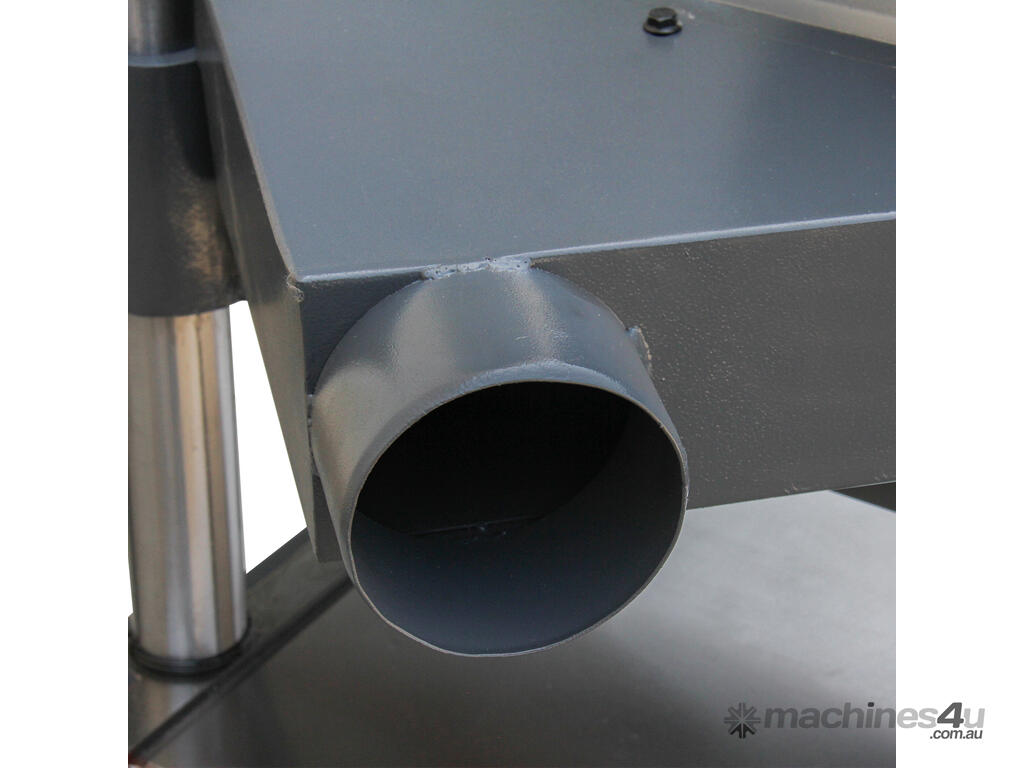

100mm dust port, could use Kang Industrial Dust Collector DC900

Perfect for

Professional cabinetmakers and joiners
Serious hobbyists and furniture makers
Anyone upgrading from a noisy, tear-out-prone straight-knife thicknesser

Specifications
SKU 473050
Model WDP-4215
Max. cutting width 380 mm
Cutting thickness 5-200 mm
Max. cutting depth 3 mm
Cutterhead type Spiral cutterhead
Cutterhead speed 4750 rpm
Insert size type 15x15x2.5 mm, 74 indexable carbide
Feed rate 31 rpm, 54 rpm
Motor power 2.2 kW
Table size with extensions 1070x380 mm
Packing size 92x73x130 cm
N.W./G.W. 273/310 kg
