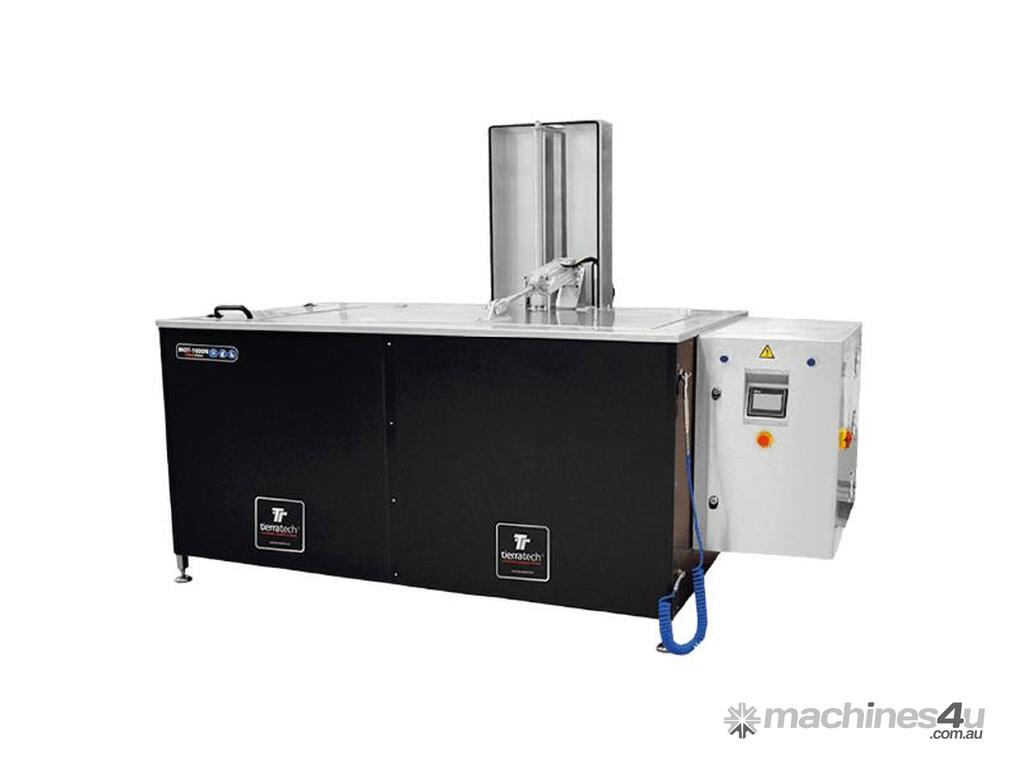

The MOT-1000N ultrasonic cleaning equipment is an industrial automotive ultrasonic cleaning system designed for heavy-duty precision cleaning of engine parts, components and accessories.
Built with a robust stainless steel tank and advanced ultrasonic generators, it delivers consistent, efficient and reliable cleaning performance for automotive and workshop applications.
This heavy-duty ultrasonic cleaning system incorporates a reinforced pneumatic platform supporting loads up to 500 kg, height-adjustable silentblock legs for stability, and an automatic insulated stainless steel tank cover operated by a pneumatic cylinder, providing safety and process efficiency in professional cleaning operations.
Additional features include a 1½” drain ball valve, an integrated water flow system to maintain optimal cleaning fluid quality, and an air blow gun for fast and effective drying of components.
The MOT-1000N ultrasonic cleaning equipment delivers high-precision cleaning performance for critical components, making it an ideal industrial cleaning solution for the automotive sector, including engine parts, mechanical components and other high-value applications where reliability, consistency and extended part lifespan are essential.
Applications
The MOT-1000N ultrasonic cleaning system is designed for demanding industrial environments where precision and reliability are essential. It is widely used in the automotive industry for cleaning engine components, cylinder heads, turbochargers, gearboxes, fuel system parts, and other mechanical elements. The equipment is also suitable for industrial maintenance workshops, manufacturing facilities, and production lines that require deep and consistent cleaning of complex parts. Thanks to its large capacity and robust design, it is ideal for heavy-duty components as well as precision parts that need uniform and controlled results.
Key Benefits
Deep and efficient ultrasonic cleaning performance
High precision cleaning in complex and hard-to-reach areas
Suitable for automotive and industrial applications
Robust stainless steel construction for durability and long service life
Optimized cleaning cycles to improve productivity
Reduced manual labour and operating time
Designed for continuous industrial operation
Compatible with professional ultrasonic cleaning solutions.
This ultrasonic cleaning equipment provides a reliable and efficient solution for industrial ultrasonic cleaning processes in the automotive and manufacturing sectors.
Ultrasonic power: 6800Wp (13600Wp-p)
Ultrasonic generator with an output power of 6800Wp (13600Wp-p)
4 submergible emitters with 1700W(3400Wp-p) of power built in INOX AISI 316L steel, 2,5mm thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
Working frequency: 40 KHz sweep system ± 2%
4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
Programmable weekly calendar
6 outputs and 8 inputs temperature module PLC
Tank made of 2 mm thick stainless steel AISI 304L
External panel in 1 mm thick fingerprint resistant steel
20 mm thick thermo-acoustic insulation
1½” drain ball valve
Height-adjustable silentblock legs
Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
Air blow gun for drying the parts
Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
Pneumatic load platform: Up to 500 kg
