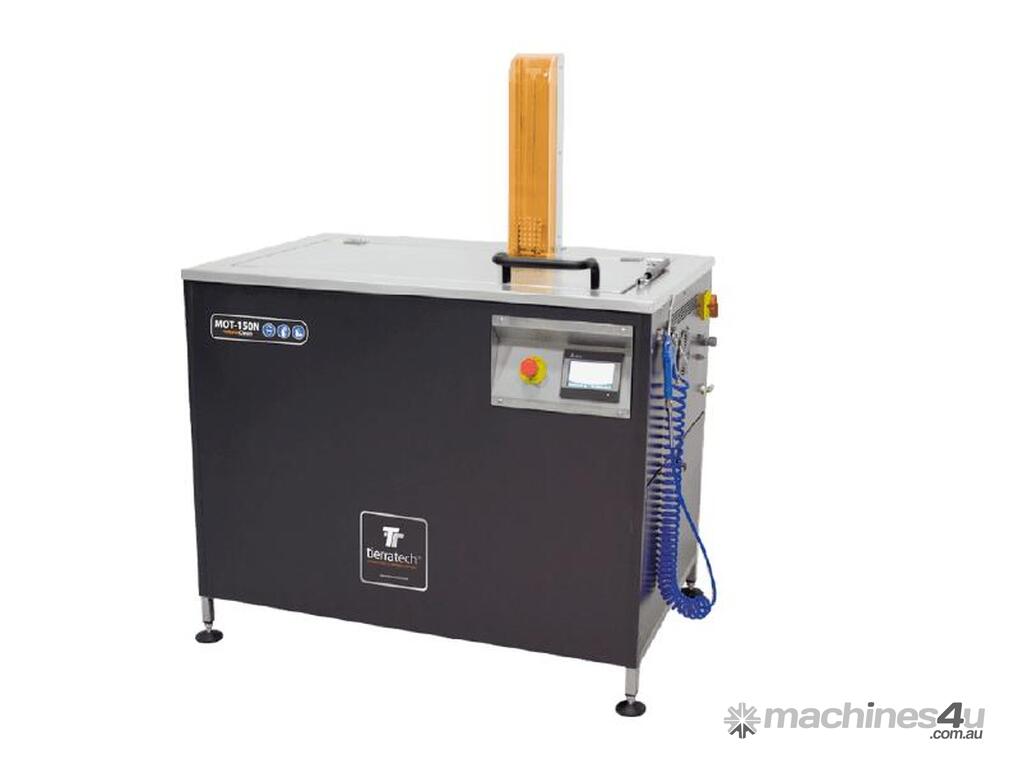

Tierra Tech MOT-150N Ultrasonic Cleaning Equipment

The MOT-150 ultrasonic cleaning equipment is a 165-litre industrial ultrasonic cleaning system designed for automotive workshops and professional maintenance environments requiring greater capacity and safe handling.

Equipped with a pneumatic platform supporting loads up to 60 kg, it ensures efficient and ergonomic loading and unloading of components. Its industrial-grade stainless steel construction guarantees durability, reliability, and consistent performance in demanding working conditions.

The MOT-150 delivers uniform ultrasonic cavitation, effectively removing grease, oils, carbon deposits, and industrial residues from mechanical components and precision parts. Its tank capacity makes it ideal for medium-sized automotive elements that require thorough and controlled cleaning.

This industrial ultrasonic cleaning equipment offers the perfect balance between compact systems and larger heavy-duty machines, providing increased volume while maintaining operational efficiency and reduced energy consumption.

The MOT-150 is suitable for automotive workshops, industrial maintenance facilities, and light manufacturing environments. It is commonly used for cleaning cylinder heads, mechanical assemblies, engine components, metal parts, and industrial tools. Its integrated pneumatic platform improves handling efficiency and operator safety during cleaning operations.

Ultrasonic power: 1700Wp (3400Wp-p)
1 ultrasonic generator with an output power of 1700Wp (3400Wp-p)
1 submergible emitter with 1700Wp (3400Wp-p) of power built in INOX AISI 316L steel, 25,4 mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
Working frequency: 40 KHz sweep system ± 2%

Control Panel
Integrated control panel with 7? TFT screen.
Time and temperature control.
Movement button (up – down – shaking).
US button (connect – disconnect), direct ultrasonic alarms and selectors.
Heating button (on – off).
WFS/Filter button (optional) (on – off).
START-STOP button (connect – disconnect cycle).
ON-OFF button (on – off control).
Capacity to work with 22 programmable cycles, protected by password.
Temperature control through PT100, over temperature safety and breakage sensor.
Weekly programmer, for preheating and turning off the machine.
Level control.
IP65 protection

Finishes and Accessories
Tank built in stainless steel AISI 304L of 2 mm.
Exterior paneling in 1 mm. steel with special anti-footprint finish and easy to clean.
Thermal-acoustic insulation of 20 mm thickness.
Recessed handles.
Stainless steel basket with anchoring system for loading, unloading and draining of pieces.
Ball valve for drainage of ½” inch.
Height adjustable silentblock legs.
Lid made of stainless steel, heat-insulated and manual opening.
