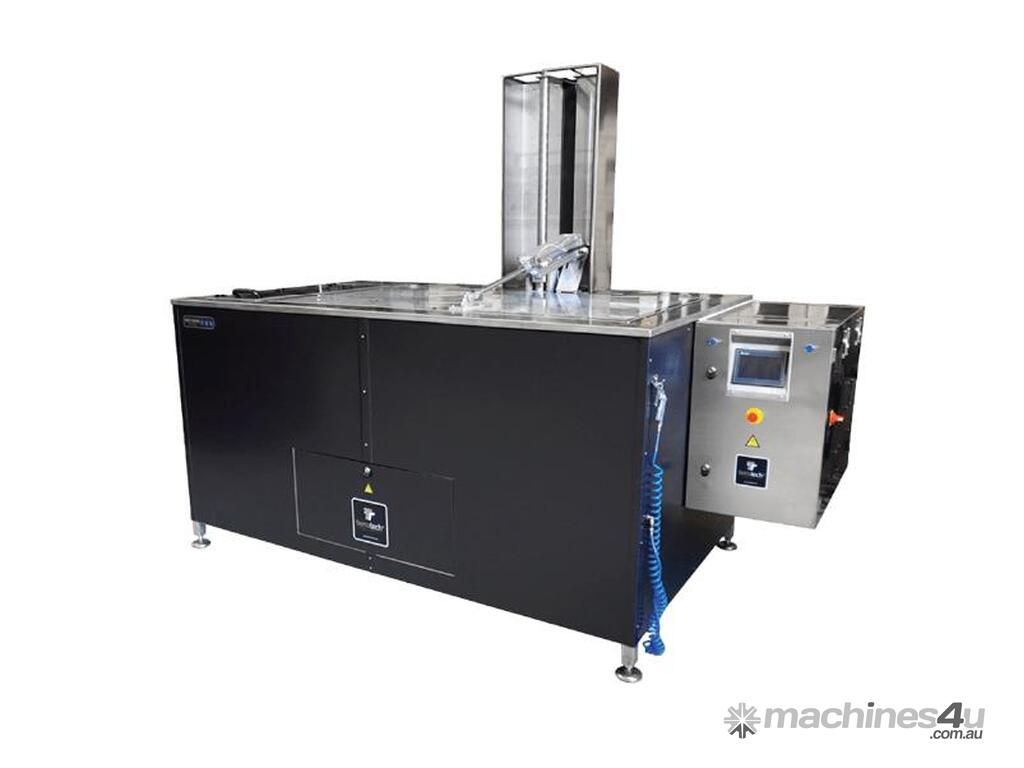

Tierra Tech MOT-2000N Ultrasonic Cleaning Equipment

The MOT-2000N is a 1900-litre industrial ultrasonic cleaning equipment with a reinforced 750 kg pneumatic platform. Designed for heavy-duty automotive and manufacturing applications, delivering deep, efficient and reliable cleaning performance.

With a robust AISI 304L stainless steel tank and a pneumatic loading platform that supports up to 500 kg, the MOT-2000N is ideal for cleaning large automotive components such as engine blocks, cylinder heads, and gearboxes.

This high-performance ultrasonic cleaning equipment ensures precision cleaning while reducing manual effort and downtime.

The MOT-2000N ultrasonic cleaning system is designed for large-scale industrial environments that require high performance and heavy-duty capacity. With its 1900-litre tank and reinforced pneumatic platform supporting loads up to 750 kg, it is especially suitable for demanding automotive applications such as engine blocks, turbochargers, gearboxes, and large mechanical assemblies. This industrial ultrasonic cleaning equipment is also ideal for maintenance workshops, manufacturing facilities, and production lines that require deep, consistent, and reliable cleaning of oversized components.

Key Benefits

Large 1900-litre ultrasonic cleaning capacity
Reinforced pneumatic platform with up to 750 kg load capacity
High-performance industrial ultrasonic cleaning system
Deep cleaning in complex geometries and internal channels
Optimized for heavy-duty automotive components
Robust stainless steel construction for durability
Designed for continuous industrial operation
Improved productivity and reduced manual labour
Compatible with professional ultrasonic cleaning solutions

3 Ultrasound generators with an output power of 10200W(20400Wp-p)
Ultrasonic power: 10200W(20400Wp-p)
Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
6 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L steel. The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.

7” capacitive touch screen, functional and intuitive, providing access to ultrasonic time settings, temperature
control, and peripheral or optional systems.
Weekly programming available

Tank made of 2 mm thick stainless steel AISI 304L
External panel in 1 mm thick fingerprint resistant steel
20 mm thick thermo-acoustic insulation
1½” drain ball valve
Height-adjustable silentblock legs
Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
Air blow gun for drying the parts
Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
Pneumatic load platform: Up to 750 kg
