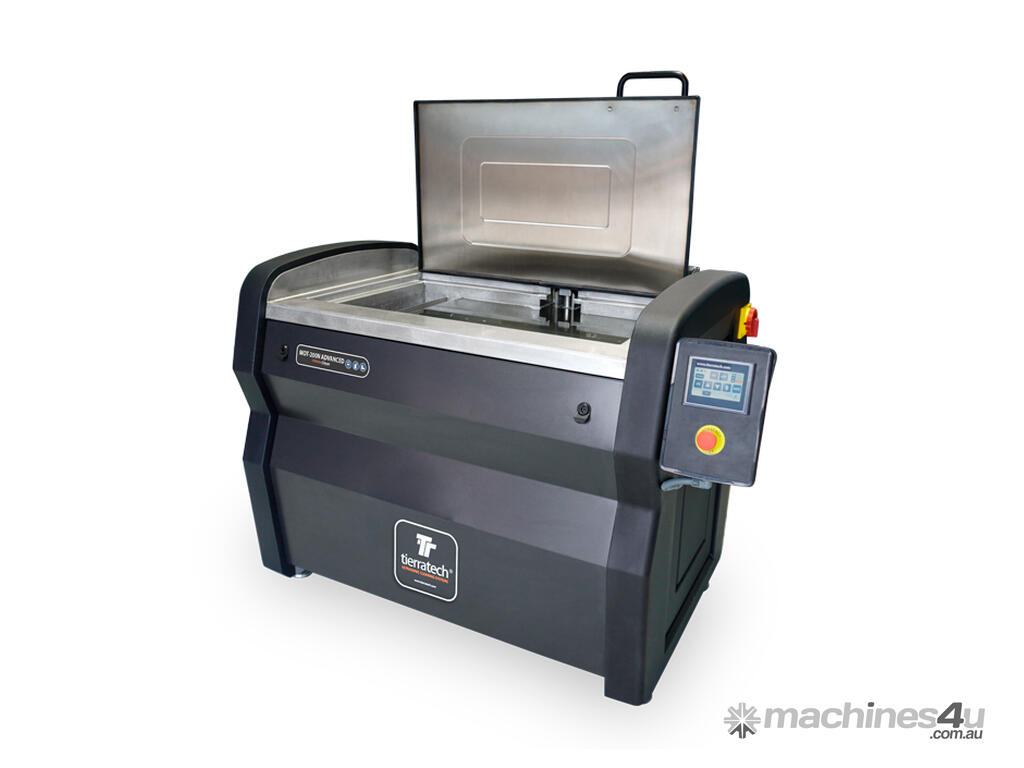

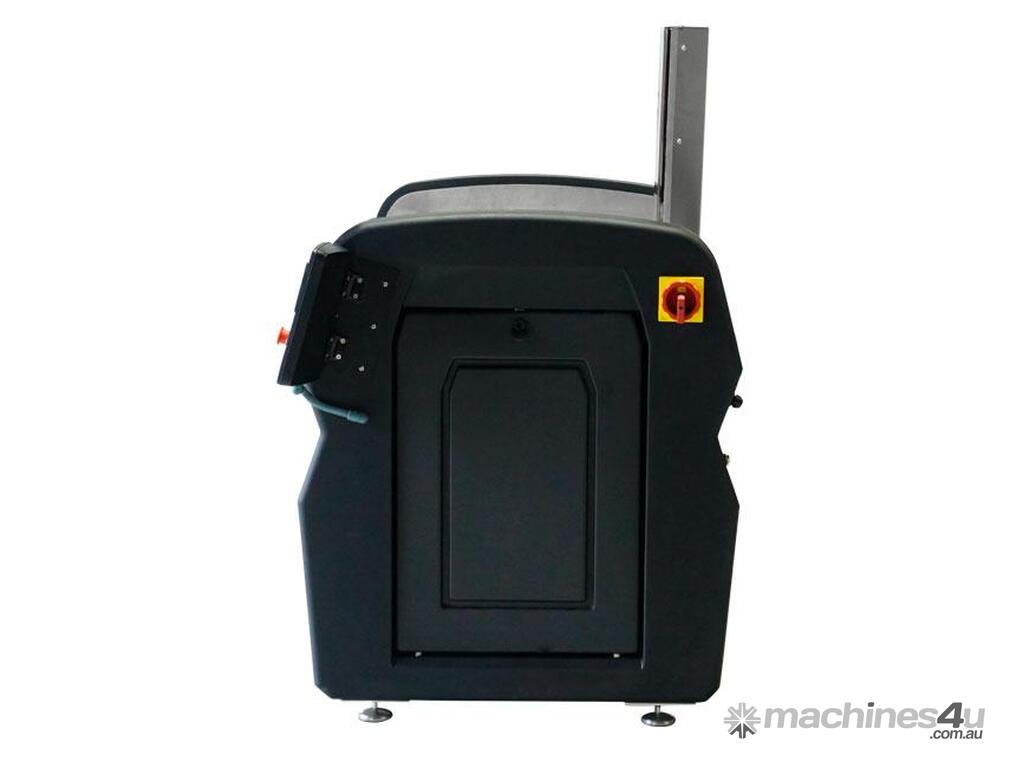

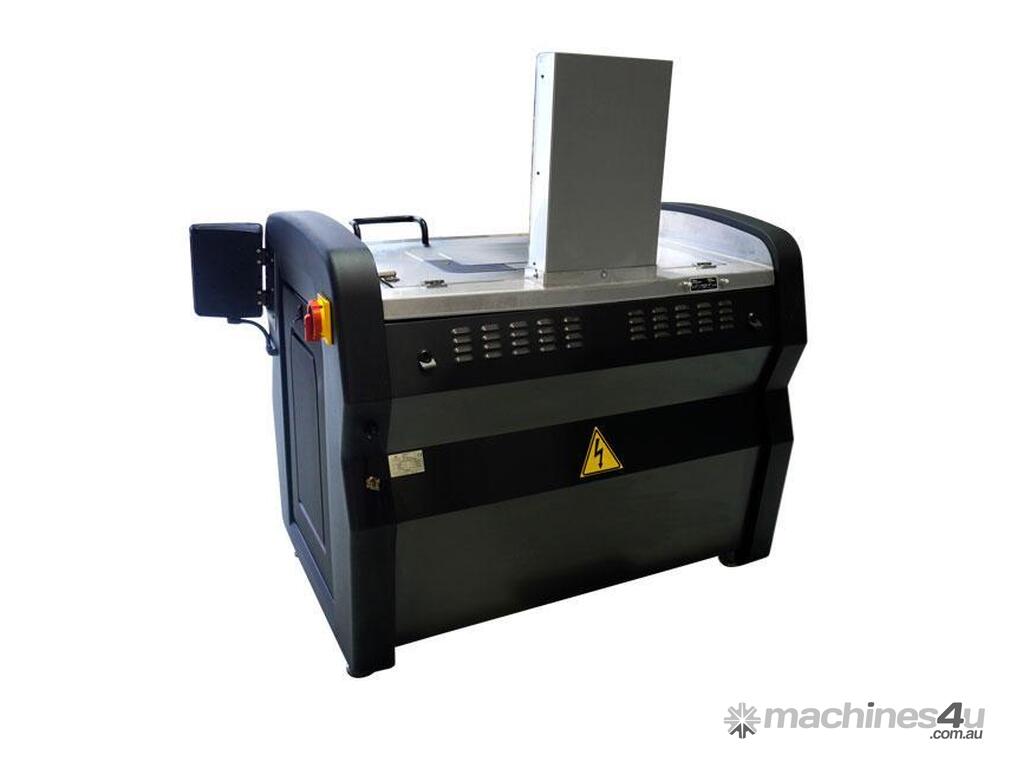

Tierra Tech MOT-200N Advanced

The ultrasonic cleaning equipment MOT-200N ADVANCED is the ideal choice for degreasing, decarbonising, and descaling engine parts and component

Motor Clean is a dedicated range of ultrasonic cleaning equipment and systems, expertly engineered for automotive industry professionals.

At TierraTech, we have an in-depth understanding of the sector’s cleaning challenges, which has enabled us to develop a highly efficient solution that delivers consistent, high-quality results throughout the maintenance process.

Our systems are the perfect choice for degreasing, decarbonising, and descaling engine parts and components. They offer exceptional cleaning performance, even in the most inaccessible areas, regardless of part complexity — all while requiring minimal manual effort.

1 Ultrasonic generator with an output power of 1700Wp (3400w p-p) with automatic power monitoring and frequency wave.
The operating frequency is 40 kHz with a sweeping system of ± 2%
1 ultrasonic emitter with a power of 1700Wp (3400wp-p) made of AISI 316L stainless steel with a thickness of 2.5 mm, with 34 piezoelectric PZT (lead zirconate titanate) transducers with a high-performance aluminium alloy body.

7” touchscreen, preheating time control, weekly calendar, alarms, platform and water level control, and programmable work cycles

Ultrasonic cleaning tank made of AISI 304L stainless steel with a thickness of 2 mm. Thermal-acoustic insulation of 20 mm thickness.
AISI 304L opening/closing lid with 10 mm thick thermal-acoustic insulation.
Pneumatic platform made of AISI 304L stainless steel, with a load capacity of up to 200 kg.
WFS (Waterflow system for oil separation) independent tank from the cleaning tank for the collection of oils and particles on the surface, which also includes a drainage system for the oil discharge.
Electric resistance with a power of 3750W made of AISI 316L, a metal alloy resistant to high temperatures and corrosion.
*(Optional) TTF1 bag filter for removing sludge from the bottom of the tank. Made of AISI 304L stainless steel, with a pressure gauge and the capacity to integrate bags from 5 to 200 µm.
