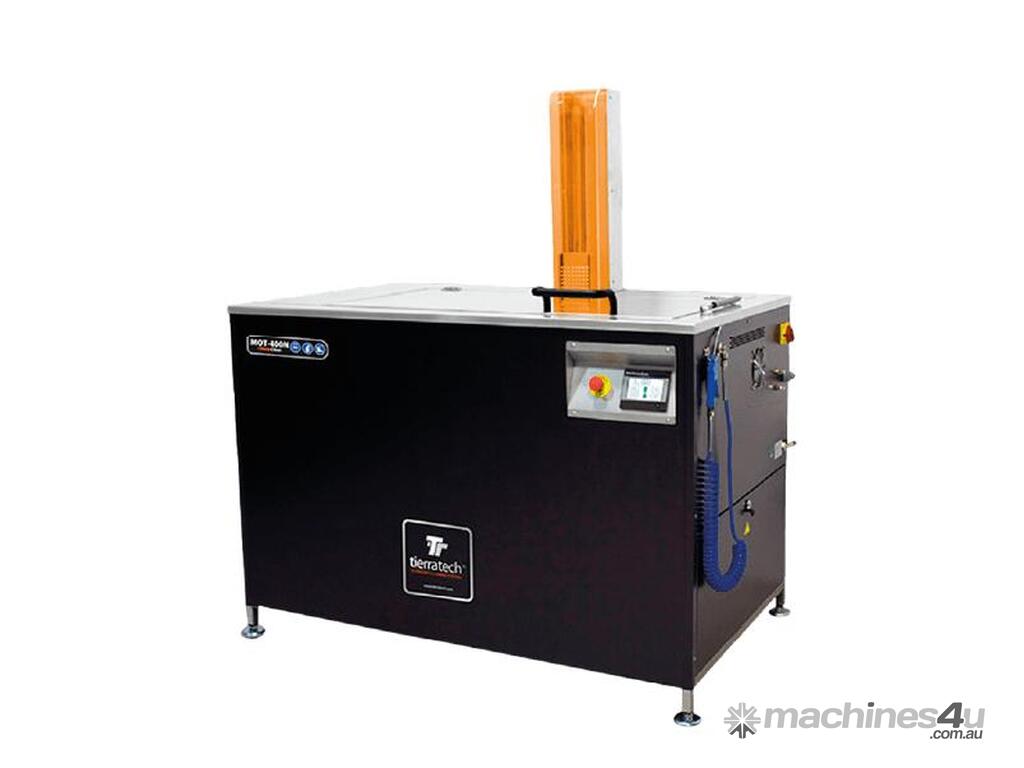

The MOT-400N ultrasonic cleaning equipment is a high-performance industrial system designed for demanding automotive and maintenance applications. Operating with a 400V power supply, it integrates a powerful 7000W heating element to ensure optimal cleaning temperatures and consistent process performance.
The system delivers 4000W of ultrasonic power (8000W peak-to-peak) through an advanced high-efficiency ultrasonic generator, providing uniform cavitation and reliable energy distribution across the tank. It includes two submersible emitters, each delivering 2000W (4000W peak-to-peak), manufactured from durable 2.5 mm thick AISI 316L stainless steel to guarantee long service life and resistance in industrial environments.
The MOT-400N features an integrated 7” TFT touchscreen control panel, offering intuitive access to all operational parameters, including ultrasonic timing, temperature control, and system configuration. This user-friendly interface enhances process control, efficiency, and operational precision.
Applications
The MOT-400N ultrasonic cleaning system is designed for medium-to-large industrial environments that require reliable and efficient cleaning performance. With its 420-litre capacity, it is ideal for automotive workshops, maintenance facilities, and production areas handling engine components, mechanical assemblies, tools, and technical parts.
This industrial ultrasonic cleaning equipment provides consistent results for organizations that need a balance between capacity, performance, and operational efficiency in daily cleaning processes.
Key Benefits
420-litre medium-high capacity design
Reinforced pneumatic platform supporting up to 250 kg
Suitable for automotive and industrial applications
Efficient cleaning of complex geometries
Robust stainless steel construction
Designed for professional workshop environments
Reduces manual cleaning effort
Compatible with professional ultrasonic cleaning solutions
The MOT-400N industrial ultrasonic cleaning system delivers reliable and efficient performance for medium-scale automotive and maintenance applications.
Ultrasound generator with an output power of 3400Wp (6800Wp-p)
Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
2 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L steel. The emitter contains
34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
7” capacitive touch screen, functional and intuitive, providing access to ultrasonic time settings, temperature
control, and peripheral or optional systems.
Weekly programming available
Tank made of 2 mm thick stainless steel AISI 304L
External panel in 1 mm thick fingerprint resistant steel
20 mm thick thermo-acoustic insulation
1½” drain ball valve
Reinforced pneumatic platform for loading and unloading up to 250 kg
Height-adjustable silentblock legs
Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
Air blow gun for drying the parts
Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
(Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud.
