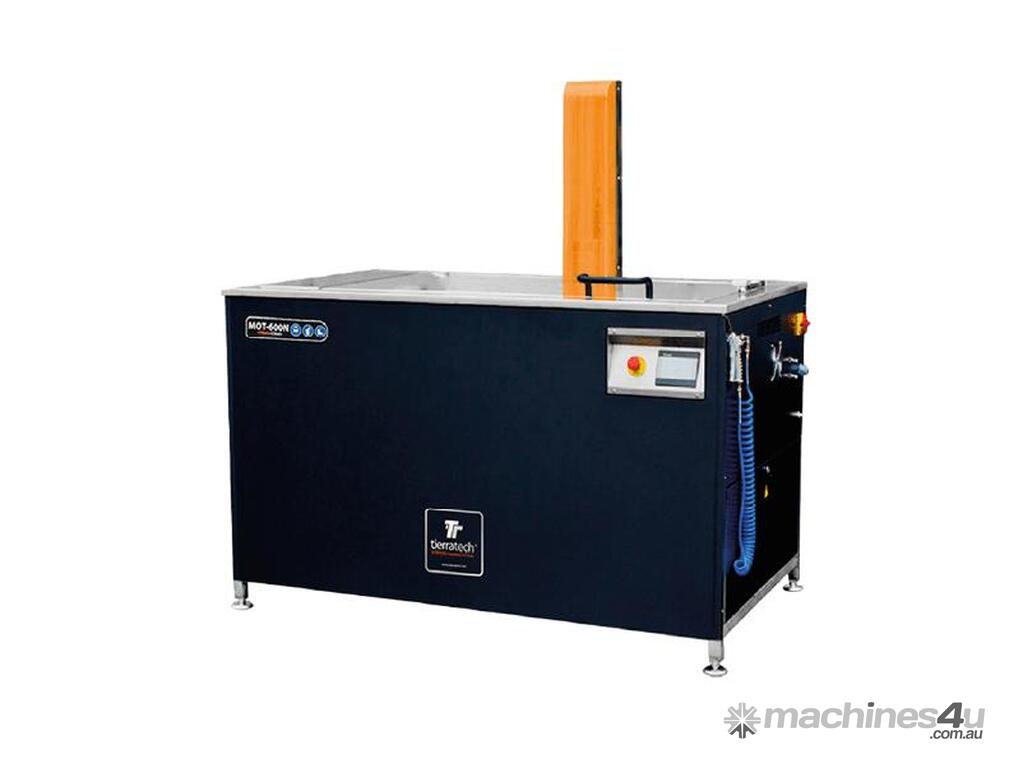

The MOT-600N ultrasonic cleaning equipment is a high-capacity industrial system with a 600-litre tank, designed for demanding automotive and maintenance applications requiring greater volume and performance.
Engineered for medium-to-large components, it supports a reinforced pneumatic platform capable of handling loads up to 350 kg, ensuring safe and efficient loading and unloading operations. With a working load capacity of 320 kg, it is ideal for engine parts, mechanical assemblies, and industrial components that require deep and uniform ultrasonic cleaning.
The MOT-600N delivers consistent ultrasonic cavitation, effectively removing grease, carbon deposits, contaminants, and residues from complex surfaces and internal cavities. Its robust stainless steel construction guarantees durability, long service life, and reliable operation in continuous industrial environments.
This industrial ultrasonic cleaning system is the ideal solution for workshops and production facilities that require higher capacity than compact models, while maintaining precision, efficiency, and process reliability.
Applications
The MOT-600N is suitable for automotive workshops, industrial maintenance centers, and manufacturing environments that require high-volume ultrasonic cleaning. It is commonly used for engine components, gearboxes, metal parts, mechanical assemblies, and medium-to-large industrial elements. Its increased capacity and reinforced pneumatic platform make it ideal for operations that demand efficiency, safety, and consistent cleaning results.
Key Benefits
600-litre high-capacity ultrasonic cleaning system
Reinforced pneumatic platform up to 350 kg
Suitable for medium and large industrial components
Deep and uniform ultrasonic cleaning performance
Robust stainless steel industrial construction
Optimized for automotive and maintenance applications
Improves productivity and reduces manual labour
Designed for continuous professional use
Ultrasonic power: 5100Wp (10200W p-p)
Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
3 submersible emitters with 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
Tank made of 2 mm thick stainless steel AISI 304L
Pneumatic load platform: Up to 350 kg
Touch screen (4,3 “), functional and intuitive, with access to selection of time of ultrasonic, temperature, security levels and peripheral systems.
Weekly calendar programming to optimize the start-up of the equipment.
PLC with temperature module with 8 inputs and 6 outputs.
Tank made of 2 mm thick stainless steel AISI 304L
External panel in 1 mm thick fingerprint resistant steel
20 mm thick thermo-acoustic insulation
1½” drain ball valve
Height-adjustable silentblock legs
Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
Air blow gun for drying the parts
Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
