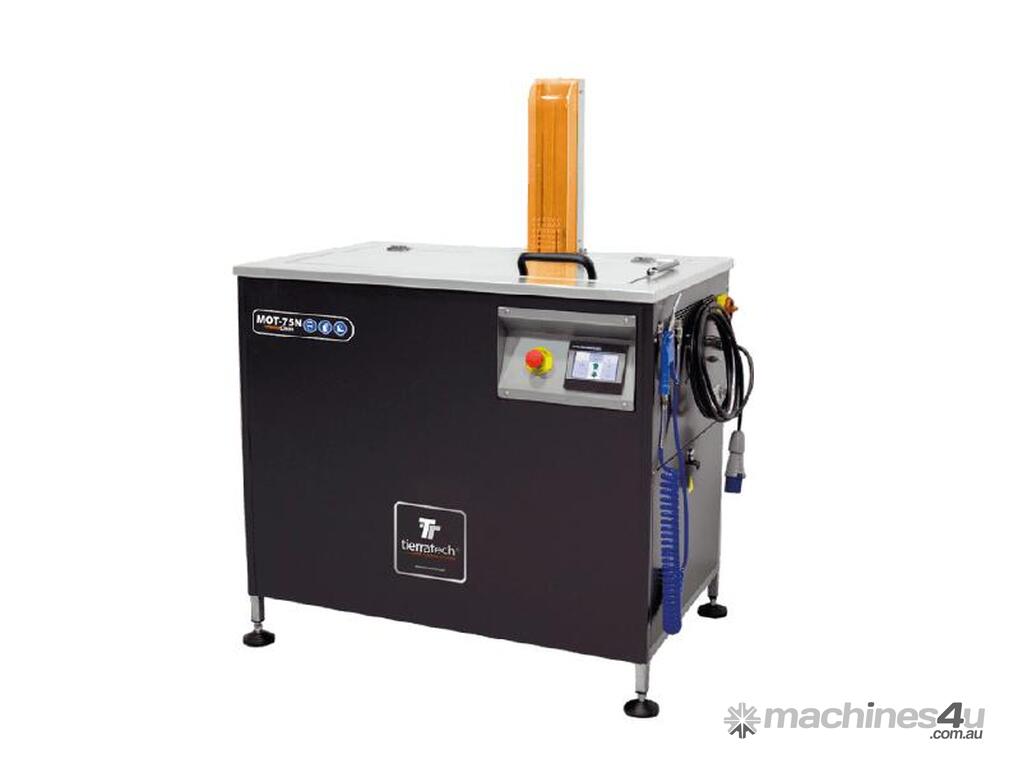

Tierra Tech MOT-75N Ultrasonic Cleaning Equipment

The MOT-75N ultrasonic cleaning equipment is a 100-litre industrial cleaning system developed for professional automotive workshops and demanding maintenance environments requiring greater capacity and durability.

With a robust 130 kg structure, the MOT-75N provides enhanced stability and industrial-grade performance, ensuring consistent ultrasonic cavitation for deep and uniform cleaning. It effectively removes grease, oil, carbon deposits, and industrial contaminants from mechanical parts and precision components.

Designed to handle larger and heavier elements than compact models, this ultrasonic cleaning system guarantees optimal penetration into internal cavities and complex geometries, delivering superior results compared to conventional cleaning methods.

The MOT-75N represents the ideal solution for businesses seeking increased tank volume and professional reliability while maintaining operational efficiency and controlled energy consumption.

Applications
The MOT-75N is widely used in automotive workshops, industrial maintenance facilities, and production environments requiring medium-capacity ultrasonic cleaning.

It is suitable for cleaning engine components, cylinder heads, injectors, mechanical assemblies, metal parts, and industrial tools. Its increased 100-litre capacity allows efficient cleaning of larger components while maintaining precision and consistency.

Key Benefits
100-litre industrial ultrasonic cleaning system
Heavy-duty 130 kg construction for enhanced stability
Suitable for medium-sized automotive components
Deep and uniform ultrasonic cleaning performance
Efficient removal of grease, oil and carbon deposits
Ideal for automotive and industrial maintenance
Reliable and durable professional equipment
Optimised for continuous operation

Ultrasonic power: 1000Wp (2000W p-p)
1 ultrasonic generator with an output power of 1000Wp (2000W p-p)
1 submergible emitter with 1000Wp (2000W p-p) of power built in INOX AISI 316 steel, 25,4mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
Working frequency: 40 KHz sweep system ± 2%

Control Panel
Integrated control panel with 7? TFT screen.
Time and temperature control.
Movement button (up – down – shaking).
US button (connect – disconnect), direct ultrasonic alarms and selectors.
Heating button (on – off).
WFS/Filter button (optional) (on – off).
START-STOP button (connect – disconnect cycle).
ON-OFF button (on – off control).
Capacity to work with 22 programmable cycles, protected by password.
Temperature control through PT100, over temperature safety and breakage sensor.
Weekly programmer, for preheating and turning off the machine.

Finishes Accessories
Tank built in INOX AISI 304 Stainless steel, 2 mm
External panel in fingerprint-resistant steel, 1mm
Thermo-acustic isolator K-Flex Duct Net, 20mm inch thick
Reinforced pneumatic platform for loading and unloading up to 66 lb
25,4mm draining ball valve
Height adjustable legs
Insulated tank cover in Stainless-Steel with pneumatic shock absorber
Air blow-gun for drying parts
Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
(Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud
