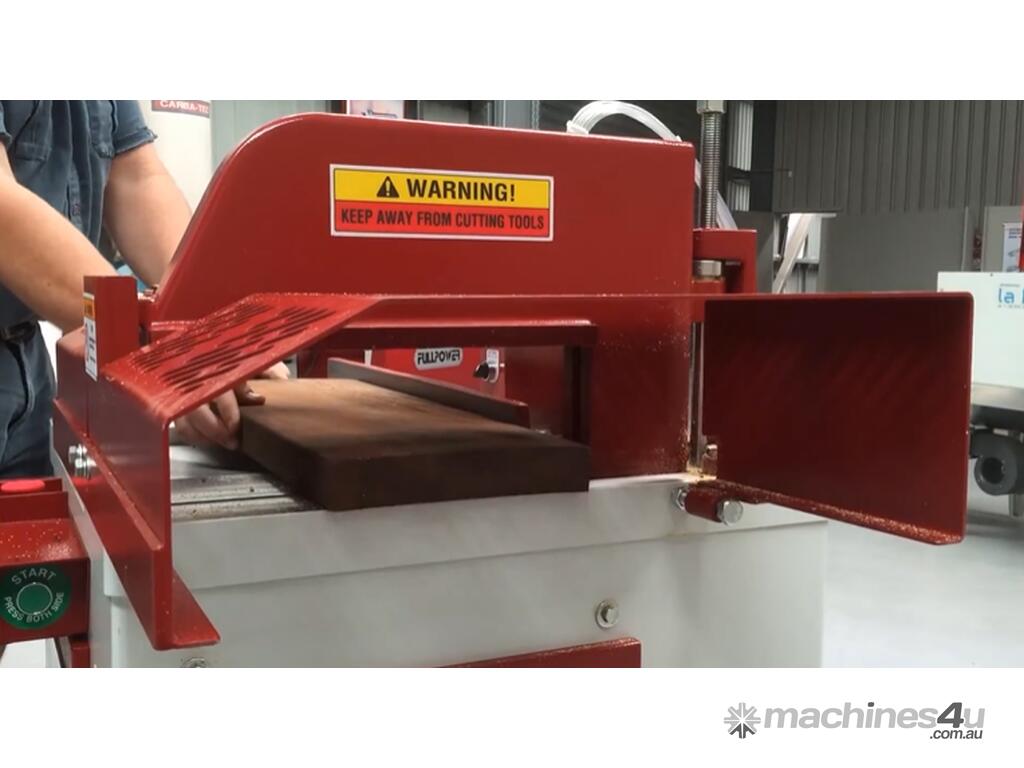

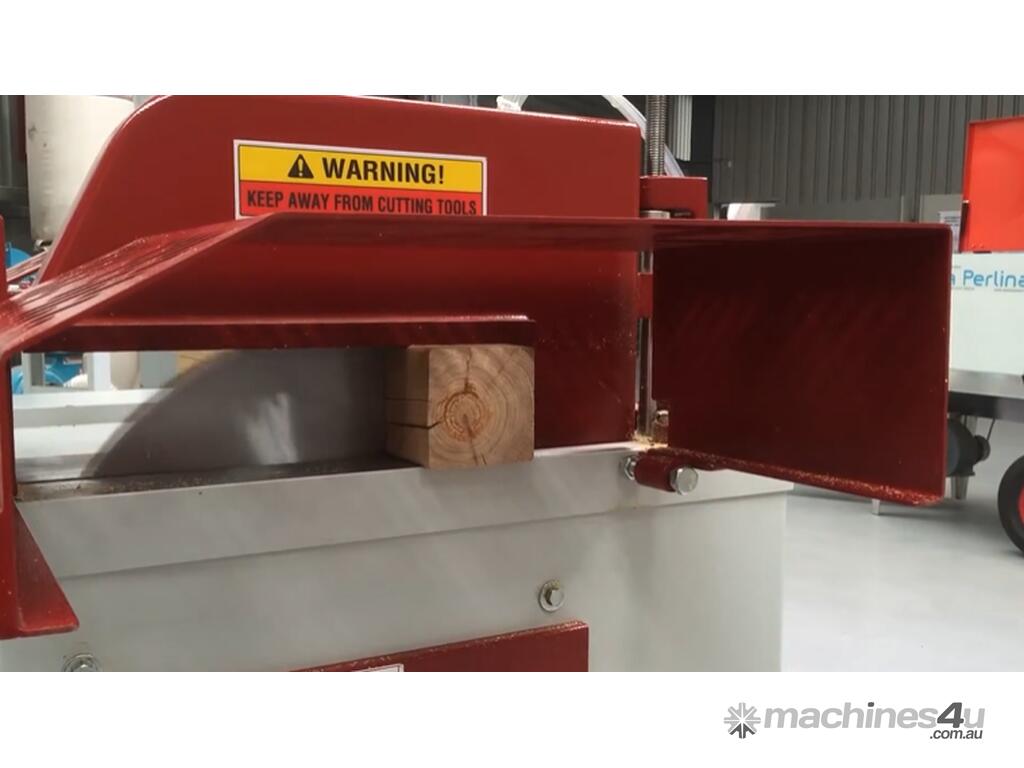

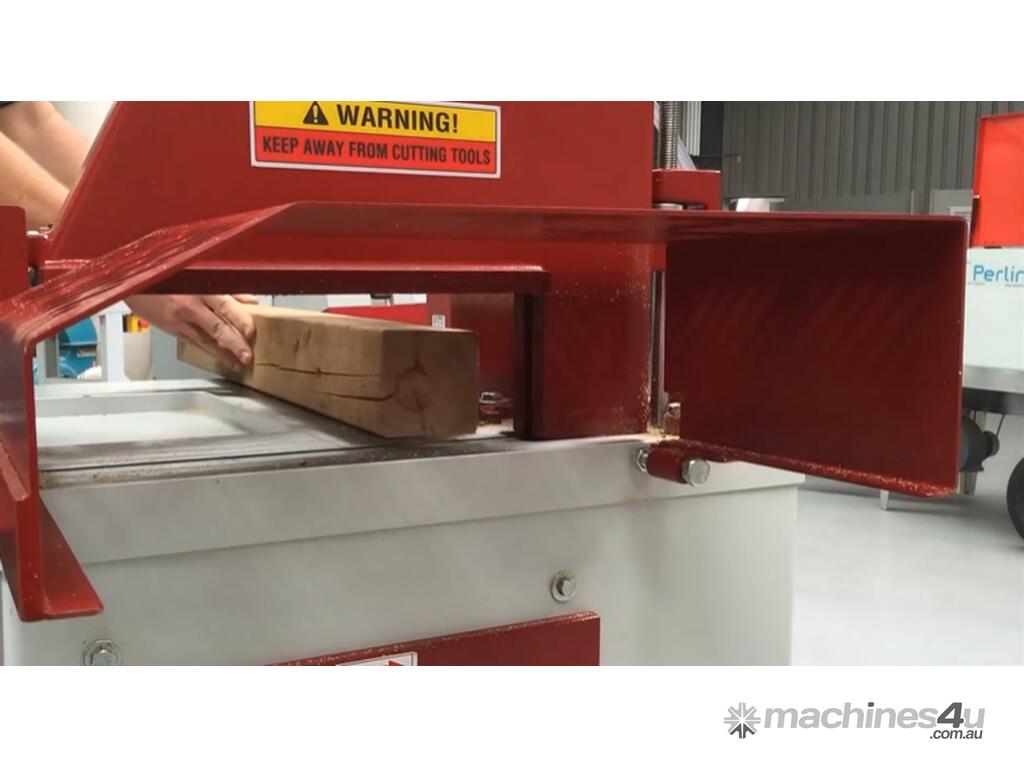

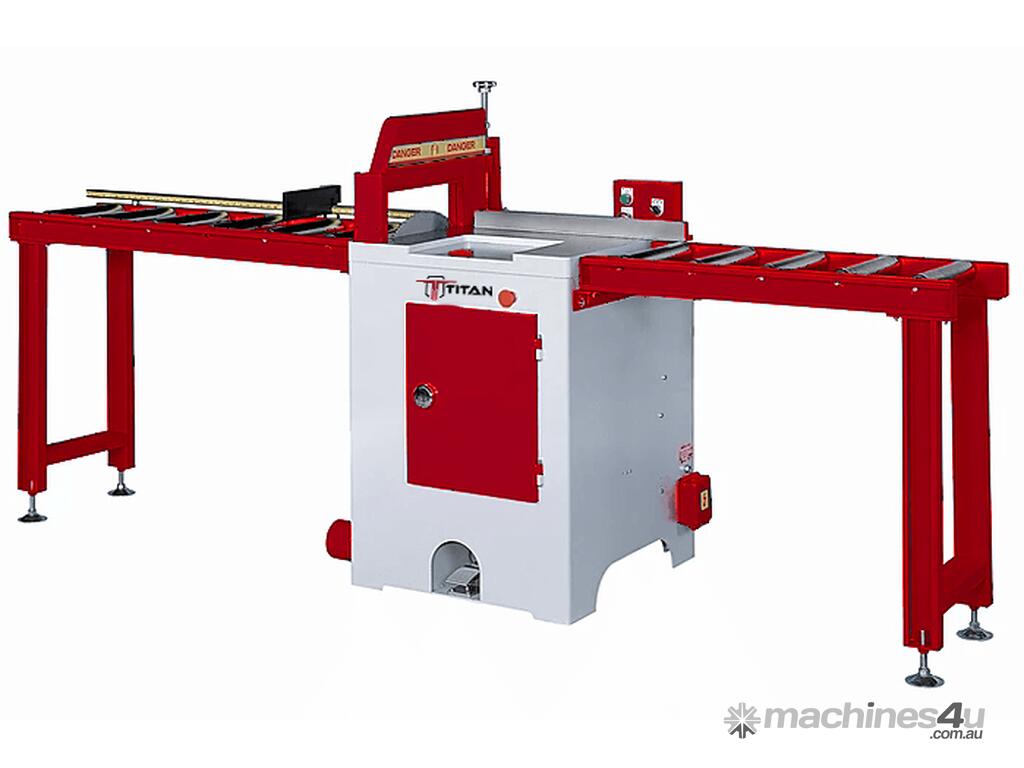

The Titan FCS-18S is a solid 18” pneumatically operated docking saw suitable for most square docking applications. With twin button control & extended safety guards this machine is a safe alternative for all square docking applications. flooring, etc.
SPECIFICATIONS:
Cutting capacity: (T x W) 2" x 12", 3" x 11", 4" x 10"
Cycle speed: 45 cuts/min
Cycle operation: Pneumatic
Saw blade diameter: Ø18’’
Saw arbor diameter: Ø1’’ / 30mm
Saw blade speed: 3600 RPM
Dust exhaust diameter: ø4" x (1)
Saw arbor motor: 7.5HP / 10HP
Table size: 660 x 690 mm
Net / Gross weight: 350kgs / 410 kgs
Packing dimensions: (L x W x H) 770 x 780 x 1350 mm
Left to Right & Right to Left Hand Feed Units available
Established in 1996 to service the solid timber industry, Advanced Timber Systems Pty Ltd offers a full range of machinery and accessories to cover almost all facets of woodworking.
Being a privately owned company and with a combined staff total of over 80 years experience in the timber industry we offer a professional yet personal service throughout Australasia. Our expertise in the timber industry allows us not only to supply a standard range of tooling and machinery but also to design &
