Toolroom Lathe CTL-618

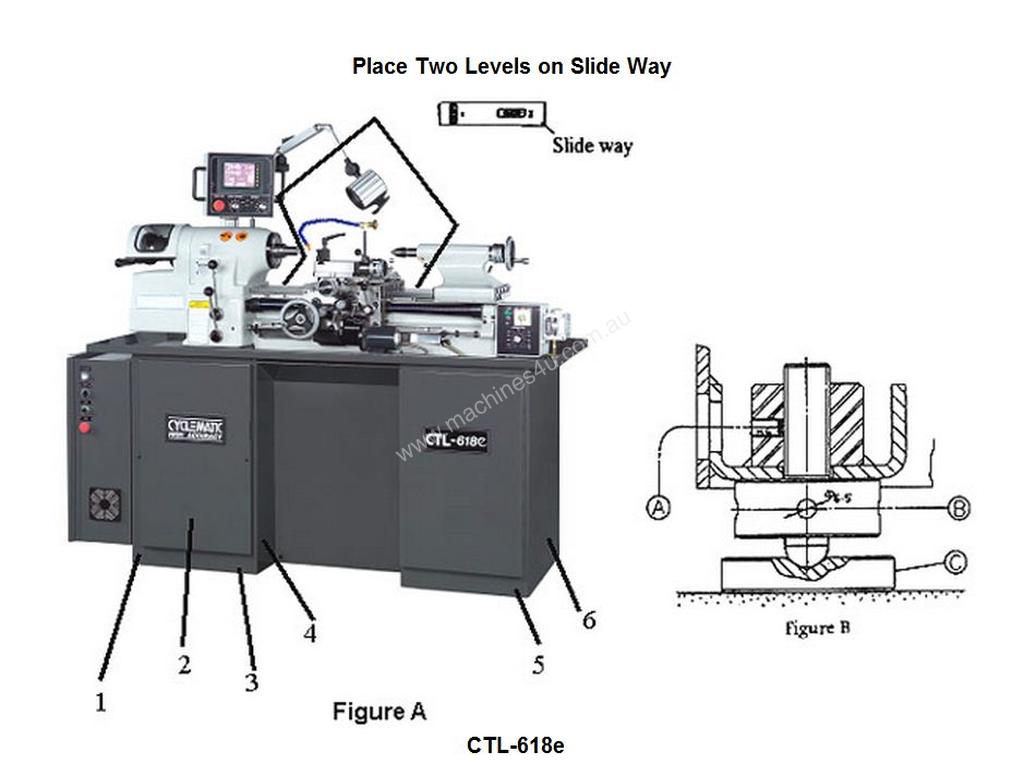

Cyclematic MODEL CTL-618 Toolroom Lathe

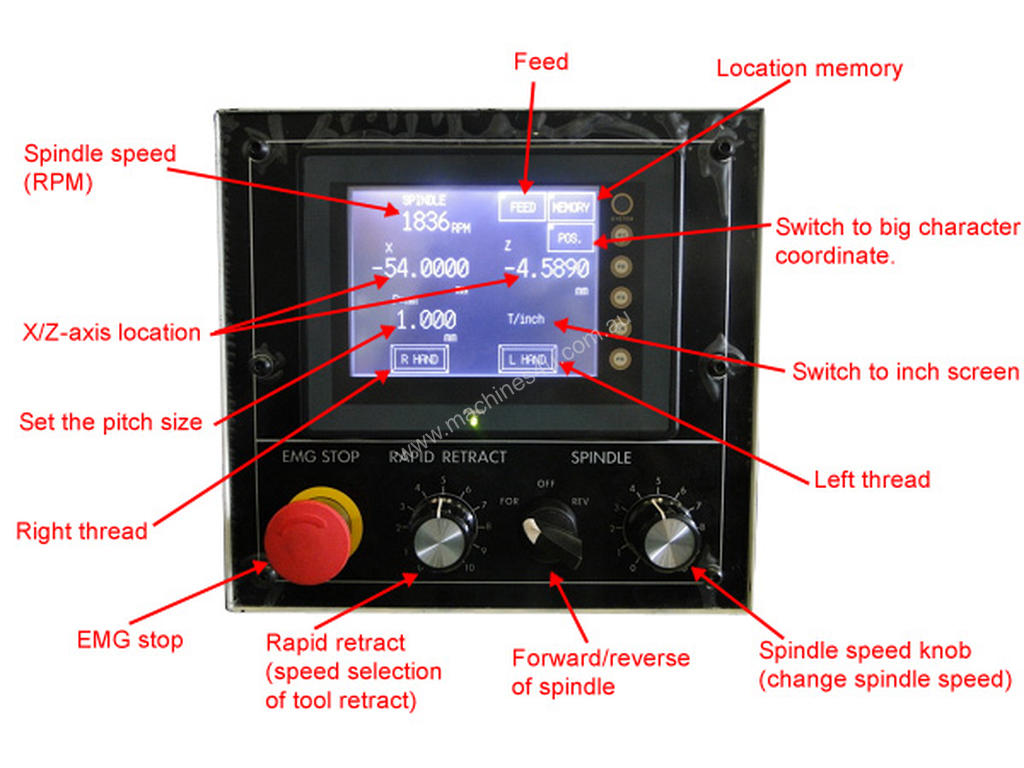

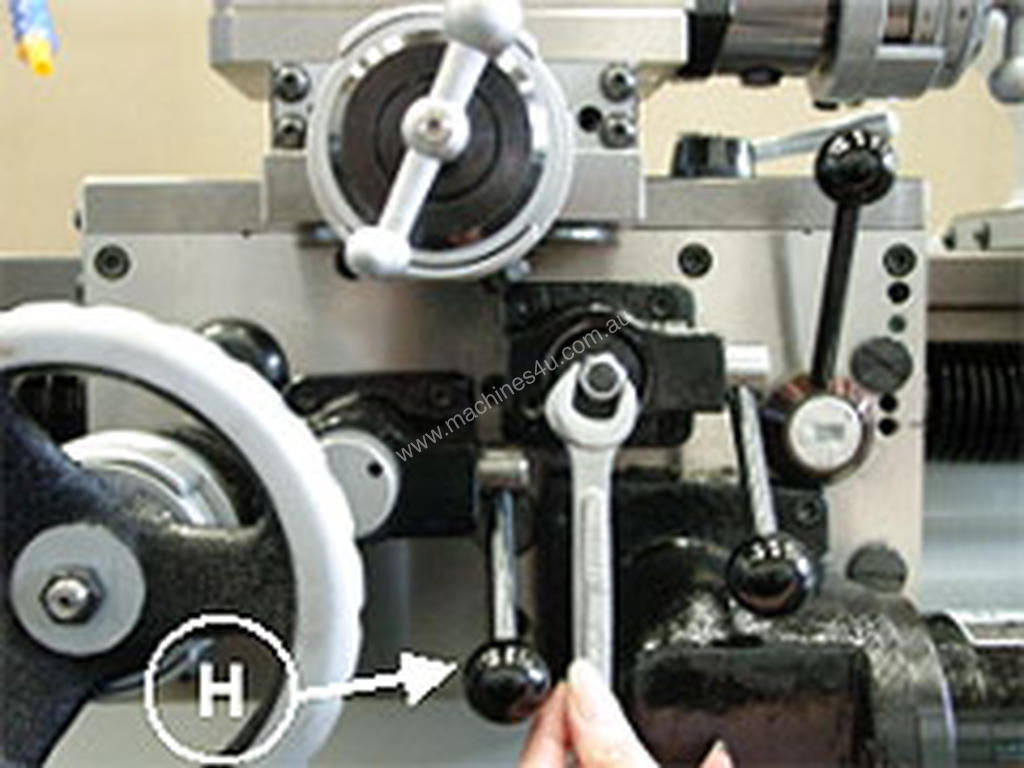

This lathe doesn't use threading gearbox, instead computer-controlled servo motor is linked to the lead screw. Just use your finger to select desired thread pitch on the touchscreen display, the threads come out absolutely precise and you totally eliminate problems with specialized threads. The display also shows spindle speed, cutting feed rate and DRO functions.

THE FIRST CHOICE OF TOOLMAKERS!
-Good for pitch and module turning processing without any gears in gearbox. Easy exchange of inch and metric system, accuracy goes up to three degits after decirnal point.

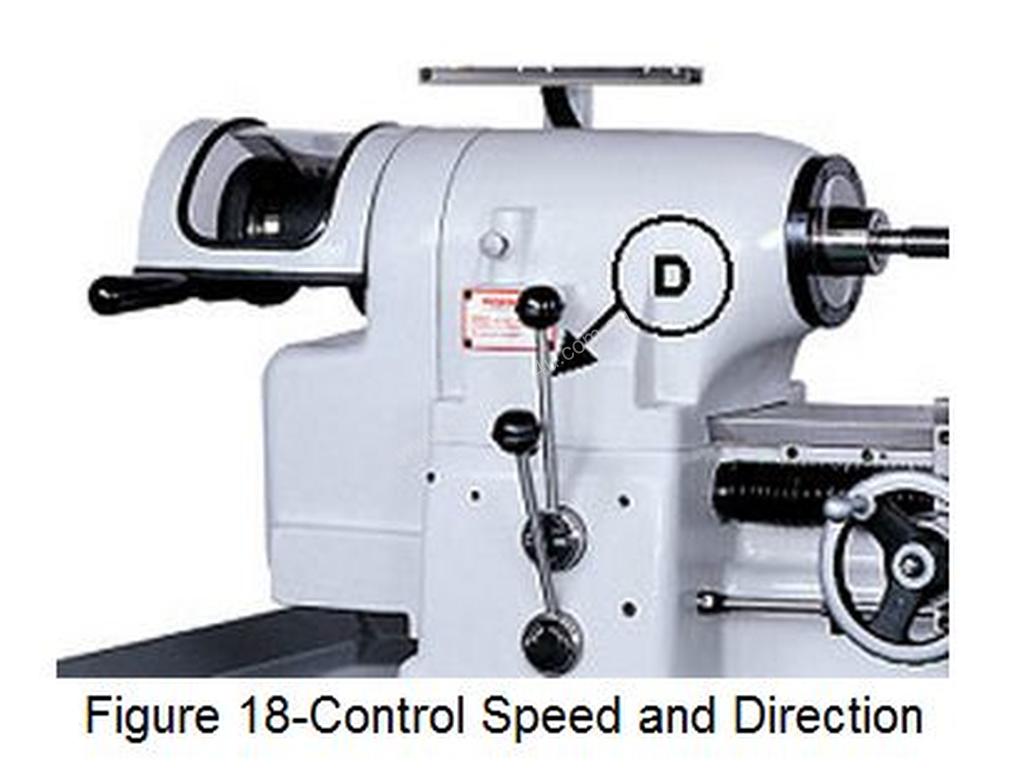

-Digital data shows R.P.M. of spindle and tool infeed to let operator arrange best possible turning process combination.
-Digtal data showing electric current for easy checking overload turning.
-Rapid retract function is available for shortened pitch module turning processing time.

SPECIFICATION:
SpindleCapacity With Chuck 150 mm(6")
With Expanding Collets 76 mm (3" )
With Round 5C Collets 27 mm (1-1/16")
With Hexagon 5C Collets 22 mm (7/8")
With Square 5C Collets 19 mm (3/4" )
With Step Chucks 27 ~ 152mm(1-1/16-6")
Spindle Nose Diameter Ø55.5 mm
Spindle Nose I.D/O.D 5C (10°) / 4° Tapern
Spindle Speeds (Variable) 50-4000 R.P.M.
Inverter Spindle Motor 3 HP
Hole Through Spindle 31.75mm (1-1/4")
Bar stock diameter (5C collet) Ø27 mm (Ø1-1/16")
Distance Between Centers 457 mm
Swing Over Bed 280 mm
Swing Over Carriage 230 mm
Swing Over Cross Slide 152 mm
Carriage Power Feed Range (Variable) 5~102 mm/min
Cross Slide Power Feed Range (Variable) 8~178 mm/min
Cross Slide Travel 152 mm
Quick-action Compound Slide Travel 2.5 mm
Compound Slide Travel 76 mm
Coolant Pump 1/8HP, 220V, 3PH
Feed Inberter Motor 1/2 HP
Tailstock Spindle Travel 95 mm
Range of Threads 0.2~6.35 mm (120~4TPI)
Net Weight (Approx) 1000 kgs ( 2200 lbs.)
Gross Weight (Approx) 1050 kgs ( 2310 lbs.)
Machine Dimensions (LxWxH) 1850x750x1700 mm (73"x30"x67")
