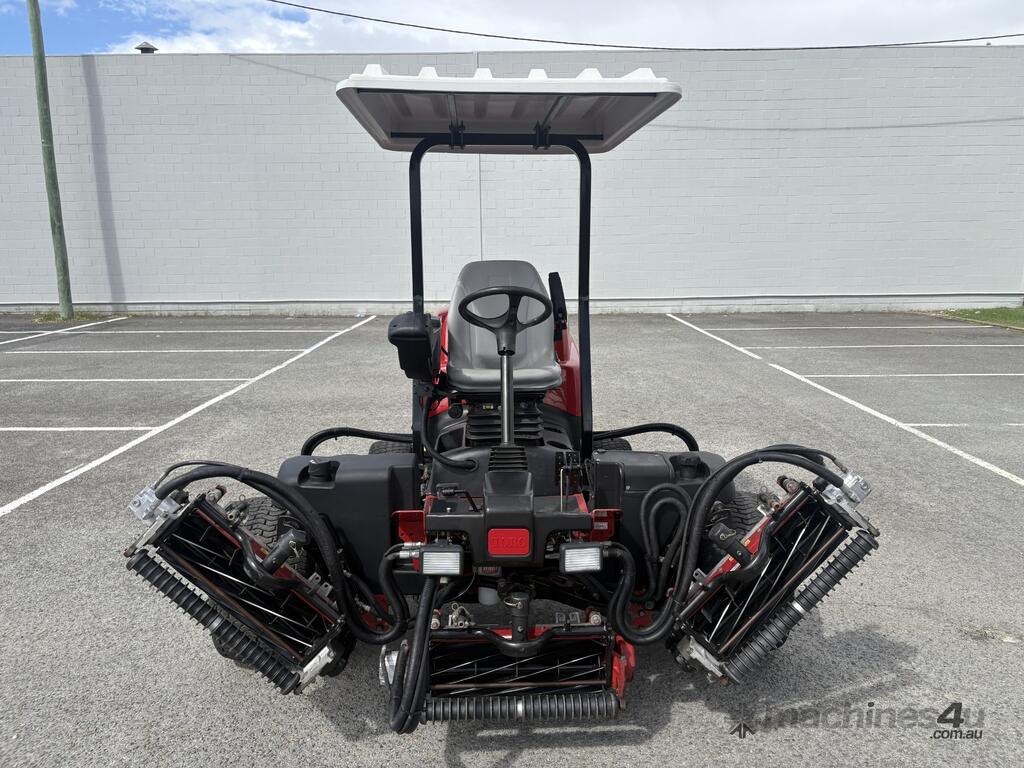

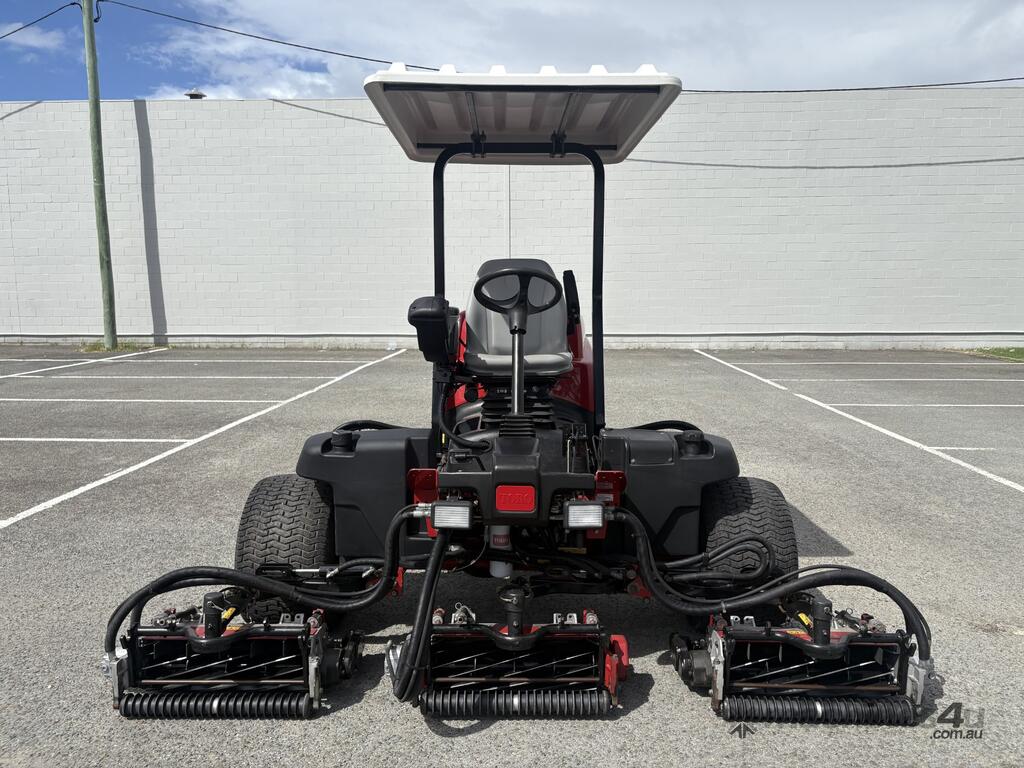

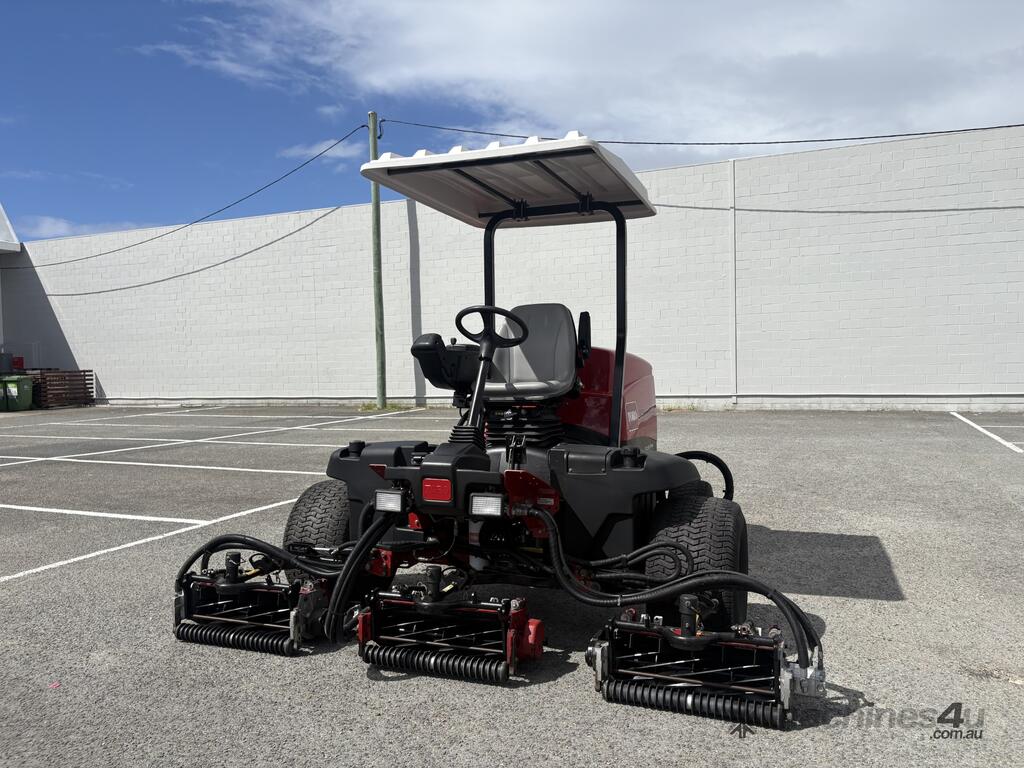

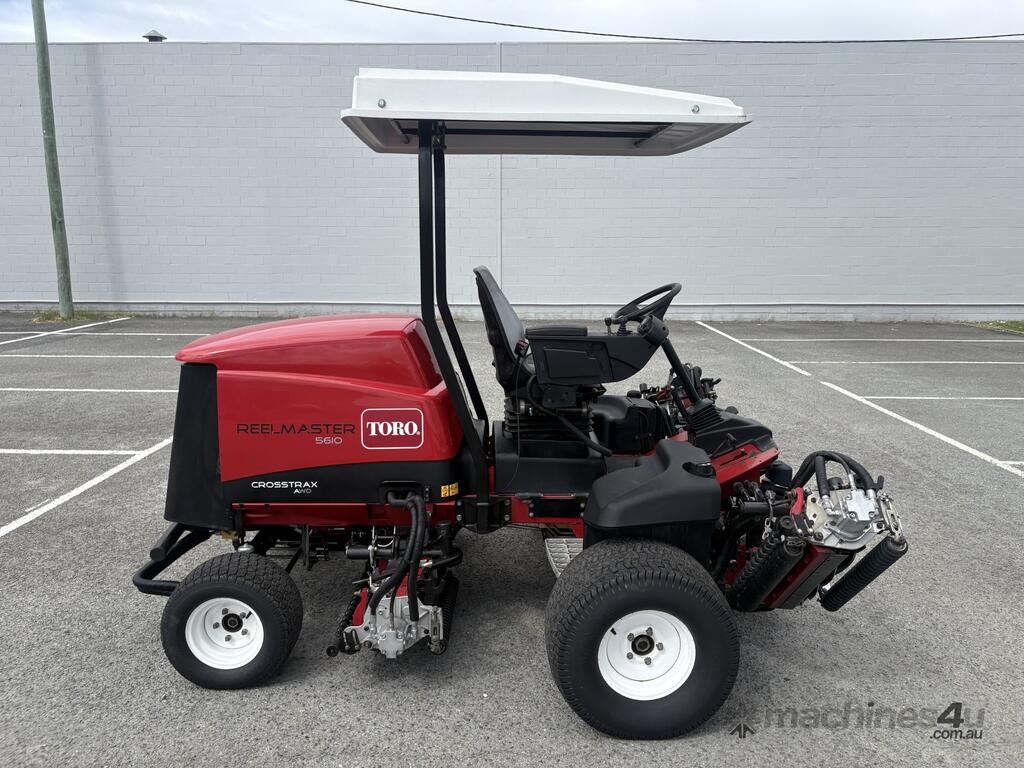

Toro 5610 Reelsmaster, Turbo diesel engine, hydraulic power

ENGINE Kubota® 4-cylinder, liquid cooled, diesel engine. 44.2 hp (33 kW) 3000 rpm. Yanmar® 3-cylinder, liquid cooled, turbo-diesel engine. 43.5 hp (32.4 kW), 74.4
ft. lbs. (105 Nm) torque, 1.64 liter displacement. Tier 4 Final Compliant.
LUBRICATION Pressurized lubrication system with 5.0 quart (4.7 liter) capacity.
FUEL FILTER Replaceable spin-on fuel filter/water separator.
AIR CLEANER Heavy duty three-stage, radial seal air cleaner with restriction indicator.
COOLING Rear mounted radiator with industrial tube and fin construction, 6.3 fins per inch, 10.0 quart (9.5 liter) capacity.
FUEL TANK CAPACITY 13.5 gallon (51.1 liter) capacity. Biodiesel-Ready for use up to B-20 (20% biodiesel and 80% petroleum blend).
HYDRAULIC OIL CAPACITY 9.0 gallon (34.1 liter) capacity.
TRACTION DRIVE Electronically controlled hydrostatic pump with individual wheel motors. CrossTrax® All-Wheel Drive system standard, which transfers power from the front wheels
to the opposite rear wheels via independent rear wheel motors.
GROUND SPEED 0-10 mph (0-16 km/hr) forward transport; 0-8 mph (0-12.8 km/hr) mow; 0-5 mph (0-8 km/hr) reverse transport; 0-4 mph (0-6.4 km/hr) reverse mow.
TIRES Front traction tires: 26.5 x 14-12 turf tires; Rear steer tires: 20 x 12-10.
MAIN FRAME High strength steel frame with welded construction.
BRAKES Dynamic braking through hydrostatic traction drive. Parking brake is activated when engine is turned off, when operator leaves seat, or by rocker switch.
STEERING Rear wheel, power steering with an independent hydraulic pump and circuit.
GAUGES InfoCenterTM onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure,
alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator (diesel), lift/lower indicator.
CONTROLS
Single foot-operated traction pedal. Hand-operated key ignition switch,
mechanical throttle, cutting unit raise/lower joystick, cutting unit engage
switch, parking brake switch, cruise control switch, and LED headlight switch
all positioned on right hand pivoting control console.
Single foot-operated traction pedal. Hand-operated key ignition switch, cutting
unit raise/lower joystick, cutting unit engage switch, parking brake switch,
cruise control switch, and LED headlight switch all positioned on right hand
pivoting control console.
ELECTRICAL & INTERLOCKS Heavy duty 12-volt battery, 570 CCA, 40 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities. Traction
pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.
REEL DRIVE Reel drive circuit is split independently for front and rear cutting units. Hydraulic functions controlled by an integrated hydraulic control block. Reel speeds are
electronically adjustable in nine incremental settings. Desired clip rate remains consistent as max mow speed is adjusted. Standard on-board backlapping.
CUTTING UNIT LIFT/LOWER Front and rear cutting unit lift/lower is sequenced for uniform starting and ending points.
SEAT Deluxe high back suspension seat with fore, aft, height and weight adjustment.
ROPS Standard with seat belt
HEIGHT 63" (160 cm) seat top, 85.5" (217.2 cm) top of ROPS.
LENGTH 111" (281.9 cm)
WHEEL BASE 60" (152.4 cm)
OPERATIONAL WIDTH 116" (288.3 cm)
TRANSPORT WIDTH 92" (233.7 cm)
WEIGHT 3,213 lbs (1,458 kg) 3,261 lbs (1,480 kg
