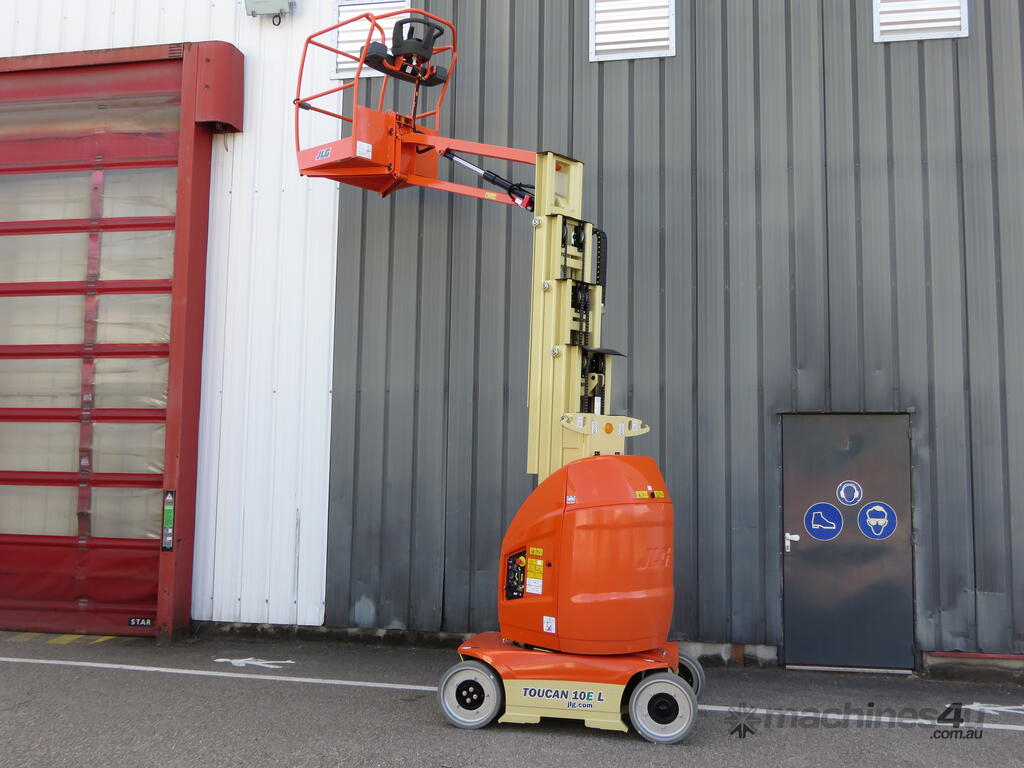

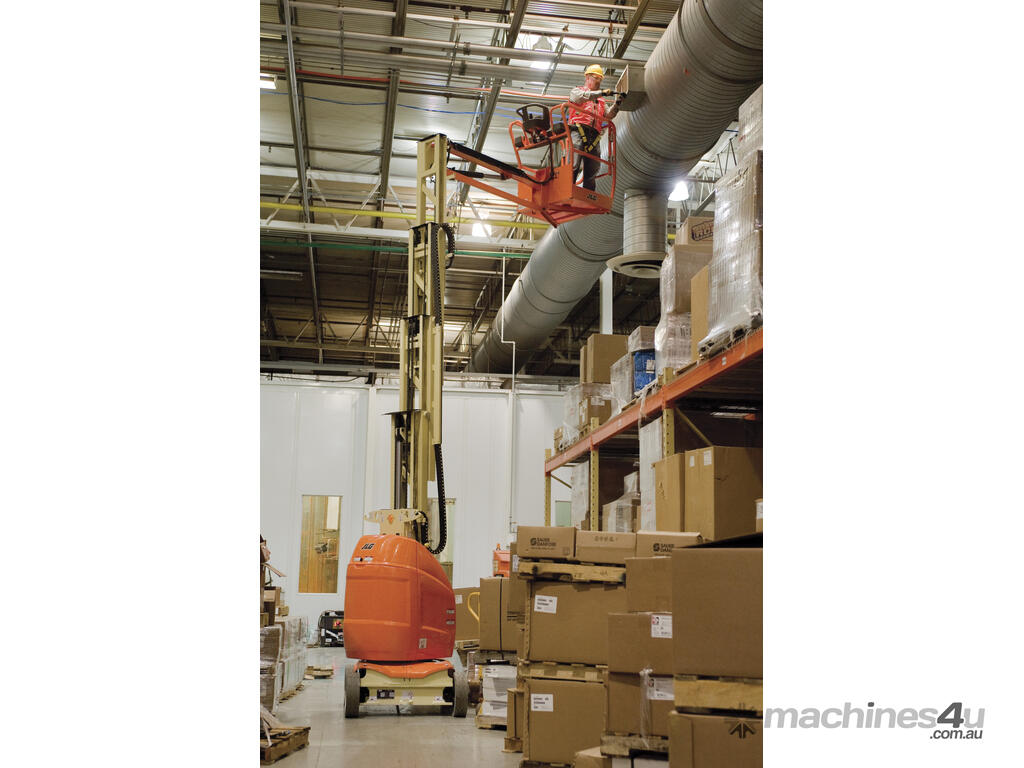

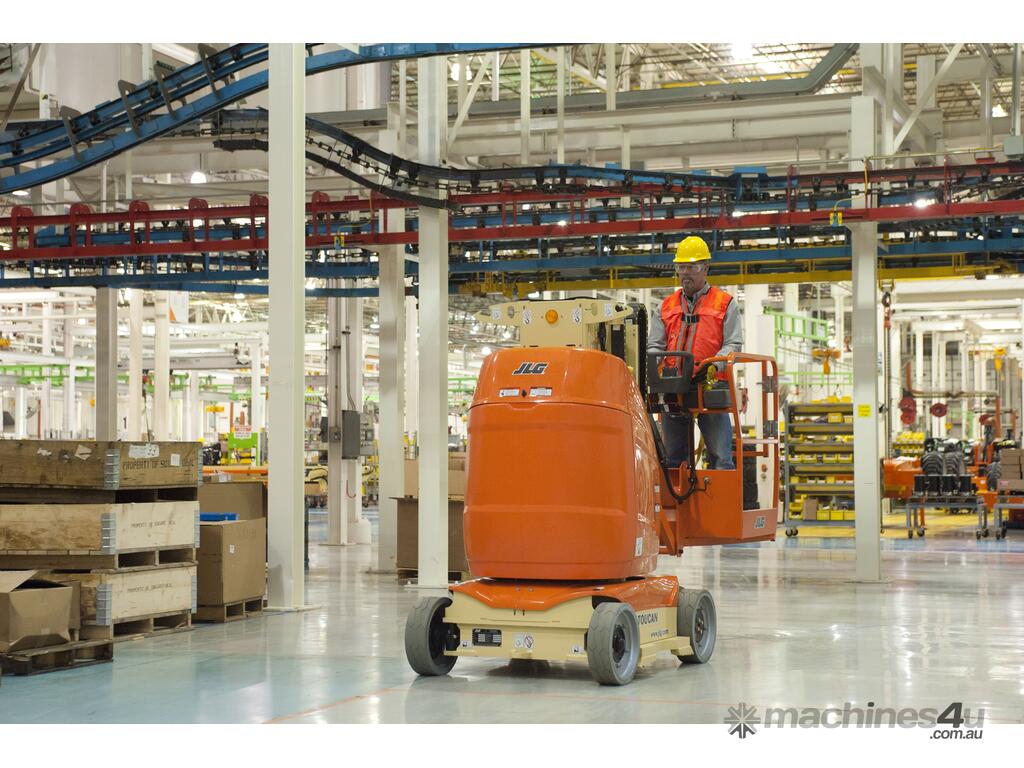

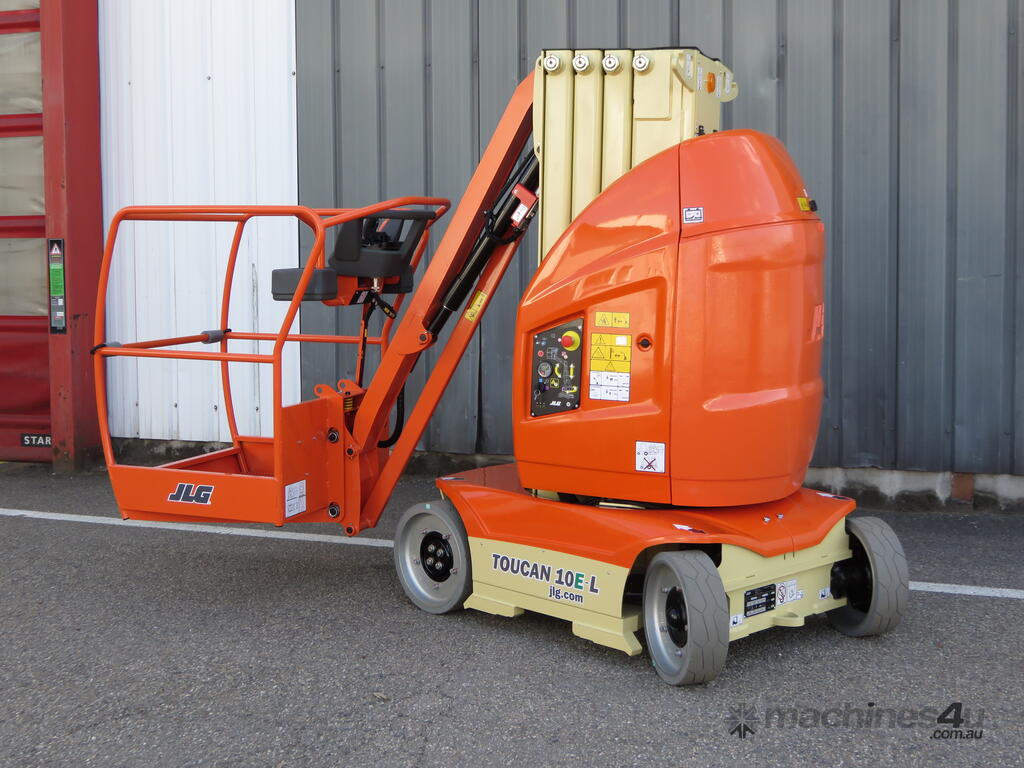

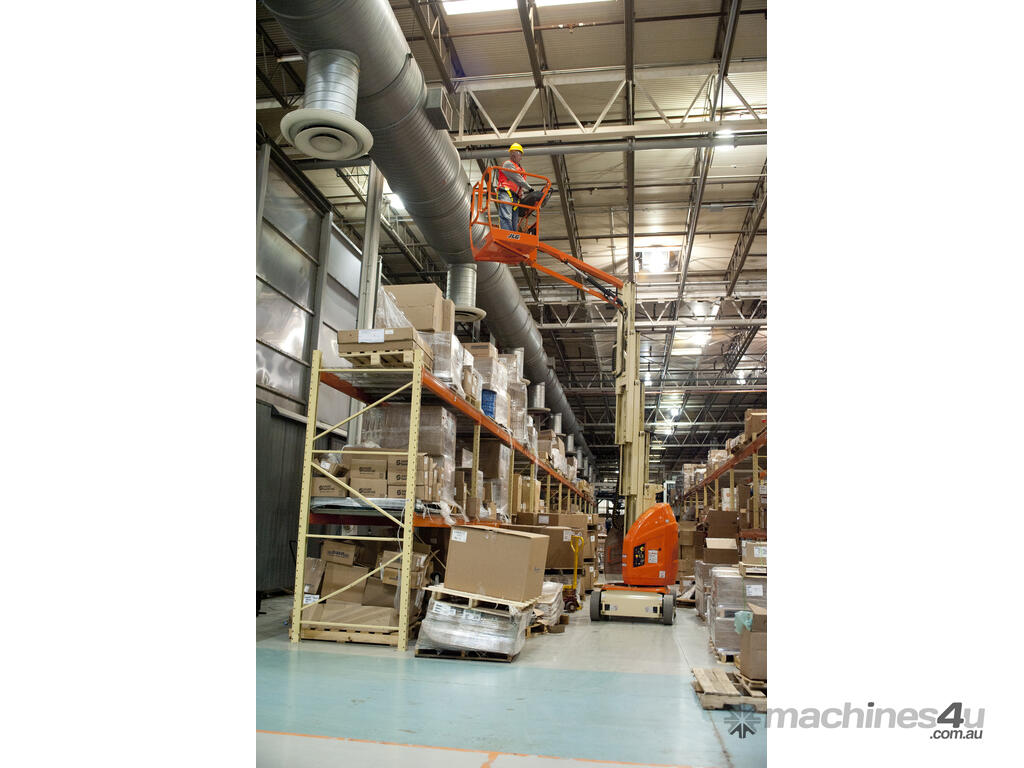

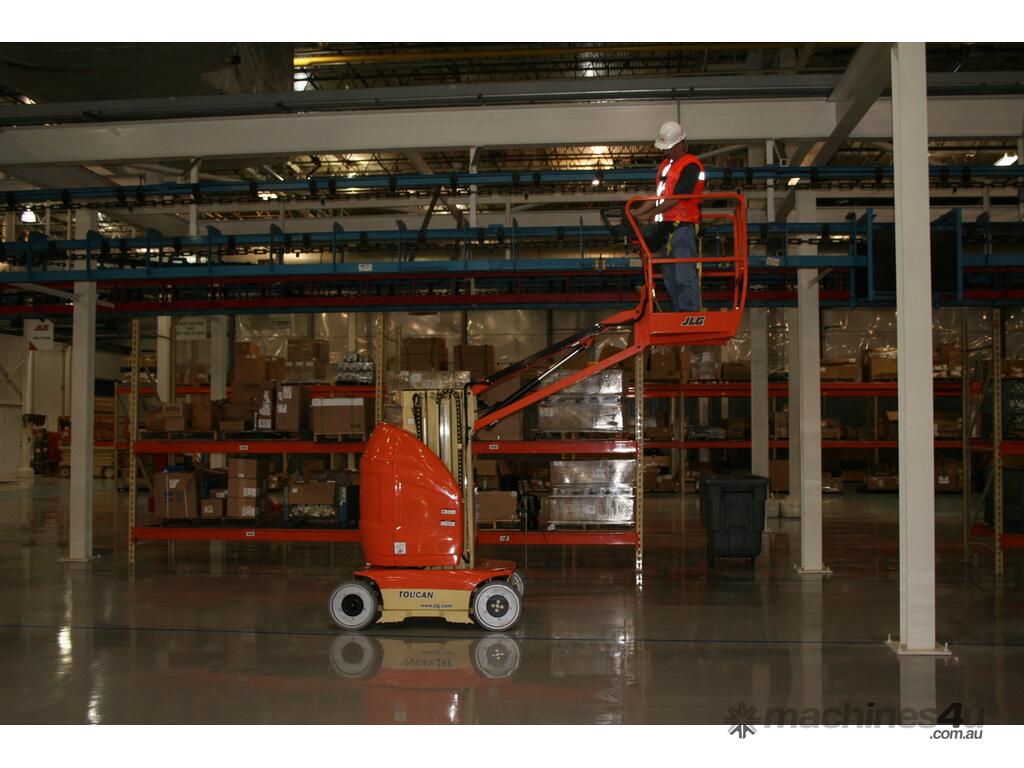

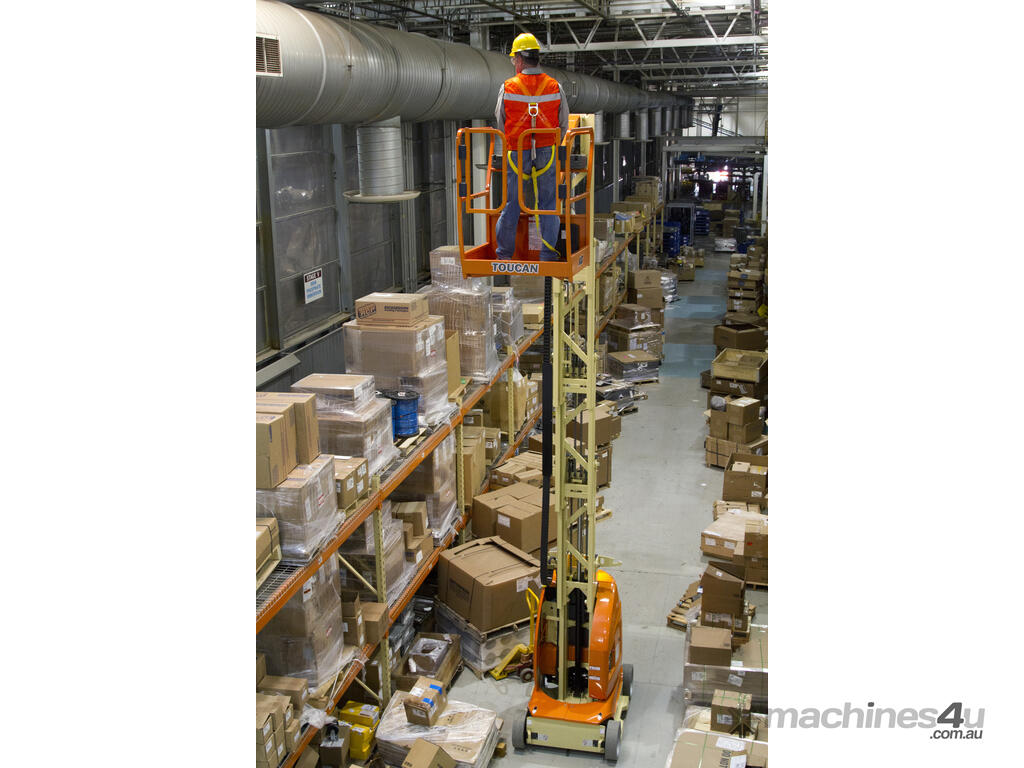

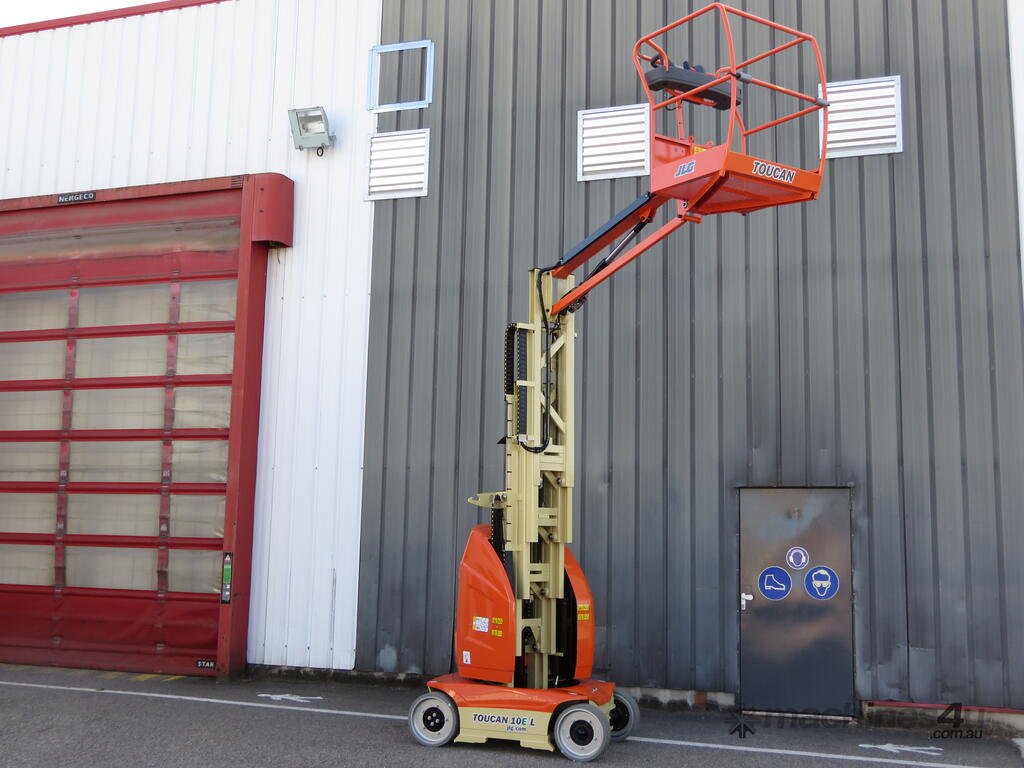

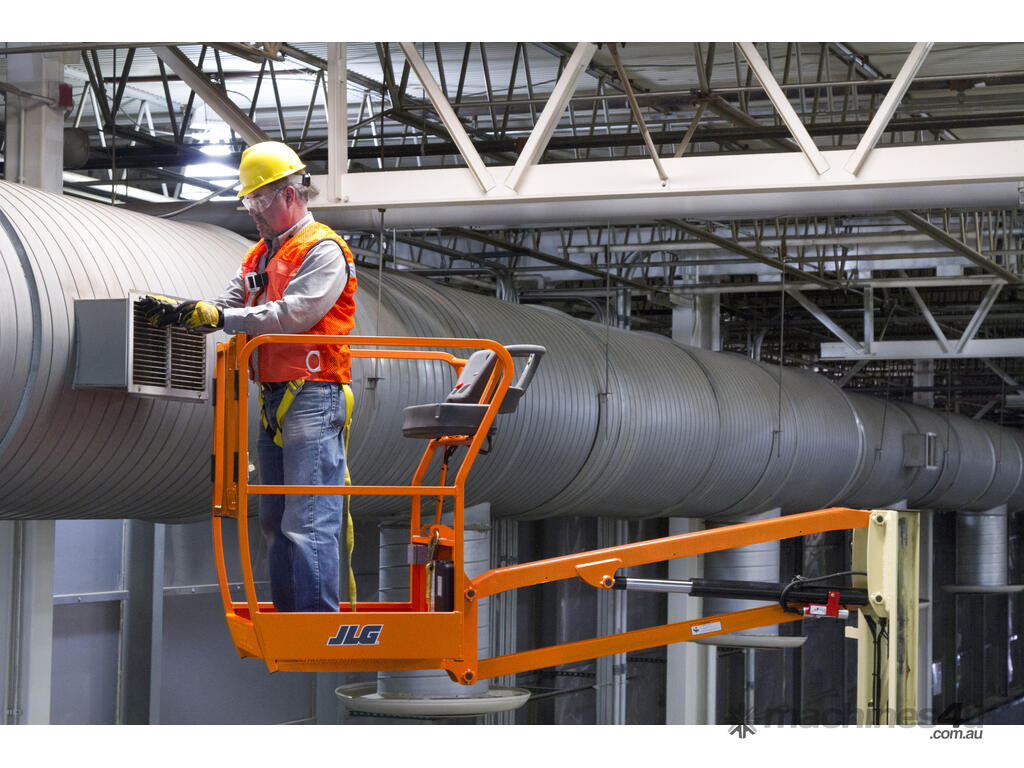

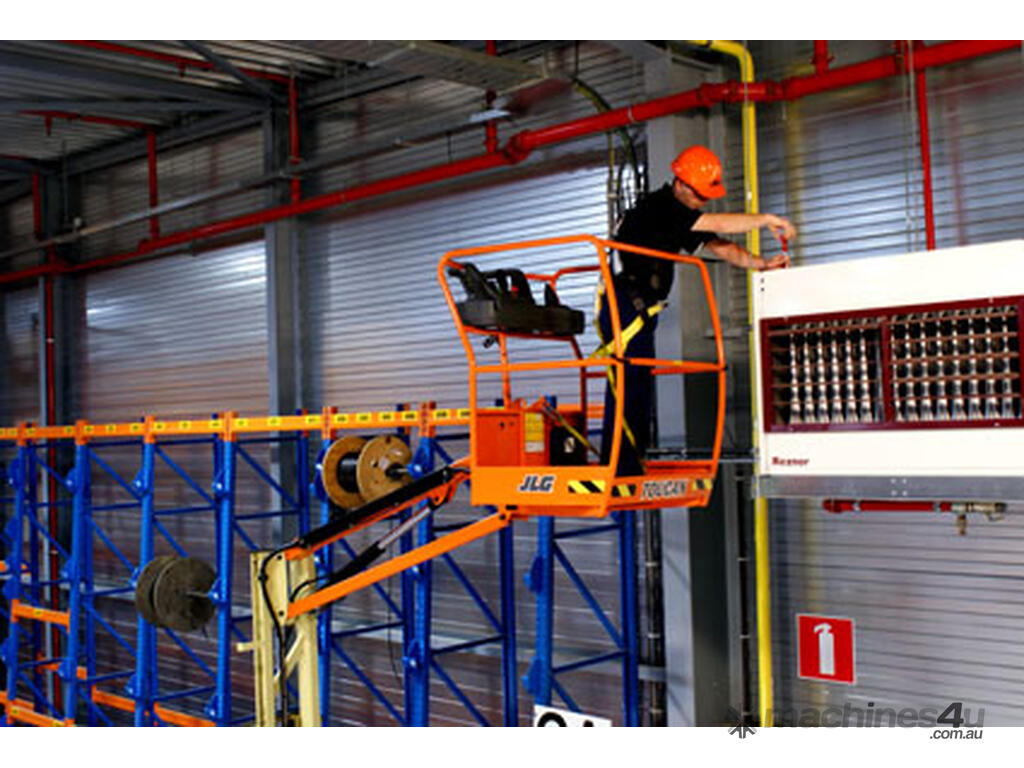

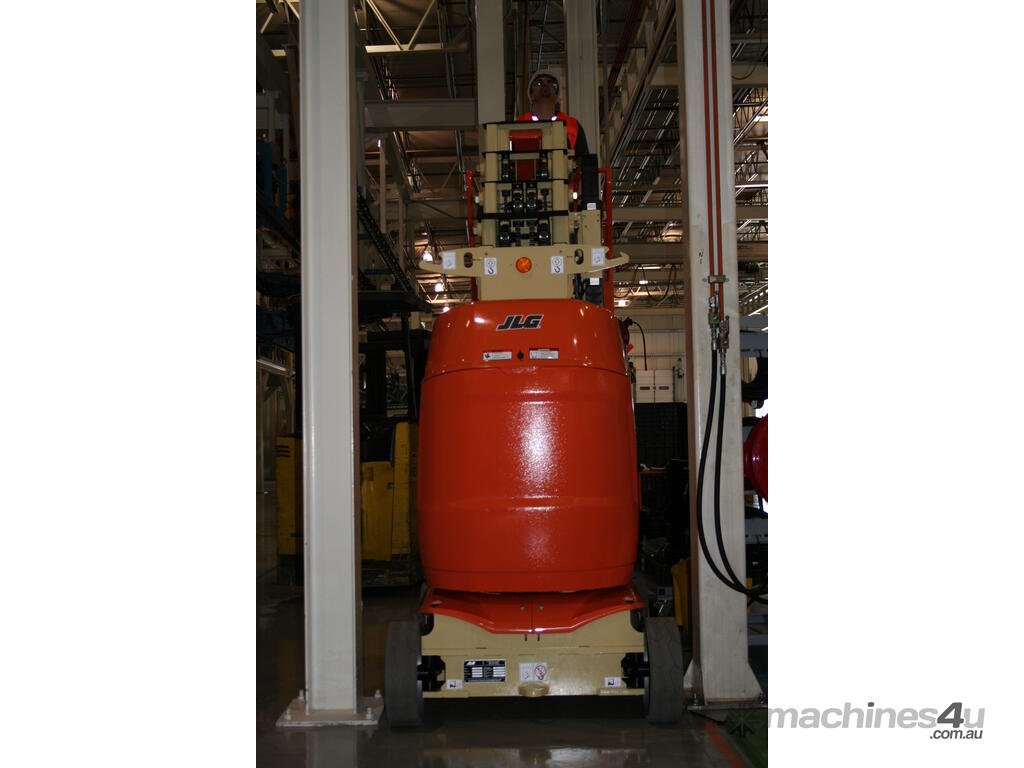

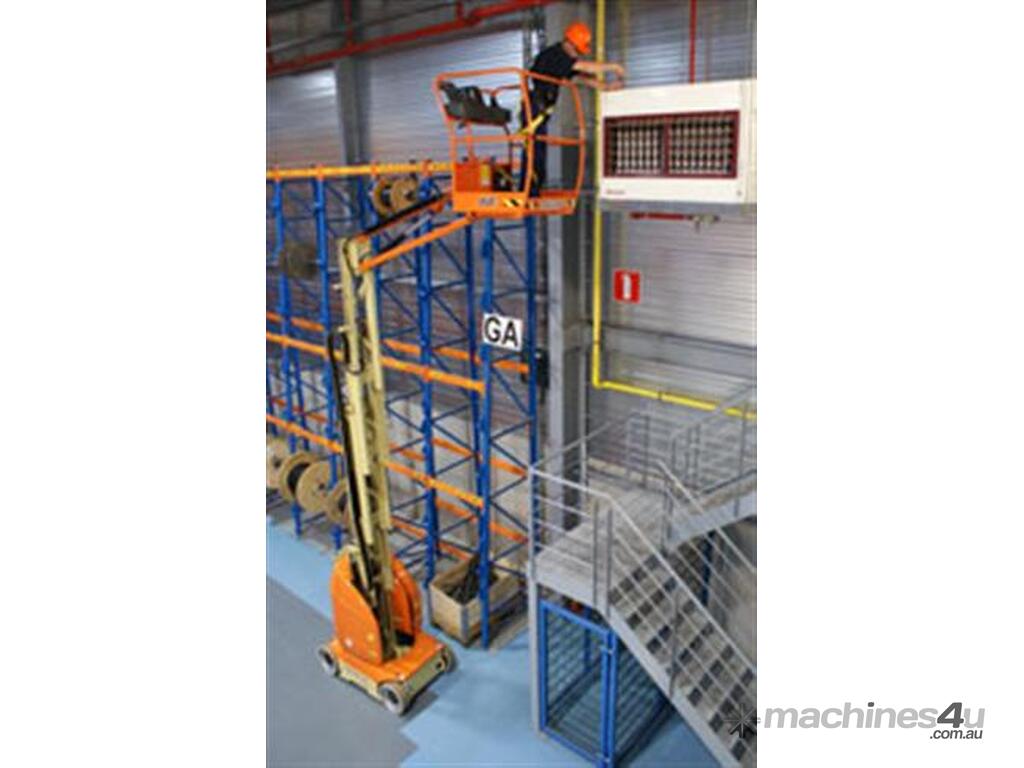

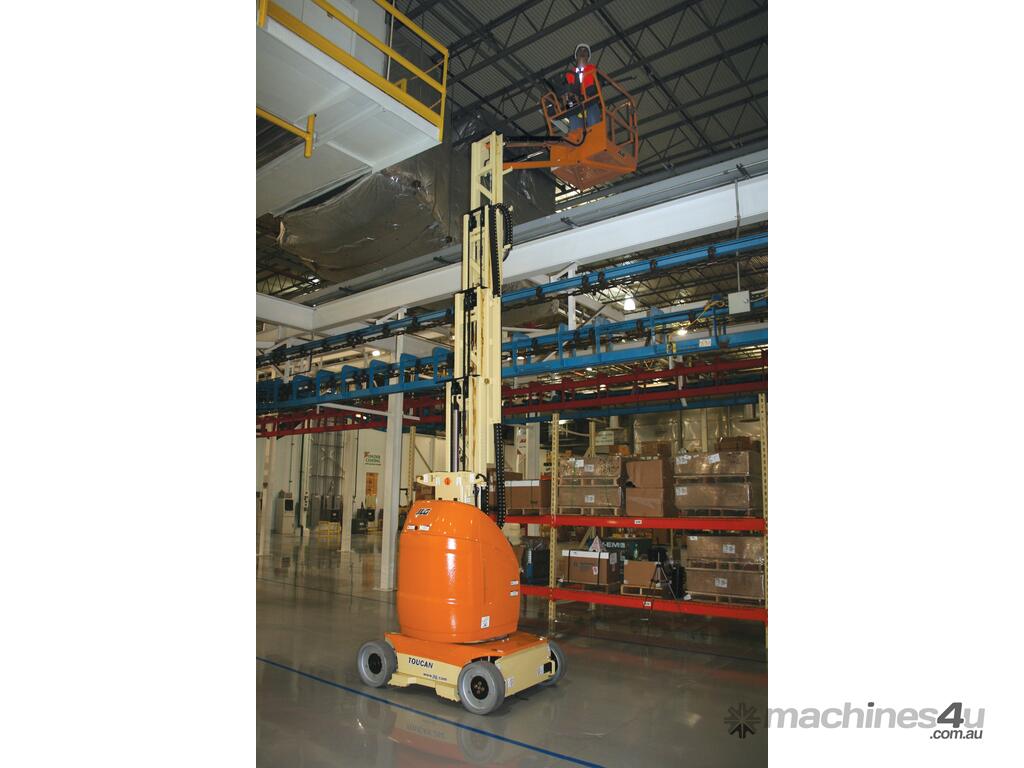

The New Lightweight JLG - Toucan 10E-L
Features:
-Only 2,600kgs
-25% gradeability and improved ground clearance
-Direct electric drive with brushless AC motors
-Lower maintenance & running costs
-Simplified controls with super smooth operation
-Reduced machine weight with compact dimensions
Quick Specs:
Platform height Elevated: 8.10m
Overall width – 10E-L: 0.99m
Platform capacity – 200 kg*
Machine weight 2,600 kg
Power Source:
Batteries 4 x 6v (24V)
Battery Charger 24V - 25A
Drive Motors Dual AC Motors
Brakes Disc
Electrical Motor 3kW 24Vdc
Hydraulic Reservoir 9 L
Reach Specifications:
Platform Height 8.10 m
Working Height* 10.10 m
Horizontal Outreach** 3.08 m
Up and Over Height 6.51 m
Mast Rotation 345º
Platform Capacity 200 kg
Platform Rotator n/a
Jib (Size) 1.60 m
Jib (Range of Articulation) +66°, -61° Vertical
Dimensions:
Platform Size (W x L) 0.90 x 0.70 m
Overall Width 0.99 m
Tailswing 13 cm
Stowed Height 1.99 m
Stowed Length 2.82 m
Wheelbase 1.20 m
Ground Clearance 10.5 cm
Weight*** 2,600 kg
Ground Bearing Pressure**** 21.0 kg/cm²
Chassis:
Drive Speed 5.5 km/h
Gradeability 25%
Turning Radius - Inside 0.55 m
Turning Radius - Outside 1.99 m
Tire Size 406 x 125 mm
Tyre Type Solid Non-Marking
Electrical System 24V DC
JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
