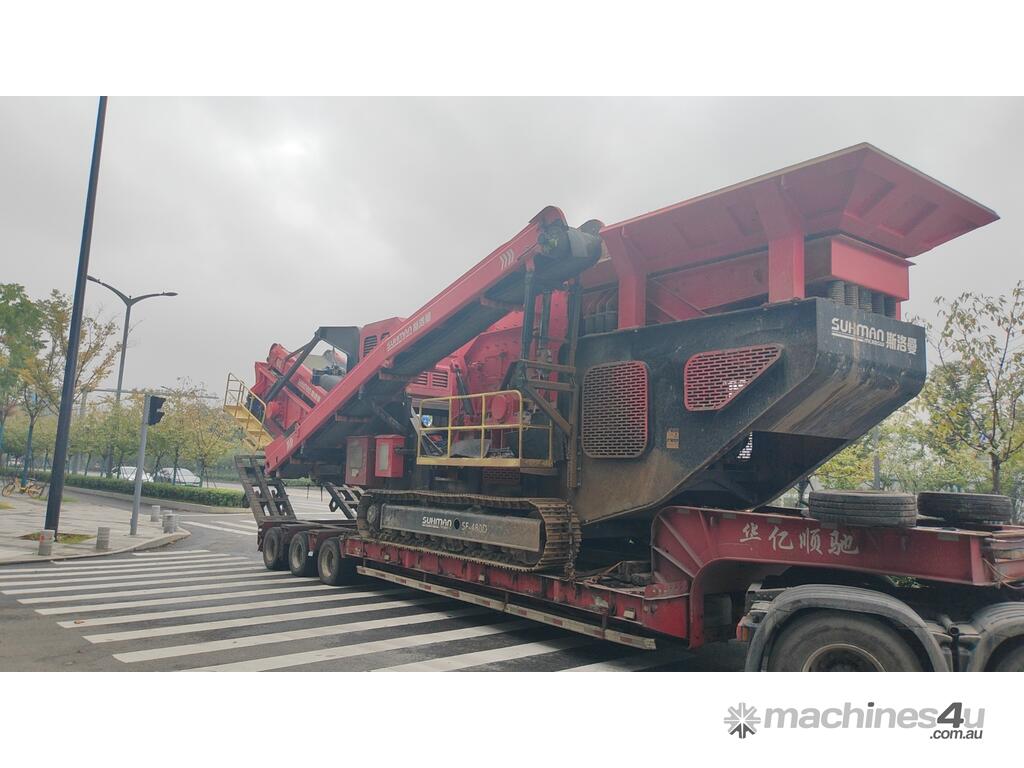

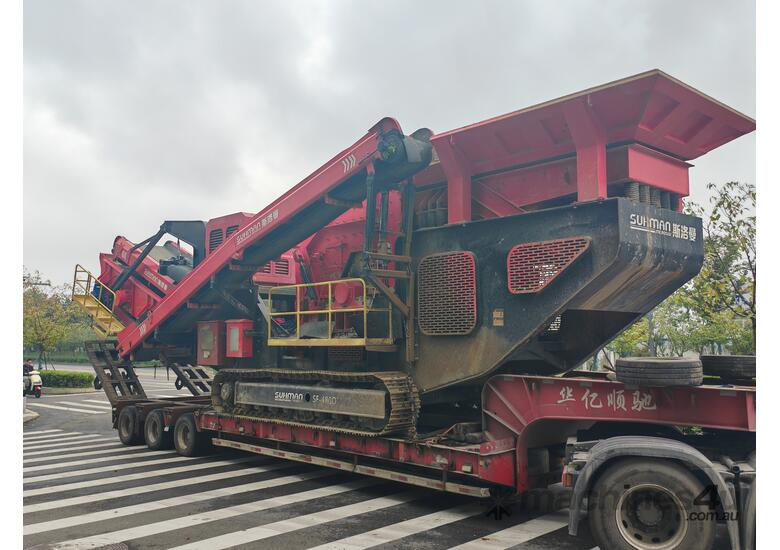

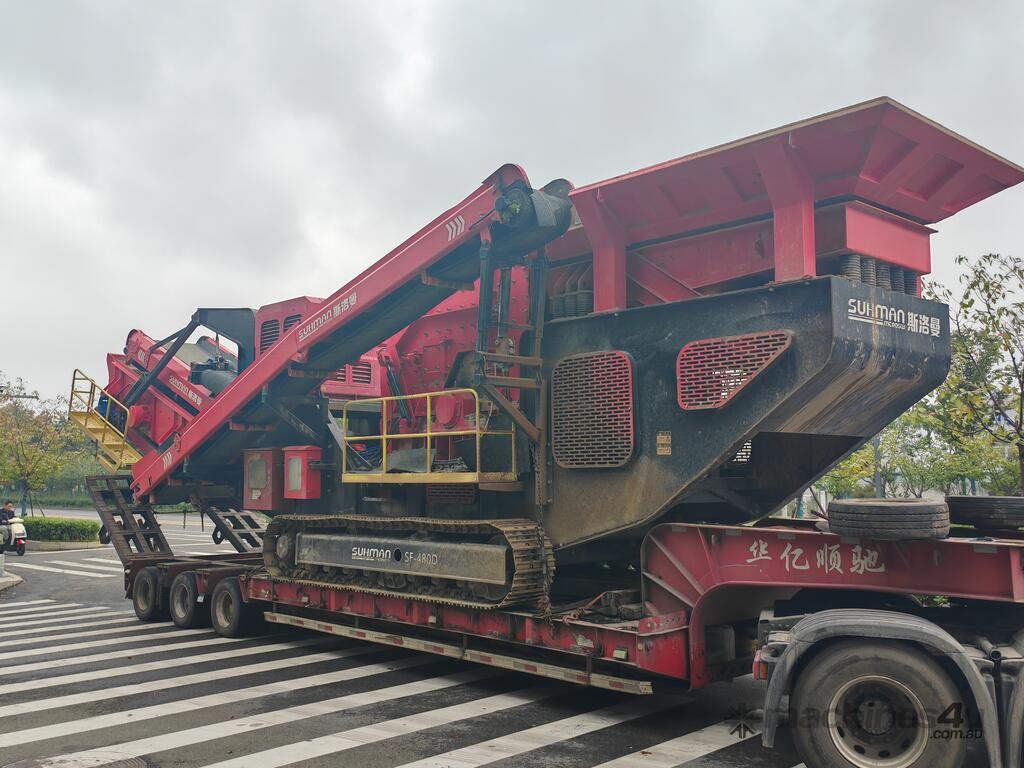

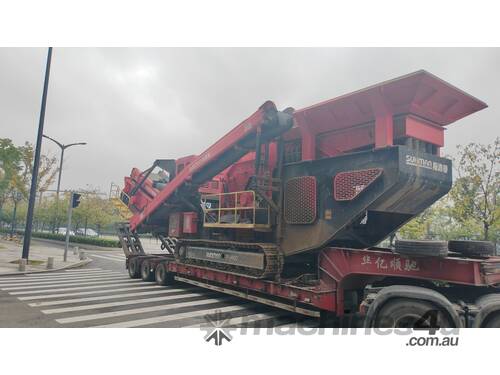

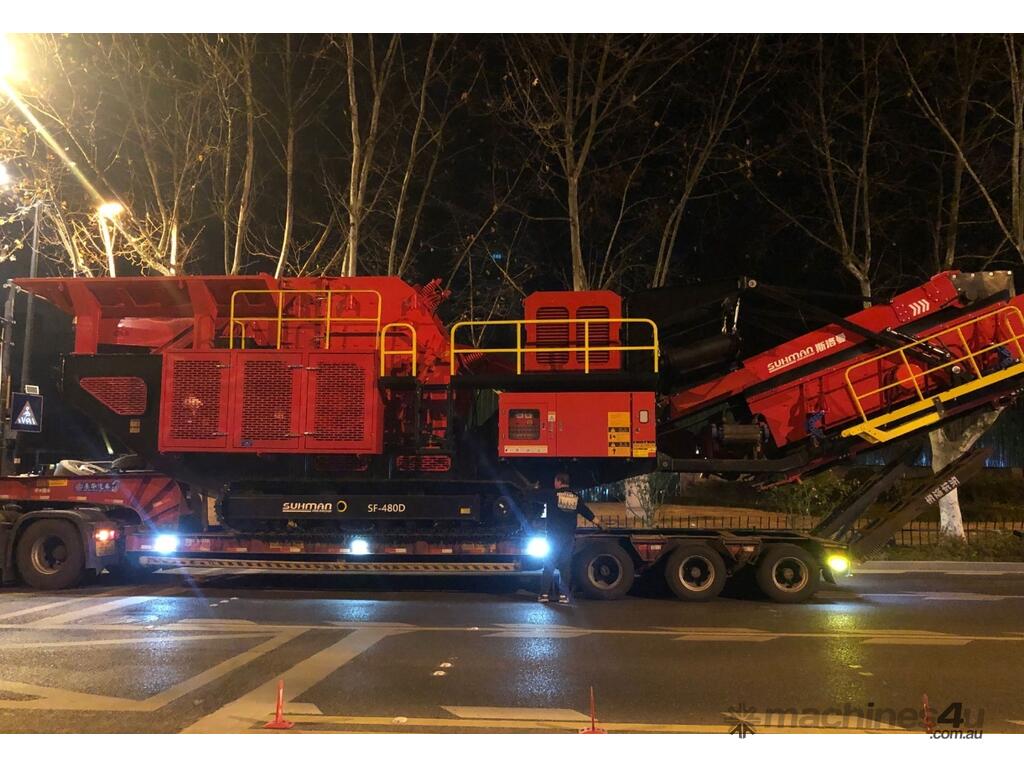

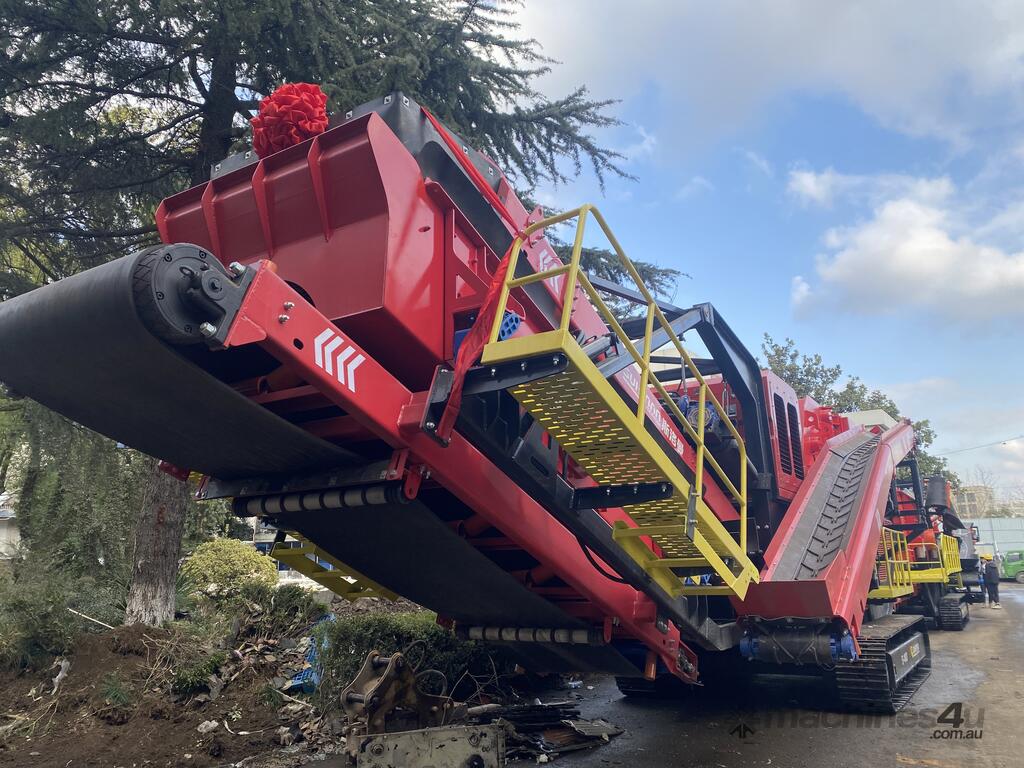

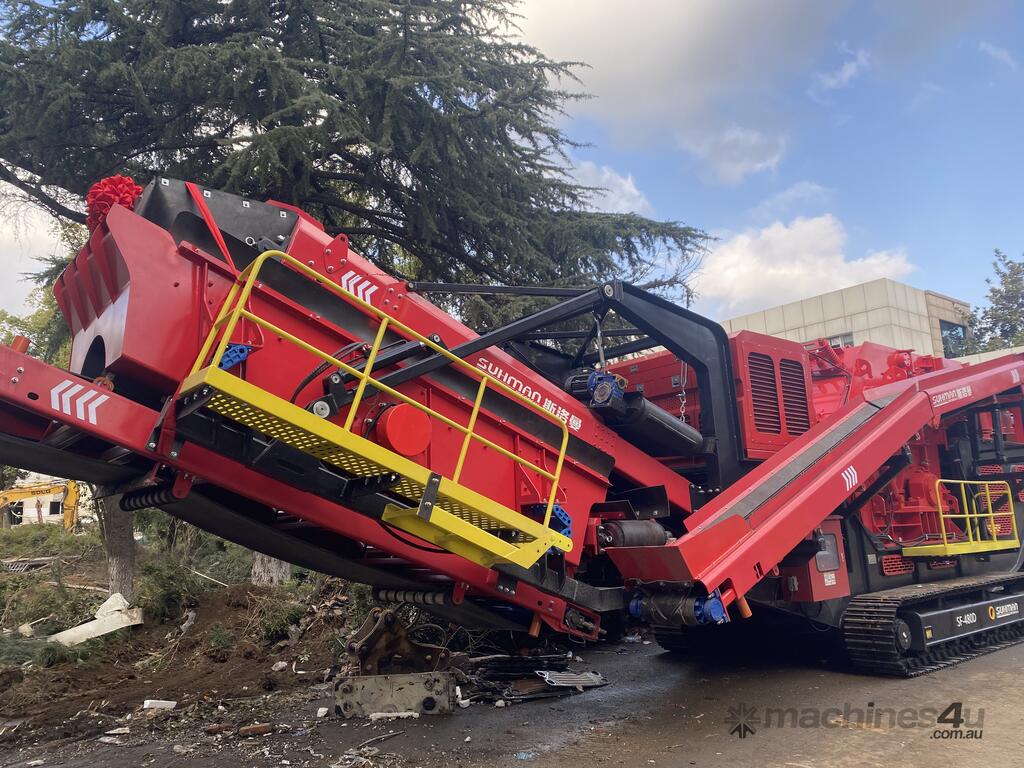

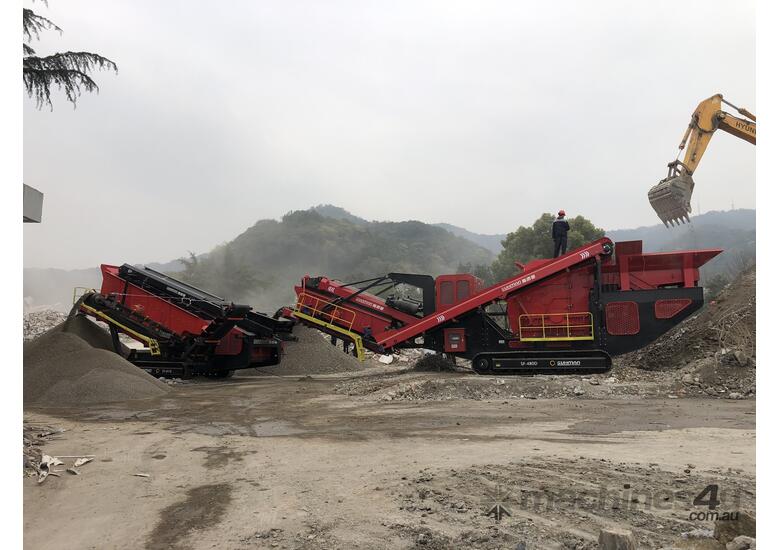

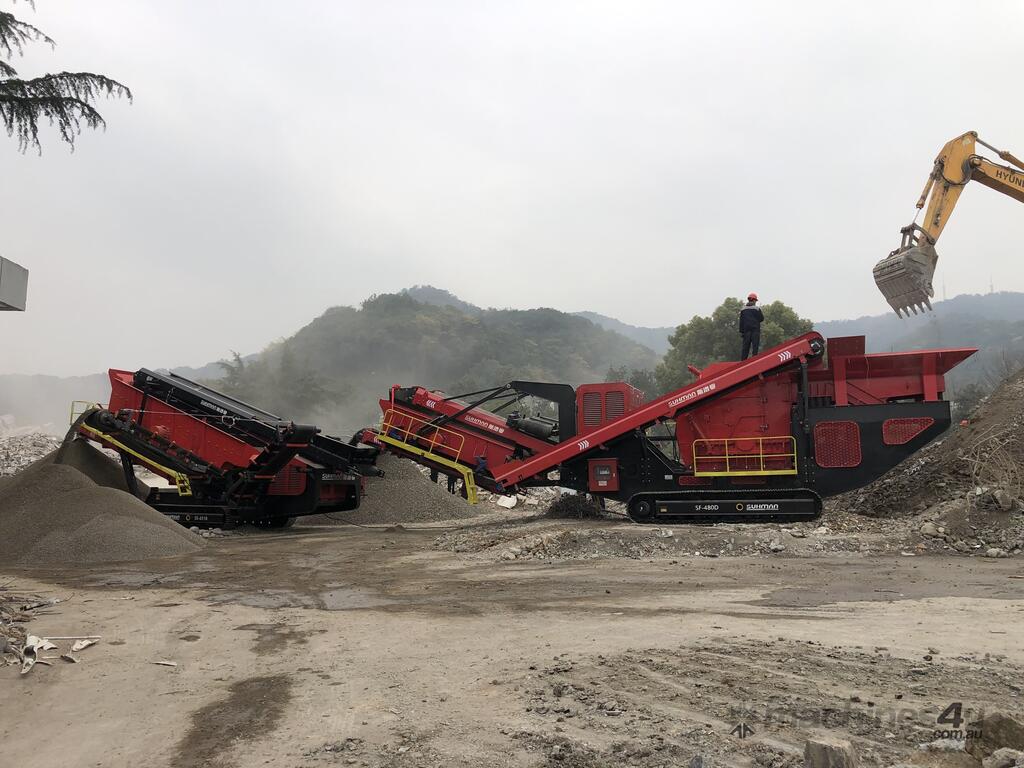

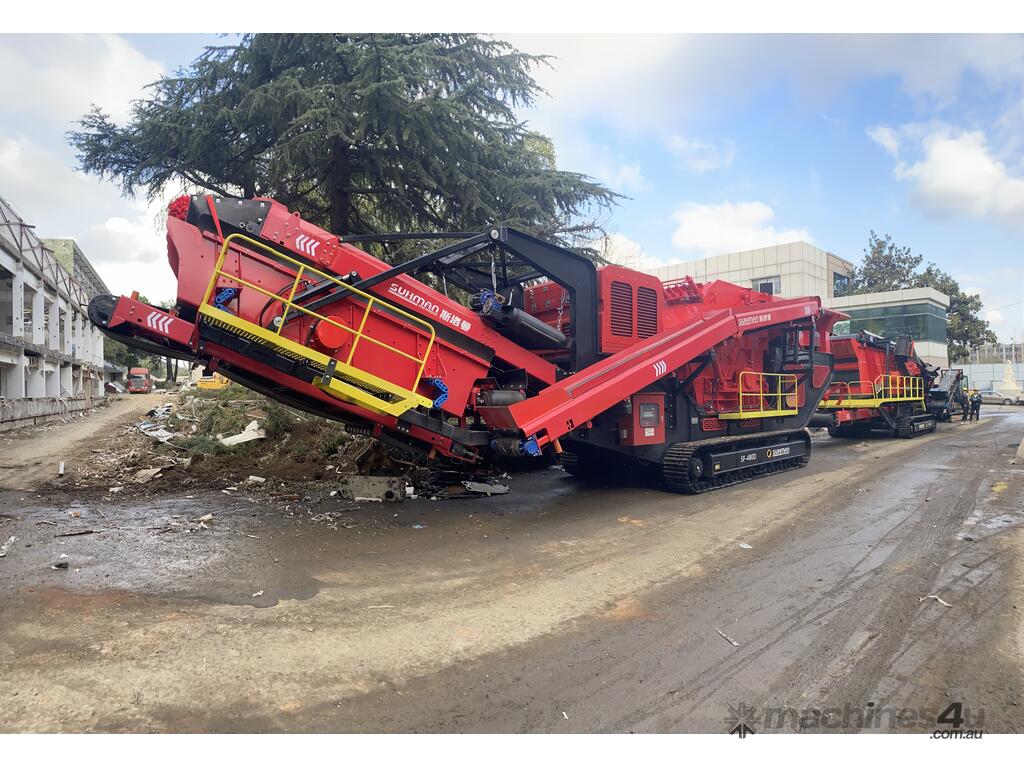

Tracked Impact Crusher | Brand New | 230TPH

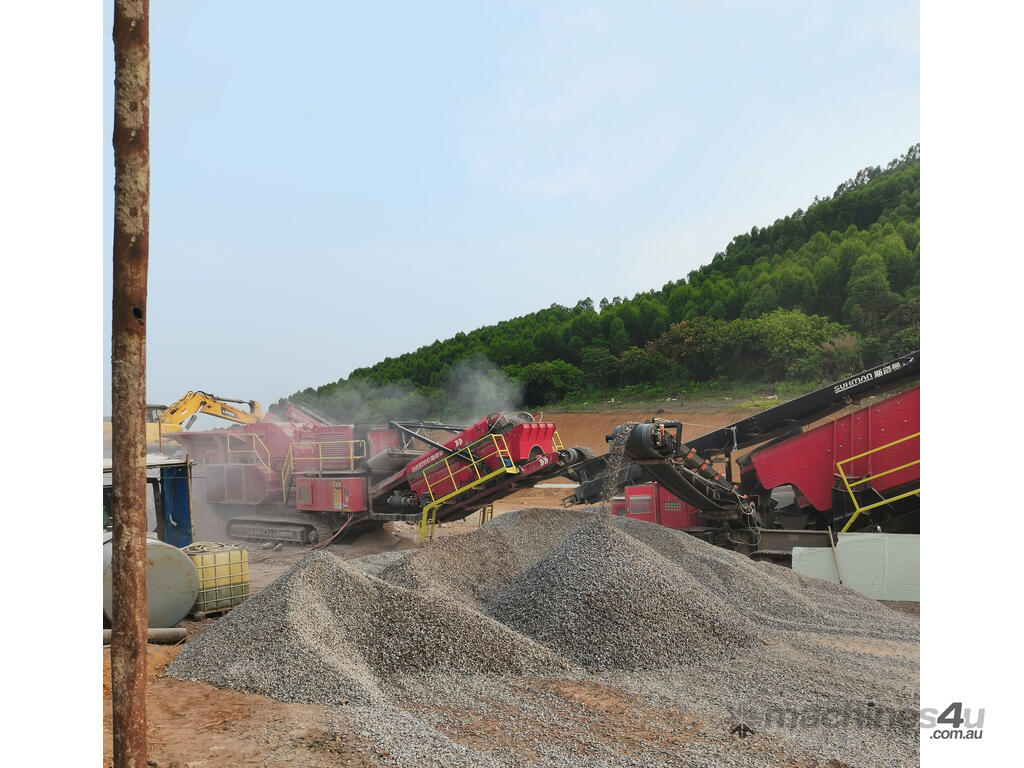

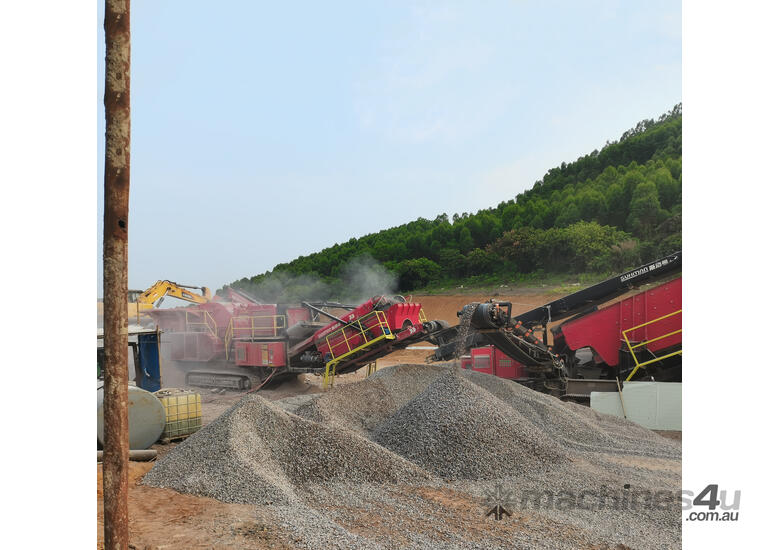

Tracked mobile impact crusher designed to maximise productivity in mining, railway ballast, construction, aggregate manufacturing, and recycling projects.

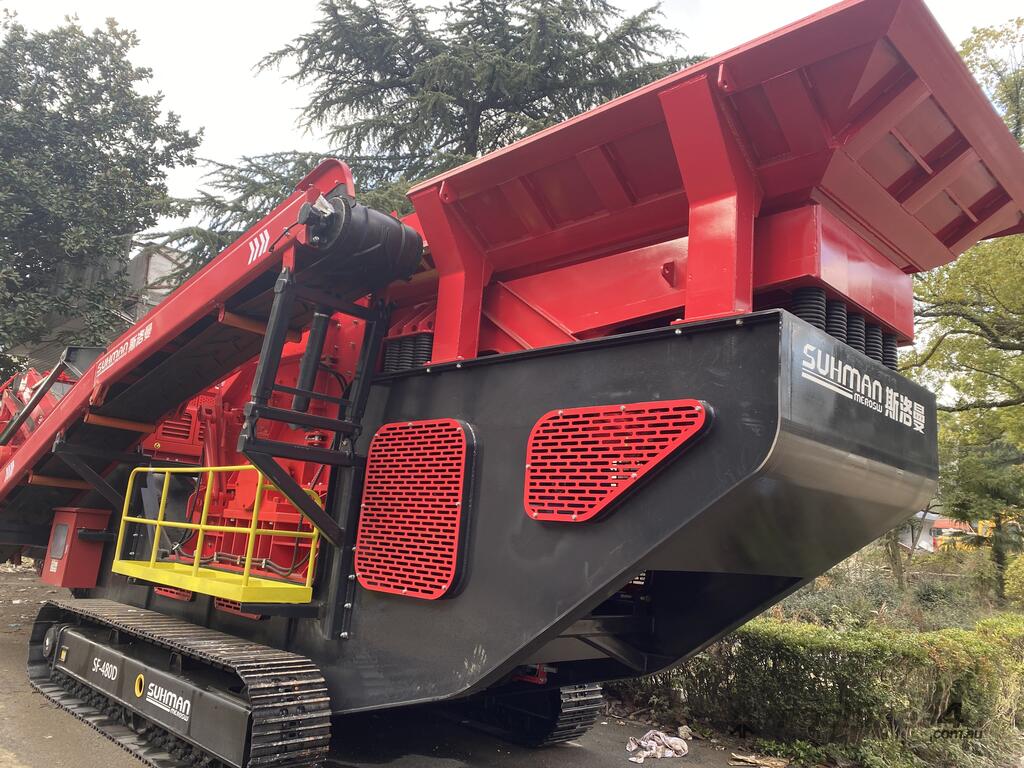

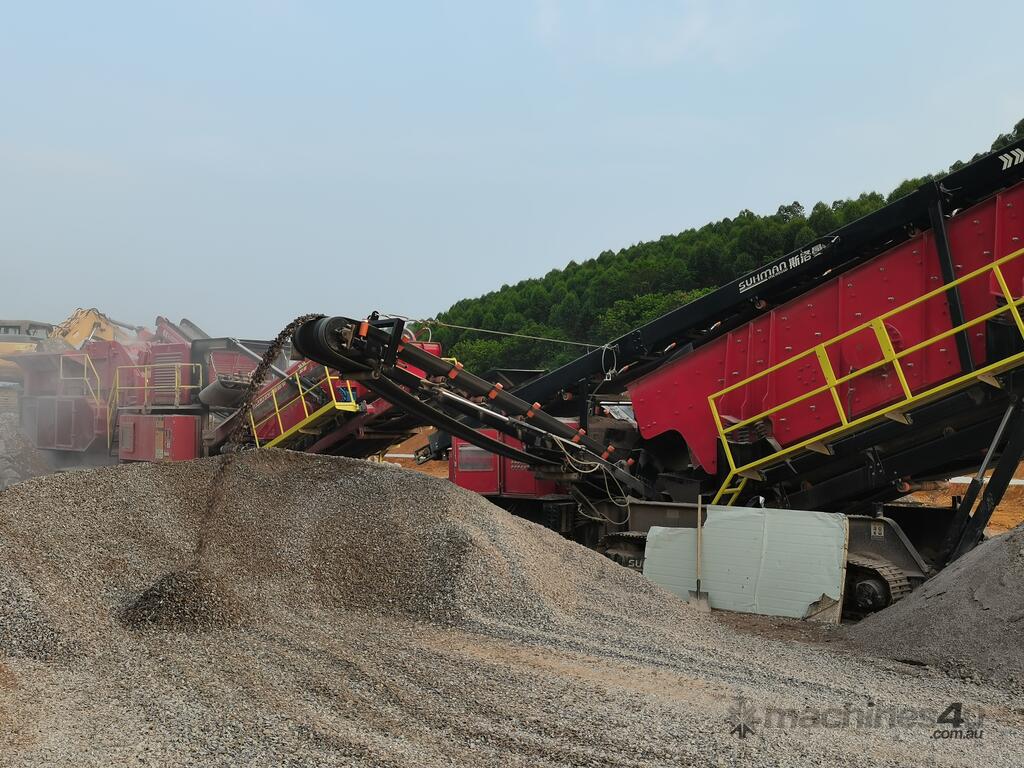

Equipped with a feed hopper with belt conveyor, SF-580D impact crusher, conveyors for recirculation and stockpiling, and a diesel generator for autonomous operation.

Its tracked travel system ensures mobility and stability even on difficult terrain, offering a versatile, robust, and highly efficient solution for your crushing and screening needs.

Hopper
- Hopper volume: 6m³
- Hopper feeding height: 4000mm

Crusher
- Maximum feed size: 700mm
- Adjustment range of discharge port: 300mm-500mm\0mm-150mm
- Power: 315kW

Feeding Belt
- Length x Width: 3950mm×1460mm
- Power: 2 x 4.5kW

Main Belt
- Length x Width: 11500mm×1600mm
- Unloading height: 3250mm
- Power: 2 x 9.5kW

Finished Product Belt
- Length x Width: 5800mm×1350mm
- Unloading height: 2580mm
- Power: 2 x 7.2kW

Return material hanging sieve
- Length x Width: 5600mm×2160mm
- Power: 2 x 3.7kW
- Screen Size: 4600mm×1540mm

Transition Belt
- Length x Width: 1750mm×770mm
- Power: 3kW

Side Belt
- Length x Width: 6500mm×970mm
- Power: 5.5kW

Return Belt
- Length x Width: 7200mm×970mm
- Power: 5.5kW

Overband Magnet
-- Length x Width: 2100mm×910mm
- Power: 3kW

Complete Machine
- Engine power: 400kW
- Generator power: 400kW
- Whole machine weight: 60T
- Machine processing capacity: 230TPH
- Working dimensions (length, width, height): 17652mm×7700mm×4000mm
- Transportation dimensions (length, width, height):17000mm×3500mm×4000mm
