New GEDA Scaffold Platforms for sale - Transport Platform

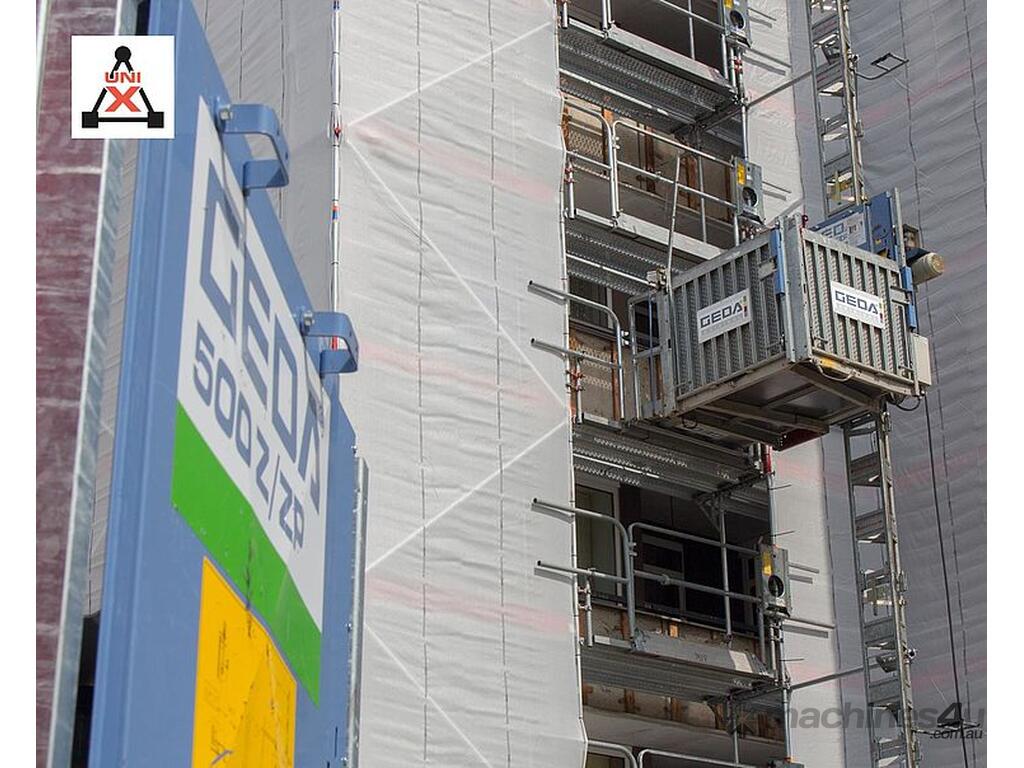

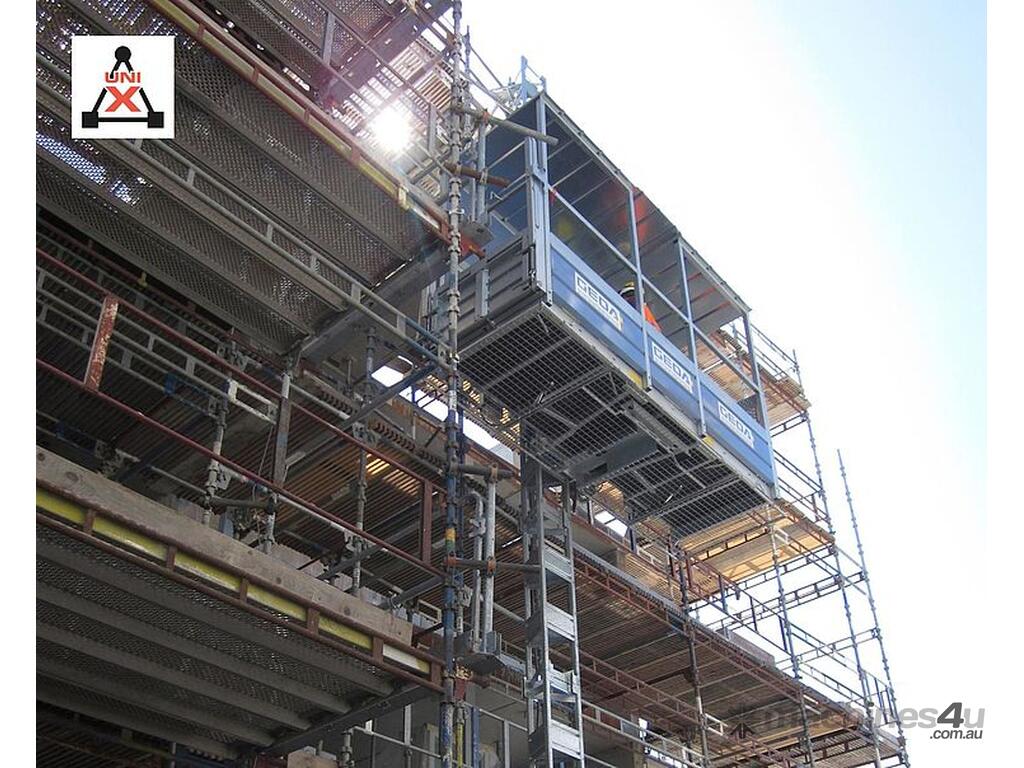

GEDA 500 Z/ZP – Dual-Purpose Transport Platform for Materials & Personnel

The GEDA 500 Z/ZP is a versatile, heavy-duty transport platform designed for the demands of modern construction sites. With two operating modes, it functions either as a fast material hoist or as a safe transport platform for both personnel and materials — making it an ideal all-in-one lifting solution for scaffolding work, façade construction, and site logistics.

In material mode, the GEDA 500 Z/ZP reaches lifting speeds of 24 m/min, while passenger mode provides controlled, secure movement at 12 m/min. With a capacity of 1,000 kg for materials or 5 persons / 500 kg, this platform significantly improves workflow efficiency and safety across multi-storey projects.

The system features a spacious platform, minimal space requirements and a wide range of platform versions with different loading doors and flaps — allowing complete customisation to your project. Built on the GEDA UNI-X-MAST system, it integrates easily with other GEDA hoists for a unified site setup.

Because the GEDA 500 Z/ZP is fully configurable, pricing is POA and tailored to your project requirements. Contact us for a customised quote.

Key Features

Dual-purpose operation – use as a material hoist or a personnel & material transport platform
High load capacities – up to 1,000 kg (materials) or 5 persons / 500 kg
Efficient lifting speeds – 24 m/min in material mode, 12 m/min in passenger mode
Flexible platform configurations – multiple versions with optional doors and loading flaps
GEDA UNI-X-MAST compatibility – mast system used across GEDA hoists from 300–2200 kg
Corrosion-resistant coating – long-lasting performance in harsh environments
Automatic lubrication system – reduces wear and lowers maintenance costs
Built for reliability – proven long-term performance on demanding construction sites

Technical Specifications

Cargo Type: man & materials
Mast System: GEDA UNI-X-MAST
Load Capacity (Materials): 1,000 kg
Load Capacity (Persons): 5 persons / 500 kg
Lifting Height: up to 100 m
Lifting Speed: 24 m/min (materials) / 12 m/min (passengers)
Power Supply Options: 3 kW / 6.1 kW / 400 V / 50 Hz / 16 A

Optional Extras

Cable bins: 25 m, 50 m, 75 m, 100 m
Trailing cable guides
Fixing bracket sets
Additional platform configurations for site-specific requirements
