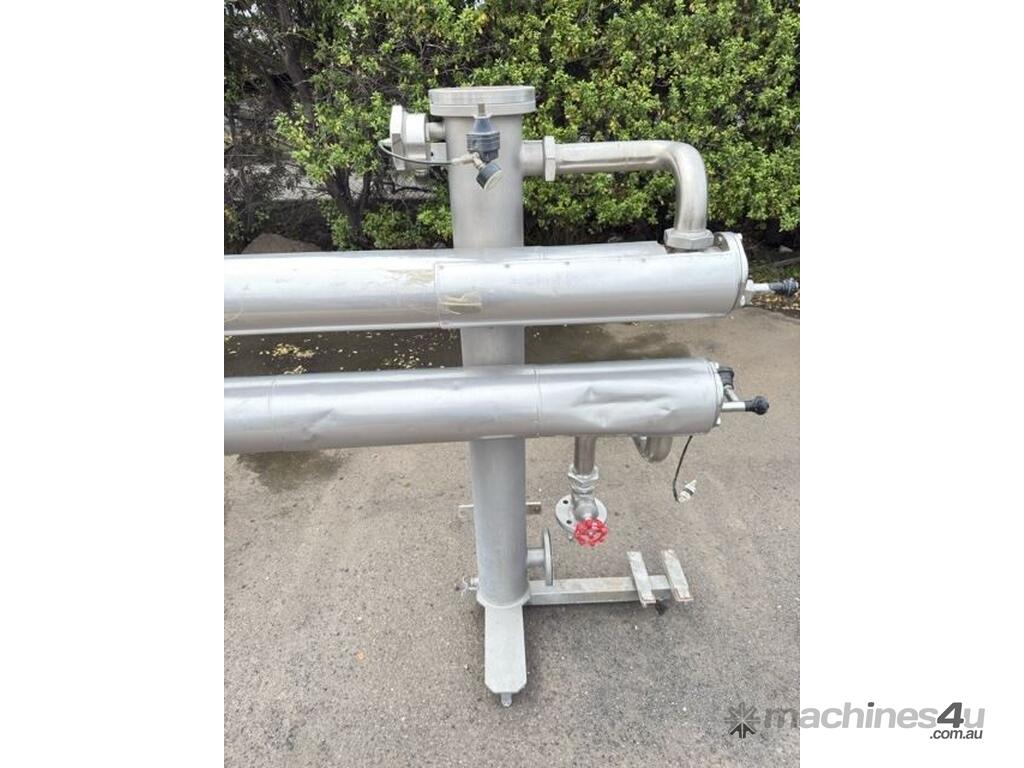

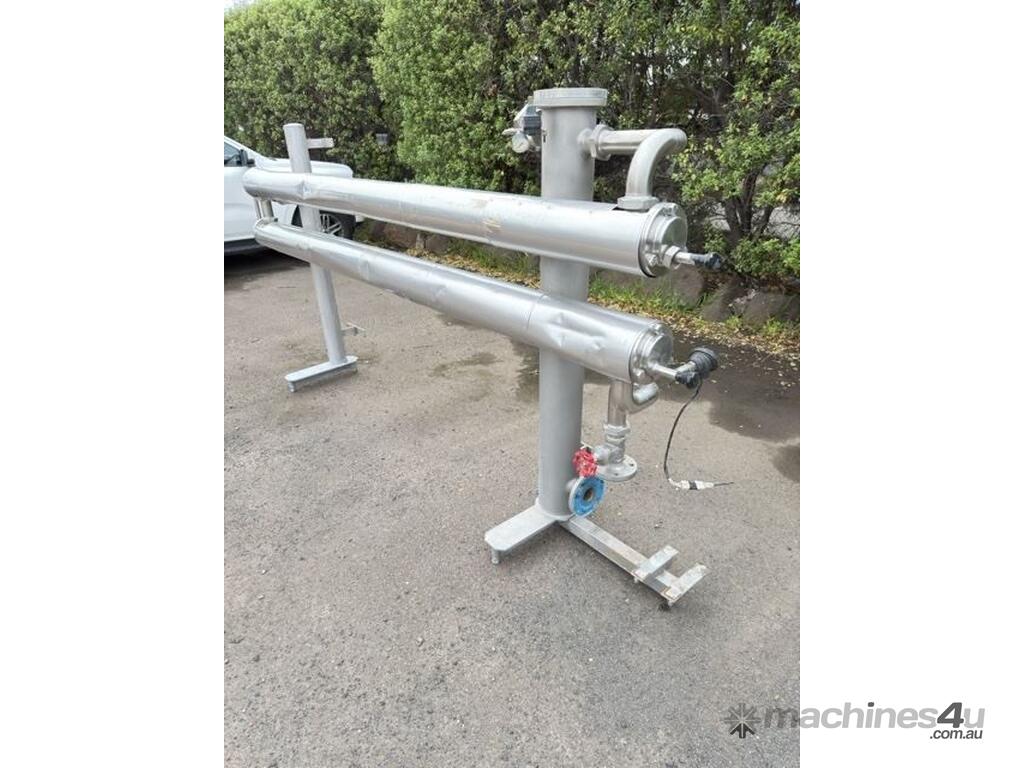

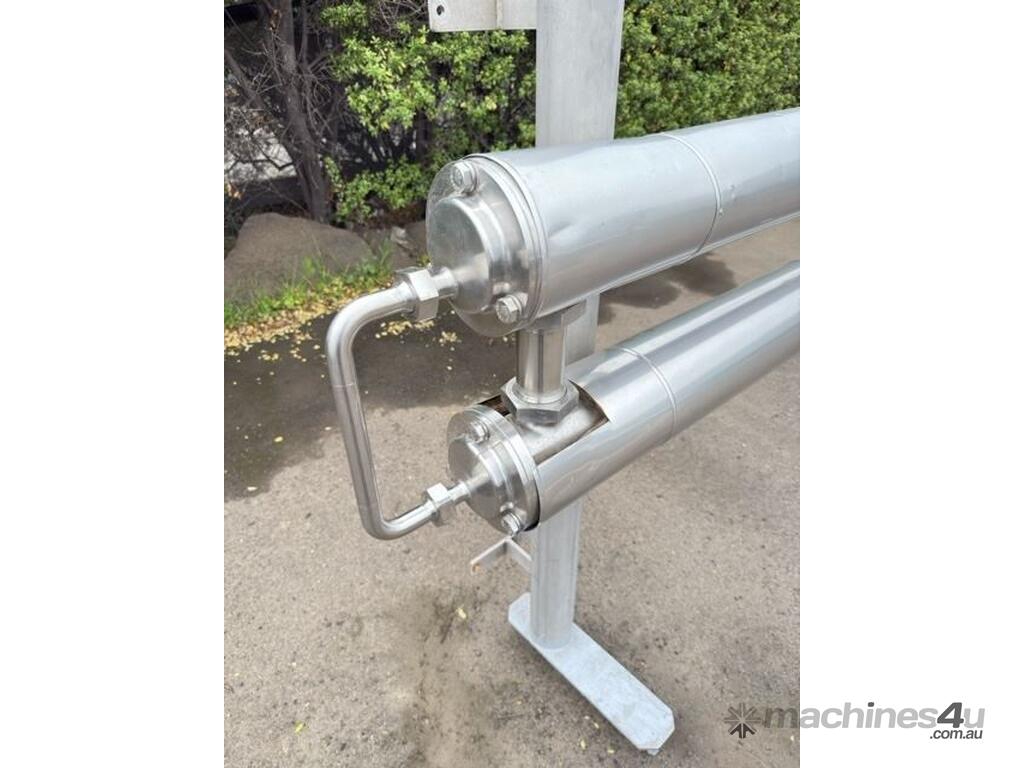

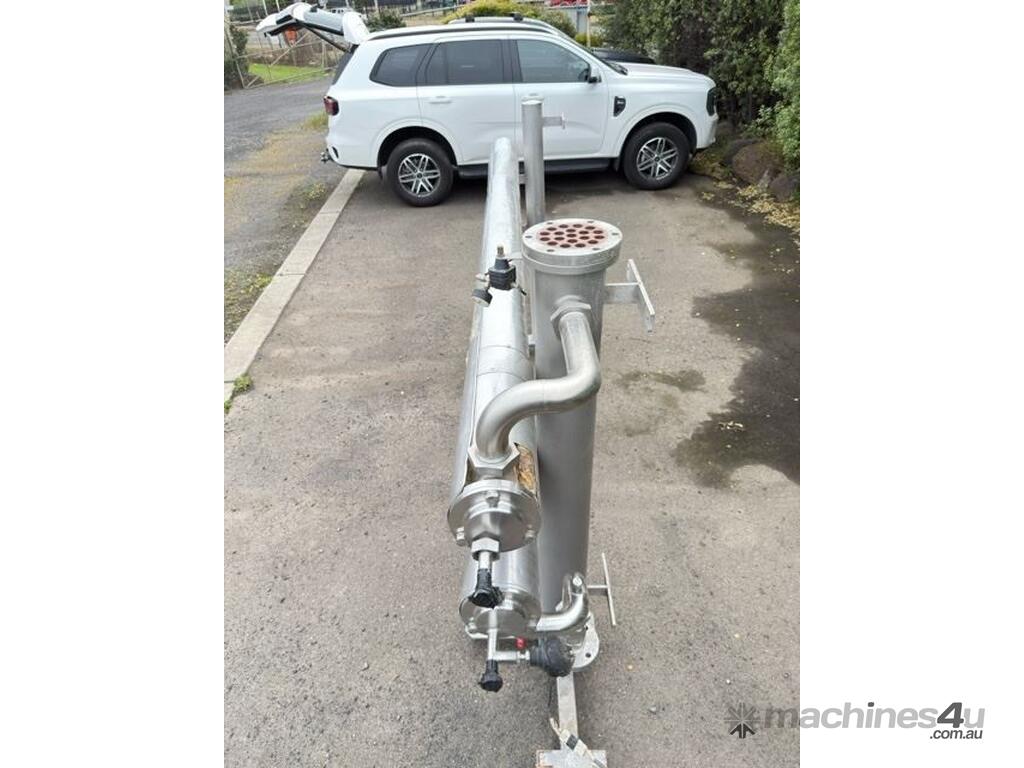

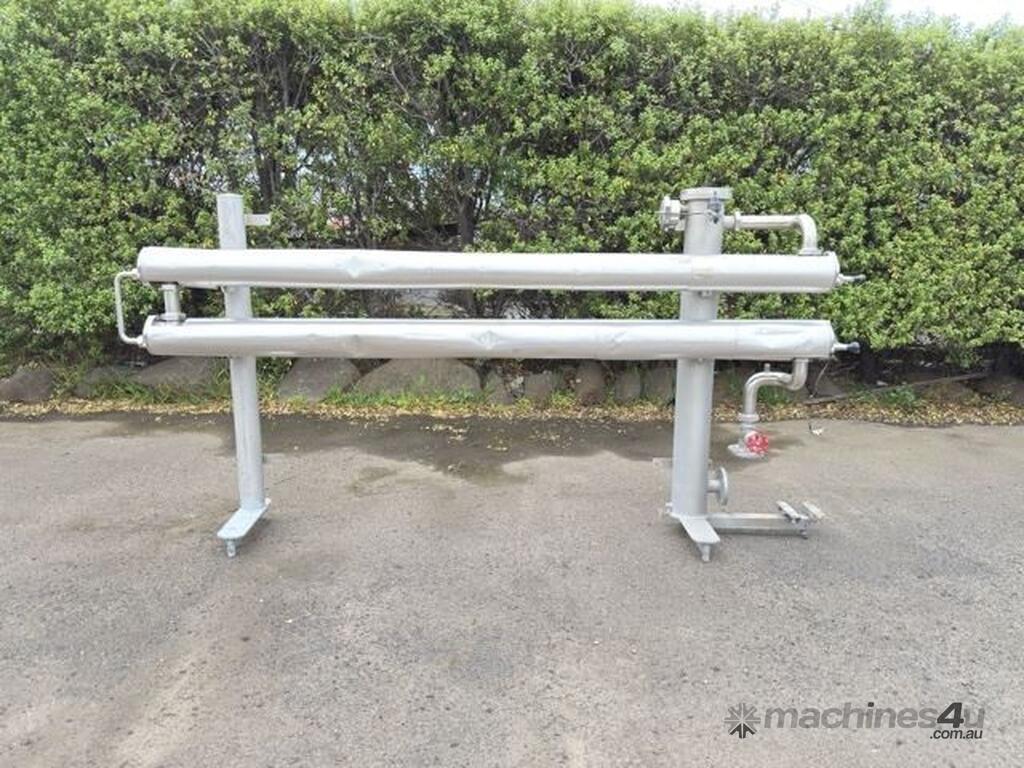

Stainless Steel Tube-in-Tube Heat Exchangers
Two identical tube-in-tube heat exchangers constructed from stainless steel, each with the following specifications:
Shell Diameter: 200 mm
Length: 2.0 meters
Inner Tubes: 10 tubes per unit
Inner Tube Diameter: 20 mm (nominal)
Tube Length: 2.0 meters
Configuration: Tube-in-tube (10 inner tubes housed within a single outer shell)
Material: Stainless steel (grade to be specified)
Approximate Heat Transfer Surface Area:
Per Unit: ~1.26 m²
Total (2 Units): ~2.52 m²
