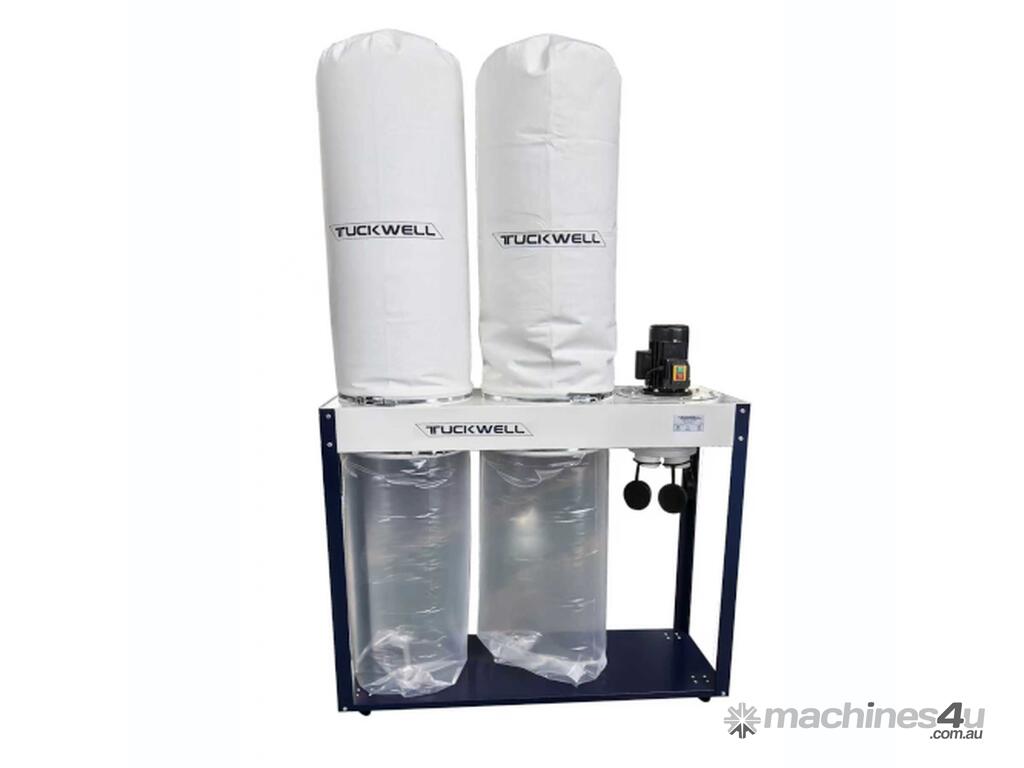

Tuckwell DX5 Dust Collector - 3hp 240v Portable Unit Twin Bag

Tuckwell 3hp Twin Bag, 240v Dust Collector – High-Performance Industrial Dust Extraction

The Tuckwell 3HP Dust Collector is engineered for powerful and efficient dust extraction in woodworking and industrial workshops.

Equipped with a robust 3HP, 240V (15a) motor, this industrial dust collector delivers an impressive 5000 m3/hr airflow to keep your workspace cleaner, safer, and more productive.

Why Choose This 3HP Dust Collector?
High-Performance 3HP Motor – Generates 5000 m3/hr airflow to handle heavy-duty dust loads.
Versatile Connection Options – Comes standard with 4 × 100 mm outlets, or remove the manifold for a single 200 mm inlet to maximise airflow to one machine.
Efficient Twin-Bag System – Large upper cloth filter bags for fine dust filtration and a clear 500 mm diameter lower plastic bags for quick and easy disposal.
Heavy-Duty Construction – Built to last with durable materials, making it a reliable 3HP dust collector for demanding workshop environments.
Able to be rotated with fan outlet to TOP or BOTTOM – Precision-engineered for quality and long service life.

Technical Specifications
Model TMDX5
Impeller Dia. 14?
Motor 3 HP (240V,15Amp)
Capacity 5000 m3/hr
Static Pressure (inch of water) 19
Sound Rating 75–90 dB
Intake Opening Ø200 × 1, Ø100 × 4
Packing Size (cm / cu. ft.) 160 × 61 × 52 cm
Net Weight (N.W.) 60 kg
Gross Weight (G.W.) 64 kg
