Tuckwell SP520 Surface Planer, 520mm Spiral Cutter Block Jointer

Tuckwell SP Series Surface Planer

The Tuckwell SP520 Surface Planer is available with a 520mm working width & is equipped with:

Heavy Cast Iron Tables | Spiral Cutter-Block |Fine Adjustment of In-Feed & Out-Feed

Convenient Control Placement | Inclinable Fence | Powerful 415v Motors

Heavy-duty construction

High-Power, 415v Motor – The Tuckwell SP520 is equipped with a 5.5kW Motor (7.5hp)

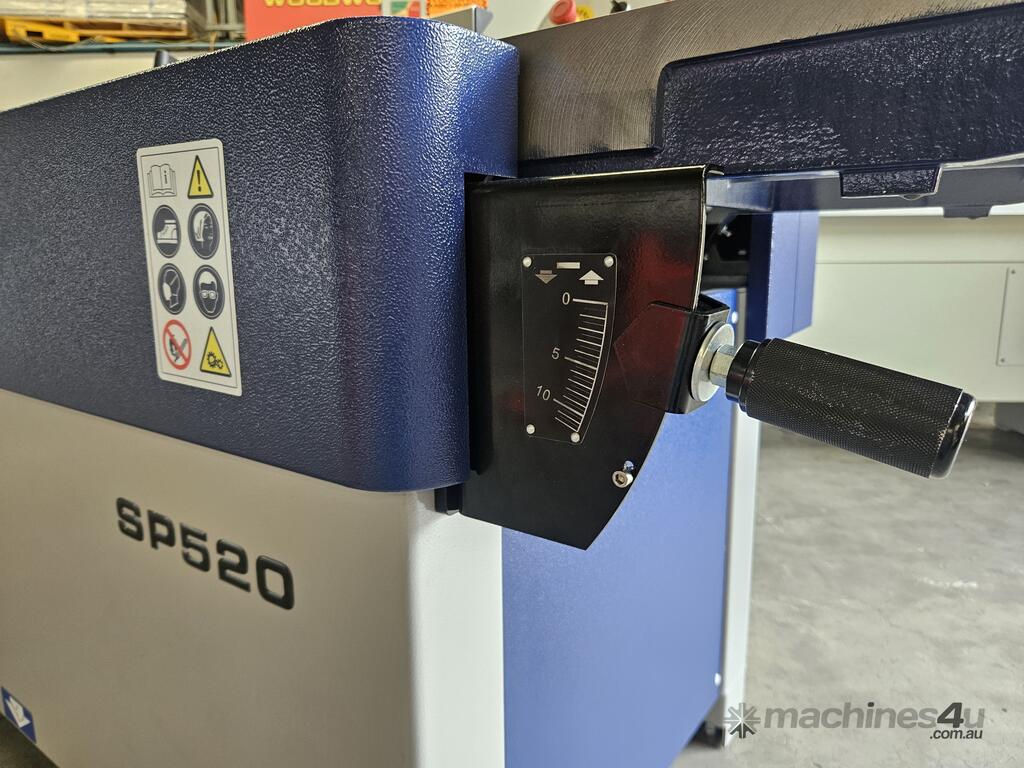

Heavy Construction – The heavy-duty cast-iron working table has fine adjustments and measures: 2740mm x 520mm.

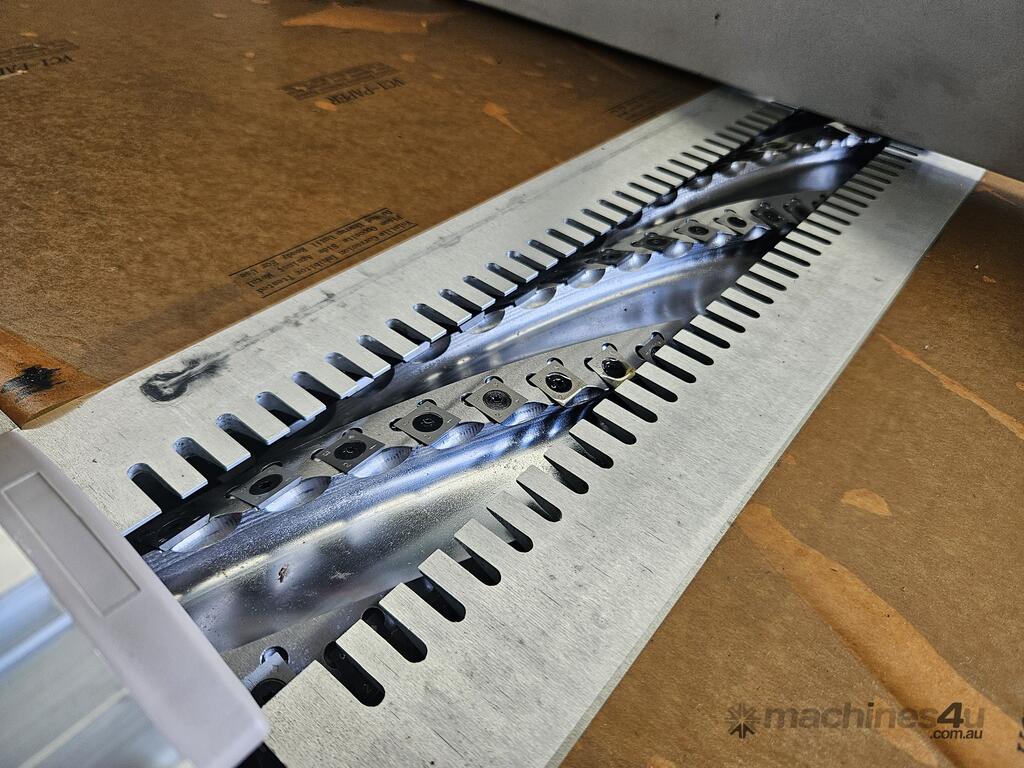

Quiet Spiral Head – The 120mm Diameter Spiral Cutter Block provides a quiet yet clean finish. Less noise & less post work of your pieces!

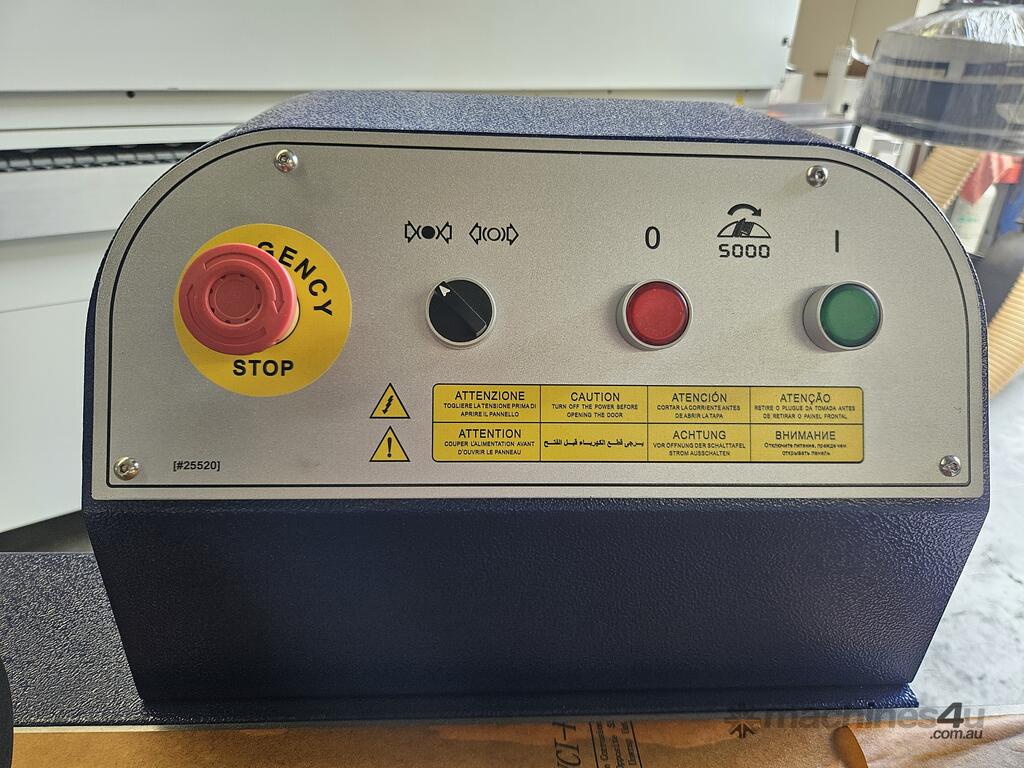

Safe – All controls are within easy reach of the operator, and an adjustable guard is supplied

Technical Specifications

Motor: 5.5kW (7.5hp) 415v
Working Width: 520mm
Table Size: 520 x 2740mm
Cutter Block" 120mm Diameter Spiral Cutter Block 5,000rpm
Weight: 800kgs
