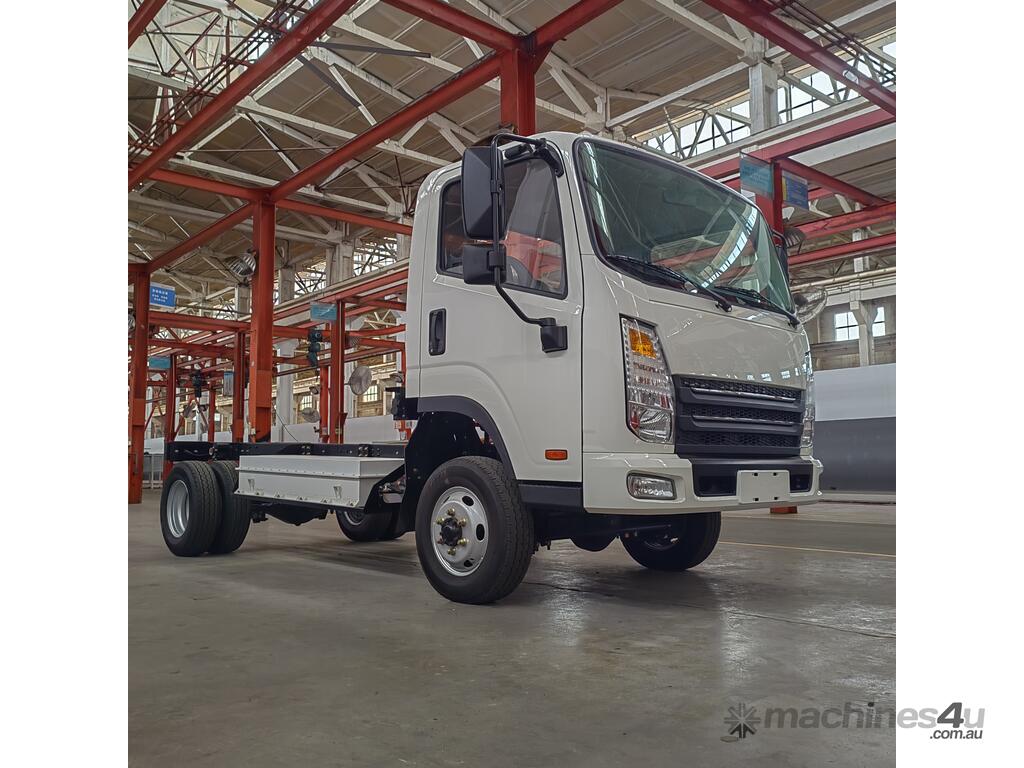

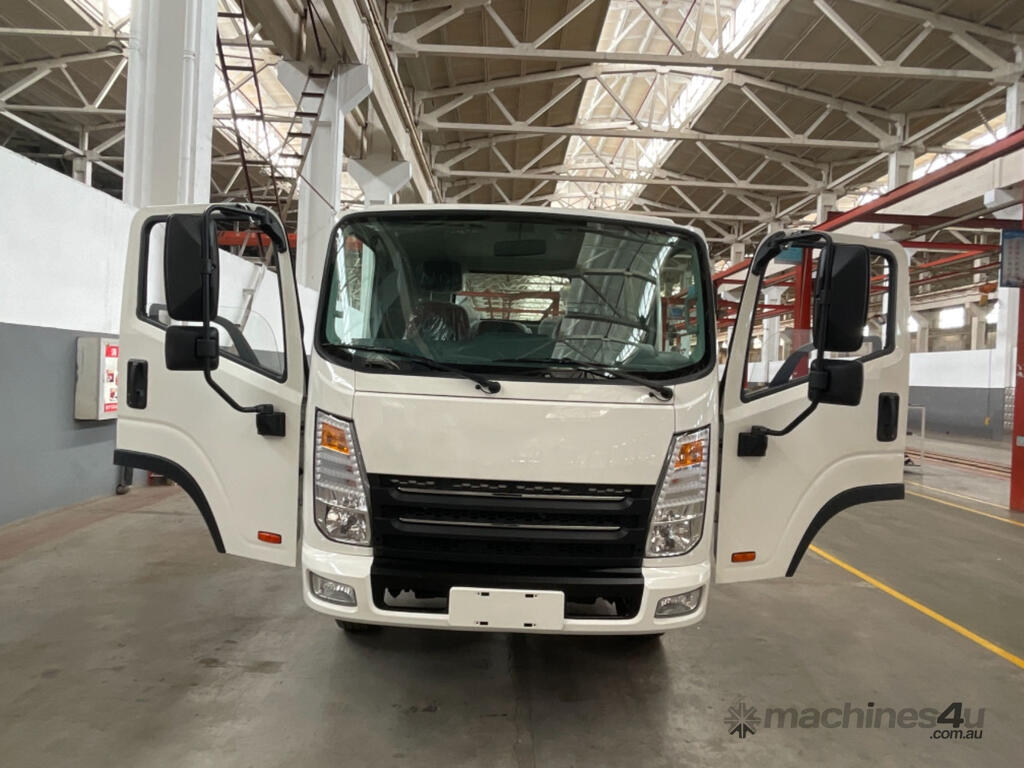

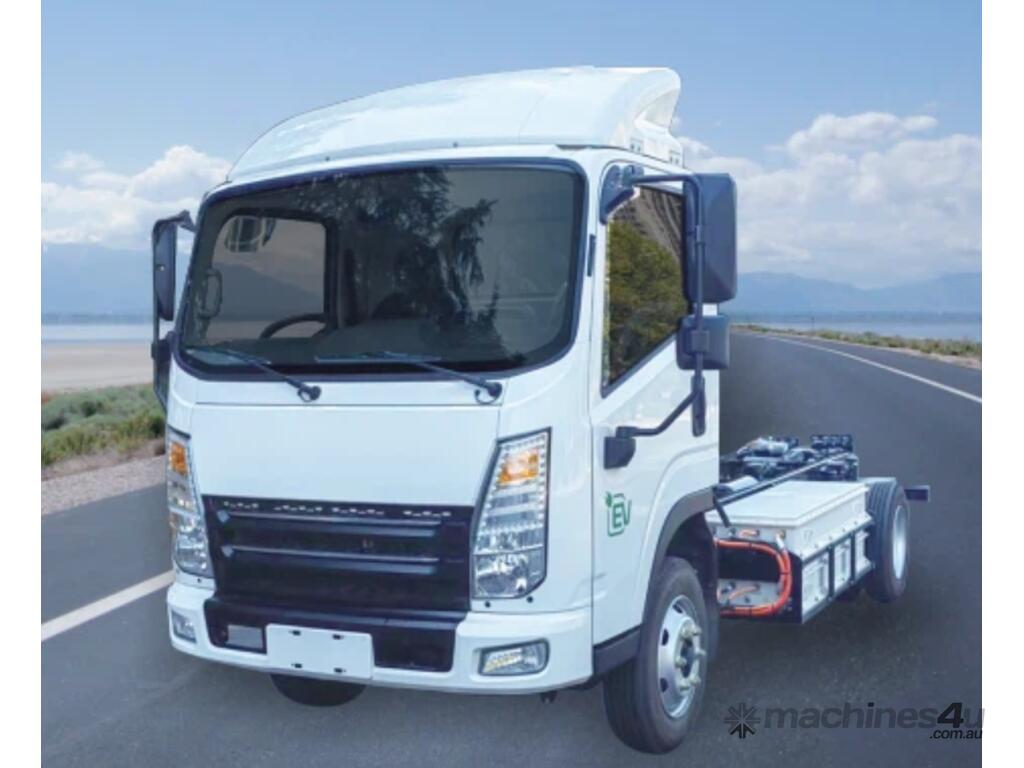

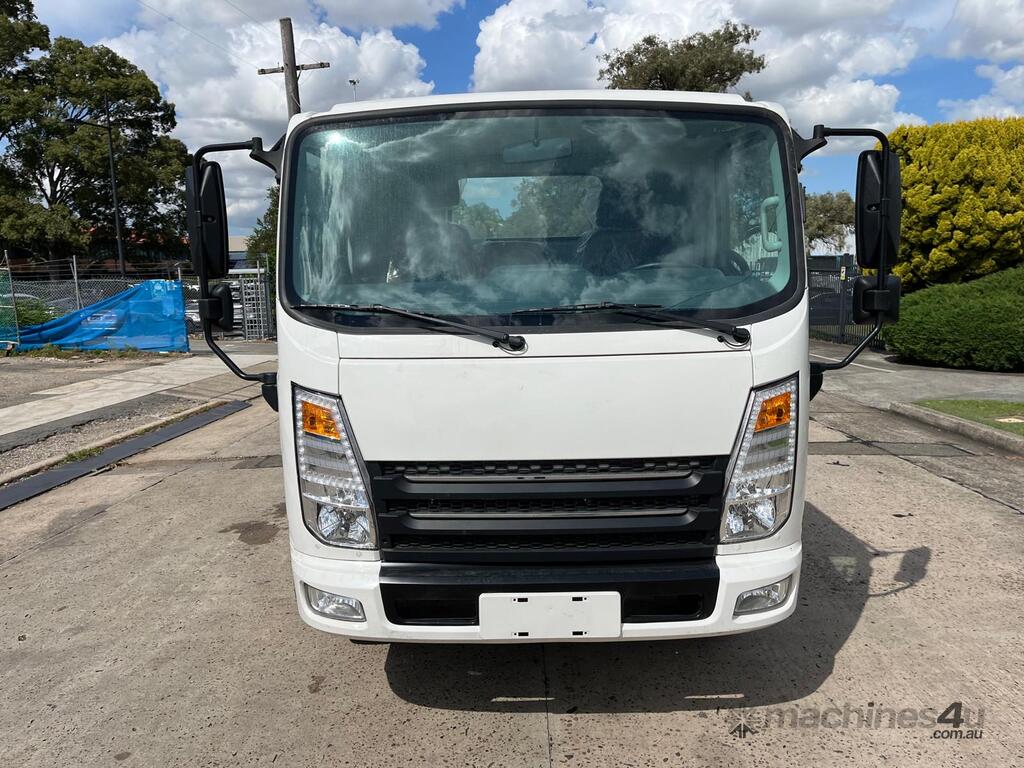

TunnelWerx 4 Wheel Drive 2.5T Battery Service truck

• The 4x4 TunnelWerx eTruck is the next iteration of our electrification program.

• We are committed to reducing driving emissions, hand in hand with your business.

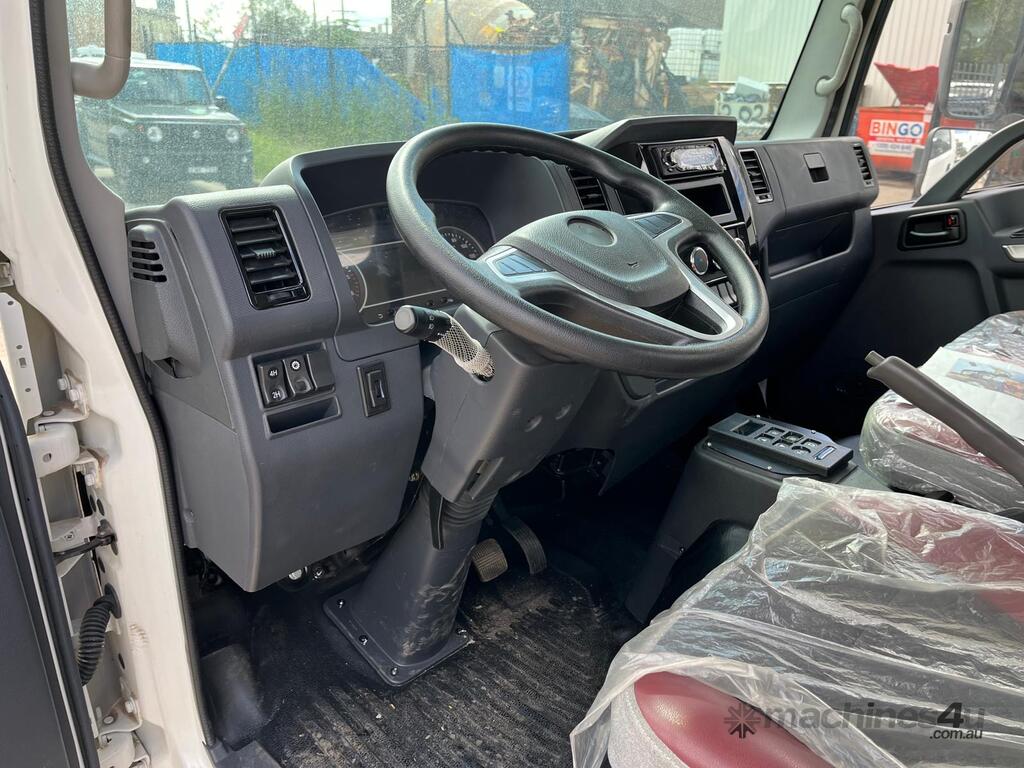

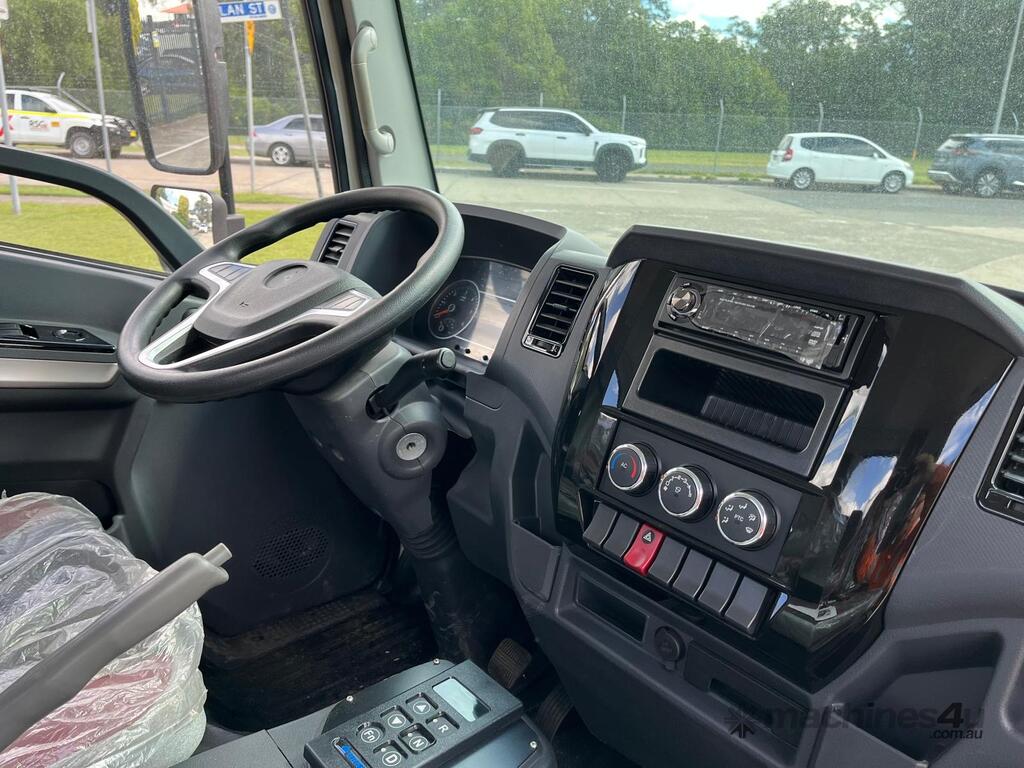

• The 4x4 TunnelWerx eTruck truck offers an ergonomically designed driving environment to
maximise driver comfort, safety and focus on the job throughout the working day.

• Whatever your requirement, the4x4 TunnelWerx eTruck can be customised to fit the job.

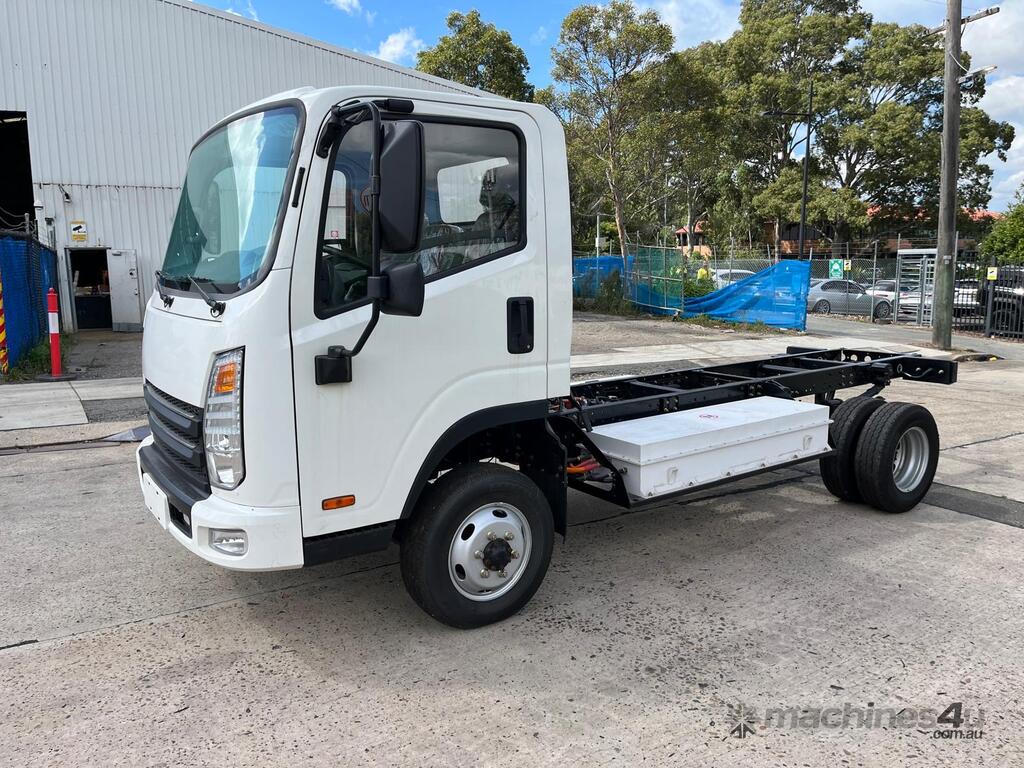

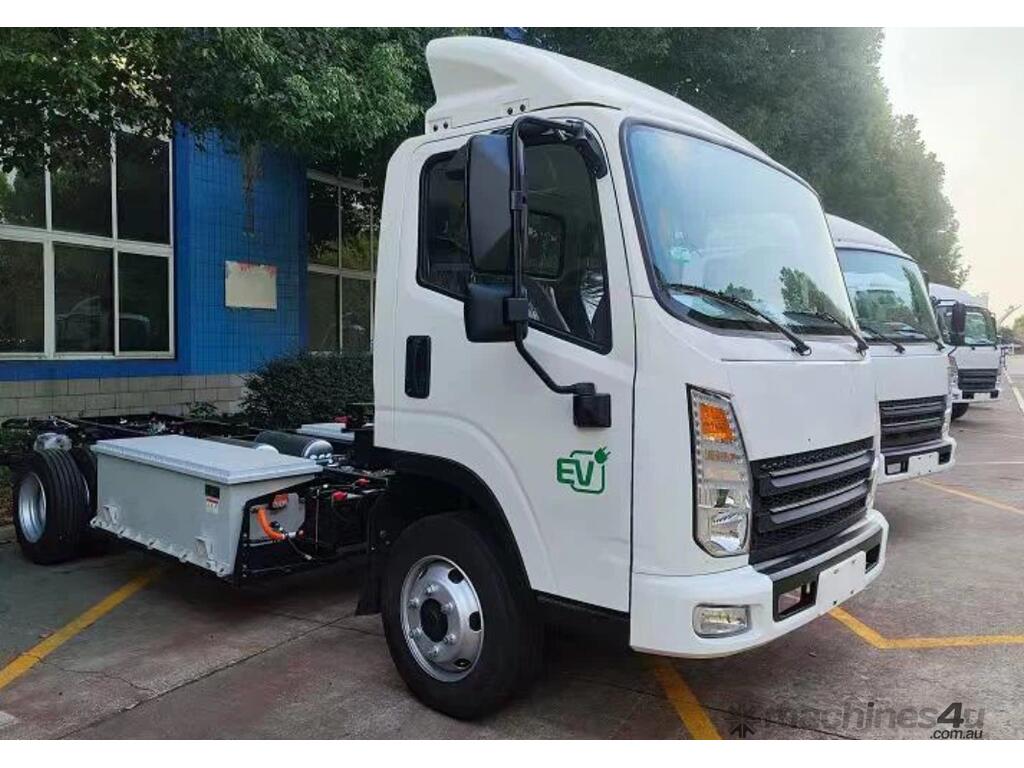

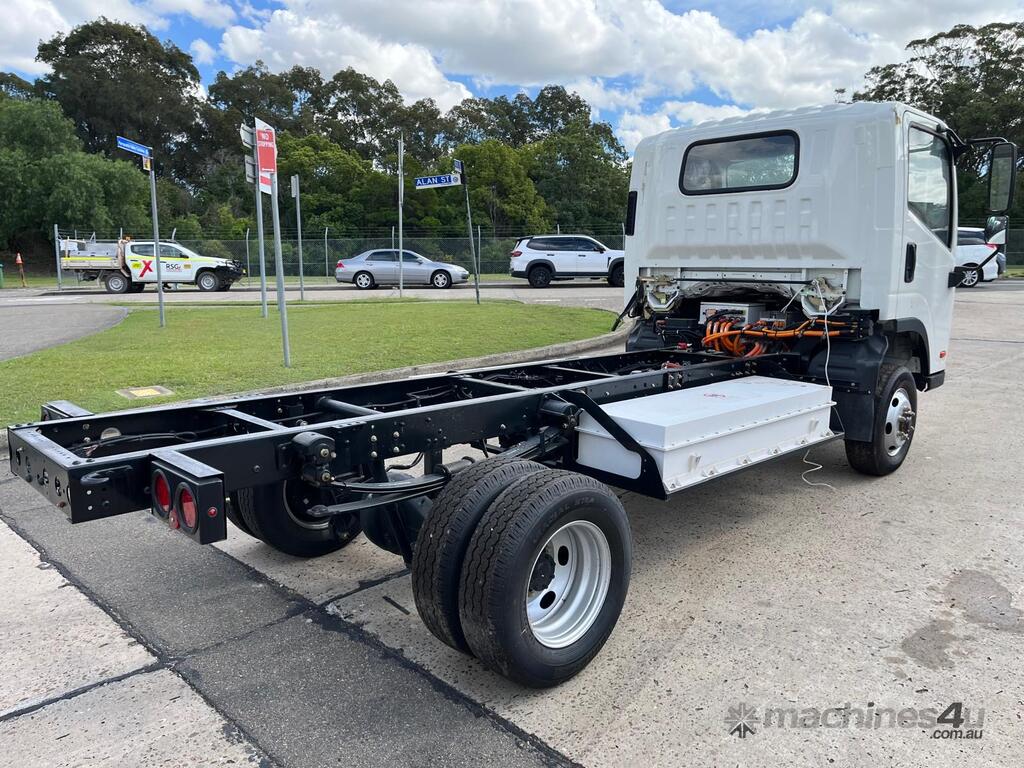

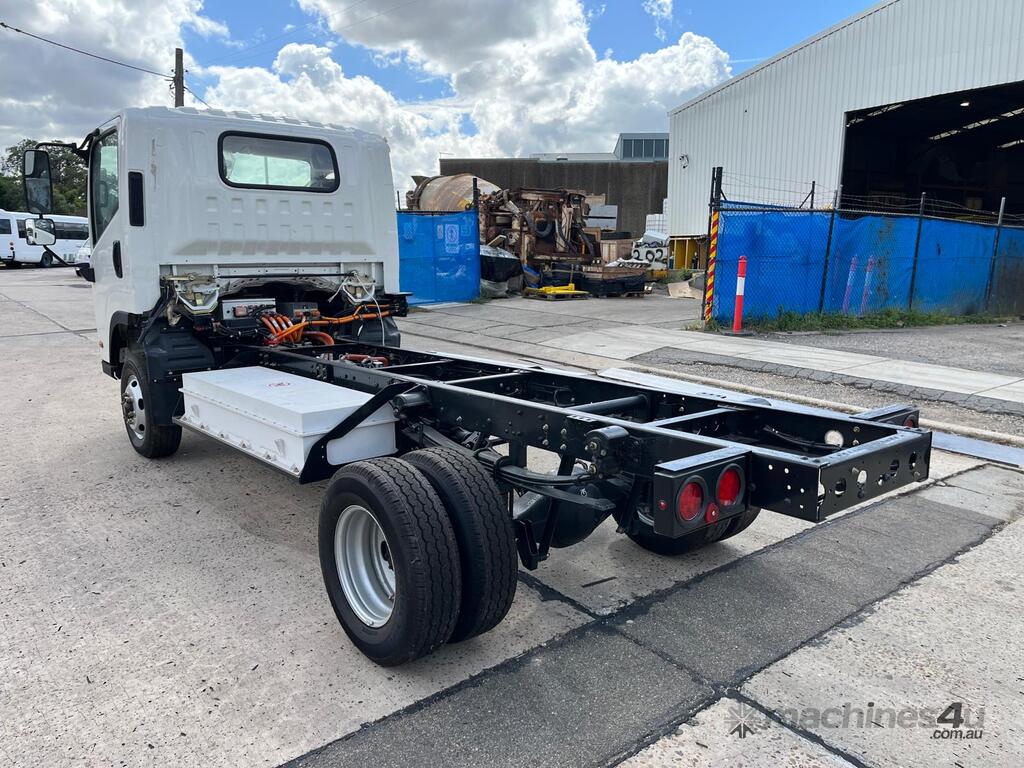

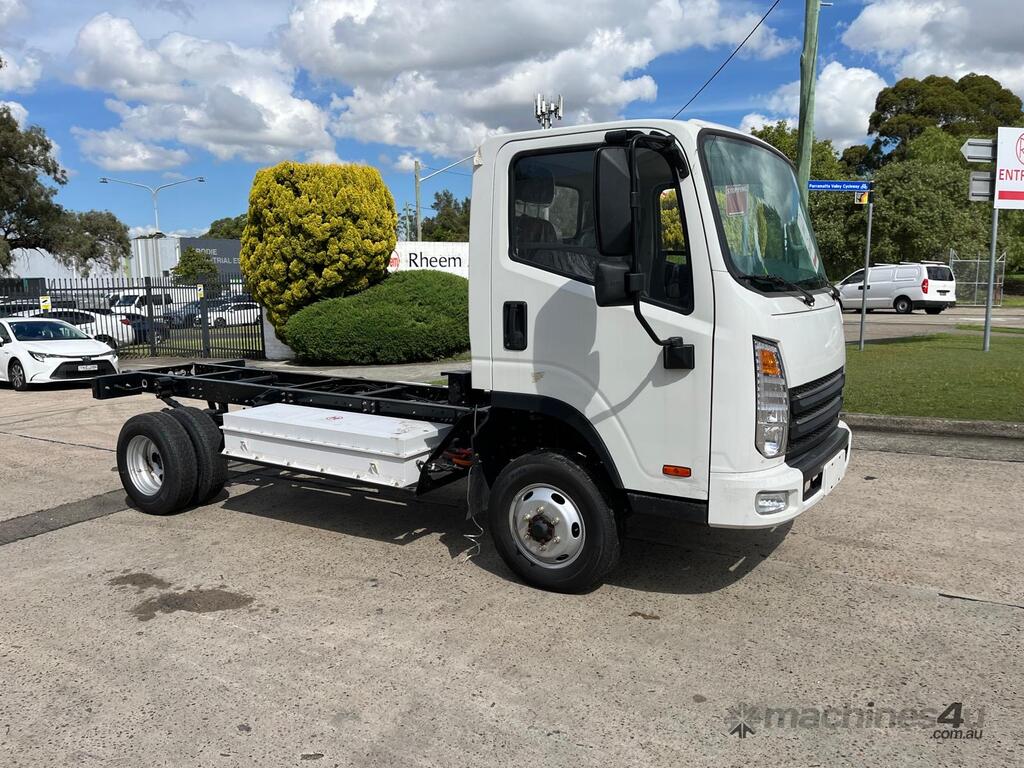

• Available as a bare cab chassis, the 4x4 TunnelWerx eTruck can be fitted with many tray options
ready to work

• Large 2.5T carrying capacity

The 4x4 TunnelWerx eTruck delivers instant torque with its 120Kw / 380Nm Electric Motor

4WD Carrier
• 2.2T Disc brake Front Drive/Steer Axle
• 3.5T Drum Rear Drive Axle
• 1.5Kw Electric power steering pump
• Circular Ball Steering Gear
• ABS & Dual Circuit Braking System – Hydraulic assist
• 225/75R16 Tyres with 6K*16 Rims
• Cabin Heater and Air Conditioning
• NOTE: Left Hand Drive and not road registerable.

Battery:

• Rated Power 92.5KwH
• 2 x Ternary Lithium Battery Packs CATL type.
• Rated Voltage 525 Volts
• Temperature sensor and smoke sensor.
• Air Cooled

Motor:

• Permanent Magnet Synchronous Type
• Rated Power 55Kw / Peak Power 120 Kw
• Rated Torque 200Nm / Peak Torque 380Nm
• 6000Rpm Maximum
• Rated Voltage 540V
• 280v to 730v Operating range
• Liquid Cooling

Controller:

• DCDC - 4 in 1 type controller
• DCAC Main Drive
• DCAC Oil Pump
Charger
• On board - 6.6Kw at 90-264V
• Charging time 10 Hours with standard on board charger
• Optional Fast Charger 1-3 hours

Optional:

• HEPA Cabin Pressuriser
• Fast Charger
• Spare battery packs
• Configurable to client needs
• Example Rear Modules – see below Pricing on request.
• Customised Rear Modules are available.

Further details available in PDF below for download
