Turf Storm XL & Turf Storm Spreader / Sprayers

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

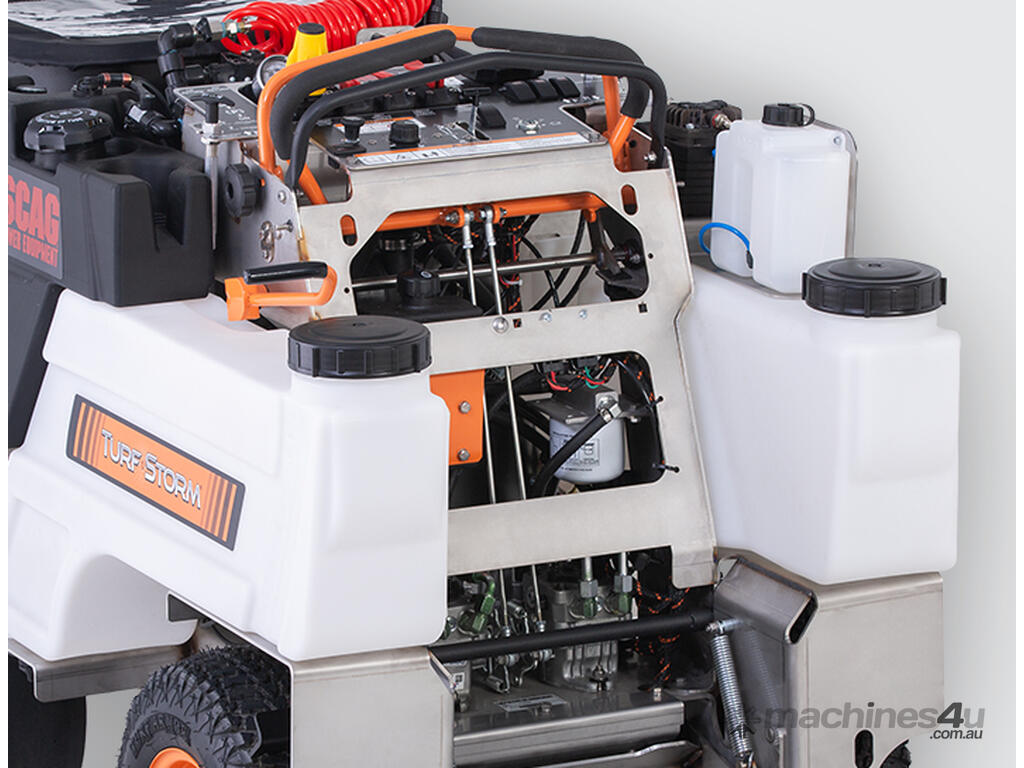

Dual Liquid Tanks

Large Liquid Capacity
60-gallon (Turf Storm XL) or 30-gallon (Turf Storm) total liquid capacity keeps you spraying longer. Highly translucent tanks with raised measurement indicators allow for accurate fill levels. Spray booms measuring 8-feet-wide with five nozzles (Turf Storm XL) or 65-inches wide (Turf Storm) allow for spraying widths of 2, 6, 8 or 10 feet (Turf Storm XL) or 2, 6 or 8 feet wide (Turf Storm). A 75-foot hose reel (Turf Storm XL) or 15-foot flex hose (Turf Storm) allows you to reach tough spaces.

Product Specification - Turf Storm XL
Hopper Capacity : 60-Gallon Capacity, 220-lb Hopper

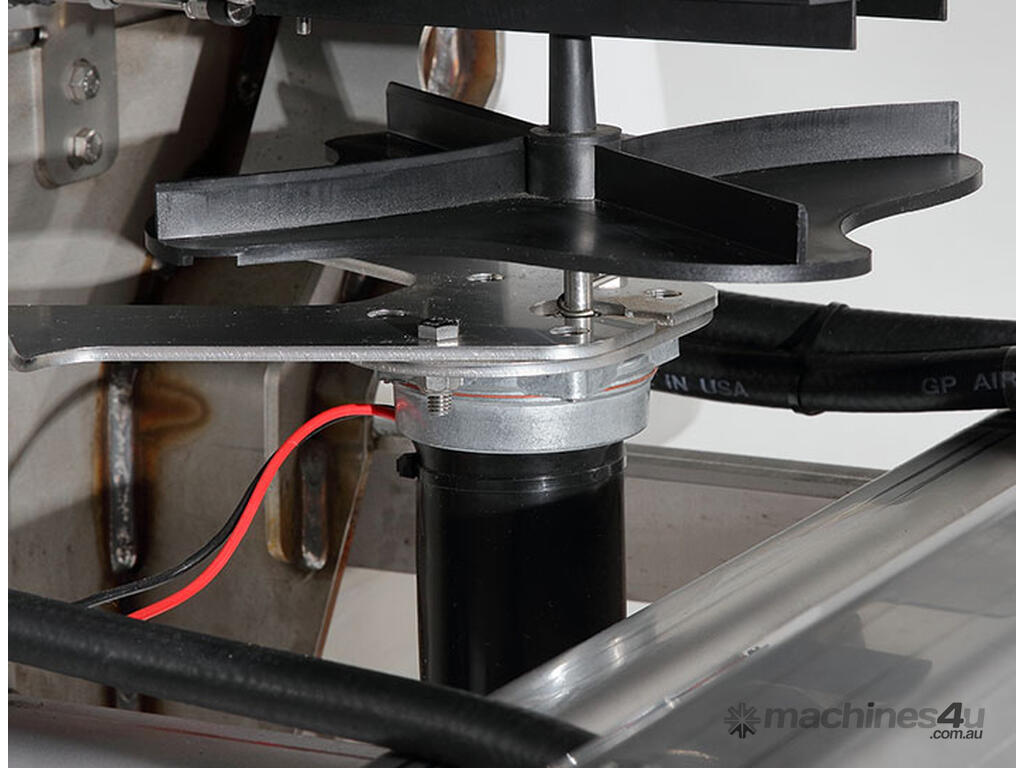

Spreader Motor : High-Torque Electric
Spread Width : Up to 25 ft.
Deflector : Mechanical Lever Activation of Stainless Steel Door
Hopper Cover : Included
Spray Capacity : "60-gallon; Dual 30-gallon tanks.
High visibility tanks."
Hinged Boom Arms : 8-foot wide, 5 nozzles
Spray Width : 2, 6, 8 or 10 ft
Breakaway Booms : Standard
Coil Hose : Heavy duty, 75-foot high-pressure hose
Pump Capacity : 5 gpm; 7 gpm optional accessory
Model : STS60XL-23BV
Total Fuel Capacity : 5 gallons
Front Wheel(s) : 16" x 6.5"-8", pneumatic
Rear Wheels : 20" x 12"-10", 4-ply
Currently Available Accessories : Foamer Kit, LED Light Kit and 7 GPM pump

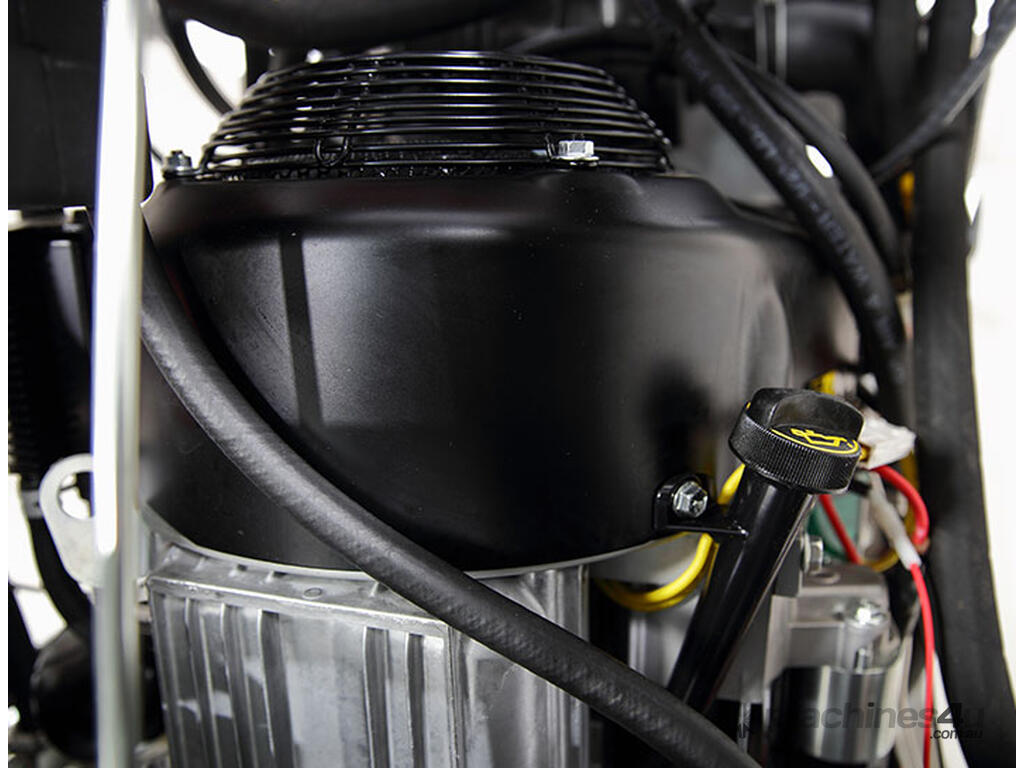

Engine : Briggs Vanguard™
Horsepower : 23 hp
Charging System : 12 Volt, 50 Amp
Drive System : Dual Pump and Motor
Pumps : Hydro-Gear: PG Series 10 cc
Motors : Parker TG Series: 14.5ci
Ground Speed : Up to 8.5 MPH forward , Up to 5 MPH reverse
Parking Brake : Hand Lever
Length : 67"
Width (spray booms in) : 54"
Width (spray booms out) : 82"
Height : 50"
Weight (dry) : 965 lb
Warranty : 2-Year Commercial & Non-Commercial Warranty; 90-day Rental


Product Specification - Turf Storm
Hopper Capacity : 30-Gallon Capacity, 120-lb Hopper
Spreader Motor : High-Torque Electric
Spread Width : Up to 25 ft.
Deflector : Mechanical Lever Activation of Stainless Steel Door
Hopper Cover : Included
Spray Capacity : "30-gallon; Dual 15-gallon tanks.
High visibility tanks."
Hinged Boom Arms : 65-inch wide, 4 nozzles
Spray Width : 2, 6 or 8 ft
Breakaway Booms : Standard
Coil Hose : 15-foot flex hose
Pump Capacity : 5 gpm; 7 gpm optional accessory
Model : STS30-23BV
Total Fuel Capacity : 4.5 gallons
Front Wheel(s) : 16" x 6.5"-8", pneumatic
Rear Wheels : 20" x 7"-10", 4-ply
Currently Available Accessories : Foamer Kit, LED Light Kit and 7 GPM pump
Engine : Briggs Vanguard™
Horsepower : 23 hp
Charging System : 12 Volt, 50 Amp
Drive System : Dual Pump and Motor
Pumps : Hydro-Gear: PG Series 10 cc
Motors : Parker TG Series: 14.5ci
Ground Speed : Up to 8.5 MPH forward , Up to 5 MPH reverse
Parking Brake : Hand Lever
Length : 65"
Width (spray booms in) : 35.5"
Width (spray booms out) : 65"
Height : 50"
Weight (dry) : 859 lb
Warranty : 2-Year Commercial & Non-Commercial Warranty; 90-day Rental



Turf Storm XL & Turf Storm Accessories:

7 GPM Pump
Foam Marker Kit

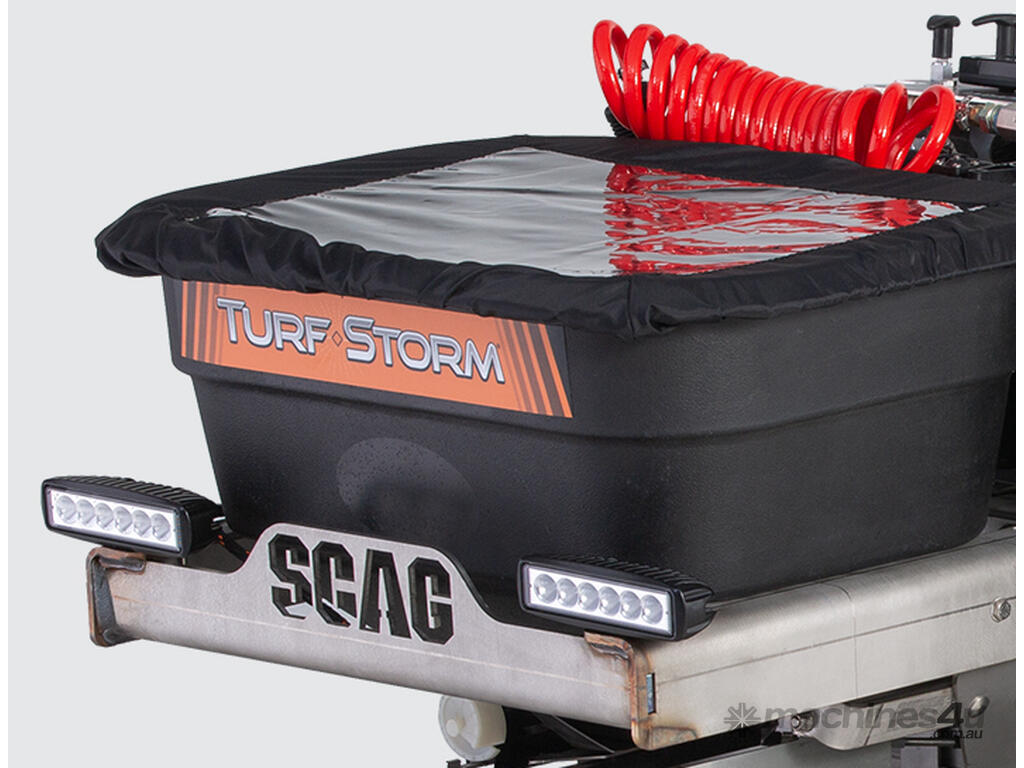

LED Light Kit
Weight Kit
Rear Storage Trays
