Turn Lathe & Mill Drill CM3075, Variable Speed Multi-Function Lathe

Comb. of Lahte, Mill/Drill CM3075

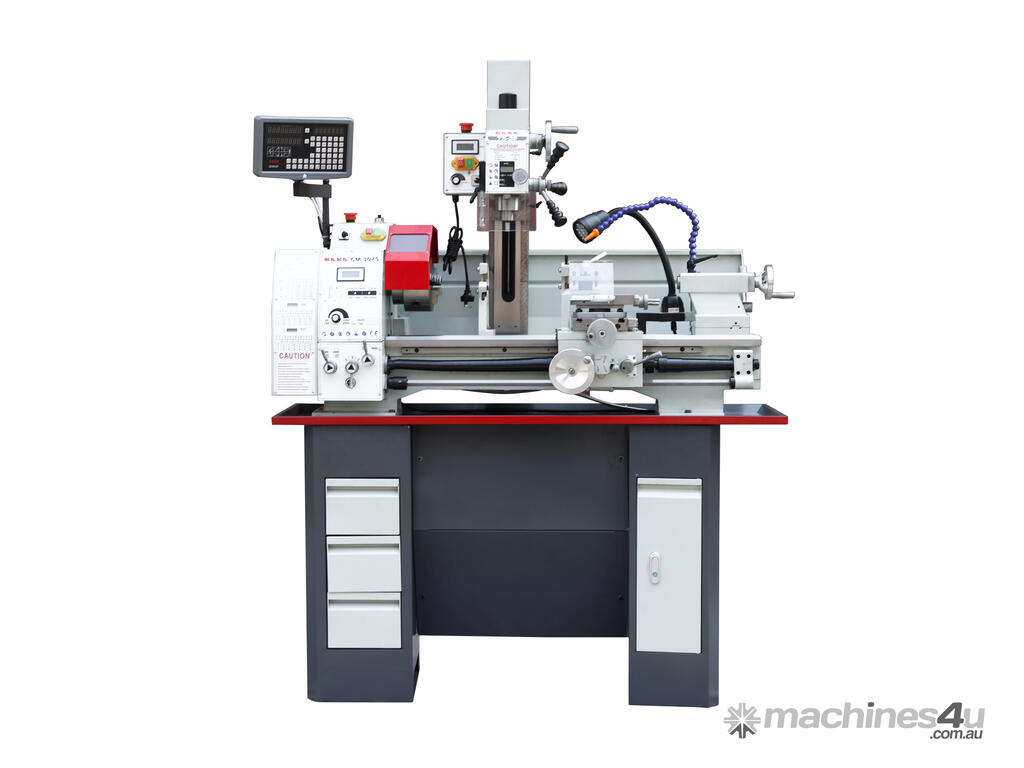

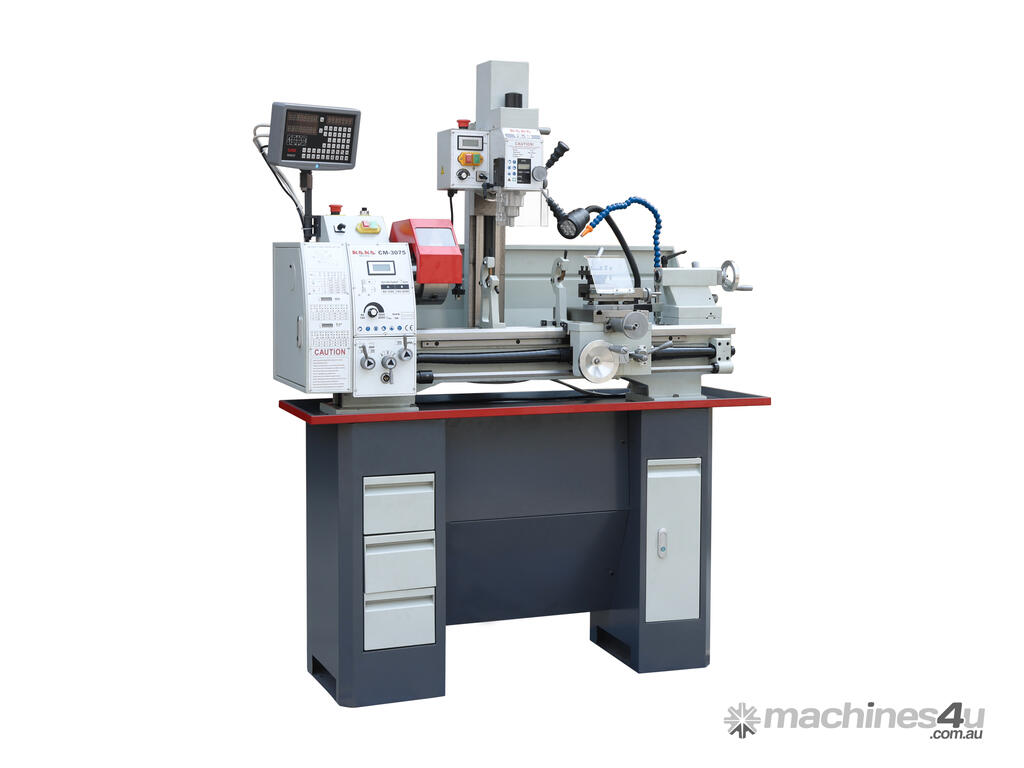

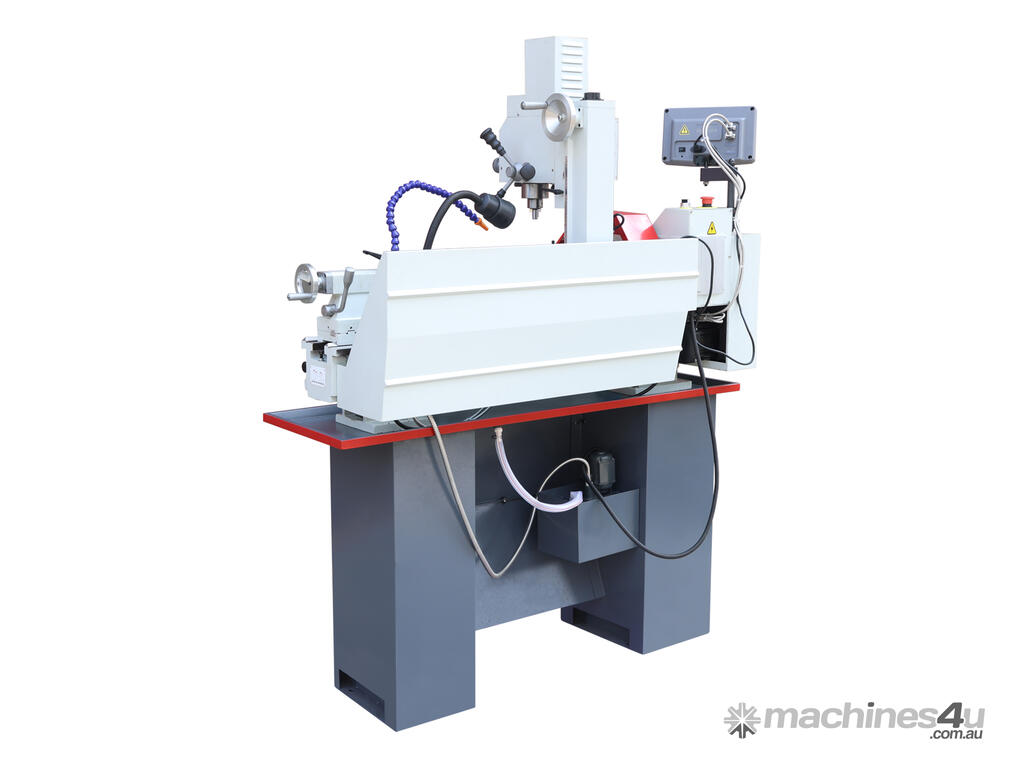

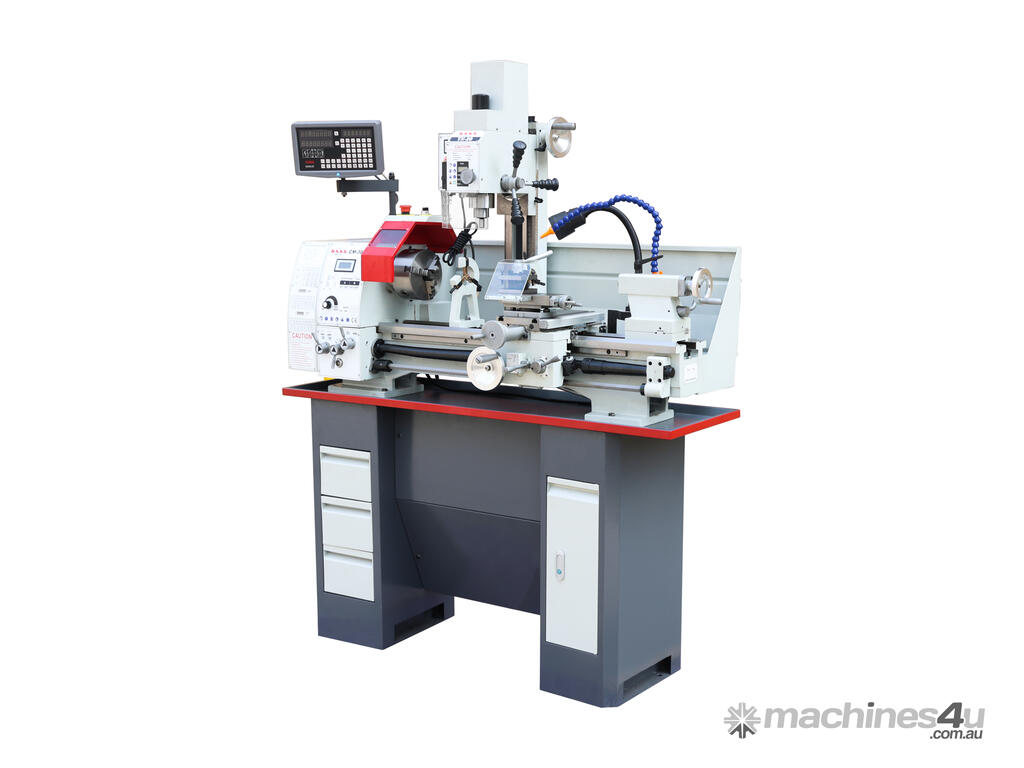

The KANG CM-3075 is a compact, professional-grade 3-in-1 Mill, Drill & Lathe Combo Machine designed for serious hobbyists, home workshops, and small fabrication businesses. It combines a precision lathe, vertical mill, and drill press into a single sturdy unit, perfect for turning, milling, drilling, and threading metal, plastics, or composites in one space-saving footprint

Massive Space & Cost Saver Comb. Machine. Three machines in one, ideal for typical garages, sheds, or small sheds where floor space is limited. No need to buy (and store) a separate lathe + mill + drill press.

Precision Lahte Mill/Drill Machine.  Digital Readout (DRO) + variable speed + hardened ways give professional results on every job. Perfect for model engineering, repairs, custom parts, or small production runs.

Metric & Inch Ready Lathe.  Full metric threading range (0.2–3.5 mm) alongside imperial, exactly what makers need for local projects.

Built to Last.  Two separate motors mean less strain and longer life. Steady & follow rests eliminate chatter. Robust MT5/MT2 tapers handle real work, not just hobby toys.

Features

Runs on 240V single-phase power

Brushless motor

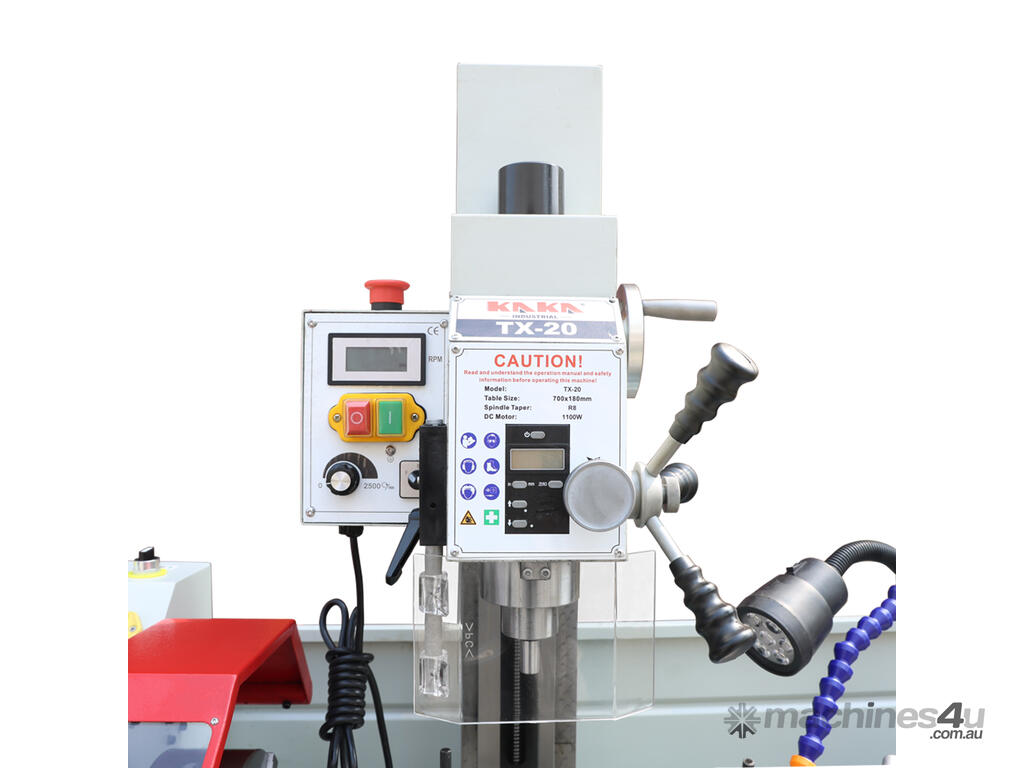

Two-axis DRO for lathe machine, and spindle speed readout for both lathe & mill/drill machines

Standard Included

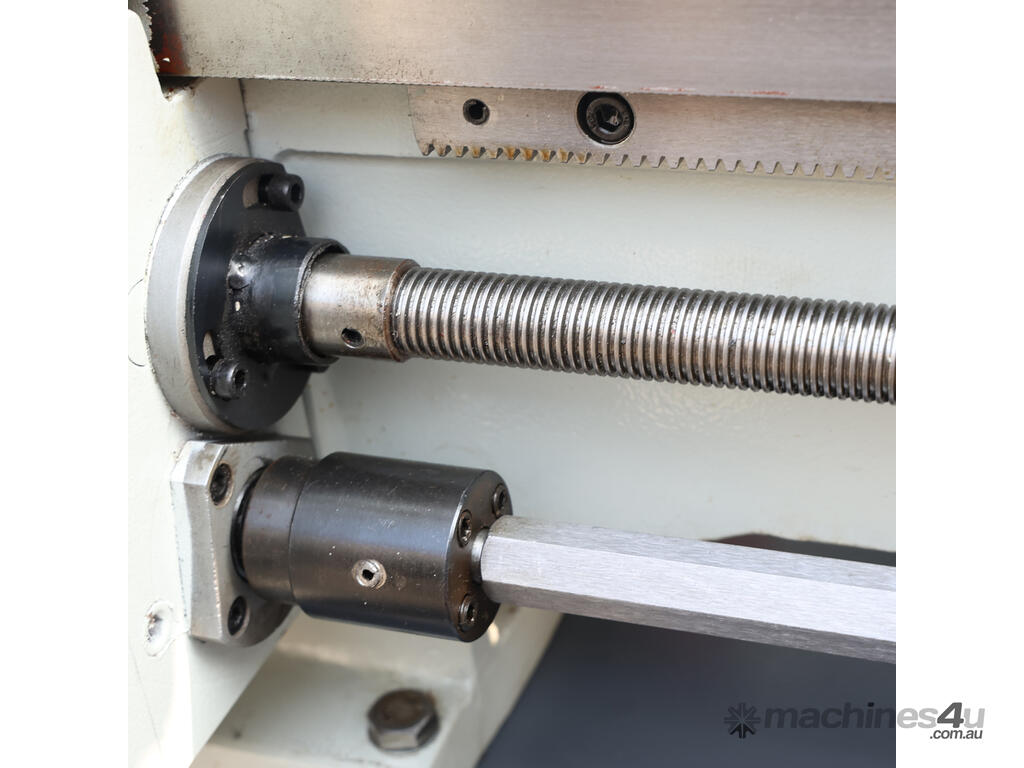

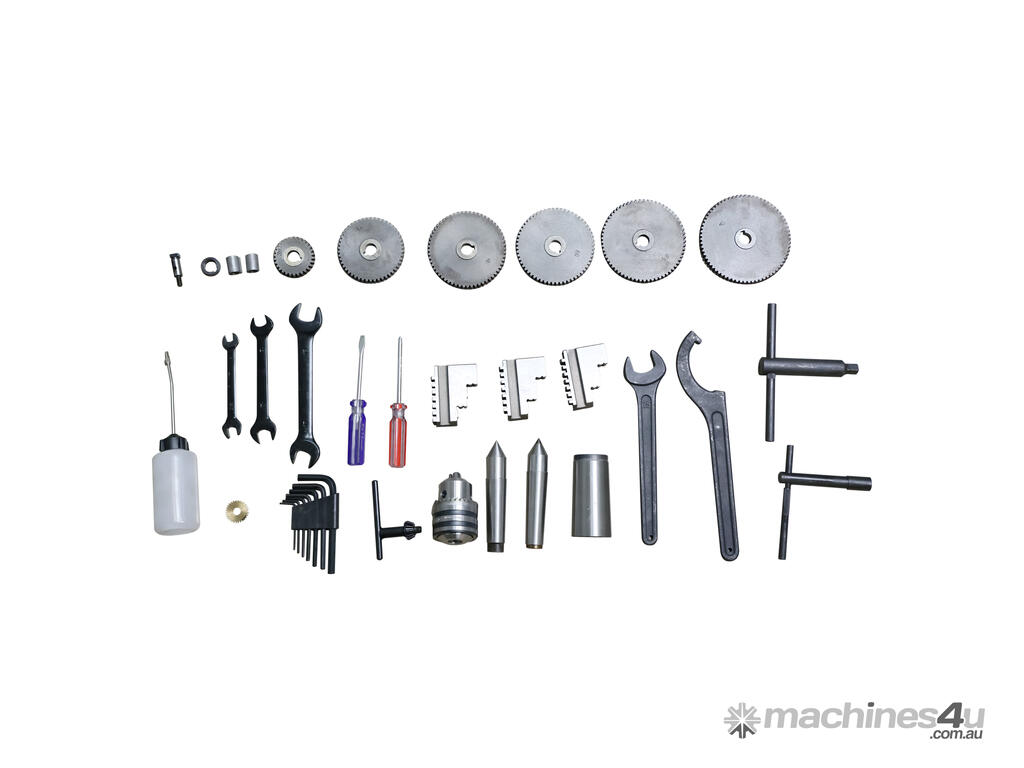

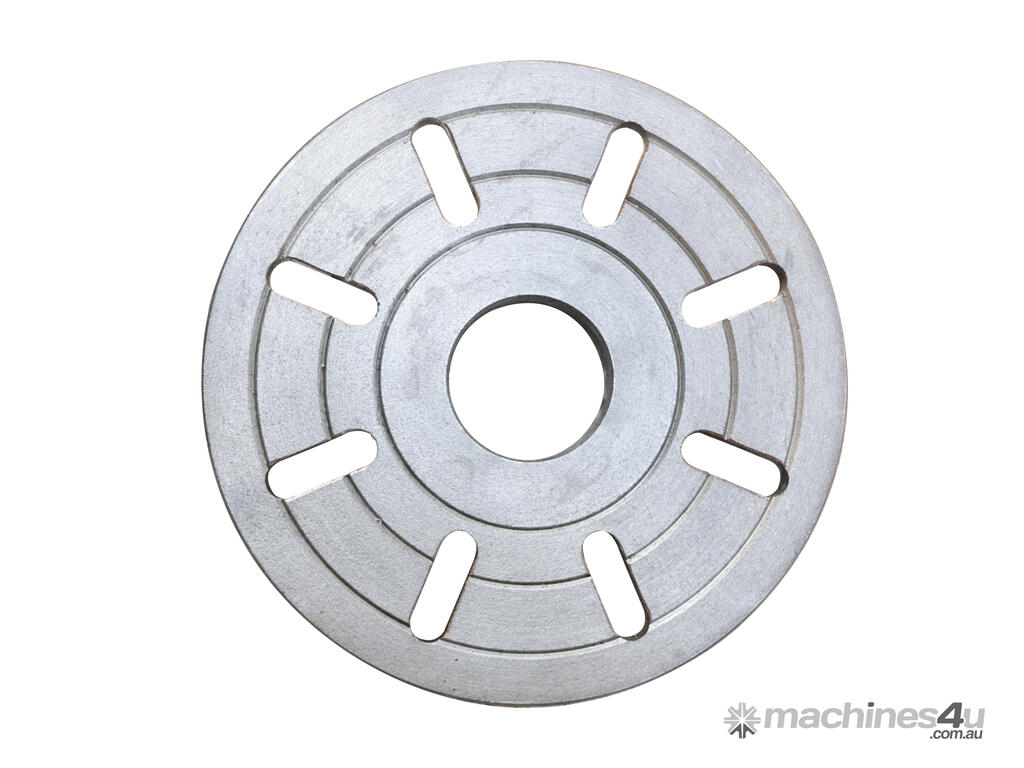

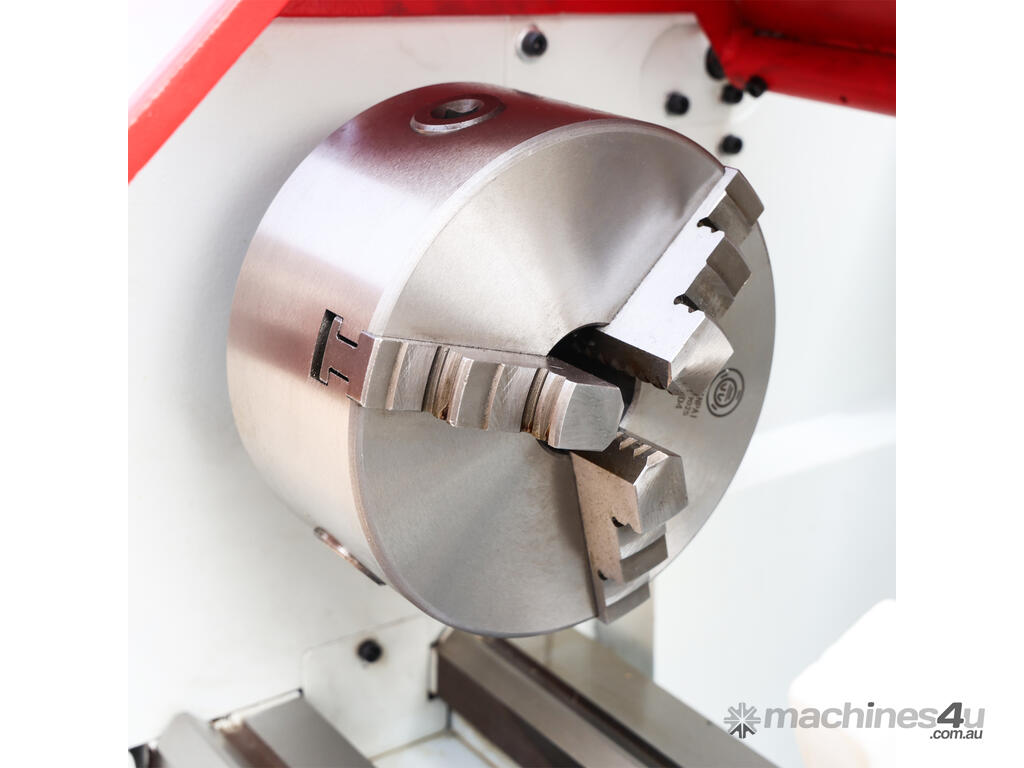

3-Jaw Chuck, 4 Jaw Chuck, Face Plate, Steady Rest, Follow Rest, Chuck Cover, Leadscrew Cover, Centers, Chip Tray, Stand, Coolant System, Working Light,

Optional Coolant

Specifications
SKU 160701
Model CM-3075
Swing over bed 300 mm
Distance between centers 700 mm
Swing over the cross slide 180 mm
Width of bed 182 mm
Spindle bore 38 mm
Spindle bore taper  MT5

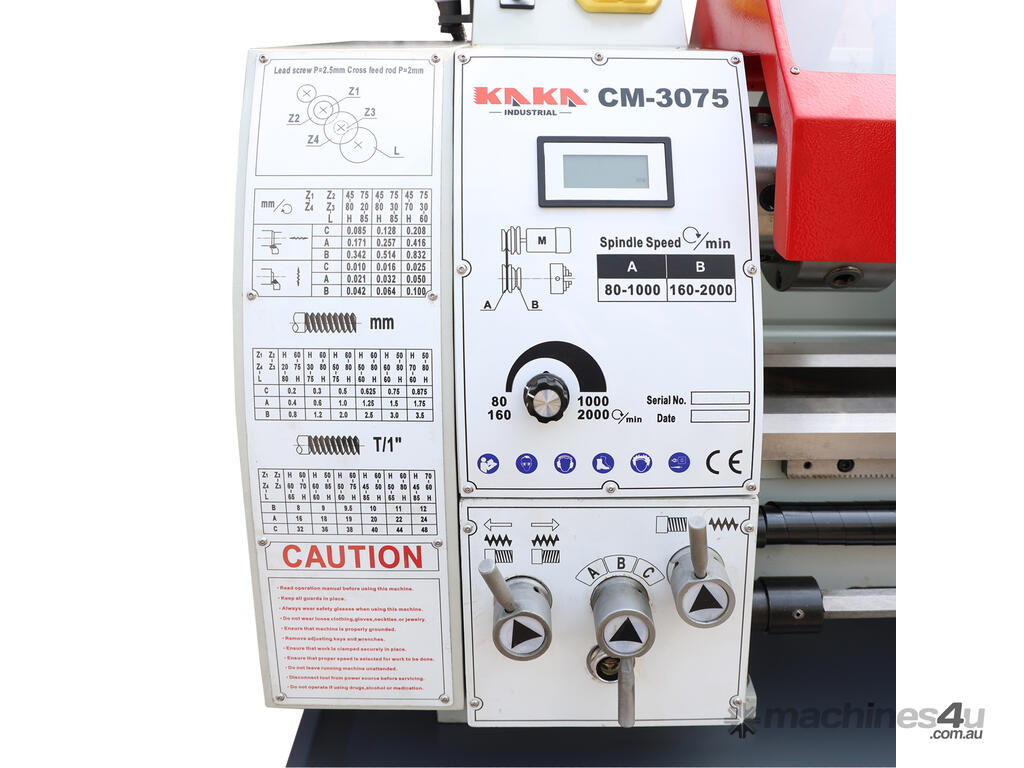

Spindle speed 80-2000 rpm

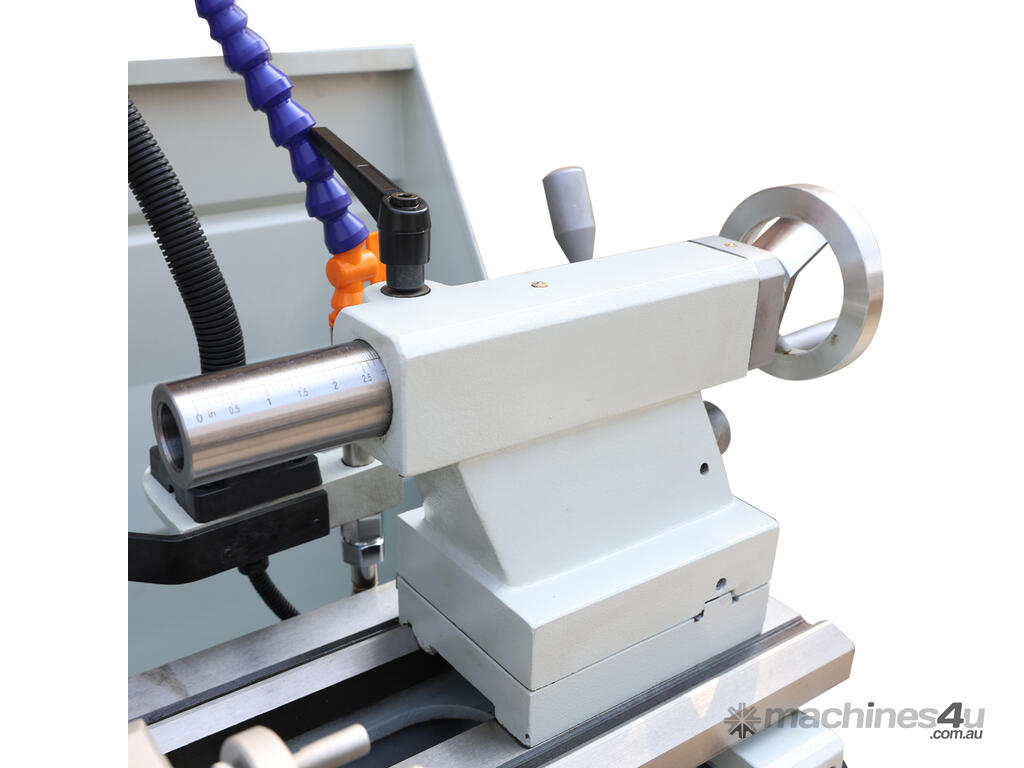

Tailstock taper MT3
Metric threads 0.2-3.5 mm
Inch threads 8-56 TPI
Motor power 1.5 kW
Max. drilling capacity Max. 20mm
Milling cap. of cutting head Max. 63 mm
Milling cap. of end mill cutter Max. 20 mm
Mill spindle taper R8

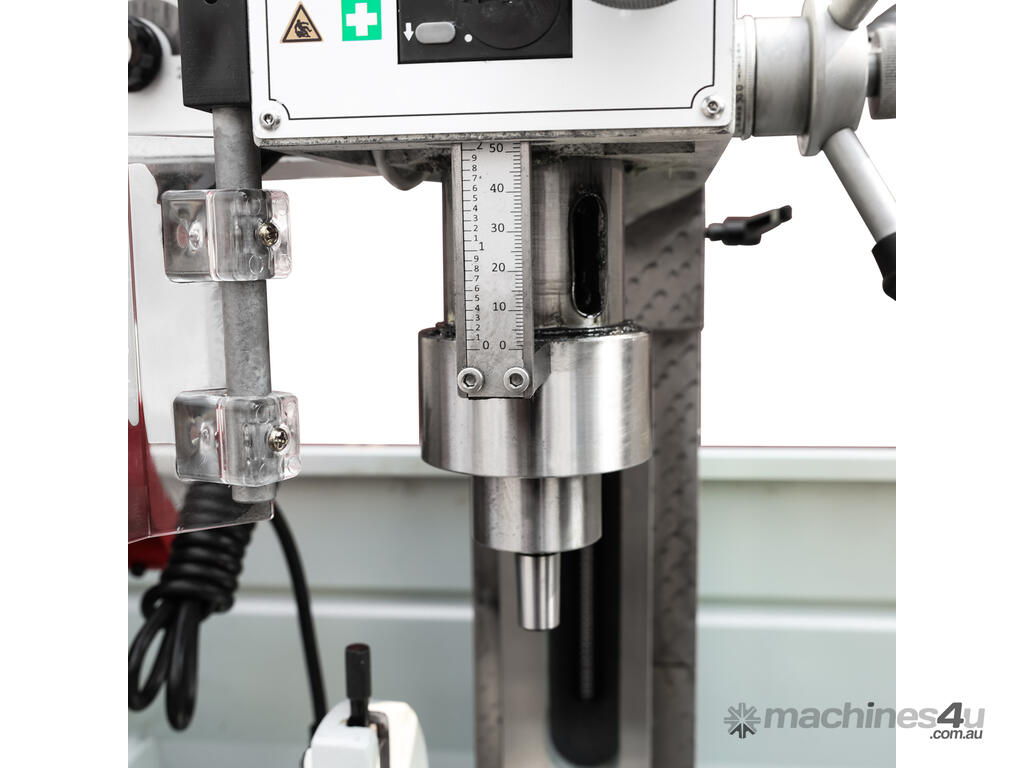

Sleeve travel 52 mm
T-slot 12 mm
Milling spindle speed 50-2250 mm
Distance of spindle to table 380 mm
Milling head travel 190 mm
Mill motor power 0.75 kW
Packing of Body 145x76x105cm, 390 kg
Packing of Stand 81x58x55 cm, 55 kg
