Turn Table, Welding Positioner WP-110T Rotating table for Tube Welding, C/W 3-Jaw Self Chuck

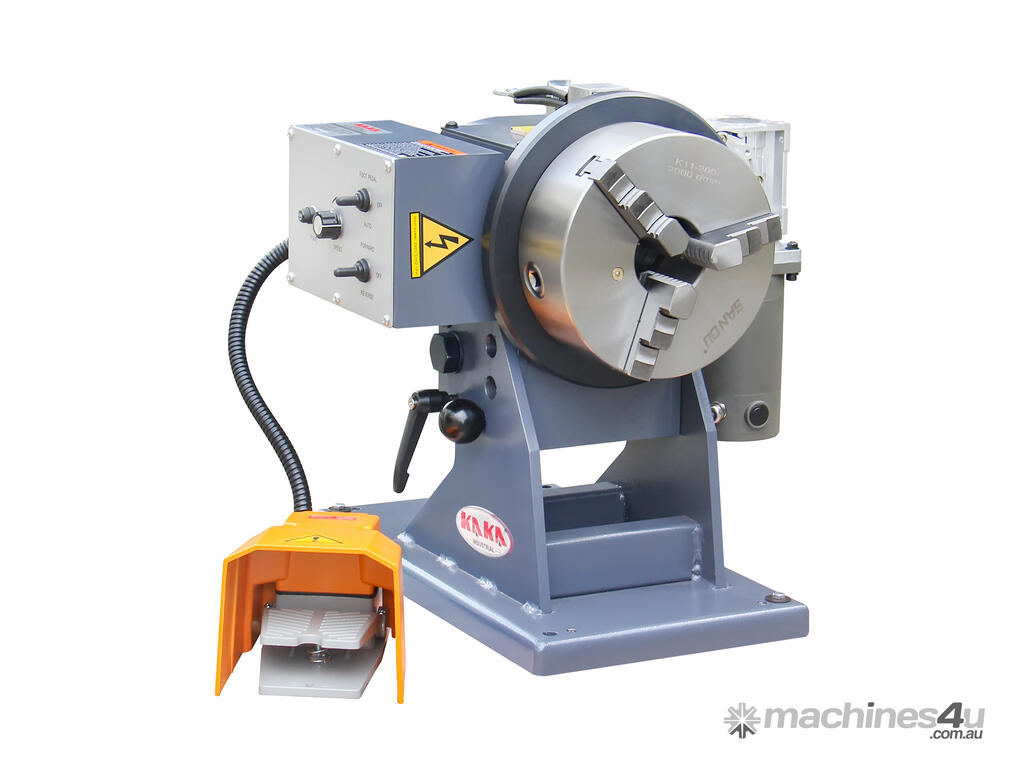

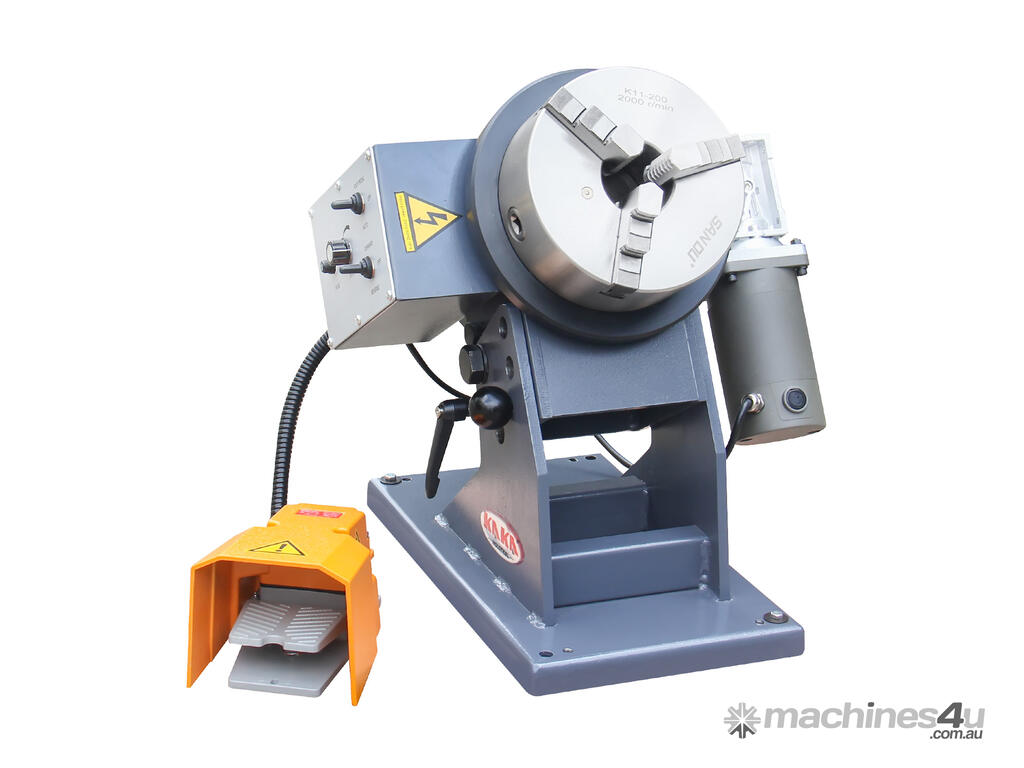

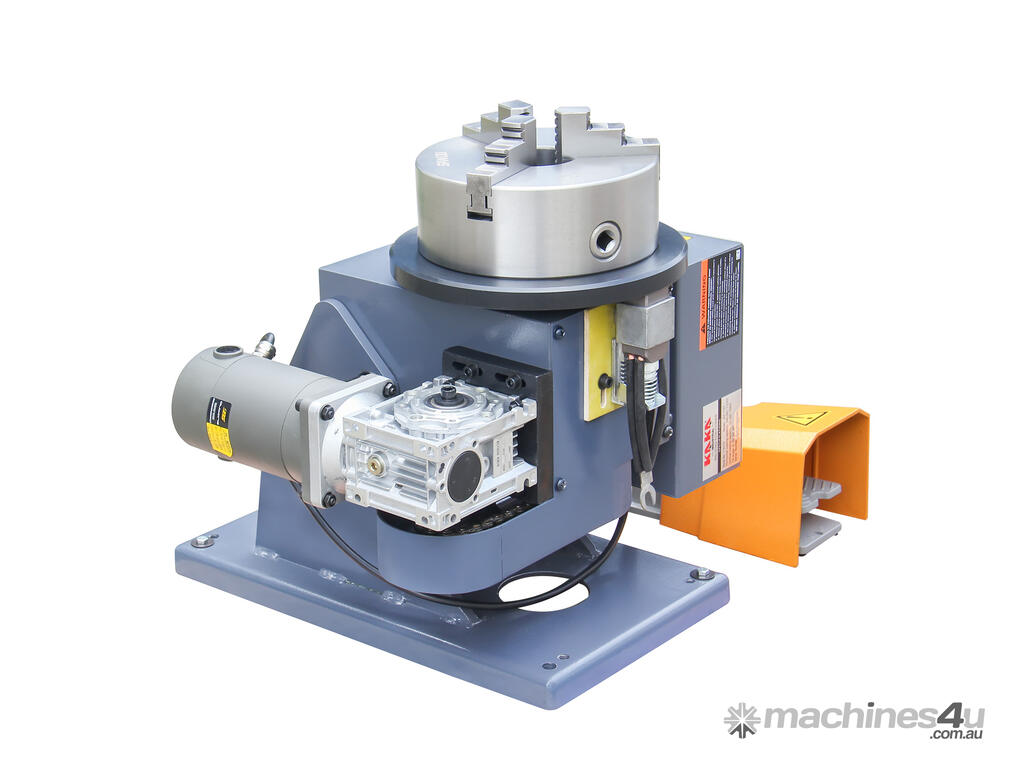

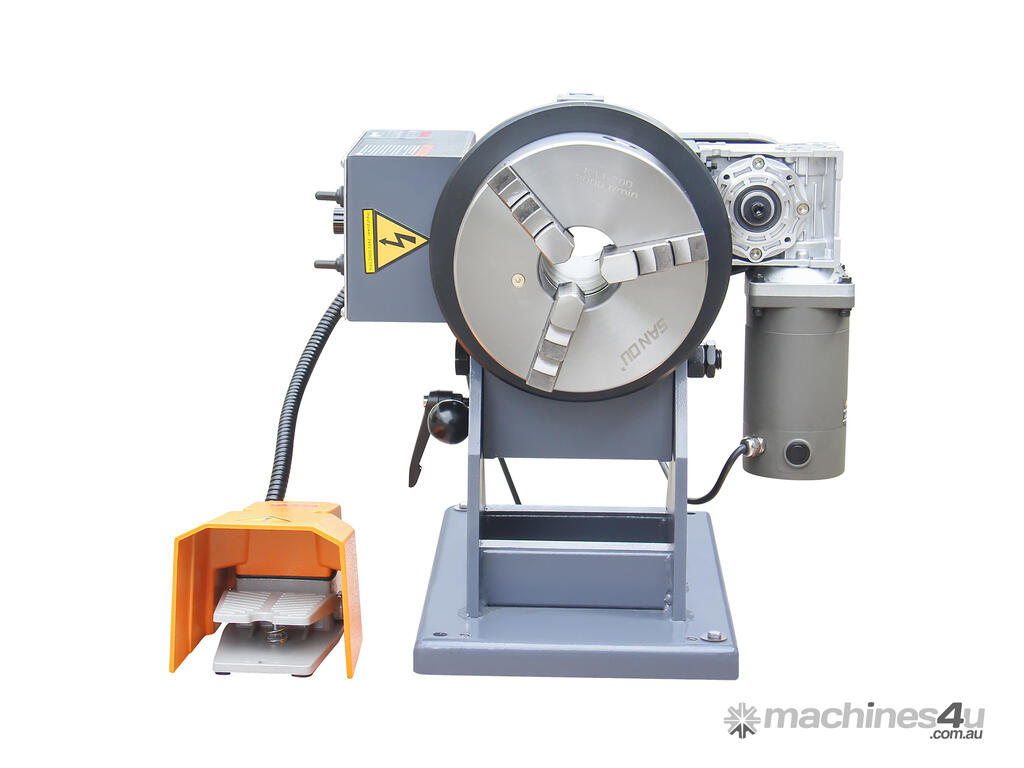

KANG Industrial Welding Positioner WP-110T


The KANG WP-110T Bench Top Weld Positioner with 200mm Chuck is a compact, professional-grade rotating table designed for small to medium fabrication and welding jobs. It is ideal for bench or table mounting in workshops, home shops, or mobile setups. It features power-driven rotation with variable speed control (0–8 RPM), an included 200mm  3-jaw chuck for secure gripping of pipes, fittings, and round workpieces, plus manual tilt capability with locking pins at 0°, 30°, 60°, and 90° positions.

Superior Weld Quality & Consistency. Tilt and rotate workpieces to always weld in the ideal flat or horizontal “downhand” position, reducing defects, spatter, and the need for constant repositioning.

Hands-Free Productivity Turn Table. Variable 0–8 RPM rotation plus foot-pedal control lets you weld continuously without stopping, speeding up jobs for professional fabricators and serious hobbyists.

Secure 3-Jaw Chuck Holding. The included 200mm self-centring chuck grips round stock firmly and safely, handling up to 112kg horizontally, perfect for pipe, tube, and fitting work.
Easy Manual Tilt with Positive Locks.  Quick-adjust tilt pins lock securely at common angles (0°, 30°, 60°, 90°), eliminating the hassle and danger of balancing heavy parts manually.

Compact Bench-Top Design. Fits easily on any standard workbench; no permanent installation needed. Great for small workshops, auto repair shops, or mobile welding vans.

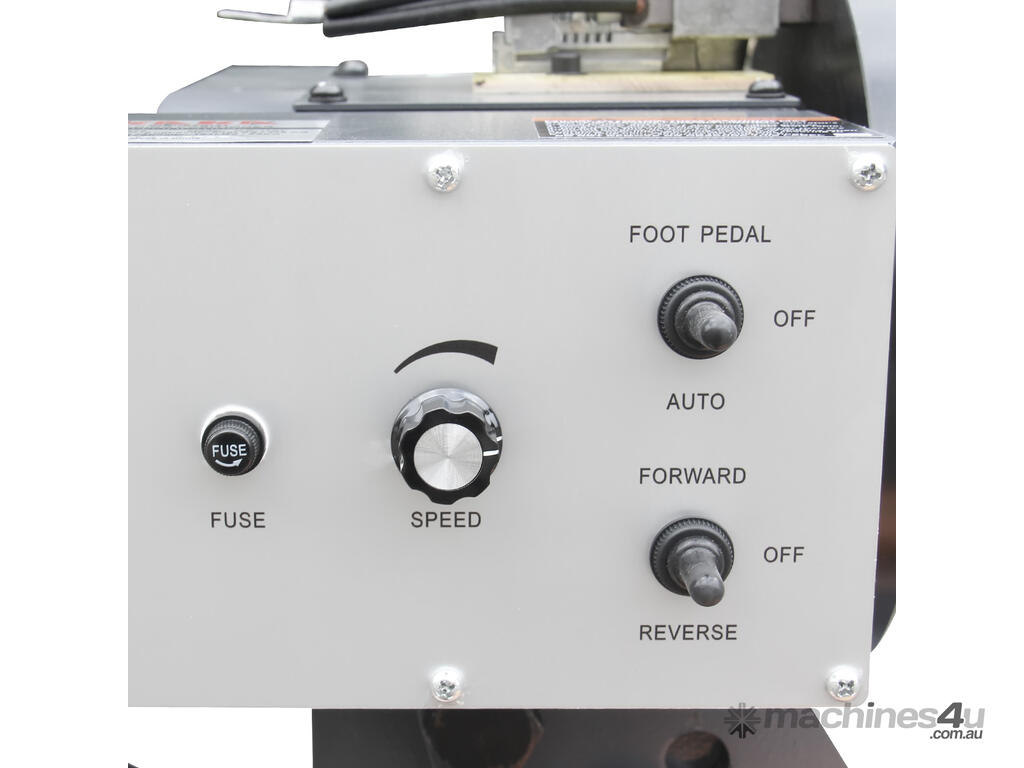

Versatile Control Options. Switch instantly between front-panel buttons and foot pedal – ideal for fine speed adjustments during long welds.

Features

Loading up to 112 kg in horizontal position and 55 kg in vertical position

Variable speed control, from 0-8 rpm

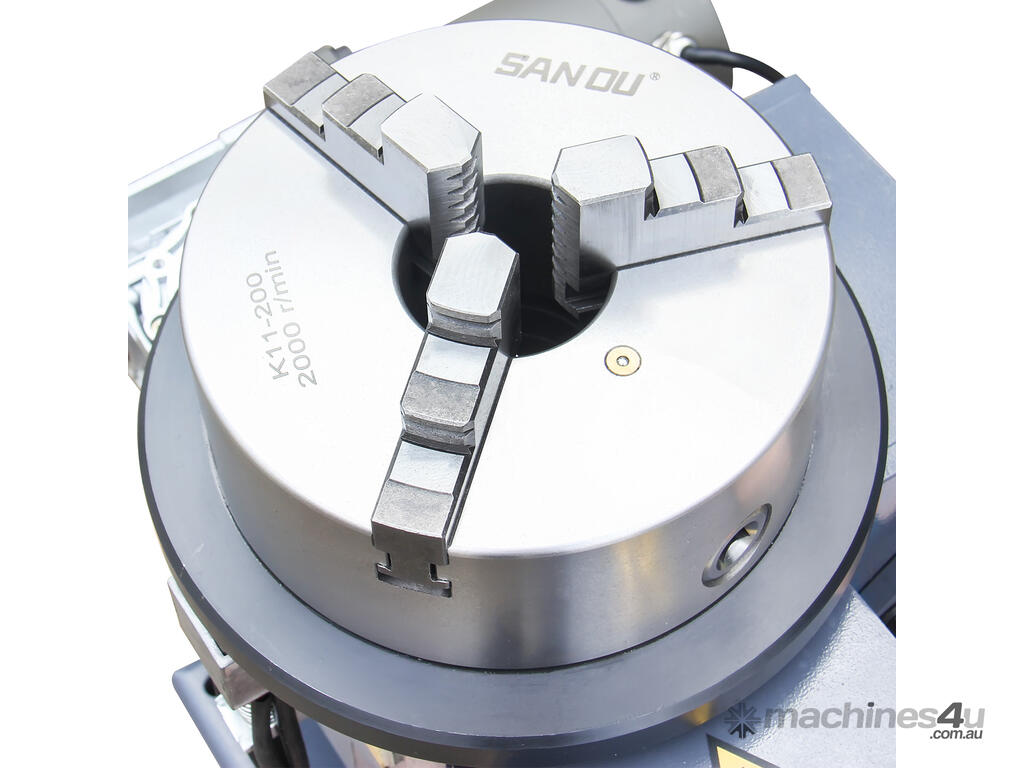

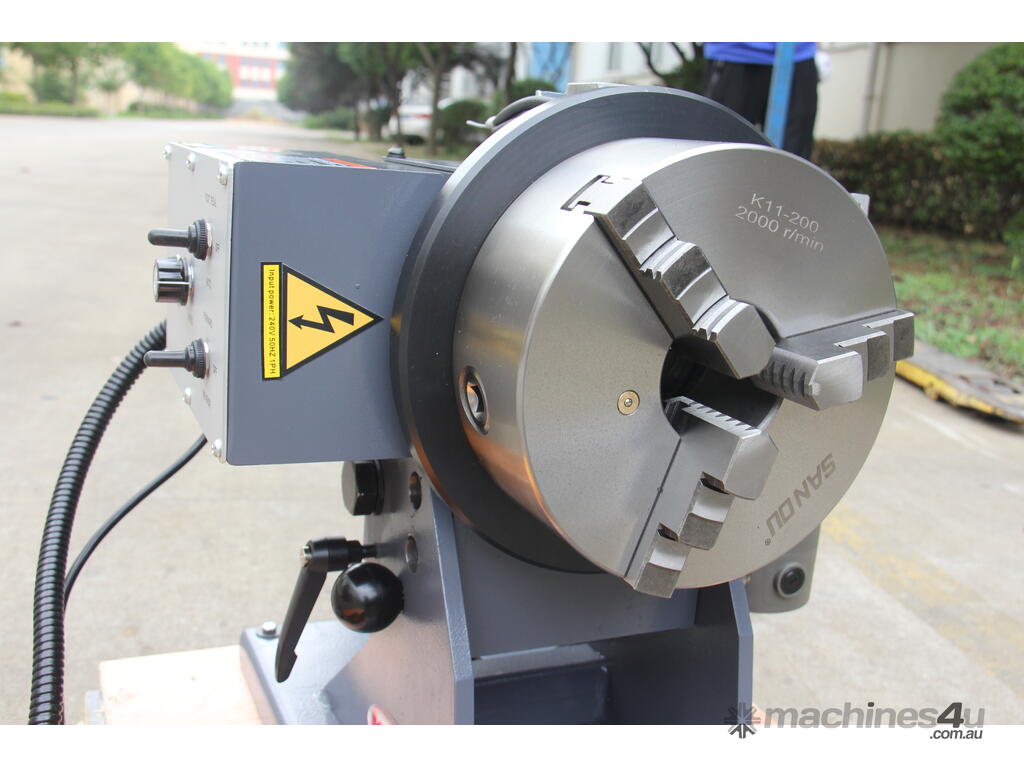

Include a 200 mm 3-Jaw self-centering chuck for rapid mounting of pipes, flanges and round stock

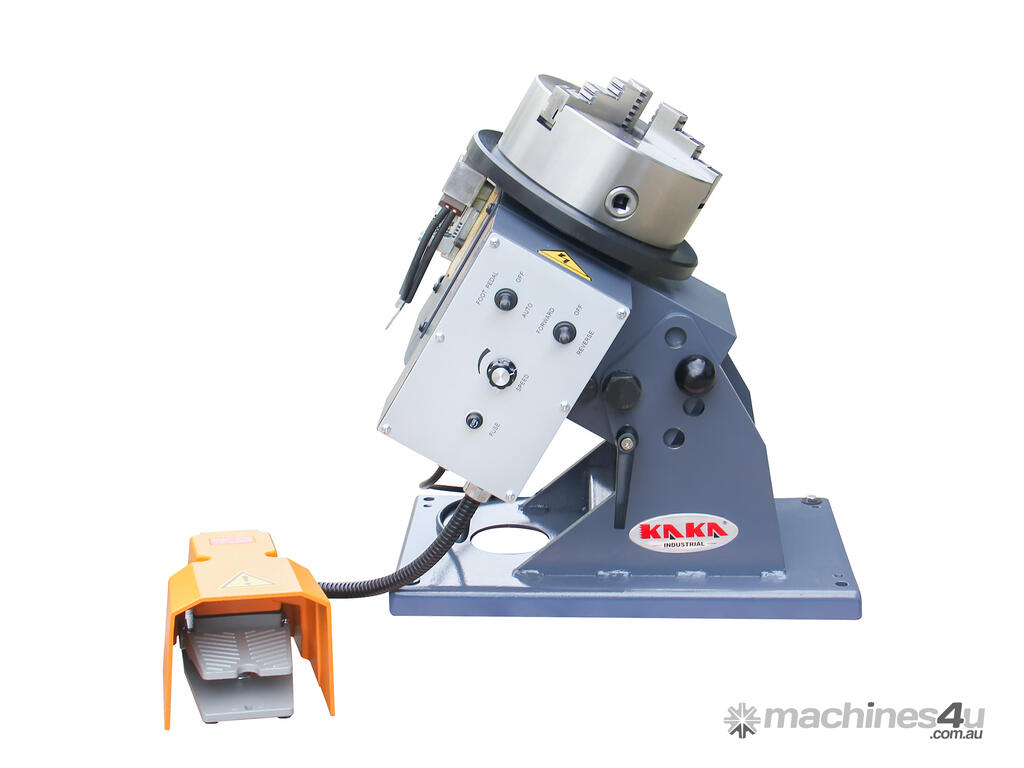

Manual tilt from 0 to 90 degrees using a  pin-locking system, stops at 30°, 60°, and 90°,

Dual control options, switchable between the integrated panel control and an industrial foot pedal for hand-free optiaon.

Ideal Applications
Exhaust Fabrication: Perfect for automotive shops building custom headers or mufflers.

Pipe & Flange Welding: Essential for plumbing, pressure vessels, and structural tubing.

Cylindrical Parts: Ideal for shafts, pulleys, and circular plates.

Small Batch Production: Increases throughput for repetitive welding tasks.

Specifications
SKU 178379
Model WP-110T
Horizontal loading capacity 110 KG
Vertical loading capacity 55 KG
Chuck size 200 mm
Rotation speed 0-8 rpm
Tilt angle 0°, 30°, 60°, 90°
Tilt by Manual

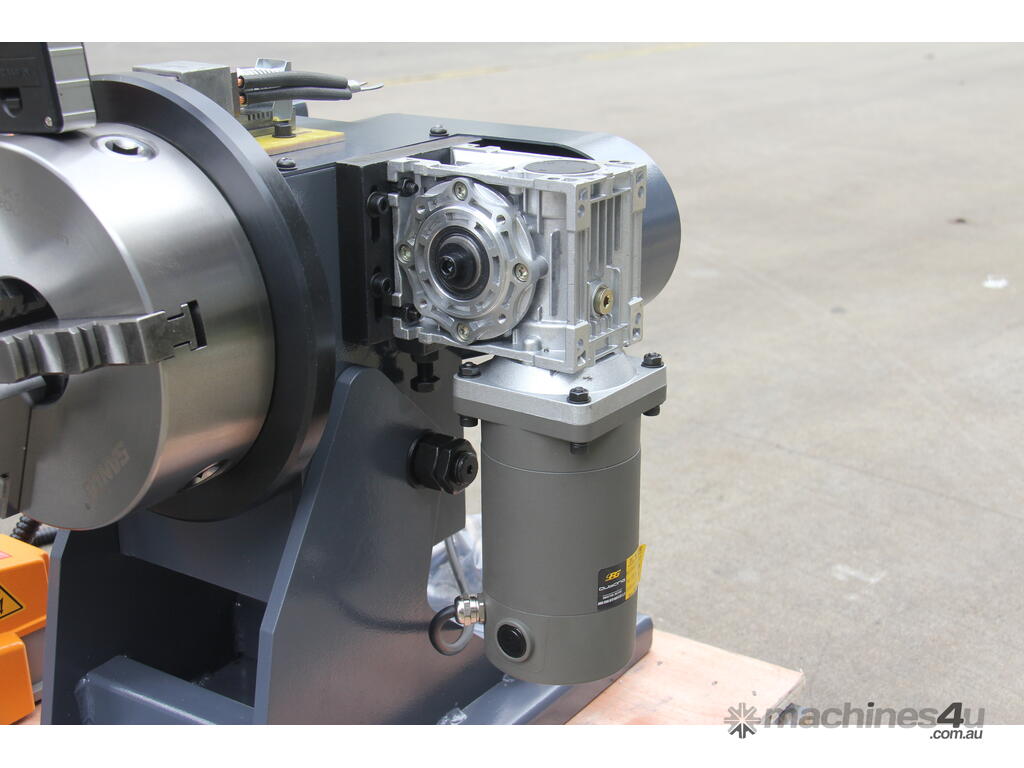

Rotation motor 125W
Packing size 50x53x58 cm
N.W./G.W. 65/80 kg
