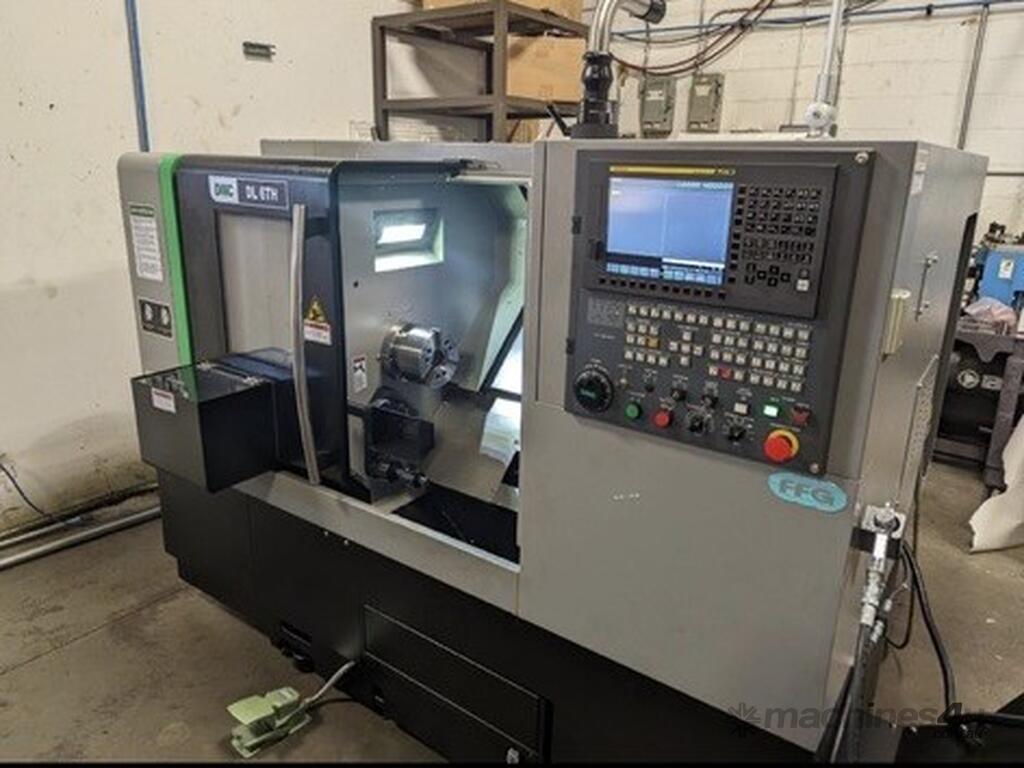

Turning Centre - DL 6TMH (Turret Type CNC Lathe with C-Axis Turn-Mill)

***Machine is in stock and ready for delivery***

The machine headstock utilizes a precision ground spindle that is machined in a temperature-controlled environment and clean room.

Maximum Swing (on the Bed): 480 mm (18.89”)
Cutting Diameter (Standard / Maximum): 165 mm (6.49”)/ 190 mm (7.48”)
Maximum Cutting Length: 390 mm (15.35”)
Distance Between Center: 542 mm (21.34”)
Bar Capacity: 45 mm (1.77”)
Chuck Size: 6” through hole

Spindle Nose: A2-5 (ASA)
Bore Diameter: 55 mm (2.16”)
Main Spindle Motor: 7.5/5.5 kW (10/7.3 hp)
Spindle Speed: 6,000 rpm with 6” chuck
Spindle Torque (30 min. rating): 13 kgf·m (94 ft-lbs)

"X" Axis Travel: 165 mm (6.50”)
"Z" Axis Travel: 400 mm (15.74”)
Rapid Traverse "X": 30 m/min (1,181 ipm)
Rapid Traverse "Z": 30 m/min (1,181 ipm)
Guide Ways (X / Z): LM Guide
Bed Structure: 45o Slant bed

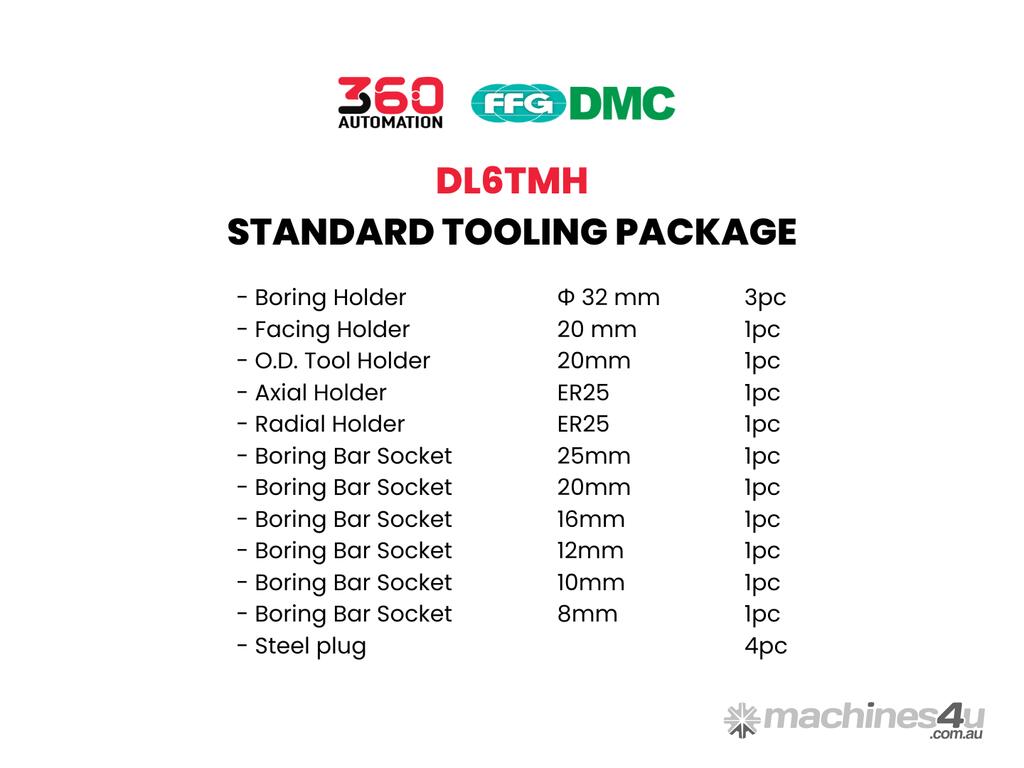

Number of Tool Stations: 12 Tools (VDI 30)
Turret Indexing Speed (Full): 0.23 / 1.0 seconds
Indexing Type: Non-stop, Bi-directional
Tool Size (Turning and Facing): 20 mm (0.79”) – Bolts clamp type
Tool Size (Boring Bar Max. Diameter): 32 mm (1.25”)
Rotating Tool Speed: 5,000 rpm

Tailstock Center (Taper): MT #4
Quill Diameter: 65 mm (2.55”)
Quill Travel (by Hydraulic): 80 mm (3.15”)
Tailstock Body Travel: 470 mm (18.50”)
Max. Thrust of Quill: 511 kgf (1,127 lbs) at 35 kg/cm2

Floor Space Requirements (L x W): 2,260 mm (88.97”) x 1,670 mm (65.74”)
Machine Height: 1,570 mm (61.81”)
Machine Weight: 3,050 kg (6,724 lb)
Power Consumption: 27 kVA
Voltage: 220V±10%, 60 Hz, 3 phase

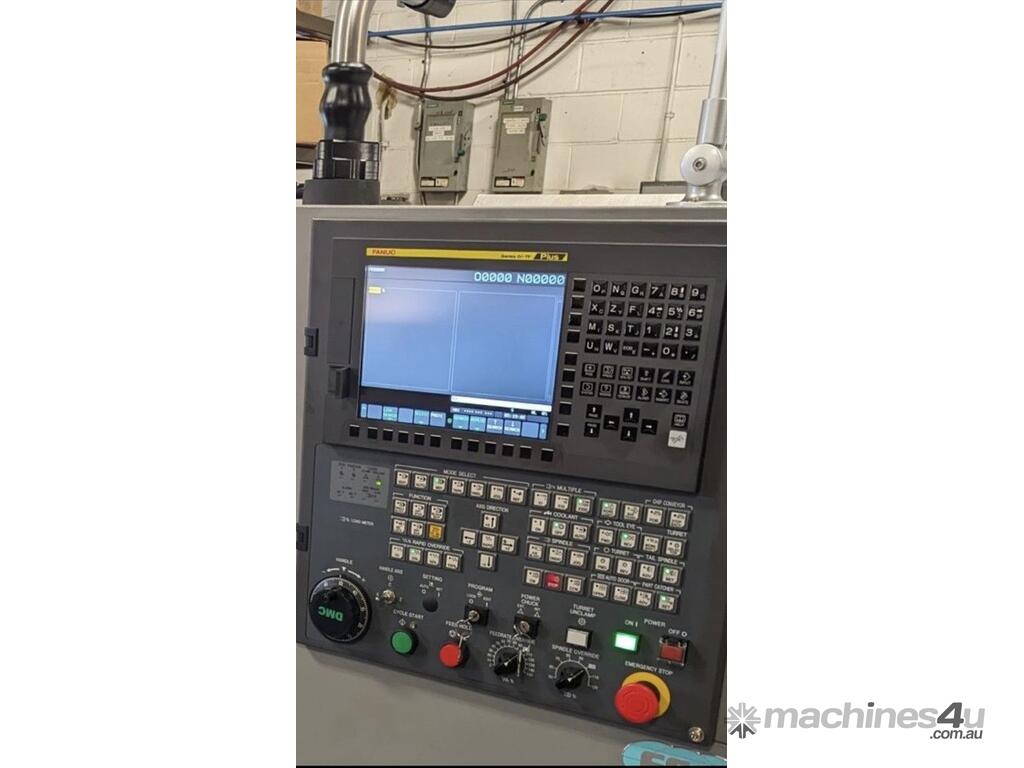

CNC Model: Fanuc 0i-TF
Display Unit: 10.4” LCD Color monitor

Who is FFG DMC

FFG DMC stands as a renowned name in the CNC machining industry, renowned for its precision engineering and innovative solutions. Since its inception, FFG DMC has been dedicated to delivering top-quality machinery to meet the evolving needs of manufacturers worldwide.

360 Automation and FFG DMC Partnership.

In a significant collaboration, FFG DMC has joined forces with 360 Automation to extend the reach of its advanced CNC machines. As an appointed representative of FFG DMC, 360 Automation ensures businesses receive comprehensive support, from initial consultation to installation and beyond. This partnership underscores a shared commitment to delivering cutting-edge technology and unparalleled service to clients across various industries.
