Twin Screw Extruder & Accessories

Model: Twin Screw Extruder W&P Continua 37 & Accessories

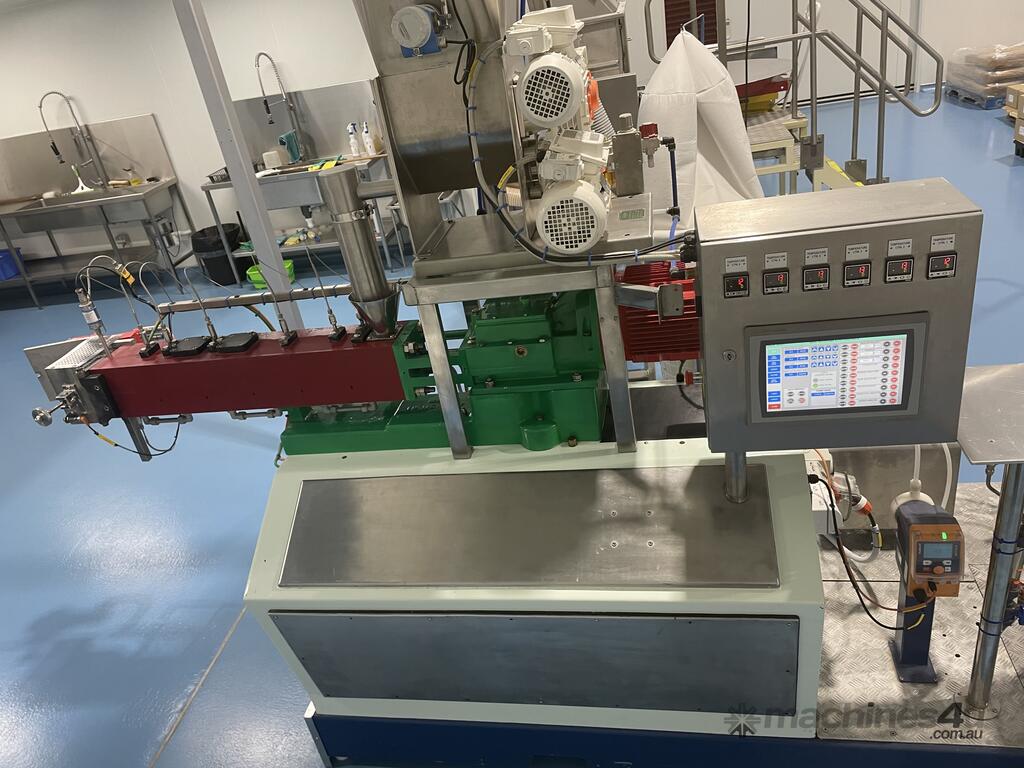

Description: Twin screw co-rotating extruder, 37/27D. Fully refurbished, including electrics in 2017. Ready for use in a food or related application. Previously used for food manufacturing, in an allergen-free environment. Machine is mounted on a skid base. Is currently in operation and available for inspection.

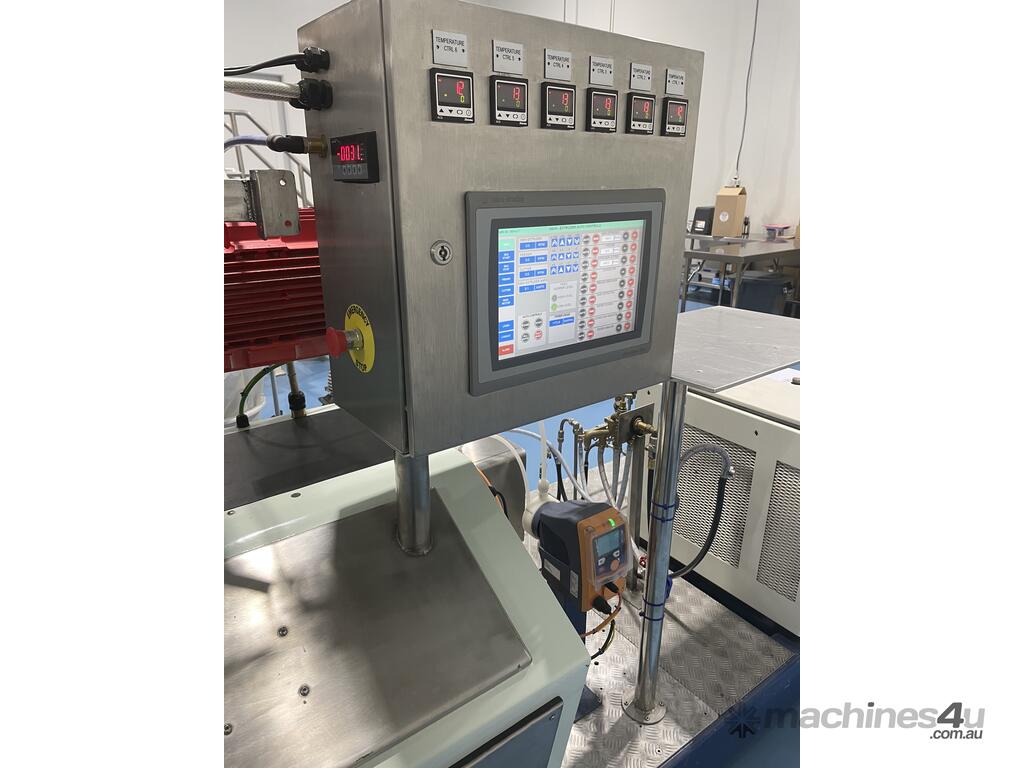

PLC: Allen Bradley - Touch screen control
Programmed to control the extruder, dry material feeder, liquid doser, conveyor, dust extractor, feeder vibrator and conveyor vibrator.

Year: 1986
Motor: Sew Eurodrive 7.5kw, 1468rpm, model DRN132M4/FF/EG7S
Power: 3 Phase
Inlet diameter: 60mm
Barrel length: 1m
Screw diameter: 37mm
Number of temperature zones: 3

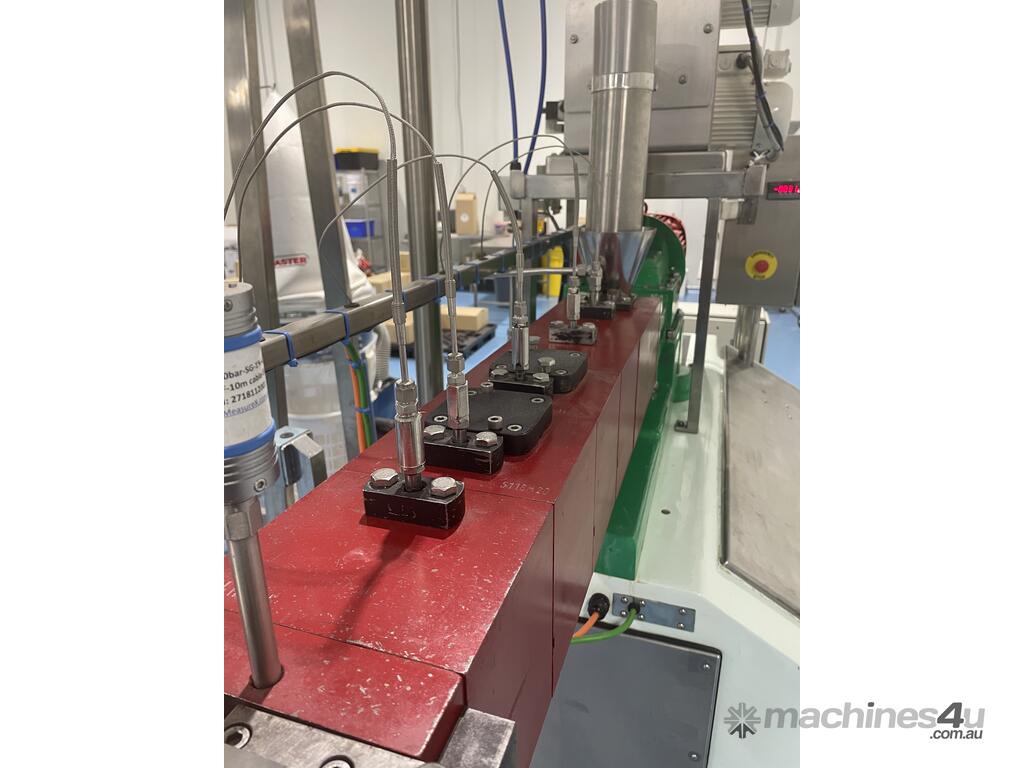

Number of thermometers: 6 – one thermocouple in each barrel of the screw, with electric read out displayed at control box
Length: 4m
Width: 1.15m (3.8 Including conveyor)
Height: 3.5m
RPM: 1-700

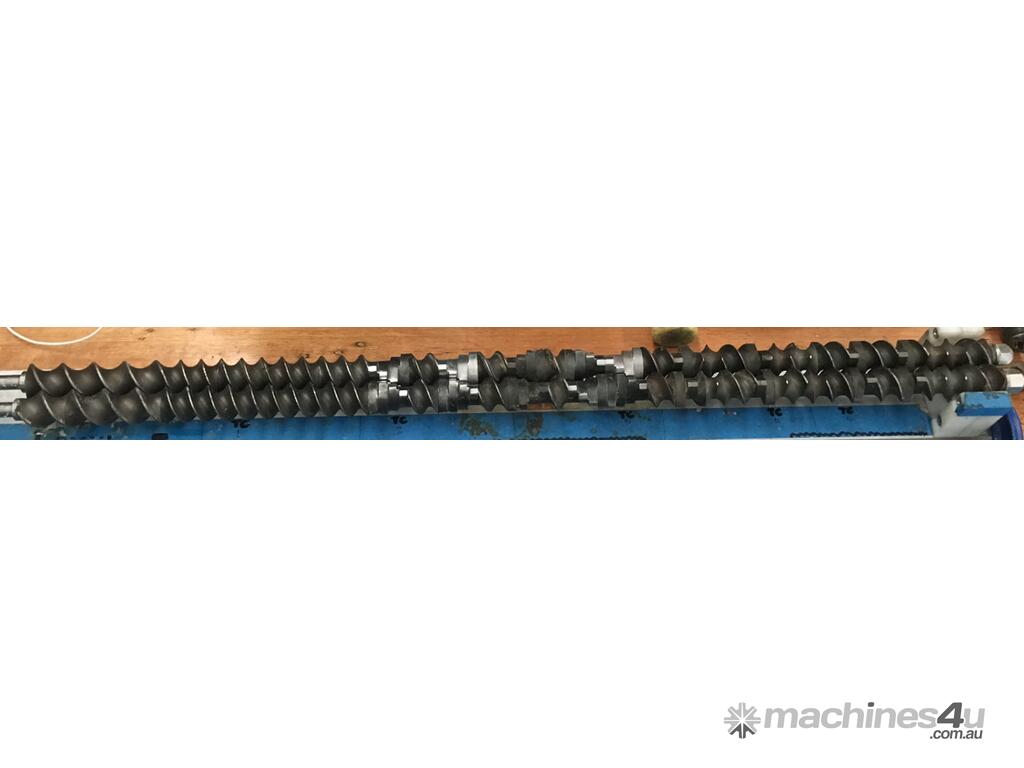

Screw elements: There are a range of screw elements included, in addition to those pictured. Includes conveyors, reversers, kneeders, high shear and neutral elements. Some used, and others in new condition.

Shaft: Screw shaft is in excellent condition, made 2018 (Steer Engineering)

Auxiliary equipment

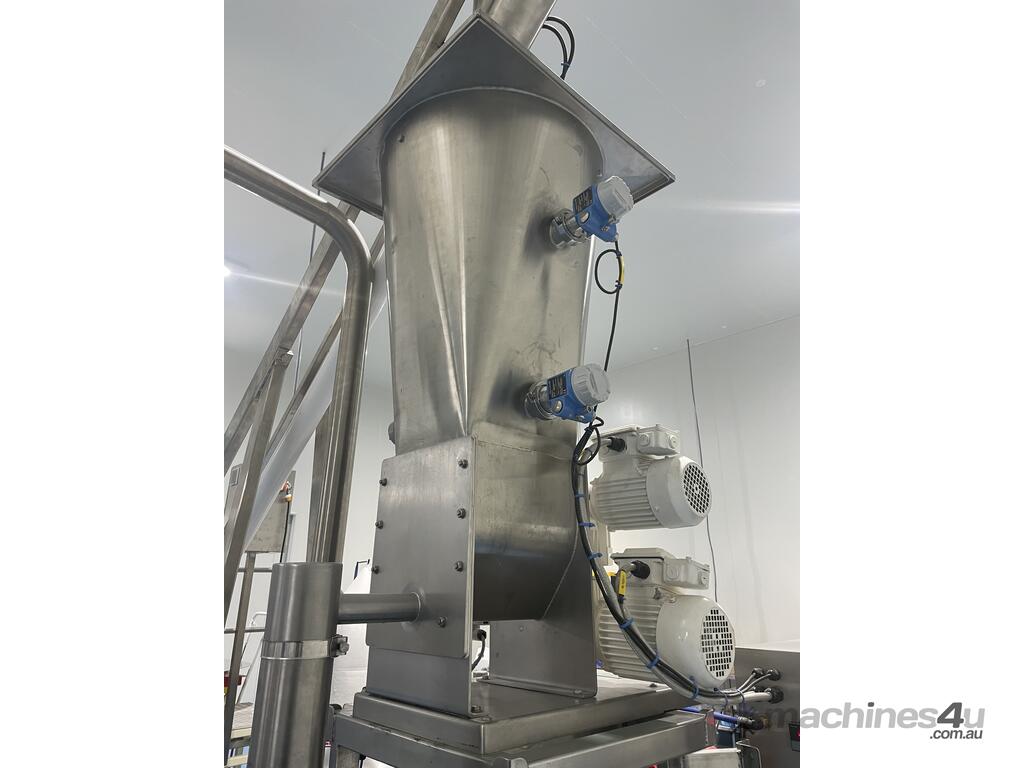

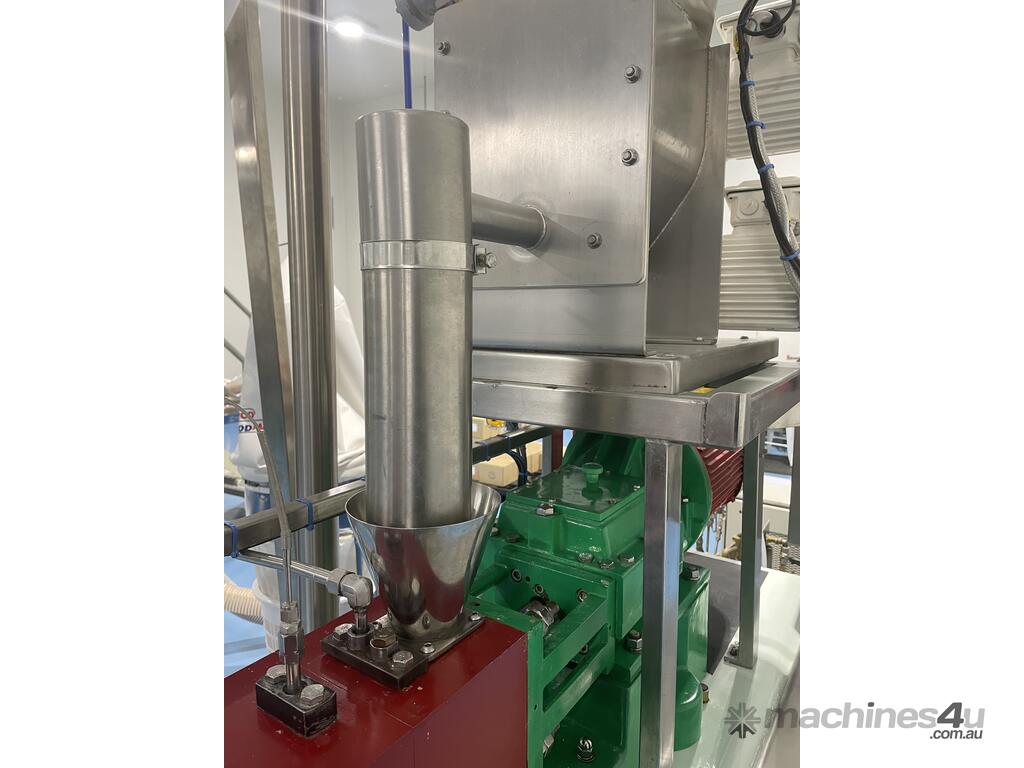

Dry material feeder: Dry material feeder volumetric doser.
Food-grade stainless steel construction.
Self-emptying feeder, Including mixing paddle and vibrator for consistent volumetric dosing.
Highly accurate control with variable speed drive. Feed rate controllable up to 50kg/hr (flour).
100L hopper capacity.
Includes high and low level switches, for automated refill.
Year of manufacture 2017, made in Australia by Acromet.
Fitted with dust extractor.

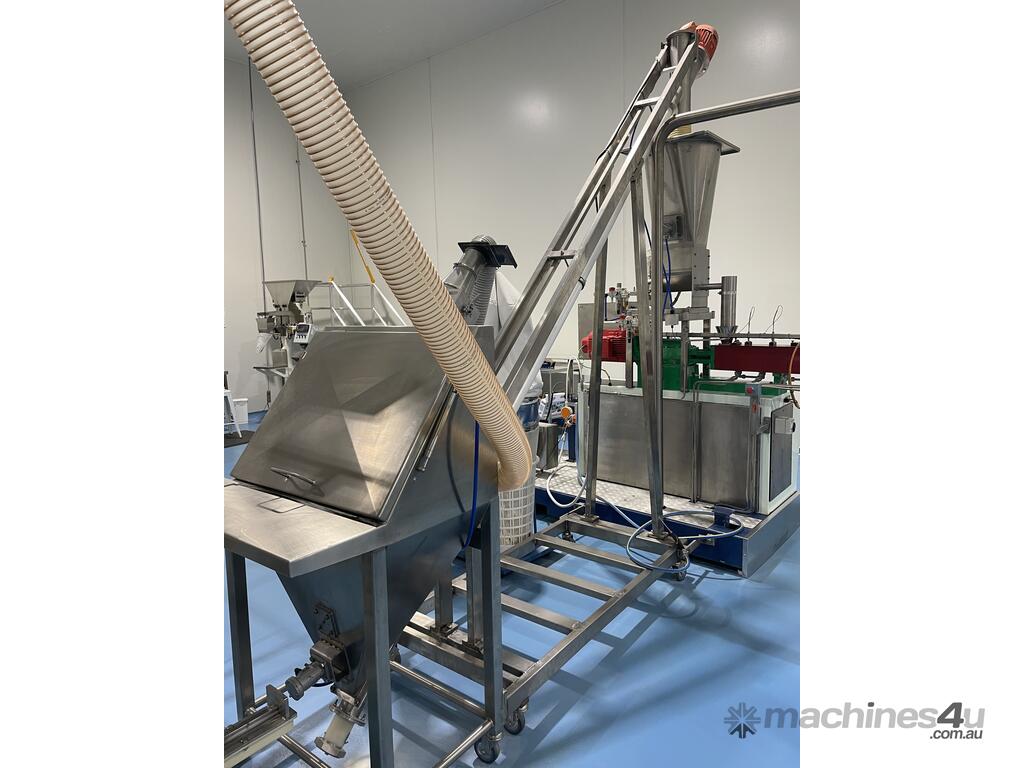

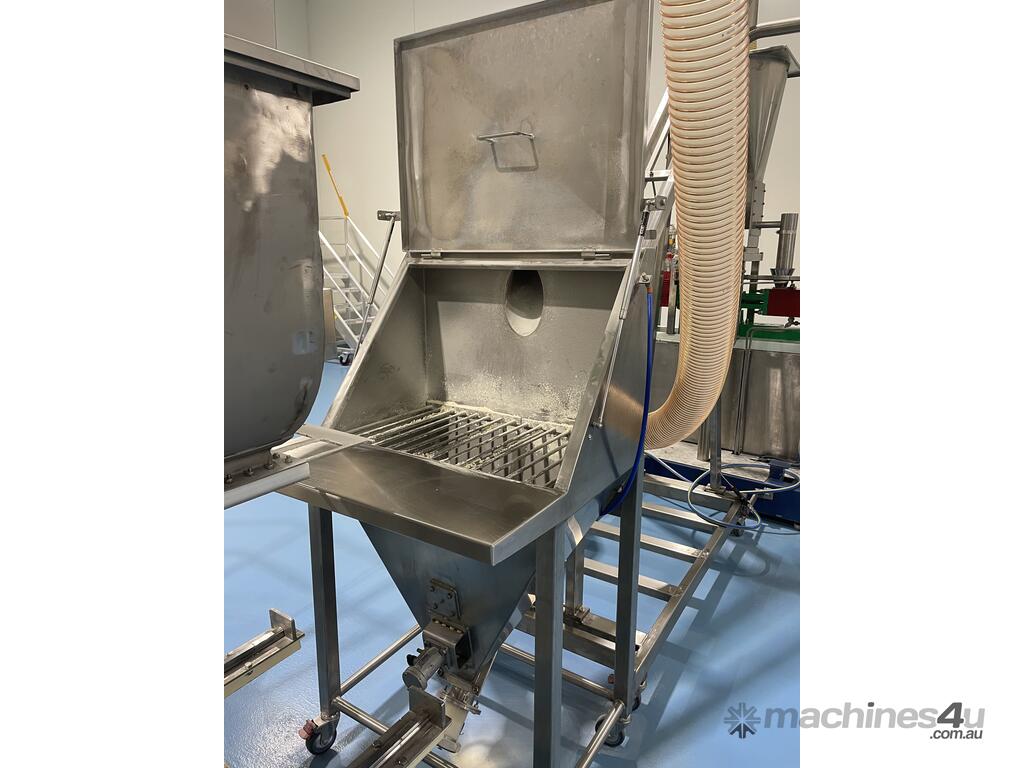

Conveyor: This unit conveys dry materials from a bag tipper, up and into the dry material feeder. Food-grade stainless steel construction. Rapid rate of conveying. 200L hopper capacity. Fitted with dust extractor.
Year of manufacture 2017, made in Australia by Acromet.

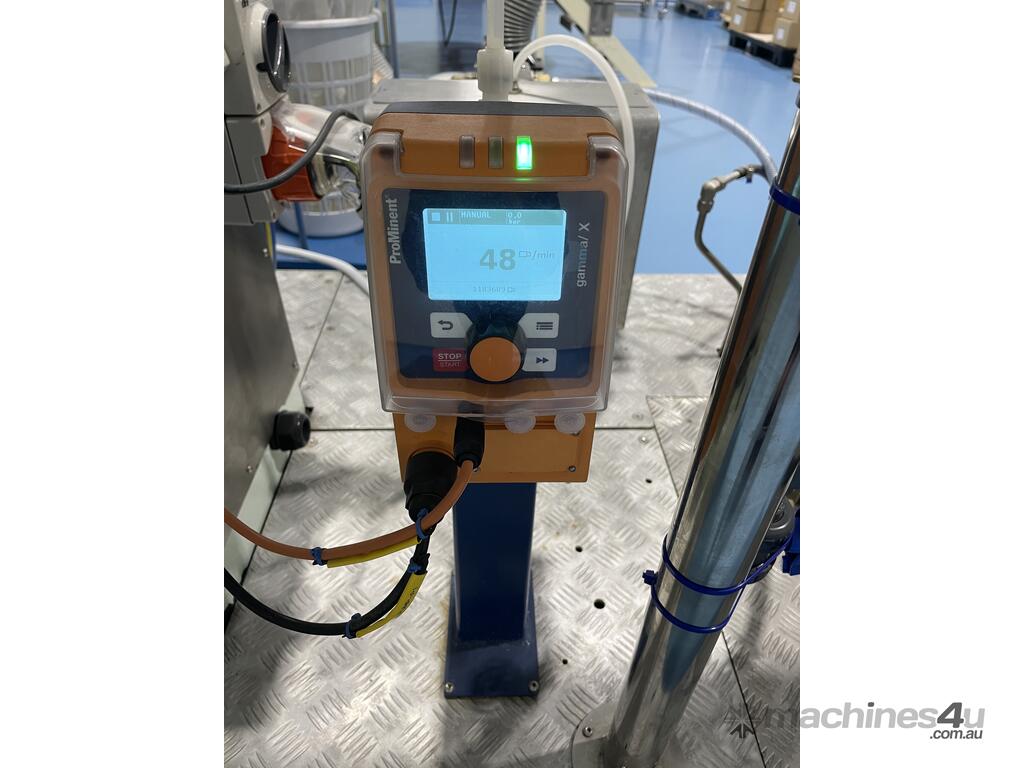

Liquid doser: Solenoid Metering Pump, 2017 Unit from ProMinent, type GMXa
Provides accurate, reliable and fine detail control of liquid dosing. Suitable for liquids with viscosity. Has only been used to dose water in it’s working life.

Digital pressure transducer: Pressure sensor displays pressure in the barrel in the final section of the barrel, just before the die.

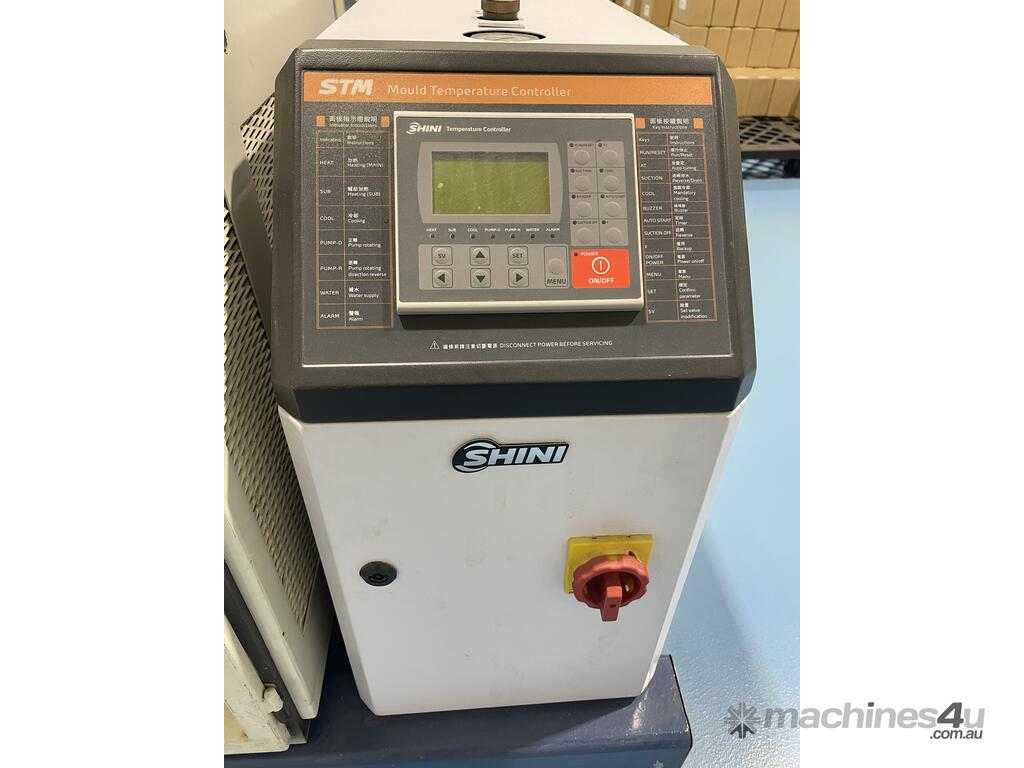

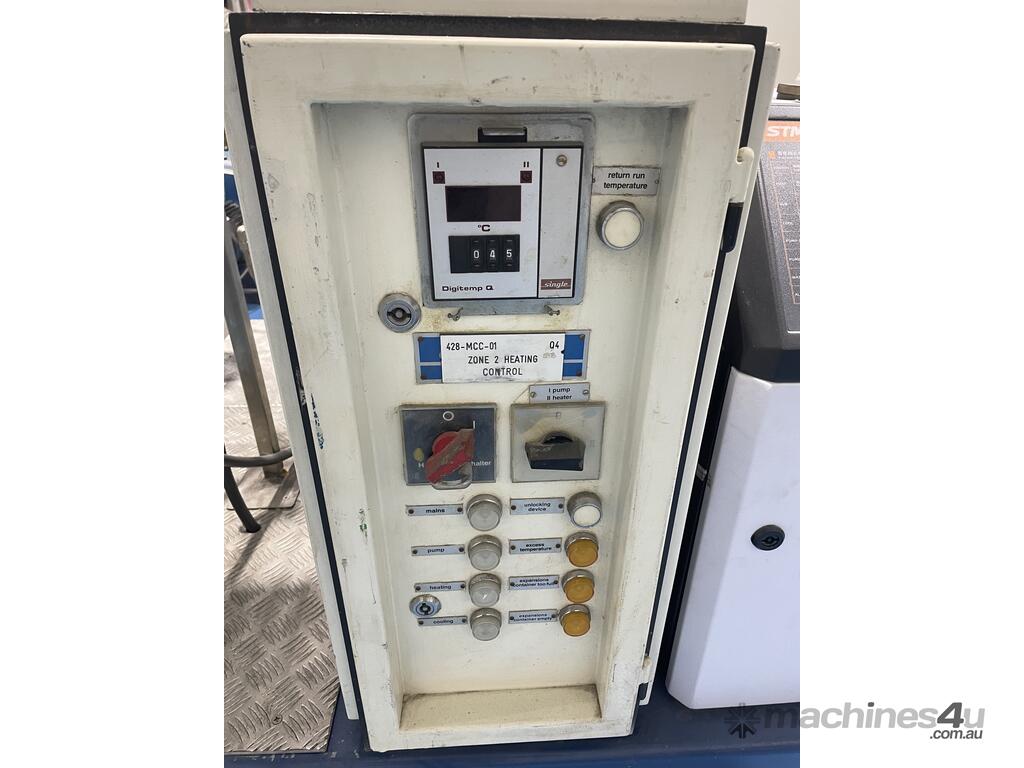

Oil heaters: The barrel has three temperature zones, which can be heated and cooled. The first barrel (far from the die) is fitted with a Shini Temperature controller (oil heater), the middle is fitted with an original oil heater and the final barrel section (before the die) is currently fitted with cooling water (room temp). The heaters have been used in the range of 150C, however can go hotter.

Pully system: The unit comes with a winch for removing the screw from the barrel, in sticky applications.

Cutting blade: Unit is fitted with a cutting blade presently. Fitted with highly controllable SEW Eurodrive servo variable speed drive motor, up to 450rpm.
