Two Roll Tyre Rubber Crusher Mill - 45kW - Huicai XKP400

Rubber crusher/cracker mill designed for size reduction of rubber. With two heavy duty rolls and a defined friction ratio, it delivers controlled tearing and breakdown of tyres, rubber blocks and general reclaimed rubber feedstock for downstream processing.

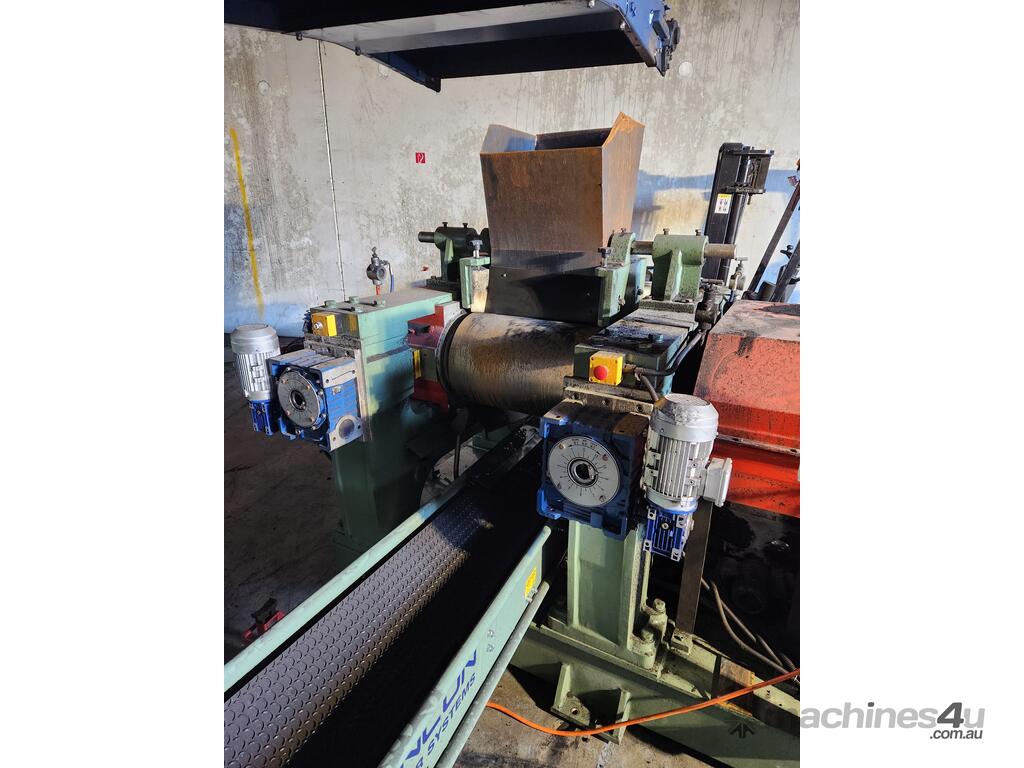

Note: the first image is a stock photo from the manufacturer and not representative of the machines current condition

Typical Applications:
• Tyre/Rubber recycling lines
• Pre-crushing ahead of granulation or refinement
• General waste rubber size reduction

Features
• 400mm front and back rolls with 600 mm working length
• Friction ratio 1:1.27 for effective shearing action
• Throughput capacity approx. 600 to 800 kg/hr

Make: Huicai
Model: XKP400

Capacity: 600 to 800 kg/hr
Front Roll Diameter (mm): 400
Back Roll Diameter (mm): 400
Roller Length (mm): 600
Linear speed of Front Roll: 18.36m per min
Friction Ratio of Front Roller: 1:1.42

Rated Voltage: 415V 3 Phase
Motor Power: 45 kW

Machine Weight: 9T
Overall Dimensions (mm): 3320 L x 1900 W x 1850
