Two Roll Tyre Rubber Crusher Mill - 90kW - Huicai XKP560

Huicai XKP560 rubber crusher/cracker mill designed for size reduction of rubber. With two heavy duty rolls and a defined friction ratio, it delivers controlled tearing and breakdown of tyres, rubber blocks and general reclaimed rubber further processing.

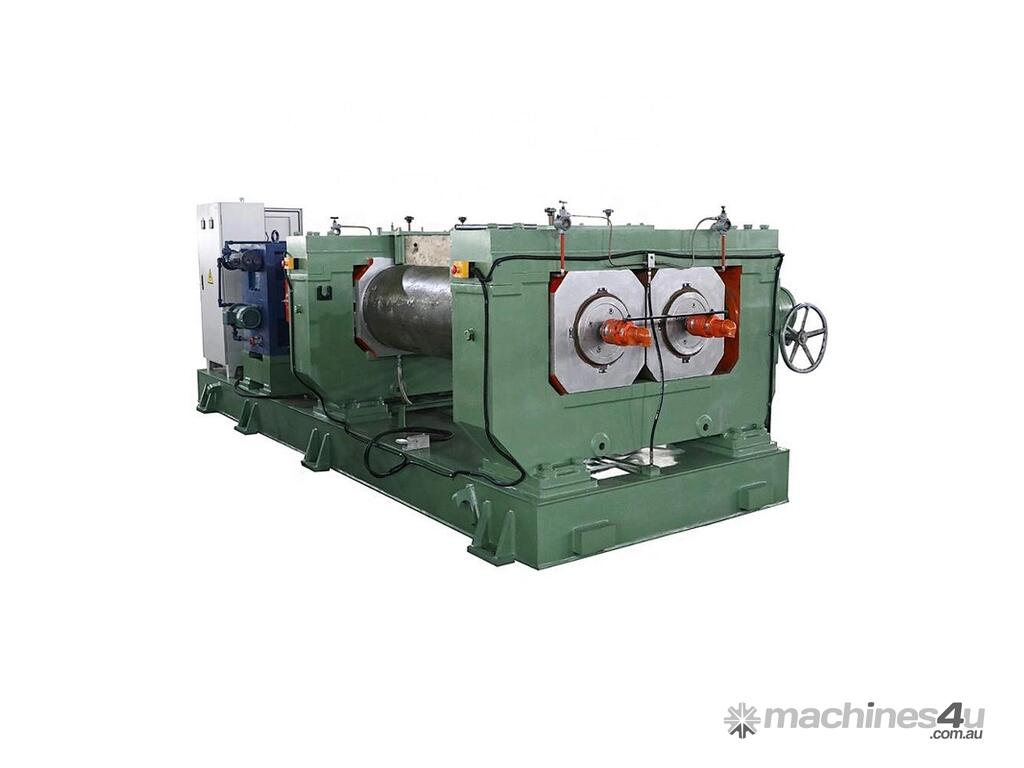

Note: the first image is a stock photo from the manufacturer and not representative of the machines current condition

Typical Applications:
• Tyre recycling lines
• Rubber reclaim and processing plants
• Pre-crushing ahead of granulation or refinement
• General waste rubber size reduction

Features
• 560 mm front roll and 510 mm back roll with 800 mm working length
• Friction ratio 1:1.42 for effective shearing action
• Throughput capacity approx. 2000 kg/h

Make: Huicai
Model: XKP560

Capacity: 2000kg/h
Front Roll Diameter (mm): 560
Back Roll Diameter (mm):510
Roller Length (mm): 800
Linear speed of Front Roll: 25.6m per min
Friction Ratio of Front Roller: 1:1.42

Rated Voltage: 415V 3 Phase
Motor Power: 90 kW

Machine Weight: 23T
Overall Dimensions (mm): 4750 L x 2300 W x 2000 H
