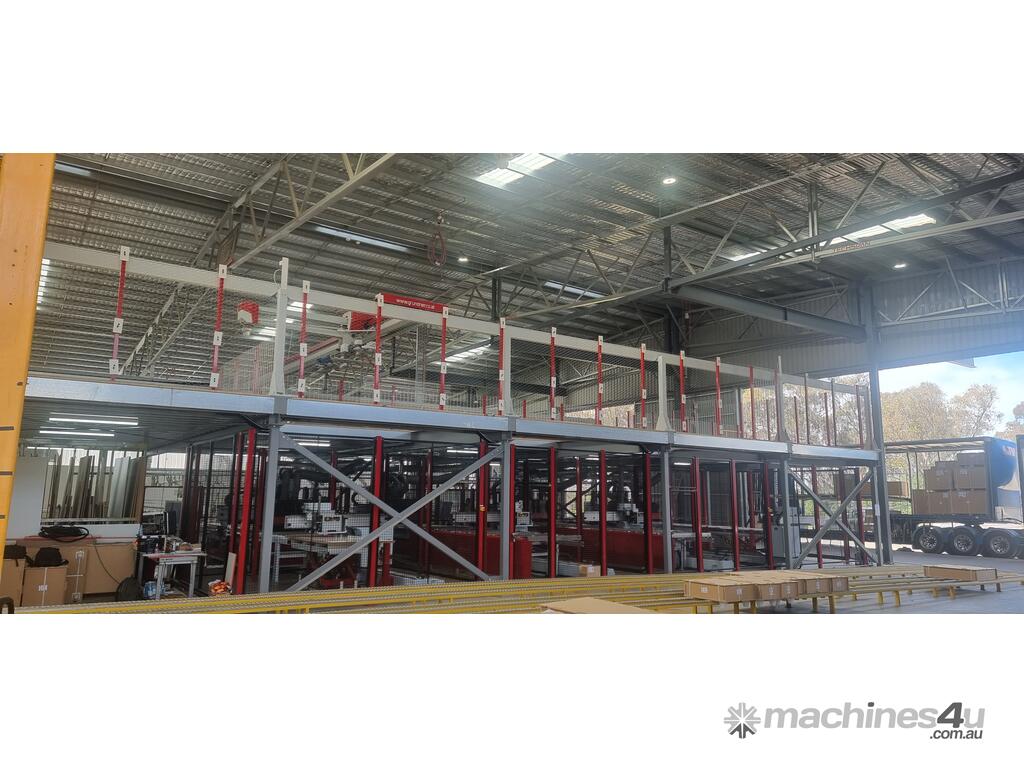

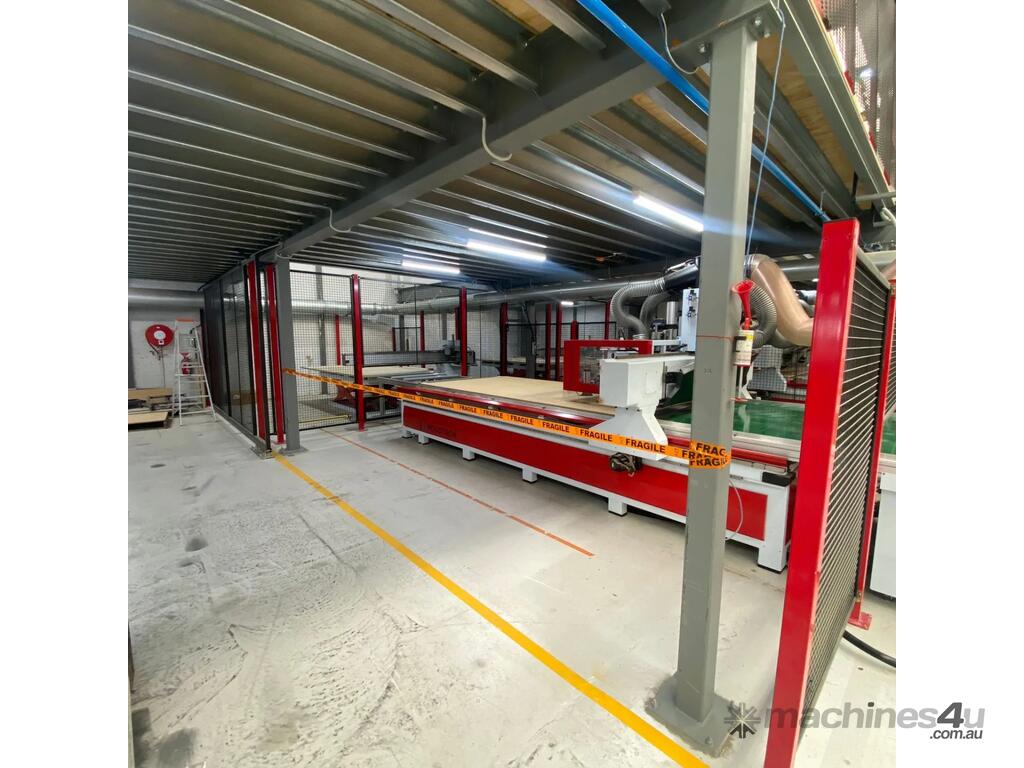

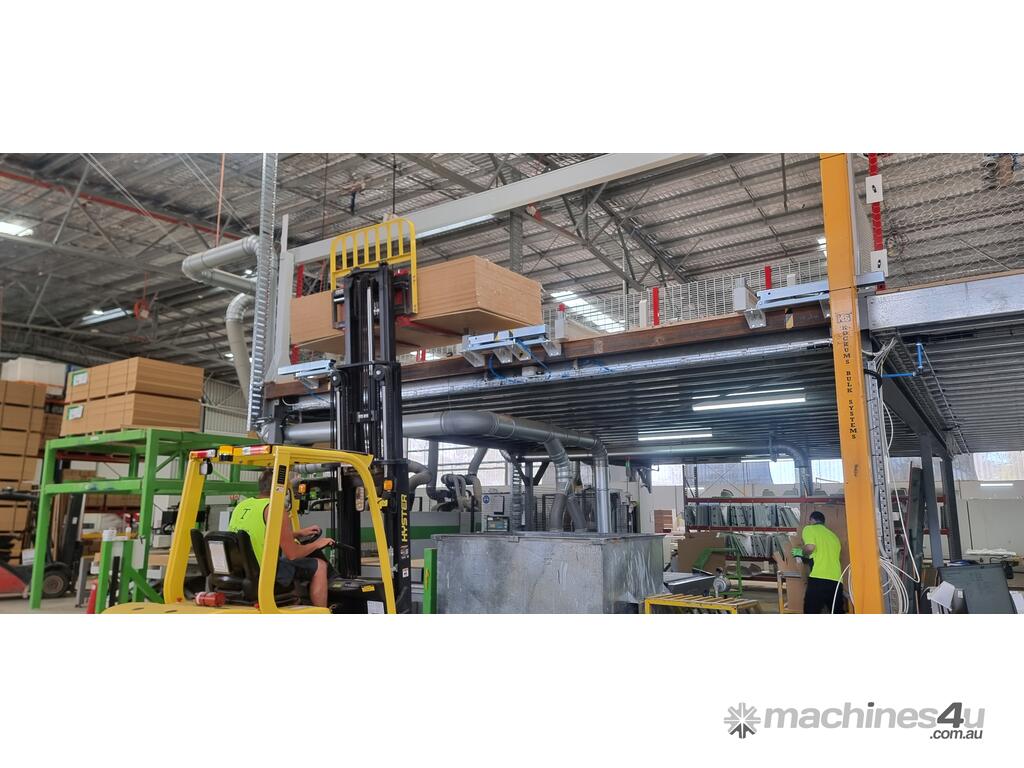

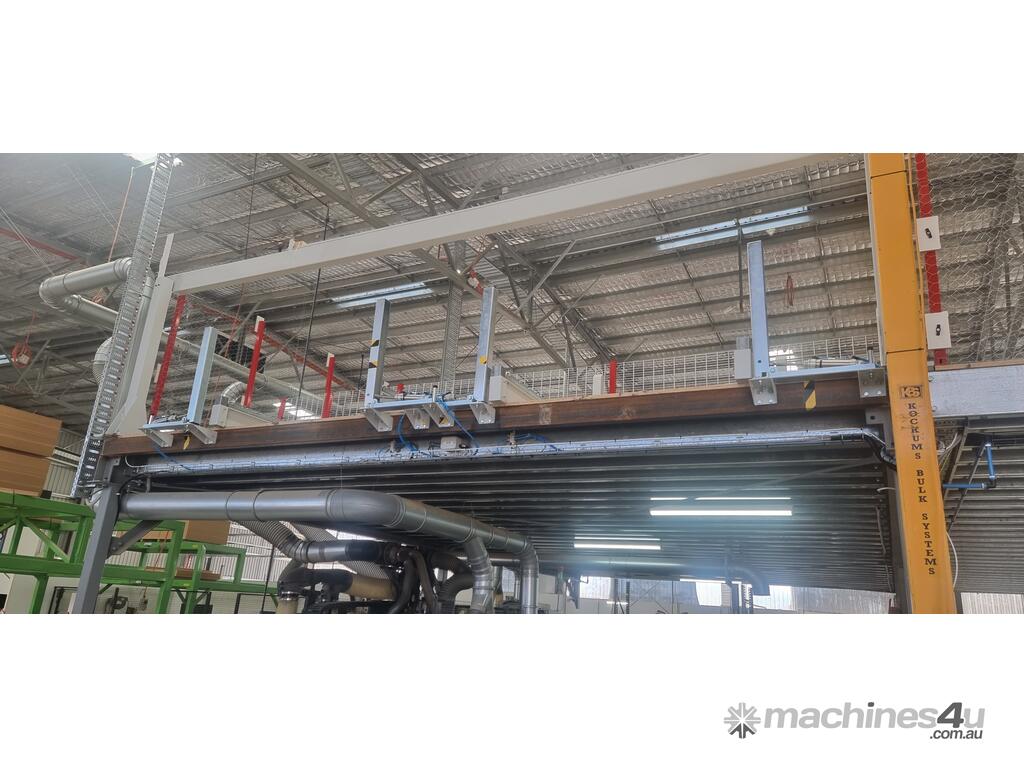

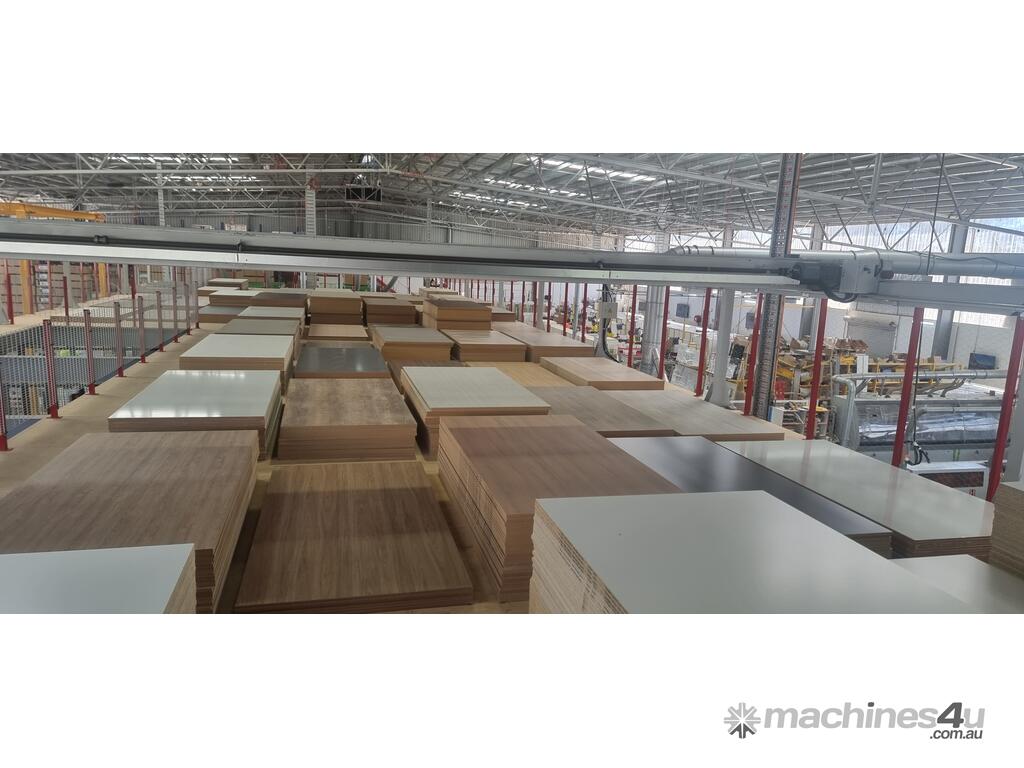

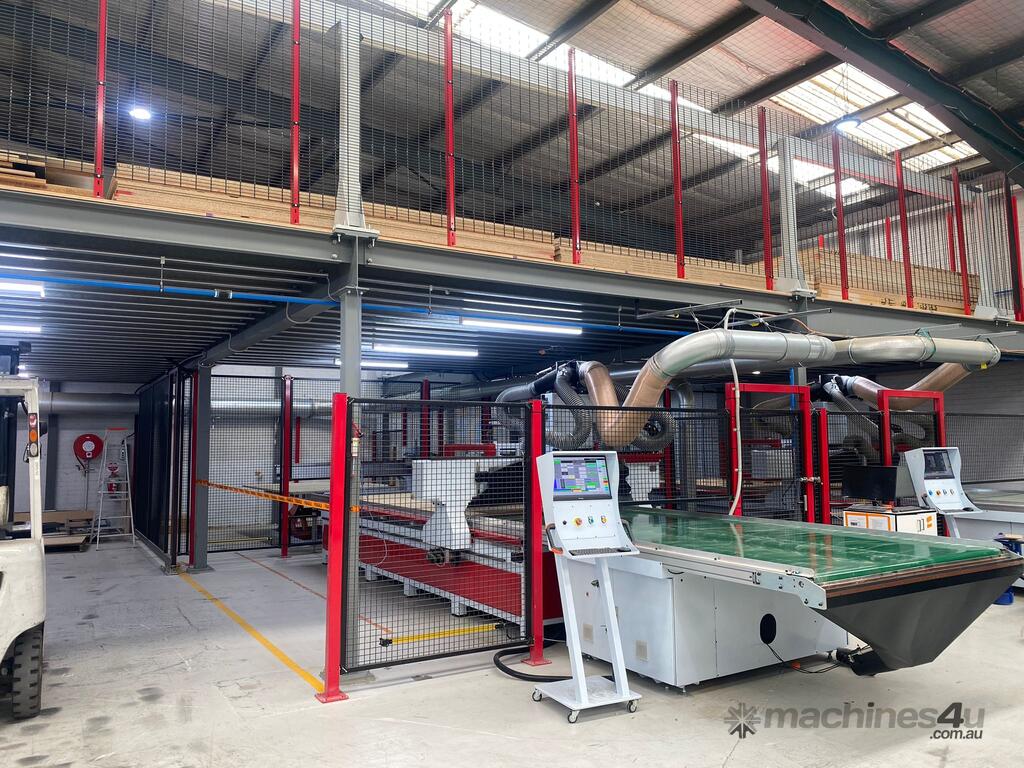

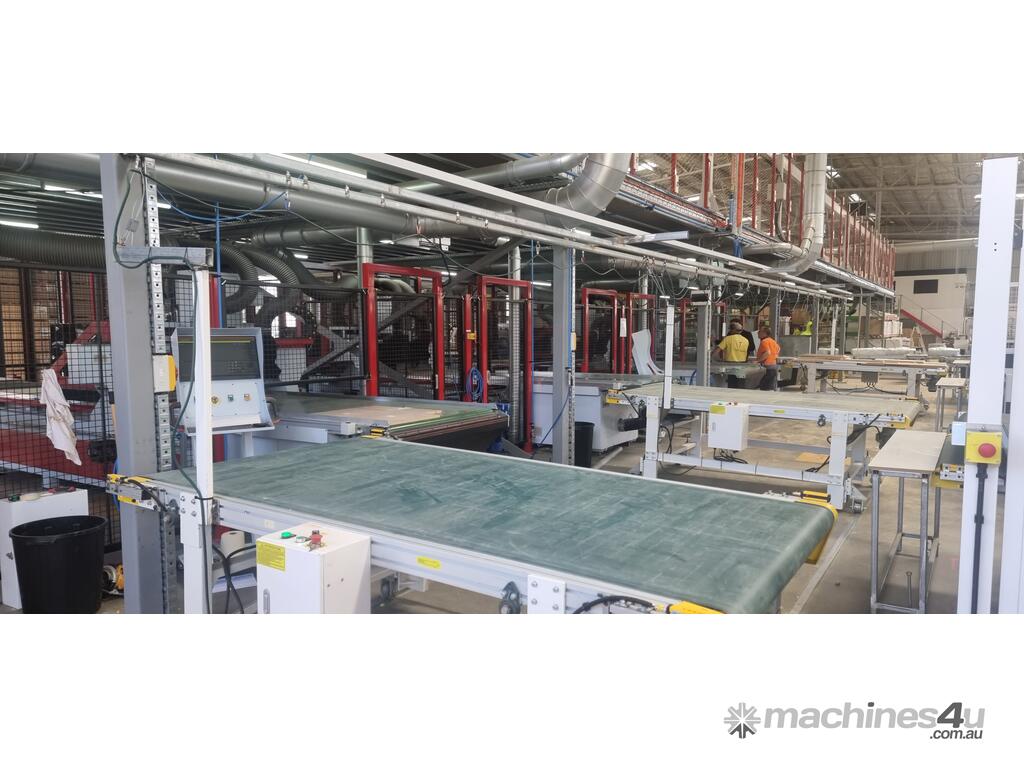

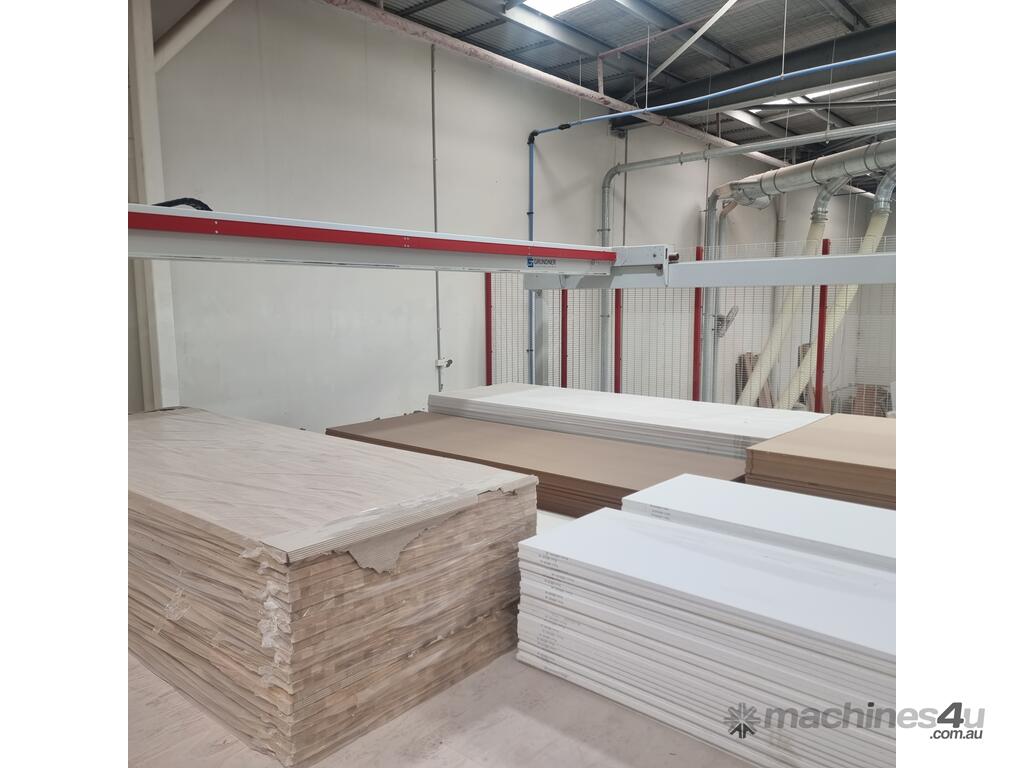

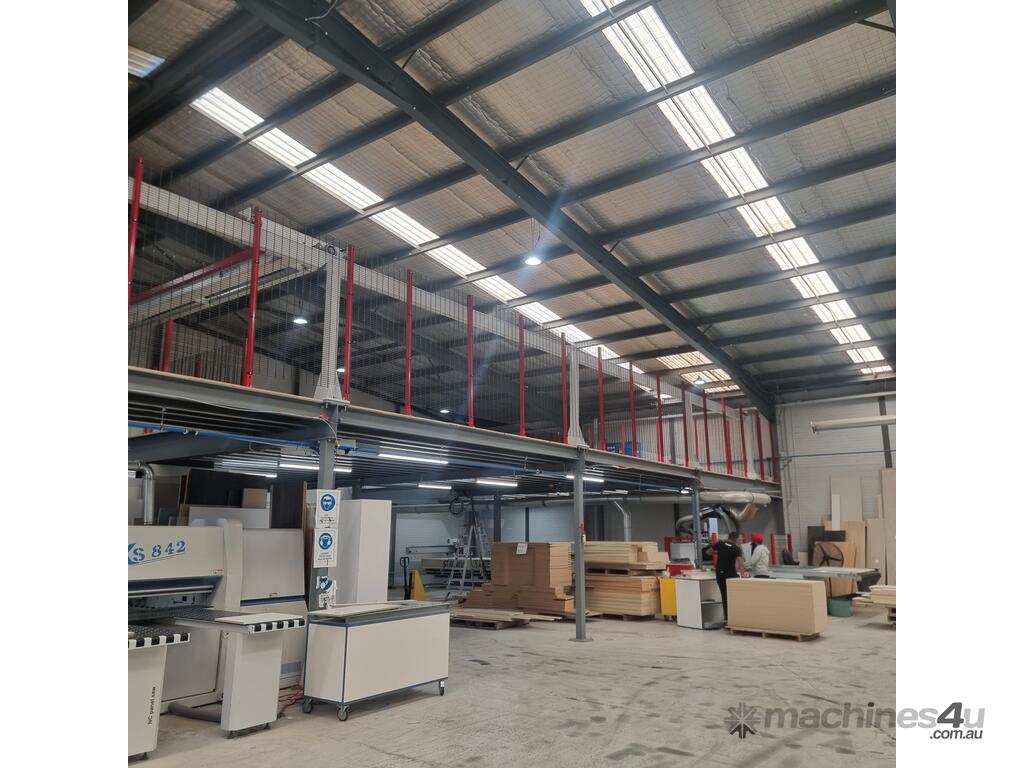

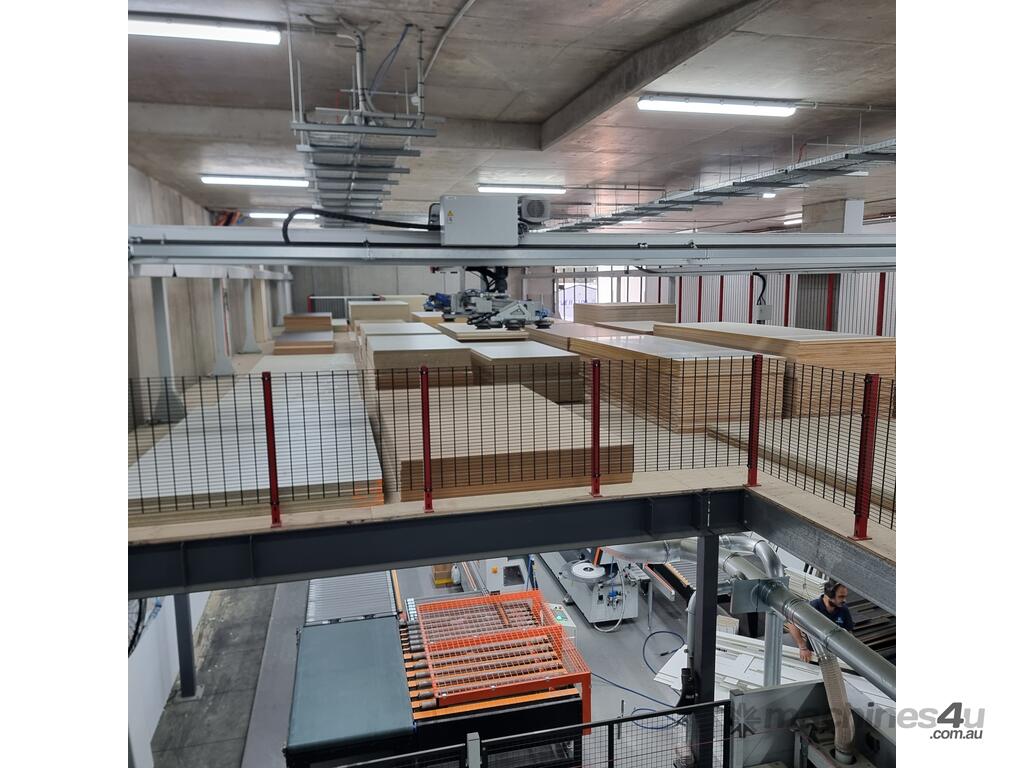

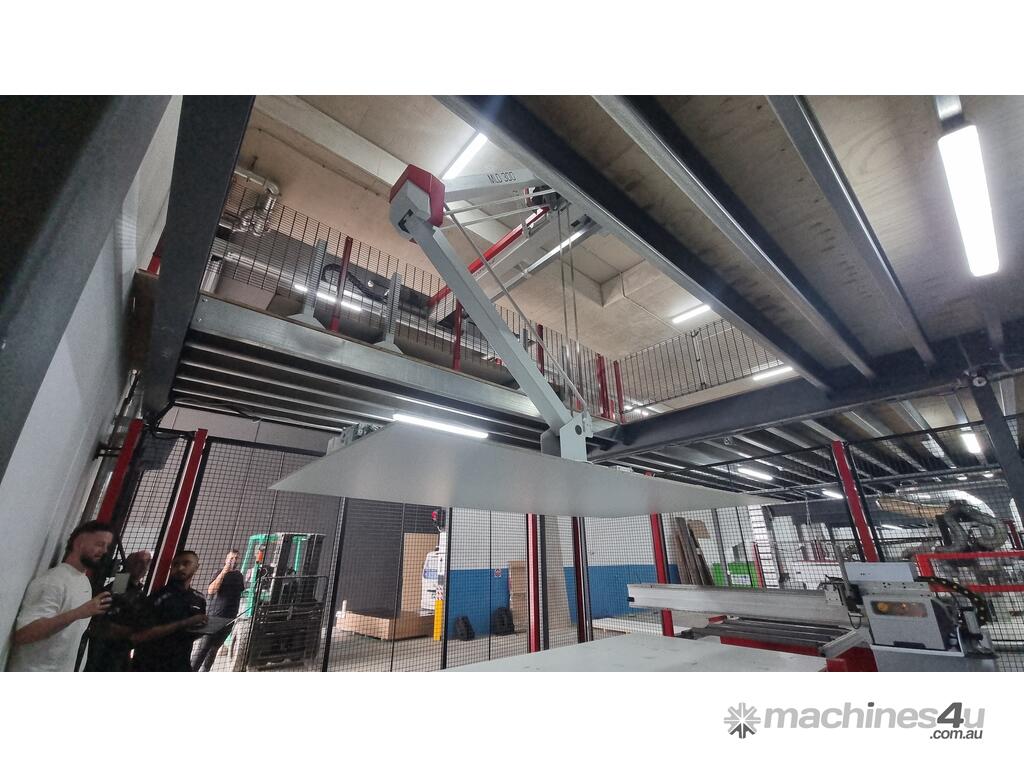

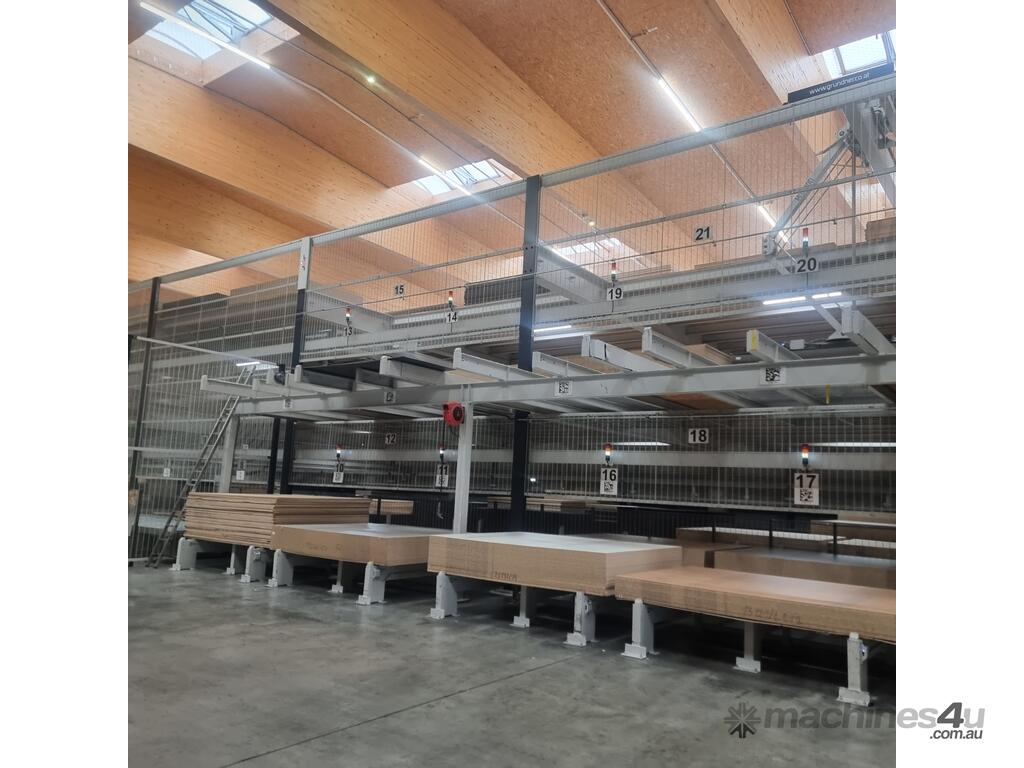

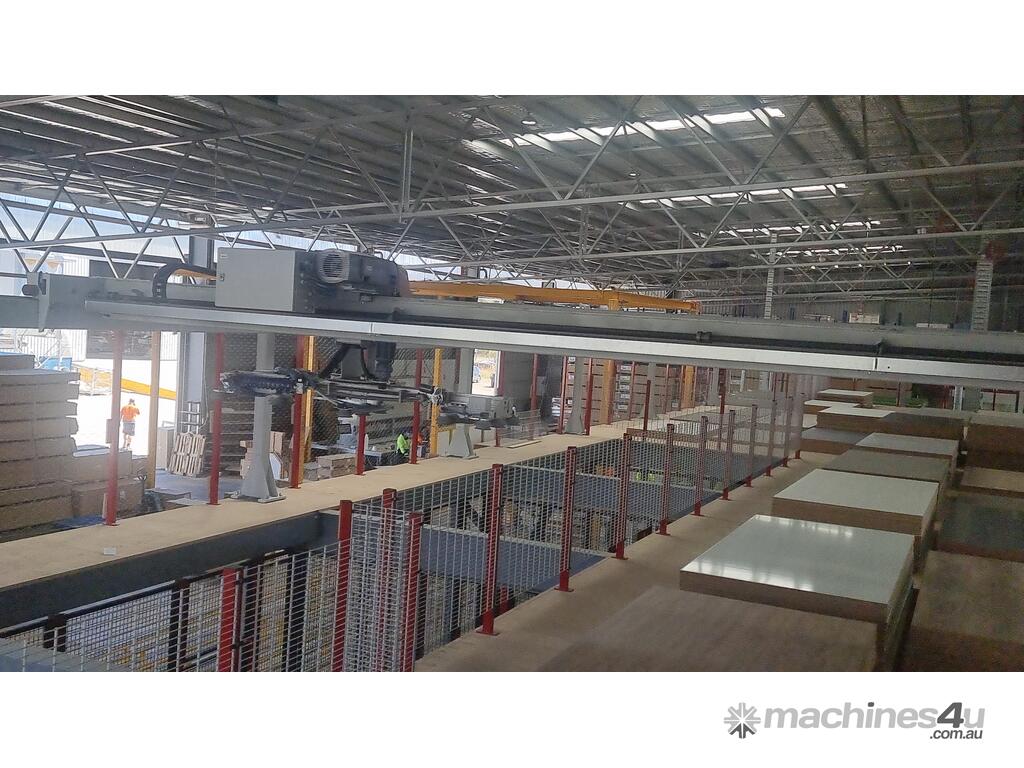

WOODTRON/GRUNDNER ELEVATED BOARD STORAGE WAREHOUSE
* Intelligent Panel Storage & Management for Modern Production
* Smart Inventory & Warehouse Management

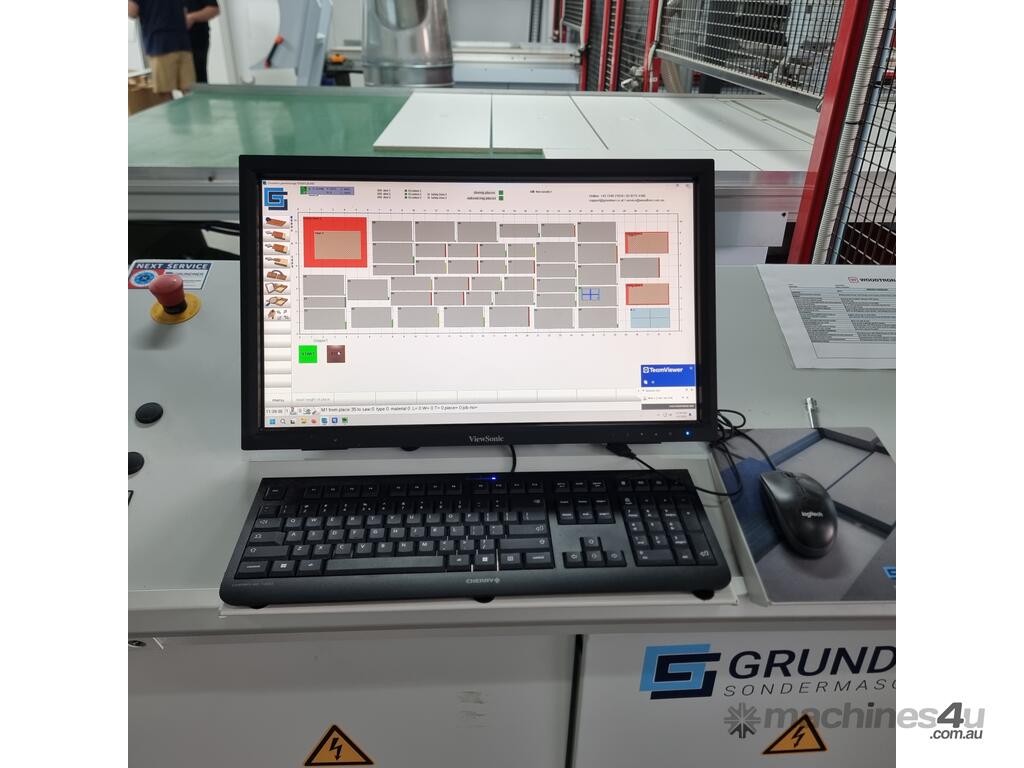

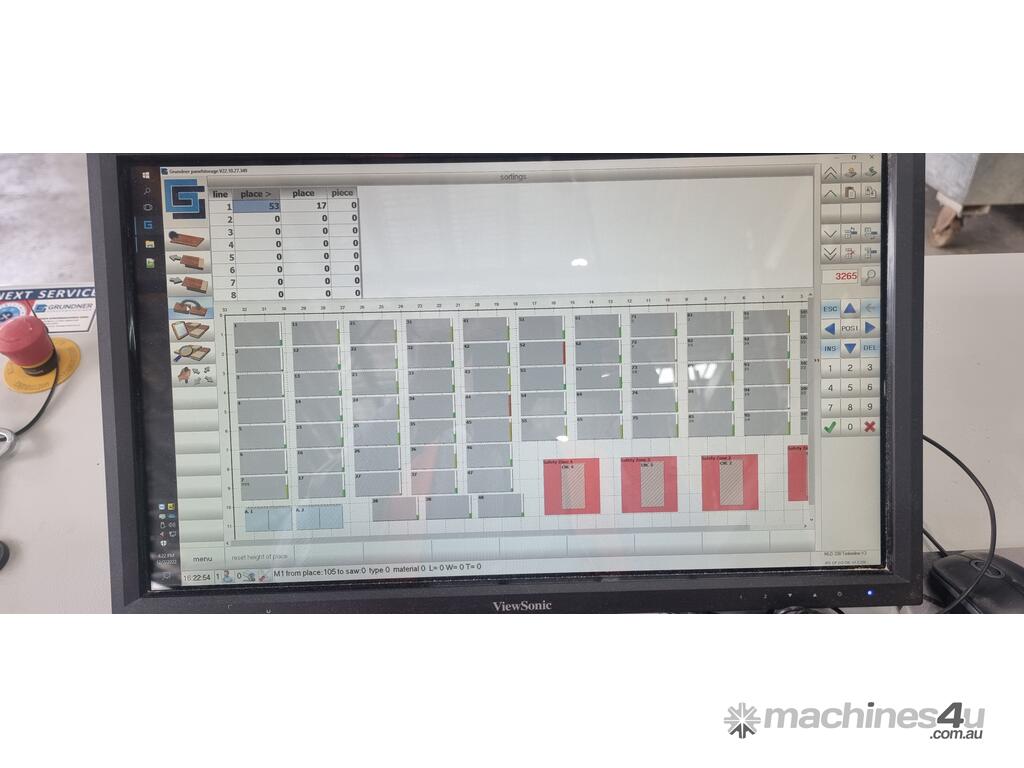

* Windows-based system with intuitive touchscreen operation
* User-friendly, clear, and reliable
* Flexible connection to machines from all manufacturers

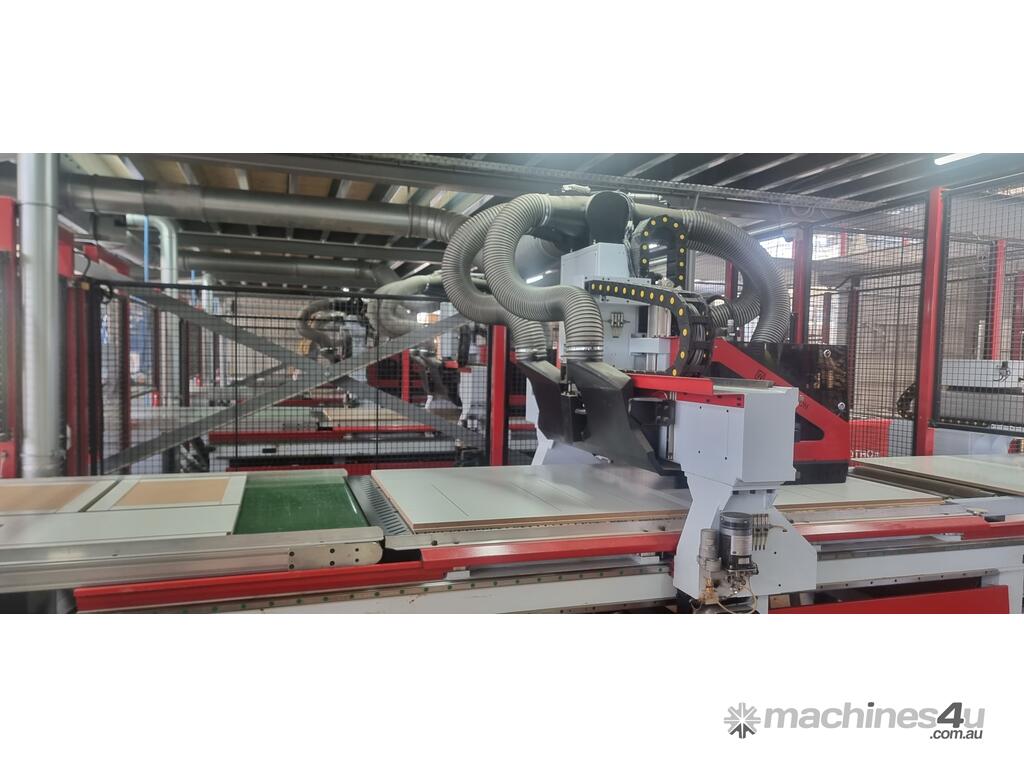

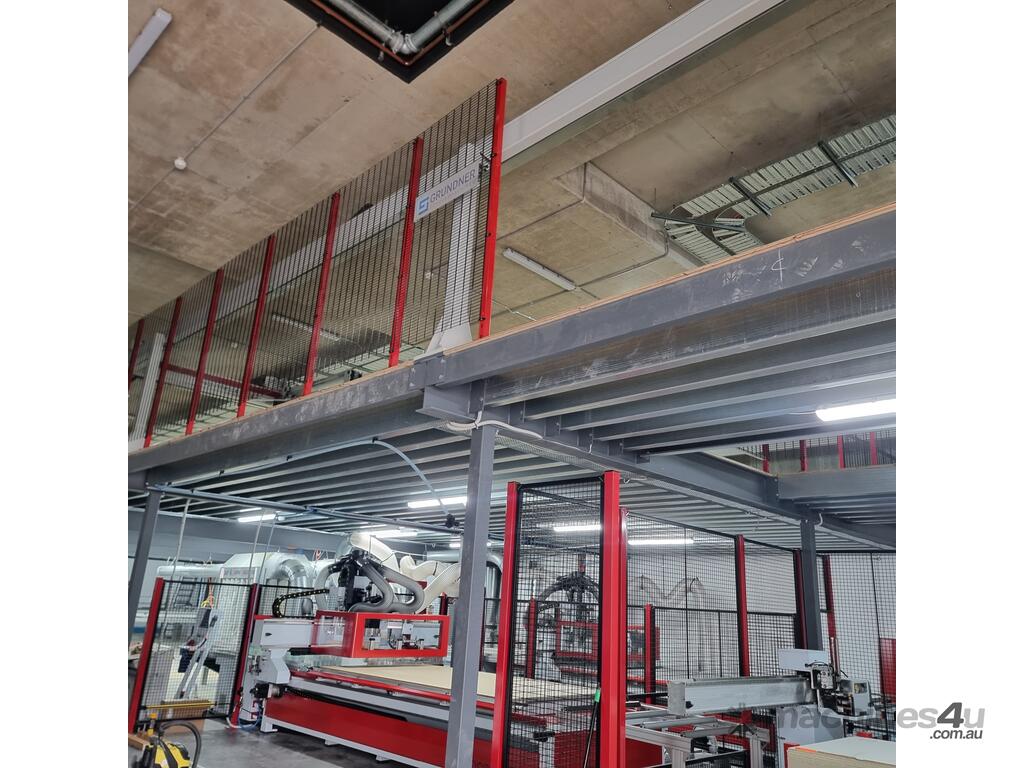

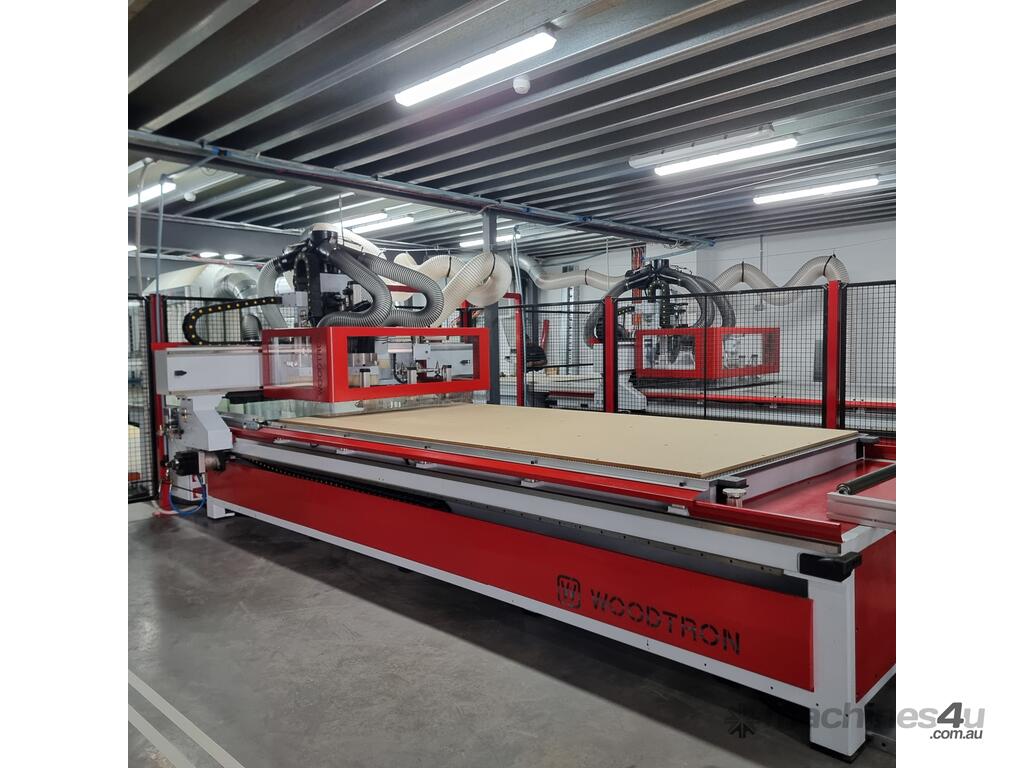

* Seamless integration with nesting CNCs, saws, or other processing machines

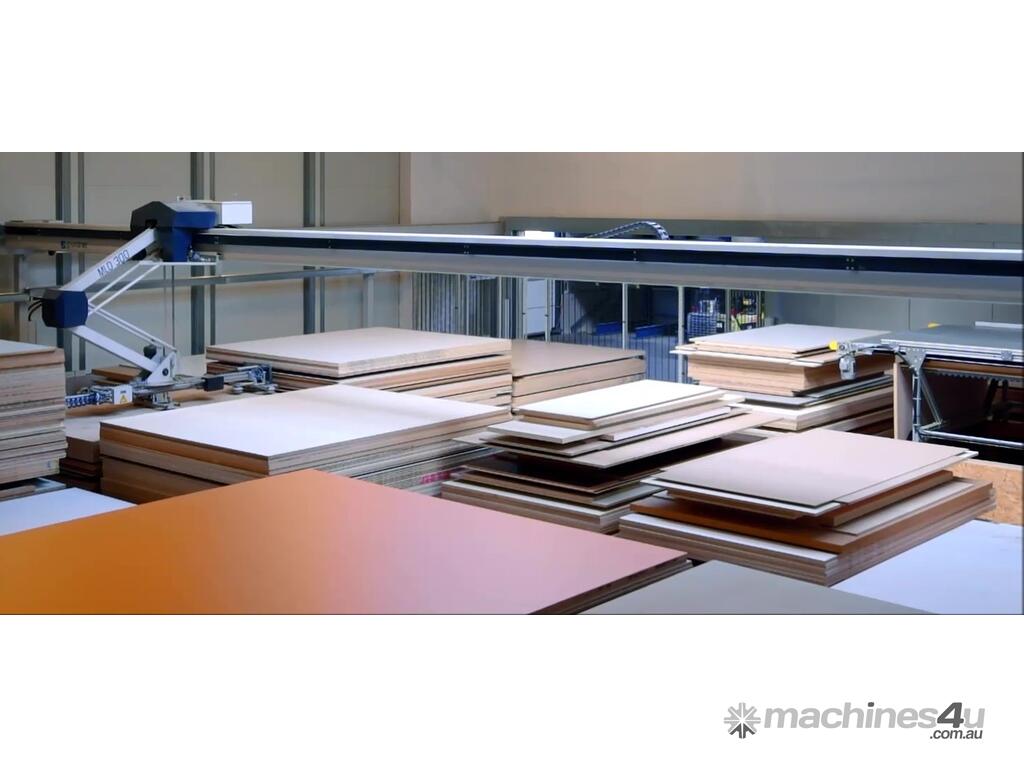

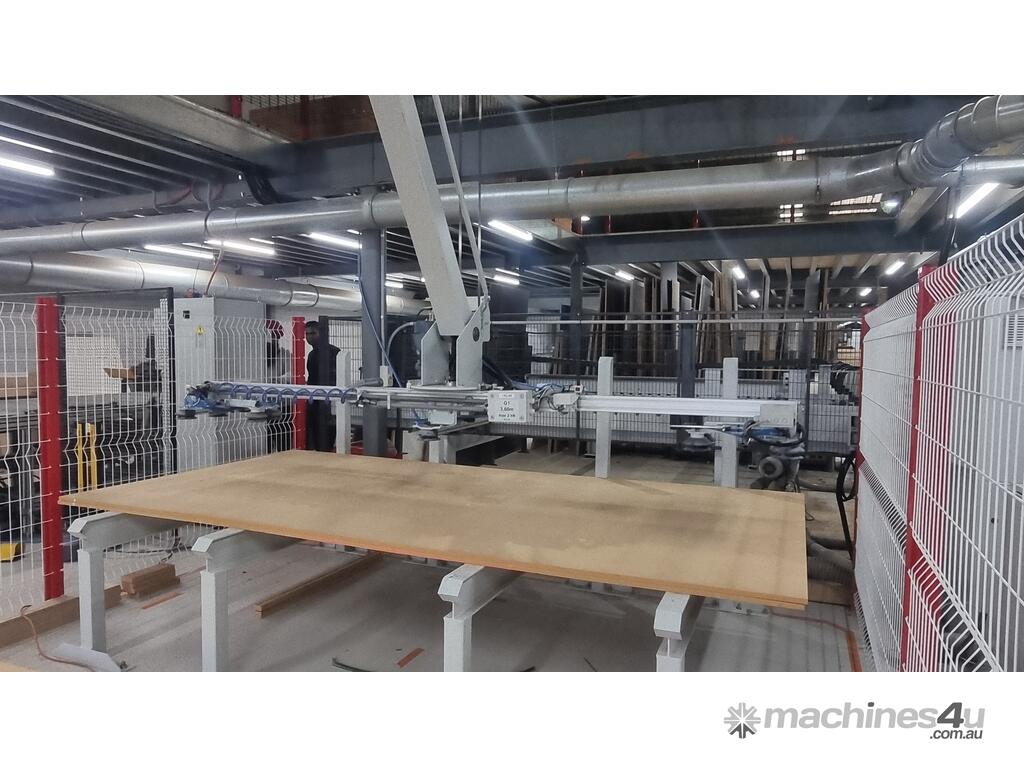

With fully automatic loading and unloading, the system ensures the right panel at the right time, eliminating downtime, manual restacking, and wasted space.
BENEFITS:
* Boost Productivity, Reduce Costs
* Lower error rates and accident risks
* Eliminate wasted search time for panels
* Free up staff for higher-value tasks
* Address skilled labour shortages with automation

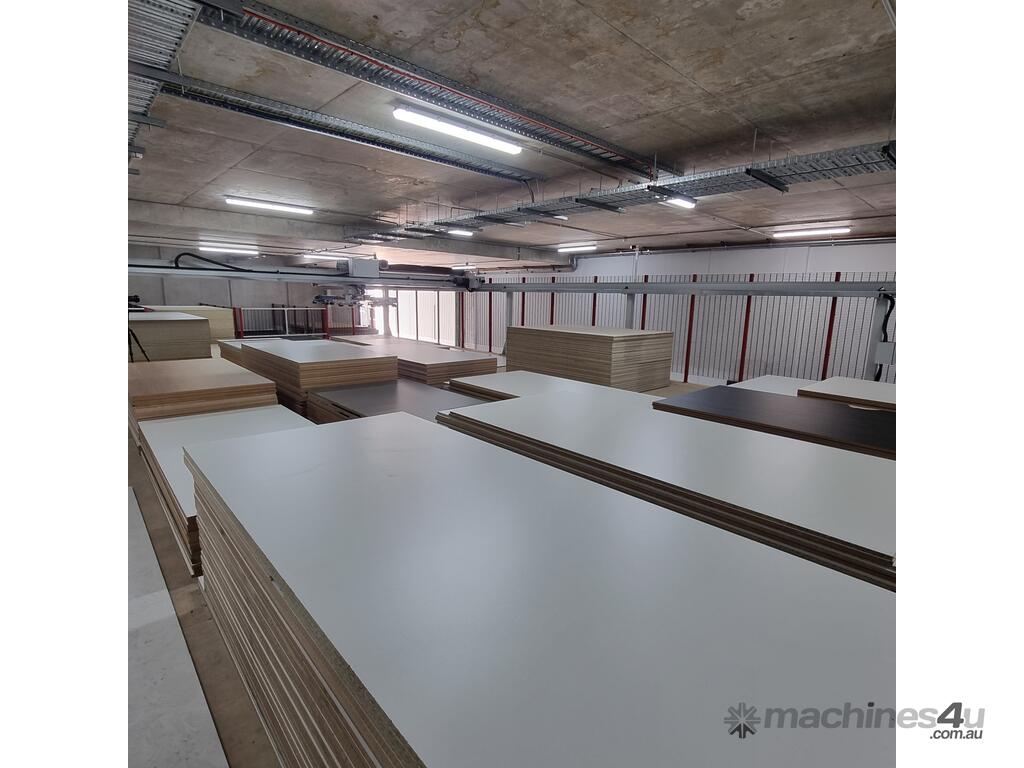

* Save 50–70% storage space with closely placed stacks
KEY ADVANTAGES:
* Significant space savings, no costly hall extensions required
* High production capacity with fewer machines and less staff
* Flexible, priority-based order processing
* Short cycle times – from 20 seconds per panel
* Automated offcut return & management

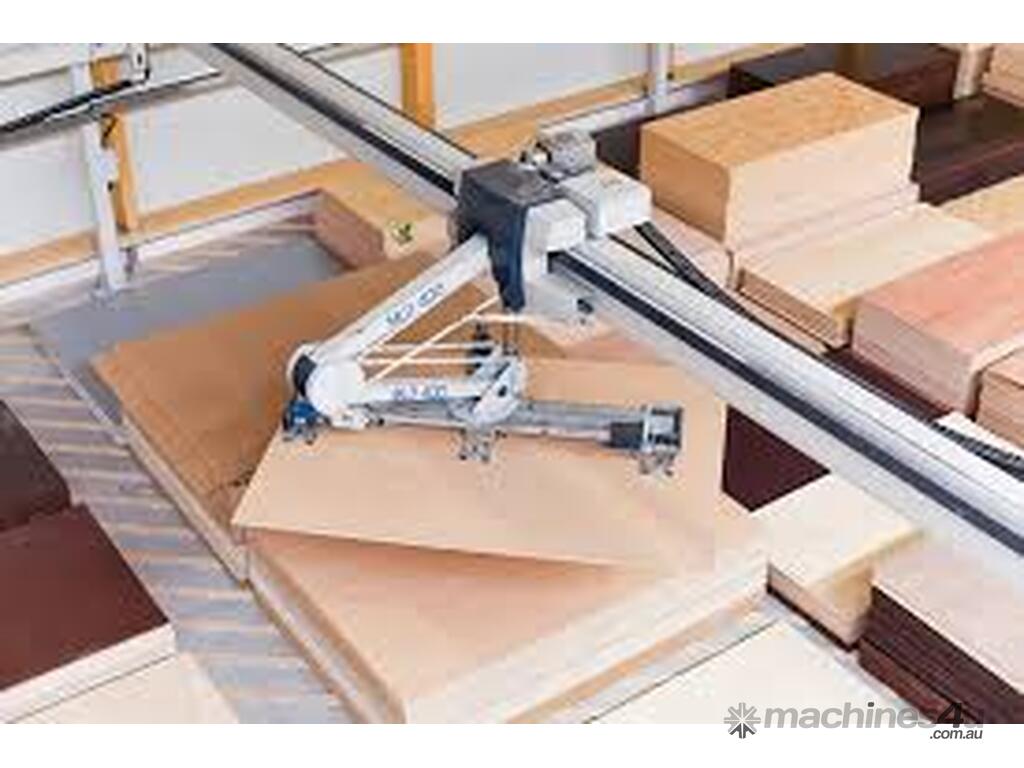

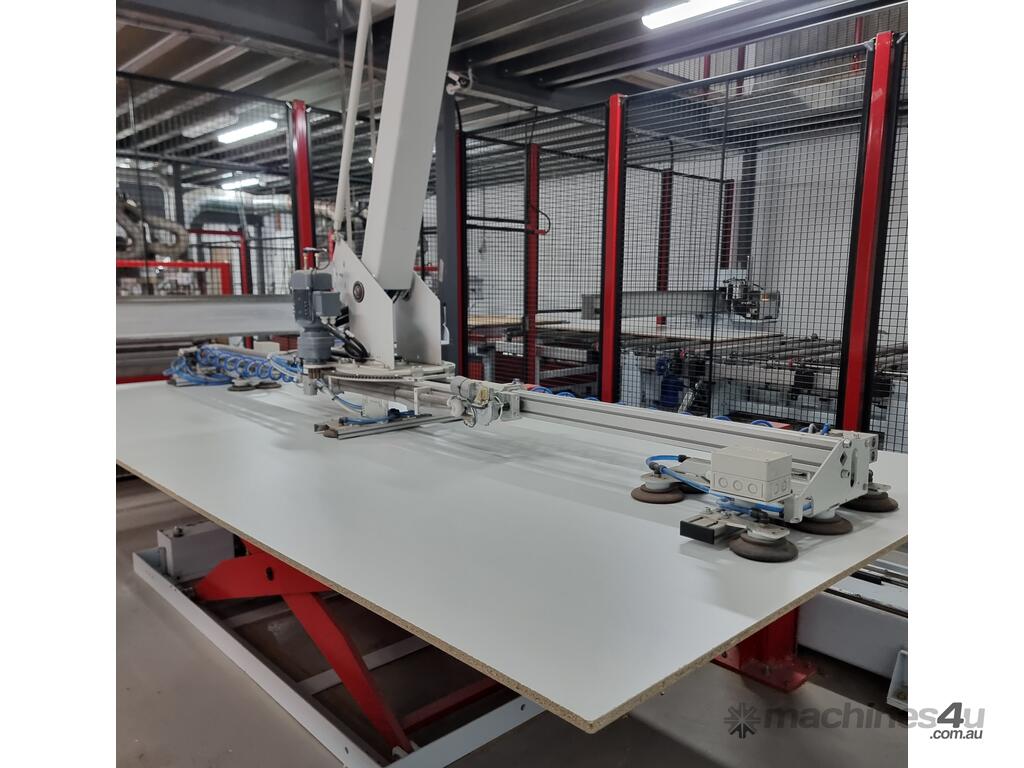

* Gentle panel handling ensures high material quality
* Intelligent standby: energy used only when needed
* Advanced material flow with no damage to panels
* Camera and video monitoring for complete system oversight
TECHNICAL SPECIFICATIONS IN BRIEF:

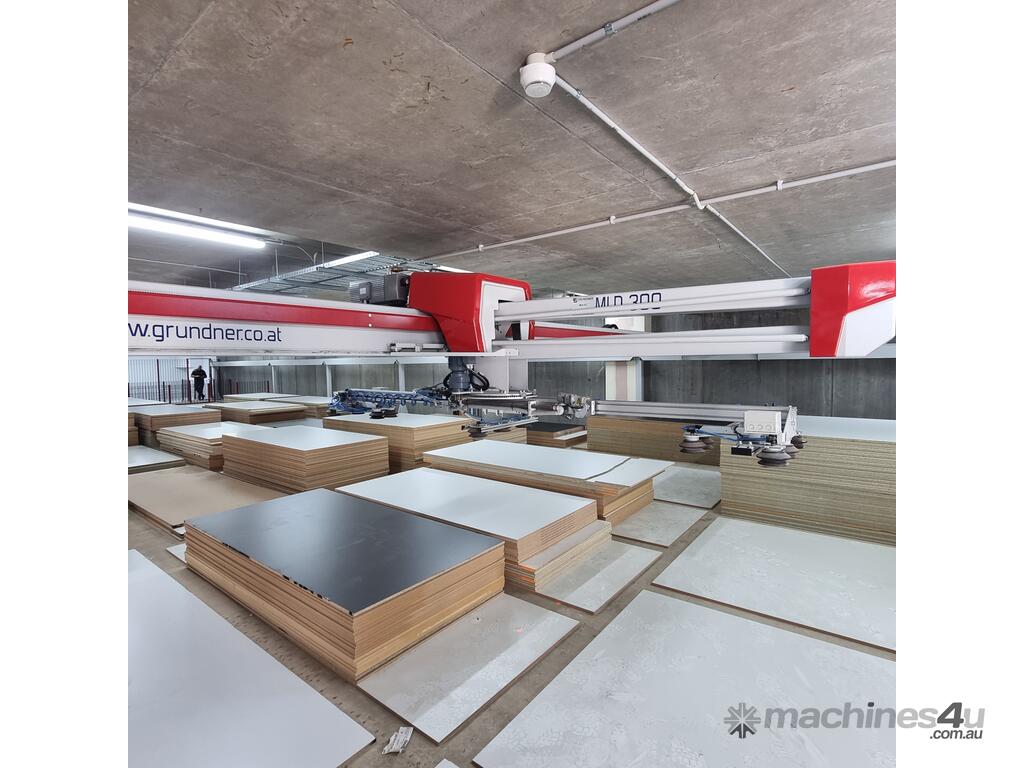

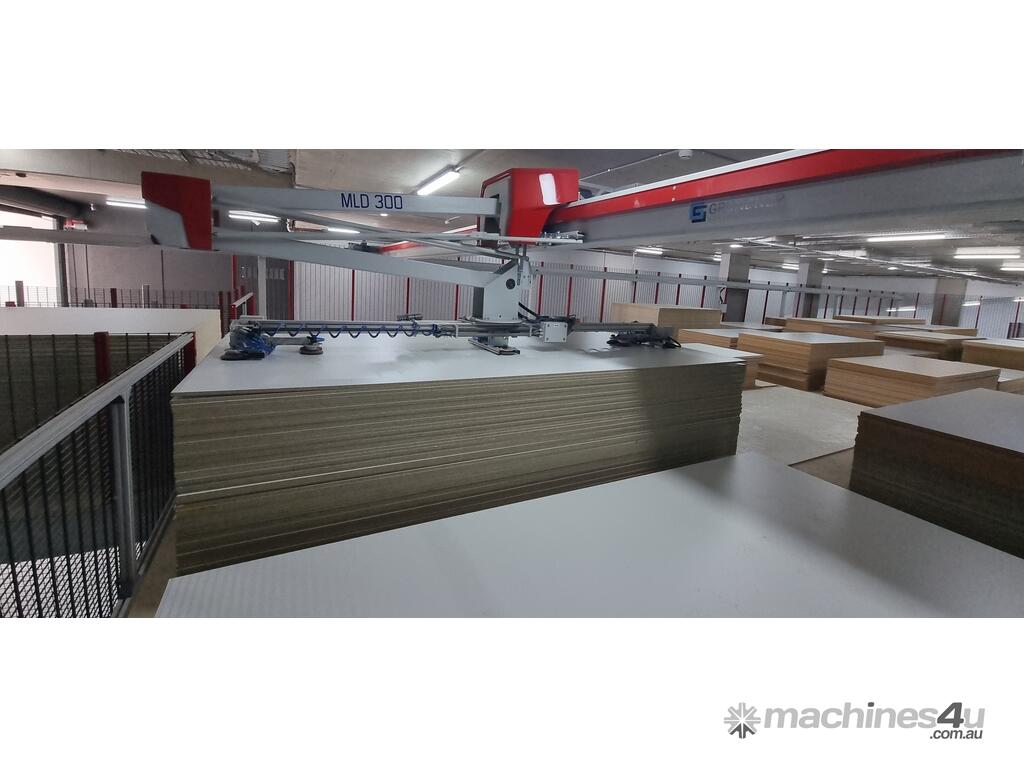

* MLD300: Length 10–100m × Width 12m
* MLD400: Length 10–100m × Width 16.5m
* Capacity & Dimensions
* Stack height/lifting height: 1000–3400 mm
* Stack spacing: 100 mm
* Panel sizes: Min. 1700×600 mm | Max. 3700×2100 mm
* Thickness: 3–33 mm
LIFTING CAPACITY:
* MLD300: 200 kg
* MLD400: 300 kg
PERFORMANCE:
*Horizontal speed: ~120 m/min
*Hoisting speed: ~45 m/min

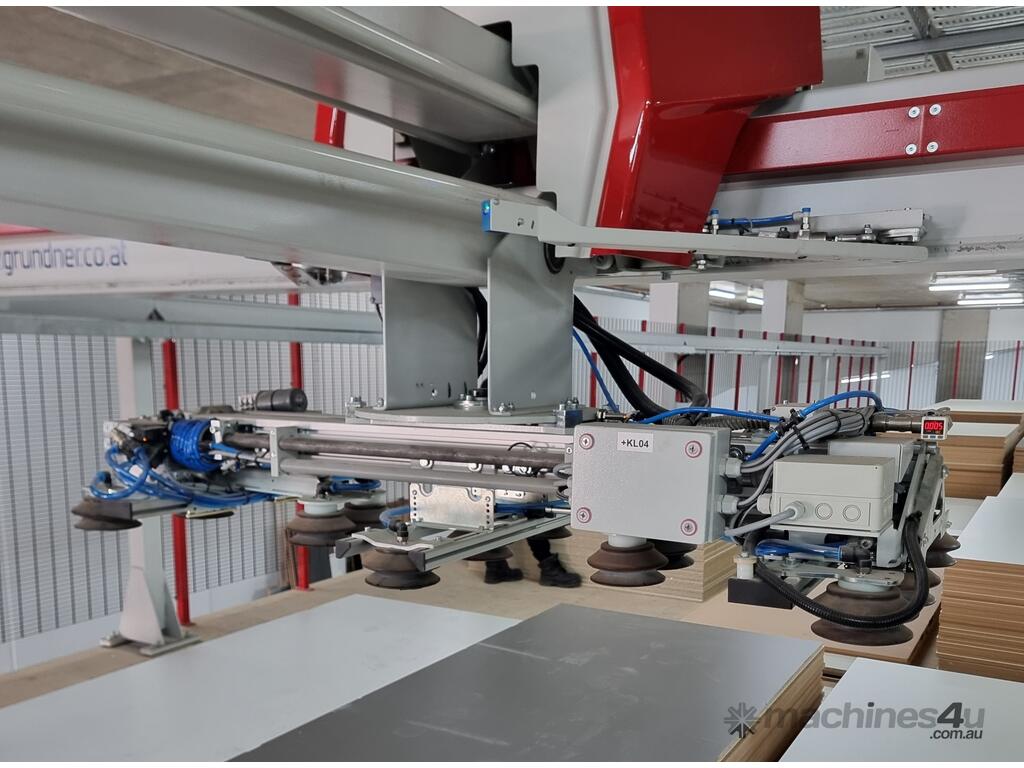

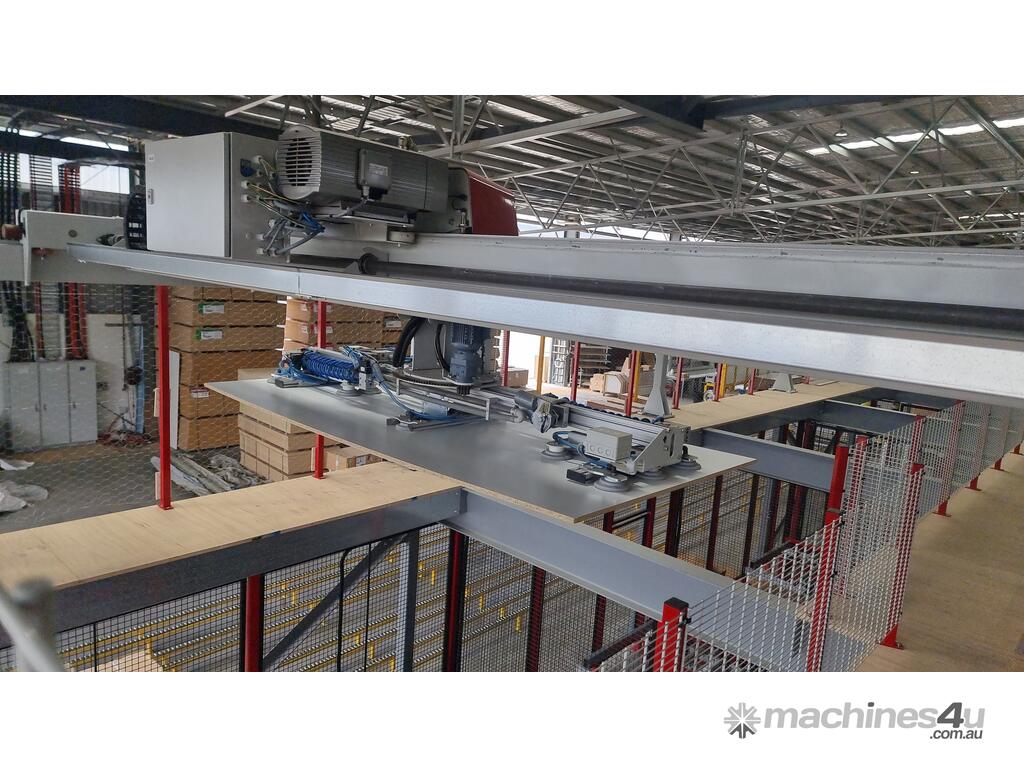

*Vacuum output: 40 m³/h
MATERIALS TYPES:
* Laminated chipboard/MDF (melamine, painted)
* Raw MDF/HMR
* Lumber core plywood
* Plastics, plexiglass,
* Laminates (coated/uncoated)
* Aluminium sheet
* Composite Materials.
* Solid surfaces
* Future-Proof Software & Scalability
The Grundner intelligent storage software grows with your business – from entry-level to high-end production.
* ERP & machine interface connections
* Dynamic panel preparation with last-minute modifications.
* Optimised stack formation based on consumption statistics
* Full operating data recording with graphical evaluation
PERFECTLY COORINATED
Use as a stand-alone order picking system or integrate seamlessly with your production line for the ultimate automated workflow.
FLEXIBLE. FAST. ECONOMICAL.
The Woodtron/Grundner Board Storage Warehouse is your intelligent solution for maximum efficiency, optimal material management, and future-proof growth.
Contact us today to arrange a demonstration and receive a personalized quotation!
