For Sale: Haas UMC-750SS — High Speed 5-Axis Machining Centre

Key Features

5-axis universal machining centre with super-speed package

15 000 rpm inline direct-drive spindle with through-spindle coolant

High speed 50-tool side-mount automatic tool changer

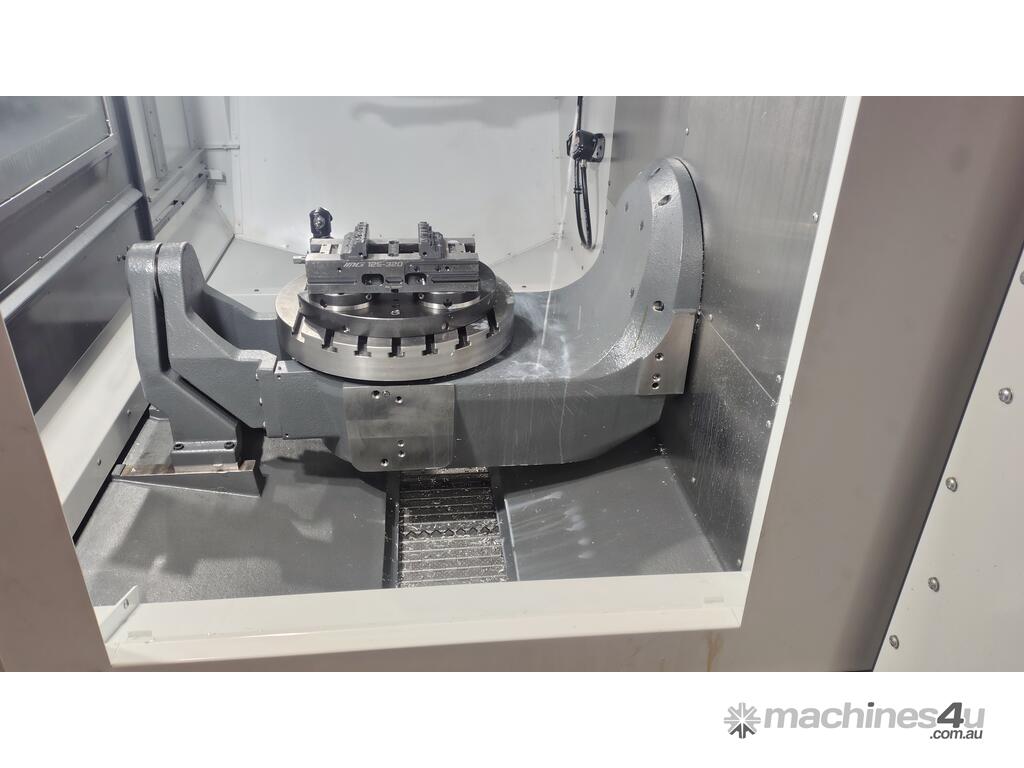

Integrated dual-axis trunnion / tilting table for full 5-axis work

Ideal for complex, multi-surface, tight-tolerance machining

Technical Specifications
Spec Value / Description
Model Haas UMC-750SS
Axes / Type 5-axis vertical machining centre (trunnion style)
Travel (X × Y × Z) 762 × 508 × 508 mm
Table / Platter Diameter 500 mm
Trunnion Motion (B / C) B-axis tilt: ?35° to +110° (some specs +120°)
C-axis rotation: 360° continuous
Spindle Speed & Drive 15 000 rpm inline direct-drive
Spindle Power / Torque 22.4 kW vector drive (? 30 hp)
Max torque ? 122 Nm 2 000 rpm
Tool Changer 50 + 1 side-mount ATC
Tool-to-tool: ~2.3 s; chip-to-chip: ~3.2 s
Rapid Traverse Rates (X/Y/Z) 30.5 m/min
Max Cutting Feed ~16.5 m/min
Coolant Flood coolant + through-spindle coolant (up to ~20.7 bar / 300 psi)
Coolant tank ? 284 L
Power Requirement ~195–260 VAC, 3-phase, 50/60 Hz
Air Requirement ~113 L/min 6.9 bar (100 psi)
Machine Envelope Max operating height ? 3 048 mm
Detailed anchor / layout drawings available from Haas
Control & Features Haas Next Gen Control, 15” colour LCD, USB, remote jog handle, macros, coordinate rotation/scaling, rigid tapping, wireless probing (Renishaw or equivalent)
Advert Text (for listings / flyers)

High-Performance 5-Axis Machining — Ready for Precision Production

Available now: Haas UMC-750SS with the high-speed package — 15 000 rpm spindle, through-spindle coolant, and a 50-tool automatic changer. A top-tier 5-axis trunnion machine built for high-speed cutting, complex geometry and premium surface finish.

With travels of 762 × 508 × 508 mm and a powerful 22.4 kW spindle, the UMC-750SS delivers the speed and precision needed for aerospace, medical, mould and complex component machining. The integrated dual-axis trunnion table provides full 360° rotation and ±110° tilt for true simultaneous 5-axis work or efficient 3+2 setups.

Rapid traverse speeds up to 30.5 m/min and cutting feeds to 16.5 m/min keep cycle times low. The 50+1 tool side-mount changer and through-spindle coolant (? 20 bar) support fast, reliable production in tough materials.

This machine is ideal for shops seeking a flexible, high-performance 5-axis centre for demanding jobs.

Open to reasonable offers — need to make room.
