UPT Tandem Axle Tag Trailer - In Stock

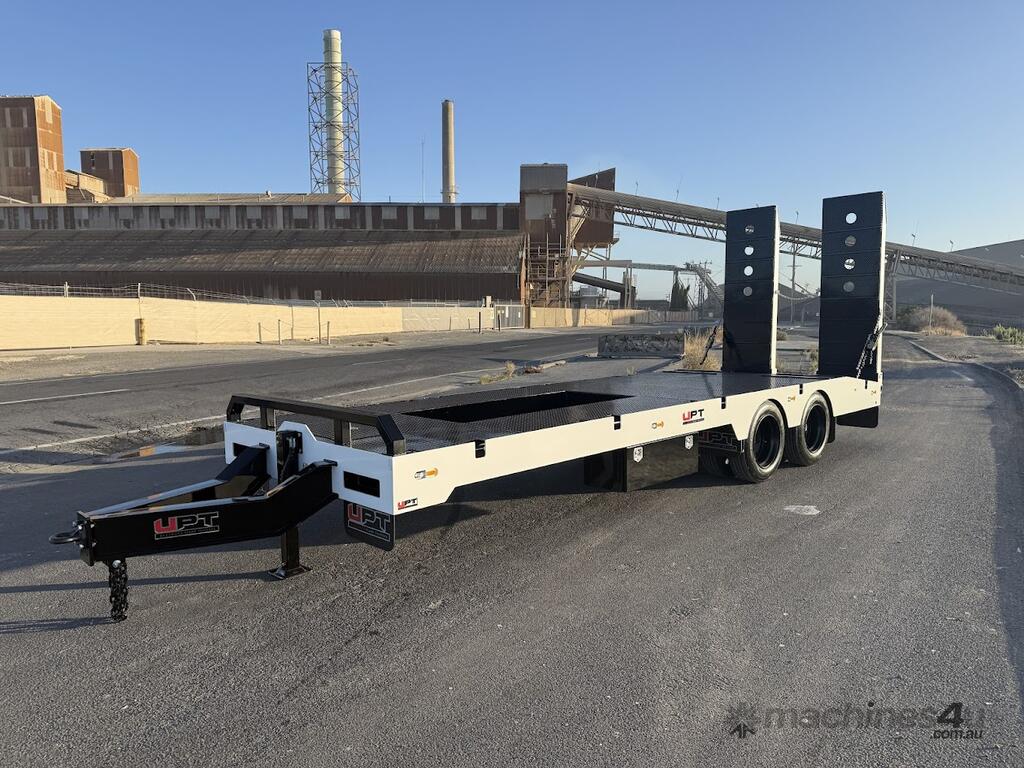

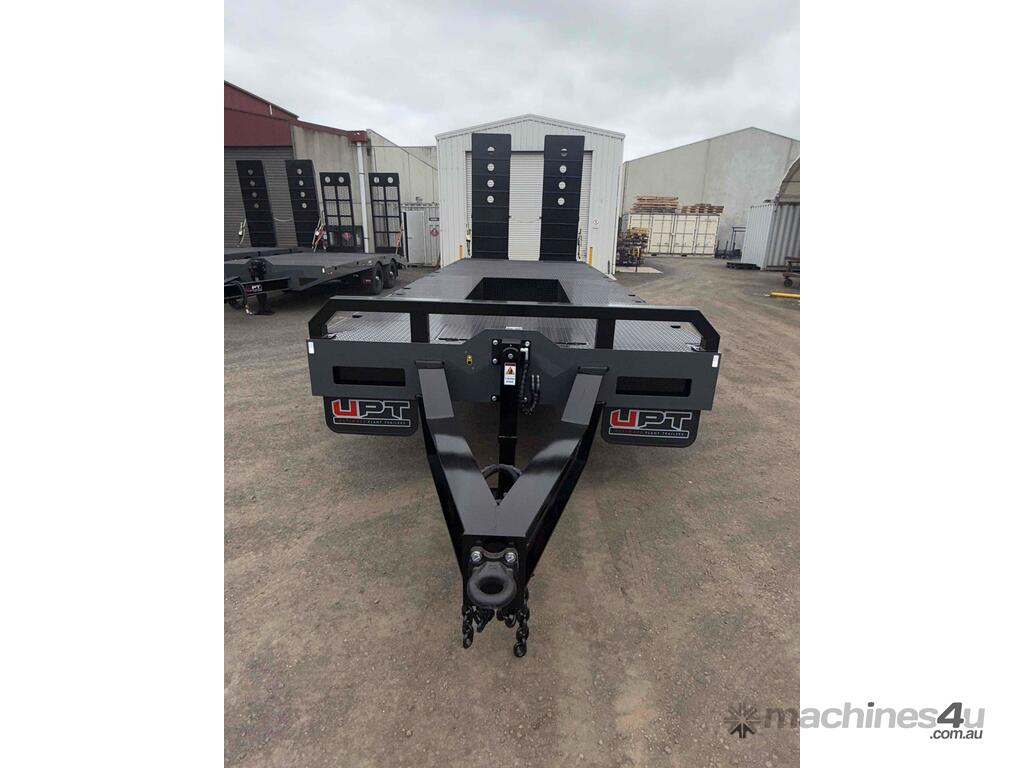

2025 UPT Heavy Duty Tandem Axle Trailer

7m deck 1.2m Beavertail 1.5m Drawbar

UPT Tandem Axle Trailers are engineered for unrivalled strength, durability and versatility. Each trailer is meticulously hand-fabricated using premium materials and advanced techniques to deliver outstanding performance in the toughest environments.

One of its standout features is the custom chassis, built from 6mm Grade 350 steel, the web is manufactured with a camber built into the plate, dual side welded to a 100mm x 16mm thick Grade350 bottom strap, it is a strong foundation to support the trailer suspension. With 10mm Grade 350 - 1 piece coaming, which is precision-cut to your custom spec rounding out a quality build.

Our Tandem Axle Trailers are designed with customisation in mind, allowing you to tailor the build to your specific needs. Whether it's hydraulic front loading ramps, extra wide ramps or custom storage solutions, Ultimate Plant Trailers can incorporate features that enhance both functionality and convenience.

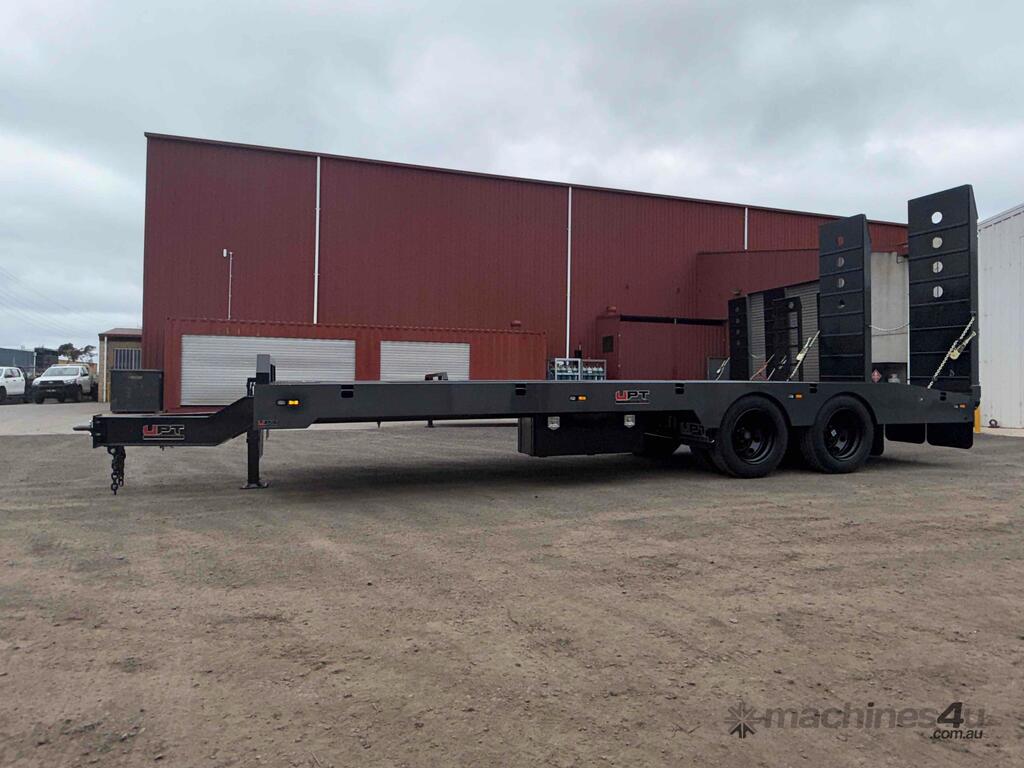

- Deck & Beavertail (7m deck & 1.2m Beavertail )

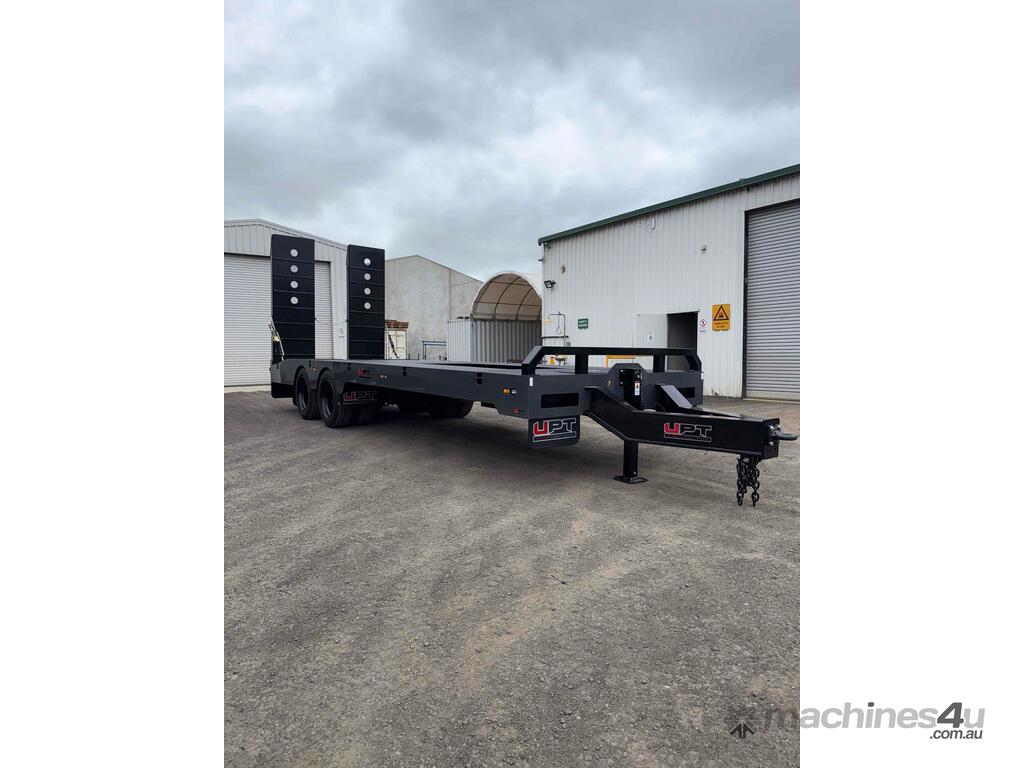

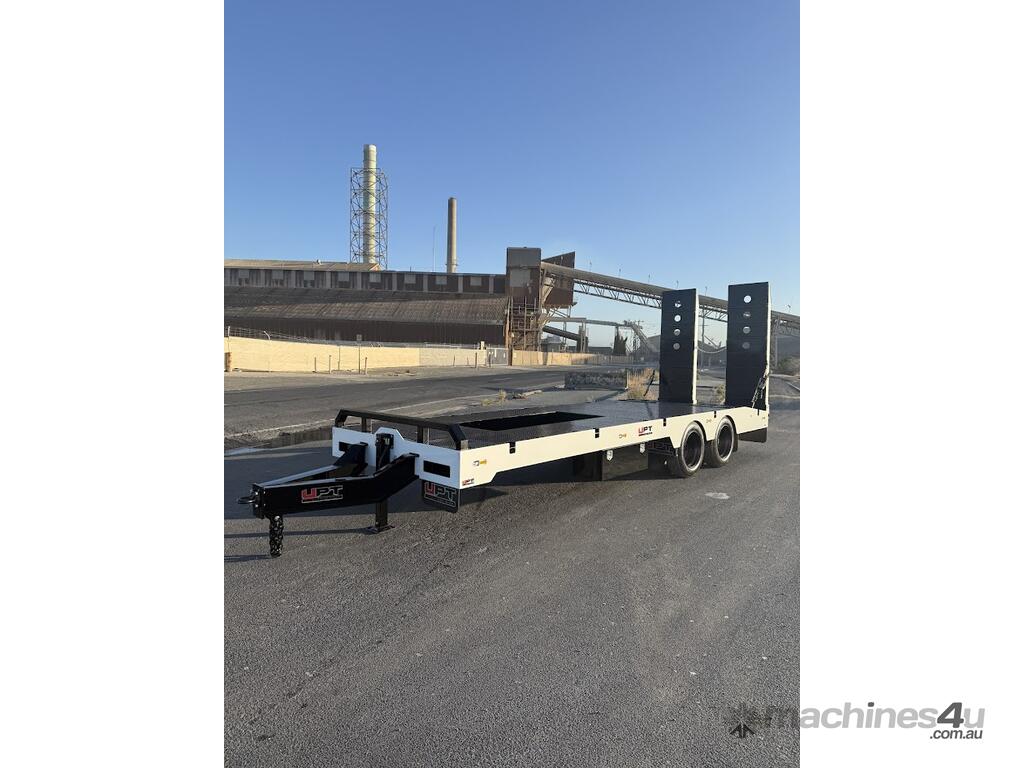

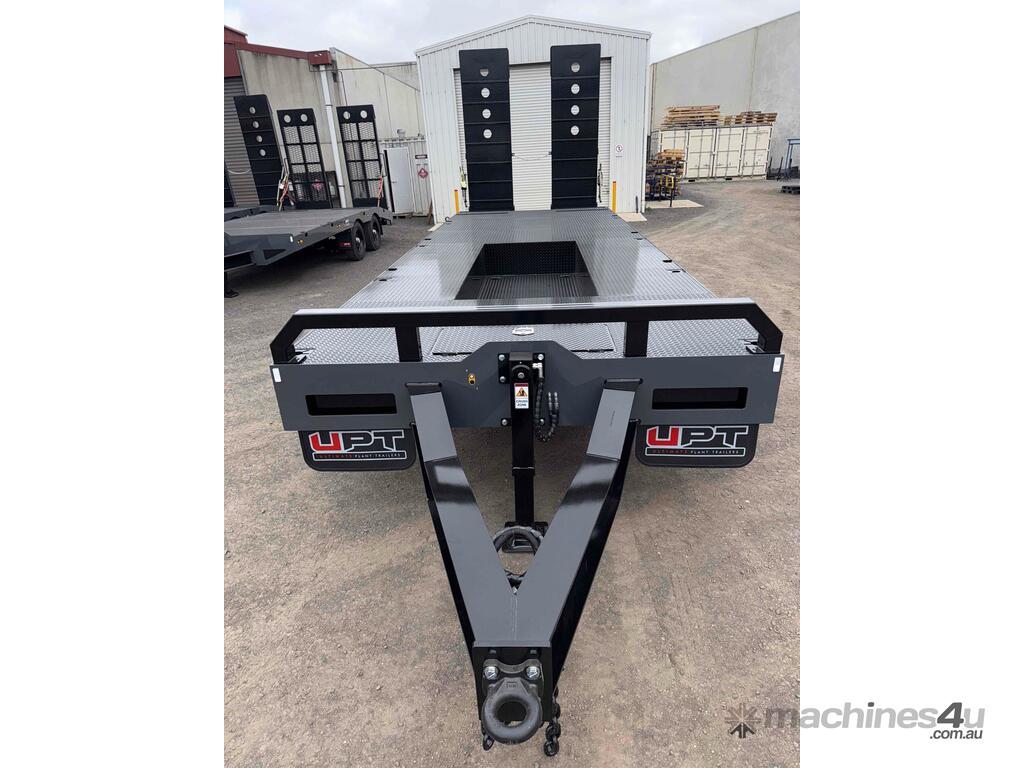

- 1.5m Custom Drawbar (Height 600mm & 550mm)

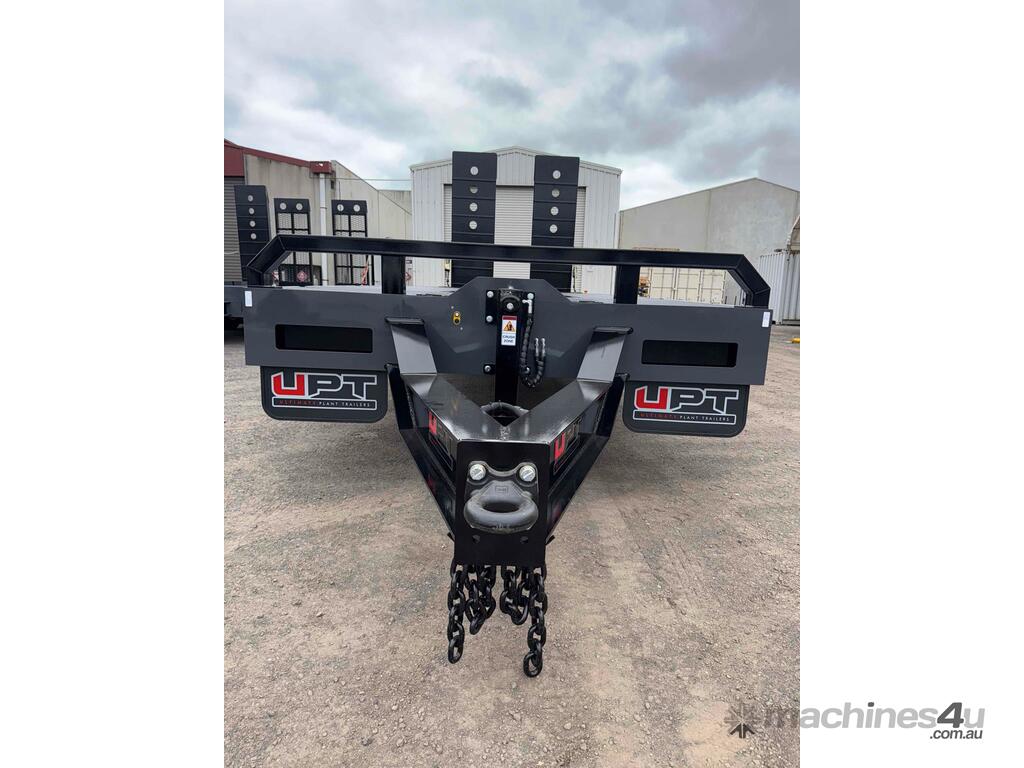

- Wallace Forge Pintle Hitch (Bartlett hitch available)
- 16mm Grade 80 Safety Chains
- 50 amp Anderson
- Greaseable hinges to all doors
- Up to 24.56 T ATM rated trailer

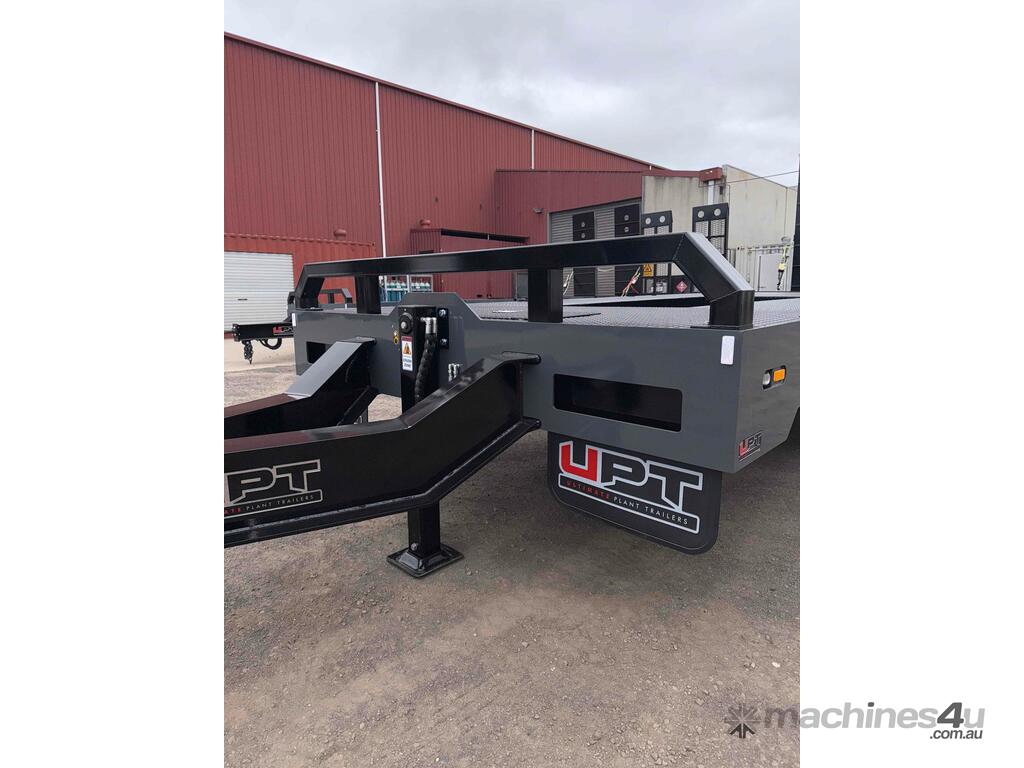

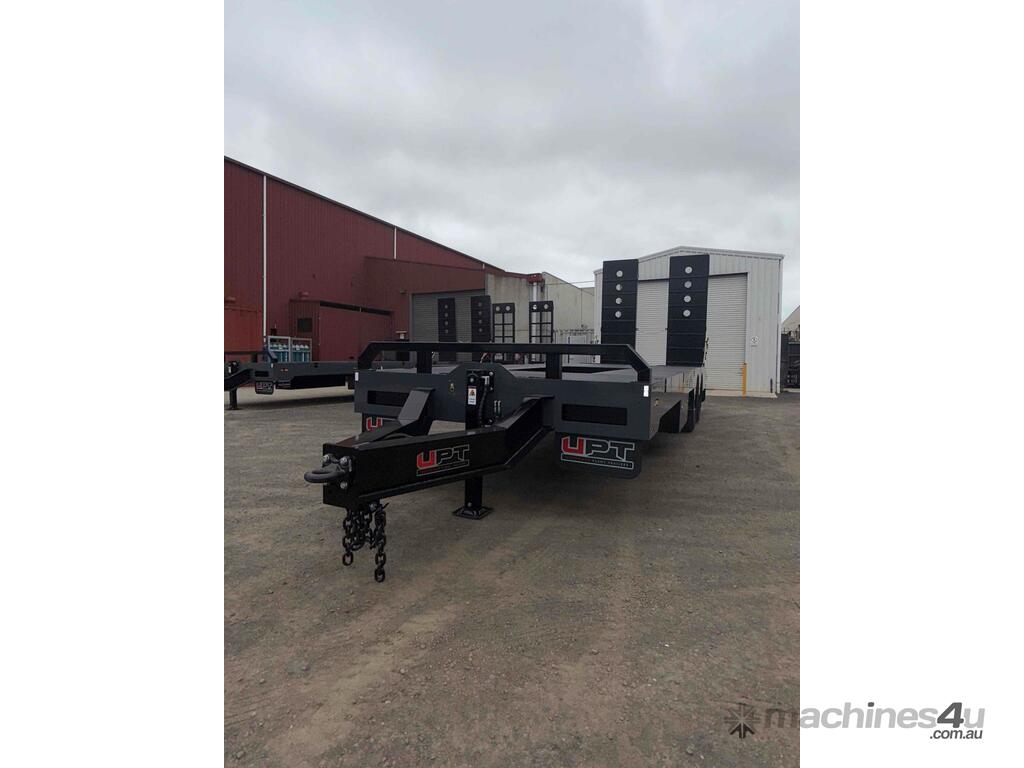

- Double acting hydraulic front leg with drawbar-mounted pendant

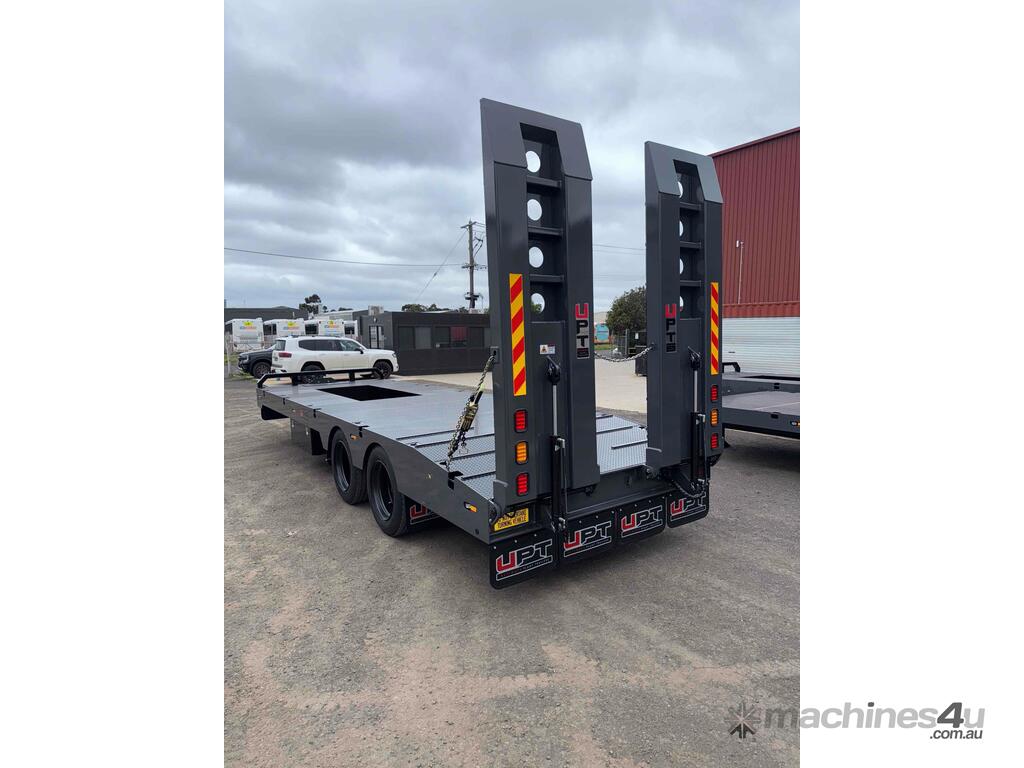

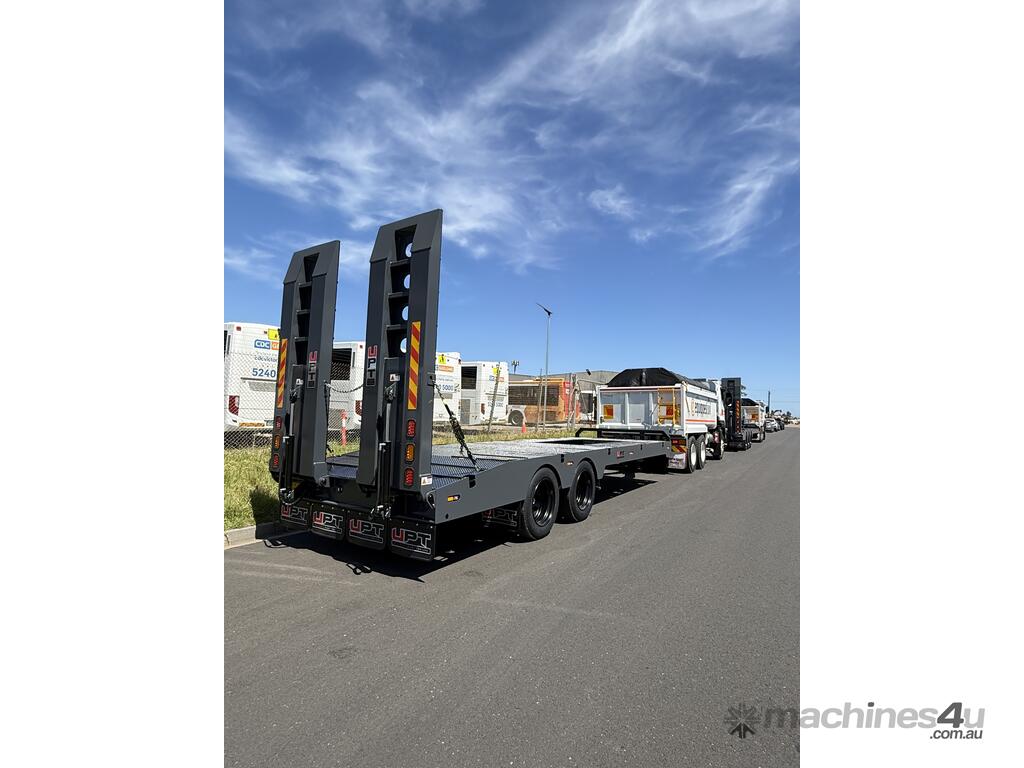

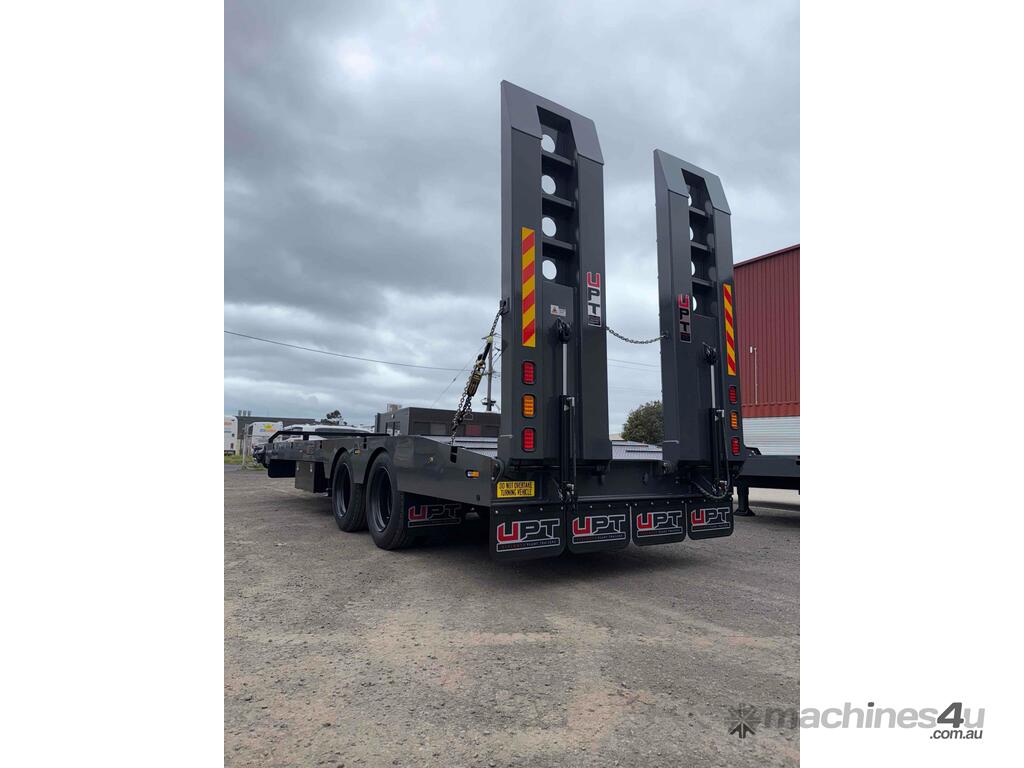

- Double acting hydraulic ramps with coaming-mounted pendant
- Built-in deck hydraulic power pack box with seal and keyed lock
- Heavy-duty truck battery with additional fuse protection
- 5mm checker plate steel floor
- 100mm x 50mm x 4mm cross members passing through the chassis
- 10mm Grade 350 coaming
- 6mm Grade 350 pre-cambered web plate
- 100mm x 16mm Grade 350 bottom strap

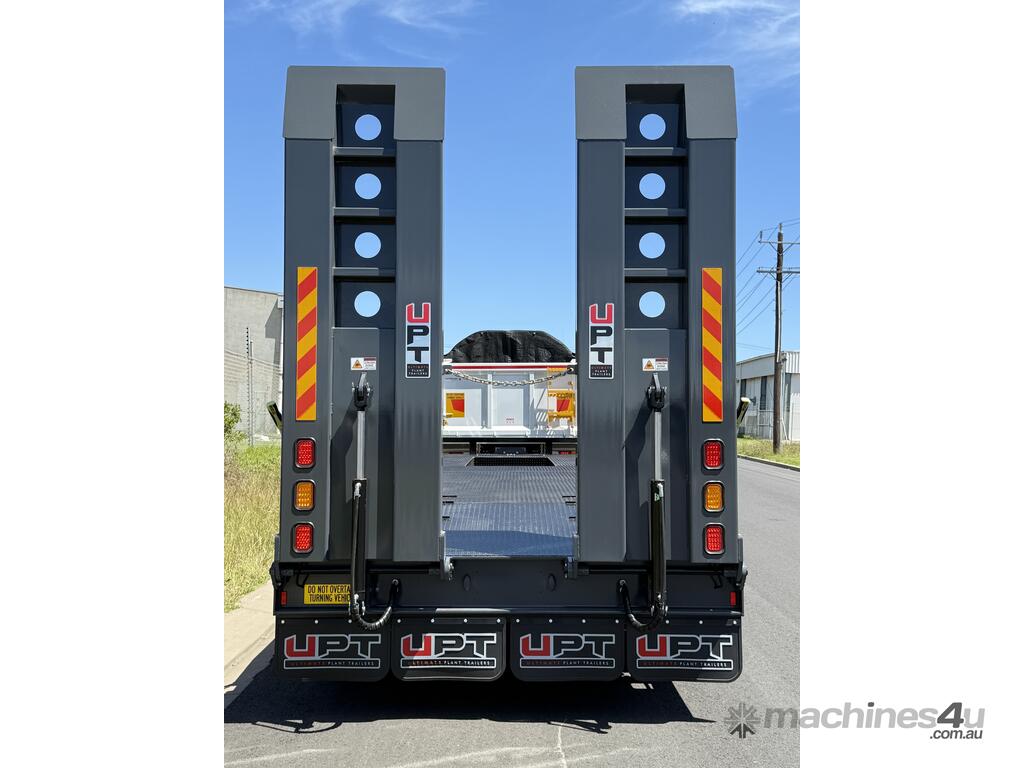

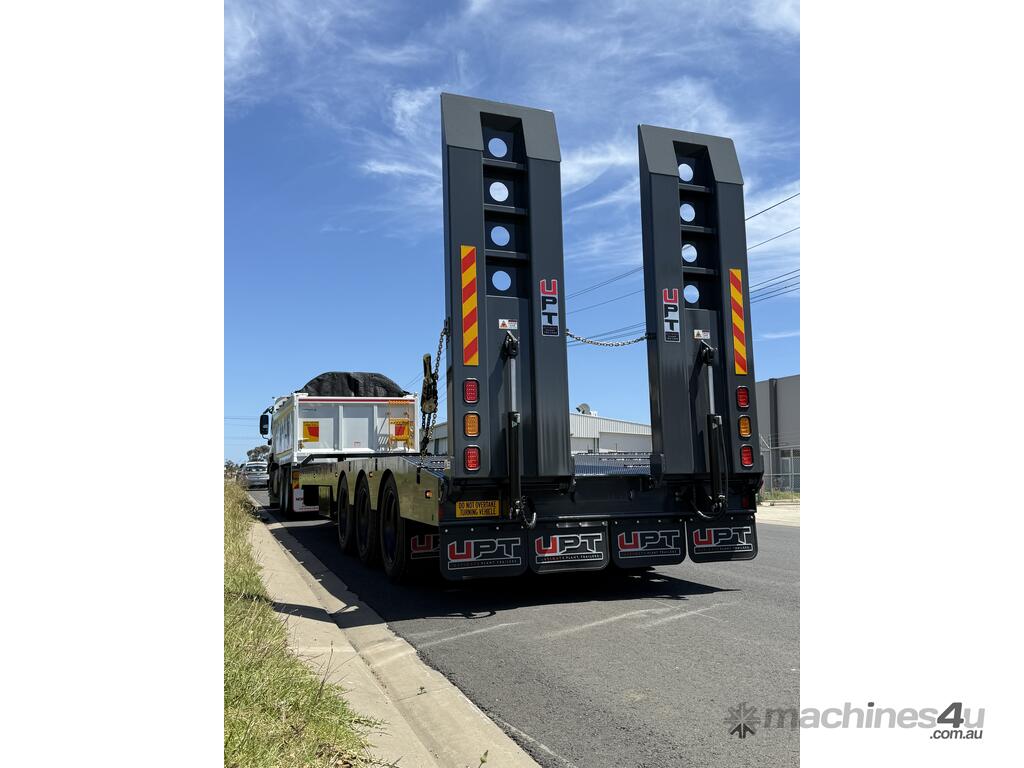

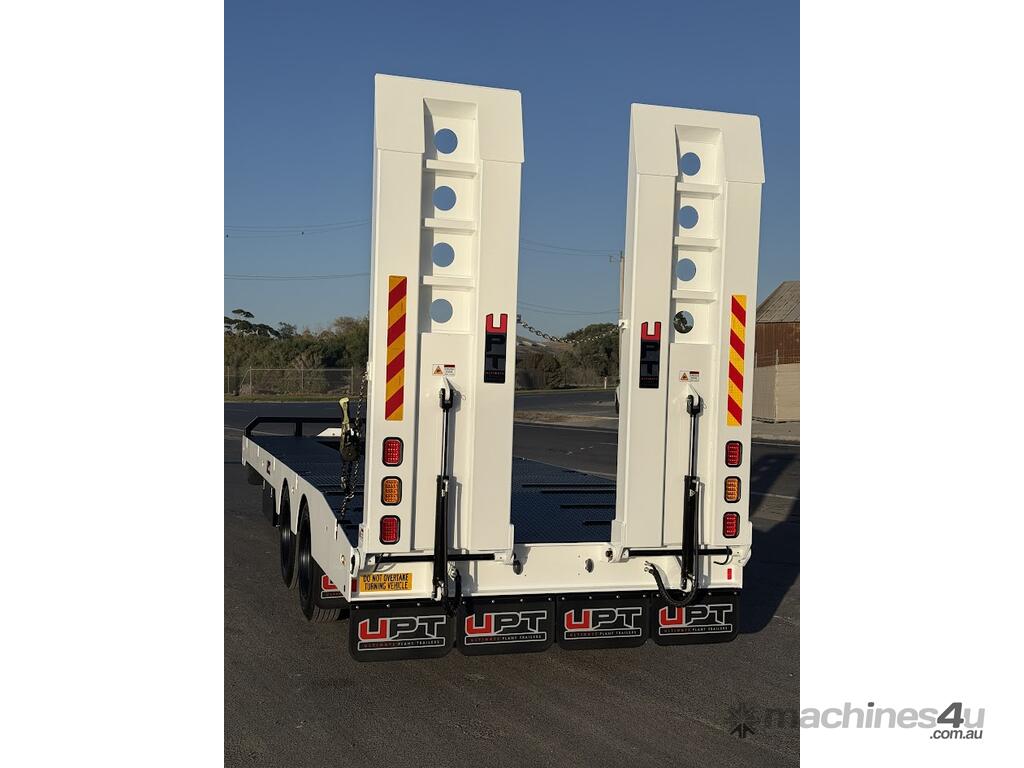

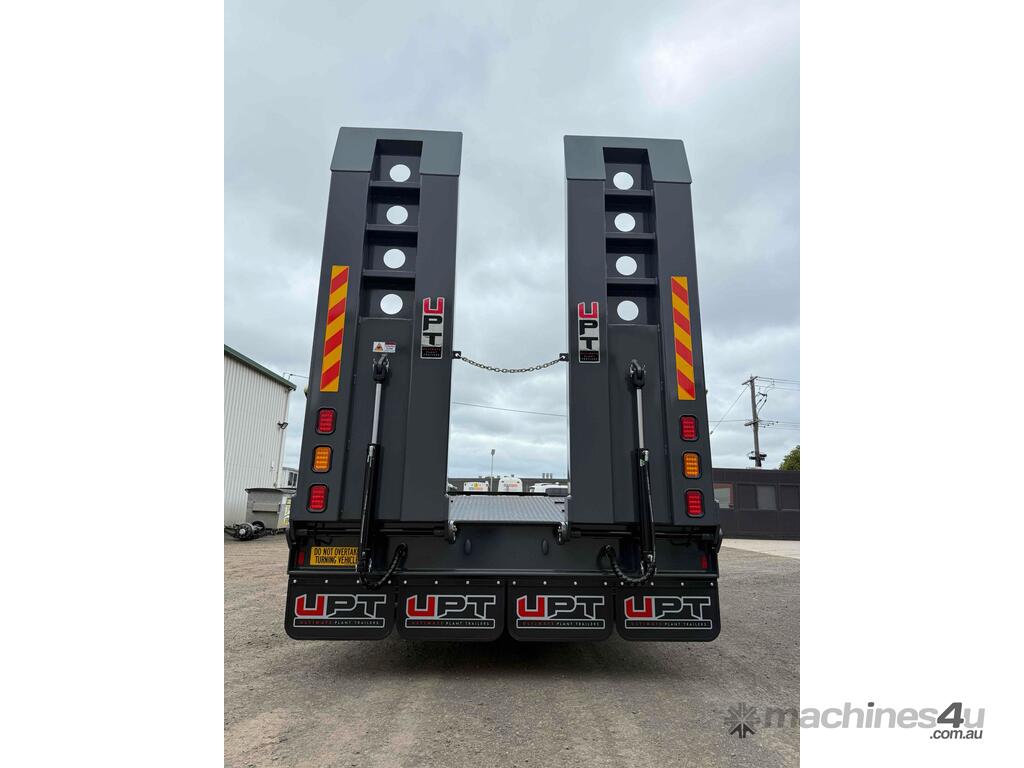

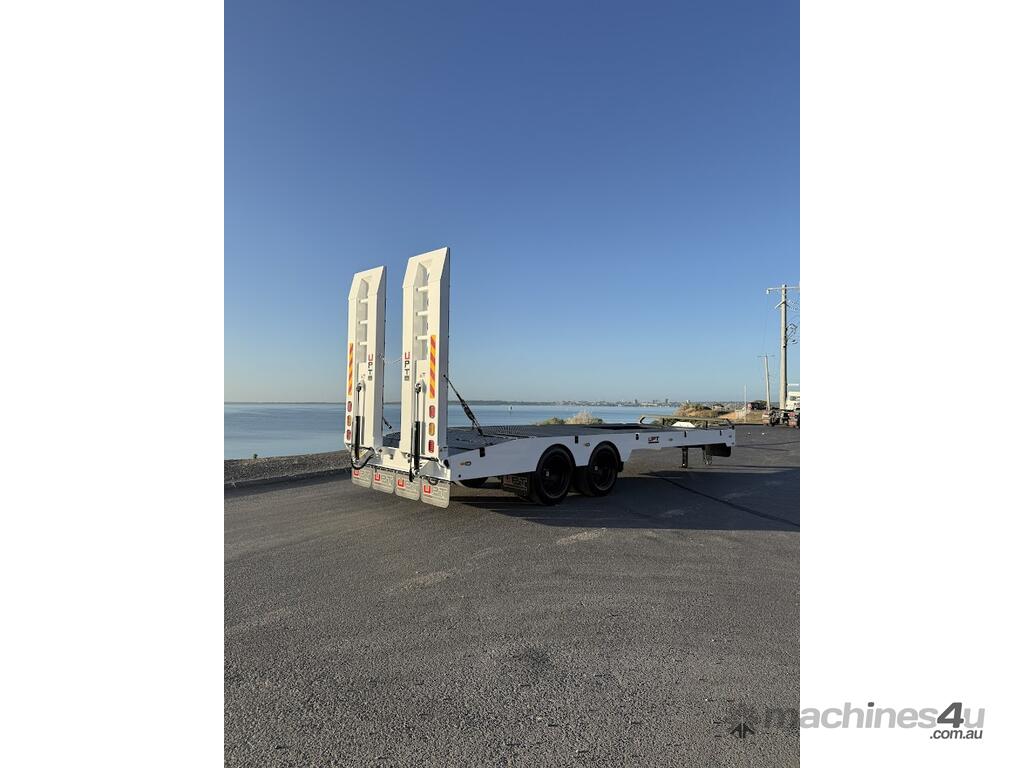

- 2700mm x 850mm heavy-duty ramps with greaseable bushes
- K-Hitch 22.5 axles
- Mechanical spring suspension
- Wabco EBS multi-volt braking with rollover and stability control
- ADR approved multi-volt lighting
- Anti-sail mudflap brackets
- 16 x 10mm in-deck BisAlloy chain tie points
- 10 coaming chain bars designed to sit under machine tracks
- Haulmax tyres (Designed & engineered for Australian conditions)
- Drop-down rear landing legs
- Class 3 sandblasted full trailer, including the underside
- PPG Protec EX-408 zinc phosphate primer
- PPG Protec 625 2-pack
- 2 dogs for ramp dogging
