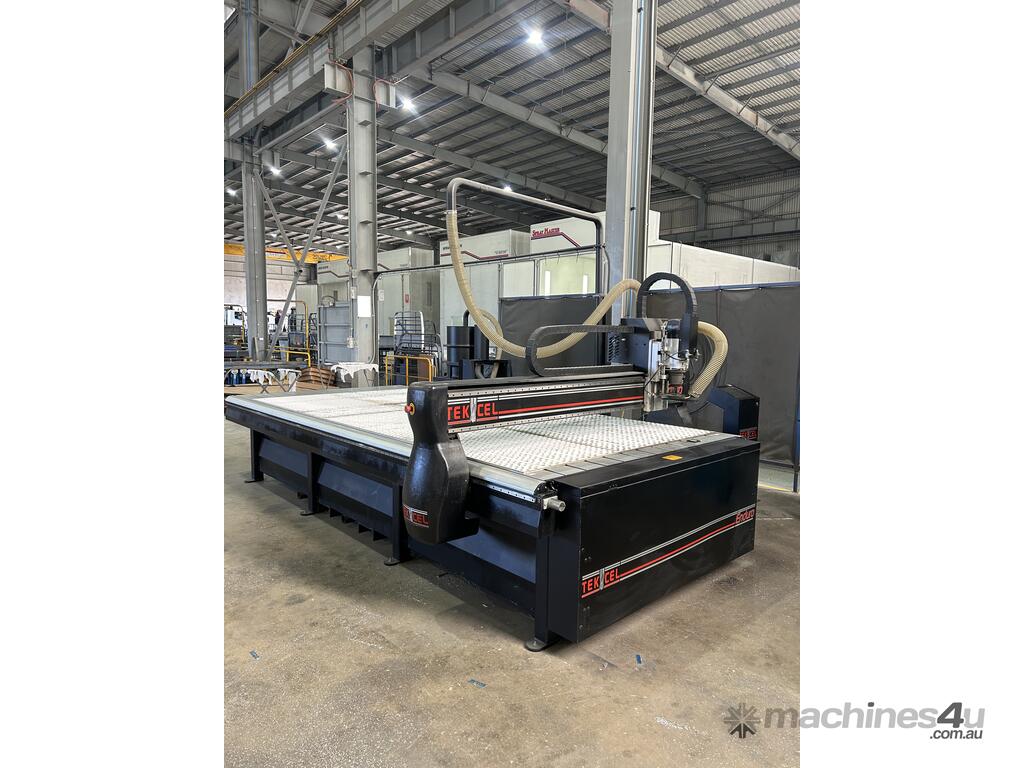

2022 Tekcel CNC Enduro Router with a 2000mm x 4000mm bed and Auto Tool Change.
Installed December 2022 with minimal use on Aluminimum sheet.
Excellent and reliable machine.
Features:
- Router Cutting area (X 4100mm x Y 2058mm x Z 140mm)
- HSD ES951, 9kw Spindle ISO30 tool coupling (Italian made)
- Auto Tool Change, Pop up Tool Rack with provisions for 17 Tools
- Tommotek state of the art Gen III Controller (Designed and Manufactured in Australia)
- Touch Screen Controller (Stand Alone Pedestal)
- Ball Screw Technology used on all 4 axes X, Y and Z (better accuracy)
- AC Servo Drives and AC Motors on all 4 axes (Delta)
- Multi Zone Vacuum control valves to section off for customer’s job sizes
- Vacuum Table hold down pump with silencer (2 x 2 stage 7.5kw pump, Auto start)
- Dust Extractor with silencer (1x 2 stage 5.5kw pump, Auto start)
- Automatic Reference Stops (5 Pop up pins)
- Wireless Tool Length Sensor (Tool length sensing)
- Pressure Coolant Atomiser 2 nozzles for cutting Ally
- Laser pointer is used to set the job origin and tracing the job boundary
- 6 x Tool Holders, 6 x Collets and 6 x Tool bits from our range
- CNC Machine Hand Wheel – Cordless for accurate positioning and jogging
- 3D Model Viewer (at the machine) with Job Estimator
- ProfileLAB 2d software with Nesting - tool path creation software
- PC included to run Machine and Touch Screen can be wireless connect to your office network
