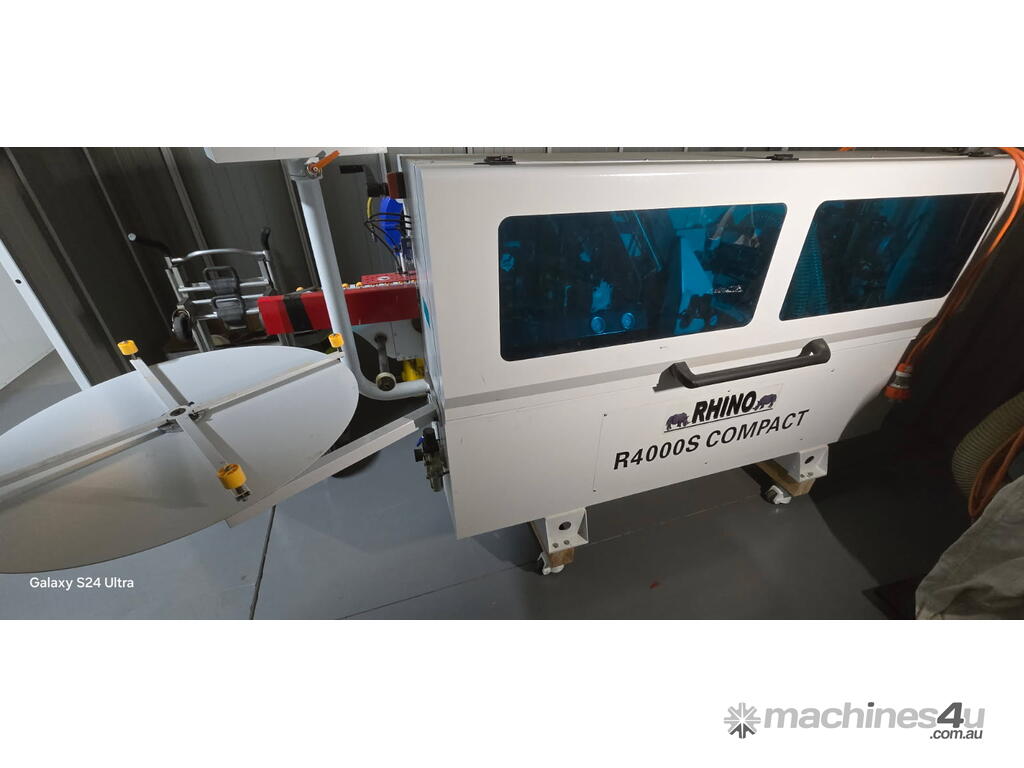

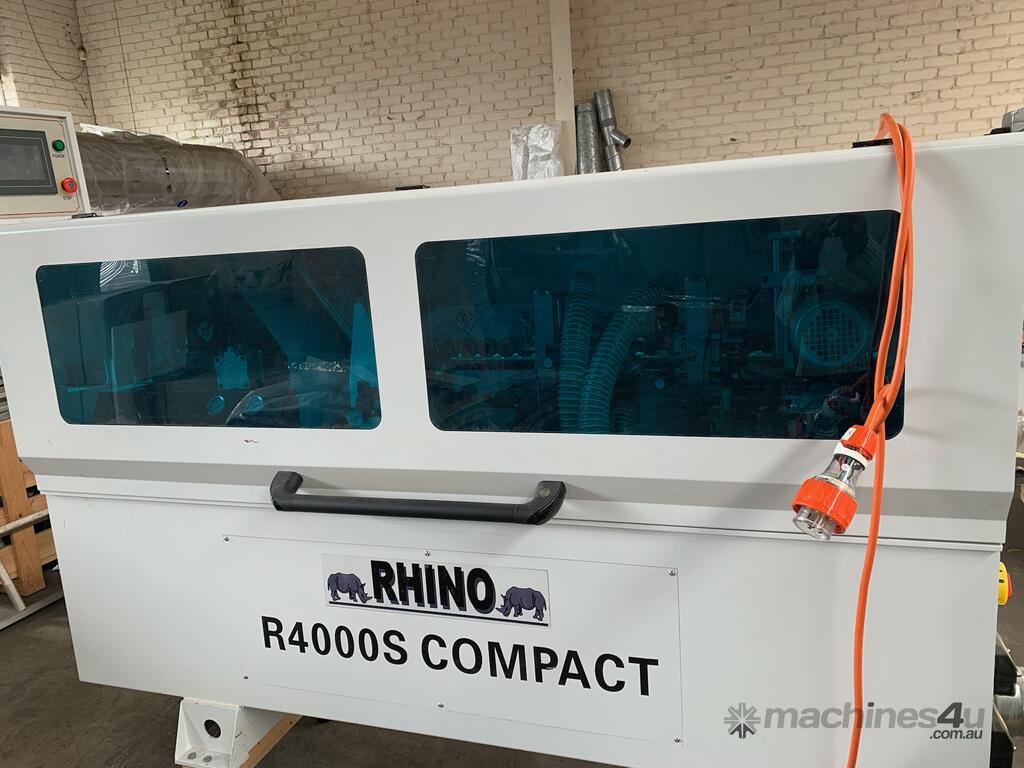

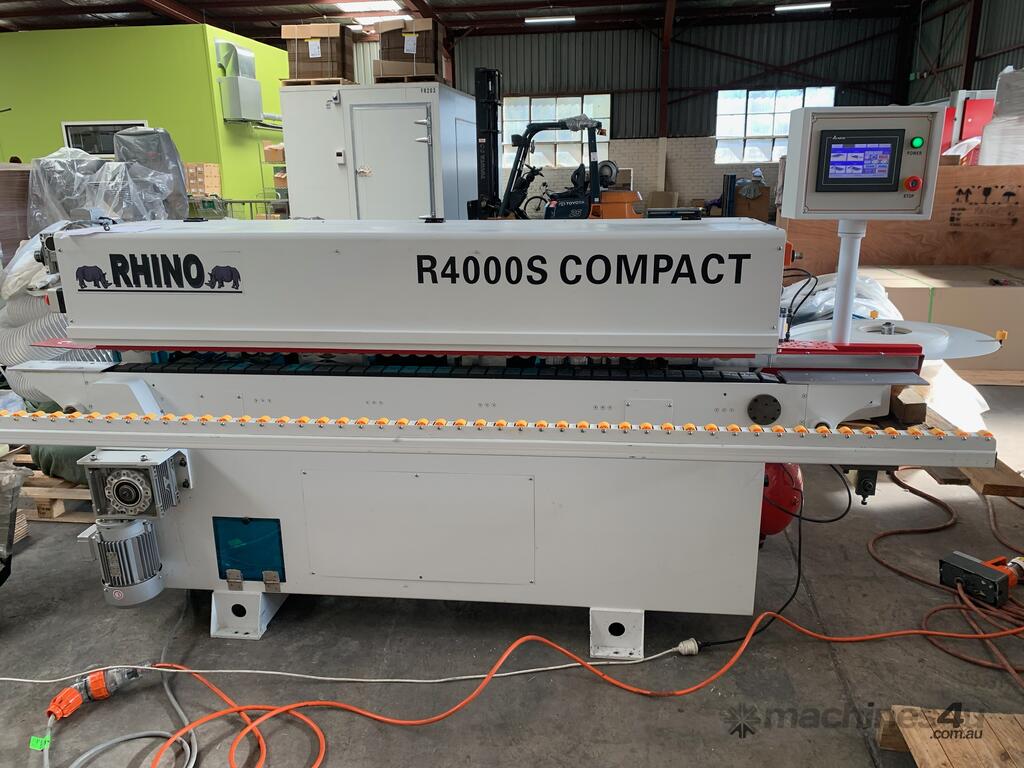

USED RHINO R4000S COMPACT EDGE BANDER 2020 MODEL

NOW AVAILABLE, USED 2020 MODEL RHINO R4000S COMPACT EDGE BANDER

YOM 10/2020, FIRST SOLD IN 2021, machines in great condition having very little use since first sold in 2021. Machine fully checked and tested all functioning well with any worn parts replaced. INSPECTION WELCOME!

WORKING UNITS:
- Hot melt Teflon coated glue pot & press roll system for tape
- End trimming via 2 motor End Saw unit & high frequency motor
- Top & Bottom Edge Trimming
- Top & Bottom Radius Scrapers
- Top & Bottom Buffing

MACHINE FEATURES:
- Board feed system via Rubber Pad Caterpillar track, chain driven with overhead rubber press rolls
- Hot melt Teflon coated glue pot
- Pre-heated infeed fence
- End cutting, by two high frequency motors 2 x 0.5kW, 12,000 rpm / min.
- Edge trimming, by two high frequency motors 2 x 0.5kW, 12,000 rpm / min.
- Capable of running tape 0.4 – 2mm
- Board thickness 12-45mm
- Min. board width 80mm
- Min. board length 150mm
- Feeding speed 12mt/min
- All high frequency motors fitted with Delta 3 Phase inverters for more power and braking
- Top beam with rise and fall controlled electrically
- Entry gate stop feed cylinder
- Insulated sound proof hood with viewing window and fluorescent lighting
- Built in electrics for dust extraction and controls for start up (upto 4kW) with the Edge Bander
- DELTA Touch Screen controller
- 6 Wing large diameter radius cutters
- Temperature stand by if not used for a pre-determined period of time
- Runs on 20Amp 3 Phase electric circuit
- Readouts on trimmers & scrapers
- Includes dust extraction under cut off saws, top & bottom trimmers and scrapers
- One common 150mm diameter dust extraction outlet via manifold
- Linear guide rail for end cutting function

PRICE $15,000 +gst FOT Seaford VIC

Available ex stock Seaford VIC 3198.
