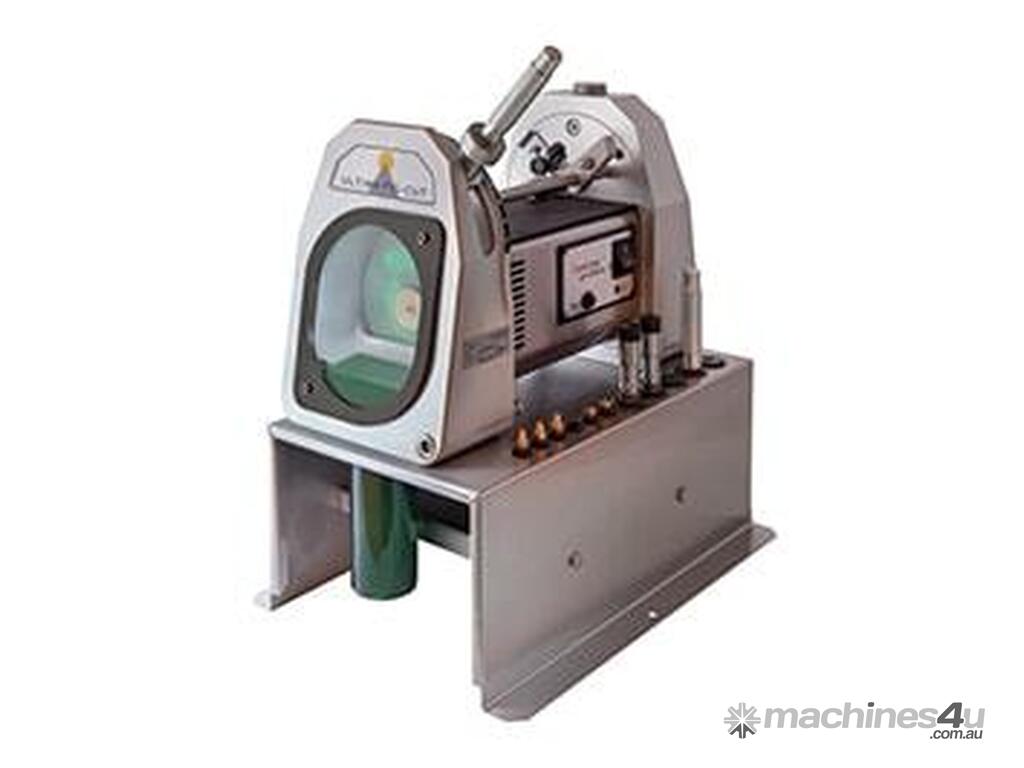

Ultima-TIG-Cut TUNGSTEN GRINDER AND CUTTER

Ultima-TIG-Cut is our wet grinder of Tungsten electrodes with a cutting module that ensures precise grinding at the correct angle and perfect centring of the tip as well as precise and safe cutting of the electrode.

Highlights
Safe cutting without the electrode splitting
Sealed grinding and cutting chamber with dust collector to protect the user
Variable cutting length and angle setting gives more flexibility
Wet grinding prevents overheating of the electrode during grinding
High grinding speed provides faster grinding and a smooth surface
The electrode holder ensures centring of the tip and reduces electrode waste
Less electrode waste results in a short payback time
Description
High-quality Tungsten electrode grinding
Environmentally friendly and safe
Ultima-TIG-Cut is an environmentally friendly wet grinder and cutter of Tungsten electrodes for TIG welding, with minimal waste of the expensive electrodes. Ultima-TIG-Cut is constructed with a unique disposable container that automatically collects the toxic dust particles and ensures safe disposal.

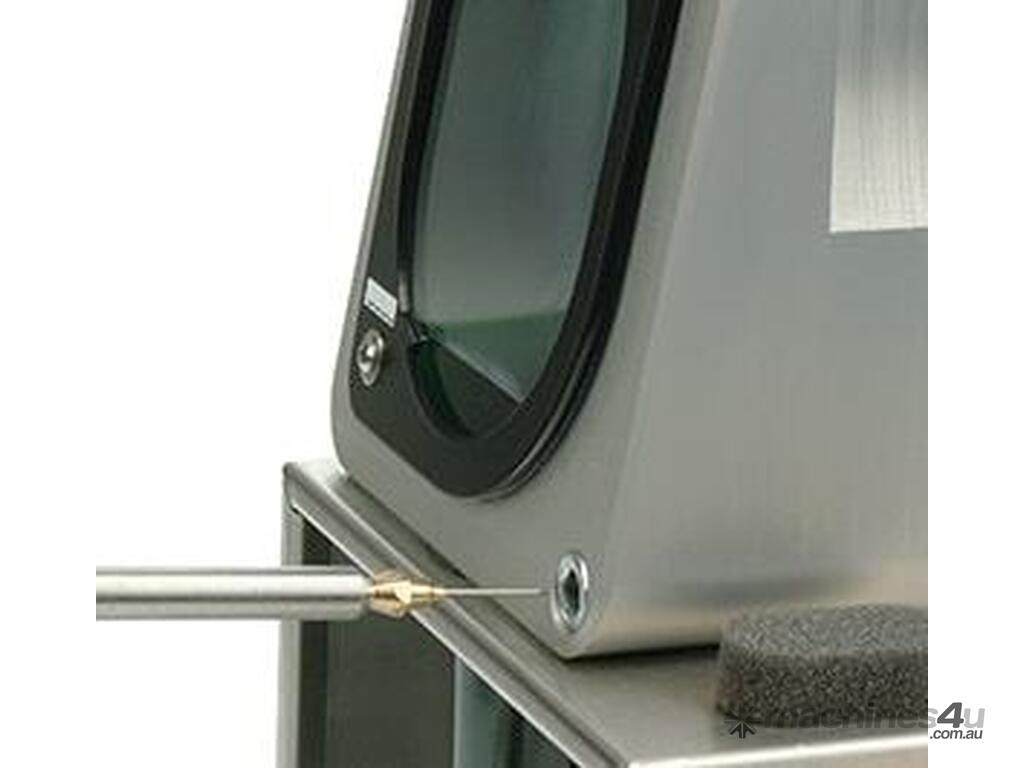

Cutting

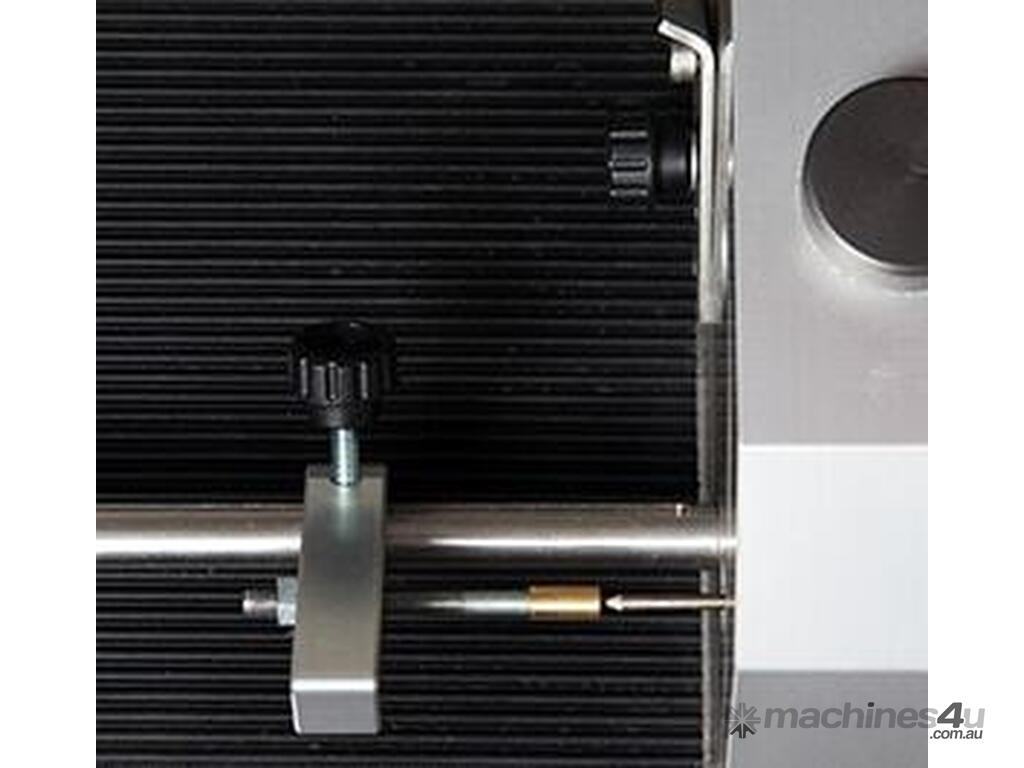

The cutting module has many setting options, which ensures the precise length needed. Ultima-TIG-Cut makes it simple to make electrode tips with the exact angle and precise length for use in any specific TIG welding job, including robotic and orbital welding.

High quality

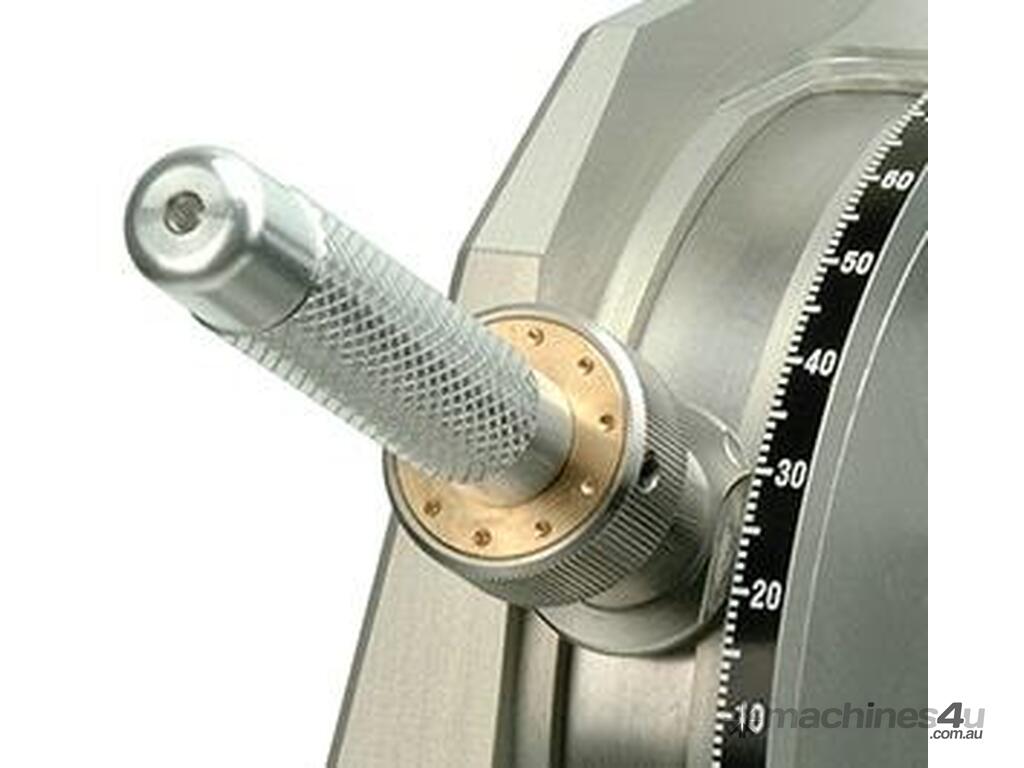

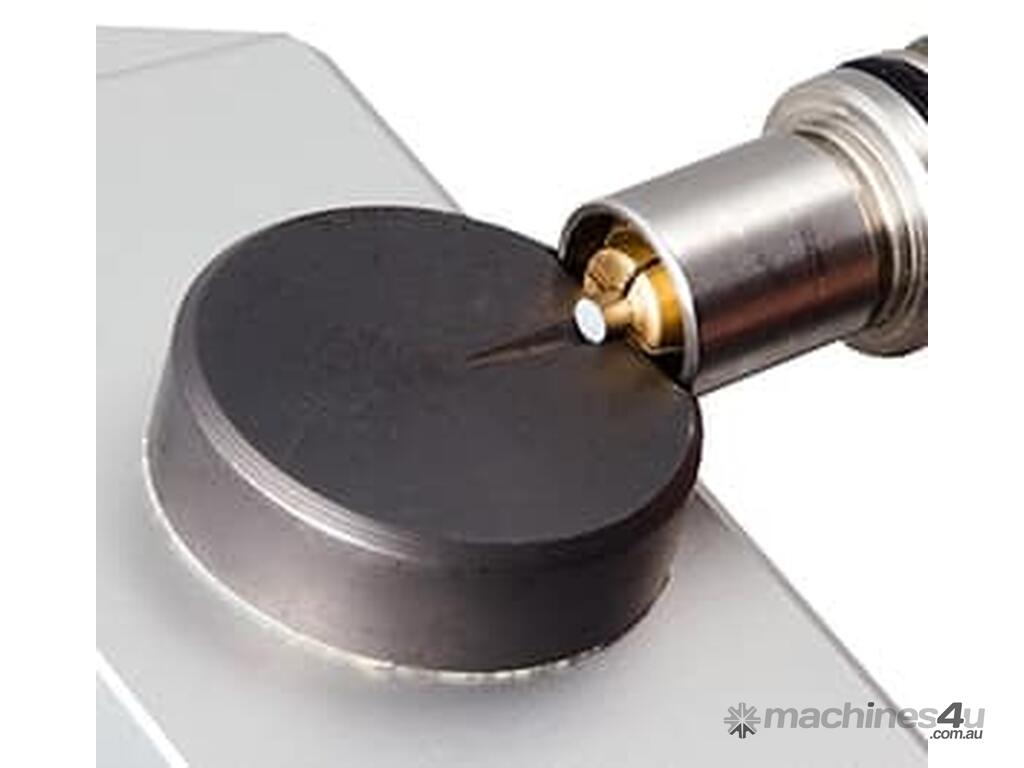

Variable angle setting and unique clamping system centres the electrode so that the grinding is carried out correctly in the longitudinal direction of the diamond disc´s running surface. A precise angle of the electrode tip is crucial for weld quality and it increases the number of re-ignitions so that the electrode life is extended.

Simple operation
It is possible to grind and cut the electrode without removing the electrode from the holder. Hence, handling is very simple. Adjust the grinding angle and length once, and produce the same electrode tip again and again.

New engine control with
Service indicator
Overload protection
Readout the number of grindings
Specifications
Grinder facts
Electrode size: Ø0.8 – 4 mm

Cutting: down to 8 mm length

Min. length: 15 mm standard (8 mm with special clamps)

Angles: 7.5° – 90° grinding angle (equal to 15° – 180° tip angle)

Technical specifications
Motor: 110V-50/60 Hz, 220V-50/60Hz

Motor effect: 280W

Motor speed: 6000 rpm

Grinding speed: 31 m/sec.

Standard unit includes
Complete grinding and cutting machine including table, diamond discs and grinding liquid

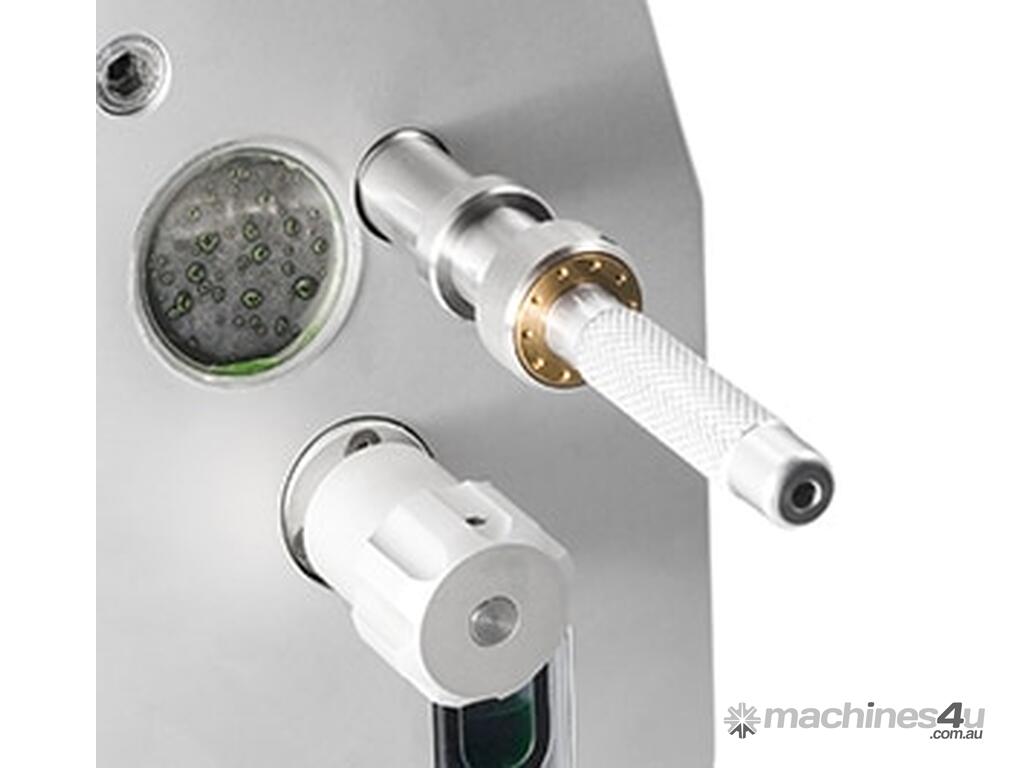

Electrode holder
Electrode clamps for Ø1.6 – 2.4 – 3.2 mm electrodes for grinding
Electrode clamps for Ø1.6 – 2.4 – 3.2 mm electrodes for cutting (Clamps are available for other diameters)
