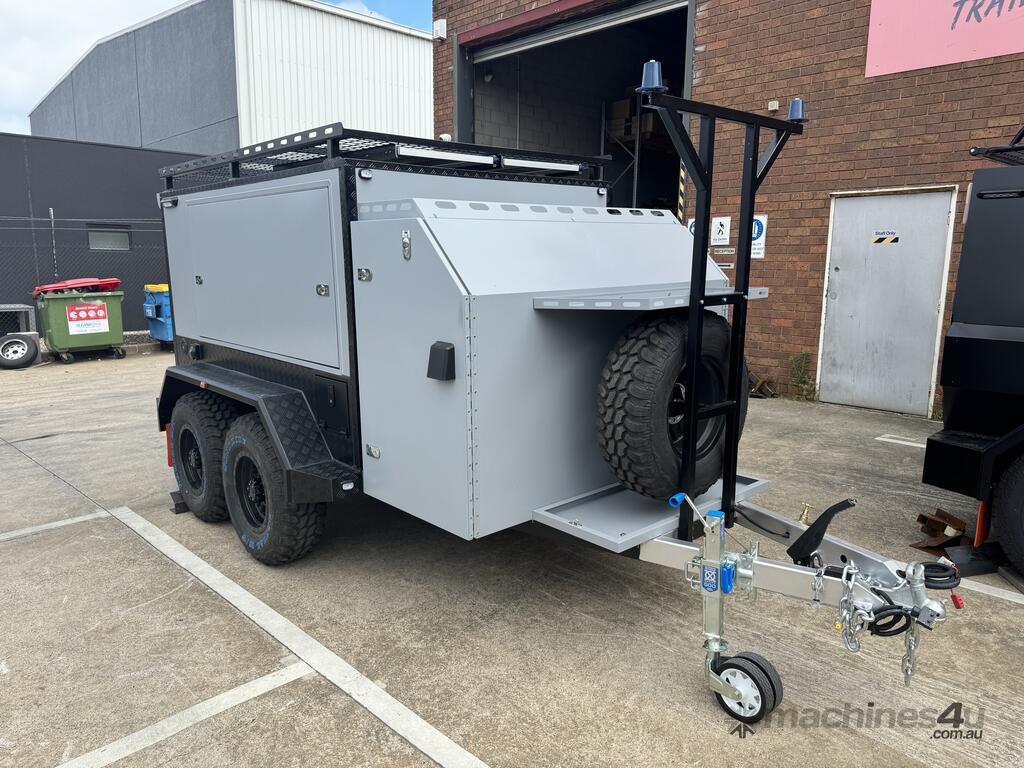

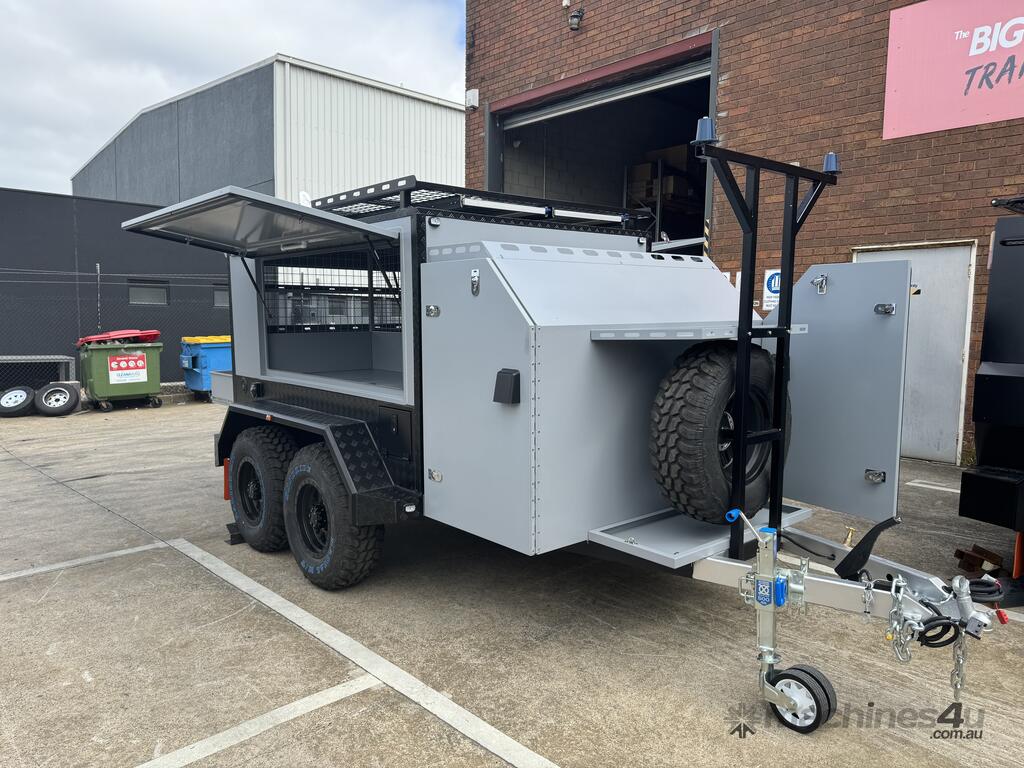

About the 8x5 Carpenter’s Trailer – Grey
Designed for the discerning builder and tradesperson, the 8x5 Carpenter’s Trailer – Grey combines functionality, durability, and style. Its comprehensive storage system with specialized compartments, slide-out drawers, and under-compartment storage ensures maximum organization for all your tools and equipment.
Built to handle tough jobs, this trailer comes with:
Tare Mass: 1720kg
Aggregate Trailer Mass (ATM): 3500kg
Tyres: 265/75R16 inch
Drawbar: 1800mm

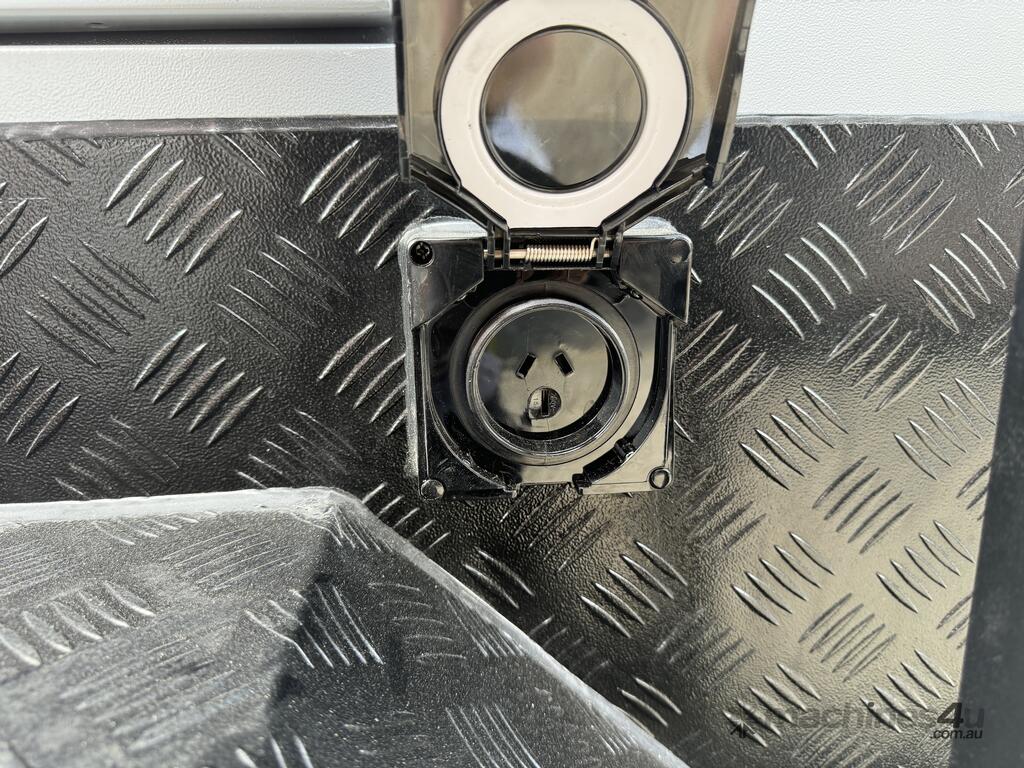

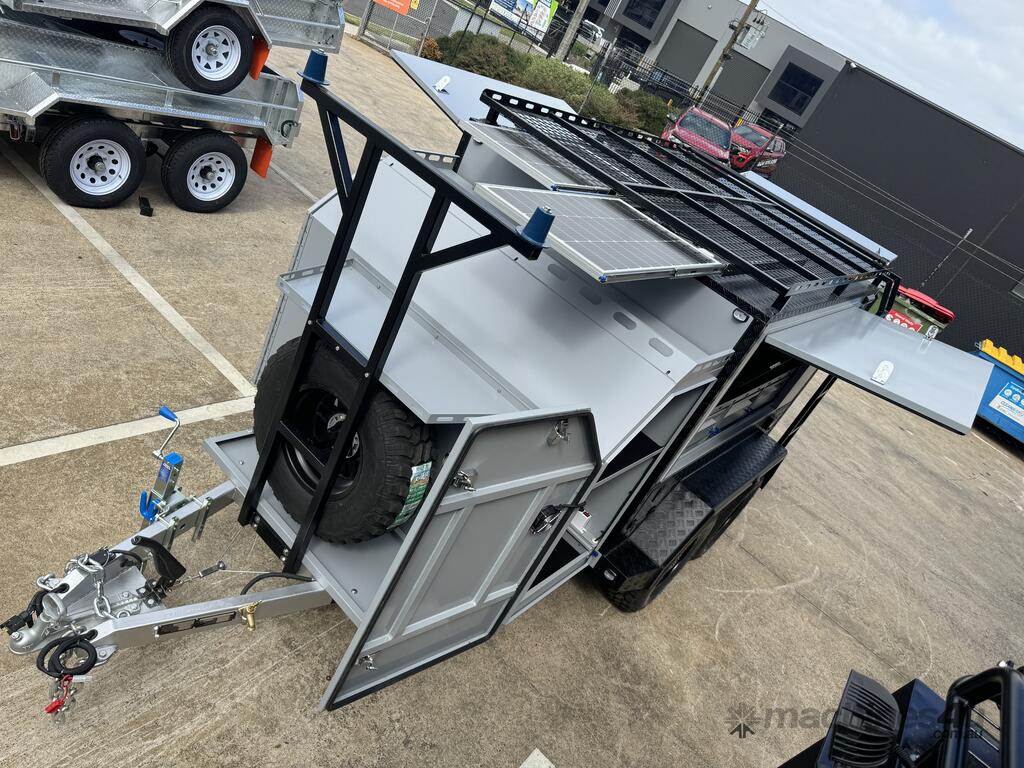

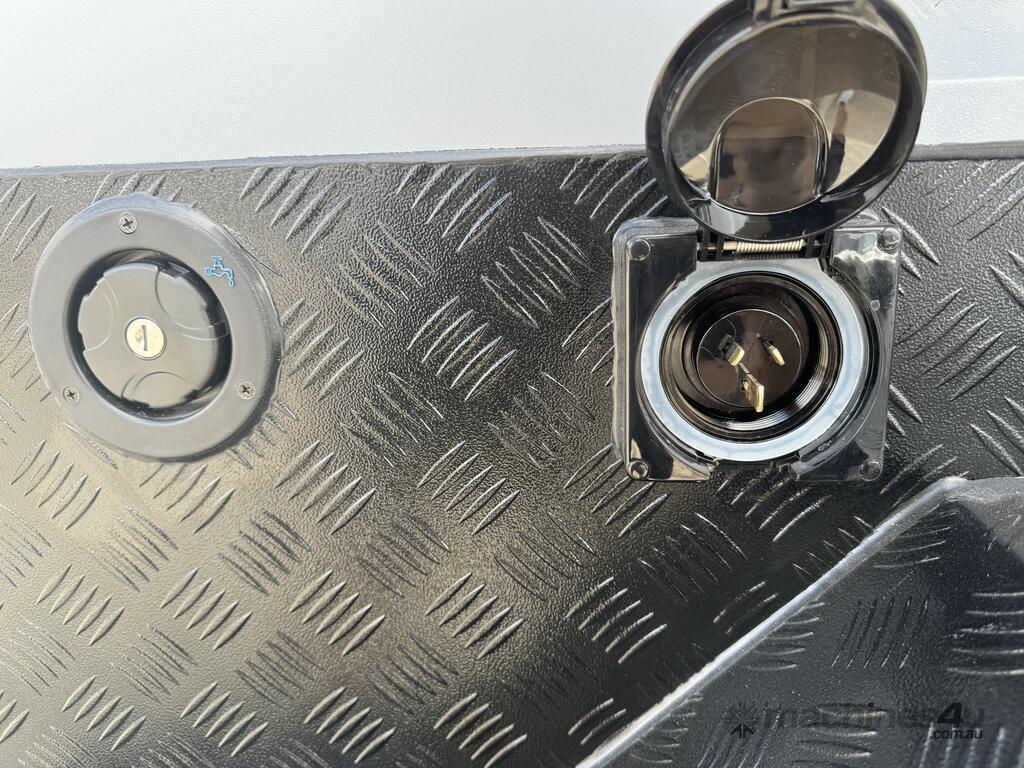

It also features dual batteries, Anderson plugs, external sockets, water gauge, and a 70L water tank for maximum efficiency on-site. Safety and convenience are enhanced with a black ladder rack, solar panel slide-outs, compression press-release locks, and a central locking system.
The rocker roller 8-leaf suspension, roof luggage carrier, and black checker plate finish add both practicality and professional style, making it an ideal companion for any worksite.

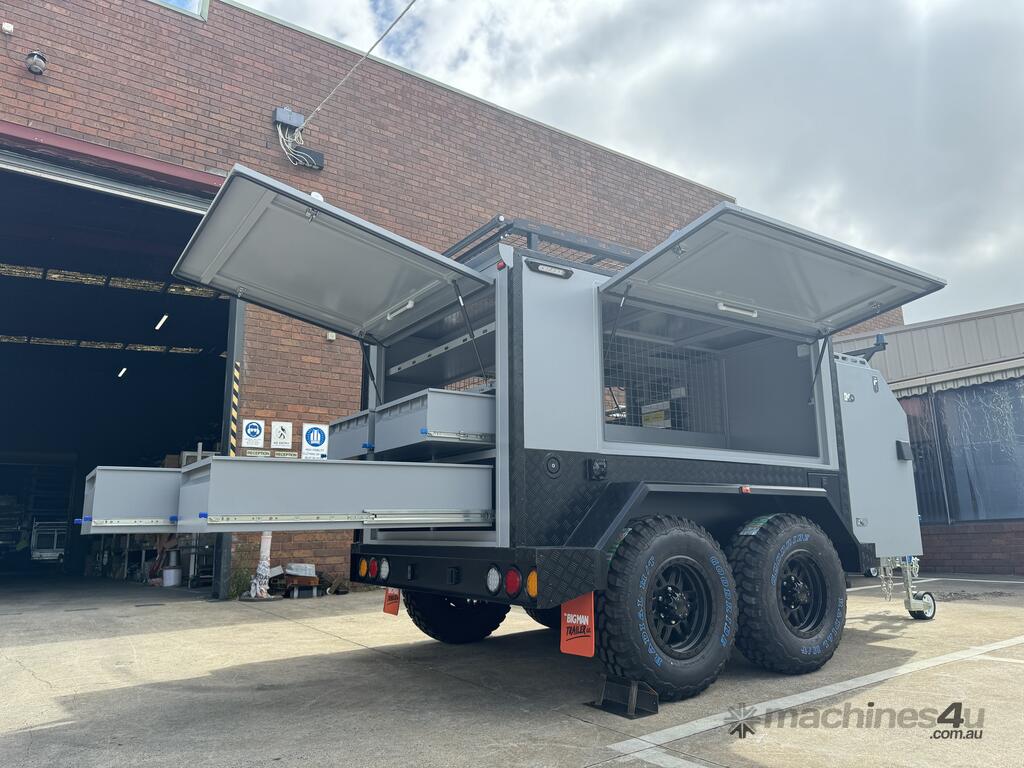

Storage Features

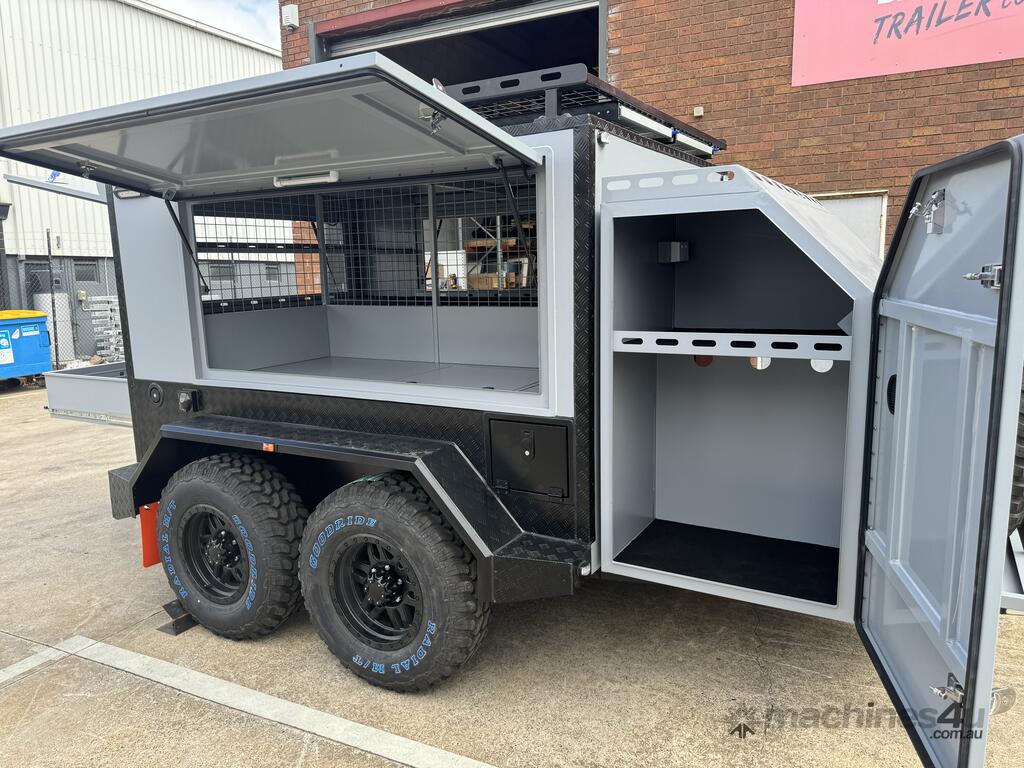

Left side main compartment: 1850 W x 810 L x 610 H
3x main drawers: 480 W x 740 L x 200 H each

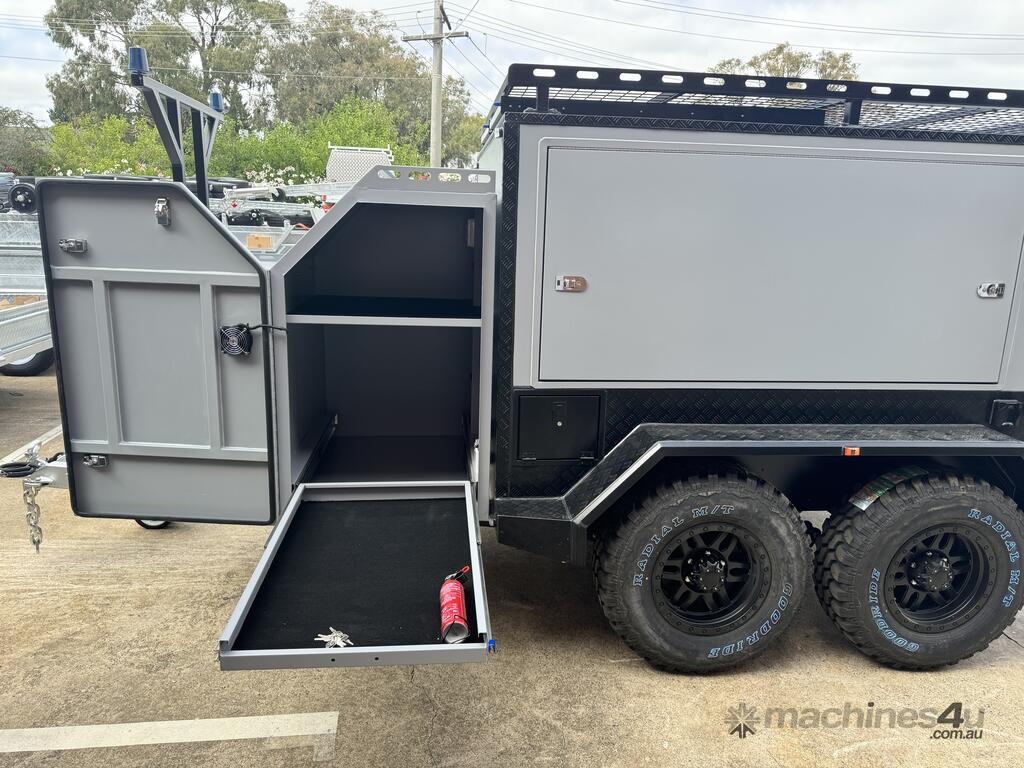

Left slide-out storage: 670 W x 1090 L x 660 H

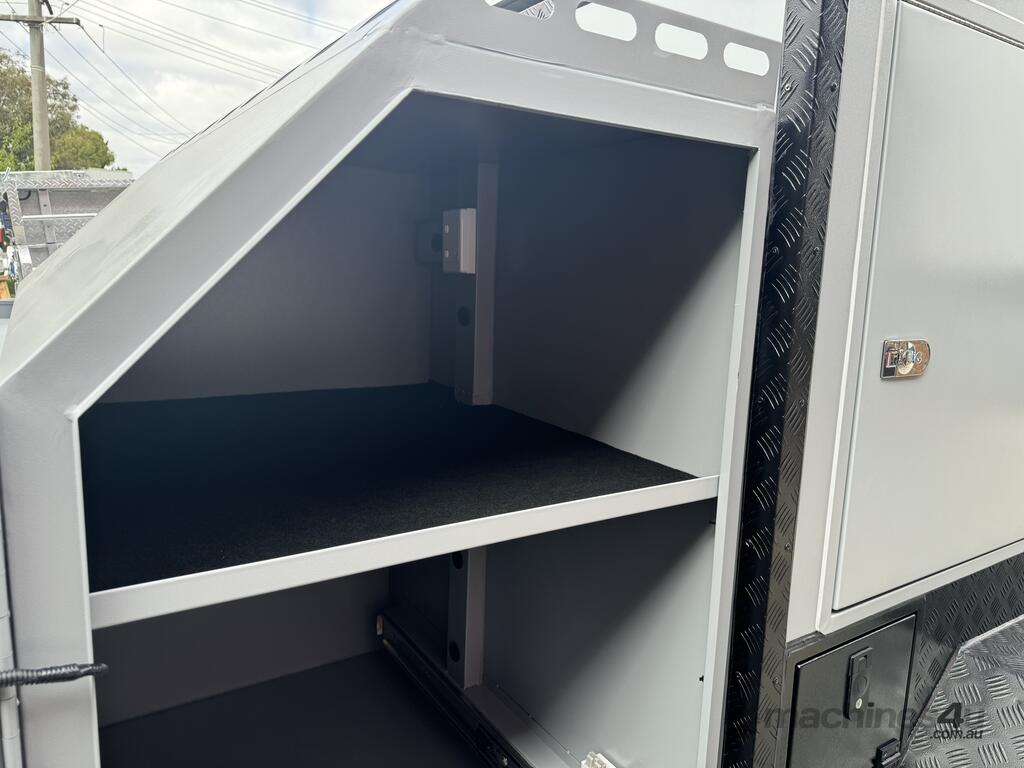

Additional left compartment above slide-out storage: 670 W x 760 L x 380 H
Right side main compartment: 1930 W x 810 L x 850 H
Right toolbox storage: 670 W x 550 L x 700 H
Additional right compartment above toolbox storage: 670 W x 870 L x 340 H

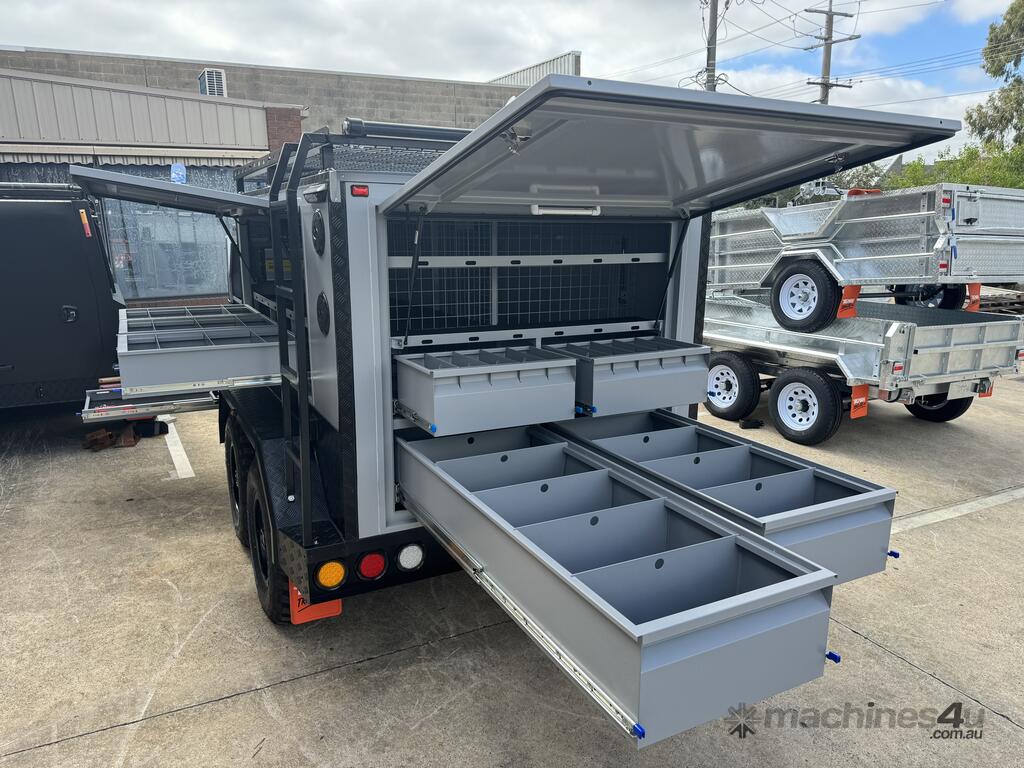

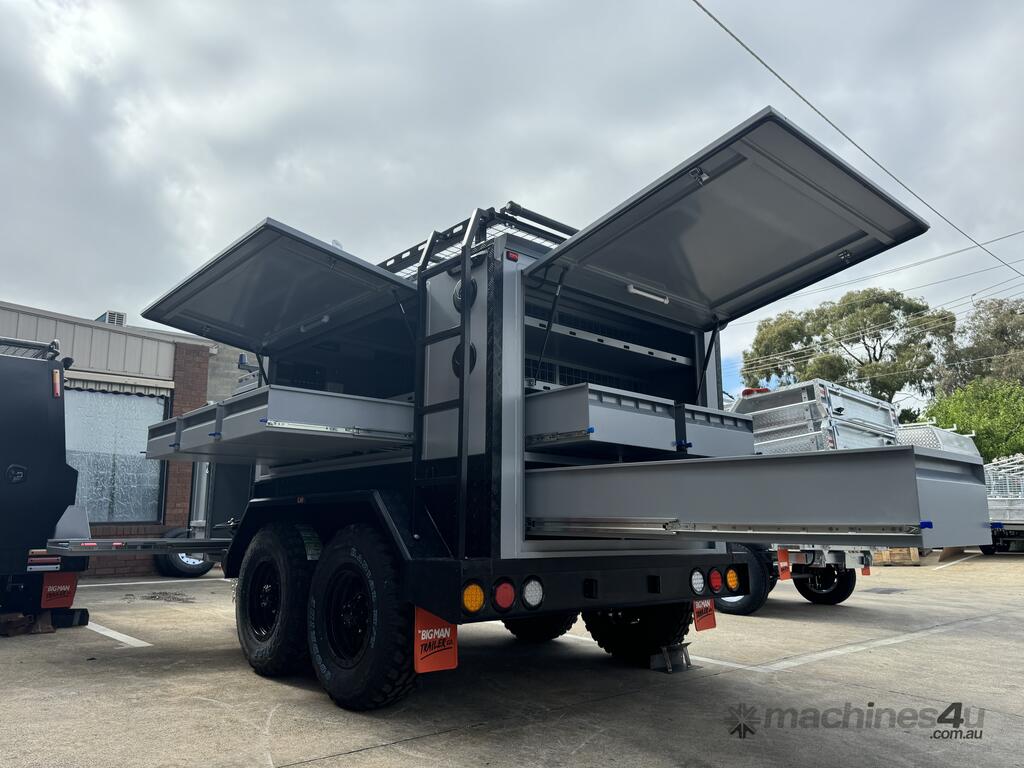

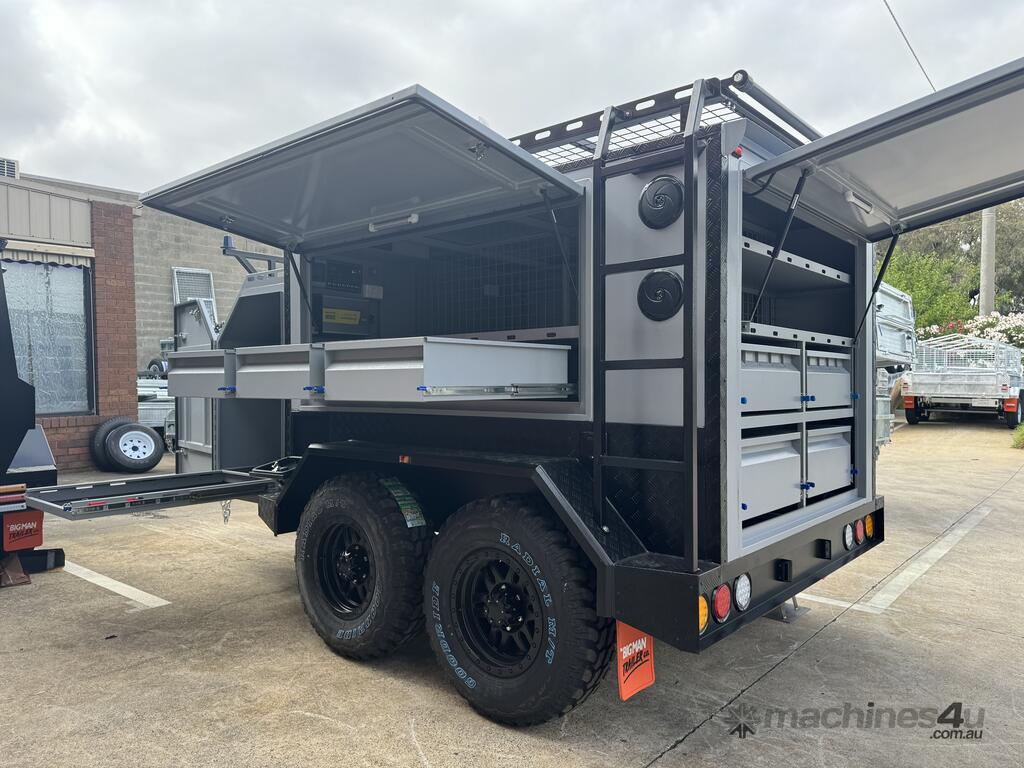

Rear storage:
2 shelves: 1680 W x 400 L x 220 H
2 pull-out drawers (middle): 570 W x 330 L x 210 H
2 pull-out drawers (bottom): Left 570 W x 1900 L x 360 H, Right 570 W x 1240 L x 360 H

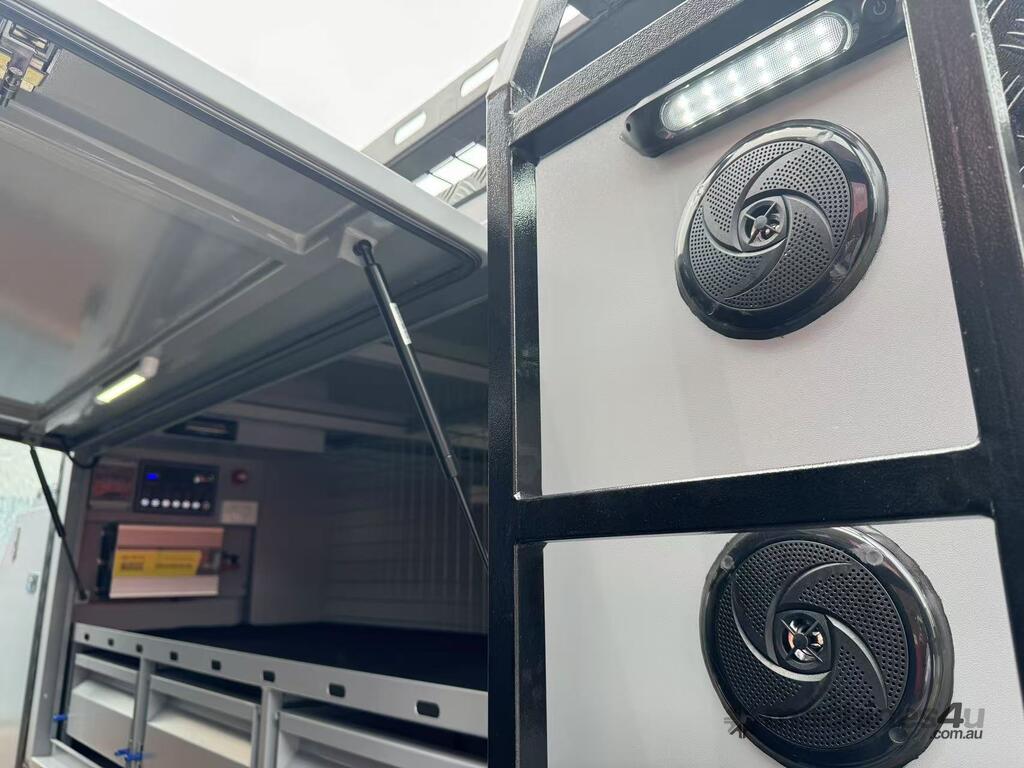

Additional: Power outlets, 2 speaker radios
Body Specs & Features
Overall Dimensions: 4800 L x 2100 W x 2170 H
Trailer Type: 8x5 Dual Solid Axle
Colours: Matte Grey, Matte White, Matte Black
Chassis: One-piece galvanized steel
Water Tank: 70L with 12V pump, water gauge, high-pressure tap on drawbar

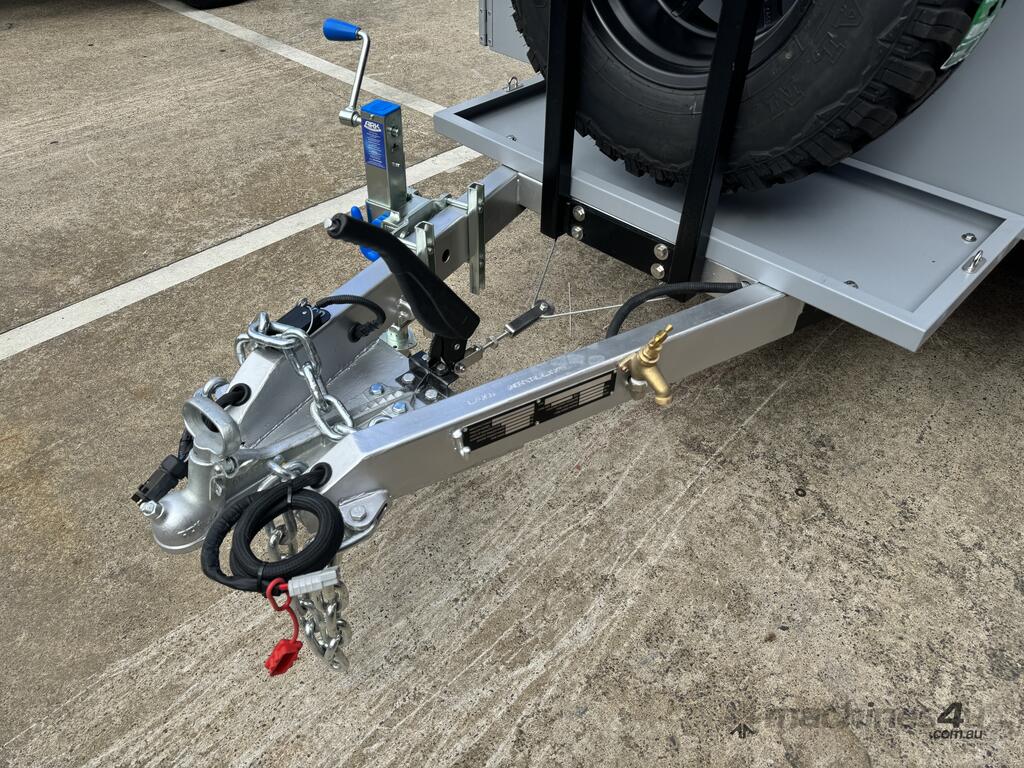

Drawbar: 1800mm long, 50 x 100
Rear Trundle Drawers: 1900mm, ball-bearing ladder roller

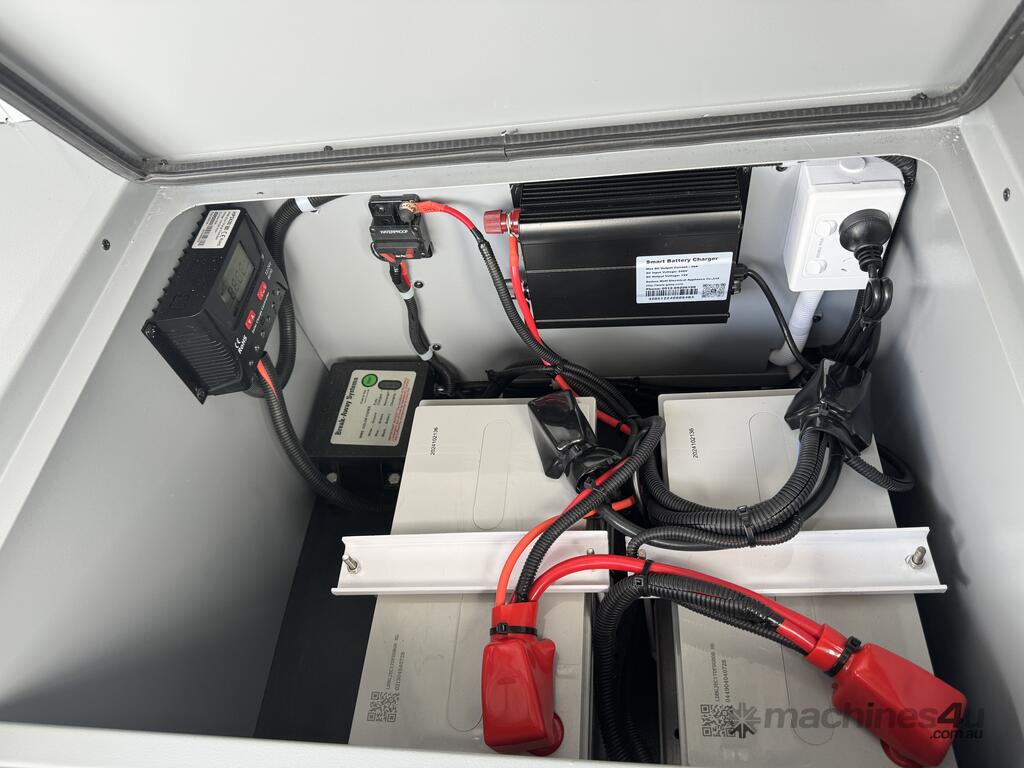

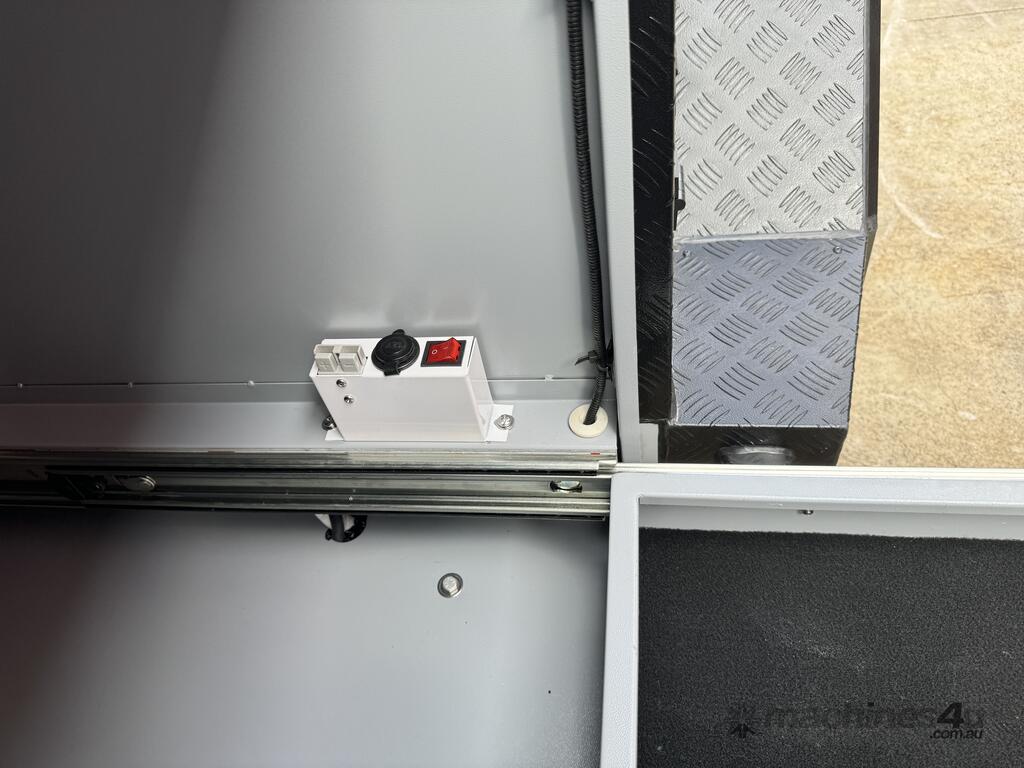

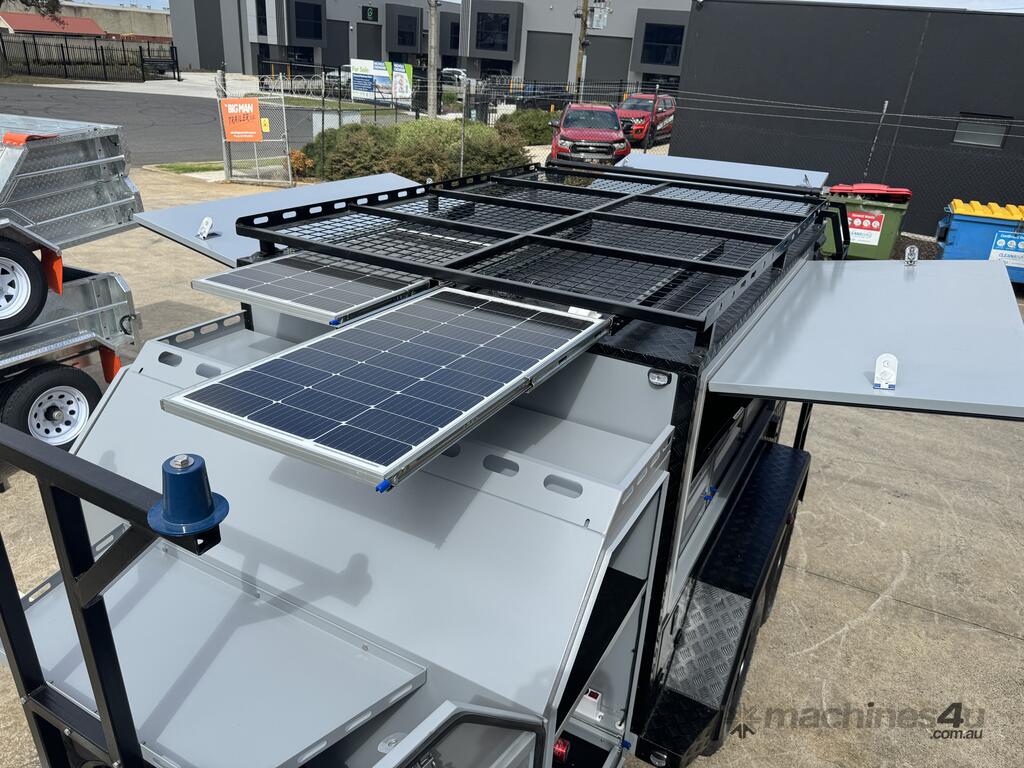

Power System: 2 x 100 Ah batteries, 2 x 110W solar panels, 2000W pure sine wave inverter, double GPOs, USB phone charger, 12V charger, Anderson plug
Brakes: 12-inch electric drum brakes all around

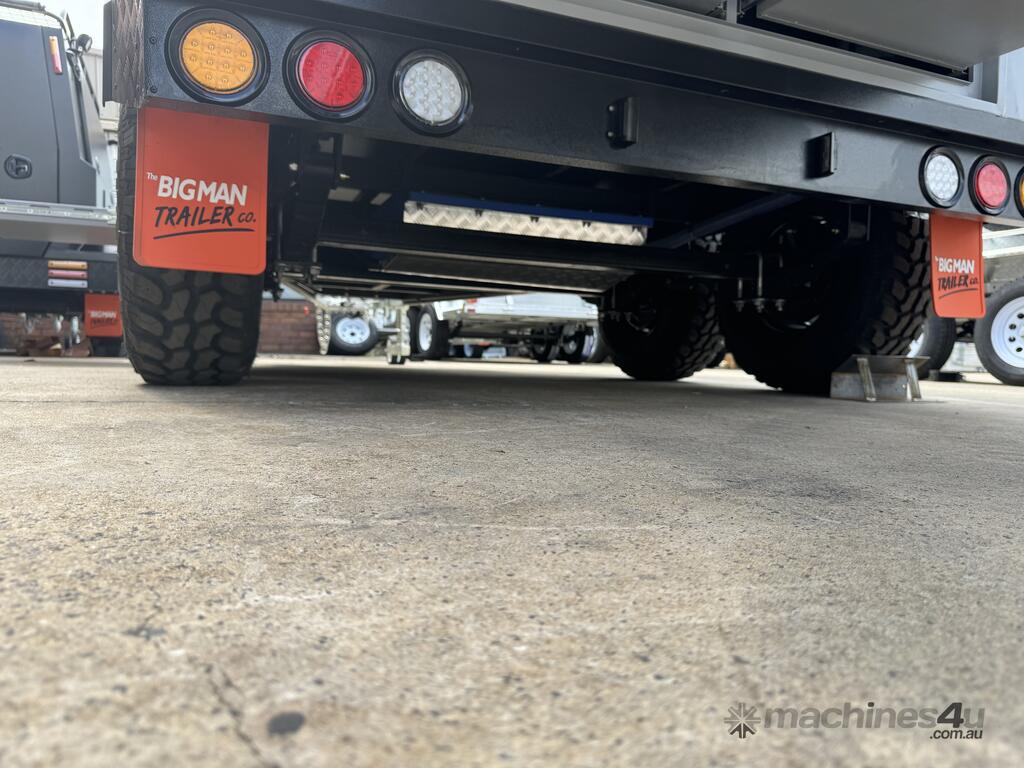

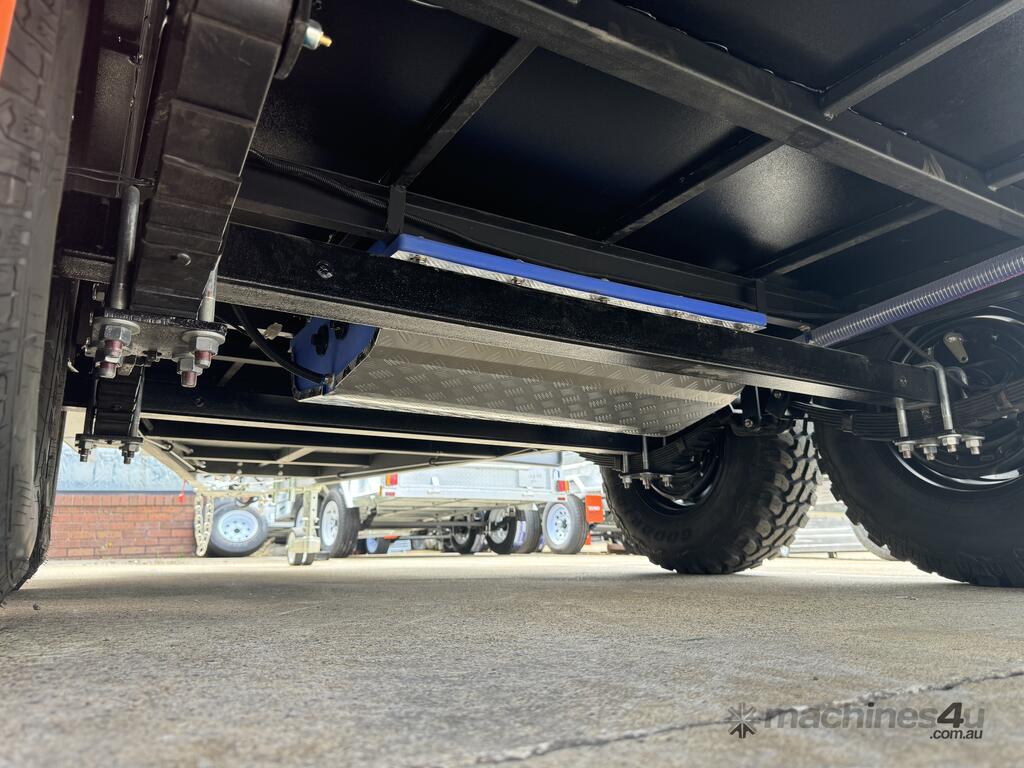

Suspension: 8-leaf rocker roller suspension
Axles: 70mm solid axles
Tow Ball: 50mm
Tyres & Wheels: 265/75R16 LT on black alloy wheels, Landcruiser 6-bolt hubs
Security: Compression press-release locks, central locking system
Extras: Free upgrade ARK500 jockey wheel, LED lighting inside & outside, roof luggage carrier, gas struts for doors, black ladder rack
