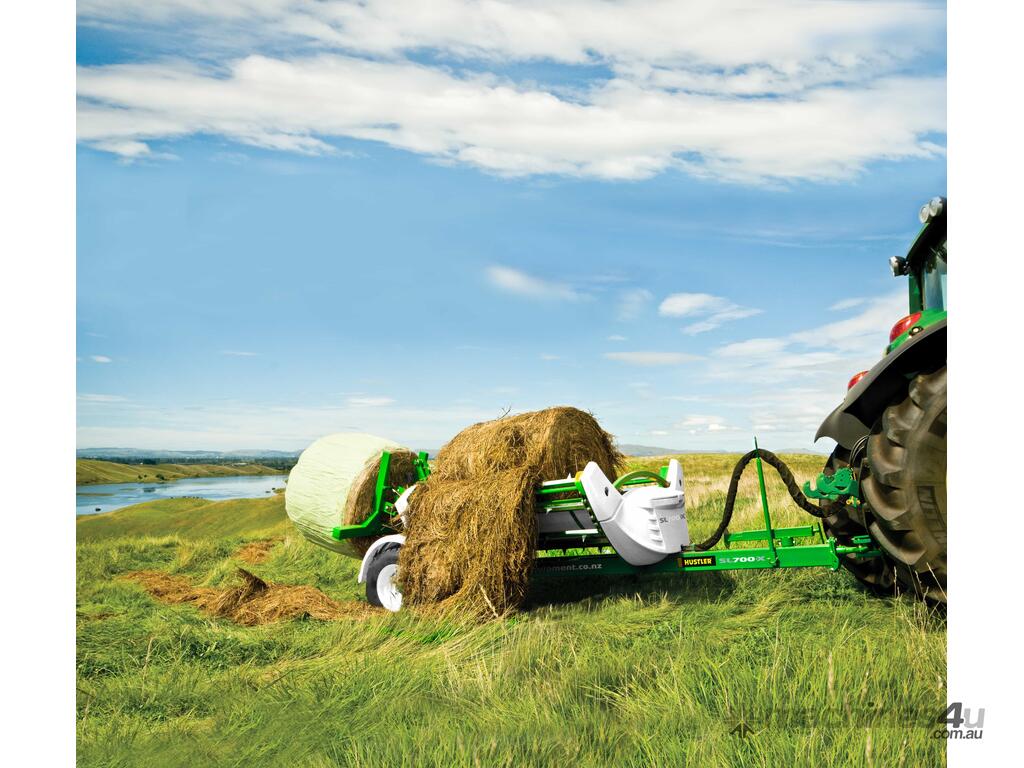

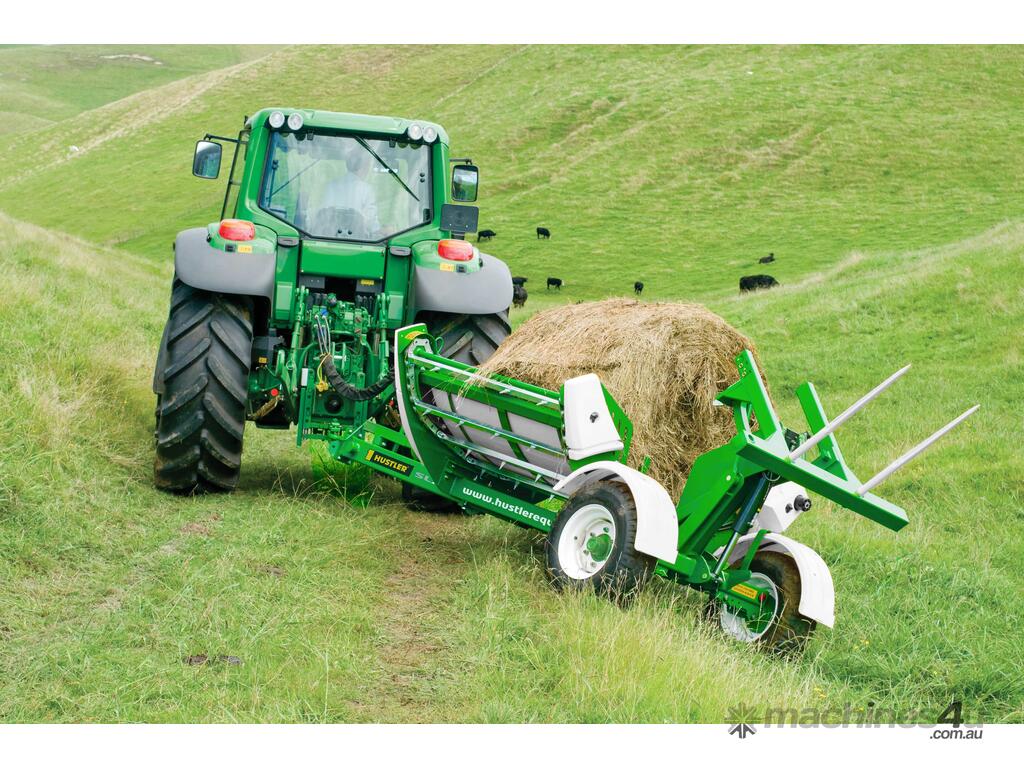

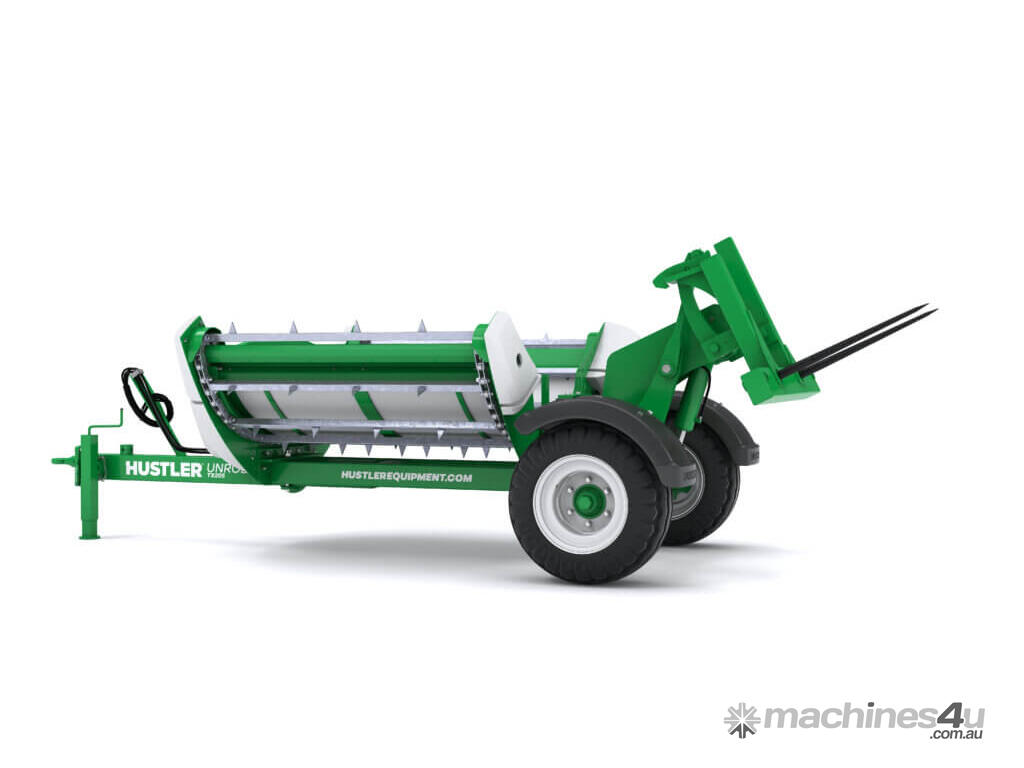

Unrolla TX205 > Trailed Round Bale Feedout Cart

The tough yet simple design of the Unrolla TX205 is self-loading trailed bale feeder that carries two bales per load and feeds out the widest variety of round bales, balage, silage, hay or straw, and even maize bales! It’s loaded with unique and patented features that make the chore of feeding bales easier than ever before.

Trailed self-loading two bale feeder.
The latest series 2 model retains the fundamental Hustler advantages such as the unique chassis design that protects the chains from dragging on the ground, the patented Total Control self-loading system, the toughest chain/floor setup on the market, and the ultra-low maintenance roller bearings and adds several improvements such as covered drive shafts to prevent wrapping, larger wheels for improved ride, improved stability, large string box as standard, and a beefier rear loading system for longer life.

- Toughest Chains in the industry - prevents stretching and lasts longer
- Toughest bars in the industry - 4-5 times stronger torsionally than some competitive machines
- Poly floor - doesn't corrode, and requires less torque to feed bales

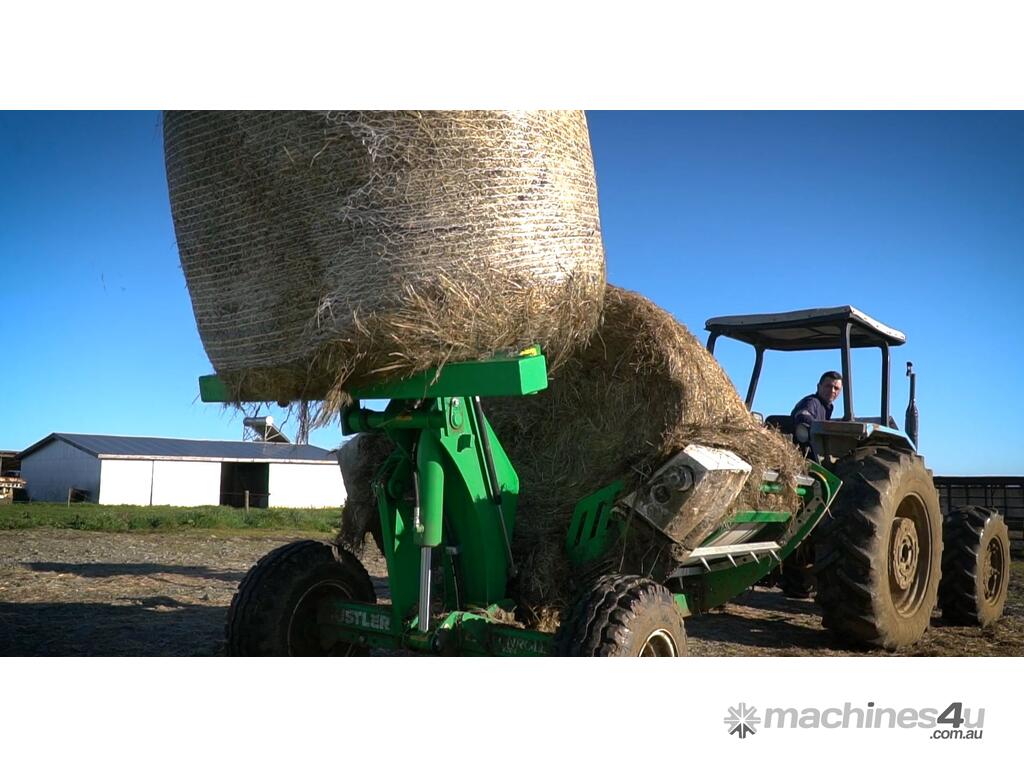

- Total control bale loading - bale doesn't roll off during transport, and provides safer loading
- Self-aligning bearings not bushes - last longer, and lower maintenance
- Chassis is the lowest point of machine - protects feeding chamber from damage when bellying out
- 3 position axle for ultimate stability

Specs:
Bale Sizes Round: 4' x 4' – 6' x 5'
Bale Weight: Up to 1,000 kg
Unit Weight: 980 kg
Capacity: 2 x bales (round)
Towing Eye: Adjustable height 45 mm swiveling forged eye. 12 t rated
Axle: 6 stud, 3-position adjustable track width, 60 mm square axle
Wheels: 11.5/80-R15.3
Hydraulics: 2 x double-acting, 30-60 litres/min 2250-3000psi
Loading: Patented Total Control Self-Loading System
Chain: Twin 12,000 lb roller chains

Options:
> Fenders
> Side rollers
