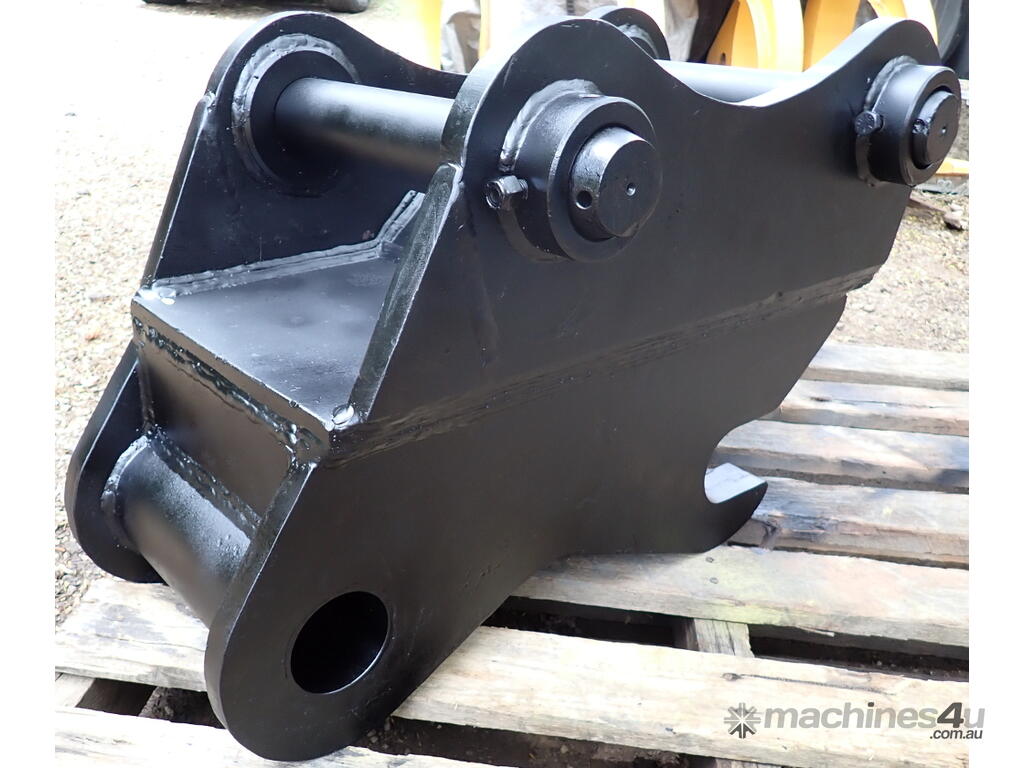

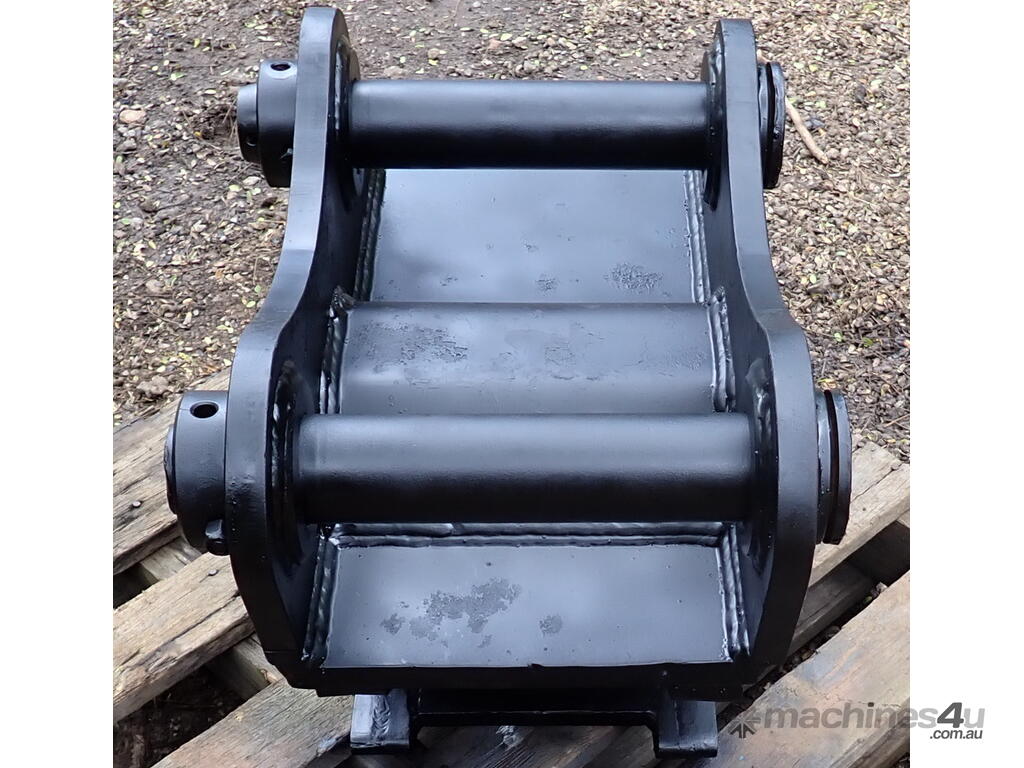

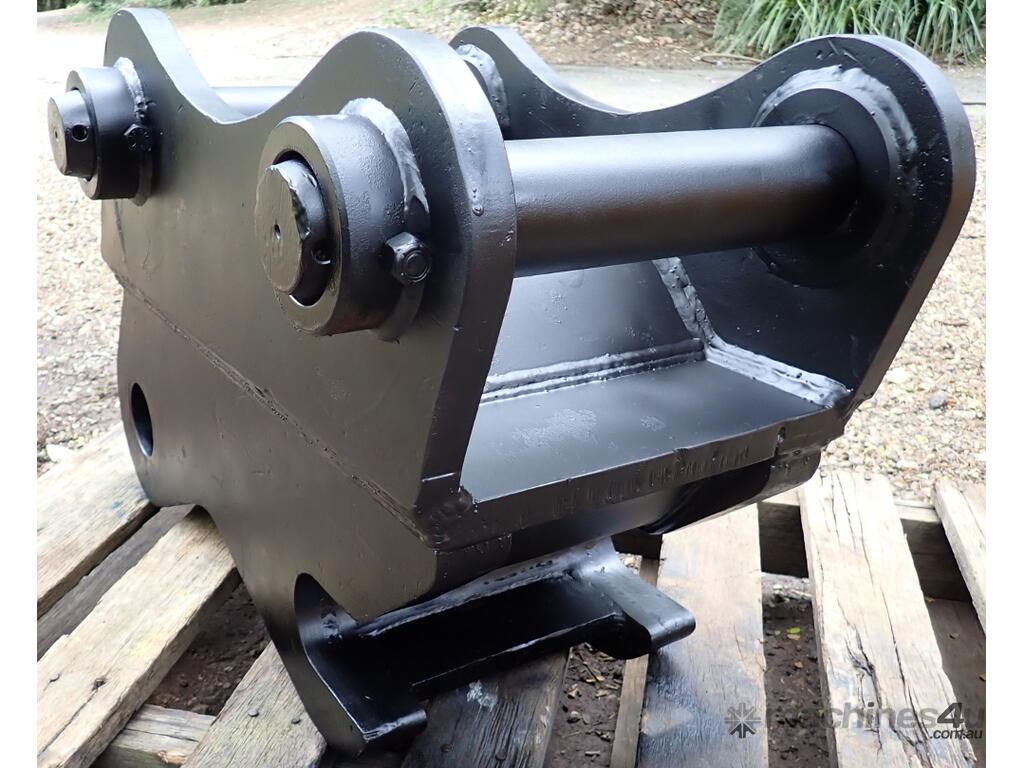

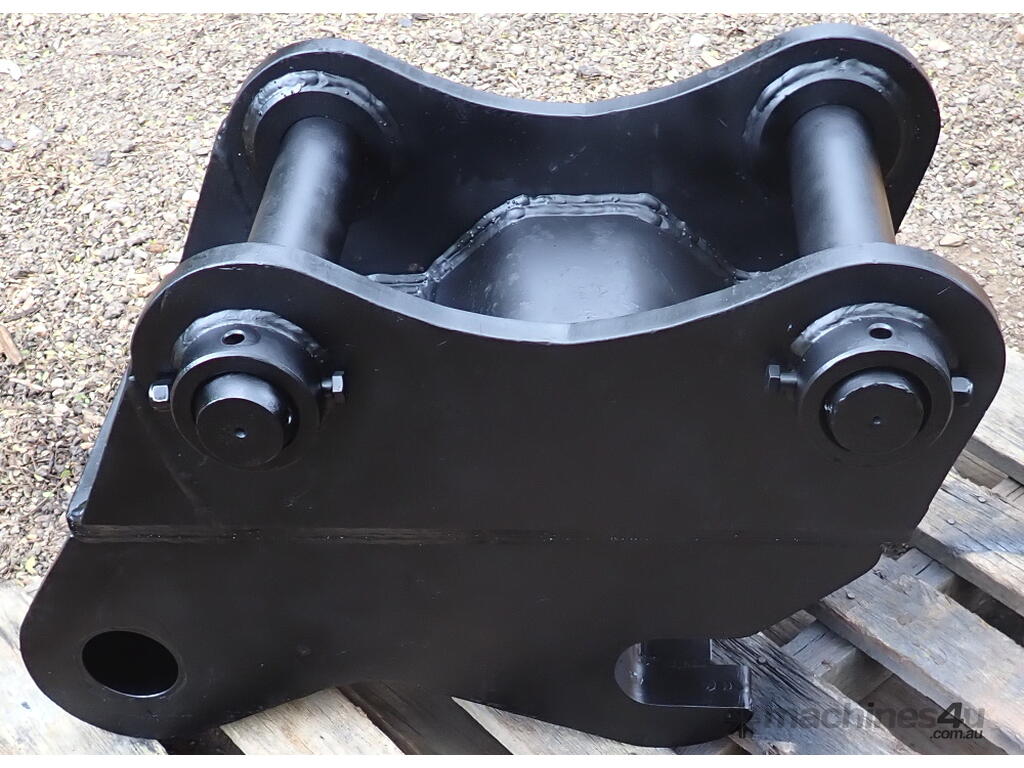

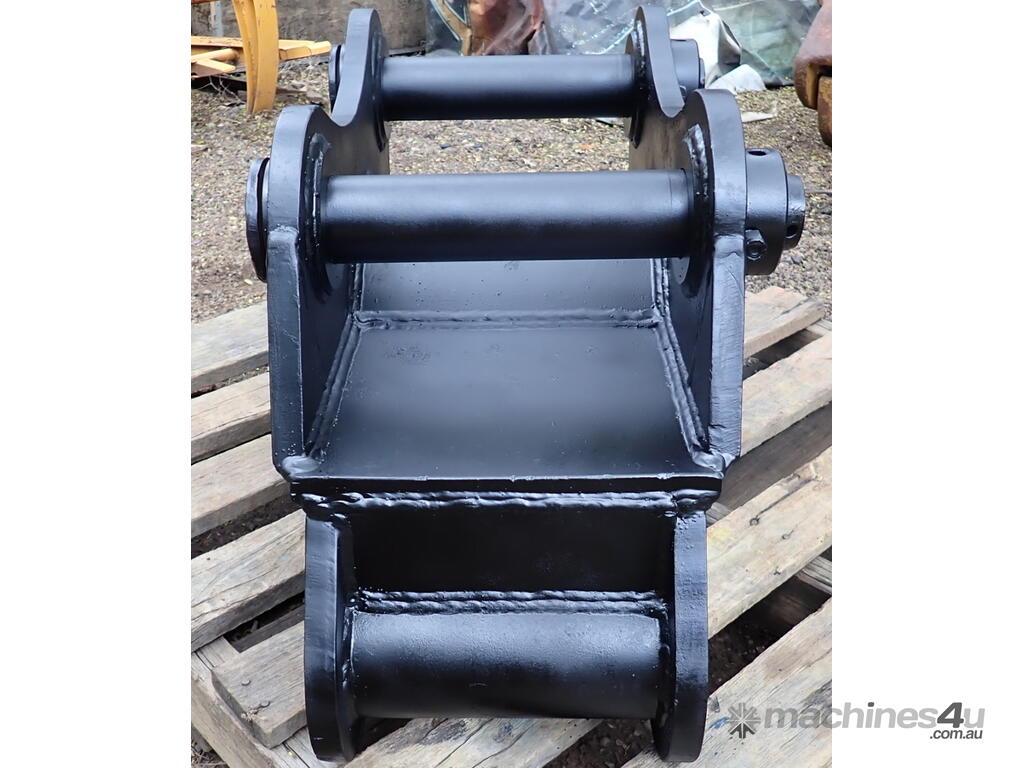

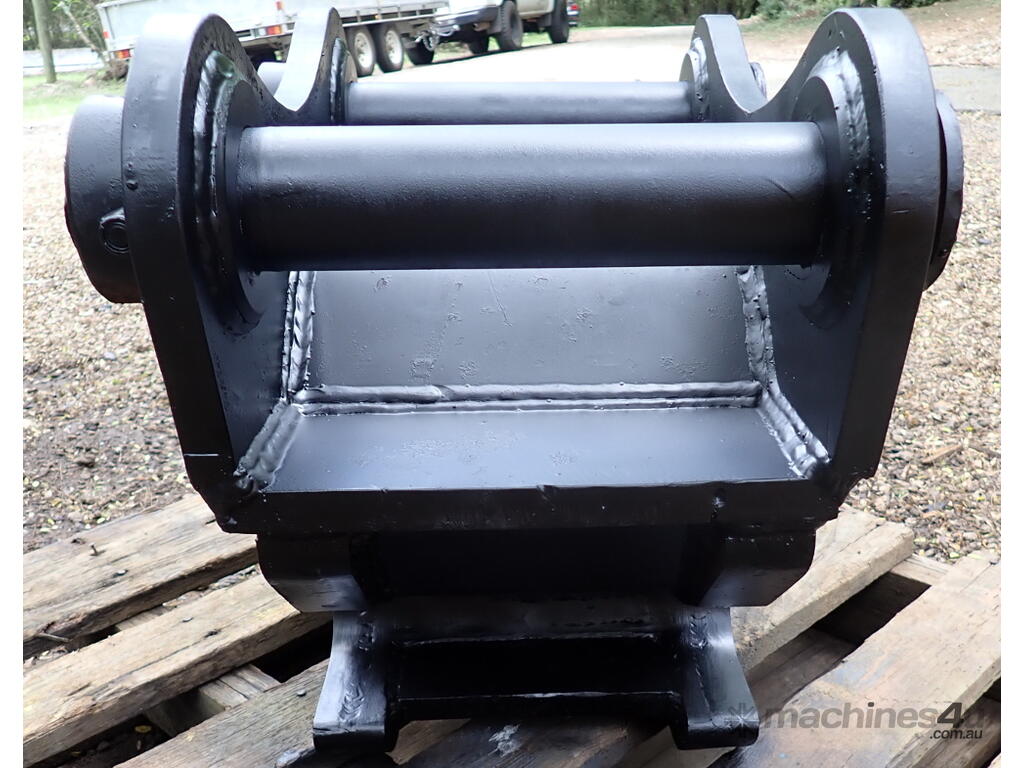

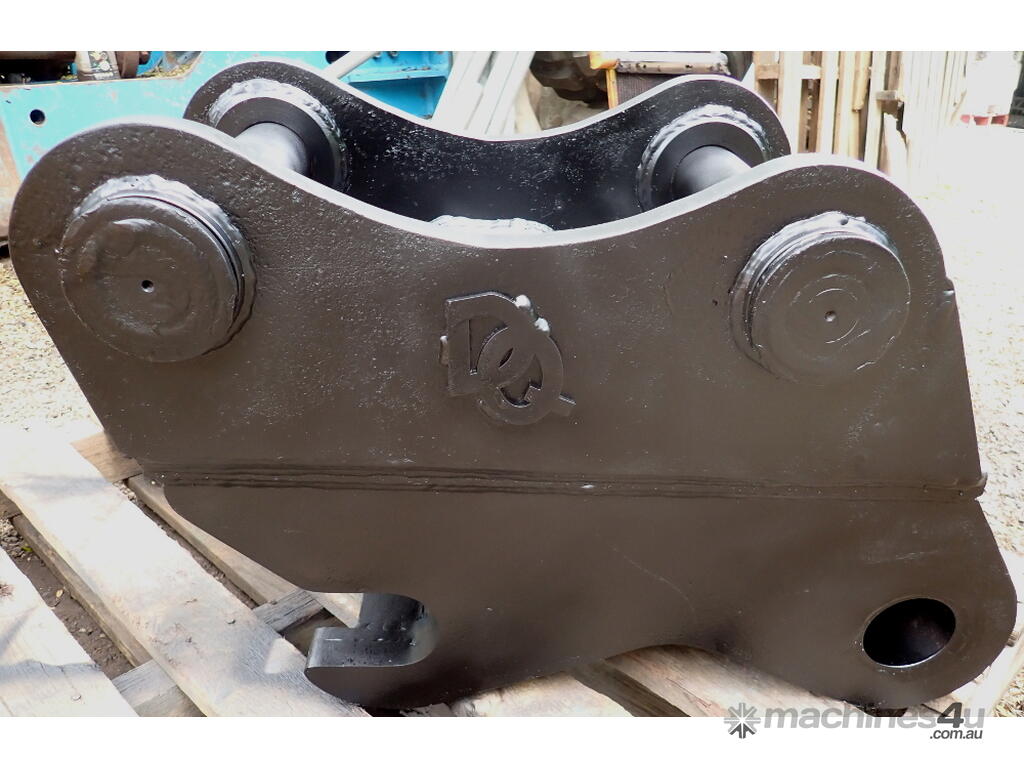

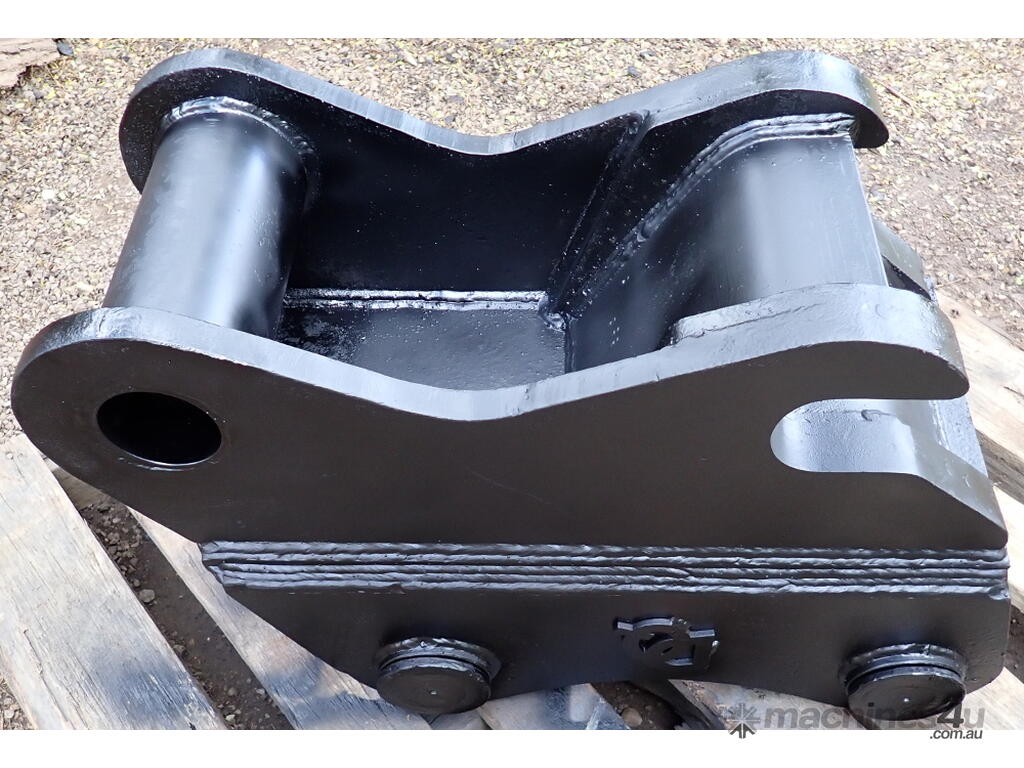

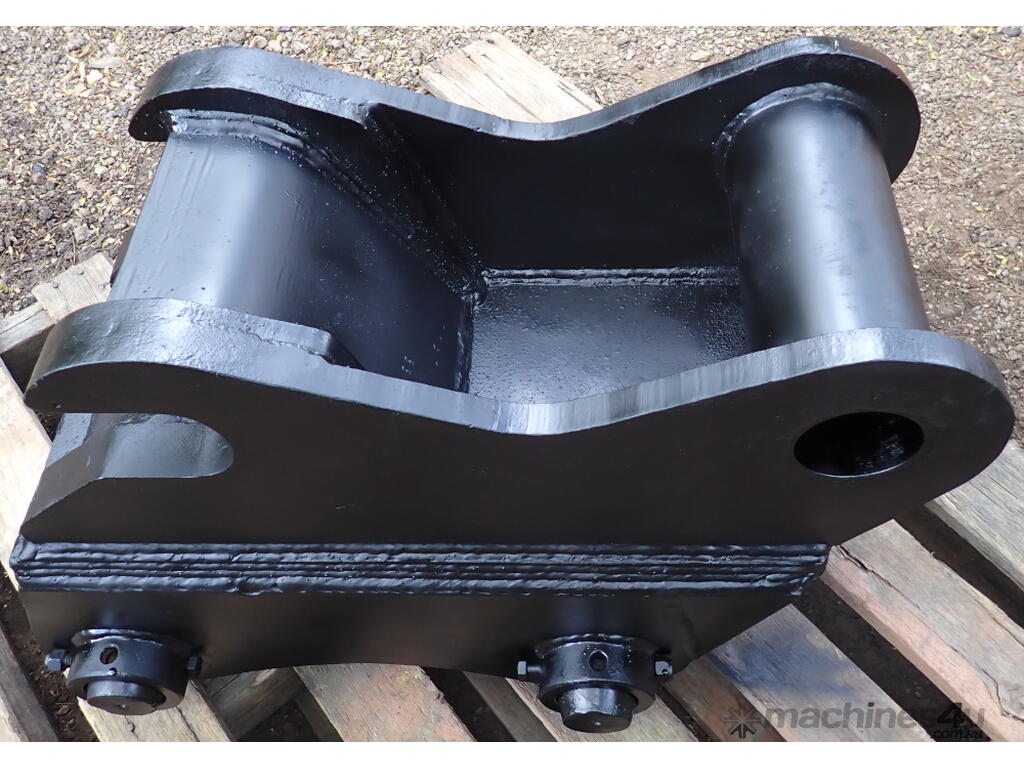

Use 80mm Pin Buckets on 70mm Excavator, Adaptor Manual Quick Hitch Coupling

Use common 80mm Pin buckets & attachments on a 70mm Pin Excavator with this Adaptor / Manual Hitch.

Condition is New, but it was unused for a long time and had some light surface rust. We cleaned it up and gave it a fresh coat of paint.


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 70mm.
* Pin Center to Pin Center (CtoC): 415mm.
* Between The Ears (BTE): 278mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 301mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

* This Hitch will fit onto the following machines (70mm pin):
Doosan DX170W-3, Volvo EC150, Volvo EC160, Volvo EC160B, Volvo EC160C, Volvo EC180C, Volvo EW160B, Volvo EW160C and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** Pin Setup Dimensions (where the bottom of this Hitch goes in the bucket's headstock):
* Pin Diameter: 80mm.
* Pin Center to Pin Center (CtoC): 453mm.
* Between The Ears (BTE): 303mm (your buckets/attachments need to have at least this much width between the ears).

* This Hitch will pickup attachments (80mm pin) that suit at least the following machines:
Case 9021 / CX210 / CX210B / CX225SR, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC210 / PC240 / PC280 / PW210, Liebherr R944 LITRONIC, Link-Belt 210LX, Sumitomo SH200 / SH200-3 / SH200LC-3 / SH210-5 / SH225X-3 (and many other machines that have similar pin spacings).


Hitch dimensions: 763mm long, 430mm wide, 495mm high. Weight: 230kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
