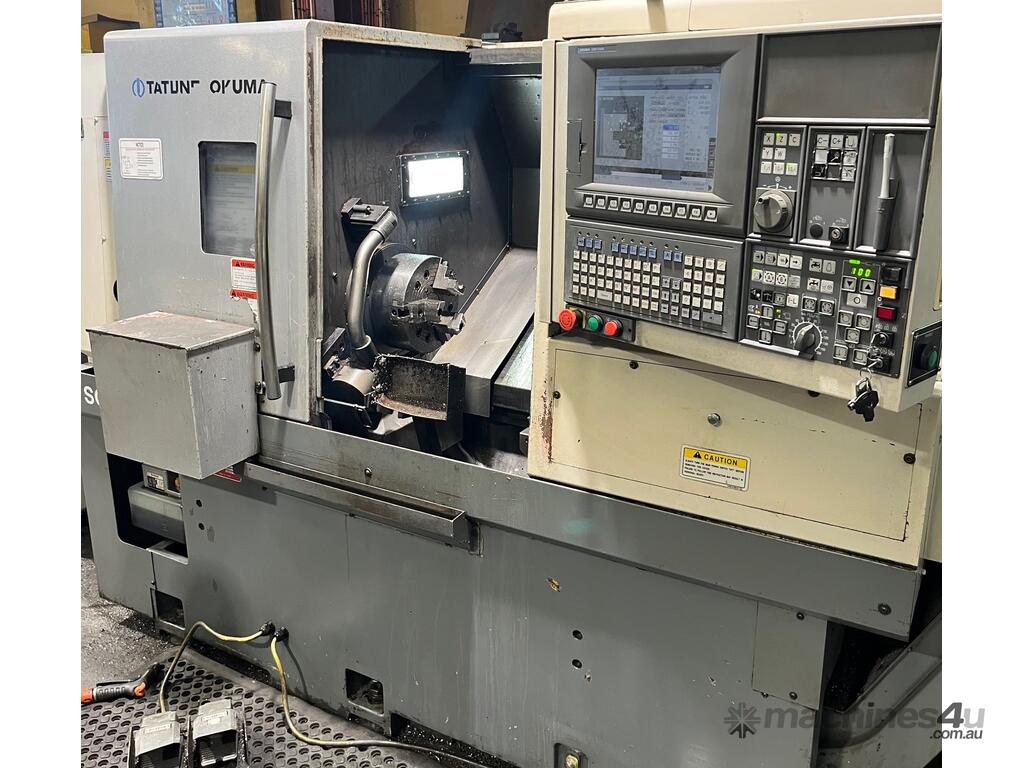

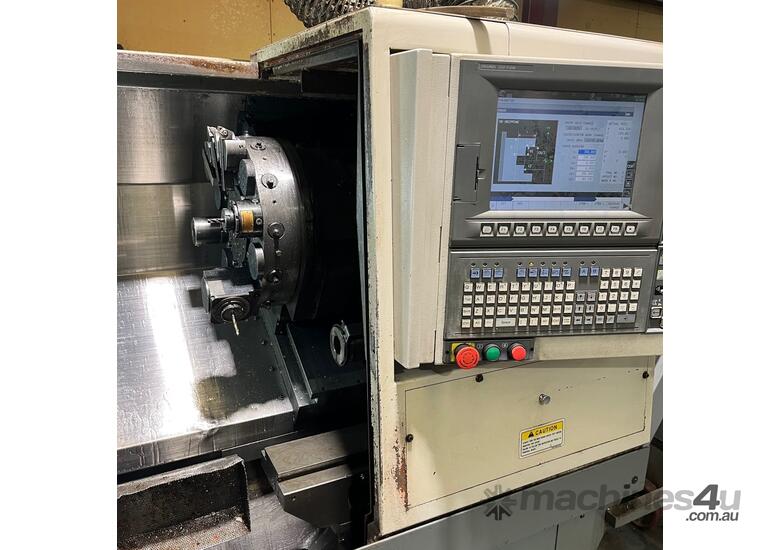

Used 2010 Okuma CNC Soarer L300M

Used Okuma CNC Soarer Model L300M with OSP-P20L Controller and QLS-80 Quick Load Servo 80 Bar loader with 12,243 running hrs.

Can be viewed working and under power until 18/9/2025 Monday to Friday 8am - 4pm.

The Okuma L300-M "Soarer" CNC lathe from 2010 features a 12-position turret, a 3.15" spindle bore with an A2-8 spindle nose, a maximum turning diameter of 11.18" and length of 17.7", X/Z axis travel of 9.05"/20.47", and a spindle speed of 25-3000 RPM with a 10-20 HP main motor.

Main Spindle & Turning Capacity
Spindle Nose: A2-8
Spindle Bore: 3.15"
Bar Capacity: 2.6"
Max Turning Diameter: 11.18" (284 mm)
Max Machining Length: 17.7" (450 mm)
Spindle Speed: 25 - 3000 RPM

Axis & Turret Specifications
X-Axis Travel: 9.05"
Z-Axis Travel: 20.47"

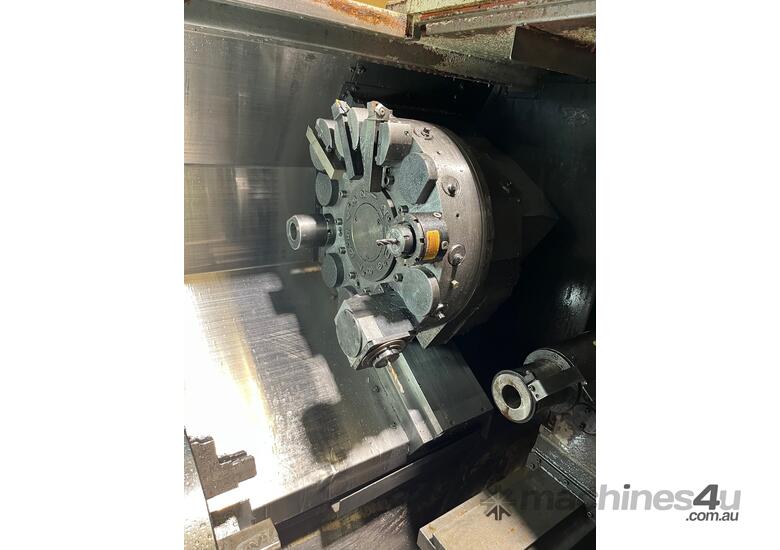

Turret Positions: 12-position turret
Live Tool Speed: 4500 RPM

Power & Dimensions
Main Motor: 10 HP (continuous) / 15 HP (30-min)
Machine Weight: 11,800 lbs (5,500 kg)
Machine Dimensions: 120" x 74" x 73"
Other Features
Control: OSP Control
Rapid Traverse: 787 / 984 IPM (X/Z)

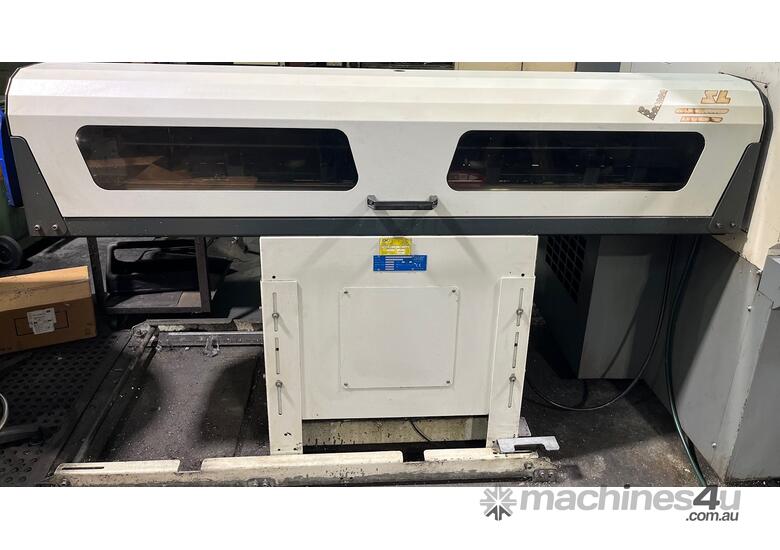

The QLS80 bar loader is an LNS Quick Load Servo bar feeder, designed for short bar stock, with specifications including a maximum bar diameter of 80 mm (though the "+” version supports 100 mm and larger), a 1605 mm bar length capacity in its original configuration, and the ability to accommodate round, hex, square, and odd-shaped materials. It features high feed rates (up to 4,000 IPM), quick changeovers (15 seconds), and a servo-driven system for precise bar positioning.

Can be viewed working and under power until 18/9/2025 Monday to Friday 8am-4pm.
Freight is at customers cost from Athol Park South Australia 5012.
