Used 2022 model E209PX Truck Mounted EWP | 20m Working Height | 220kg MRC | 4x4 Chassis

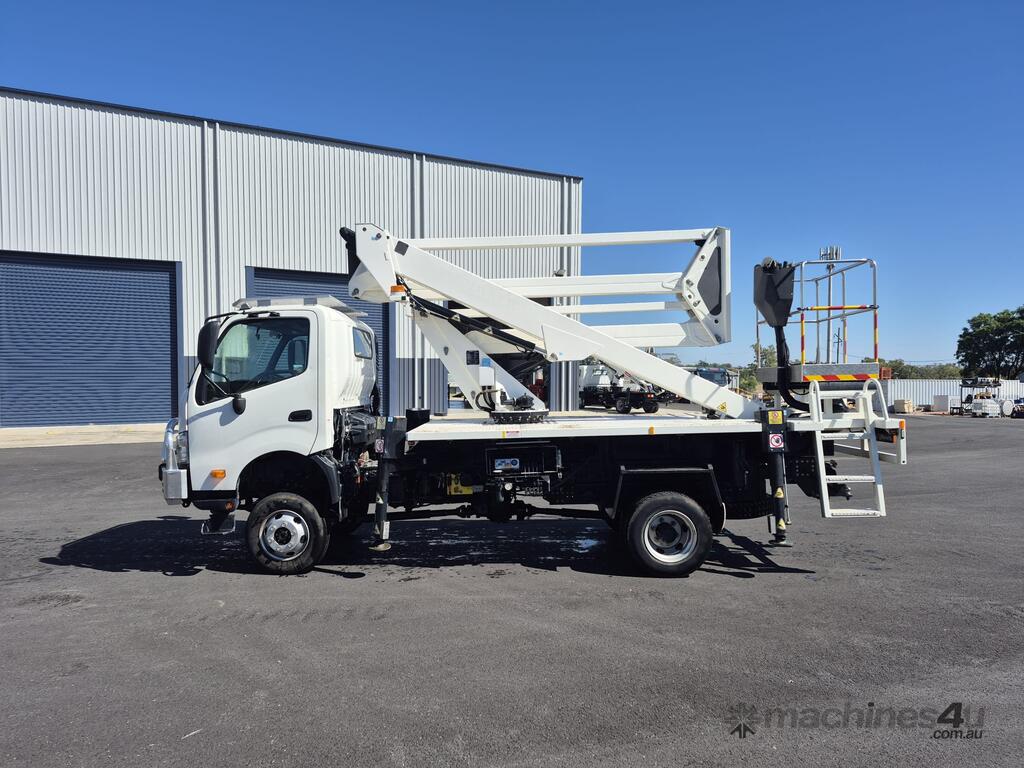

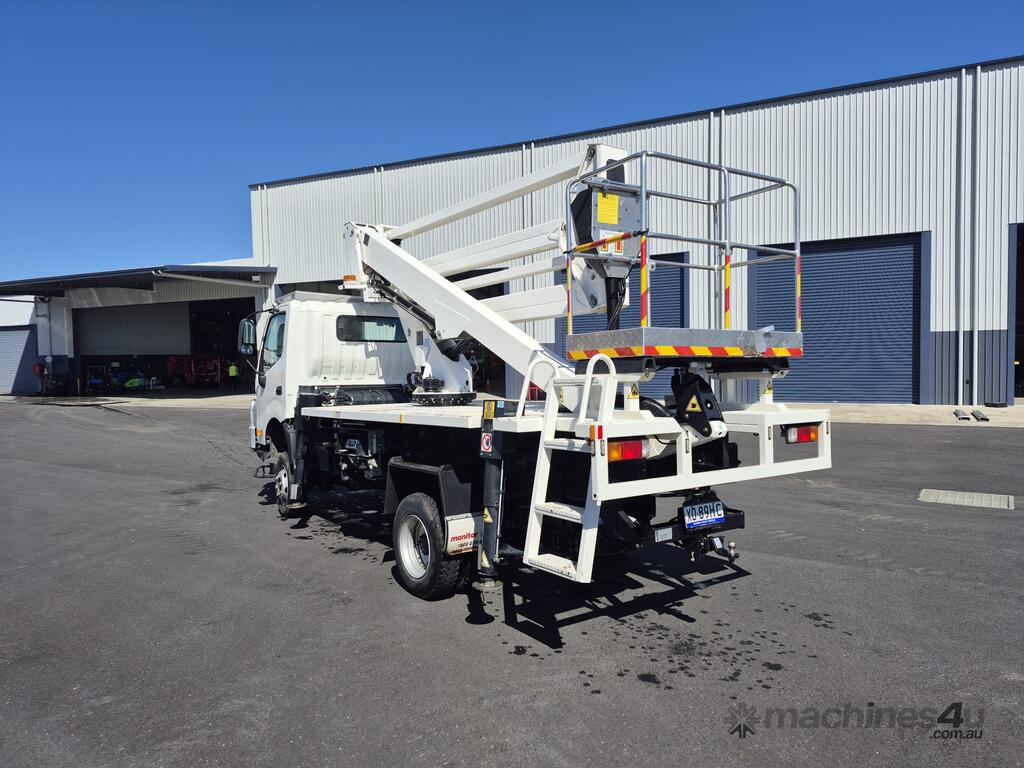

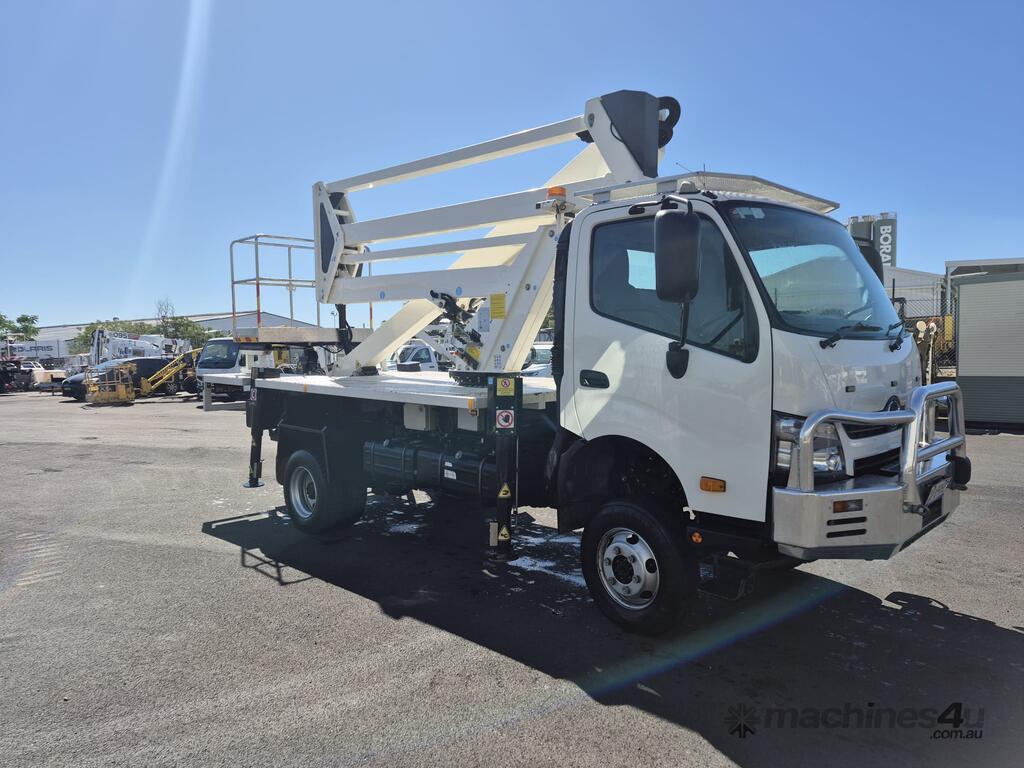

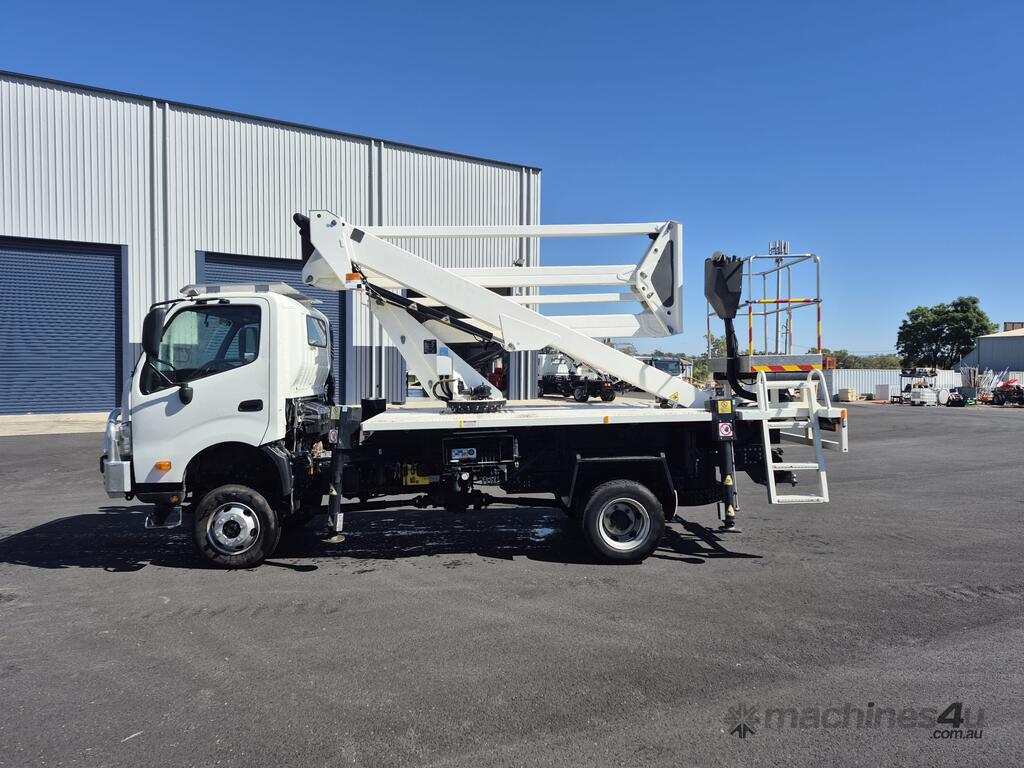

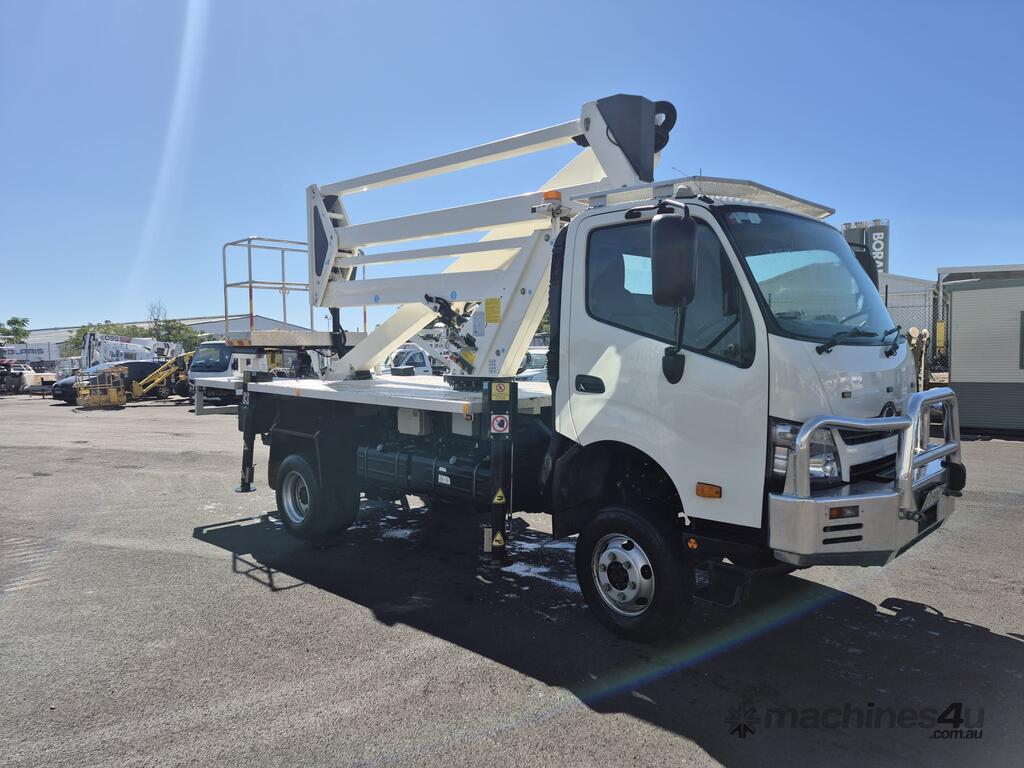

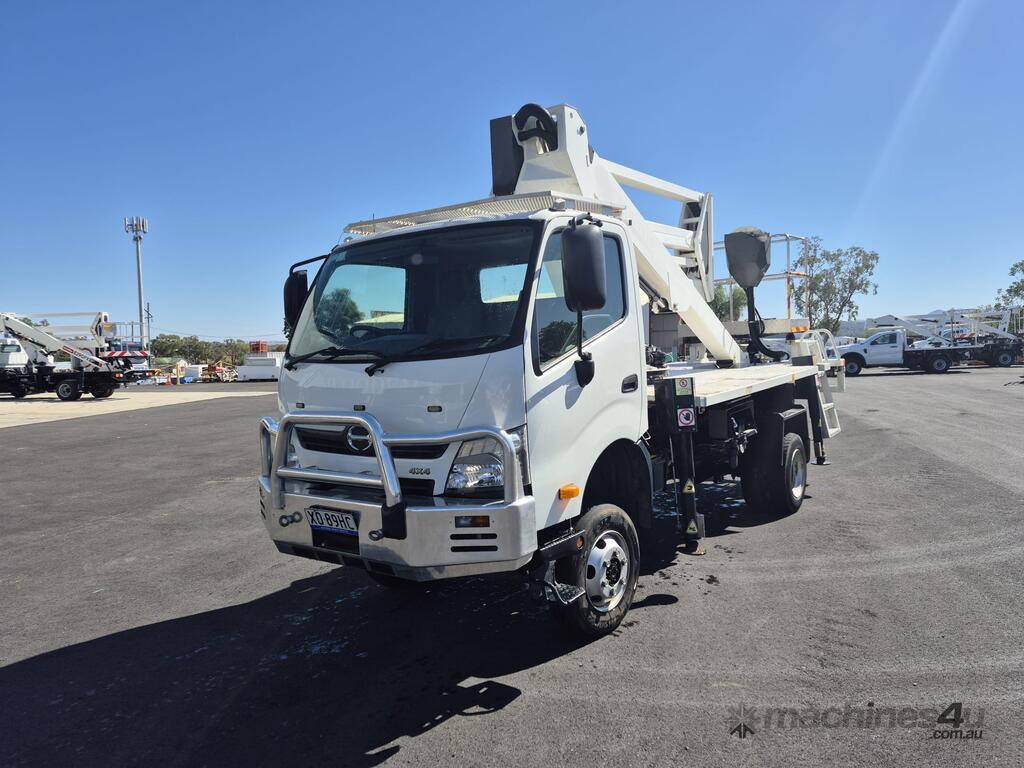

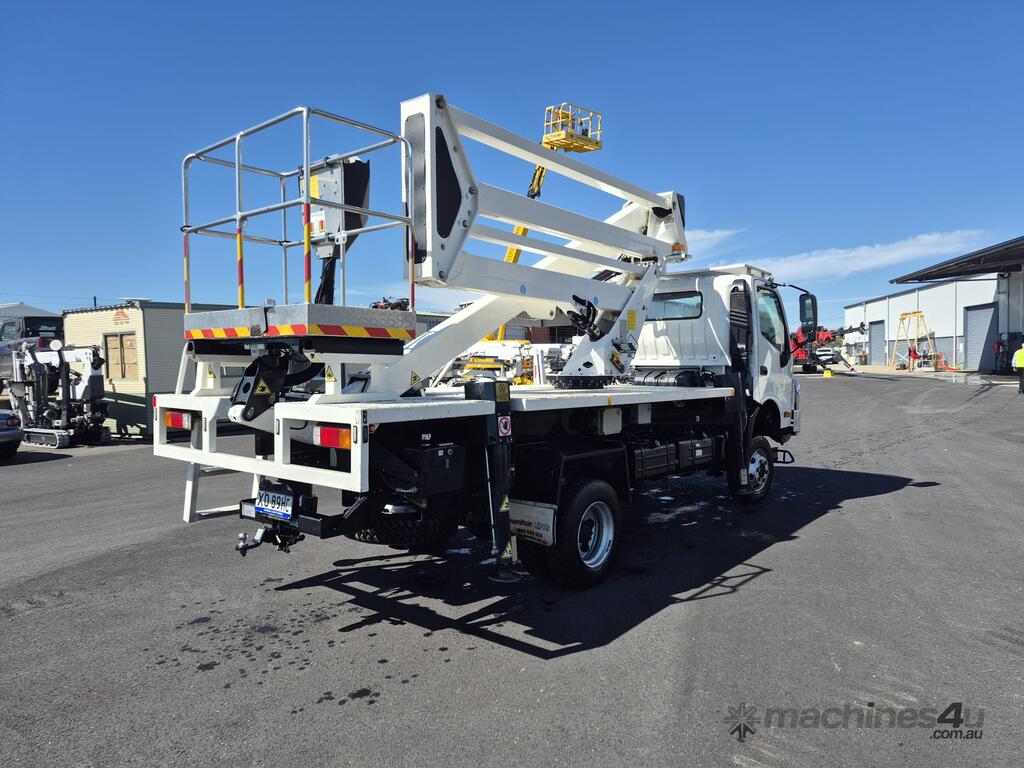

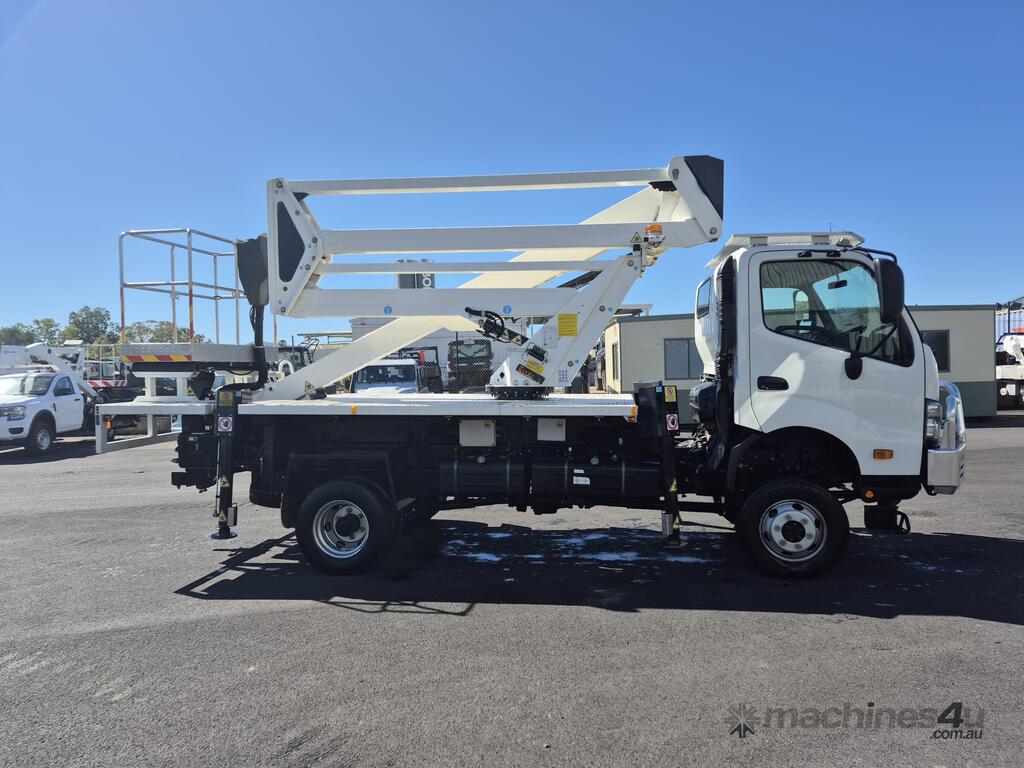

2022 model GSR E209PX Truck Mounted EWP on a Hino 817 4x4 Chassis:

The Monitor E209PX Truck Mounted Lift is a super compact 20 m truck mounted lift. This versatile package is a favourite with tree trimming and trades industries. The compact boom is made up of a double articulating boom, giving straight “Plumb line” movement—ideal for working up a vertical face such as the side of a building. The top section is telescopic, providing point-and-shoot functionality with 9 m outreach. With almost zero tail swing, it is well adapted to roadside jobs and confined spaces. To operate the Monitor E209PX, a Light Rigid Truck Licence is required.

The E209PX truck mounted lift is extremely rigid and safe, accommodating two persons plus tools with a maximum rated capacity of 220 kg. The heavy-duty hydraulic proportional multifunctional joysticks are housed within a fully protected area, giving the operator exceptional smoothness and accuracy even at full height and outreach.

For added durability, hoses and cables are placed inside the booms with internal tracking, protected from debris by self-cleaning brushes located at each telescopic section.

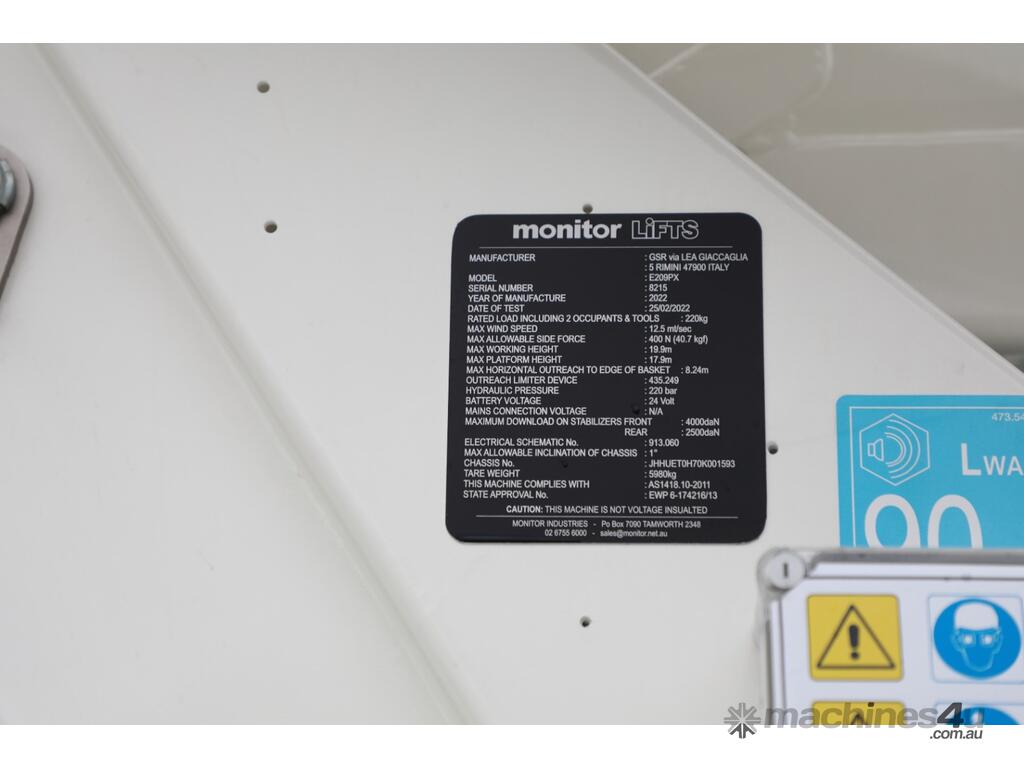

Max. Working Height: 19.90 m
Max. Working Reach: 8.49 m
Max. Platform Height: 17.70 m
Capacity: 220 kg
Platform Rotation: Yes
Turret Rotation: 450°
Min. Transport Length: 6.65 m
Min. Transport Width: 2.20 m
Min. Transport Height: 3.00 m
Power: PTO from Vehicle
