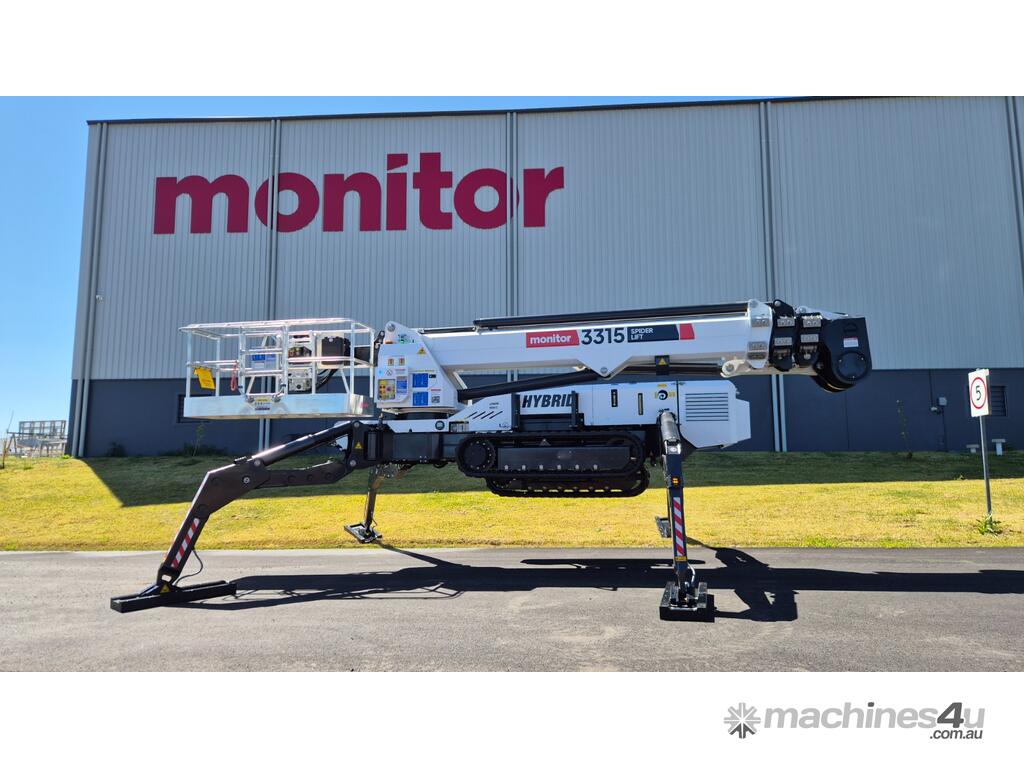

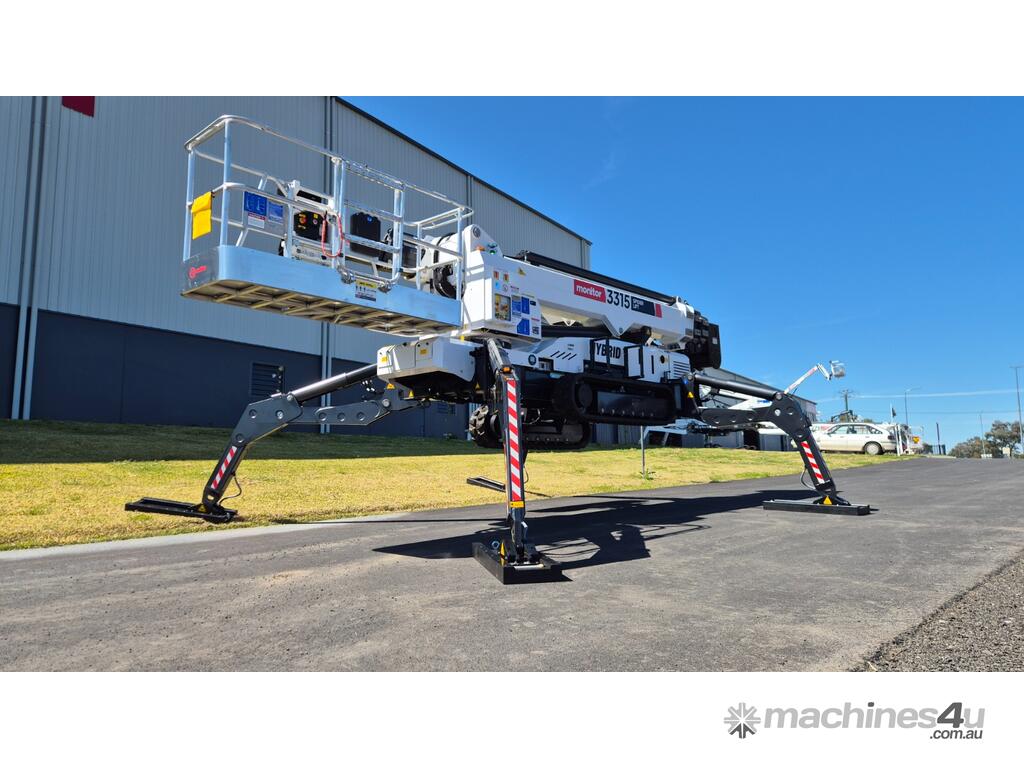

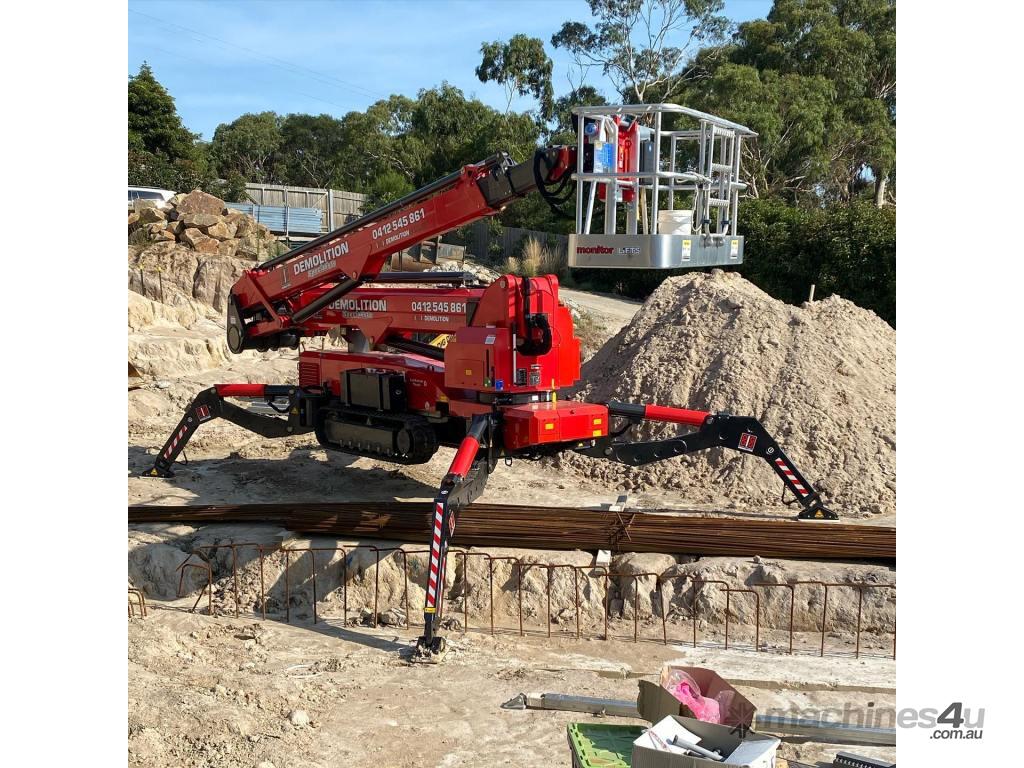

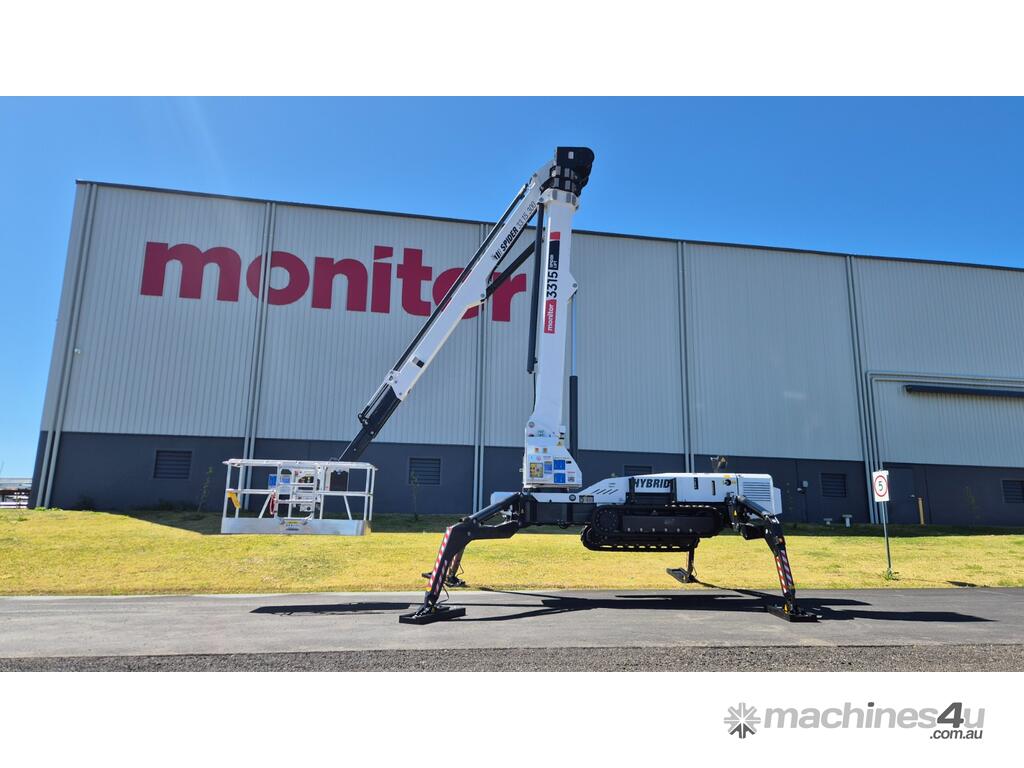

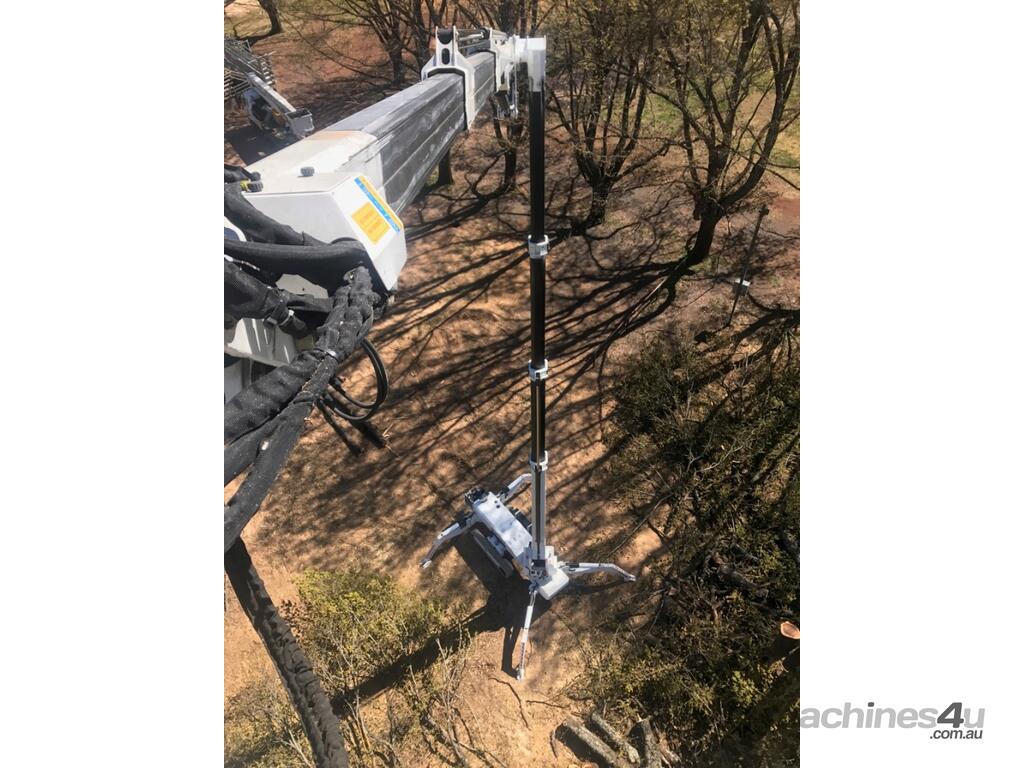

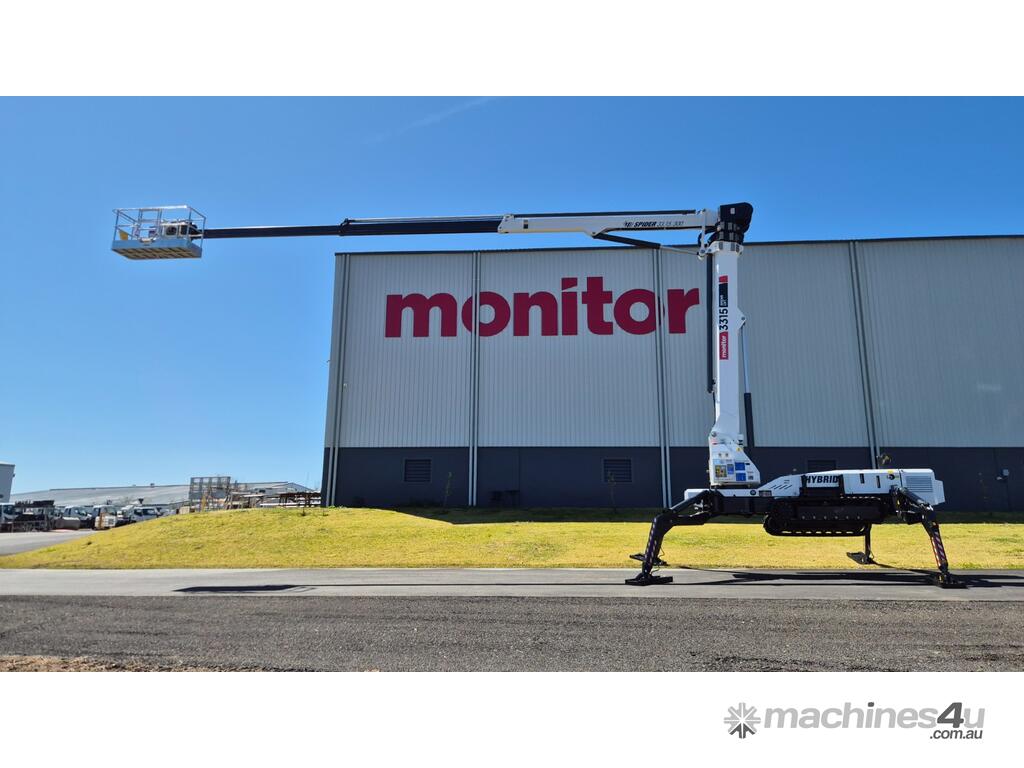

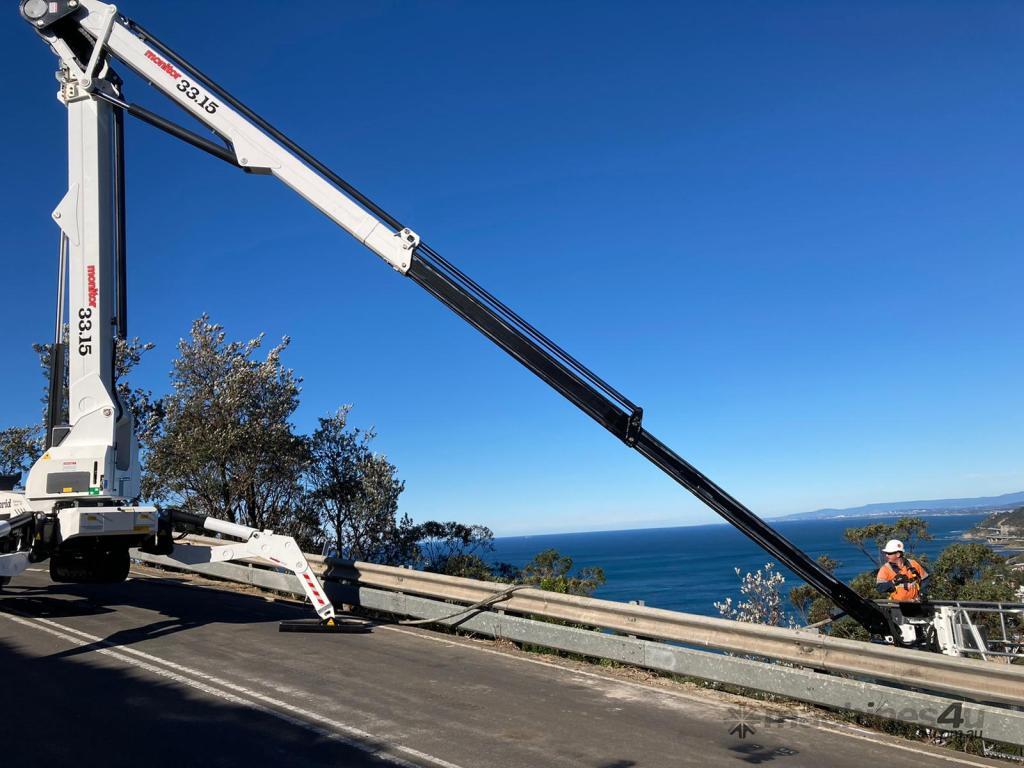

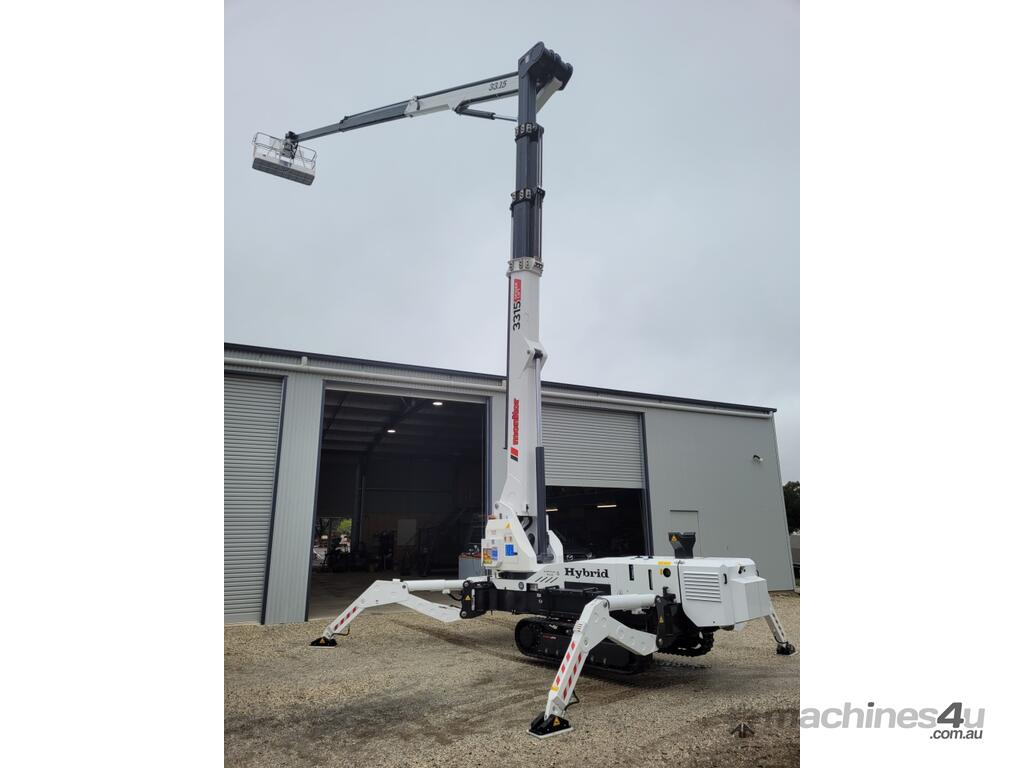

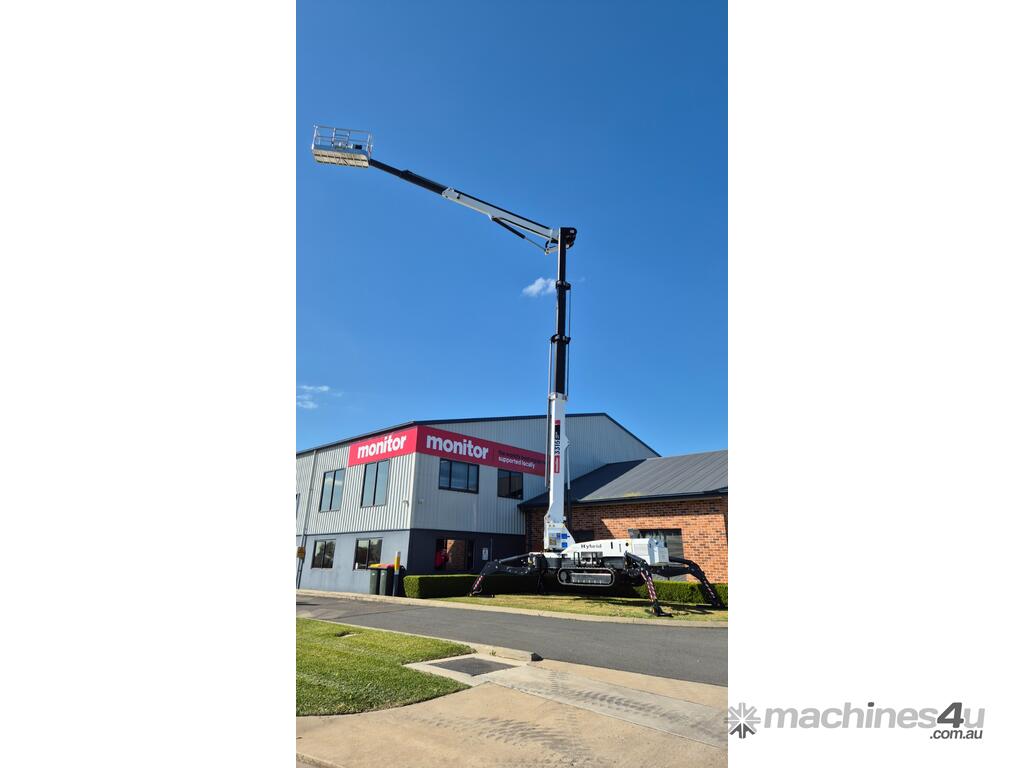

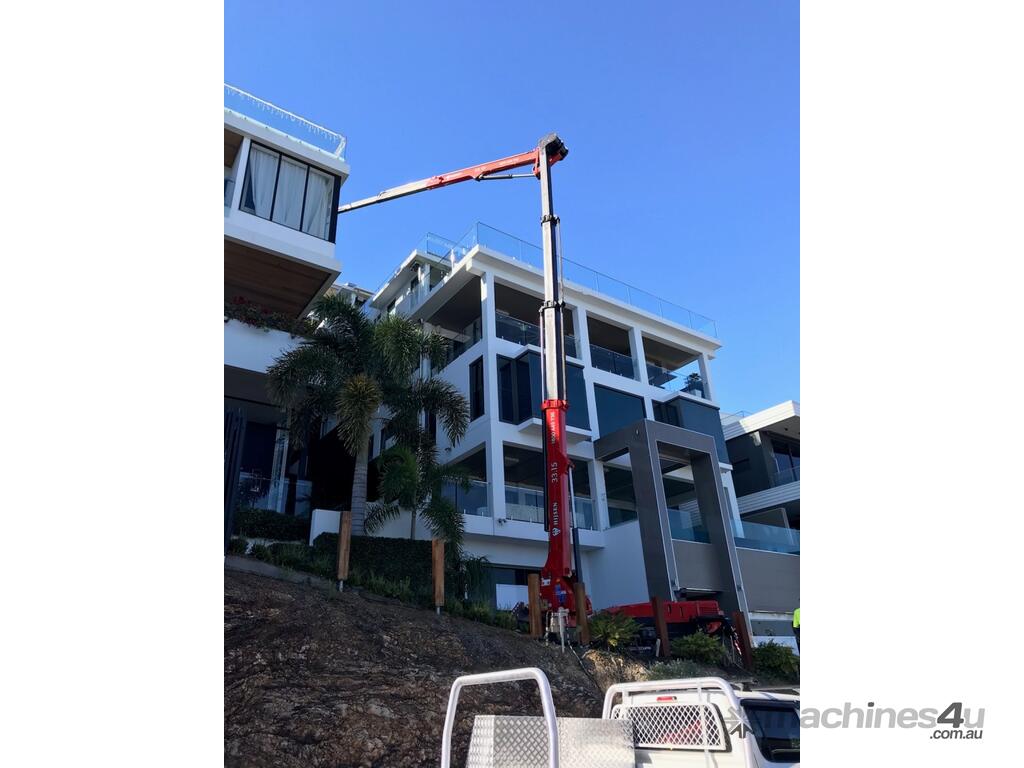

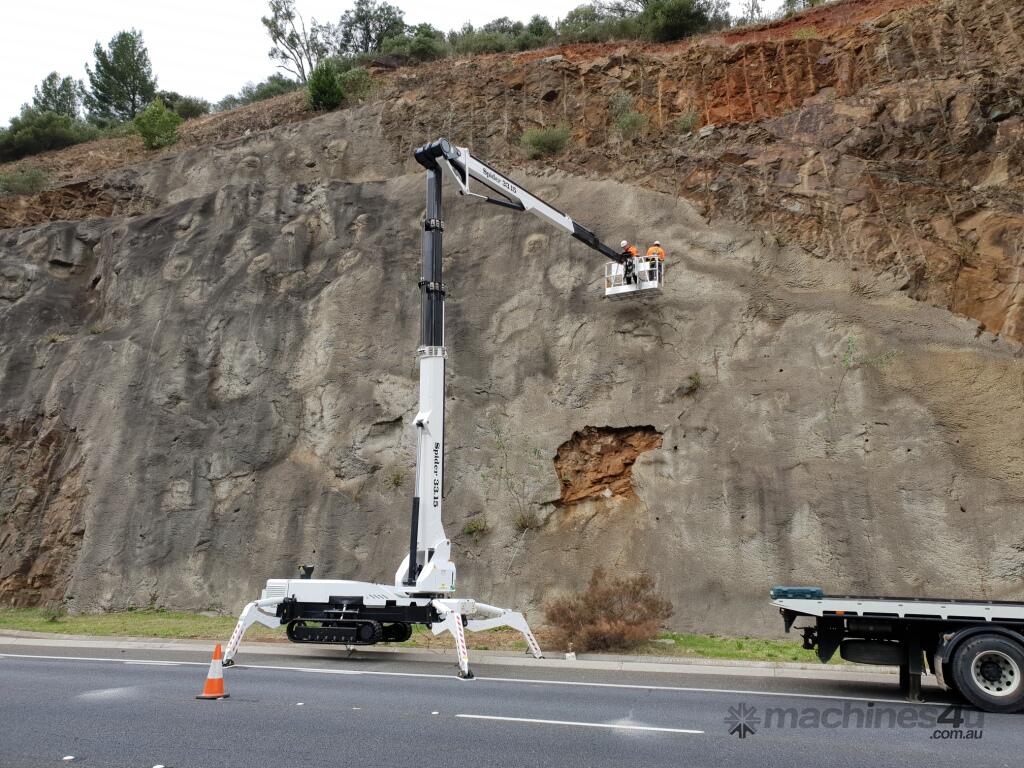

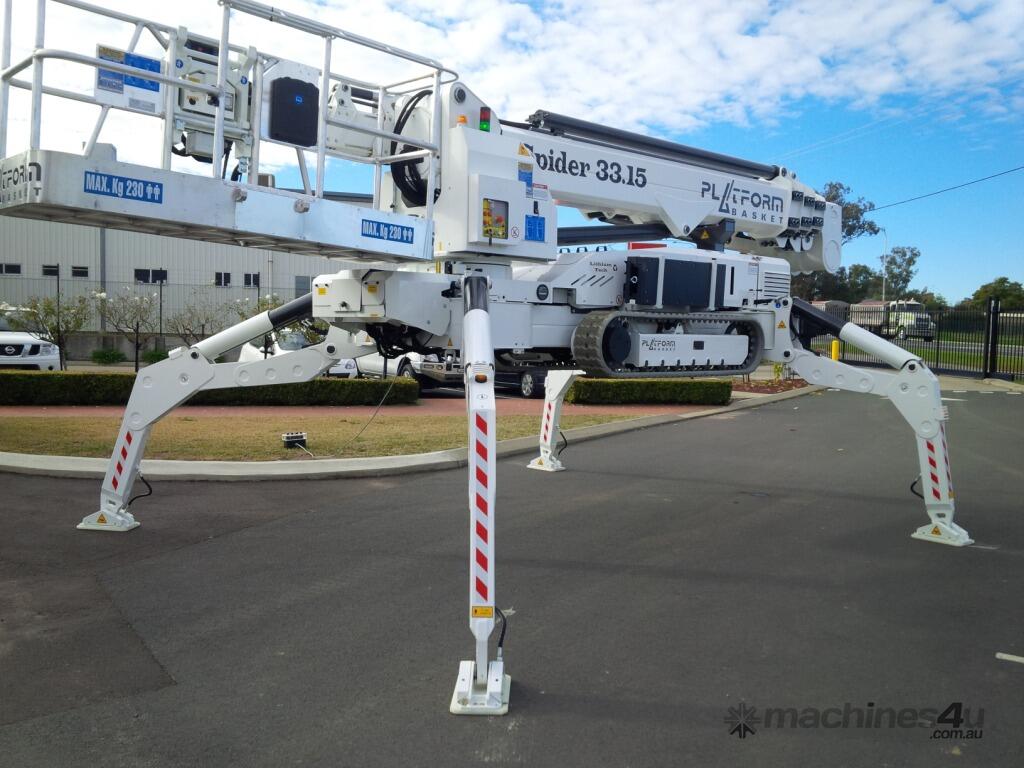

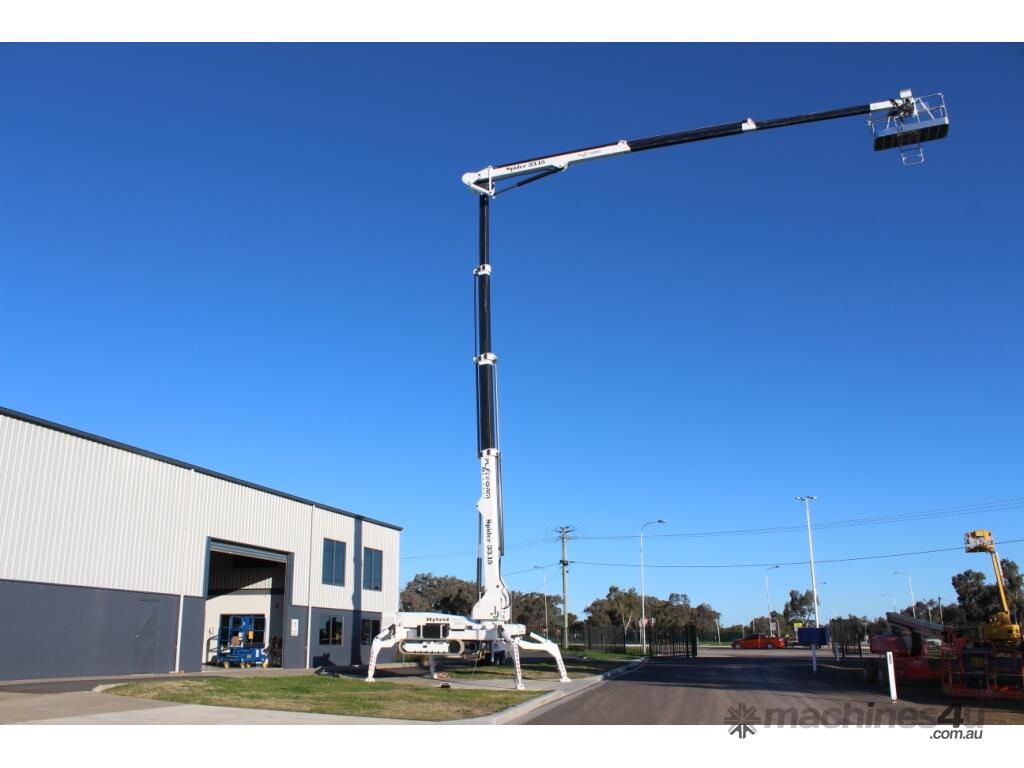

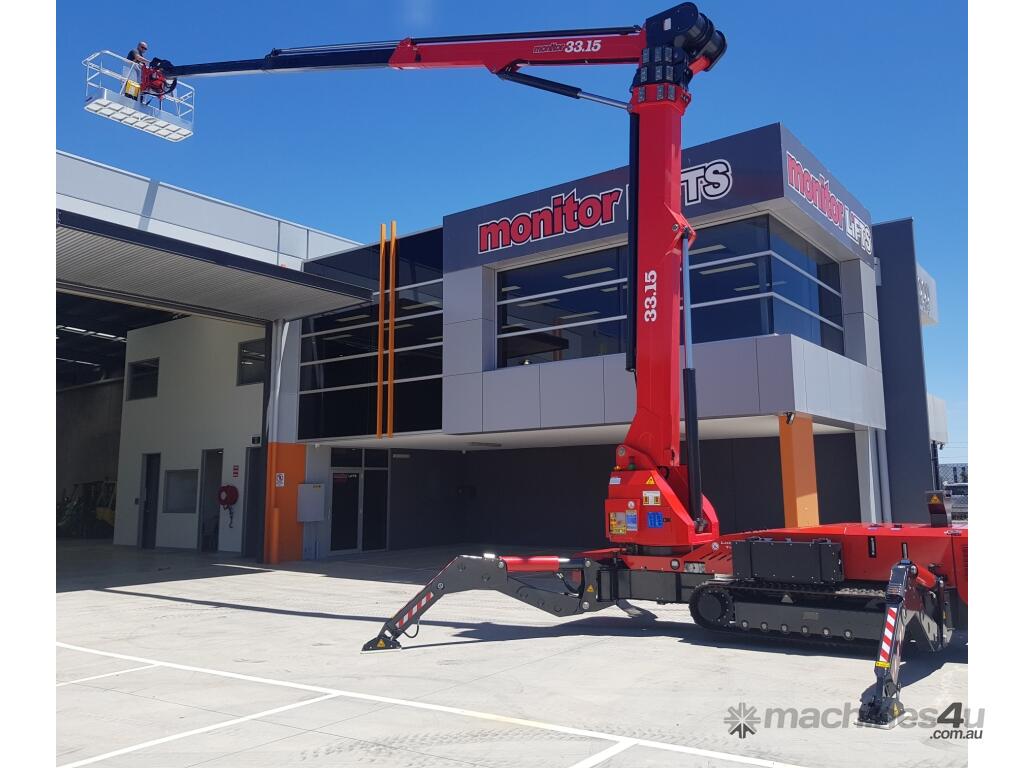

The Monitor 3315/300 Spider Lift’s unique telescoping articulated boom design provides exceptional up-and-over outreach specifications. Dual position stabilizer legs allow the 3315 to be set-up in the most difficult locations. Even with the stabilizers set in the narrow position, a complete 360 degrees slew is still possible.

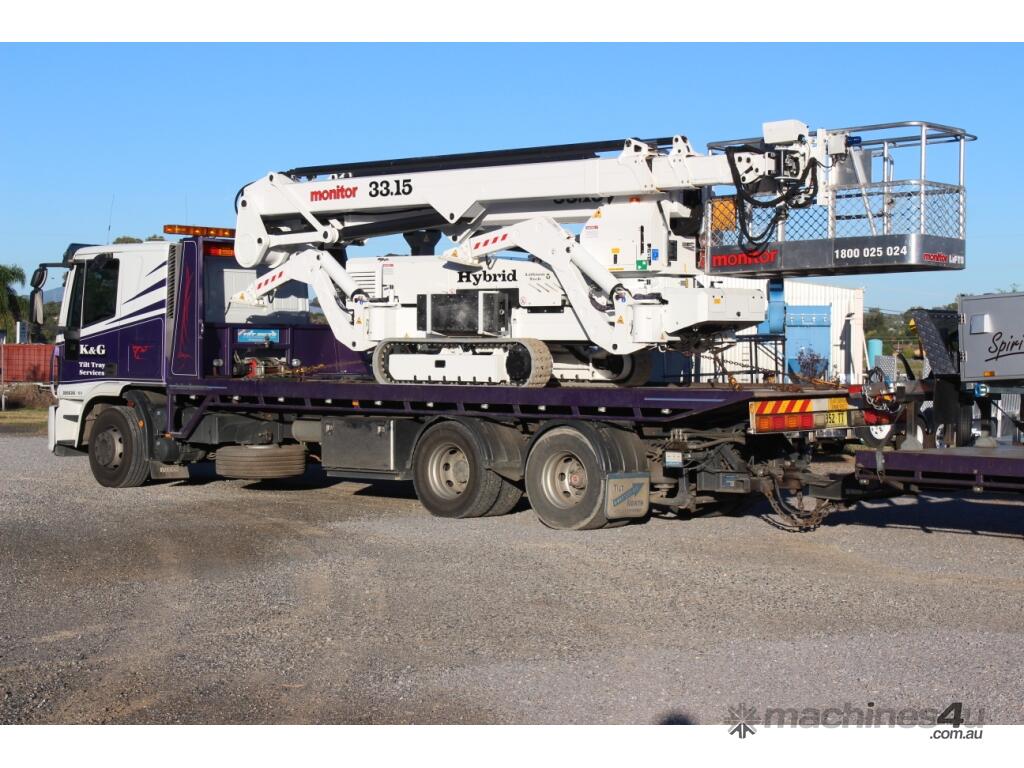

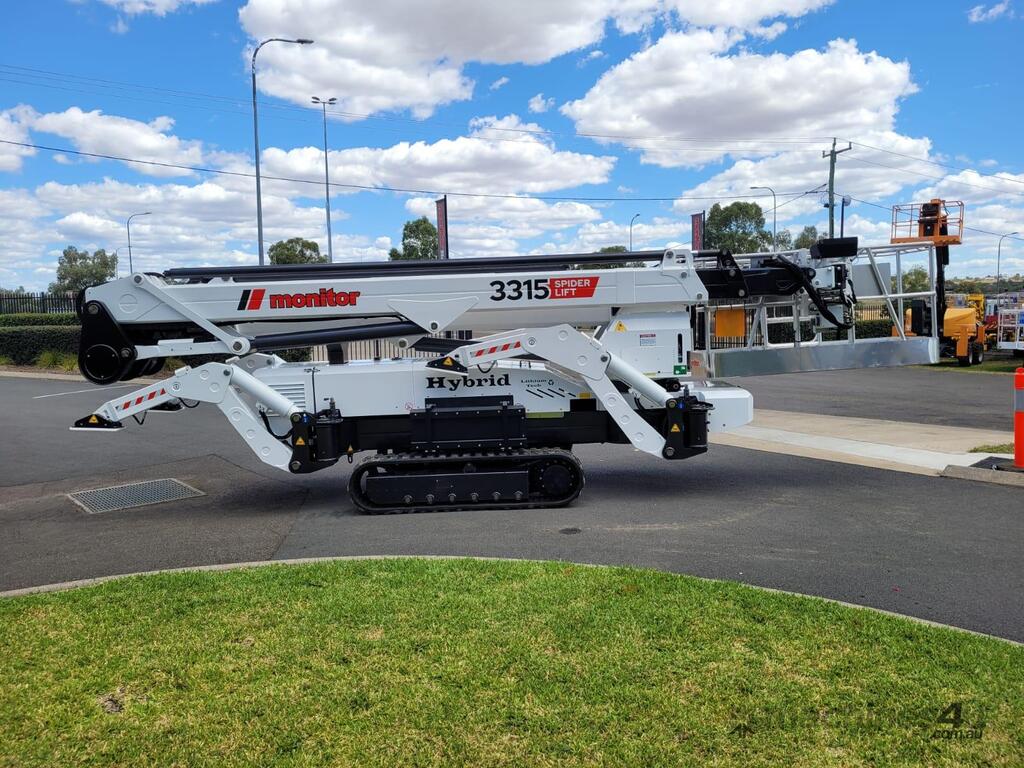

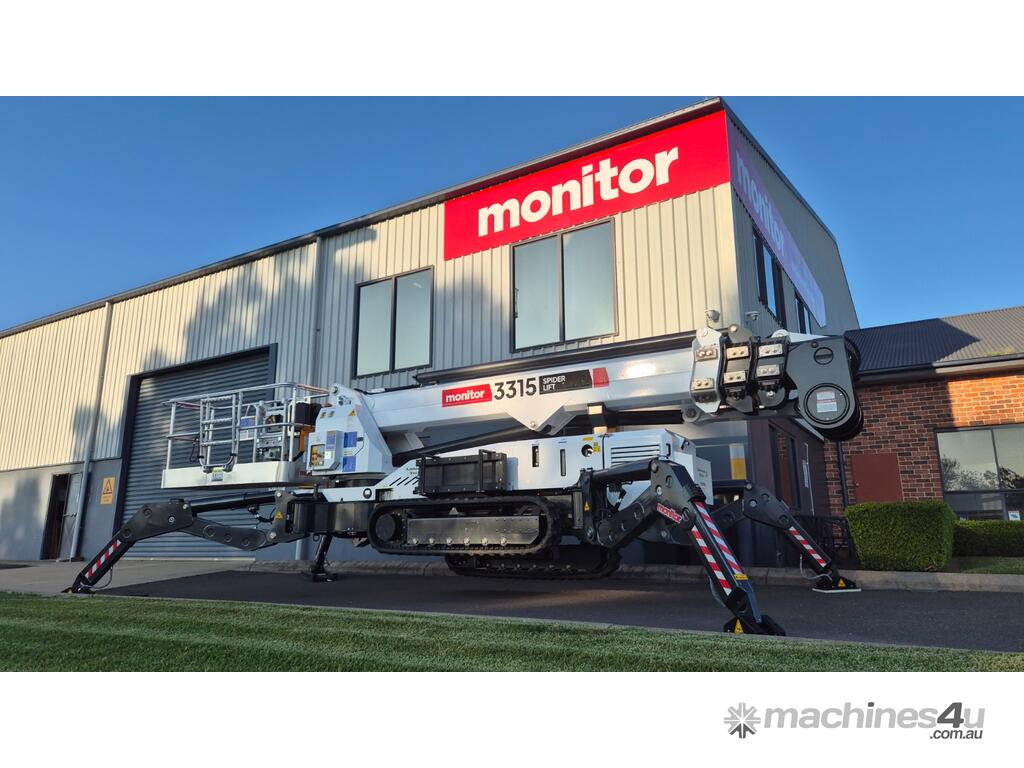

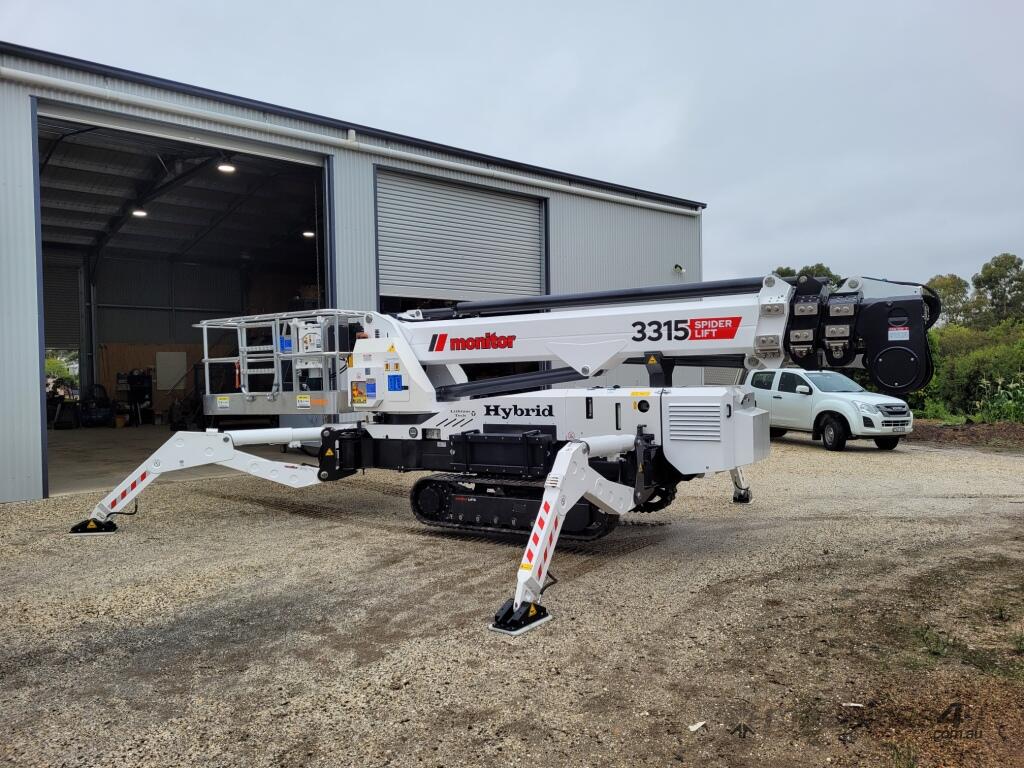

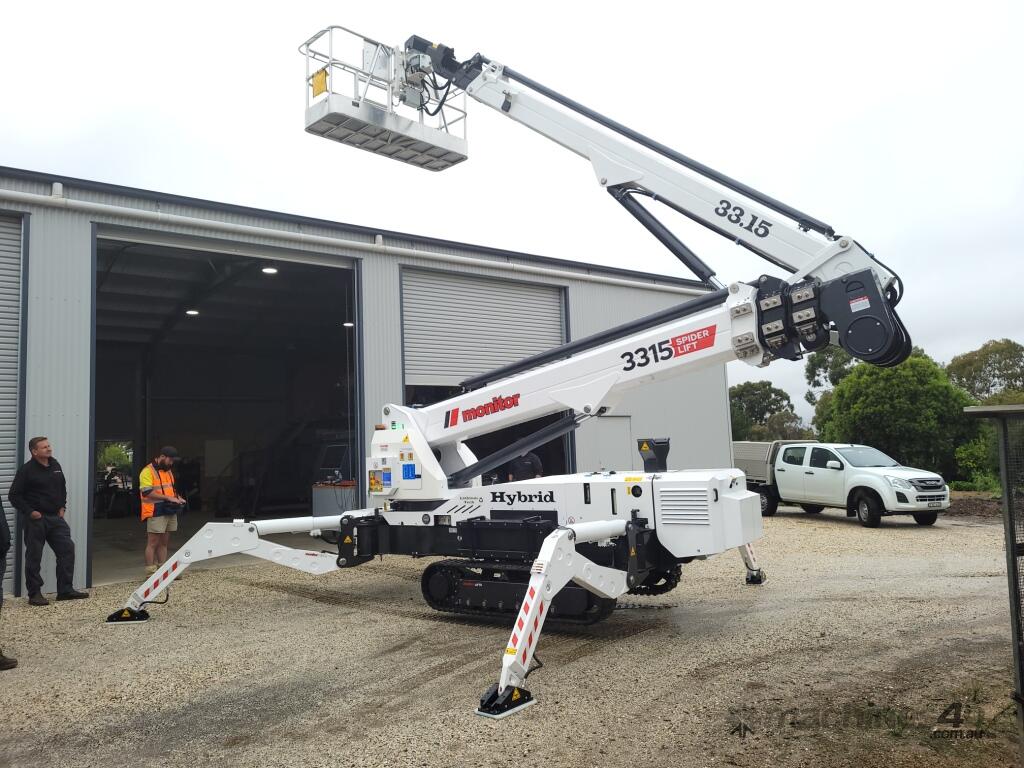

This 33 m Spider Lift is amazingly compact. With the basket removed, the length is only 6.5 m. Height is 1.99 m and width 1.39 m for commercial doorway access (with tracks retracted.) and a capacity of 300 kg. The extra-long travel stabilizer legs mean you can not only set the 3315 up on very uneven ground, but it can also self-load onto some trucks and trailers.
Strong steel booms ensure an extremely stable working platform. A very large 2.2 m wide basket can be used on this rugged machine.
Show less

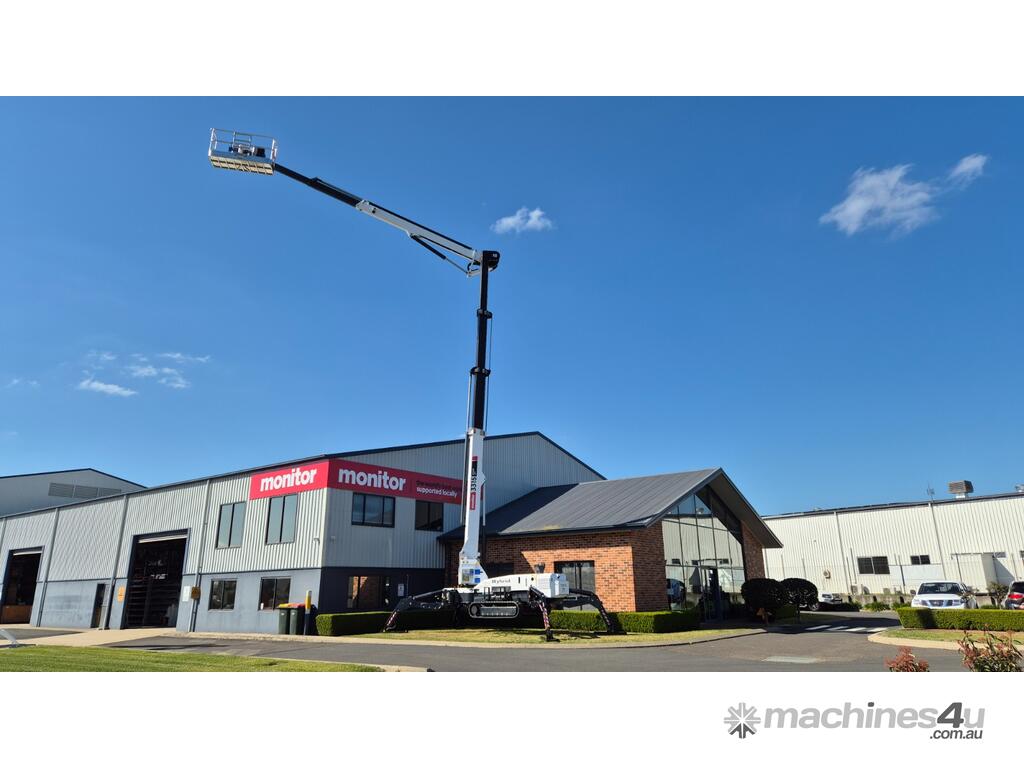

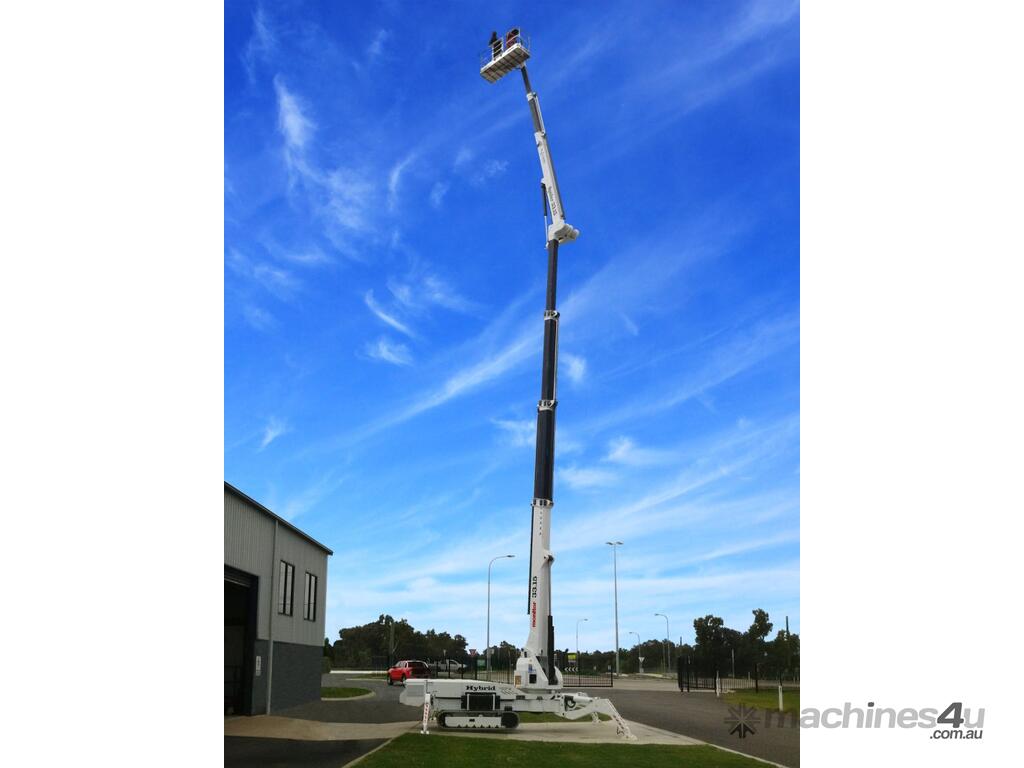

Max. Working Height: 32.40 m

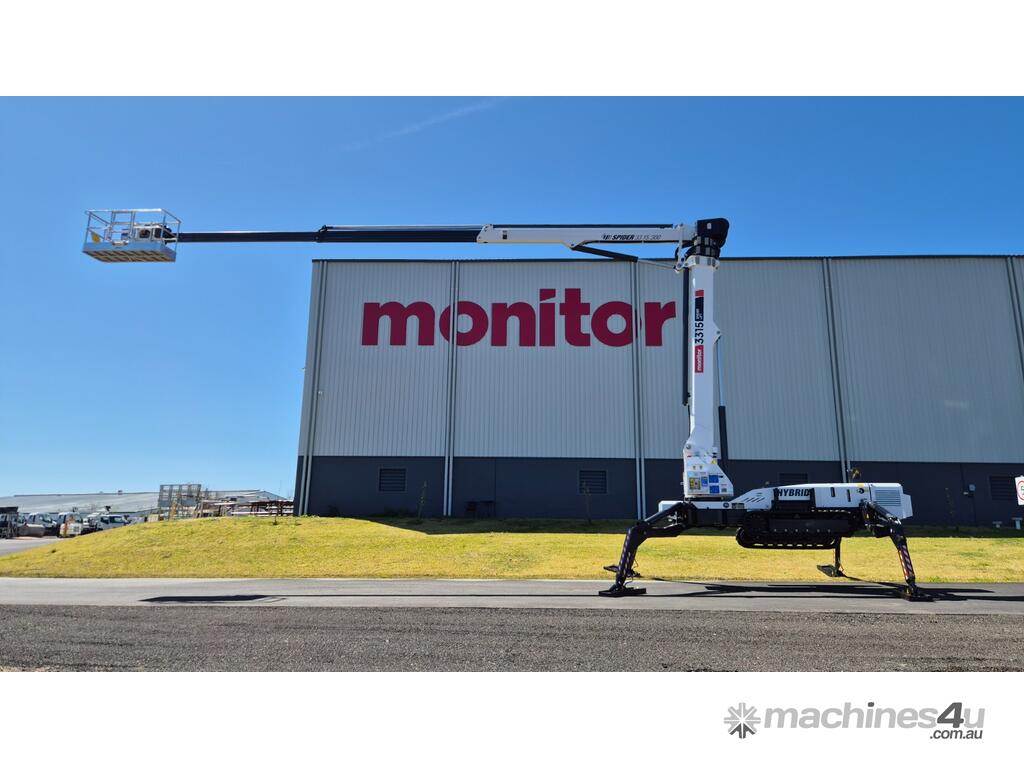

Max. Working Reach: 15.20 m
Capacity: 300 kg
Chassis Type: Crawler Tracks
Hydraulic Fly Boom: No
Platform Rotation: Yes
Weight/Outreach Limited: Yes
Turret Rotation: 400°
Outrigger Stabilisers: Yes
Power: Kubota 26 hp Diesel & Lithium Battery System
Min. Transport Length: 6.57 m
Min. Transport Width: 1.39 m
Min. Transport Height: 1.99 m
Machine Weight: 6,980 kg
