Used Demo CNC Plasma With Etching Engraving Head 1500mm x 3000mm THC

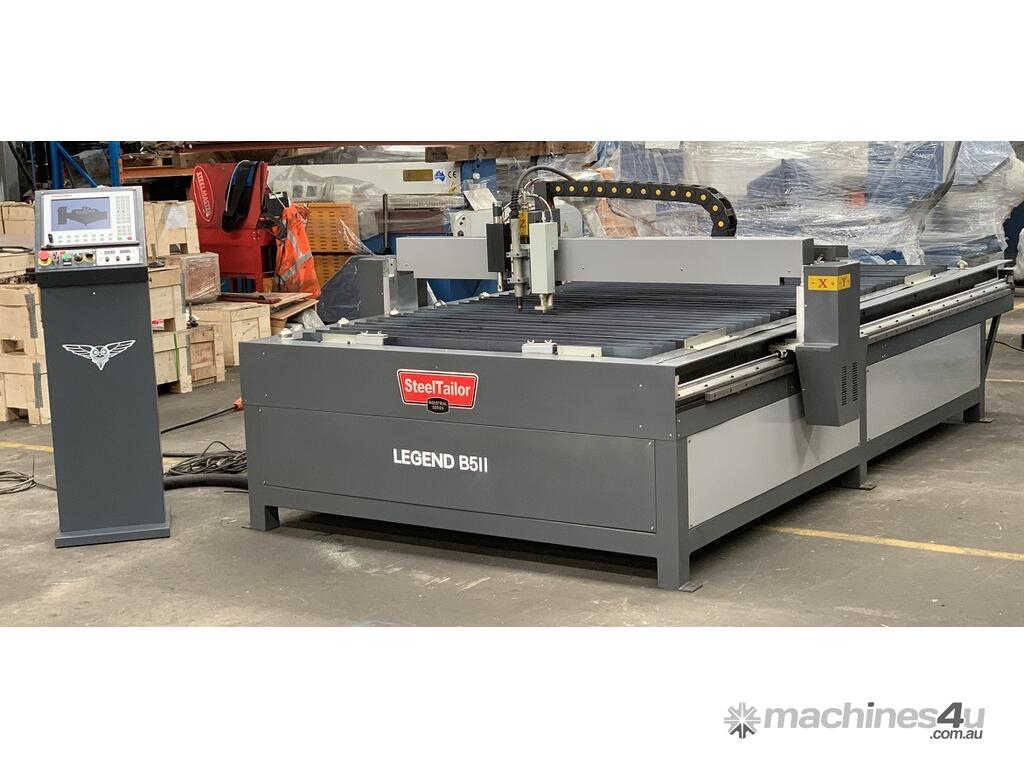

CNC PLASMA - STEELTAILOR LEGEND B52 - 1500mm x 3000mm Table, Etching Head

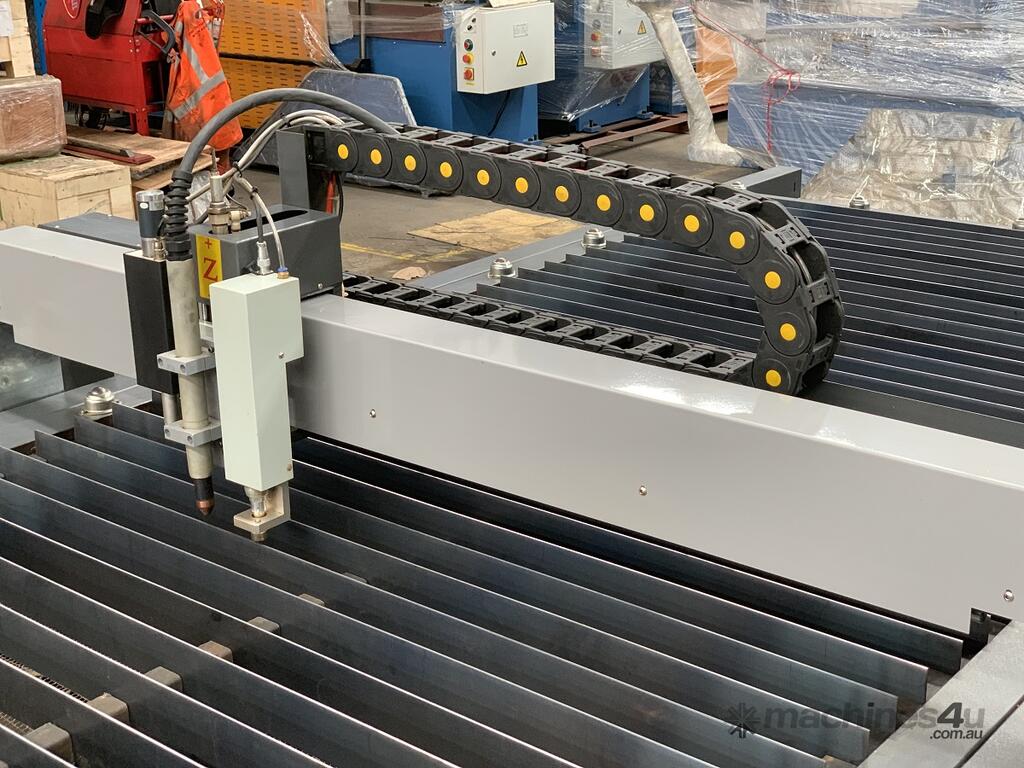

Auto Torch Height Control, Roller Head & Standard Machine Torch Holder. Volt

**USED DEMO MODEL - CURRENTLY ON SPECIAL - $4,000 OFF THE RRP OF $26,850.00 + GST**

Description
If you have been waiting for the all in one plasma - look no further - No wonder its called the LEGEND B52 - One Machine Works As Two! Cut as thin as 0.5mmas thick as 30mm, Three modes of cutting:

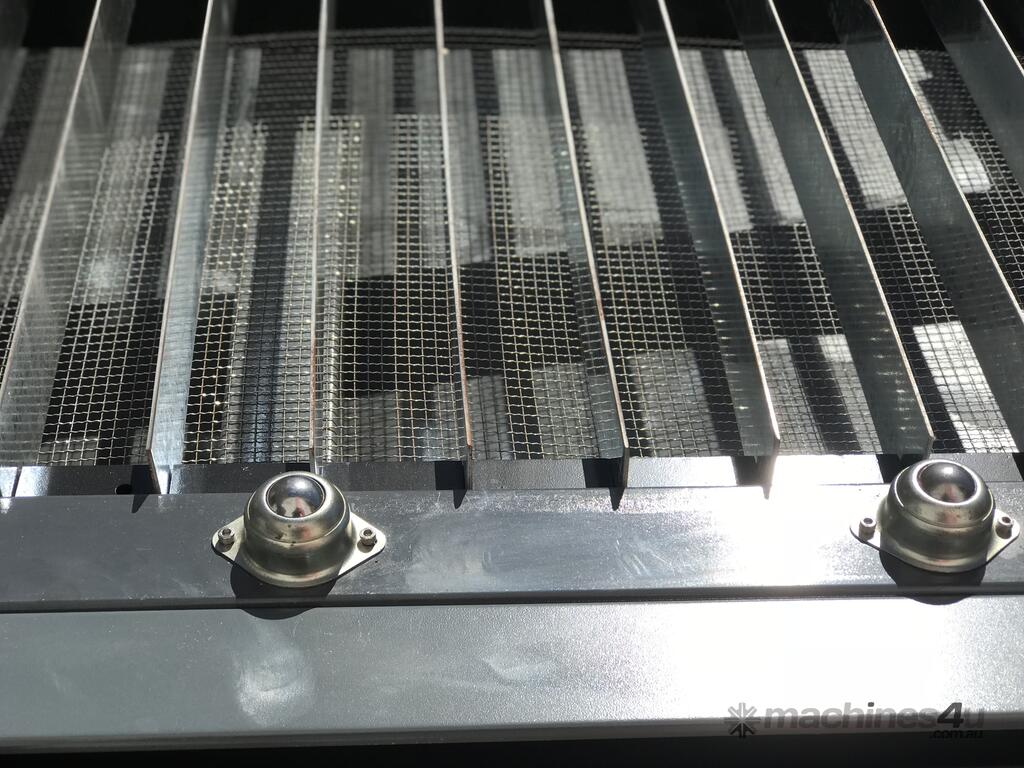

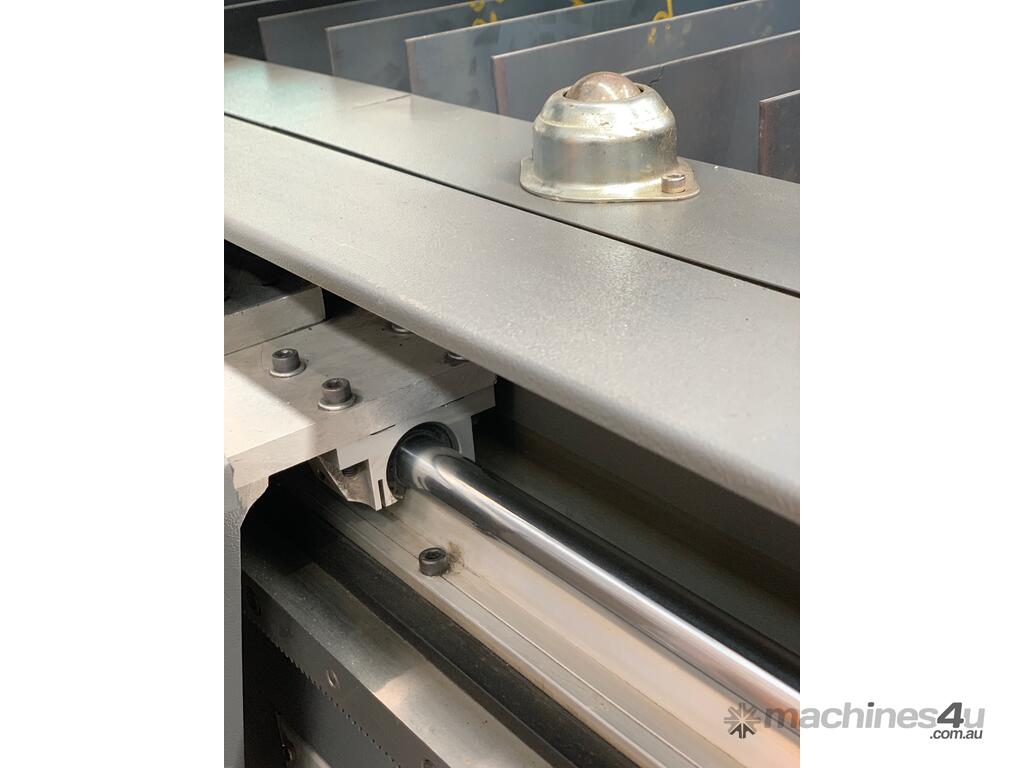

Water jacket, Platen, Arc voltage sensing THC. This Plasma cutting machine table offers ball design, cutting material loading/unloading easier.
Offering Arc voltage sensing THC, fine plasma cutting performance along with simple design, cutting mode switching very easy.
Modular design, only few screws, Legend B52 plasma cutting machine can realize the transfer between thin plate cutting mode and thick plate cutting mode.

Features
? Power Source Plasma added in additional to this based on customers’ cutting requirements

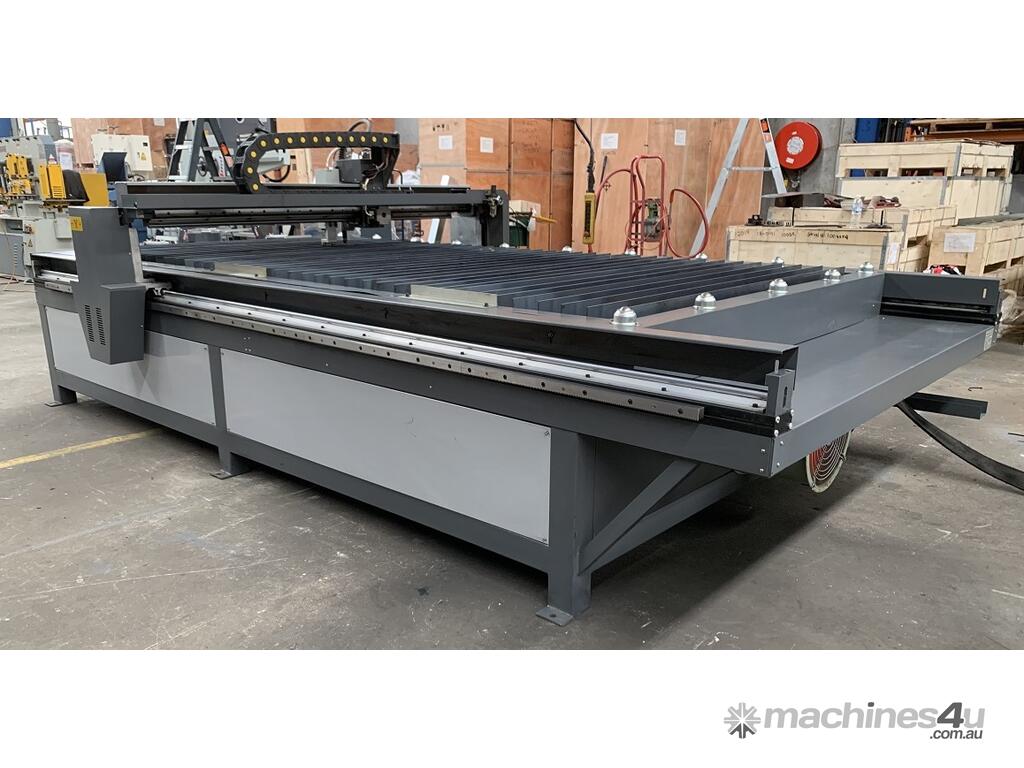

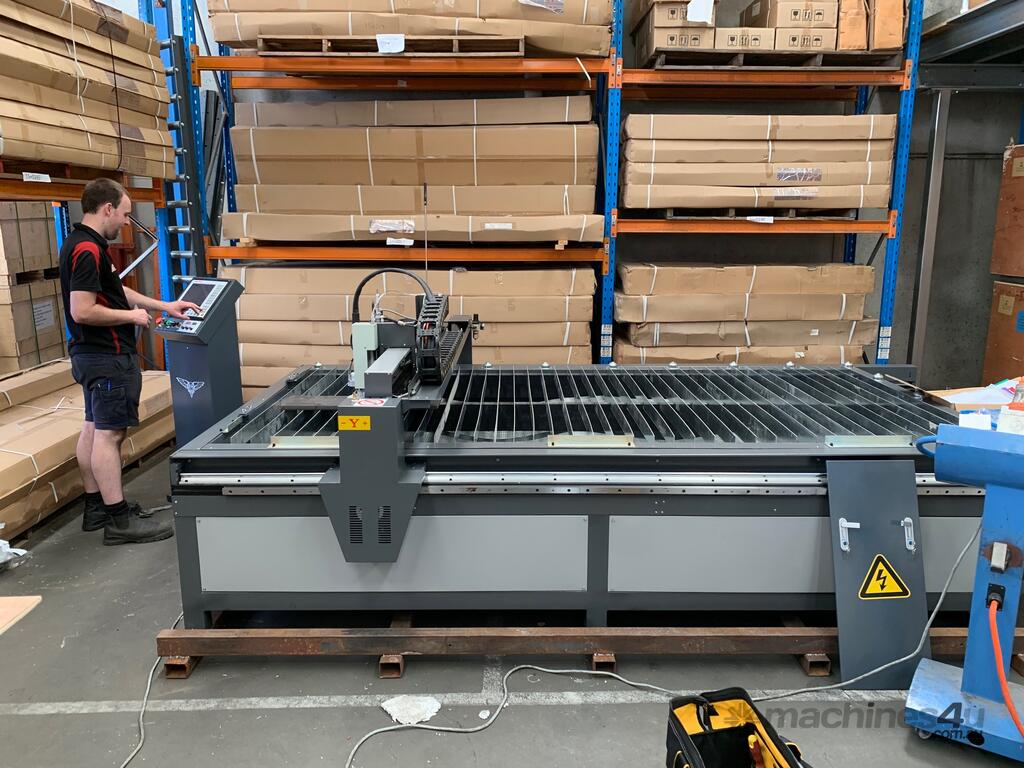

? 1500mm x 3000mm cutting table

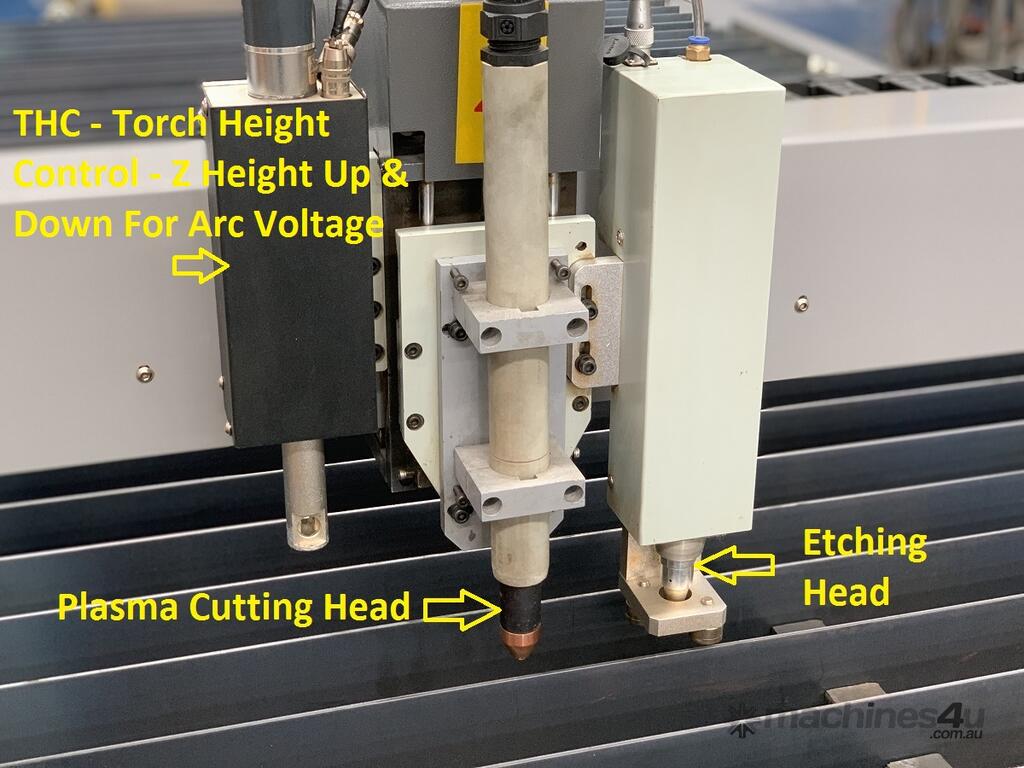

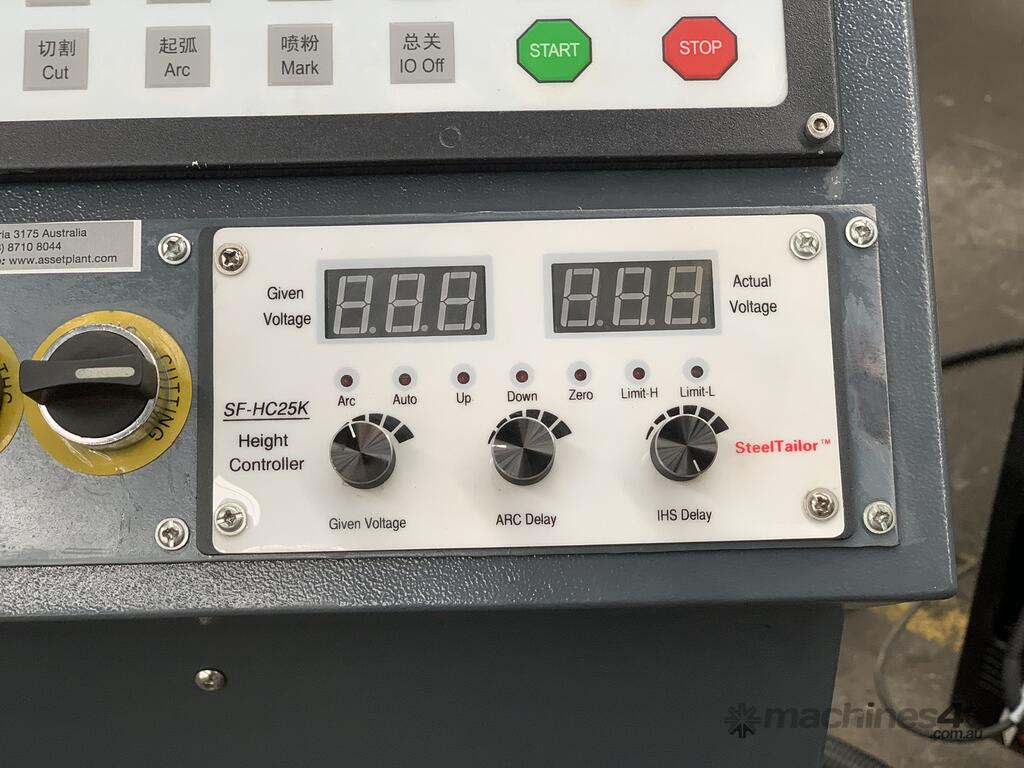

? THC torch height control fitted
? Water jacket supplied also for thin sheet cutting
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? Fast Cam base module supplied standard or optional Fast Cam Professional available at additional price - Additional Info Below.

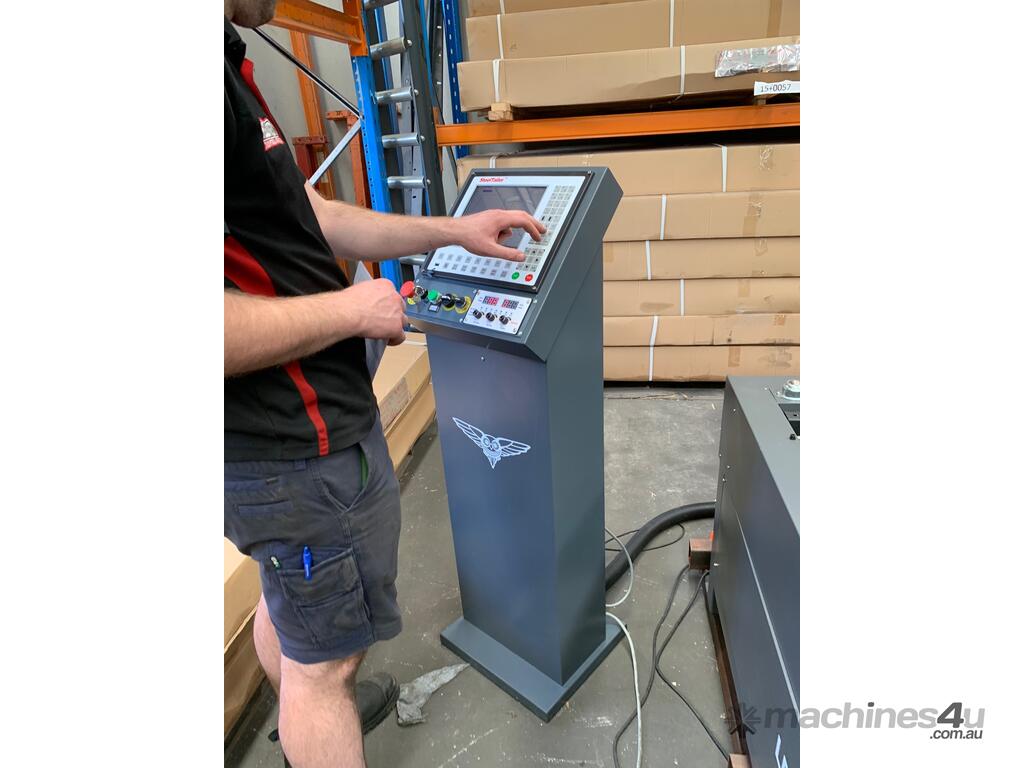

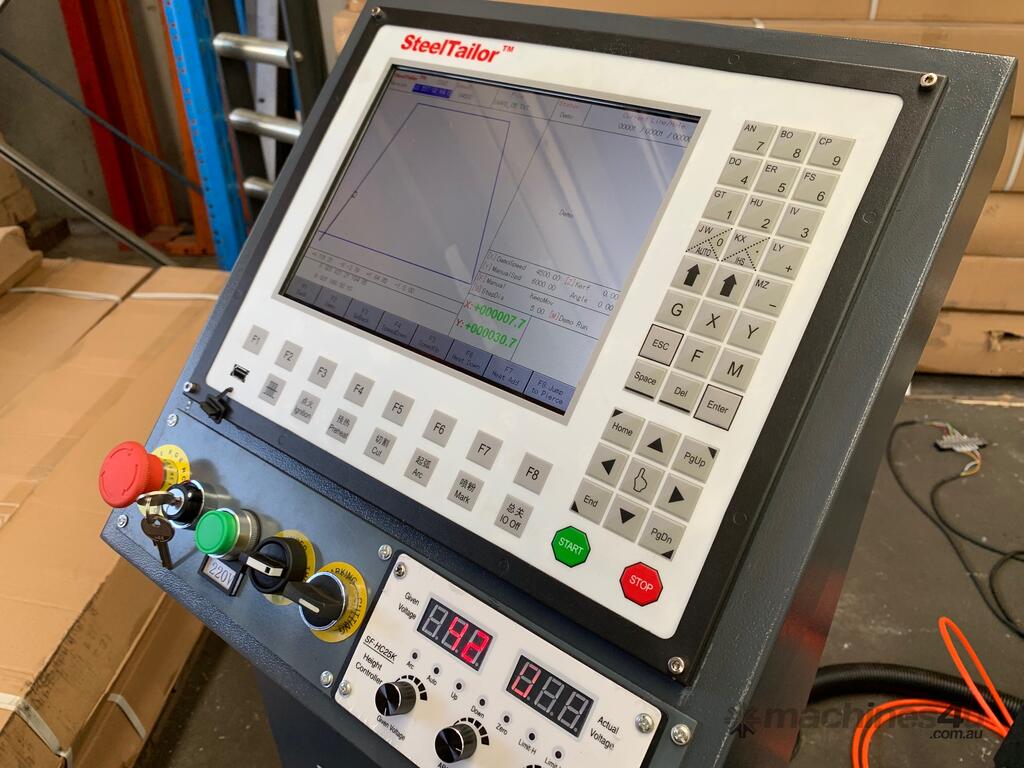

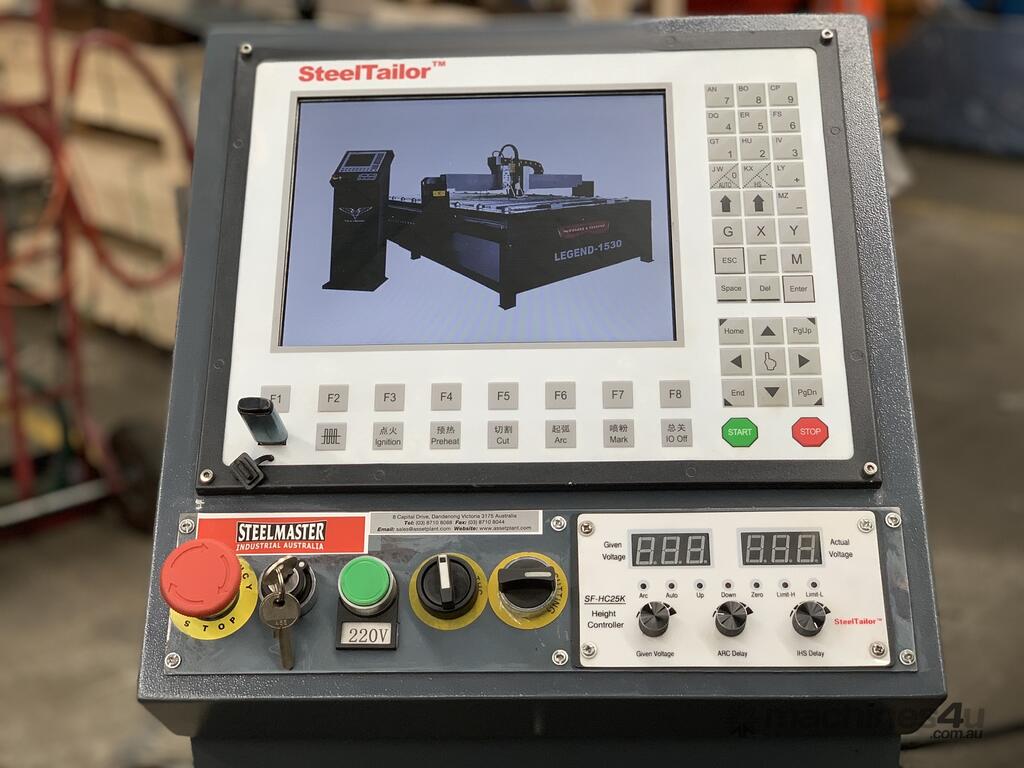

? high quality cnc controller options offering options, accepting G & M codes.

Technical data
? cutting area – 1500mm x 3000mm
? bed area – mm x 3300mm
? Z travel - 80mm
? larger engineered tables available to suit thicker plate
? cutting speed - 0 ~ 6000mm / min
? MAX cutting speed – 12,000mm / min
? accuracy – 0.2mm
? dimensions - 3400mm x 1900mm
? crate shipping dimensions - 3600mm x 2100mm x 1600mm x Kg
? weight – 1680Kg
? power source – volt
? 12 month warranty

Programming

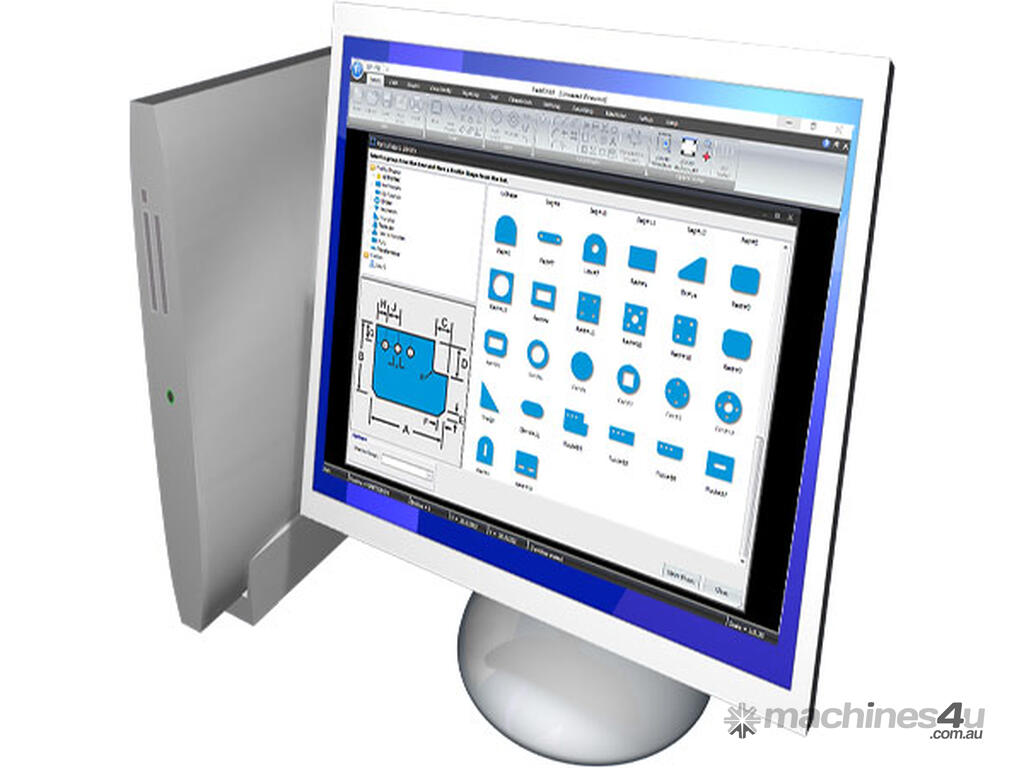

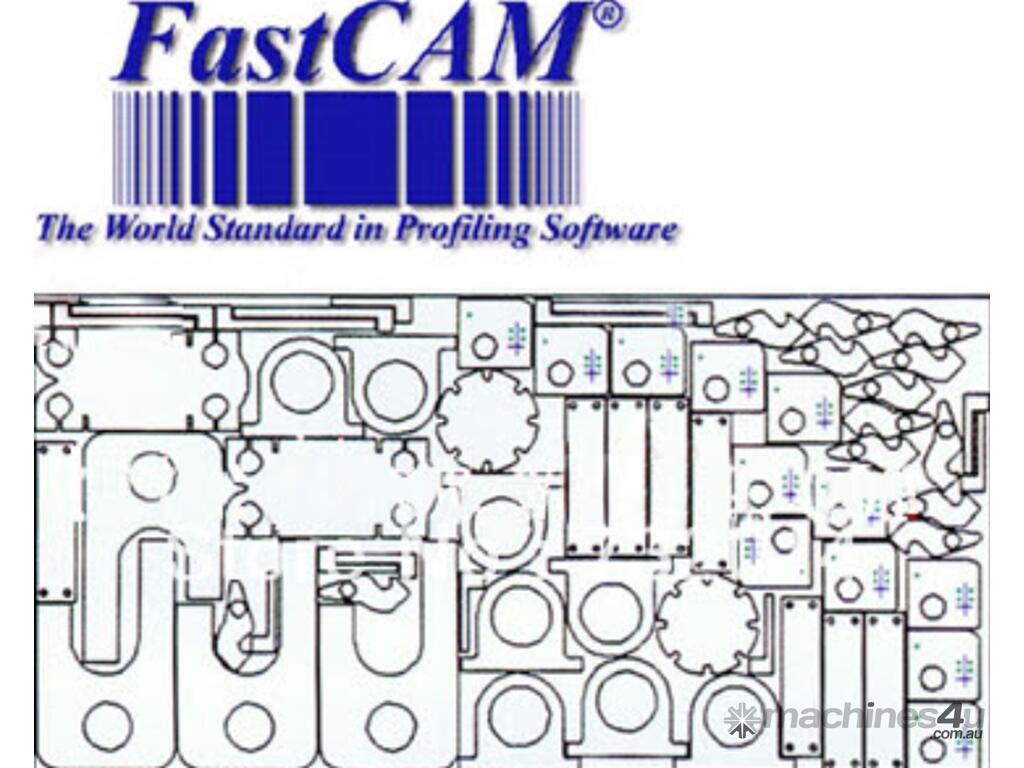

? FAST CAM Professional (drawing & nesting) CNC Cutting software included with machine.
? Click here for Fastcam Overview - response.fastcam/knowledge-base/article/fastcam-information-starter-pack

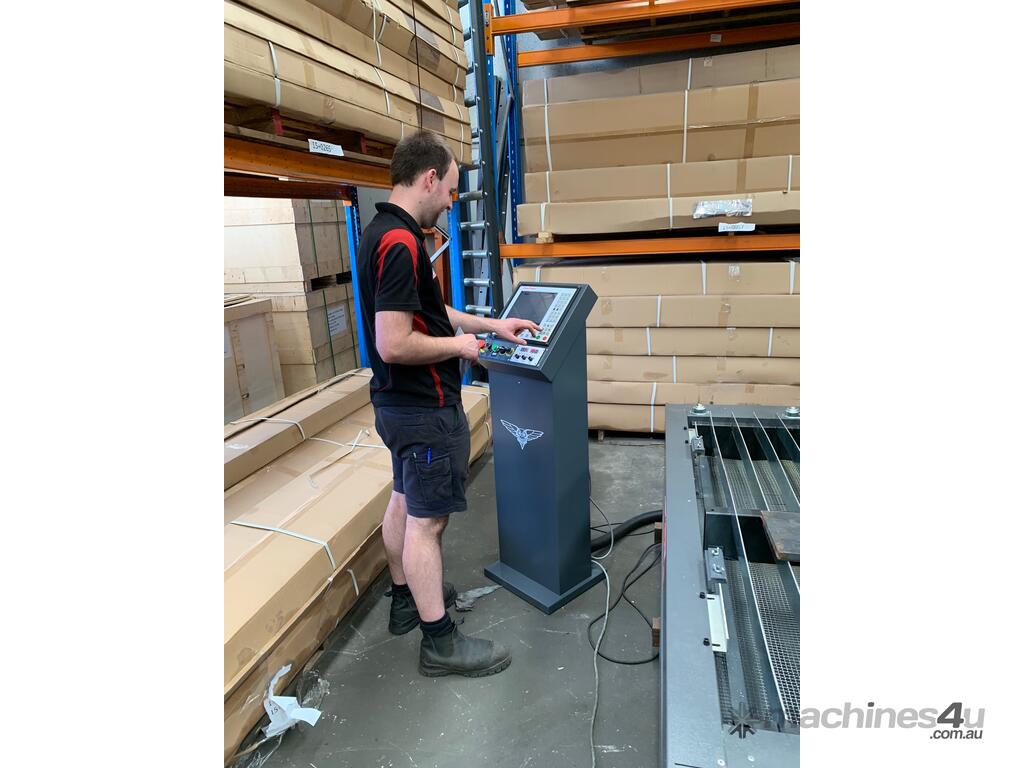

? Machine console is pre loaded with standard industry templates for quick editing and cutting applications
? Program (nesting shapes), drawing is done by computer in office -
? Save G code into USB
? Program is transferred to G code
? Connect USB with machine controller
? Operate controller ( for this step, no computer is needed)
? click this link for preview - ./user/FastCAMService
? FastCAM Information Starter pack:response.fastcam/knowledge-base/article/fastcam-information-starter-pack

HYPERTHERM PMX Selection
? PMX-45 Pierce Off 12mm / Max Cutting – 16mm ~ 22mm
? PMX-65 Pierce Off 16mm / Max Cutting – 19mm ~ 25mm
? PMX-85 Pierce Off 19mm / Max Cutting – 25mm ~ 32mm
? PMX-105 Pierce Off 22mm / Max Cutting – 32mm ~ 38mm
? PMX-125 Pierce Off 25mm / Max Cutting – 38mm ~ 44mm

Services required to be provided by customer
? electrical connection.
? compressed air.
? air dryer, filter and air micron filters highly suggested - Asset stock codes for these are 25-0258, 25+0259 & 25+0258

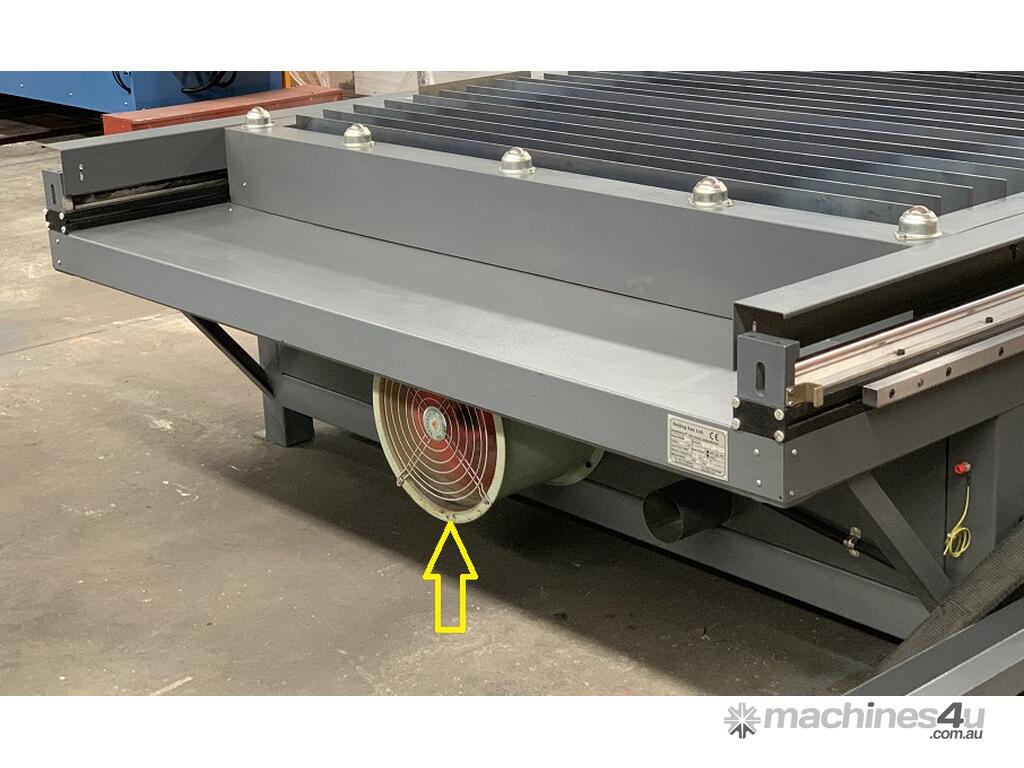

? fume extraction provisions.
? Asset can offer you the above additional items on request.

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!

Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery

118 Logis Boulevard Dandenong South VIC 3175
