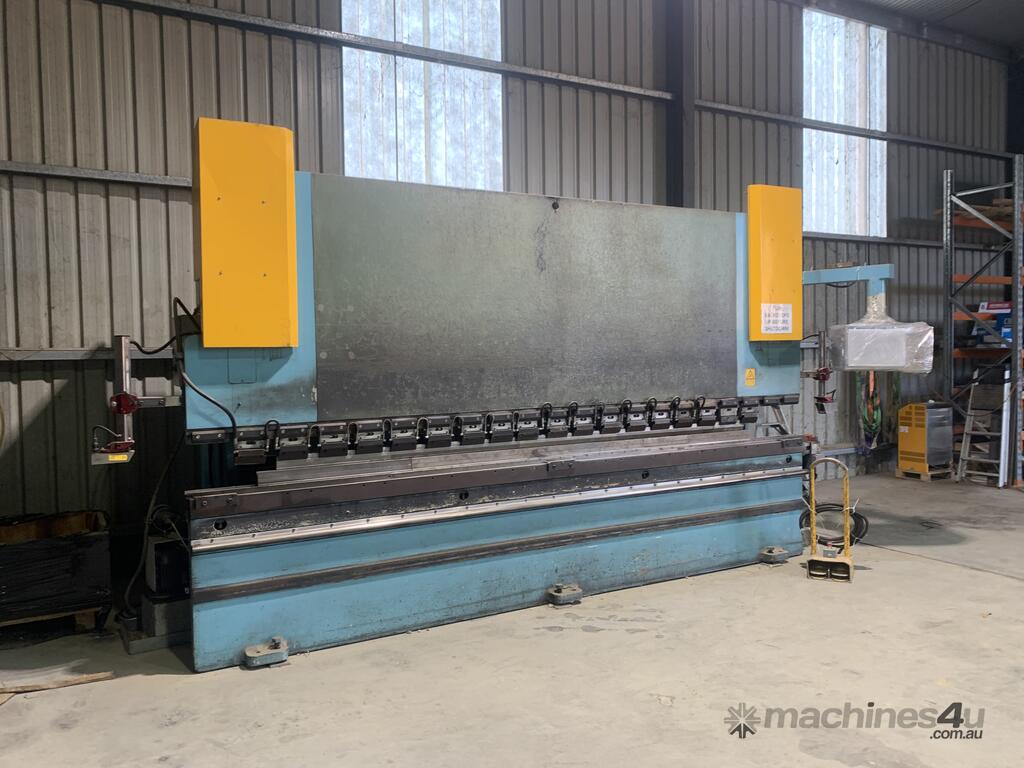

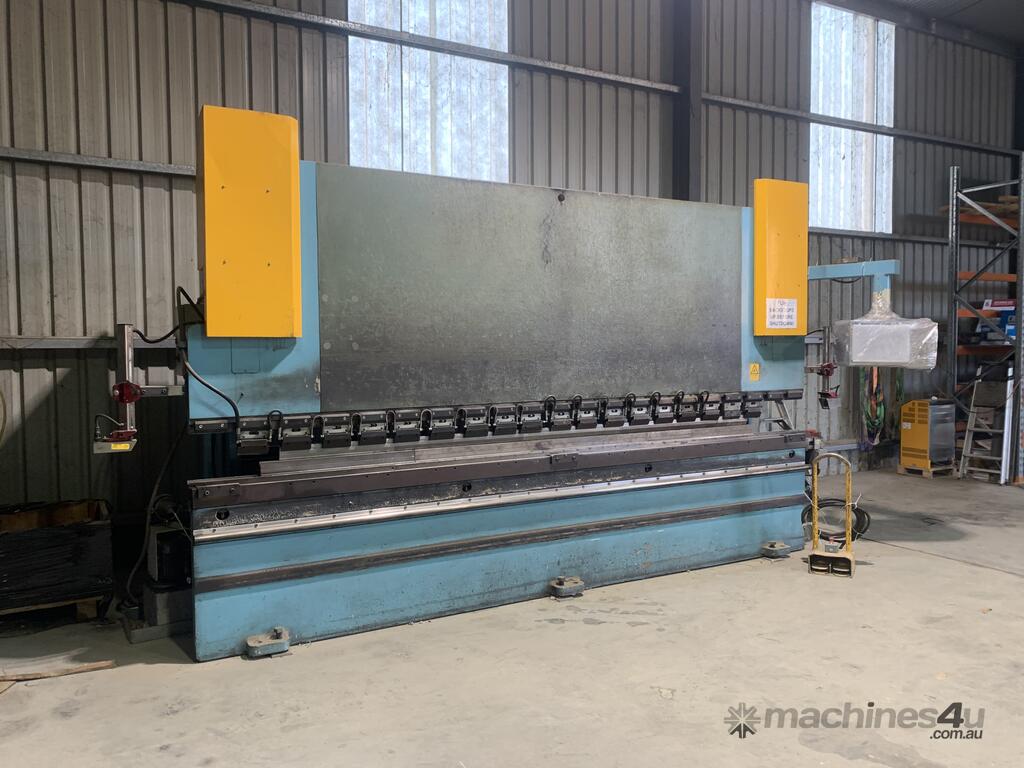

Used Durma CNC Pressbrake 4300 x 160

One Used Durma CNC Hydraulic Pressbrake HAP 4300-160
Capacity: 4300 mm x 160 Tonnes
CNC 5 Axis – Y1, Y2, X, R & Crowning

• Heavy duty machine construction from high quality steel
• Twin cylinder CNC synchronised hydraulic down-stroking
• Cybelec DNC80 multi axis CNC controller with 2D colour graphical programming and display for Y1, Y2 levelling and ram depth control
• Bend angle programming and correction, depth accuracy within 0.01 mm
• Linear scales mounted on independent side frames (deflection free)

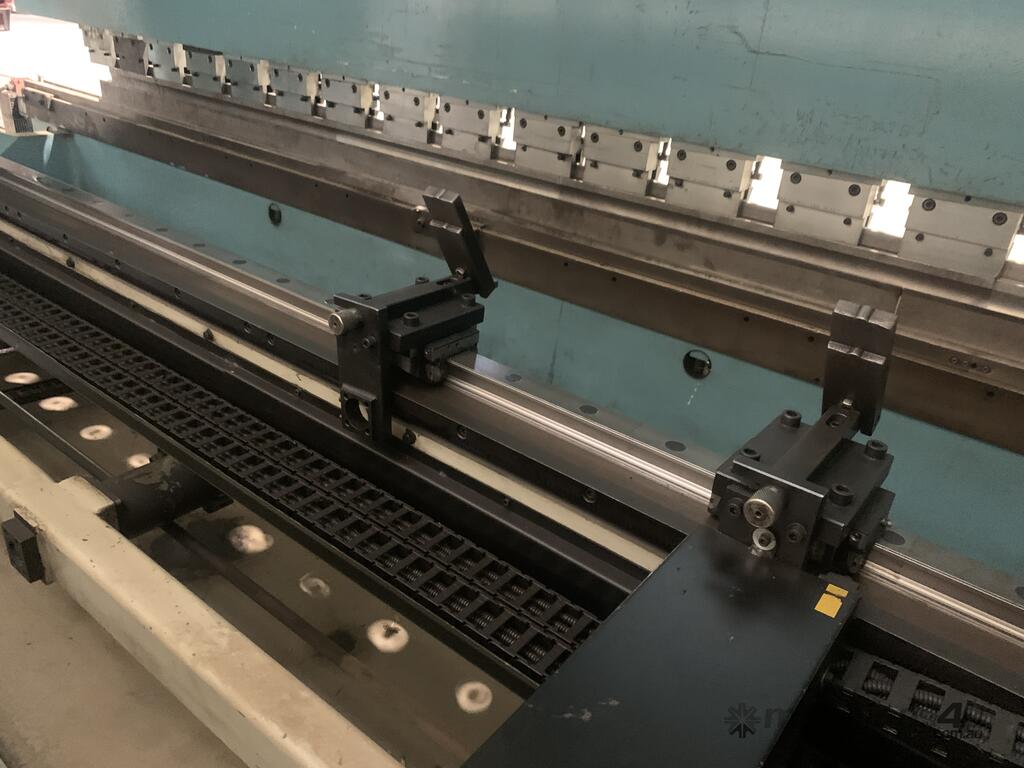

• CNC X & R axis back gauge with recirculating ball screws to 600 mm, AC motor driven complete with 2 (two) heavy duty flip type gauge fingers
• CNC motorised Wila deflection compensation system in table
• Programmable fast approach / working speed change over point
• Control station with dual foot pedal
• 2 x front support arms x 500 mm, running upon bearing rail for quick adjustment
• Low noise pump and hydraulic system utilizing Hoerbiger equipment

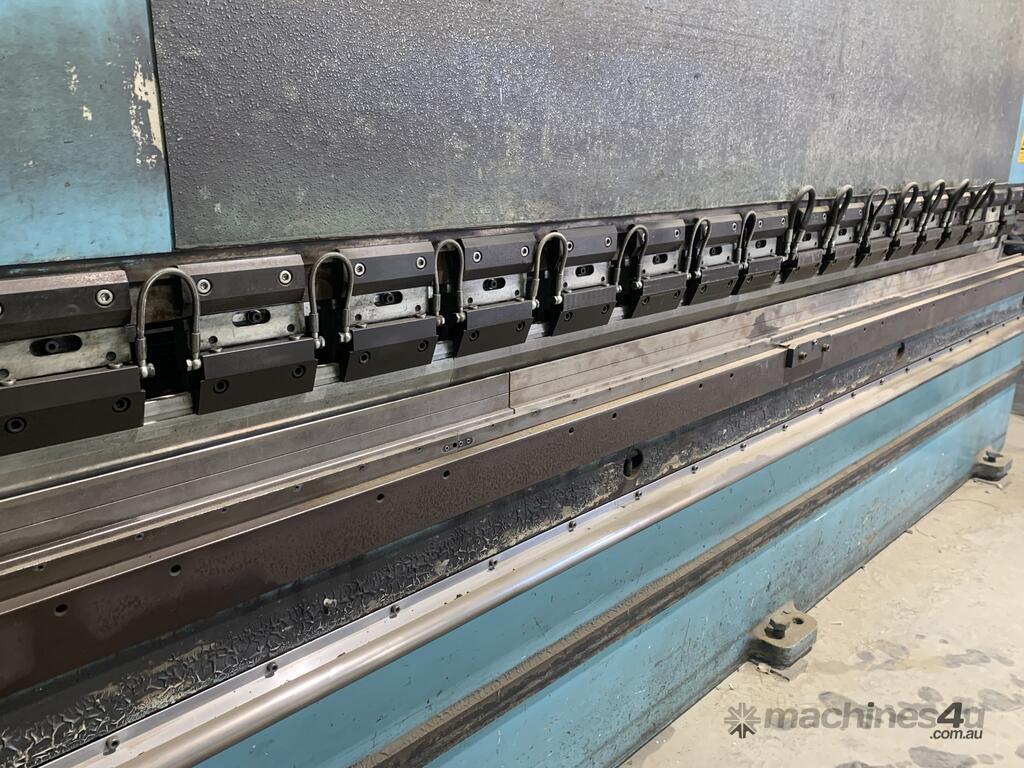

• Euro Style adjustable top tool holders with Hydraulic quick release clamping
• Top Tools & Lower Dies included
• Full tank of hydraulic oil and Operating manual
• Machine guarding:

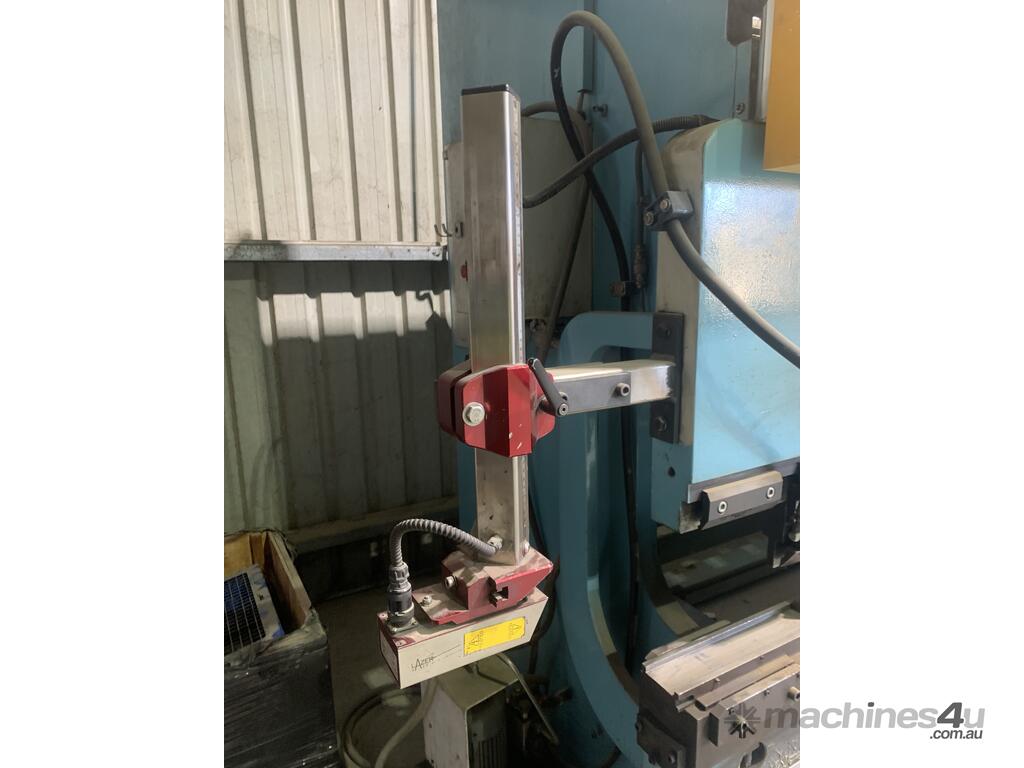

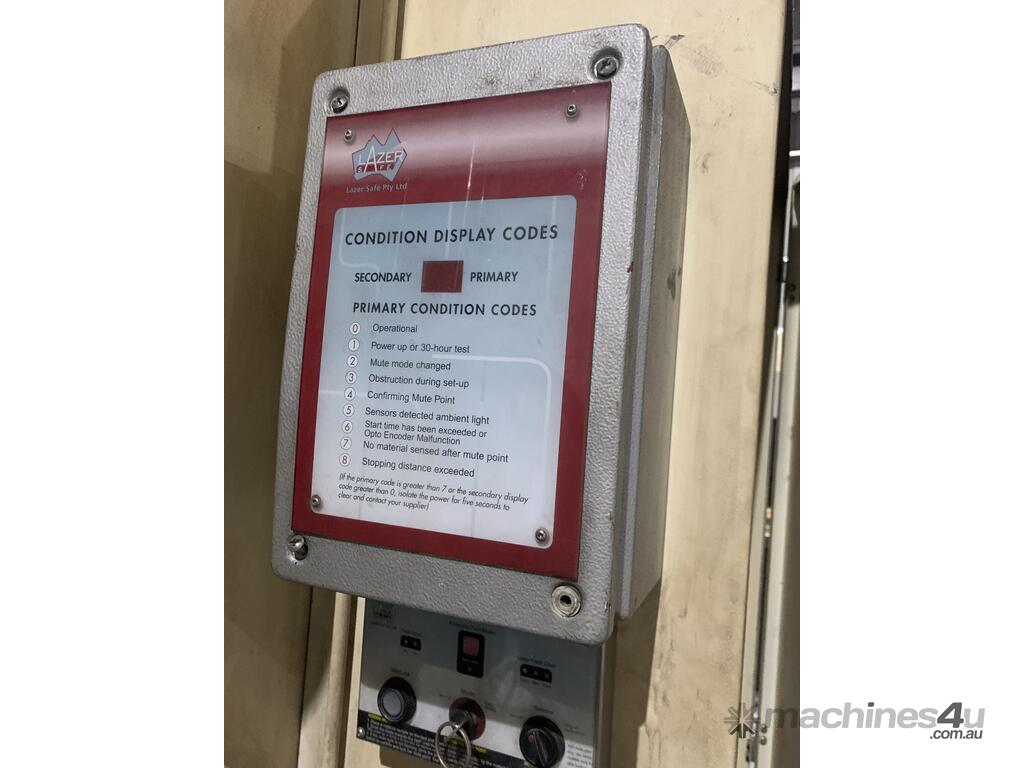

Laser style guards (Lasersafe) mounted upon top beam
