Used Elumatec DG244 Double Mitre Saw, 6.0M E580

USED Elumatec DG244 Double Mitre Saw, 6.0m Version - Single Axis

Installed 2019
550mm Blades
6.0m Max Cut
Programmable Movement of Travelling Head
Tilt and Pivot of Saws from Controller
Profile Lifting Bars on Each Head
Short Stop on Fixed Head
Trolley for Profile Support
1.5m Roller Conveyor for Fixed Head

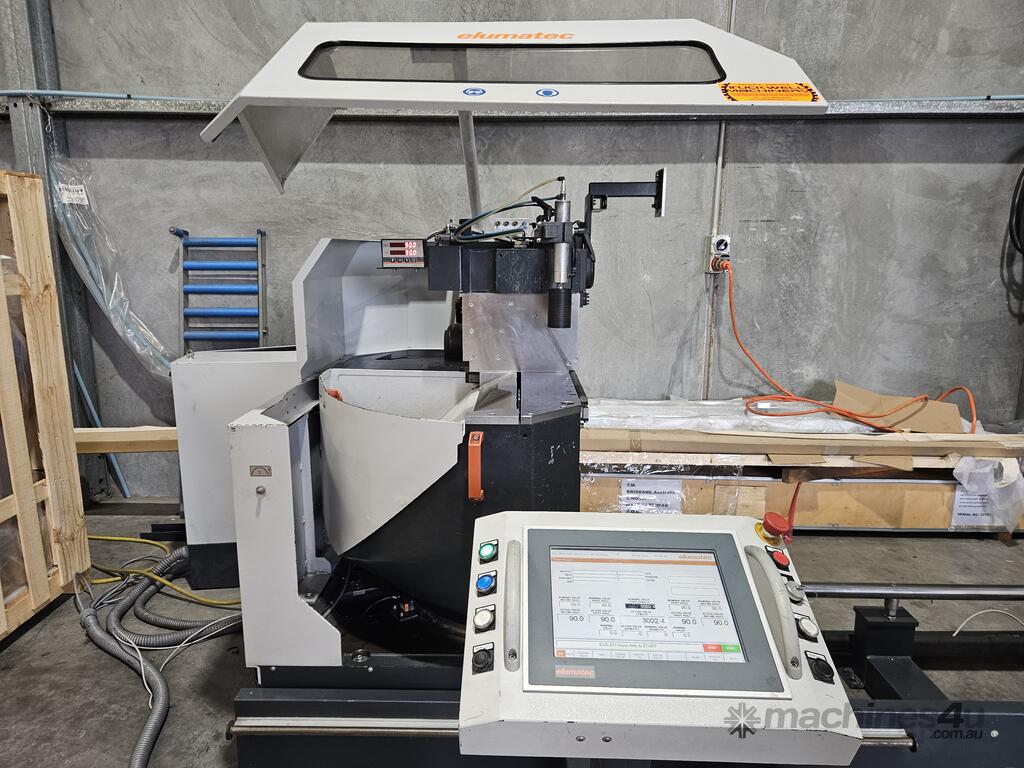

E580 Controller, Windows powered by Beckhoff

Tech Specs:
Minimum cutting length at 90° 375 mm
Minimum cutting length tilted at 45° 375 mm
Pivoting range inwards, pneumatically, 90° - 45°
(manually up to 22.5° inwards and up to 140° outwards with digital display)
Tilting range inwards, pneumatically, 90° - 45°
(intermediate angles manually adjustable with digital read-out display and turret stop)

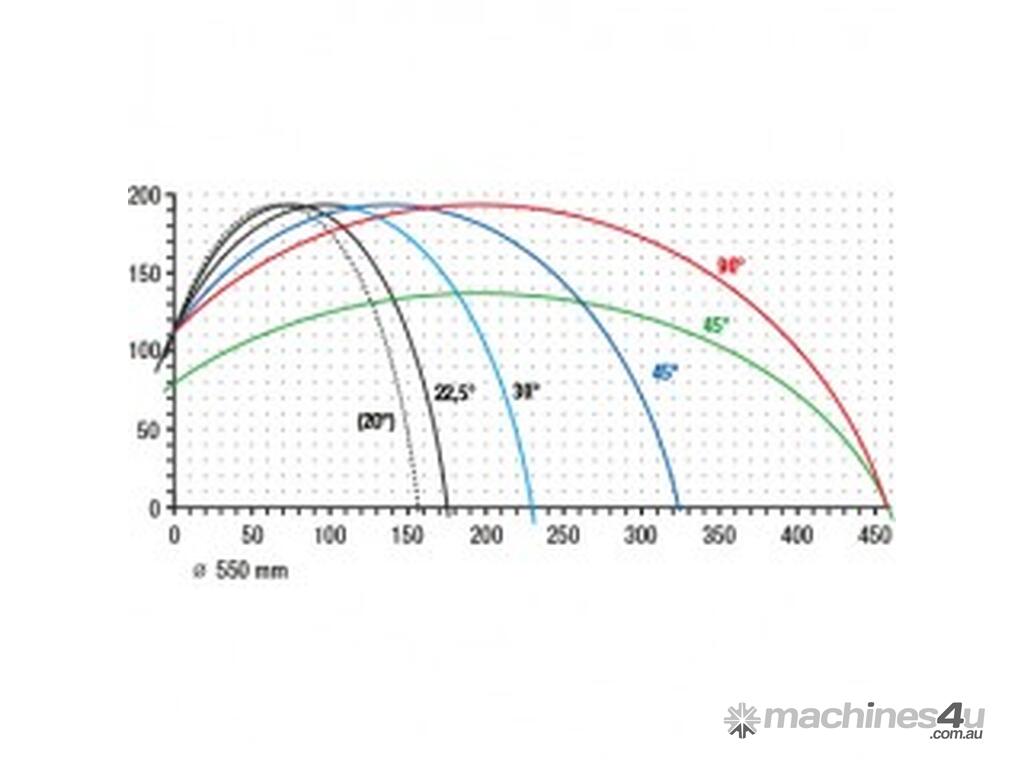

For cutting range, see cutting diagram
Saw blade diameter 550 mm
Saw blade speed 2,250 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 40 l without spraying, 64 l with spraying

Machine will be serviced and inspected prior to sale.

Made in Germany
